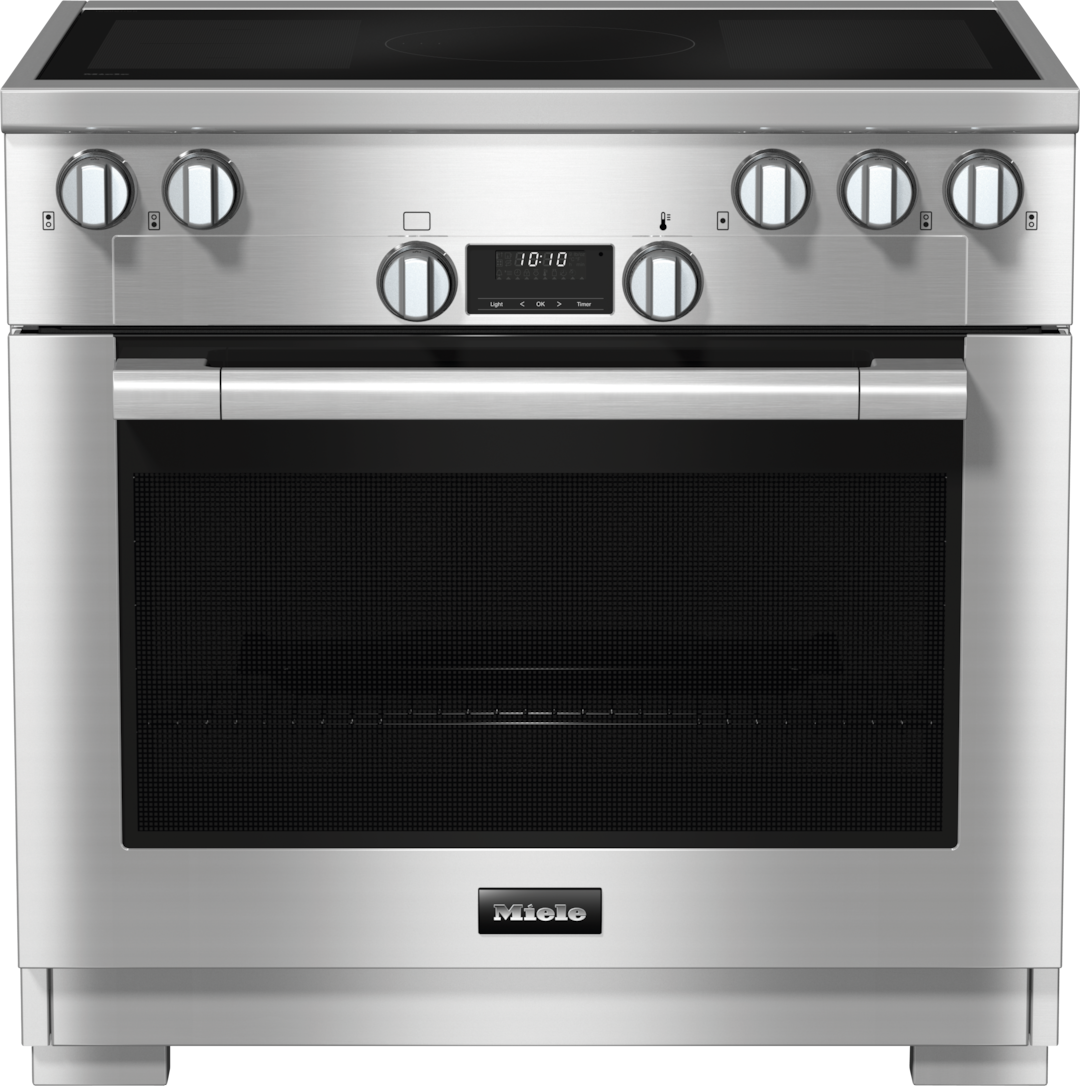

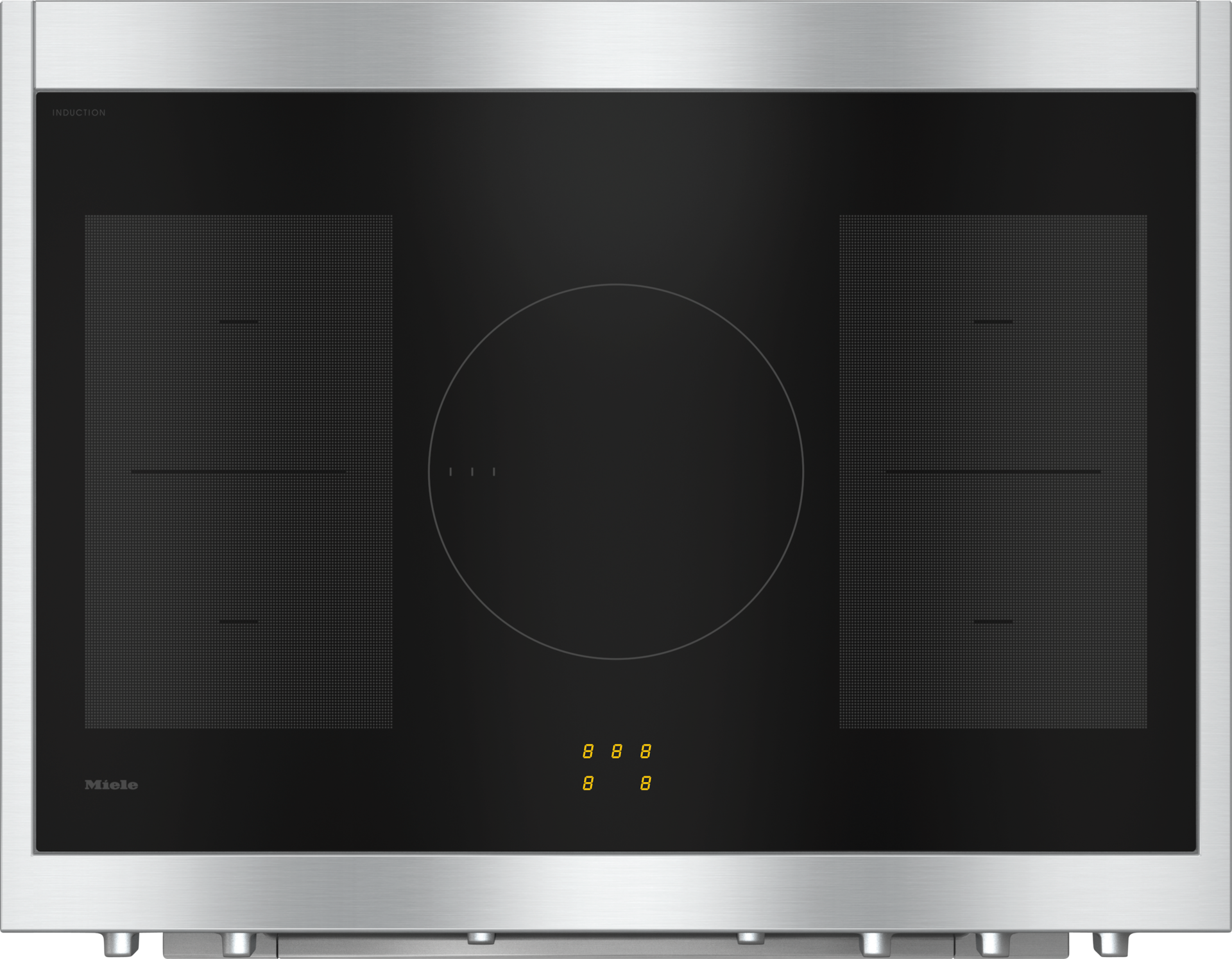

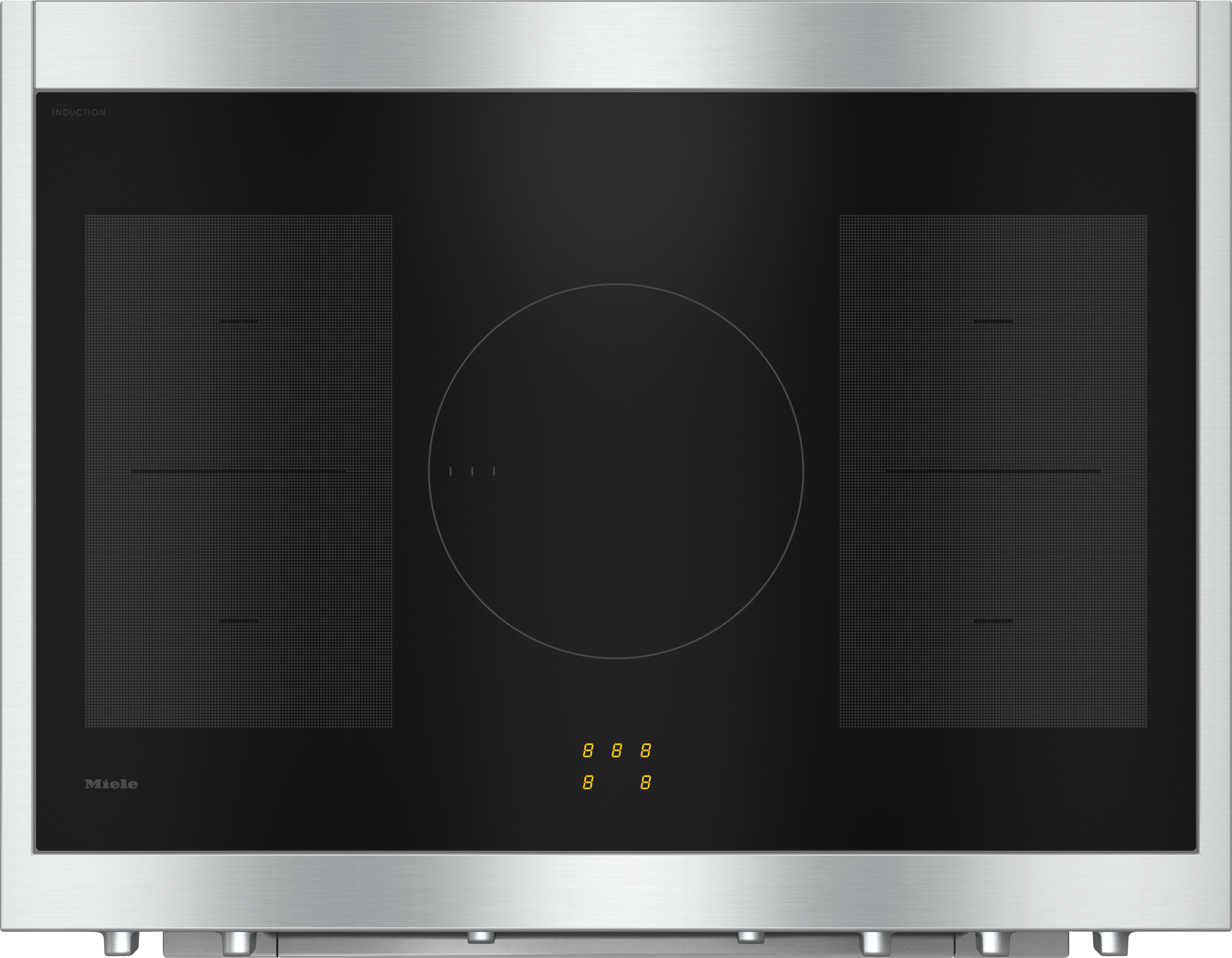

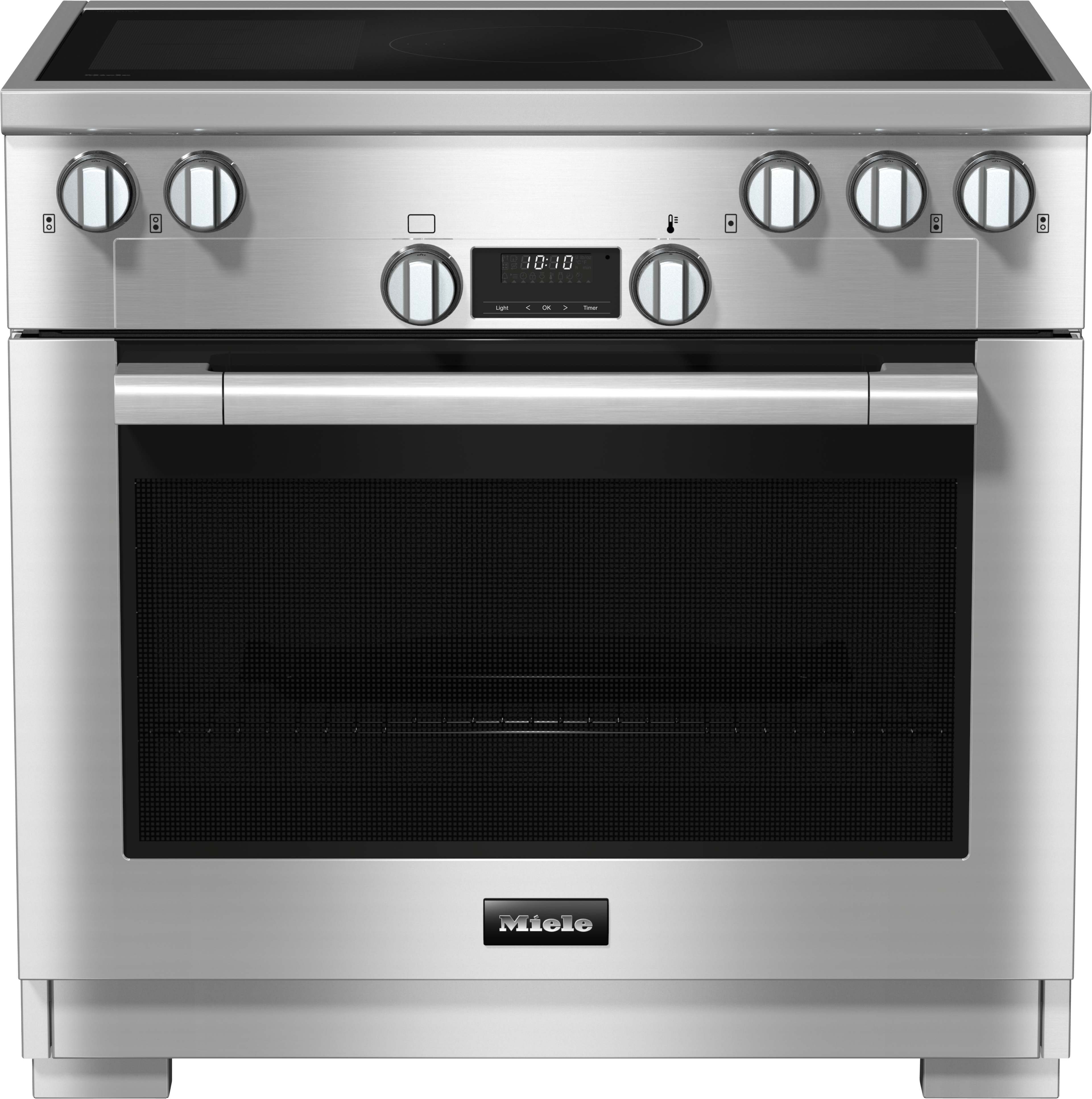

36" Range

HR 1432-3 I

Fully electric model with induction cooktop and DirectSelect controls

sale price$10,499.00




Product details

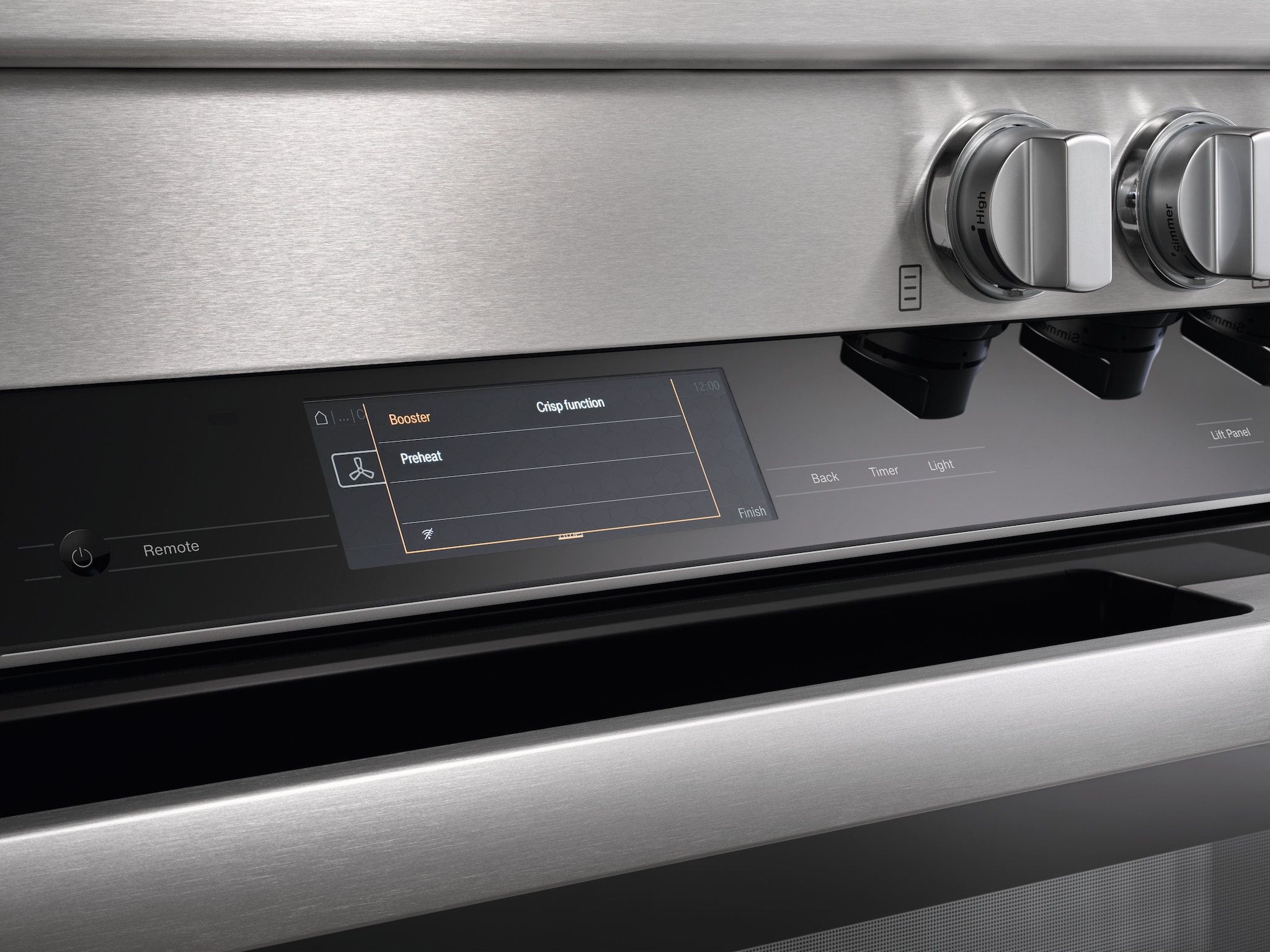

  • Turn dial operation with display – DirectSelect
  • Fast heating time and even heat distribution –
    TwinPower
  • Minimal cleaning effort -
    Self-cleaning
  • Easy opening & closing - noise and vibration absorbers
  • Manufactured with great care by
  • Safety information

Product data sheet

Electric/Induction

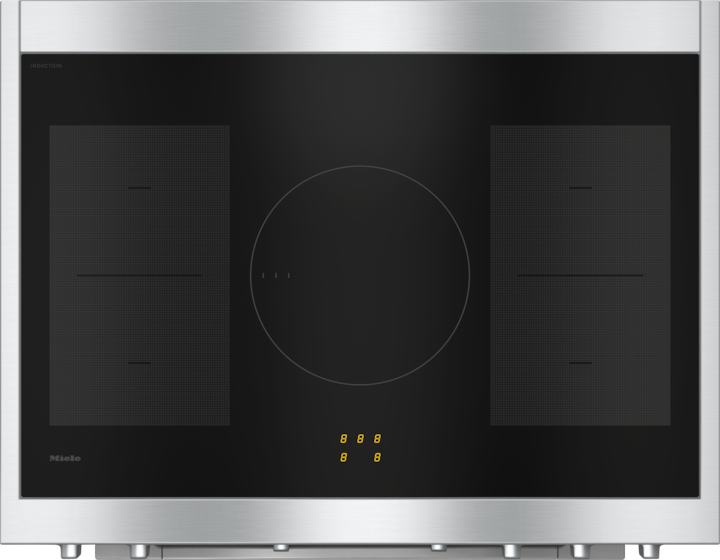

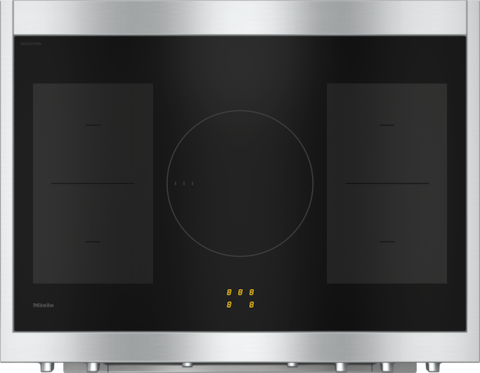

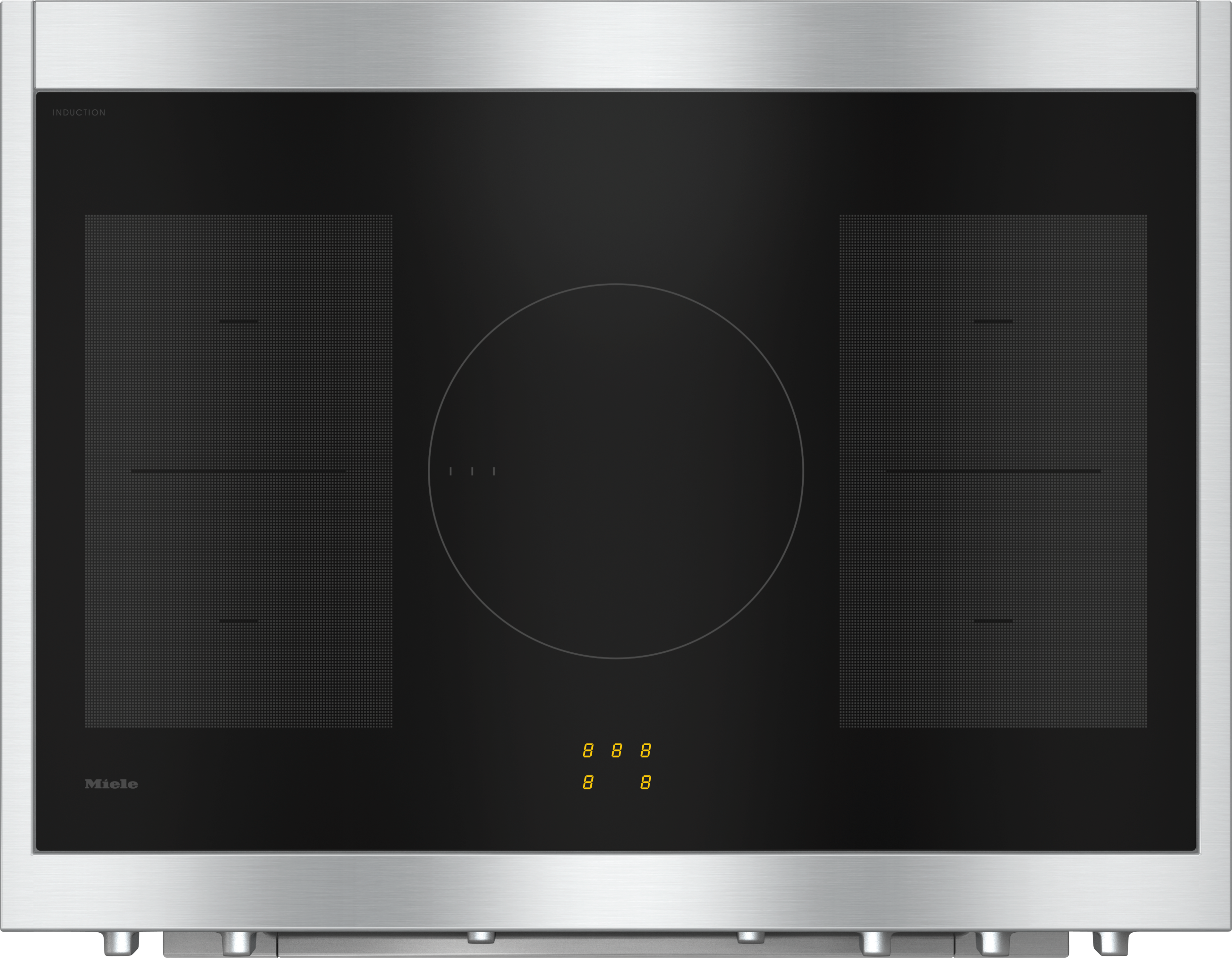

Cooktop Induction
Range
Appliance width in inches 36
Maxi Broil
Booster
Convection Bake
Convection Roast
Surround
Bake
Convection Roast
Appliance color Clean Touch Steel
Oven display EasyControl
Heating type Induction
Number of induction cooking zones 5
Power level display
Number of vario cooking zones 1 ring
PowerFlex cooking zones 4
PowerFlex cooking areas 2
Residual heat indicator

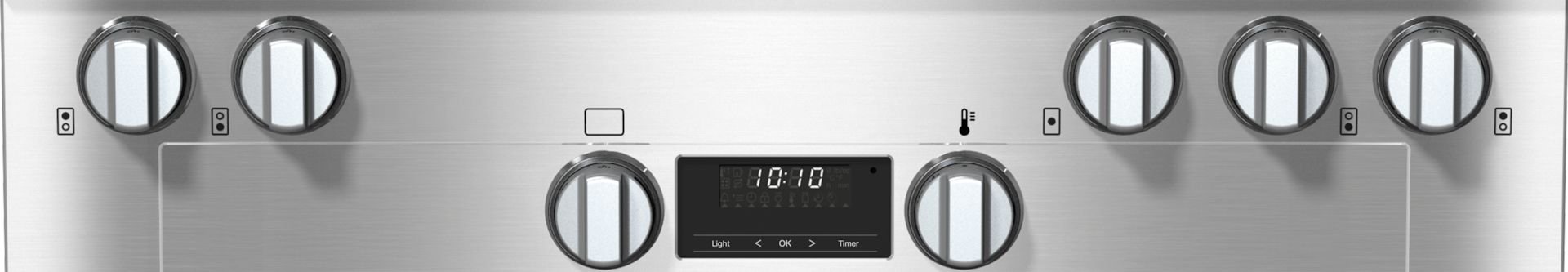

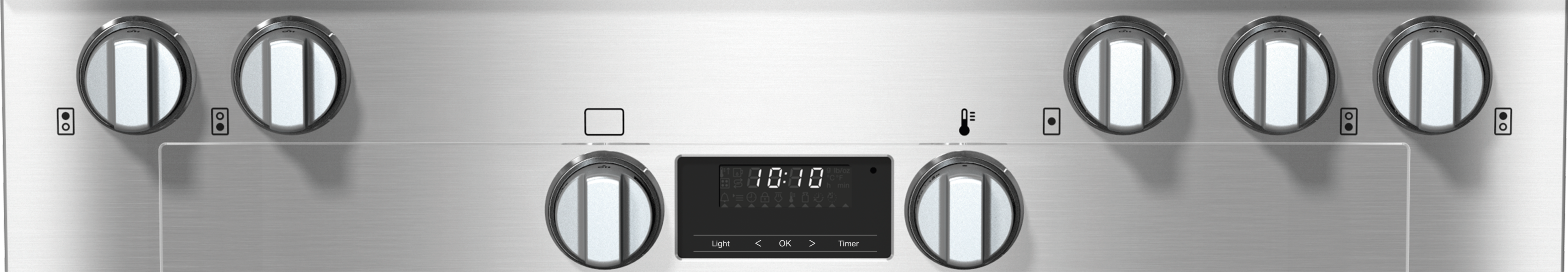

Precision knobs
Time of day display
Minute minder
Automatic switch-off
Programmable cooking time
Favorites No
Individual settings
CleanGlass door
Door contact switch
SoftClose oven door/ SoftOpen
Oven cavity volume in cu. ft. (l) 5.3 (150) ft³ (l)
Number of oven shelf levels 6
No. of halogen lamps double
TwinPower hot air fans
Rapid PreHeat
Stainless-steel front with partial Clean Touch Steel finish
Oven with self-cleaning program
Cooktop surface Ceramic surface
Appliance cooling system with cool touch front
Safety cut-out
System lock
Door contact switch
Door lock during self cleaning
Appliance width in in.(mm) 36 1/8 (915)
Appliance height min in in.(mm) 35 5/8 (902)
Appliance height max in in.(mm) 37 1/8 (940)
Appliance depth in in. (depth) with bullnose 27 3/4 (702)
Power Rating in V 120
Frequency in Hz 60
Fuse rating in A 50
Number of phases 1
Self Clean ready baking and roasting rack
1
Self clean ready baking and roasting racks with rail system
1
Side racks self clean ready
1
EAN 4002516842903

What's included

Self Clean ready baking and roasting rack (1)
Self clean ready baking and roasting racks with rail system (1)
Side racks self clean ready (1)

Maintenance

Treat yourself to minimum effort
Self Clean Oven and Self Clean Ready Accessories

Less cleaning effort: The grease residue is broken down, helping to keep the oven and cooking accessories clean.


Protection for immaculate stainless steel surfaces
Clean Touch Steel™Front

No fingerprints on stainless steel: surface has special finish which keeps clean without special cleaning agents.


User convenience

Appliance configuration according to your wishes
Individual settings

You decide: Language, buzzer tones, display brightness and much more can be individually adjusted.


Leave time management to your oven
Timer Function

Always on time: The start time, finish time and duration of the cooking process are easy to select.


Everything is well thought through
Soft Open and Soft Close

The Range oven door effortlessly opens and closes, preventing the door from shutting or slamming.


Oven cabinets

Reaches the desired temperature very quickly
TwinPower Convection Blowers and Power Convection Blower

Quickly ready for use: 2 hot air blowers heat the oven very rapidly with optimum hot air distribution.


Your guarantee for perfect results
Rapid PreHeat

The All Gas Range allows for constant airflow resulting in quick preheat times, powerful bake and broil elements.


Safety

Pleasantly cool surfaces
Cooling System and Cool-Touch Fronts

Maximum protection: All surfaces on and around the appliance remain cool and can be touched safely.


Automatic switch-off for maximum safety
Safety functions

Your guardian angel: If you forget to switch off the appliance, the safety switch-off steps in for you.


Operating modes

Surround

Multi-purpose, classic function: perfect results on all traditional baking and roasting dishes.


Convection Roast

Crispy on the outside, succulent inside: Ideal for chicken, duck, joints, rolled meat and many other meat dishes.


Bake

Individual requirements: For dishes which need to be cooked in a bain marie or browned from below.


Maxi Broil

Versatile function for indoors: For grilling large quantities of steak, sausages, kebabs, etc.


Convection Bake

Perfectly soft and light: ideal for gentle baking on up to two levels.


Convection Roast

Perfectly soft and light: ideal for gentle roasting on up to two levels.


Downloads

Warranty conditions
PDF
Downloads
Product sheet
PDF
Downloads
Operating and Installation instructions
PDF
Downloads
Operating and Installation instructions
PDF
Downloads
Operating and Installation instructions
PDF
Downloads
Operating and Installation instructions
PDF
Downloads
dwg
ZIP
Downloads
rfa
ZIP
Downloads
ifc
ZIP
Downloads
rvt
ZIP
Downloads
fbx
ZIP
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts.

https://media.miele.com/images/2000021/200002164/20000216471.png
Descriptions

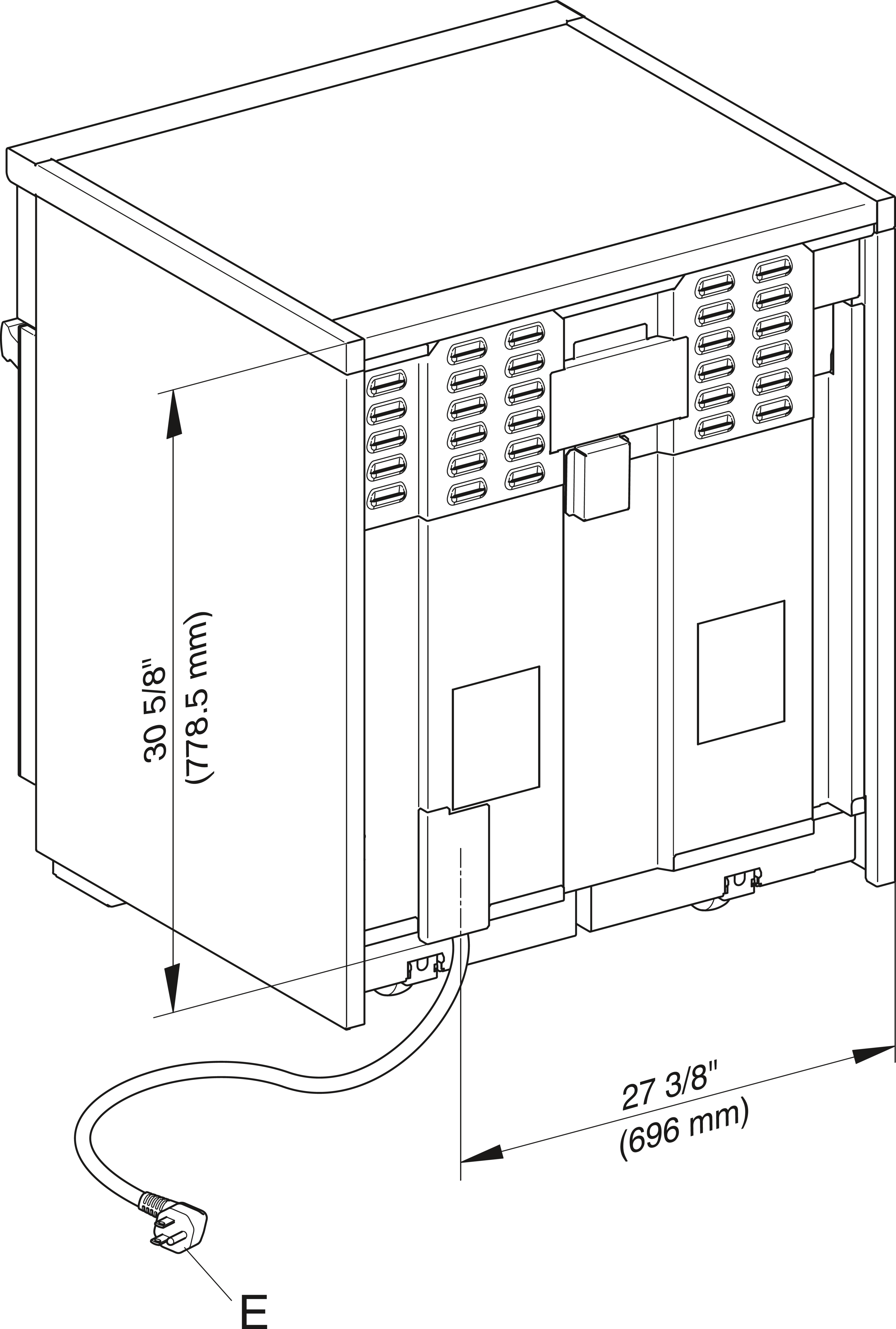

HR1432-3I (installation drawing)
E = Electric connection
Downloads
https://media.miele.com/images/2000021/200002164/20000216473.png
Descriptions

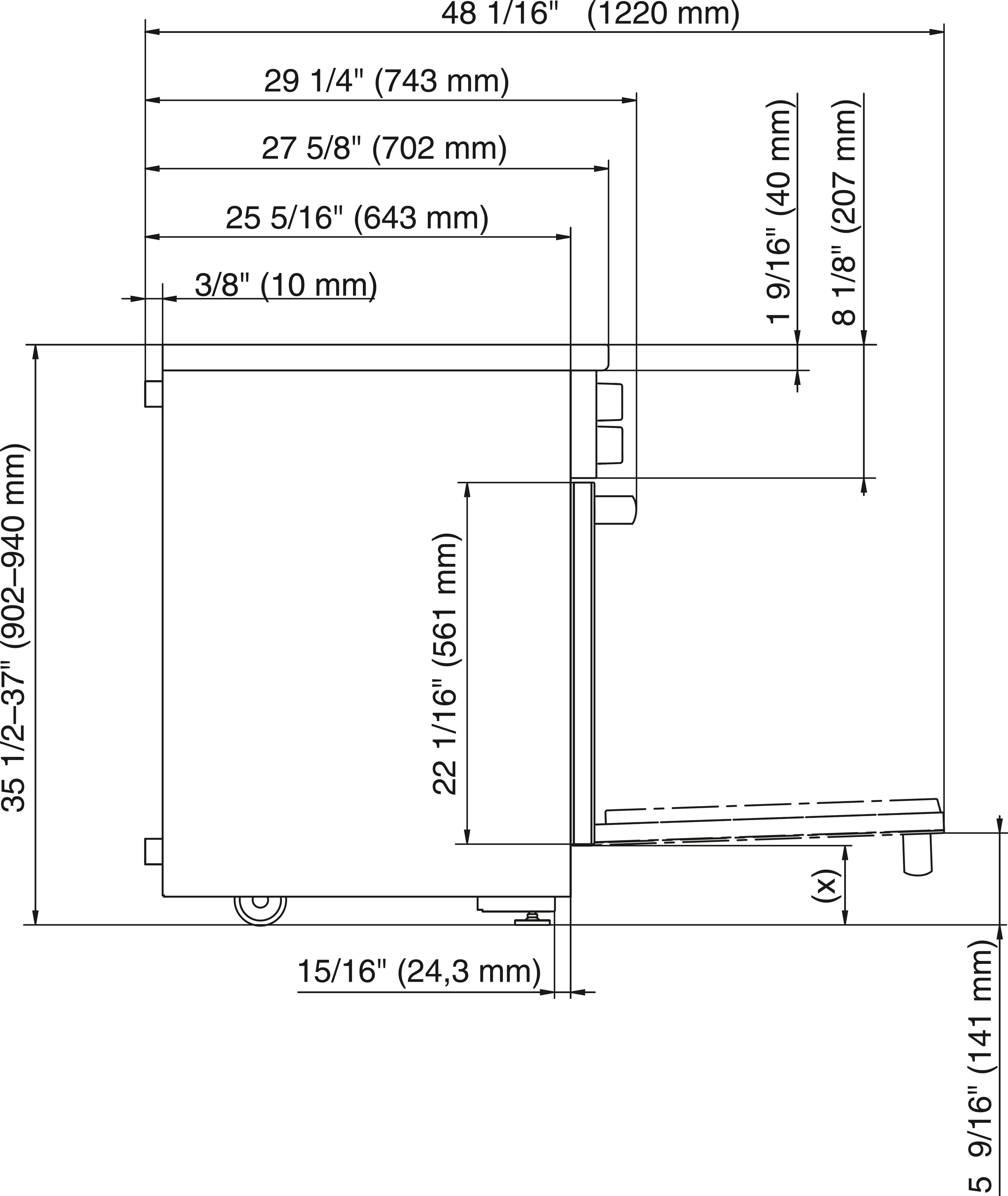

HR1432-3I (installation drawing)
(x) = Toe-kick height adjustment 5" - 6 1/2" (127 mm - 165.1 mm)
Downloads
https://media.miele.com/images/2000019/200001996/20000199690.png
Descriptions

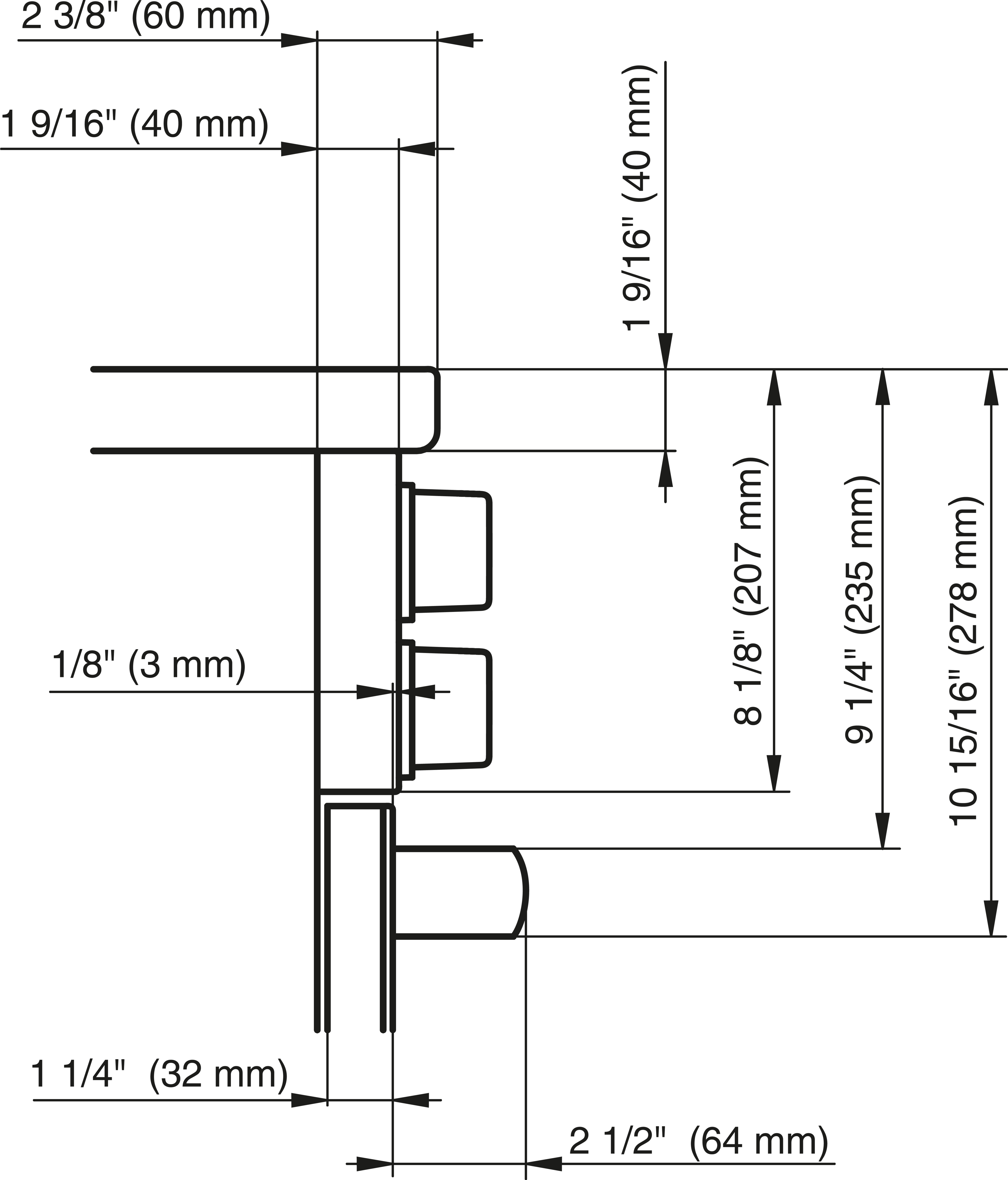

HR1421-3, HR1422-3i , HR1432-3I (installation drawing)
Installation drawings
Downloads

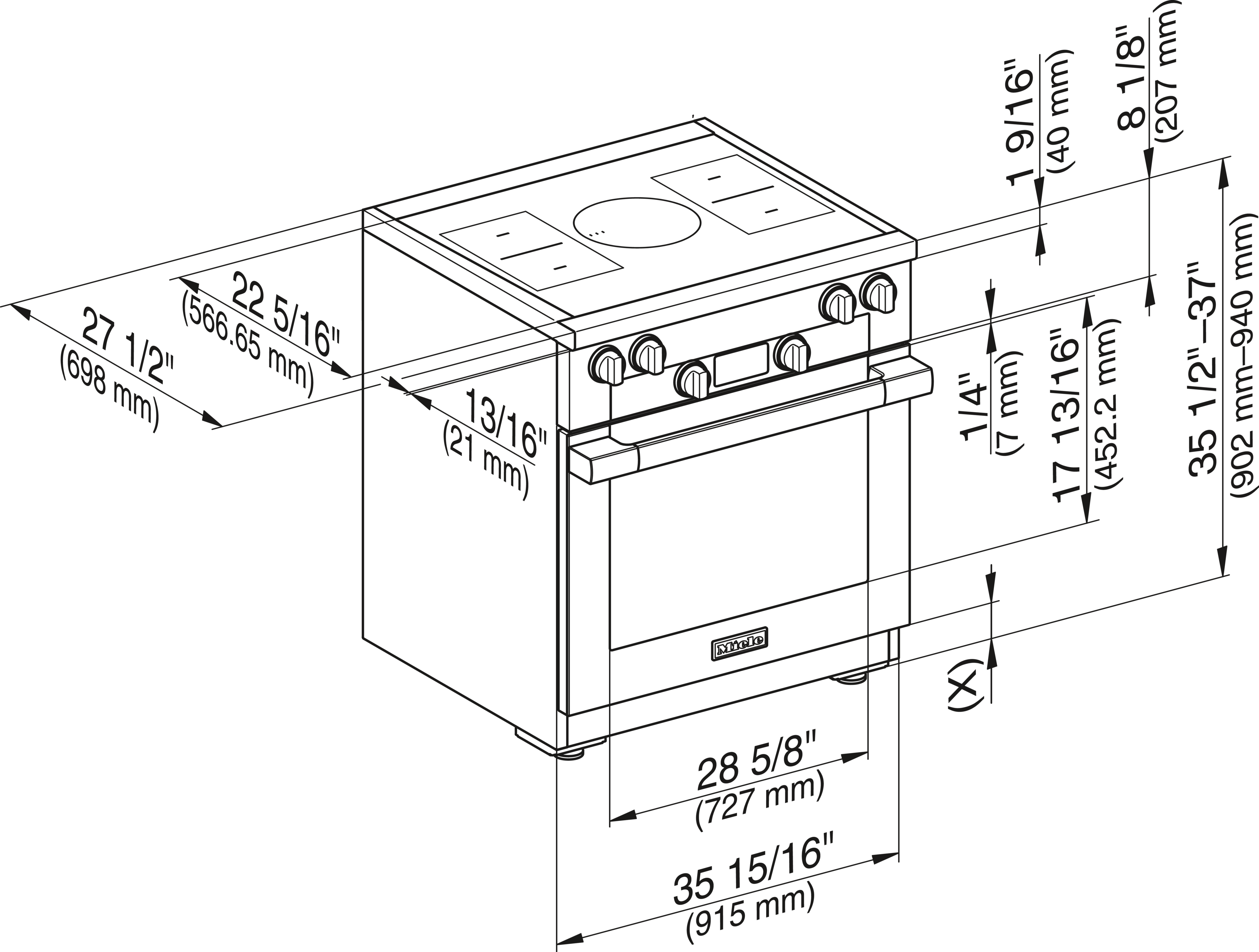

https://media.miele.com/images/2000021/200002164/20000216469.png
Descriptions
HR1432-3I (installation drawing)
(x) = Toe-kick height adjustment 5" - 6 1/2" (127 mm - 165.1 mm)
Downloads
https://media.miele.com/images/2000018/200001801/20000180188.png
Descriptions
HR1422-3i, HR1622-3i, HR1432-3i, HR1632-3i - Installation drawing
① Maximum depth of top cabinet , ② Minimum distance to bottom edge of top cabinet , ③ Distance from the floor to cooktop surface, ④ Minimum distance to combustible surfaces , , E = Electric connection , W = Water connection, , (A) Width of cabinet opening , (B) Minimum distance between the top of the cooking area and the bottom of an unprotected combustible surface., Minimum distance to a protected combustible surface or when a Miele Ventilation Hood is installed. For all other, Hoods please consult the manufacturer's specifications for required distances., (C) Maximum connection width right and left , (E) Maximum connection height
Downloads
https://media.miele.com/images/2000019/200001996/20000199656.png
Descriptions
HR11xx-3, HR14xx-3, HR16xx-3i, HR17xx-3, HR19xx-3 installation drawings
30", ① 20 ¾” / 527,6 mm, ② 16 5/8” / 422,6 mm, ③ 2 ½” / 64 mm, ④ 1 11/16” / 43 mm, ⑤ 1 11/16” / 42,5 mm, , 36", ① 28 9/16” / 725 mm, ② 22 5/8” / 575 mm, ③ 2 ½” / 64 mm, ④ 1 11/16” / 43 mm, ⑤ 1 11/16” / 42,5 mm
Downloads
