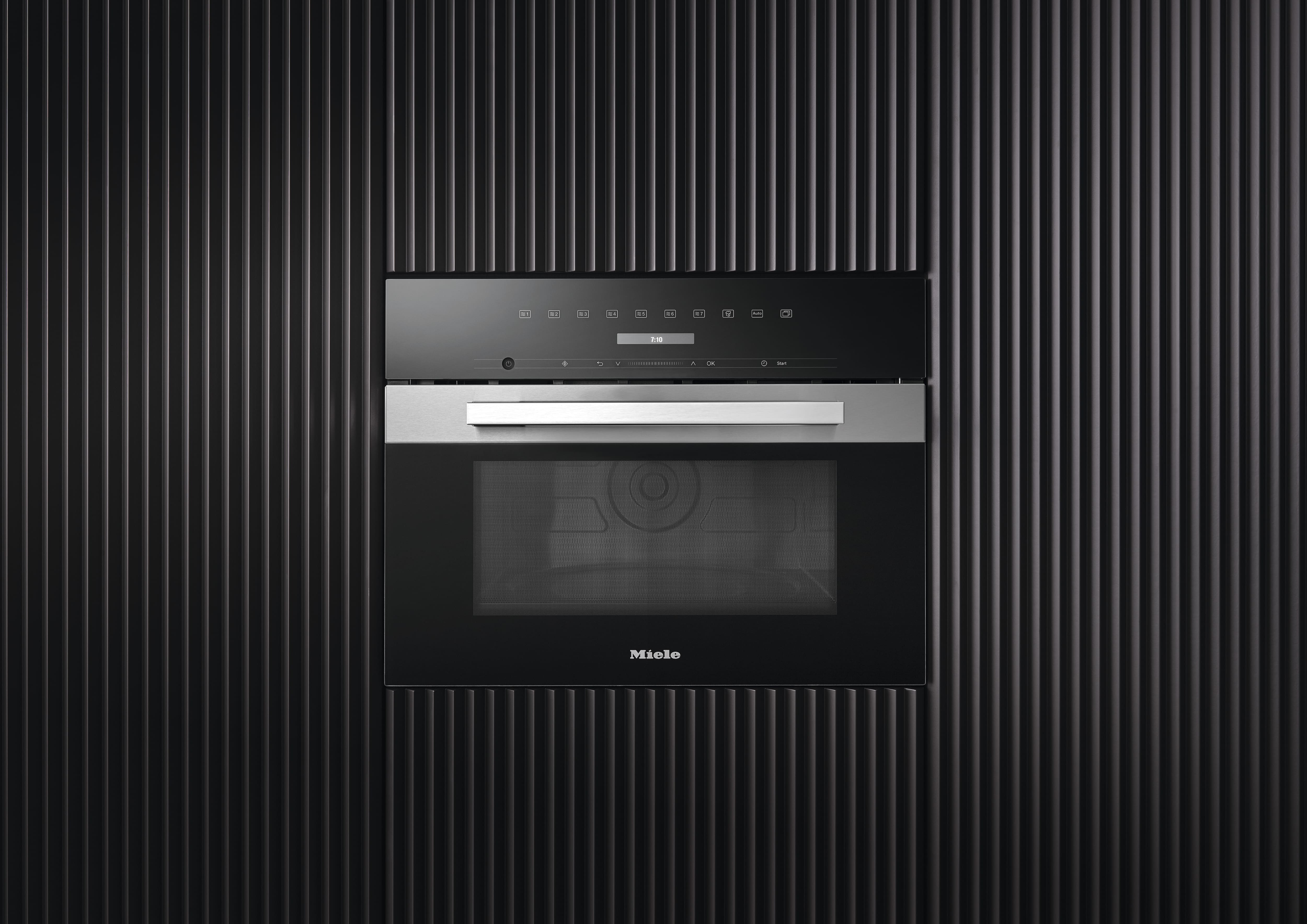

M 7240 TC AM
$2,399.00
Find a dealer

Product Information

Built-in microwave oven, 24" width  in a design that is the perfect complement with controls on the top.

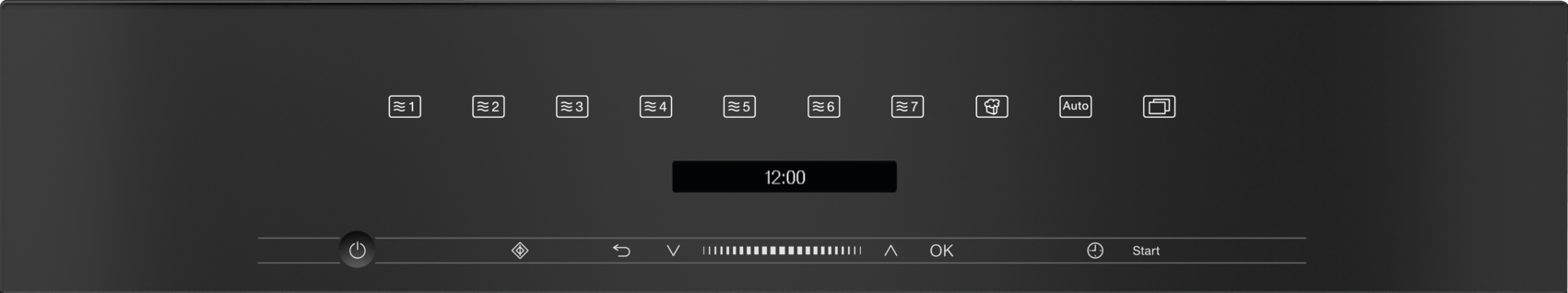

  • Clear text display with sensor controls – DirectSensor S
  • Perfect defrosting and cooking – Automatic Programs
  • Plenty of space – 1.62 cu. ft. oven capacity & 15 3/4" turntable
  • Very powerful microwave – 900 W
  • What you want at the touch of a button – Popcorn button

M 7240 TC AM

Built-in microwave oven, 24" width  in a design that is the perfect complement with controls on the top.
  • Subject to technical changes; no liability accepted for the accuracy of the information given.

Product Information

Built-in microwave oven, 24" width  in a design that is the perfect complement with controls on the top.
  • Clear text display with sensor controls – DirectSensor S
  • Perfect defrosting and cooking – Automatic Programs
  • Plenty of space – 1.62 cu. ft. oven capacity & 15 3/4" turntable
  • Very powerful microwave – 900 W
  • What you want at the touch of a button – Popcorn button

Your advantages

Features depend on model – images are only examples and used for explanation purposes

Product data sheet

Built-in microwave oven
PureLine
TopControl
Appliance colorClean Touch Steel
Keep-warm function
MasterChef automatic programs
Microwave solo operation
DisplayDirectSensor S

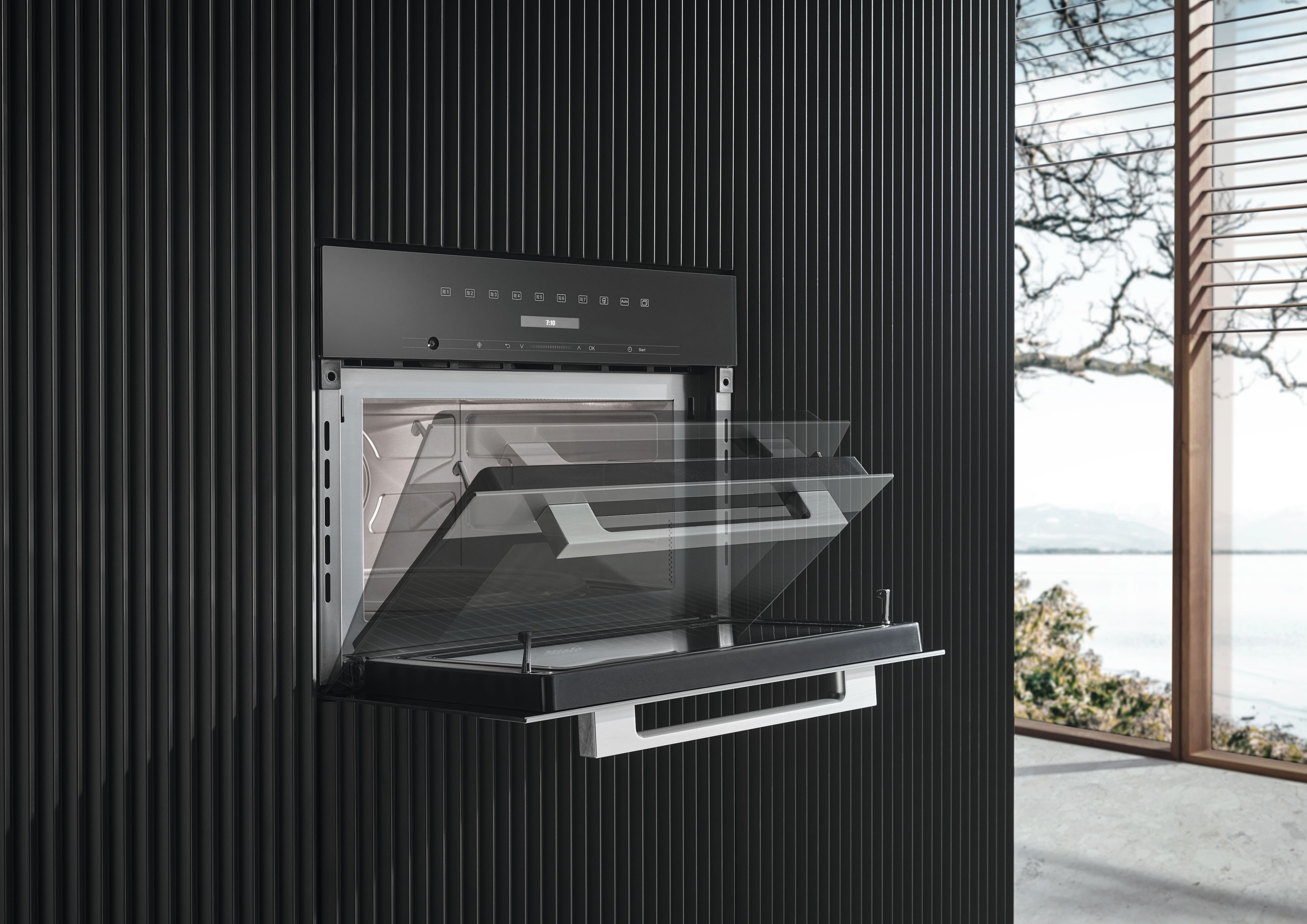

SoftOpen
SoftClose

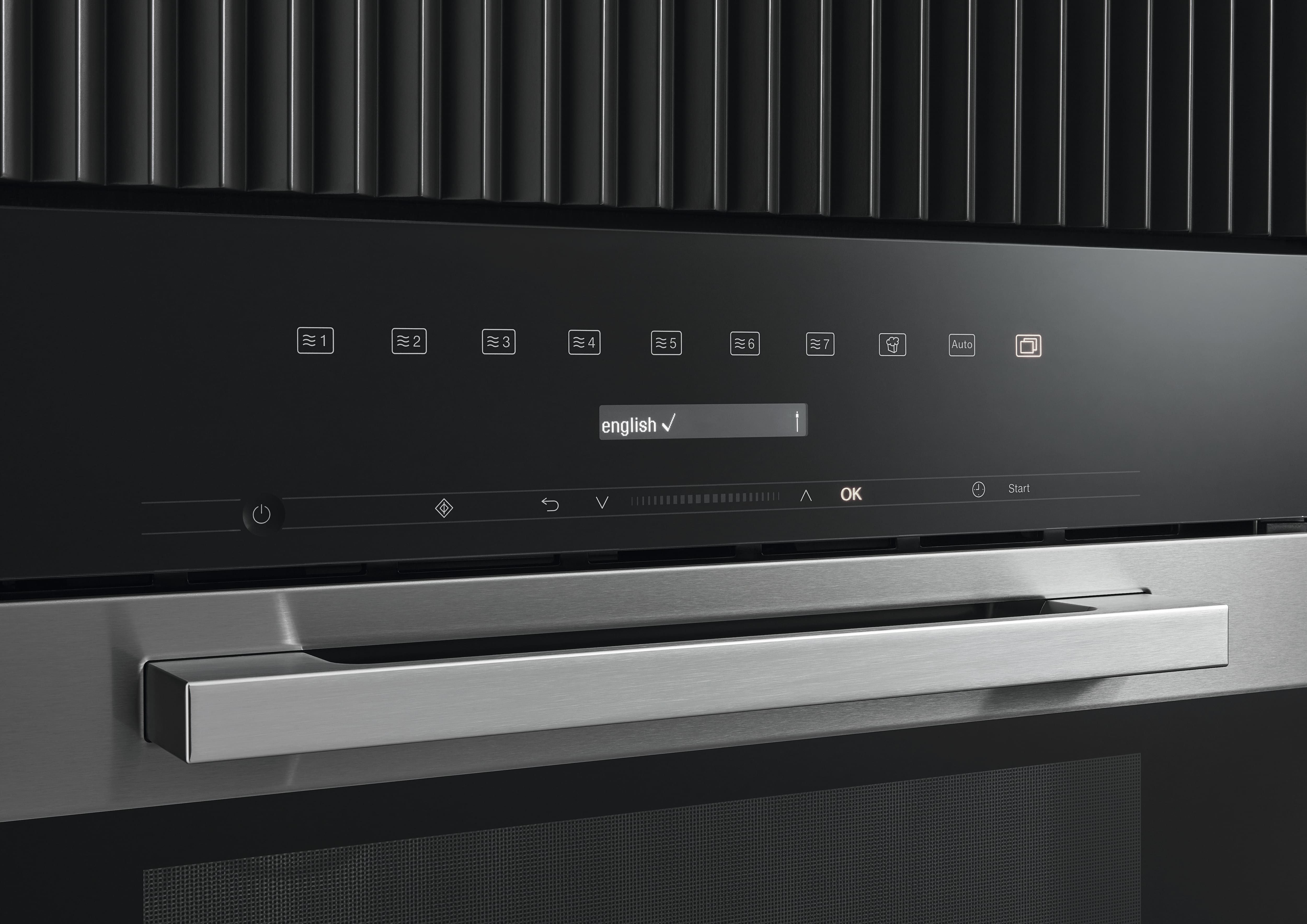

MultiLingua
Popcorn function
Timers
Time of day display
Minute minder
Programmable cooking time
Minute Plus button
Individual settings
Clean Touch Steel surface
Stainless-steel oven cavity
CleanGlass door
Appliance cooling system and cool touch front
System lock
Safety switch
Child lock "Door" in display
Cavity volume in cu.ft (l)1.62 (46)
23 1/2 (595) x 18 (456) x 22 1/8 (560)
Door hinge sideBottom
Oven interior lighting1 LED spot
Cavity height in in. (cm)9 1/4 (23.2)
Turntable diameter in in. (cm)16 (40.6)
Electronically controlled microwave power
Microwave power levels1-7
Maximum microwave output in W900
Niche width min. in inches (mm)22 1/4 (562)
22 1/4 (562)-22 3/8 (568) x 17 3/4 (450)-17 7/8 (452) x 550
Niche width max. in inches (mm)22 3/8 (568)
Niche height min. in inches (mm)17 3/4 (450)
Niche height max. in inches (mm)17 7/8 (452)
Niche depth in in. (mm)550
Appliance width in in. (mm)23 1/2 (595)
Appliance height in in. (mm)18 (456)
Appliance depth in in. (mm)22 1/8 (560)
Weight in lbs. (kg)63 (28.3)
Niche-independent venting
Total connected load in kW1.60
Power Rating in V120
Frequency in Hz60
Number of phases1
Fuse rating in A10
Connection wire with plug
Length of power cord in in. (m)2.10
Available display languages via MultiLinguafrançais
ελληνιкά
čeština
繁體中文
slovenčina
slovenščina
中文
polski
magyar
nederlands
hrvatski
yкраїнська
bahasa malaysia
italiano
deutsch
türkçe
suomi
日本語
dansk
română
español
srpski
english
العربية
svenska
norsk
pусский
português
한국어
Downloads, CAD, & apps
  • Product sheet
    PDF
  • Warranty conditions
    PDF
  • Operating and Installation instructions
    PDF

Follow the link and you will find all the resources you need for planning and installing any of our products

  • fbx
    ZIP
  • ifc
    ZIP
  • dwg
    ZIP
  • rvt
    ZIP
  • rfa
    ZIP

Follow the link and you will find all the resources you need for planning and installing any of our products

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorized experts. In the event of queries, please call us for some no-obligation advice!
Descriptions

M7240TC, Einbau,30 Zoll, Proud, breite Front, Oberschrank - Skizze - NA

Descriptions

M7240TC(+EBA7848), Einbau, 30 Zoll, Proud, breite Front, Oberschrank - Skizze - NA

Descriptions

M7240TC(+EBA7848), Einbau, 30 Zoll, Proud, Oberschrank - Skizze - NA

A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation

! - Electrical and water supplies are recommended to be placed in adjacent cabinetry.

Additional cabinet depth is required when placing the electrical and water supplies behind the appliance.

E = Electric connection

Descriptions

M7240TC(+EBA7848), Einbau, 30 Zoll, Proud, breite Front, Oberschrank - Skizze - NA

A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation

! - Electrical and water supplies are recommended to be placed in adjacent cabinetry.

Additional cabinet depth is required when placing the electrical and water supplies behind the appliance.

E = Electric connection

Descriptions

M7240TC(+EBA7848), side view, 30 Zoll, Flush Inset

7/8“ - 22* mm – Glass

15/16“ - 23.3** mm – Stainless steel

Descriptions

M7240TC(+EBA7848), side view, 30 Zoll, Flush Inset, built-under

7/8“ - 22* mm – Glass

15/16“ - 23.3** mm – Stainless steel

Descriptions

M7240TC Einbau, 30 Zoll, Flush inset

7/8“ - 22* mm – Glass

15/16“ - 23.3** mm – Stainless steel

Descriptions

M7240TC+EBA7848, Einbau, 30 Zoll, Flush inset

7/8“ - 22* mm – Glass

15/16“ - 23.3** mm – Stainless steel

Descriptions

M7x4xTC, Einbau, 30 Zoll, Flush inset, wide front

7/8“ - 22* mm – Glass

15/16“ - 23.3** mm – Stainless steel

Descriptions

M7240TC+EBA7848, Einbau, 30 Zoll, Flush inset, wide front

7/8“ - 22* mm – Glass

15/16“ - 23.3** mm – Stainless steel

Descriptions

M7240TC, Einbau, 30 Zoll, Flush inset, built-under

7/8“ - 22* mm – Glass

15/16“ - 23.3** mm – Stainless steel

Descriptions

M7240TC+EBA7848, Einbau, 30 Zol, Flush inset, built-under

7/8“ - 22* mm – Glass

15/16“ - 23.3** mm – Stainless steel

Descriptions

M7240TC, Einbau, 30 Zoll, Flush Inset, built-under, wide front

7/8“ - 22* mm – Glass

15/16“ - 23.3** mm – Stainless steel

Descriptions

M7240TC+EBA7848, Einbau, 30 Zoll, Flush inset, built-under, wide front

7/8“ - 22* mm – Glass

15/16“ - 23.3** mm – Stainless steel

Descriptions

M7240(+EBA7848), Installation , 30 Zoll, Flush inset

A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation

- Electrical and water supplies are recommended to be placed in adjacent cabinetry.

Additional cabinet depth is required when placing the electrical and water supplies behind the appliance.

E = Electric connection

Descriptions

M7240(+EBA7848), Installation , 30 Zoll, Flush inset, built-under

A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation

- Electrical and water supplies are recommended to be placed in adjacent cabinetry.

Additional cabinet depth is required when placing the electrical and water supplies behind the appliance.

E = Electric connection

Descriptions

M7240(+EBA7848), Installtion , 30 Zoll, Flush inset, wide front

A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation

- Electrical and water supplies are recommended to be placed in adjacent cabinetry.

Additional cabinet depth is required when placing the electrical and water supplies behind the appliance.

E = Electric connection

Descriptions

M7240(+EBA7848), Installation , 30 Zoll, Flush inset, wide front

A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation

- Electrical and water supplies are recommended to be placed in adjacent cabinetry.

Additional cabinet depth is required when placing the electrical and water supplies behind the appliance.

E = Electric connection

Descriptions

M7240TC, M7240TC+EBA7848, 30 Zoll, Proud

7/8“ - 22* mm – Glass

15/16“ - 23.3** mm – Stainless steel

Descriptions

M7240TC, M7240TC+EBA7848, 30 Zoll, Proud, built-under

7/8“ - 22* mm – Glass

15/16“ - 23.3** mm – Stainless steel

Descriptions

M7240SC(+EBA7848), Seitenansicht, 30 Zoll, Flush, inset, Oberschrank - Skizze - NA

7/8“ - 22* mm – Glass

15/16“ - 23.3** mm – Stainless steel

Descriptions

M7240TC, Einbau, 30 Zoll, Proud

Descriptions

M7240SC(+EBA7848), Installation, 30 Zoll, Flush, inset, breite Front, Oberschrank - Skizze - NA

A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation

! - Electrical and water supplies are recommended to be placed in adjacent cabinetry.

Additional cabinet depth is required when placing the electrical and water supplies behind the appliance.

E = Electric connection

Descriptions

M7240TC+EBA7848, Einbau, 30 Zoll, Proud

Descriptions

M7240TC, Einbau, 30 Zoll, Proud, wide front

Descriptions

M7240TC+EBA7848, Einbau, 30 Zoll, Proud, wide front

Descriptions

M7240TC, Einbau, 30 Zoll, Proud, built-under

Descriptions

M7240TC+EBA7848, Einbau, 30 Zoll, Proud, built-under

Descriptions

M7240TC, Einbau, 30 Zoll, Proud, built-under, wide front

Descriptions

M7240TC+EBA7848, Einbau, 30 Zoll, Proud, built-under, wide front

Descriptions

M7240TC(+EBA7848), Installation, 30 Zoll, Proud

A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation

- Electrical and water supplies are recommended to be placed in adjacent cabinetry.

Additional cabinet depth is required when placing the electrical and water supplies behind the appliance.

E = Electric connection

Descriptions

M7x4xTC(+EBA7848), Installation, 30 Zoll, Proud, built-under

A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation

- Electrical and water supplies are recommended to be placed in adjacent cabinetry.

Additional cabinet depth is required when placing the electrical and water supplies behind the appliance.

E = Electric connection

Descriptions

M7240TC(+EBA7848), Installation, 30 Zoll, Proud, wide front

A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation

- Electrical and water supplies are recommended to be placed in adjacent cabinetry.

Additional cabinet depth is required when placing the electrical and water supplies behind the appliance.

E = Electric connection

Descriptions

M7240TC(+EBA7848), Installation, 30 Zoll, Proud, built-under, wide front

A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation

- Electrical and water supplies are recommended to be placed in adjacent cabinetry.

Additional cabinet depth is required when placing the electrical and water supplies behind the appliance.

E = Electric connection

Descriptions

M7240SC(+EBA7848), Installation, 30 Zoll, Flush, inset, Oberschrank - Skizze - NA

A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation

! - Electrical and water supplies are recommended to be placed in adjacent cabinetry.

Additional cabinet depth is required when placing the electrical and water supplies behind the appliance.

E = Electric connection

Descriptions

M7240SC(+EBA7848), Einbau, 30 Zoll, Flush, inset, breite Front, Oberschrank - Skizze - NA

Descriptions

M7240TC, Einbau,30 Zoll, Flush, inset, breite Front, Oberschrank - Skizze - NA

Descriptions

M7240SC(+EBA7848), Einbau, 30 Zoll, Flush, inset, Oberschrank - Skizze - NA

Descriptions

M7240TC, Einbau,30 Zoll, Flush, inset, Oberschrank - Skizze - NA

Descriptions

M7240TC(+EBA7848), Seitenansicht, 30 Zoll, Proud, Oberschrank - Skizze - NA

7/8“ - 22* mm – Glass

15/16“ - 23.3** mm – Stainless steel

Descriptions

M7240TC, Einbau,30 Zoll, Proud, Oberschrank - Skizze - NA

Descriptions

M7240TC(+EBA7848), Einbau, 30 Zoll, Proud, Oberschrank - Skizze - NA

  • Subject to technical changes; no liability accepted for the accuracy of the information given.
