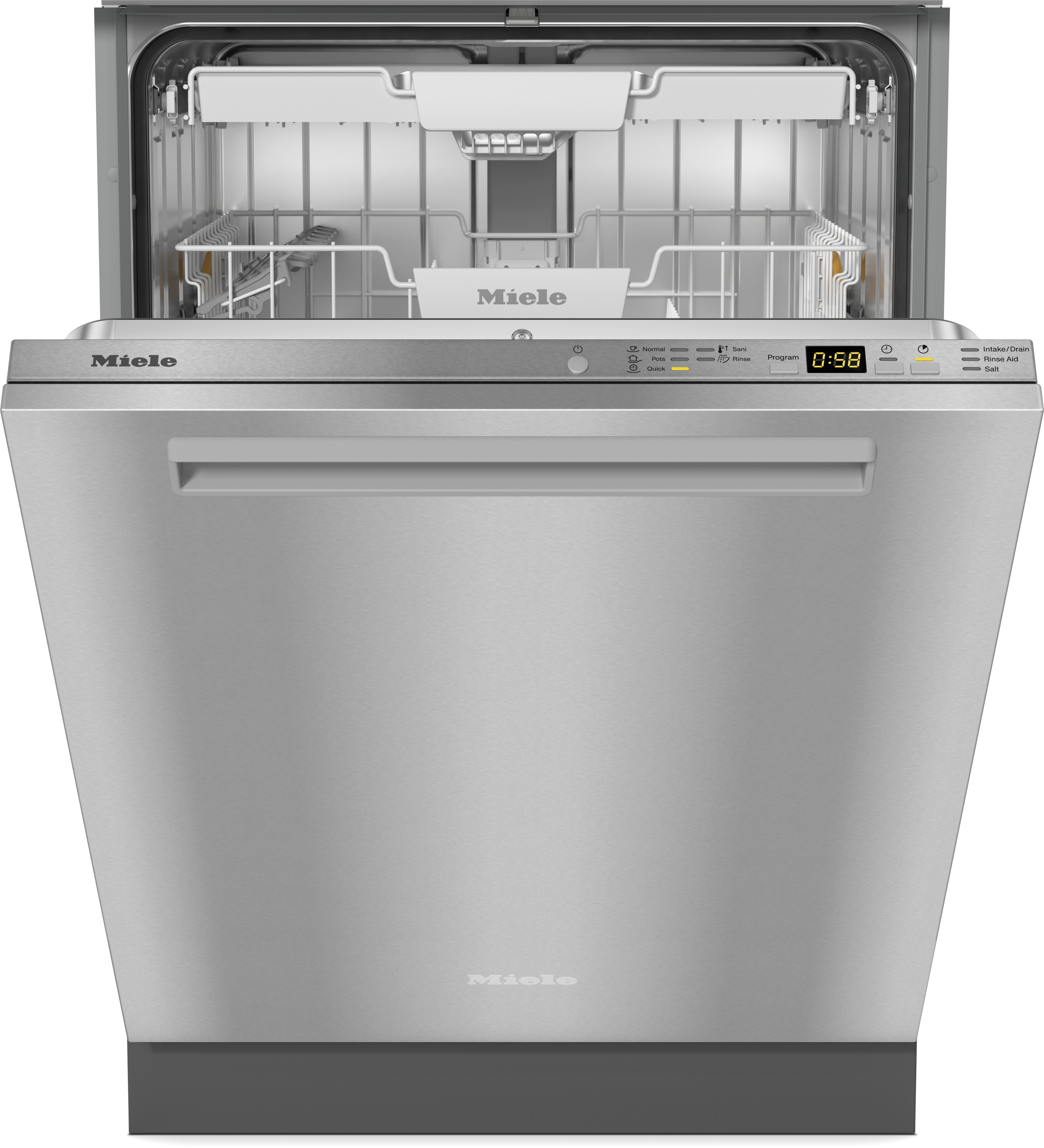

G 5056 SCVi SFP
Fully integrated dishwashers in tried-and-tested Miele quality at an affordable entry-level price.
- Subject to technical changes; no liability accepted for the accuracy of the information given.
Your exclusive advantages
Exclusive to Miele
FlexLine Baskets
Intelligent basket design for all types of dishes
Flexibility creates convenience: Easy adjustment and flexible loading for the best cleaning results.
QuickIntenseWash
Best cleaning in less than an hour
Short program: Best cleaning results for normally soiled dishware in 58 minutes.
EcoPower Technology
Innovative water feed for rinsing with less water
Saving water and energy: Cleverly designed water supply reduces consumption.
Features depend on model – images are only examples and used for explanation purposes
User convenience (1)
ComfortClose
A door concept that does it all
Practical: The door is extremely easy to open and close, and stays open in any position.
Efficiency and sustainability (1)
EcoPower Technology
Innovative water feed for rinsing with less water
Saving water and energy: Cleverly designed water supply reduces consumption.
Basket design (1)
Exclusive to Miele
FlexLine Baskets
Intelligent basket design for all types of dishes
Flexibility creates convenience: Easy adjustment and flexible loading for the best cleaning results.
Washing programs & Options (7)
Normal
The all-round program
The program is sensor-controlled for normally soiled dishware.
China & Crystal
For fine, delicate items
Gentle and with care: The program is for temperature-sensitive glassware and lightly soiled dishware.
Pots & Pans
Expert for tough cases
Maximum cleaning performance: Pots, pans, etc. are cleaned residue-free.
QuickIntenseWash
Best cleaning in less than an hour
Short program: Best cleaning results for normally soiled dishware in 58 minutes.
Extra Dry
Perfect results for glassware and plastic items
Guaranteed drying: This option dries everything to perfection, even glassware and plastic items.
Express
Program time halved
Sometimes things have to be done at the double: Reduce the length of a program by up to 50%.
SaniWash
For perfect cleaning
This is our high temperature program offering deep cleaning results.
Dish and glassware care (1)
Exclusive to Miele
Perfect GlassCare
Gentle cleaning of delicate glassware
Gentle and delicate: Perfect GlassCare cleans your glassware with care.
Product data sheet
Construction type
| Fully integrated dishwashers | • |
Design
| Color | Stainless Steel. |
| Fascia panel version | Fully integrated fascia |
| Control type | Programme selector button |
| Control panel | 3-digit 7-segment display |
| Display color | Yellow |
Convenience
| Door closing aid | ComfortClose |
| Operating noise dB(A) re 1 pW | 44 |
| Countdown indicator | • |
| Delay start up to 24 hours | • |
| In-operation indication | acoustic |
Efficiency and sustainability
| EcoPower Technology | • |
| • | |
| Hot water connection | • |
| • |
Gentle on dishware/glass
| Fresh water dishwasher | • |
| Active condensation drying | • |
Dishwashing programs
| QuickIntenseWash | • |
| Normal | • |
| Pots & Pans | • |
| China & Crystal | • |
| SaniWash | • |
Rinse options
| Short | • |
| Express | • |
| Extra Clean | • |
| Extra dry | • |
Basket design
| Cutlery loading | Cutlery tray |
| FlexCare cup rack | 1 |
| Basket design | Comfort |
Technology and quality
| Sensors | AutoSensor |
Safety
| Waterproof system | • |
Technical data
| Niche width min in in.(mm) | 23 5/8 (600) |
| Niche width max in in.(mm) | 23 5/8 (600) |
| Niche height min in in.(mm) | 33 3/4 (855) |
| Niche height max in in.(mm) | 36 1/4 (920) |
| Niche depth in in.(mm) | 22 1/2 (570) |
| Appliance width in in.(mm) | 23 5/8 (598) |
| Appliance height in in.(mm) | 33 3/4 (855) |
| Appliance depth in in.(mm) | 22 1/2 (570) |
| Appliance depth with door open in in.(cm) | 47 1/2 (120.5) |
| Net weight in lbs. (kg) | 111 (50.0) |
| Total connected load in kW | 1.40 |
| Voltage in V | 120 |
| Fuse rating in A | 15 |
| Number of phases | 1 |
| Electrical frequency standard | 60 |
| Length of water inlet hose in ft (m) | 4 (1.50) |
| Length of water drain hose in ft (m) | 4 (1.50) |
| Length of electrical wire in ft (m) | 3 (1.20) |
| Min. front panel weight in kg | 4.00 |
| Max. front panel weight in kg | 11.00 |
| [can be retrofitted by Service to min.] | 7.00 |
| [can be retrofitted by Service to max.] | 14.00 |
