Product Information
Built-in ventilation hood for installation in narrow upper cabinets with EasySwitch controls
Inside the Box
- Non-return flap
DAS 4940
Built-in ventilation hood for installation in narrow upper cabinets with EasySwitch controls
- Subject to technical changes; no liability accepted for the accuracy of the information given.
Product Information
Built-in ventilation hood for installation in narrow upper cabinets with EasySwitch controls
Inside the Box
- Non-return flap
Your advantages
Stainless-steel grease filters (10-layer)
Easy to use and effective against grease
Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.
Exclusive to Miele
Con@ctivity
Automatic operation for intelligent blower control
Innovative convenience: the ventilation hood reacts automatically to settings on the cooktop.
Miele CleanCover
Convenience and safety in detail
Miele’s unique easy cleaning: The sealed, smooth surface prevents contact with the electrical components/motor.
Features depend on model – images are only examples and used for explanation purposes
User convenience (3)
Exclusive to Miele
Con@ctivity
Automatic operation for intelligent blower control
Innovative convenience: the ventilation hood reacts automatically to settings on the cooktop.
Delayed shutdown
Automatic blower run-on
Odor-free room air: "after cooking, the blower can be set to switch off automatically after 5 or 15 minutes."
filter saturation indicator
Countdown time conveniently in view
Easy filter replacement: a red light lets you know when the grease and/or charcoal filter is saturated.
Safety (1)
Safety turn off
Always on the safe side
Sensible, even in case of operating errors: The ventilation hood switches off automatically after 10 hours.
Features (2)
Stainless-steel grease filters (10-layer)
Easy to use and effective against grease
Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.
Miele CleanCover
Convenience and safety in detail
Miele’s unique easy cleaning: The sealed, smooth surface prevents contact with the electrical components/motor.
Product data sheet
Design
| Built-in ventilation hood | • |
Operating modes
| Recirculated mode | Can be retrofitted |
| Recirculation conversion kit (order separately) | DUU 151 |
| OdorFree charcoal filter (order separately) | DKF 31-P DKF 31-R |
Design
| Color | Transp. glass |
User convenience
| Miele@home | • |
| Automatic function Con@ctivity | • |
| Electronic controls | • |
| EasySwitch | • |
| Programmable Intensive switch-off | • |
| Delayed shutdown for 5 or 15 minutes | • |
| Grease filter saturation indicator | • |
| Programmable grease filter saturation indicator | • |
| Programmable charcoal filter saturation indicator | • |
Cleaning convenience
| Easy-to-clean CleanCover hood liner | • |
Filter system
| Number of dishwasher-safe stainless-steel grease filters | 2 |
Lighting
| LED ClearView lighting | • |
| Number x W | 1 x 3 W |
| Light intensity in Lx | 285 lx |
| Color temperature in K | 3500 Kelvin |
| Light dimmer function | • |
Blower
| Dual-action blower | • |
| AC motor | • |
Safety
| Safety shut-off | • |
| Single-ply safety glass (ESG) | • |
Technical data
| Canopy width in in. (mm) | 34 (861) |
| Canopy height in in. (mm) | 2 3/4 (68) |
| Depth of hood canopy in in. (mm) | 12 1/8 (307) |
| Minimum distance above electric cooktops in in. (mm) | 24 1/8 (610) |
| Net weight in lbs. (kg) | 38 (17.0) |
| Length of electrical wire in ft. (m) | 2 (0.8) |
| Standard plug fitted | • |
| Total connected load in kW | 0.35 |
| Voltage in V | 120 |
| Fuse rating in A | 15 |
| Frequency in Hz | 60 |
| Number of phases | 1 |
Installation note
| Vent connection at top | • |
| Vent connection at top and rear | • |
| Installation template | • |
Standard accessories
| Non-return flap | • |
Optional products and accessories
Downloads, CAD, & apps
- Operating and Installation instructionsPDF
- Mounting planPDF
- Mounting planPDF
- Warranty conditionsPDF
- Product sheetPDF
Follow the link and you will find all the resources you need for planning and installing any of our products
- dwgZIP
- fbxZIP
- rfaZIP
- ifcZIP
- rvtZIP
Follow the link and you will find all the resources you need for planning and installing any of our products
Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorized experts. In the event of queries, please call us for some no-obligation advice!
Descriptions

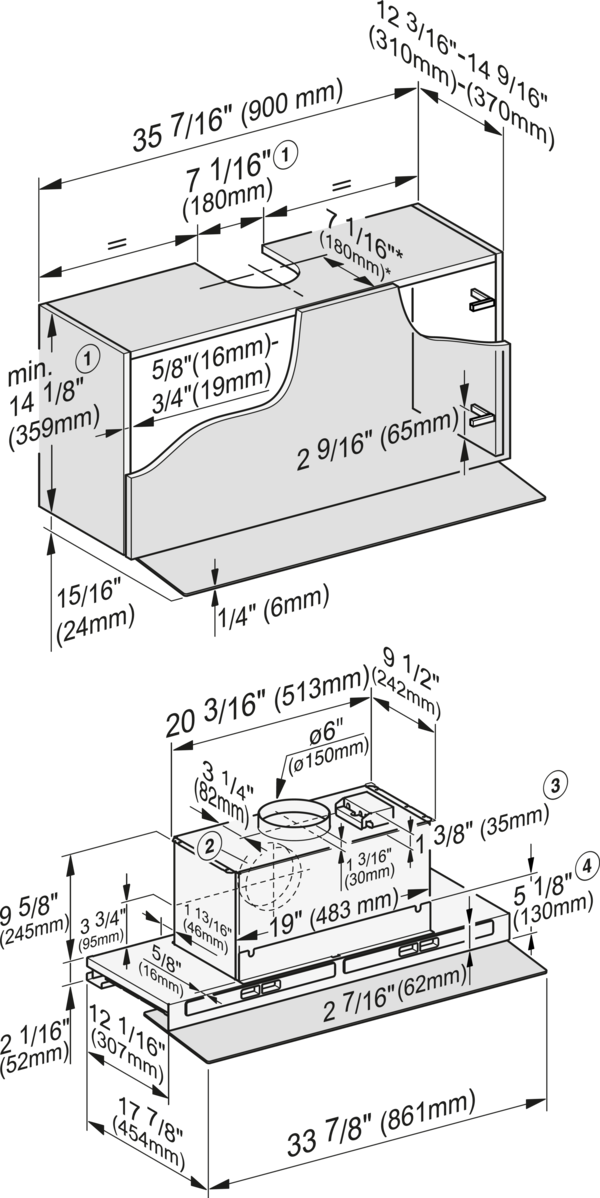

DAS4940, Installation drawings
Descriptions
DAS4940, drawing - US
