Product Information
Inside the Box
- Universal tray with PerfectClean HUBB 71 (1)
- Self Clean ready baking and roasting rack (1)
- Removable Self Clean-ready side racks (pair) (1)

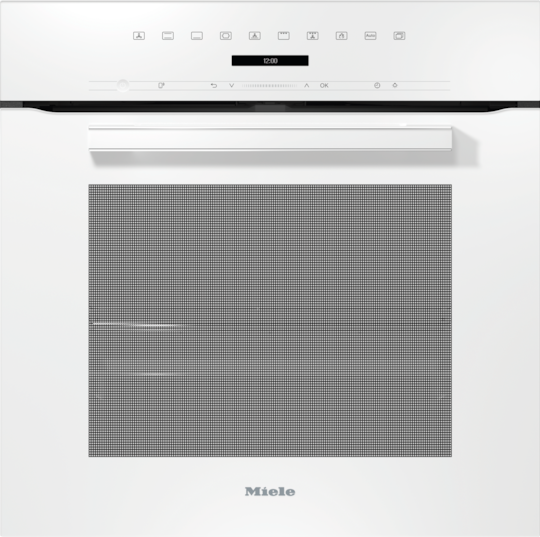

H 7263 BP
- Subject to technical changes; no liability accepted for the accuracy of the information given.
Product Information
Inside the Box
- Universal tray with PerfectClean HUBB 71 (1)
- Self Clean ready baking and roasting rack (1)
- Removable Self Clean-ready side racks (pair) (1)
Your advantages
MasterChef
Stress-free baking and roasting, success guaranteed
Appliance networking with Miele@home*
Cleverly networked
Self Clean and Self Clean ready accessories
Cleaning with zero effort
AirClean catalyzer
Fewer cooking odors
Appliance networking with Miele@home*
Cleverly networked
SoftOpen and SoftClose
Gentle door movement
MultiLingua
Incredibly easy to understand
MasterChef
Stress-free baking and roasting, success guaranteed
Touch-cool front
Only the food gets hot
Safety functions
Maximum safety, no matter the situation
Defrost
Auto Roast
Maxi Broil
Intensive
Surround
Bake
Convection Broil
Booster
Product data sheet
Built-in wall oven | • |
VitroLine | • |
Appliance color | Brilliant white |
Rapid PreHeat | • |
Defrost | • |
MasterChef automatic programs | • |
Auto roast | • |
Broiling operating modes | • |
Maxi Broil | • |
Intensive Bake | • |
Surround | • |
Bake | • |
Convection Roast | • |
Networking with Miele@home | • |
Control panel | DirectSensor S |
SoftOpen | • |
SoftClose | • |
MultiLingua | • |
Time synchronization | • |
Minute minder | • |
Programming start of cooking duration | • |
Programming end of cooking duration | • |
Programmable cooking time | • |
Actual temperature display | • |
Audible signal when desired temperature is reached | • |
Default temperature | • |
Individual settings | • |
Self-cleaning | • |
Catalyzer | • |
Foldable broil heater element | • |
CleanGlass door | • |
Appliance cooling system and cool touch front | • |
Safety cut-out | • |
System lock | • |
Door lock during self cleaning | • |
Cavity volume in cu.ft (l) | 2.97 (84) |
No. of rack levels | 5 |
Oven interior lighting | 1 halogen spot |
Temperatures in °F (°C) | 85-575 (30-300) |
Niche dimensions (W x H x D) in inches (mm) | 22 1/8 (560)-22 3/8 (568) x 23 1/4 (590)-23 1/2 (595) x 21 3/4 (550) |
Niche width min. in inches (mm) | 22 1/8 (560) |
Niche width max. in inches (mm) | 22 3/8 (568) |
Niche height min. in inches (mm) | 23 1/4 (590) |
Niche height max. in inches (mm) | 23 1/2 (595) |
Niche depth in in. (mm) | 21 3/4 (550) |
Appliance dimensions (W x H x D) in inches (mm) | 23 1/2 (595) x 23 1/2 (596) x 22 3/8 (568) |
Weight in lbs. (kg) | 99 (44.5) |
Total connected load in kW | 5.40 |
Power Rating in V | 120 |
Voltage in V | 240/208 |
Frequency in Hz | 60 |
Fuse rating in A | 30 |
Number of phases | 1 |
Connection wire with plug | • |
Length of power cord in in. (m) | 1.80 |
Universal tray with PerfectClean HUBB 71 | 1 |
Self Clean ready baking and roasting rack | 1 |
Removable Self Clean-ready side racks (pair) | 1 |
Available display languages via MultiLingua | français ελληνιкά čeština 繁體中文 slovenčina slovenščina 中文 polski magyar nederlands hrvatski yкраїнська bahasa malaysia italiano deutsch türkçe suomi dansk 日本語 română español english srpski العربية svenska norsk pусский português 한국어 |
