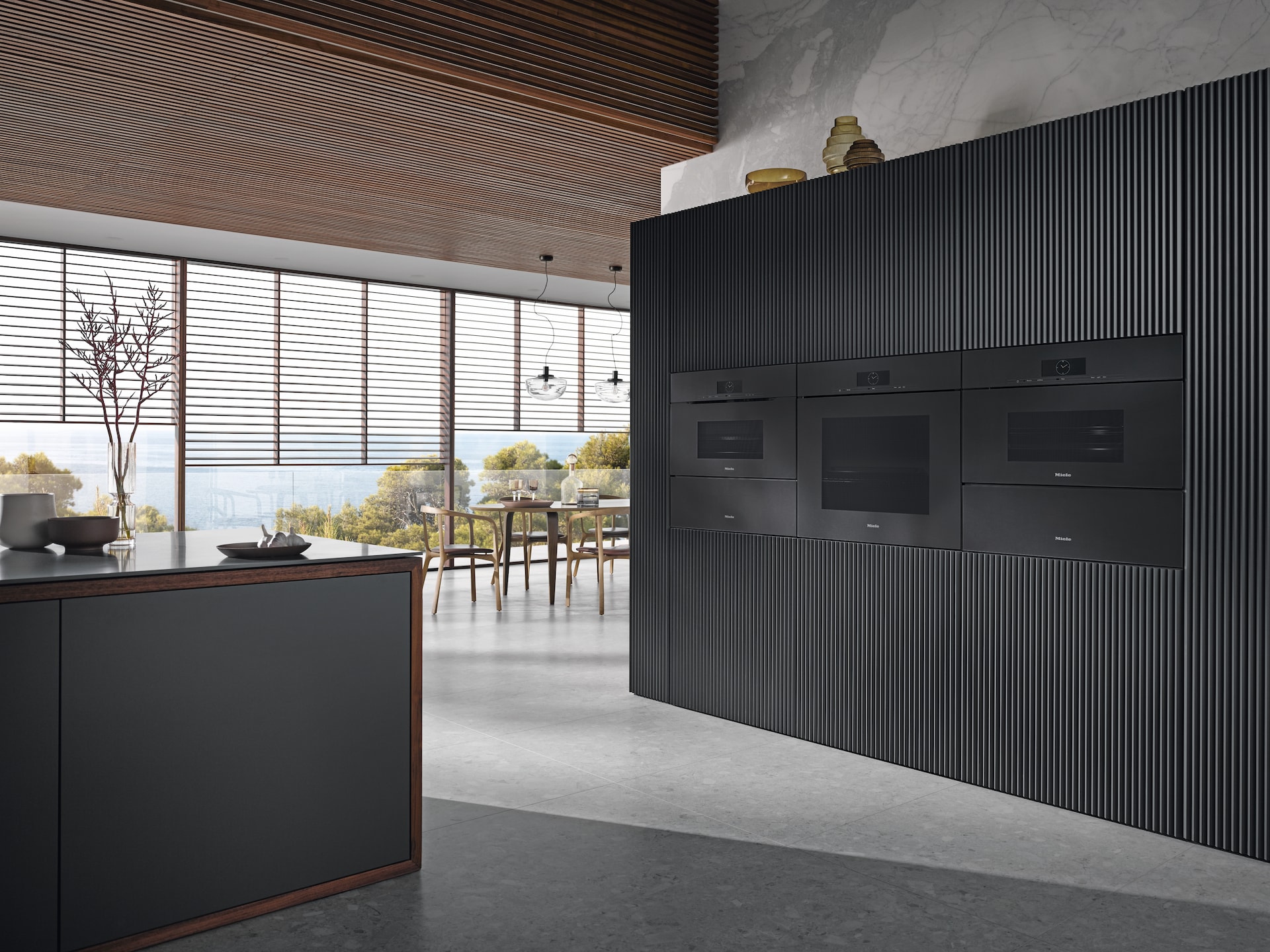

  • Miele - H 7870 BMX Obsidian Black – Ovens - 1

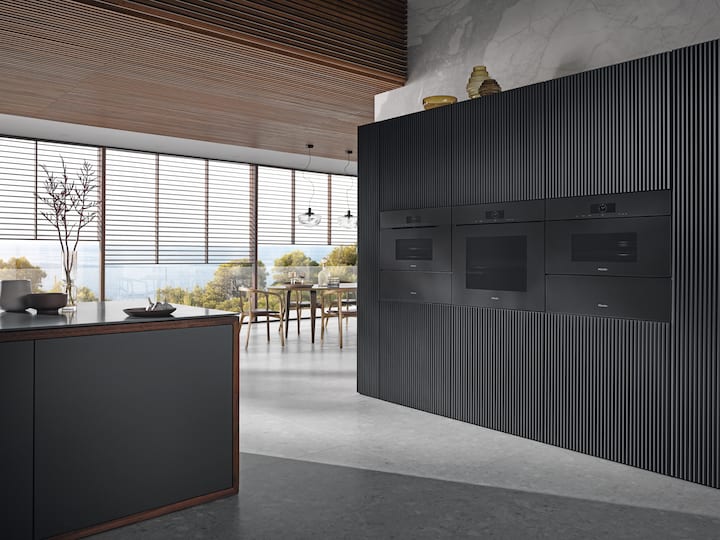

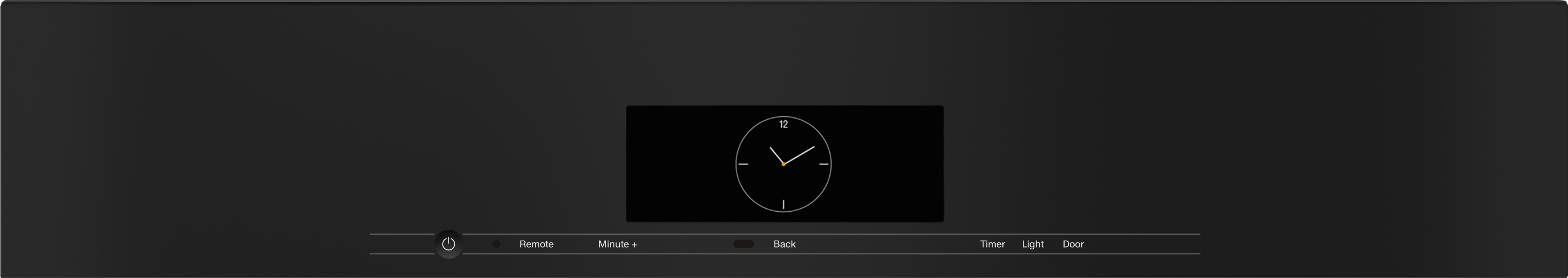

  • Miele - H 7870 BMX Obsidian Black – Ovens - 2

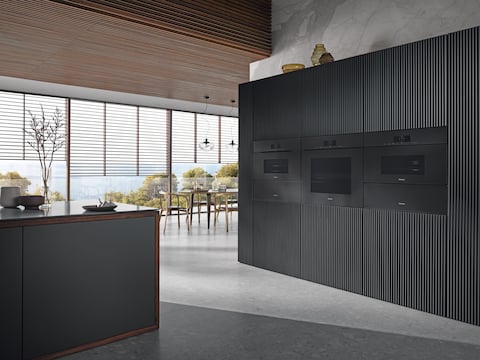

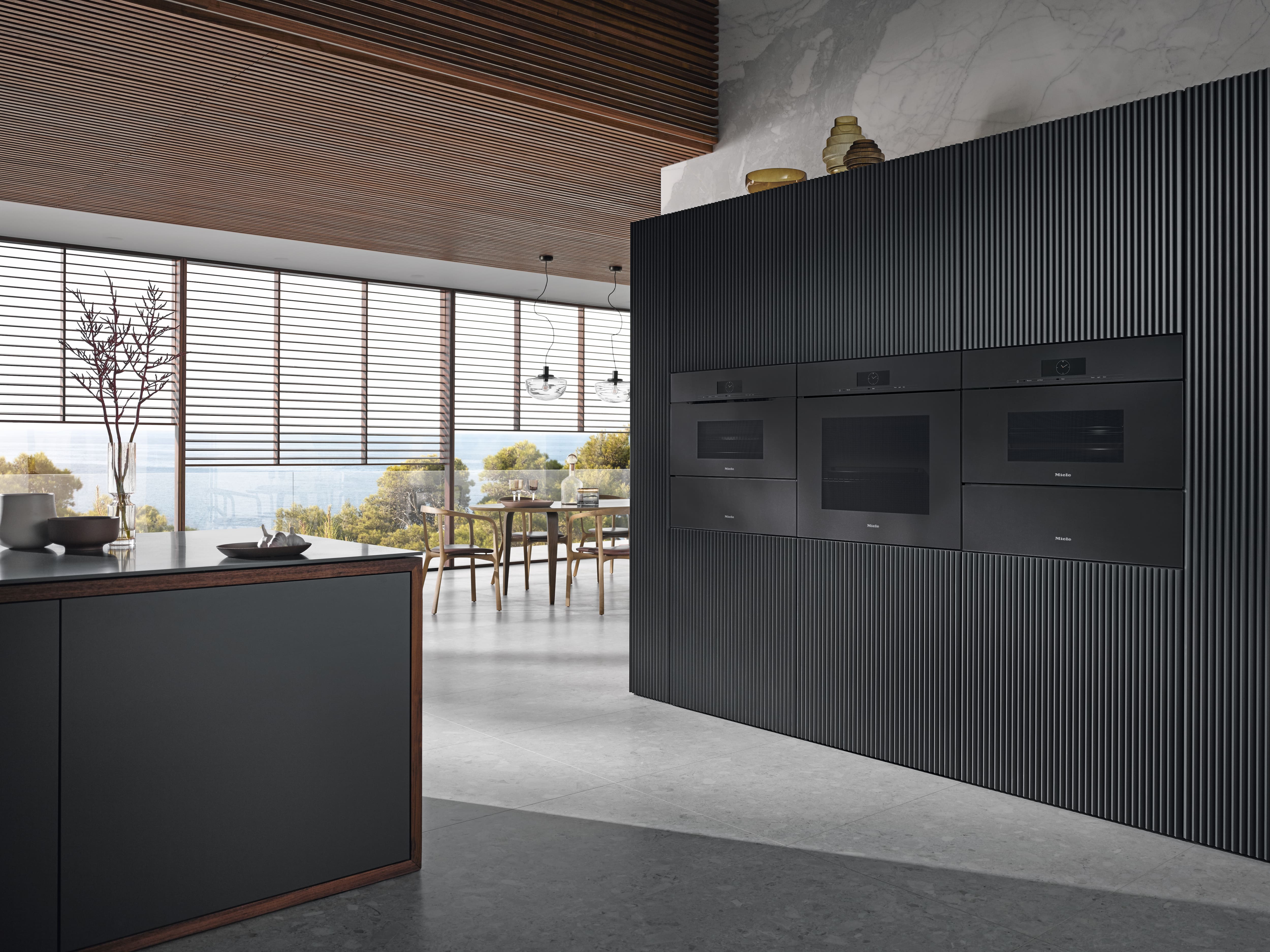

  • Miele - H 7870 BMX Obsidian Black – Ovens - 3

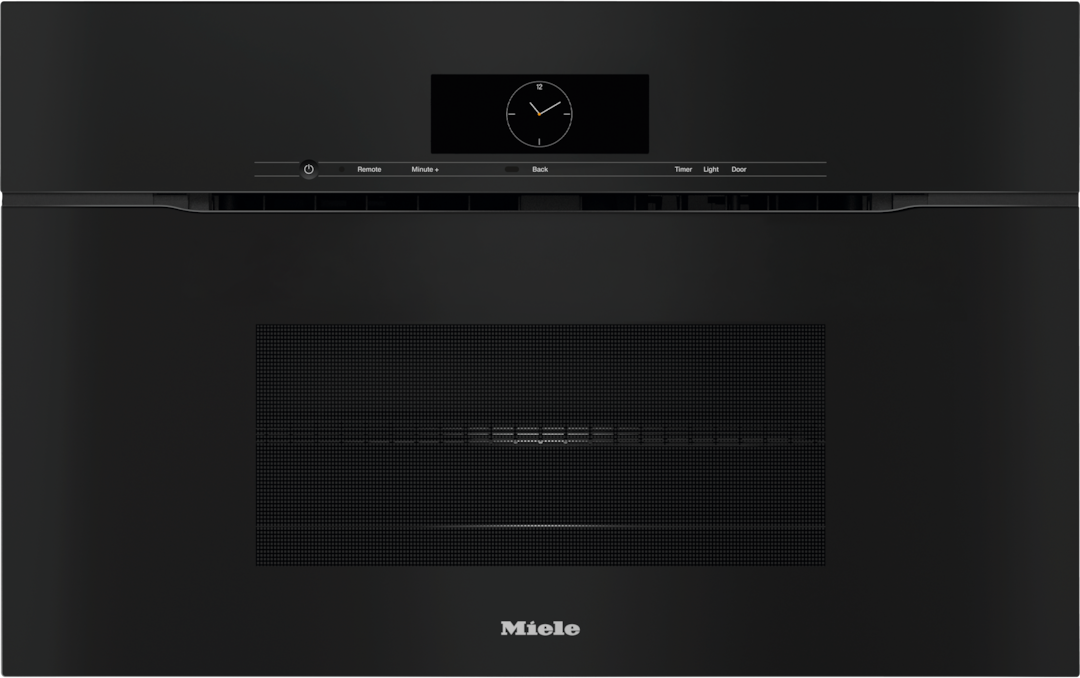

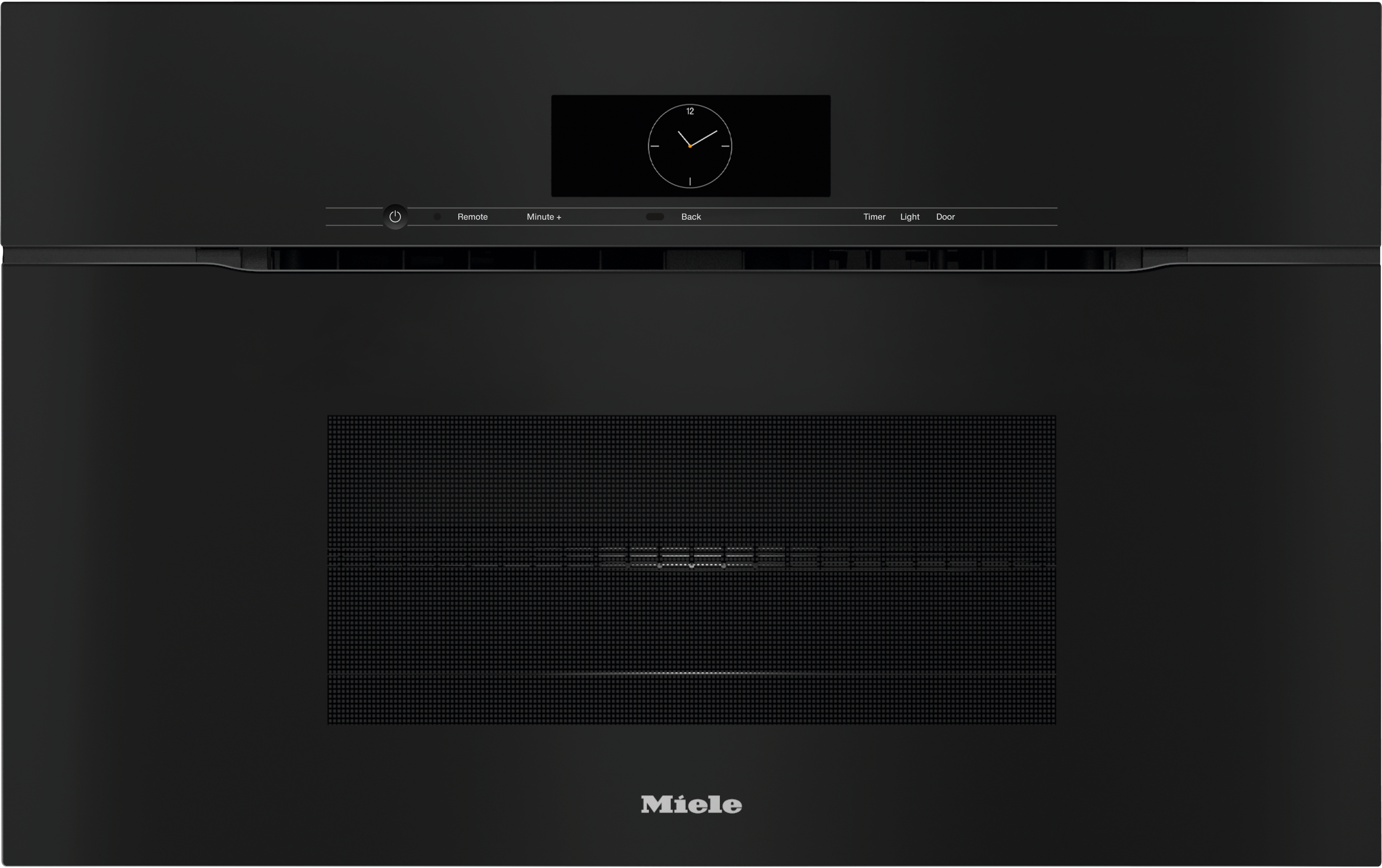

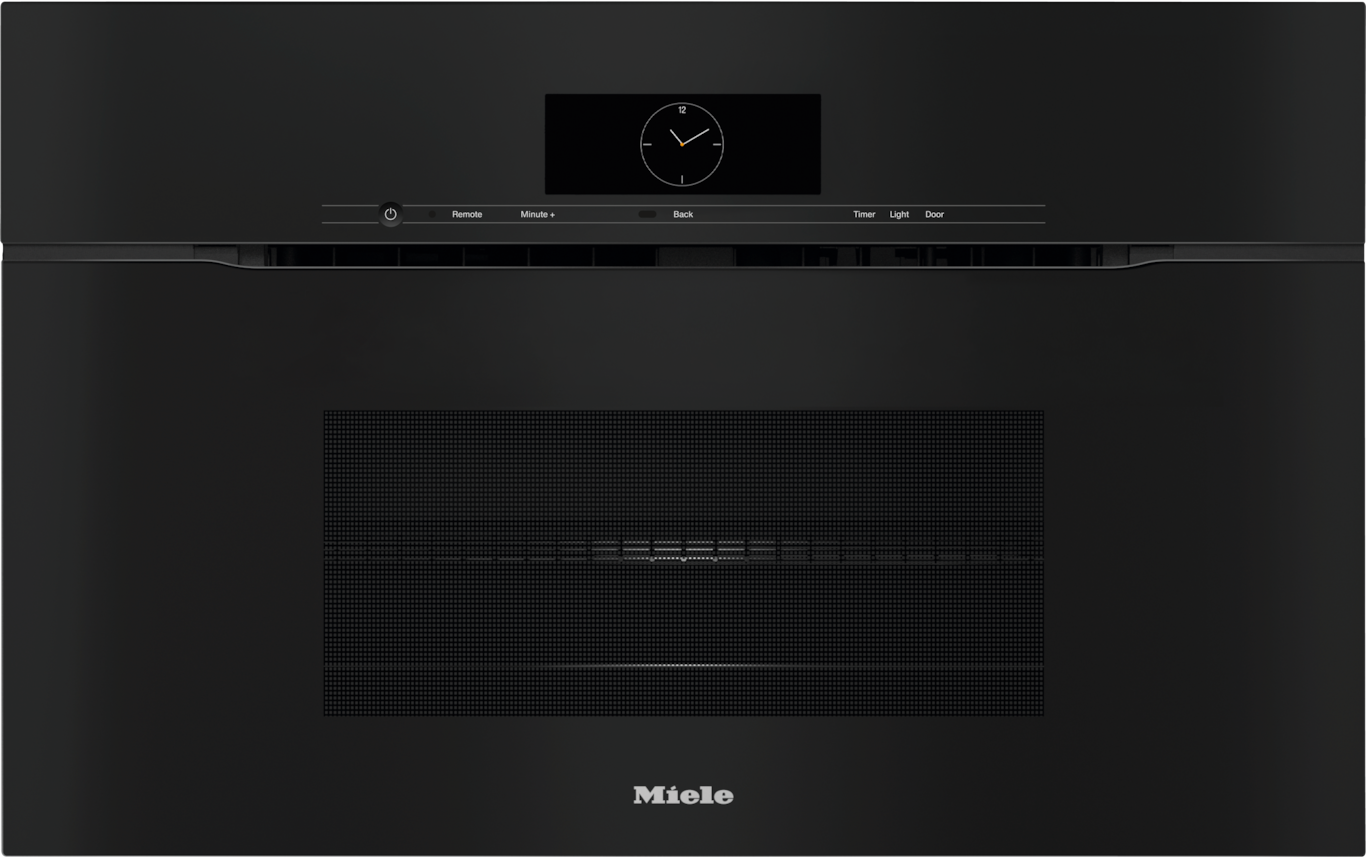

30" handleless compact speed oven DIAMOND

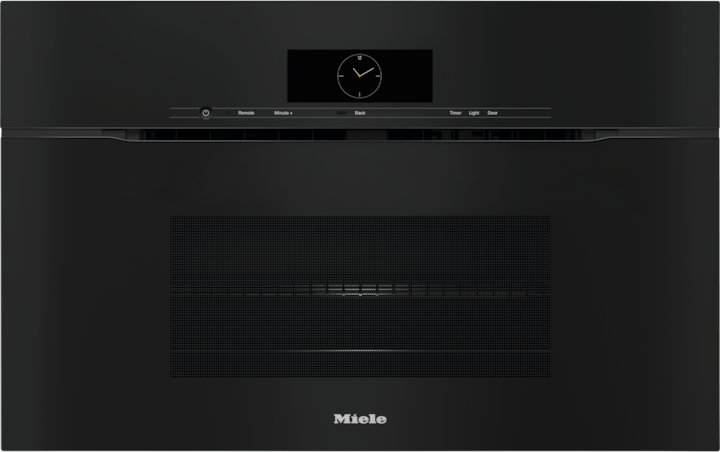

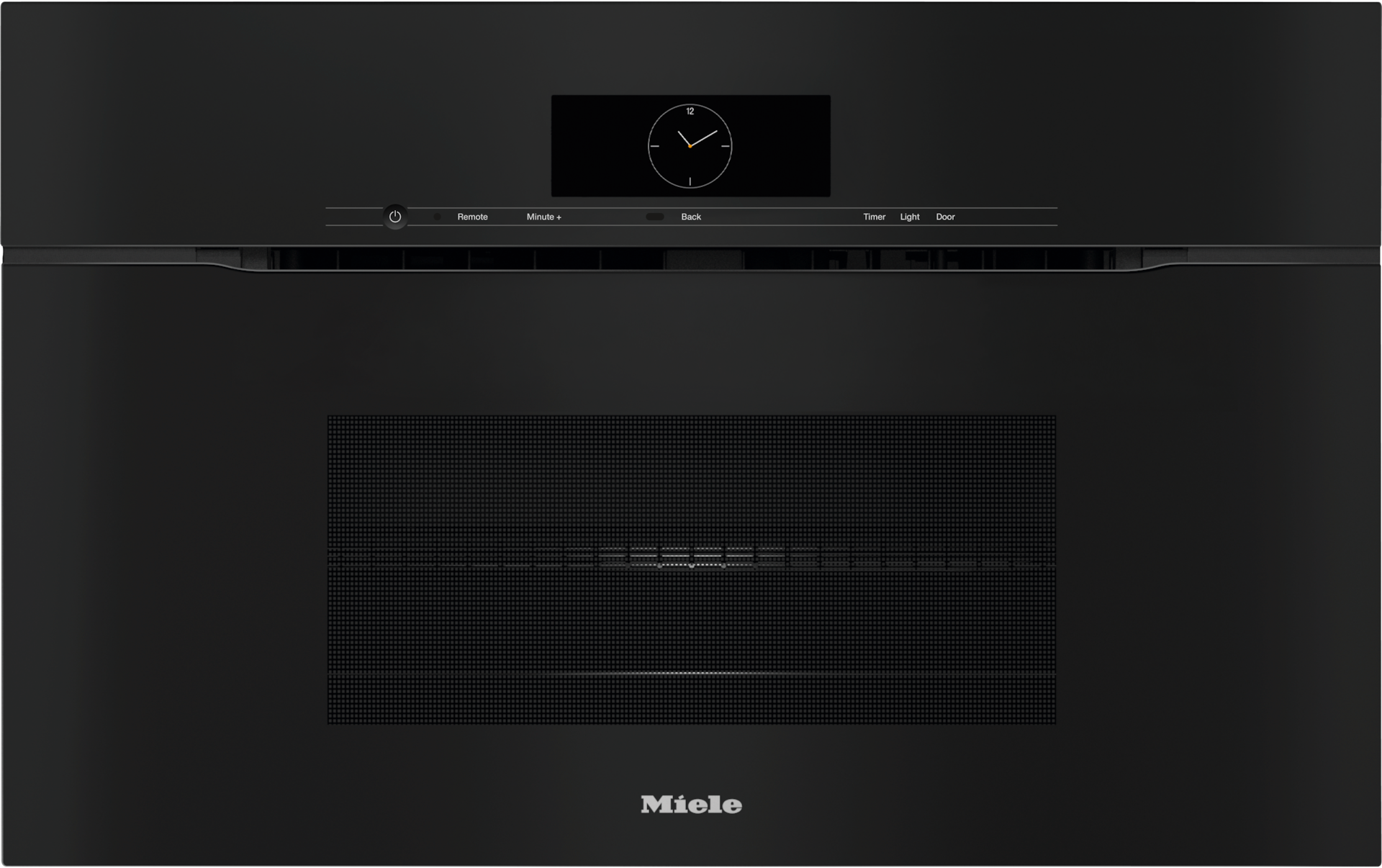

H 7870 BMX Obsidian Black

in a perfectly combinable design with automatic programs and roast probe.
Color:Obsidian Black
sale price$5,999.00


Product details

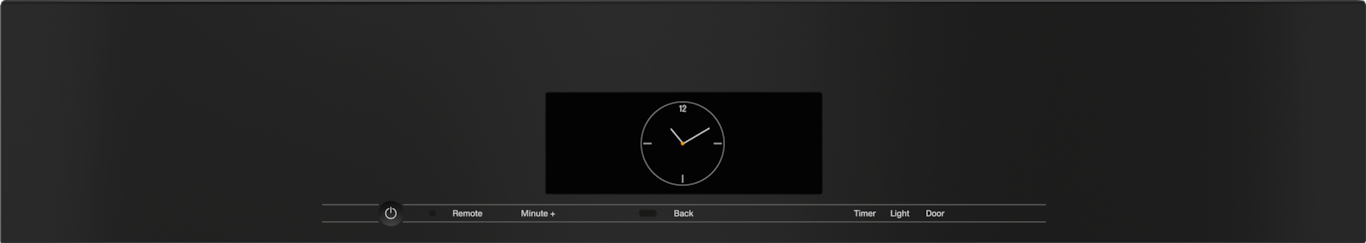

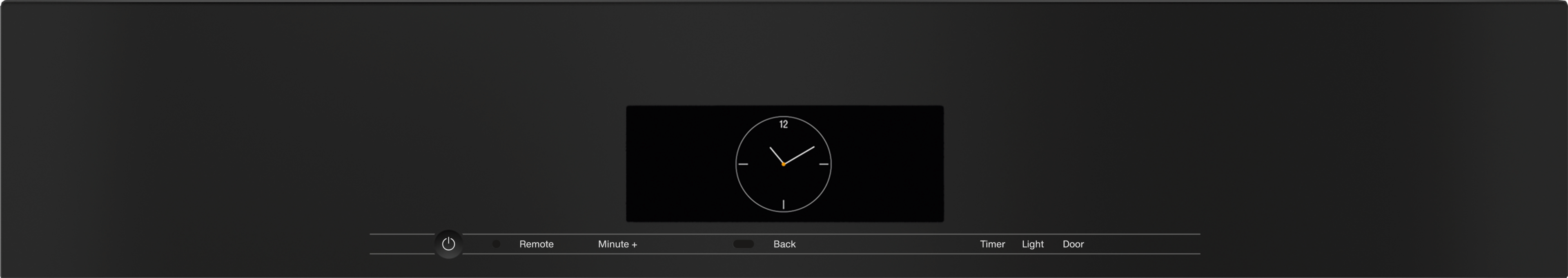

  • Large touch display with proximity sensor –
    M Touch
    +
    MotionReact
  • Easy cleaning –
    cavity with linen-weave pattern & PerfectClean
  • Faster and more consistent results –
    Quick & Gentle
  • Network-enabled WiFi appliance –
    Miele@home
  • Popcorn in a flash with the popcorn function
  • View manufacturer details:
  • Safety information

Product data sheet

Built-in wall speed oven
ArtLine
Handleless
Appliance color Obsidian Black
Quick & Gentle
Rapid PreHeat
Roast probe wired
Keep-warm function
Crisp Function
Surround
Microwave
Combi Bake
Micro Broil
Combi Broil
Combi Auto Roast
Intensive Bake
Auto roast
Convection Roast
Maxi Broil
Broiling operating modes
Bake
Slow roast
Defrost
Automatic programs
Special modes
Networking with Miele@home

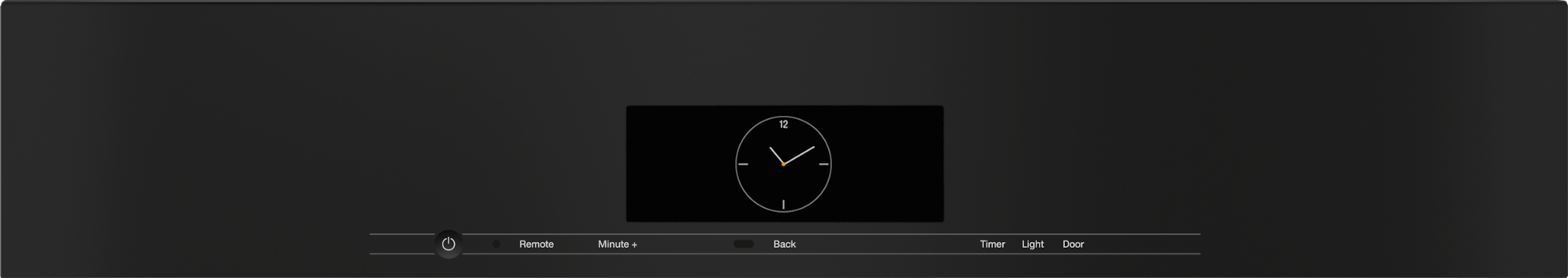

Control panel
M Touch
MotionReact proximity sensor
SoftOpen
3 in 1 [ "Microwave", "Oven", "Speed oven" ]
MultiLingua
MyMiele
Show me how
Popcorn function
Polyphonic acoustic signals
Timers
Time of day display
Time synchronization
Date display
Minute minder
Programming start of cooking duration
Programming end of cooking duration
Programmable cooking time
Actual temperature display
Audible signal when desired temperature is reached
Default temperature
Recommended microwave power
Minute Plus button
Favorites
Individual settings
Automatic residual heat utilization
Stainless-steel cavity with linen surface structure
Foldable broil heater element
CleanGlass door
Appliance cooling system and cool touch front
Safety cut-out
System lock
Sensor lock
Cavity volume in cu.ft (l)
1.52 (43)
No. of rack levels 3
Oven interior lighting 1 LED spot
Temperatures in °F (°C) 85-475 (30-250)
Electronically controlled microwave power
Microwave power levels 1 - 7
Niche dimensions (W x H x D) in inches (mm) 28 1/2 (724)-28 1/2 (724) x 18 1/2 (470)-18 5/8 (472) x 24 (610)
Niche width min. in inches (mm) 28 1/2 (724)
Niche width max. in inches (mm) 28 1/2 (724)
Niche height min. in inches (mm) 18 1/2 (470)
Niche height max. in inches (mm) 18 5/8 (472)
Niche depth in in. (mm) 24 (610)
Appliance dimensions (W x H x D) in inches (mm) 29 3/4 (757) x 18 7/8 (479) x 22 1/2 (573)
Weight in lbs. (kg) 100.31 (45.5)
Total connected load in kW 4
Power Rating in V 120
Voltage in V 240/208
Frequency in Hz 60
Fuse rating in A 30
Number of phases 1
Plug type NEMA plug: 14–30
Length of power cord in in. (m) 1.80
Wire rack with PerfectClean 1
Wired food probe 1
Glass tray 2
Available display languages via MultiLingua [ "français", "ελληνιкά", "čeština", "繁體中文", "slovenčina", "slovenščina", "中文", "polski", "magyar", "nederlands", "hrvatski", "yкраїнська", "bahasa malaysia", "italiano", "deutsch", "türkçe", "dansk", "suomi", "日本語", "română", "español", "english", "srpski", "العربية", "svenska", "norsk", "pусский", "português", "한국어" ]
EAN 4002516976851

What's included

Wire rack with PerfectClean (1)
Glass tray (2)
Wired food probe (1)
  • Infinite adjustment of power settings

    Infinite adjustment of power settings

    Quick & Gentle

    Perfect results in no time: The microwave power is adjusted infinitely, thanks to inverter technology.

  • Special non-stick finish

    Special non-stick finish

    Patented linen stainless steel oven interior2,

    Easy to clean: The special surface with a linen structure is scratch-proof and has a PerfectClean finish.

  • Stress-free cooking

    Stress-free cooking

    MasterChef

    Delicious dishes in no time at all: Whether bread, cakes, or meat – food is prepared fully automatically.

  • Meat and fish cooked to perfection

    Meat and fish cooked to perfection

    Roast probe

    Cook fish and meat to perfection: The countdown indicator lets you know when your food is ready.

  • Cleverly networked

    Cleverly networked

    Domestic appliance networking with Miele@home1,

    Make your life smart: thanks to Miele@home you can cleverly network your domestic appliances – for more options.

Convenience features

Stress-free cooking
Stress-free cooking

MasterChef

Delicious dishes in no time at all: Whether bread, cakes, or meat – food is prepared fully automatically.

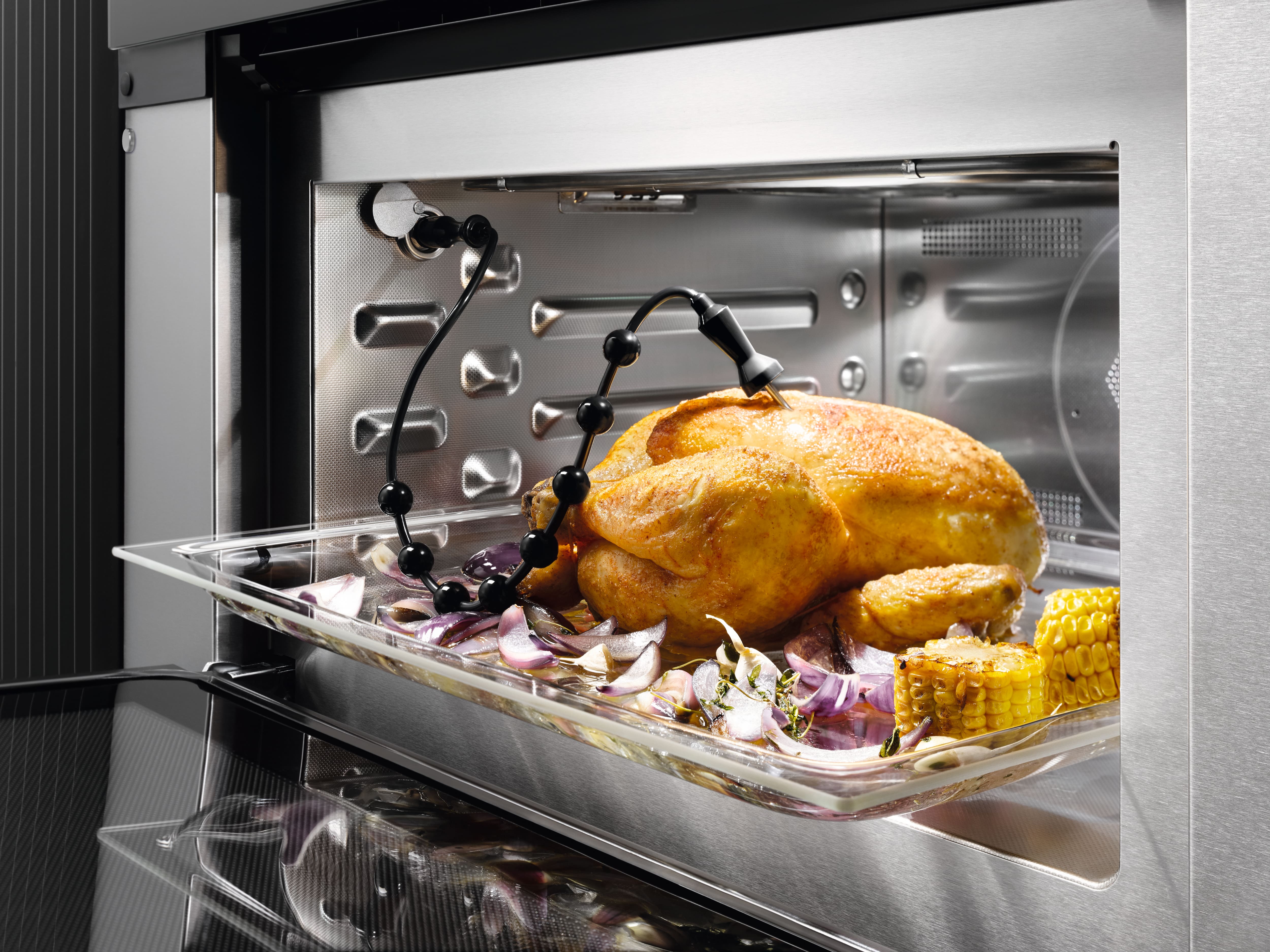

Meat and fish cooked to perfection
Meat and fish cooked to perfection

Roast probe

Cook fish and meat to perfection: The countdown indicator lets you know when your food is ready.

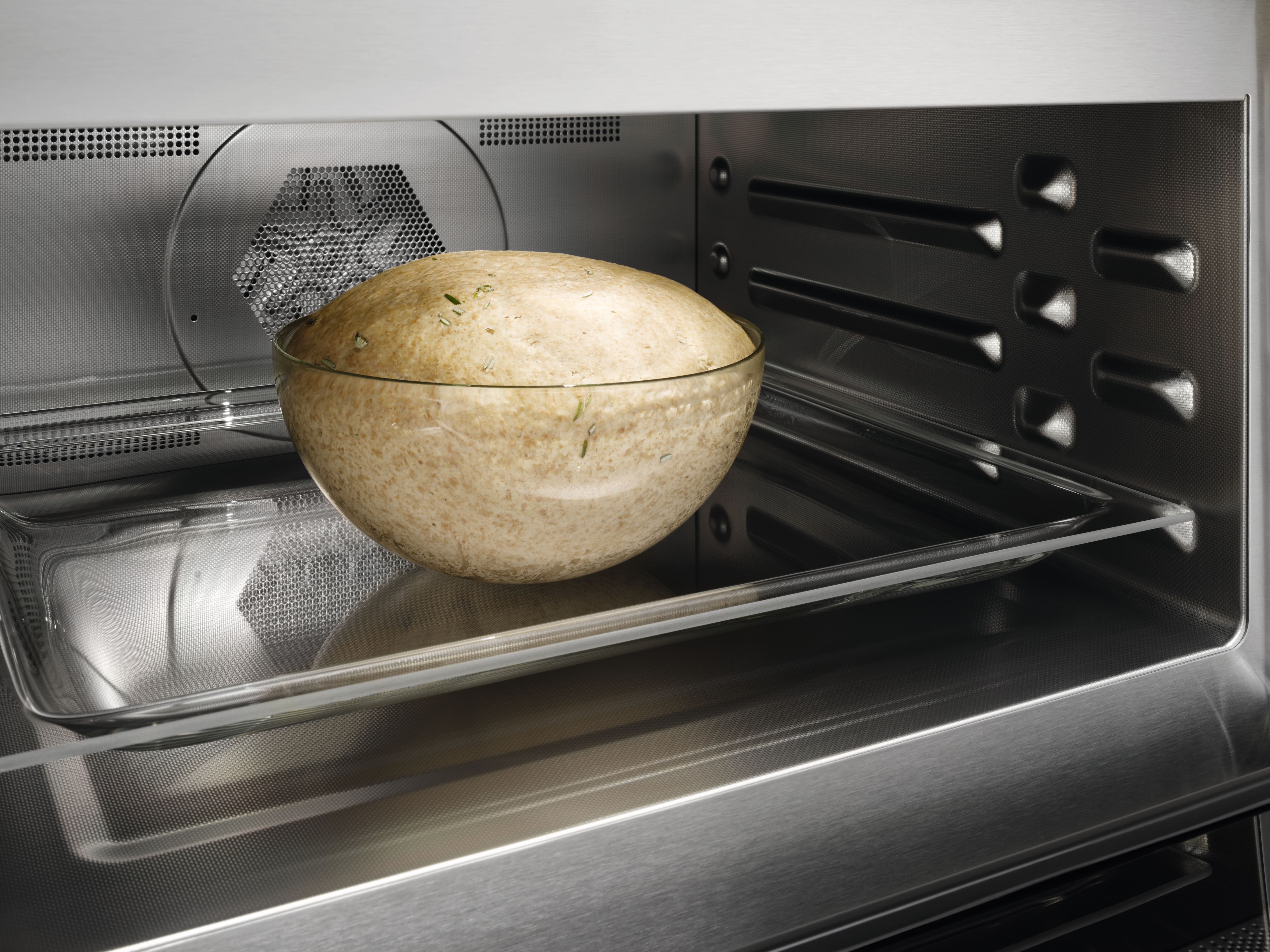

Simple solutions for special cases
Simple solutions for special cases

Special modes

The extraordinary made simple: Special programs such as Drying give outstanding results.

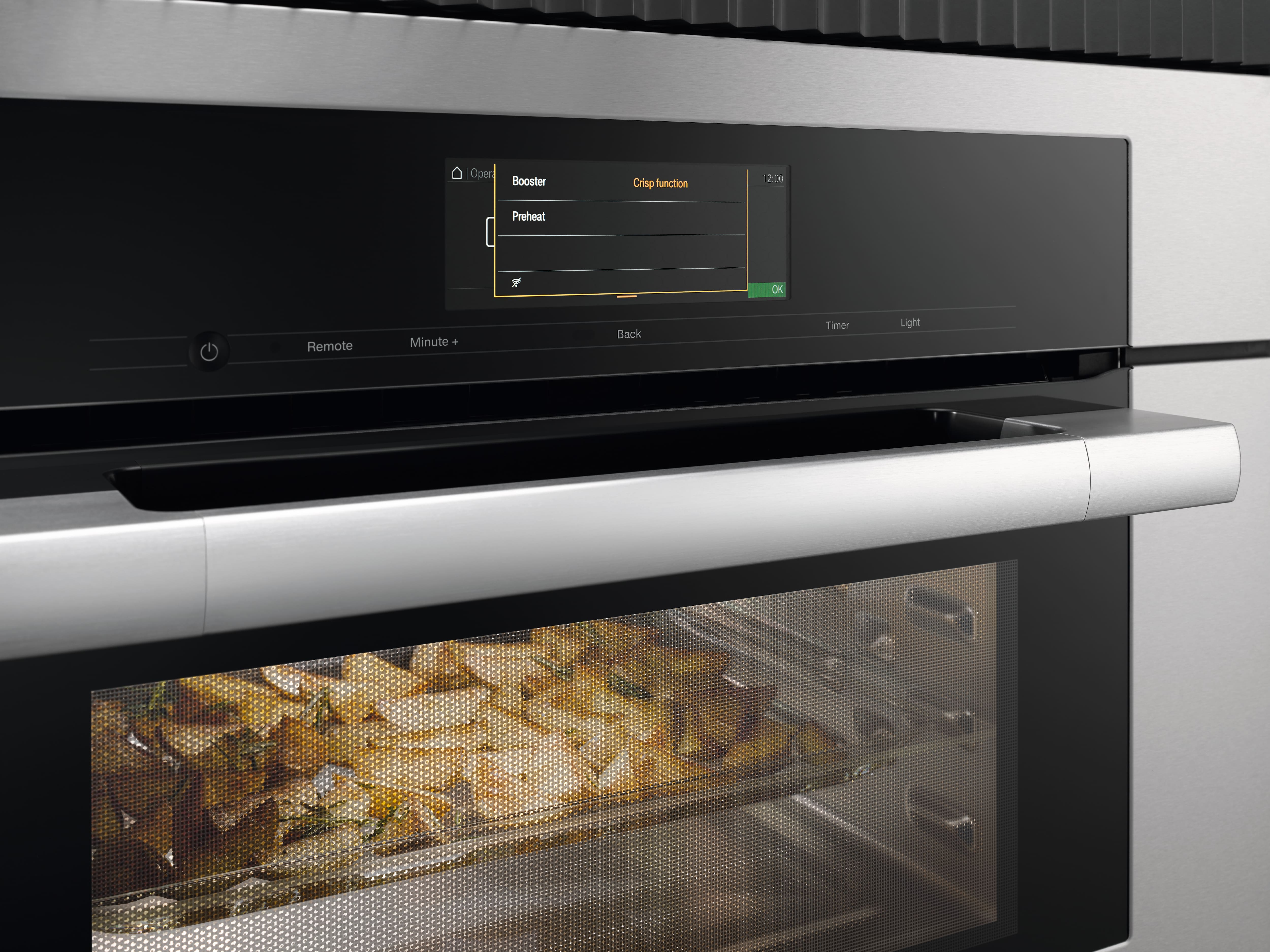

Makes food crunchy and crisp
Makes food crunchy and crisp

Crisp Function

Perfect for pizza or fries: Reducing the moisture achieves a crispy, golden finish.

User convenience

Infinite adjustment of power settings
Infinite adjustment of power settings

Quick & Gentle

Perfect results in no time: The microwave power is adjusted infinitely, thanks to inverter technology.
One appliance, many options
One appliance, many options

A space-saving, 3-in-1 combination

Microwave, oven, or combi mode for cooking food perfectly in just one single appliance.
Cleverly networked
Cleverly networked

Domestic appliance networking with Miele@home1,

Make your life smart: thanks to Miele@home you can cleverly network your domestic appliances – for more options.
Quick start for the microwave oven
Quick start for the microwave oven

Minute Plus button

Full power at your fingertips: Select the microwave function quickly via a separate sensor control.
Fresh popcorn at the touch of a button
Fresh popcorn at the touch of a button

Popcorn button

That cinema feeling in your own home: With our Popcorn button you can make perfect popcorn quickly and easily.
Let your oven take care of time management
Let your oven take care of time management

Timers

Always on time: Set the start time, end time, and duration of the cooking process, or the kitchen timer.
Incredibly easy to understand
Incredibly easy to understand

MultiLingua

For users who speak different languages: The controls can be set to numerous languages.
Gentle door movement
Gentle door movement

SoftOpen

Sophisticated and elegant: The door opens and closes with a gentle, quiet movement – right to the very end.

Oven cabinets

Special non-stick finish
Special non-stick finish

Patented linen stainless steel oven interior2,

Easy to clean: The special surface with a linen structure is scratch-proof and has a PerfectClean finish.
Shown in its best light
Shown in its best light

LED spotlight

Spot on: The LED spotlight illuminates the oven compartment perfectly, while also being highly energy-efficient.

Safety

Only the food gets hot
Only the food gets hot

Touch-cool front

Protection against burns: The appliance stays relatively cool – including on the outside of the door.
Maximum safety, no matter the situation
Maximum safety, no matter the situation

Safety functions

Always safe: Safety lock and safety shut-off provide reliable protection.

Operating modes

Microwave

Microwave

Reheat water for a cup of tea or warm up a meal: efficient convenience – fast.
Microwave + Auto Roast

Microwave + Auto Roast

Succulent inside, crispy outside: Meat is seared at a high temperature, then cooking continues with the microwave.
Microwave + Maxi Broil

Microwave + Maxi Broil

Cooking and broiling: the perfect broiled flavor for meat, fish, grilled vegetables, and so much more.
Microwave + Convection Bake

Microwave + Convection Bake

Whether cakes or a Sunday roast: ideal for quick and gentle baking and roasting on up to 2 levels.
Microwave + Convection Broil

Microwave + Convection Broil

Versatile function for indoors: for broiling steaks, sausages, kebabs, rolled meat, flash fried meat, etc.
Defrost

Defrost

Gentle on frozen food: Frozen food is gently defrosted under ideal conditions using cool air.
Intensive

Intensive

Crispy bases, delicious toppings: pizza, quiche, or fresh fruit flans – crispy base, moist on top.
Slow Roasting

Slow Roasting

Tender and succulent: Meat is cooked evenly at a low temperature – without drying the outside.
Surround

Surround

Multi-purpose, classic function: perfect results for all types of traditional baked and roasted dishes.
Maxi Broil

Maxi Broil

Versatile function for indoors: so you can broil large quantities of steaks, sausages, kebabs, and more.
Convection Broil

Convection Broil

Crisp outside, succulent inside: ideal for chicken, duck, pork, rolled meat, and many other meat dishes.
Bake

Bake

Individual requirements: for cooking food in a bain-marie or for browning from underneath.
Auto Roast

Auto Roast

Meat remains tender and succulent: Meat is seared at a high temperature, then roasted at a selected temperature.
Booster

Booster

For those who lead a busy life: If there's not much time for cooking, you will really appreciate this program.

Matching products and accessories

MicroCloth kit, 3 pieces
GP MI S 0031 W

MicroCloth kit, 3 pieces

For best cleaning results and safe use.

$17.59
 MicroCloth HyClean, 1 cloth
GP MI H 0011 W

 MicroCloth HyClean, 1 cloth

 Antibacterial multi-purpose cloth for improved hygiene.

$13.19

Downloads

Operating and Installation instructions
PDF
Downloads
Product sheet
PDF
Downloads
Warranty conditions
PDF
Downloads
dwg
ZIP
Downloads
fbx
ZIP
Downloads
ifc
ZIP
Downloads
rfa
ZIP
Downloads
rvt
ZIP
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts.

https://media.miele.com/images/2000017/200001724/20000172416.png
Descriptions
installation 30 inch Flush inset BM30, installation drawing, NA
7/8" - 22* mm - Glas, 15/16" - 23.3** mm - Edelstahl
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001724/20000172443.png
Descriptions
installation 30 inch Flush inset BM30, installation drawing, NA
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001724/20000172497.png
Descriptions
installation 30 inch Proud BM30, installation drawing, NA
installation 30 inch Proud BM30, installation drawing, NA
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001725/20000172524.png
Descriptions
installation 30 inch Proud BM30, installation drawing, NA
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Downloads
