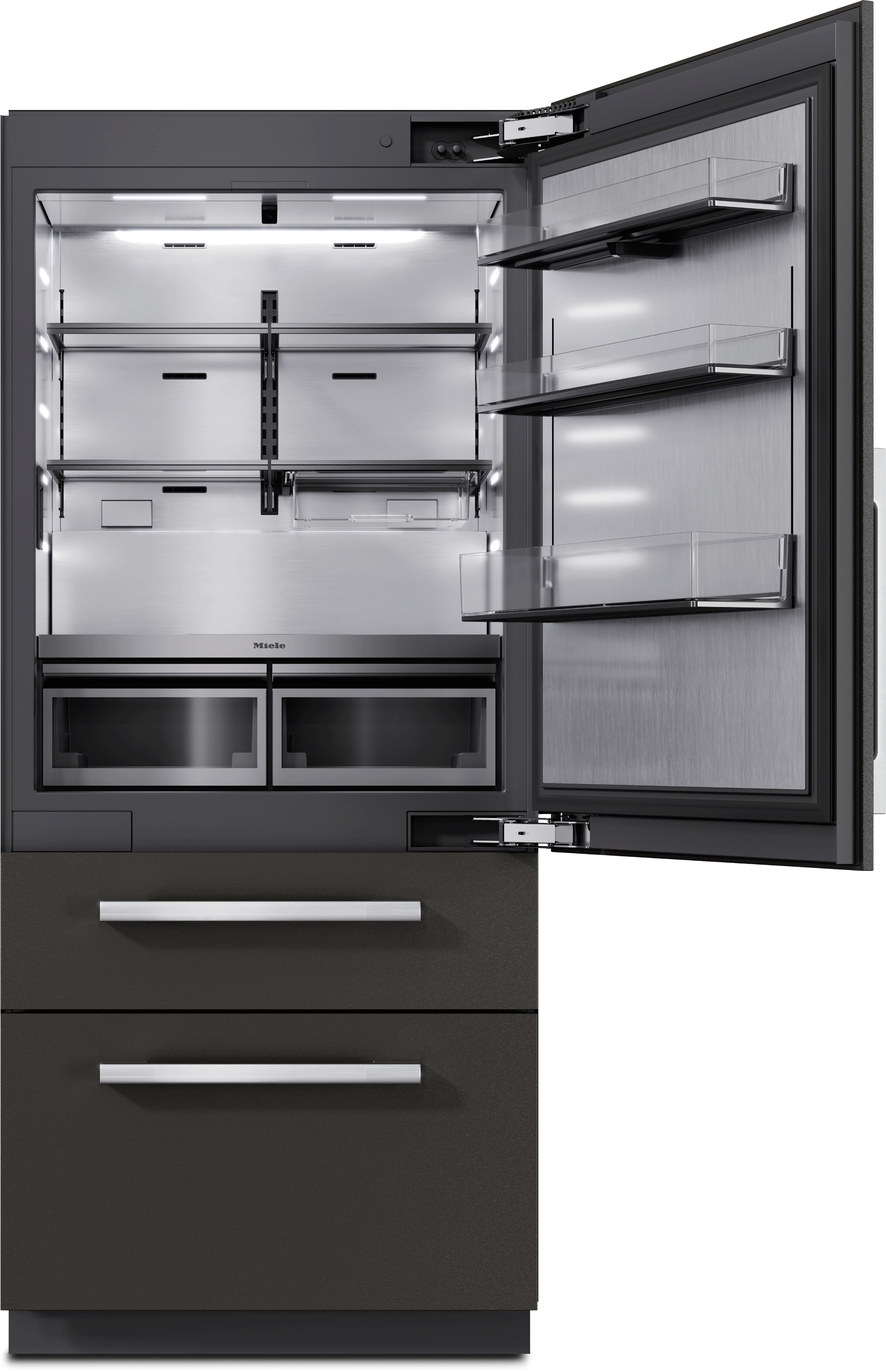

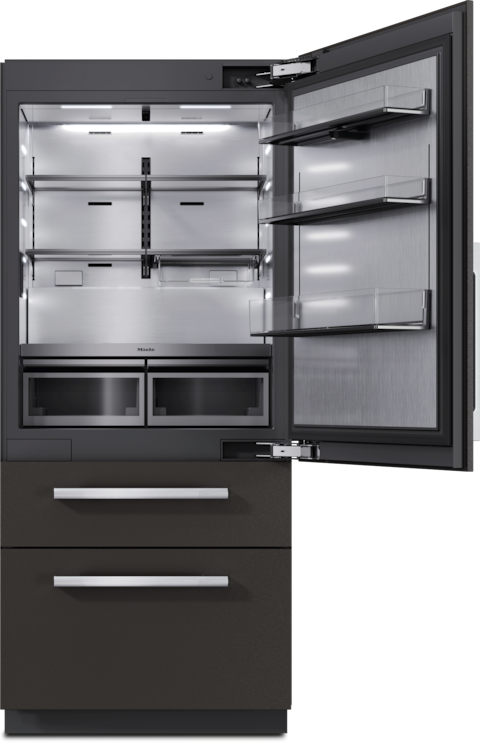

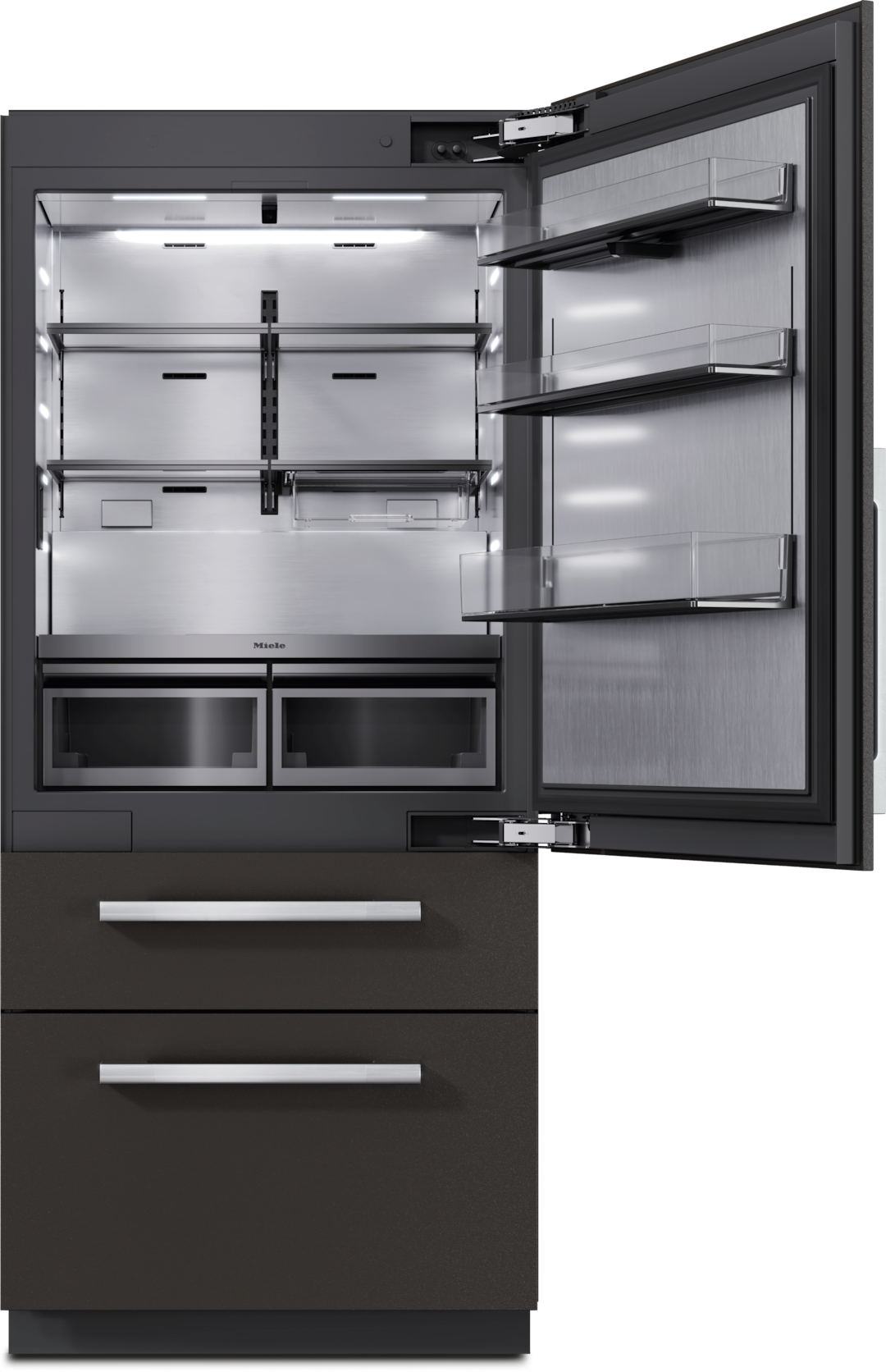

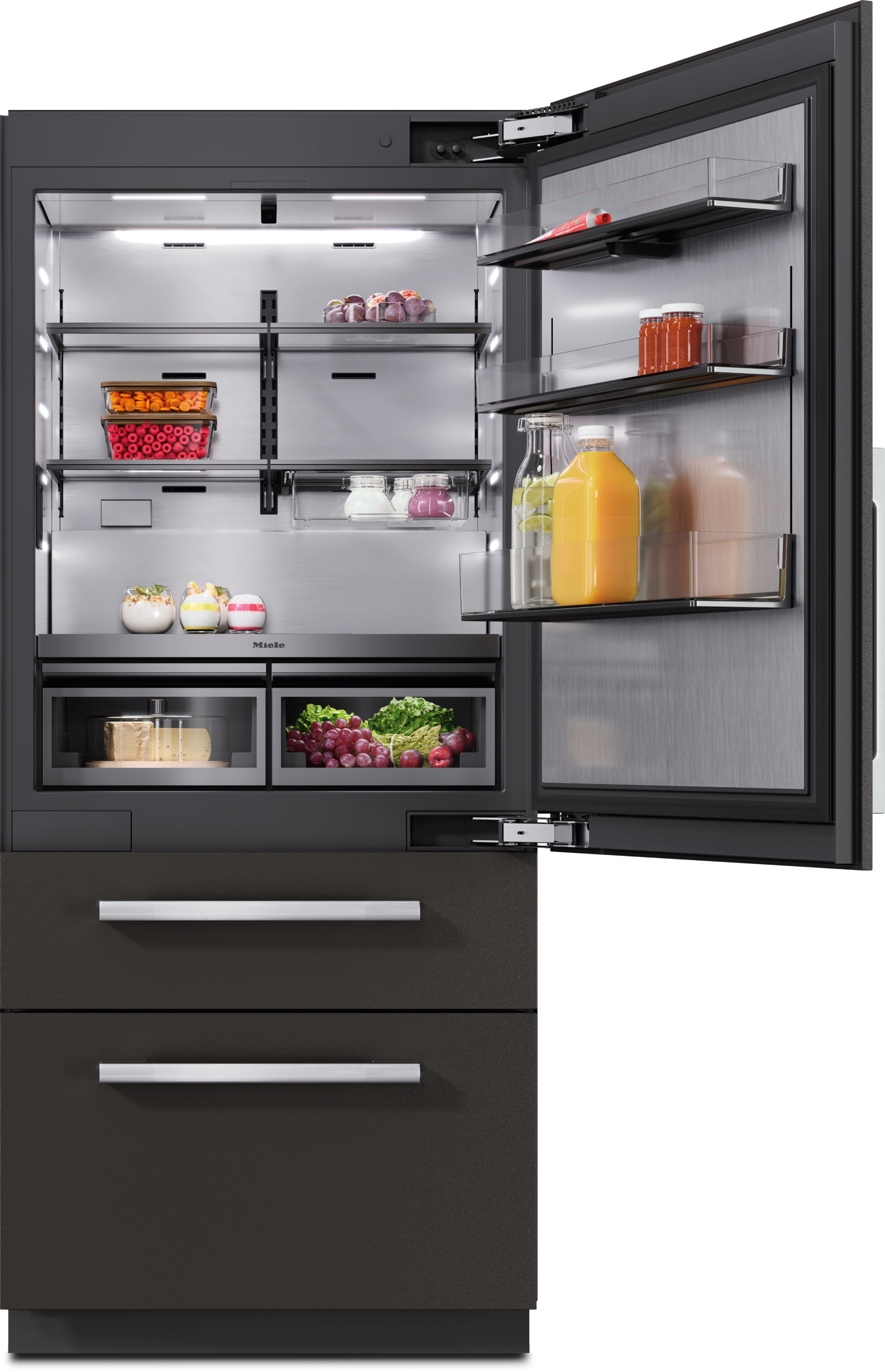

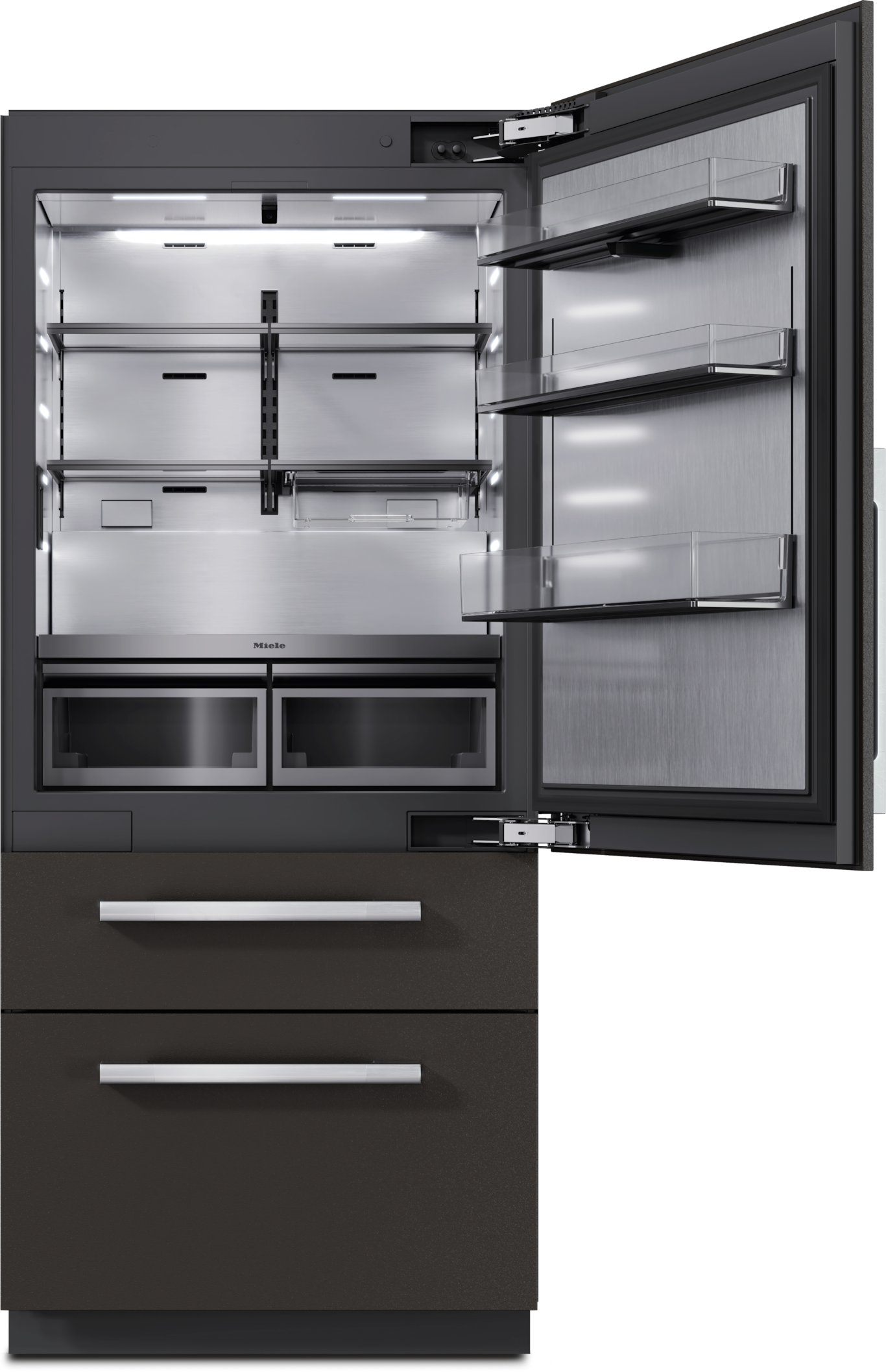

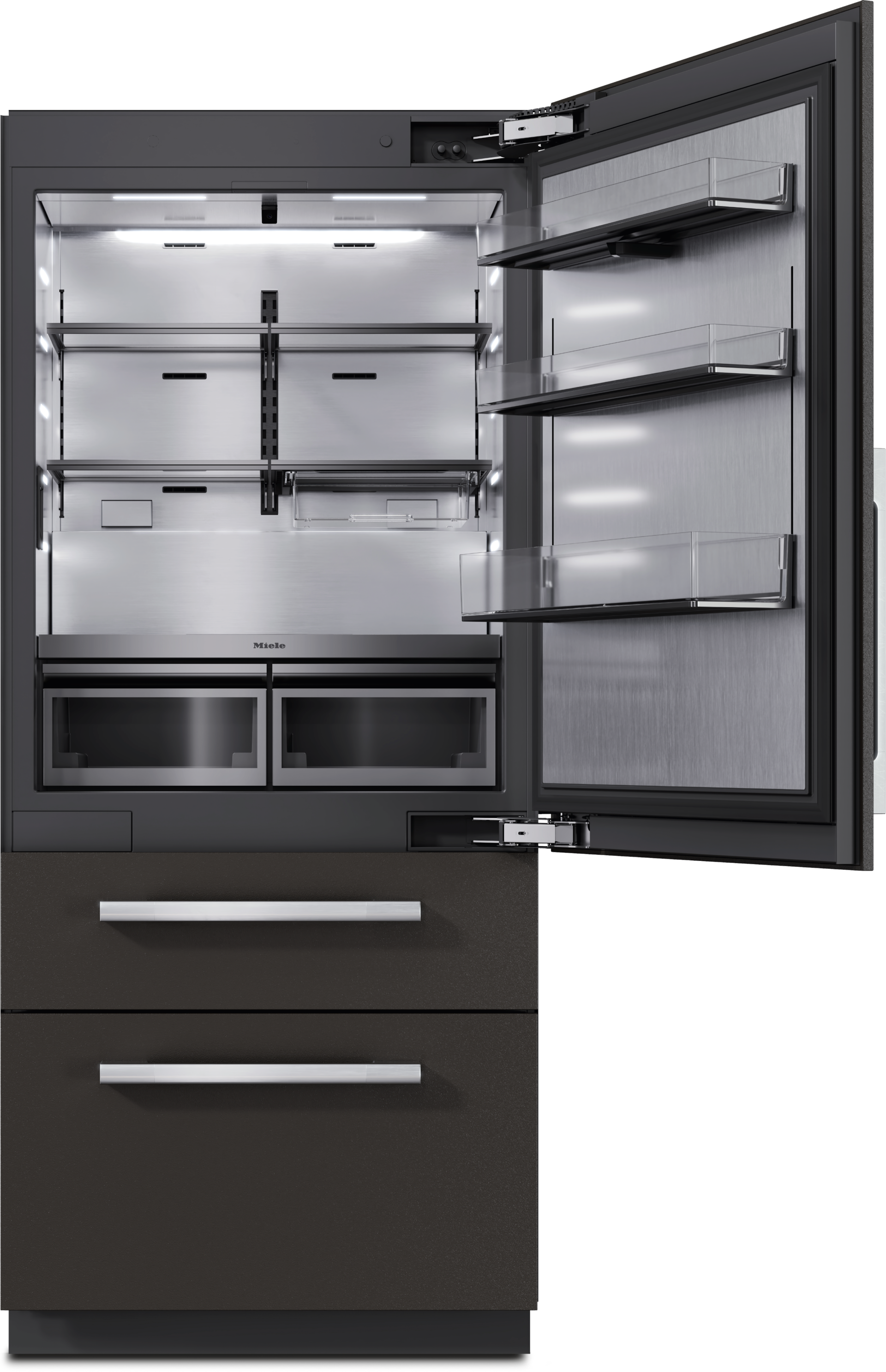

MasterCool™ fridge-freezer

KFMC 3846 R Compatible with furniture fronts



Color:Compatible with furniture fronts

sale price$14,499.00




Product details

  • Food stays fresh for up to 5 times longer –
    MasterFresh Pro
  • Fresh supplies without unpleasant odors –
    Longlife AirClean System
  • Flexible use of storage space –
    Freeze&Cool
  • Ice cubes for cold drinks –
    IceMaker
  • Manufactured with great care by
  • Safety information

Product data sheet

Fridge-freezer
Built-in
Built-in integrated
Door hinge side right
Convertible hinging
Can be installed side-by-side
Design option Compatible with furniture fronts
Lighting
BrilliantLight Pro
SmartLight
Networking with Miele@home
Freshness system
MasterFresh Pro
Longlife AirClean System
Freeze&Cool
DynaCool
NoFrost
DuplexCool Pro
SoftClose door closing damper
SelfClose
Number of IceMakers with plumbed water connection 1
IceMaker with mains water connection
FullAccess
EasyClean
MaxLoad hinge
Electronic temperature display and control M Touch Pro
Precise adjustment Fridge and freezer temperature
Fridge compartment can be switched off No
Independent temperature control of fridge and freezer compartments
SuperCool&AirClean
SuperFrost
No. of temperature zones 3
Sabbath mode
Holiday mode
Eco mode
Eco mode
QuickIce
Height-adjustable, half-width tempered glass shelves 4
No. of PerfectFresh drawers 2
SlidingShelf
Door rack for tins 2
Inner door racks for bottles 1
of which gallon bins 1
Water dispenser
Number of freezer baskets 2
Energy Star Qualified
Spill-proof glass shelves
Acoustic door alarm
Acoustic temperature alarm, freezer section
Niche width in inches (mm), min. 36 (914)
Niche width in inches (mm), max. 36 (914)
Niche height in inches (mm), min. 84 1/8 (2134)
Niche height in inches (mm), max. 84 1/8 (2134)
Niche depth in in.(mm) 25 (635)
Appliance width in in.(mm) 35 1/4 (894)
Appliance height in in.(mm) 83 5/8 (2123)
Appliance depth in in.(mm) 24 (608)
Weight in lbs.(kg) 488 (221.0)
Type of mounting Fixed door
Maximum fridge compartment door front weight in lbs. (kg) 104 (47)
Total usable capacity in cu. ft. (l) 18.82 (533)
Current consumption in milliampere (mA) 4000
Voltage in V 110-120
Fuse rating in A 10
Number of phases 1
Frequency in Hz 60
Wire length in ft (m) 9 (3.0)
Replacing bulbs Customer Service
Longlife AirClean filter
Ice scoop
EAN 4002516768647

What's included

Ice scoop

Special features

Protective storage for long-lasting freshness

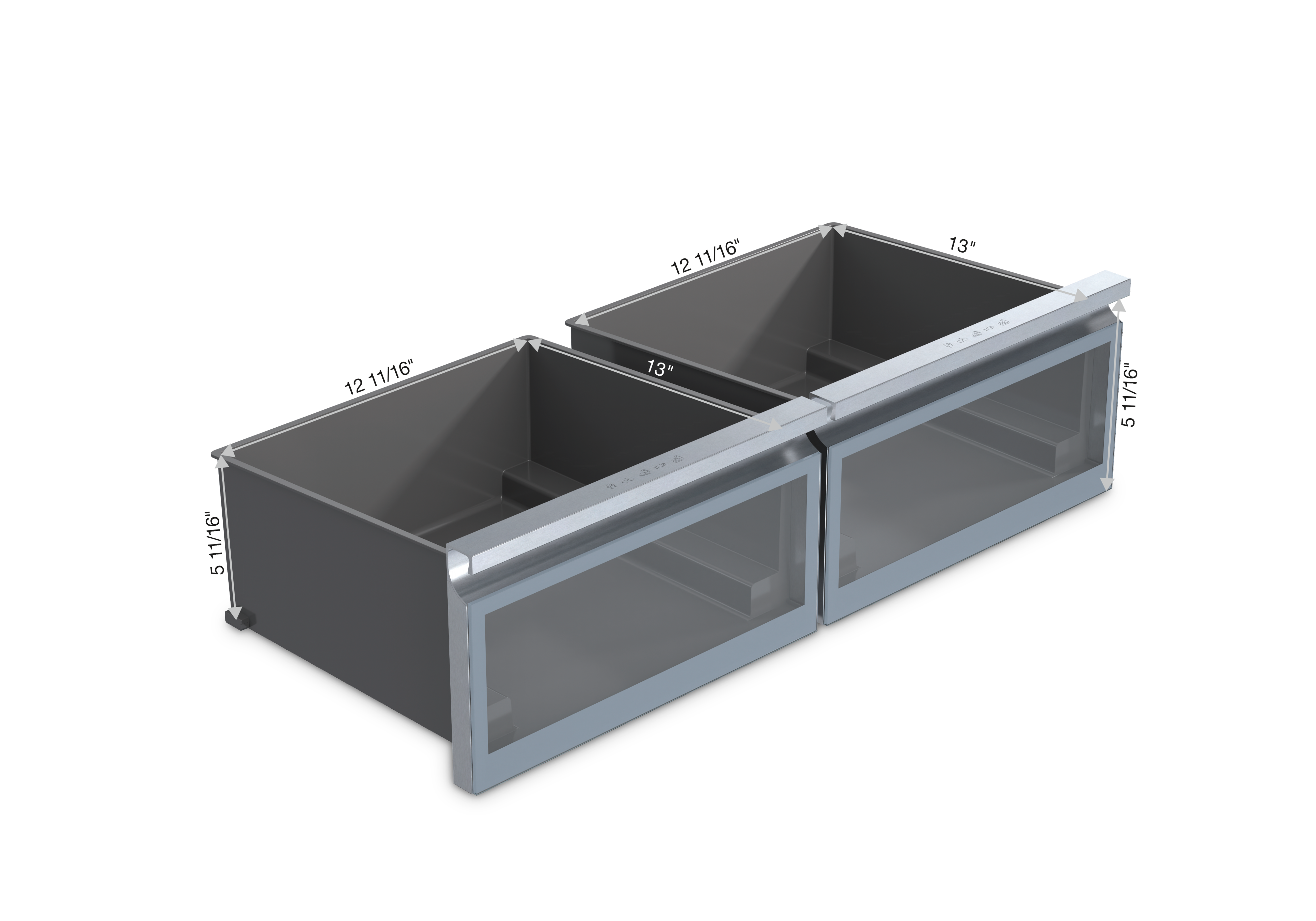

MasterFresh Pro

The drawers of your Miele MasterCool appliance provide the perfect climate for the gentle storage of your food.


Ice cubes for cold drinks
IceMaker

The IceMaker delivers 3 lb (1.4 kg) of ice cubes a day – with a water connection and filter for good water quality

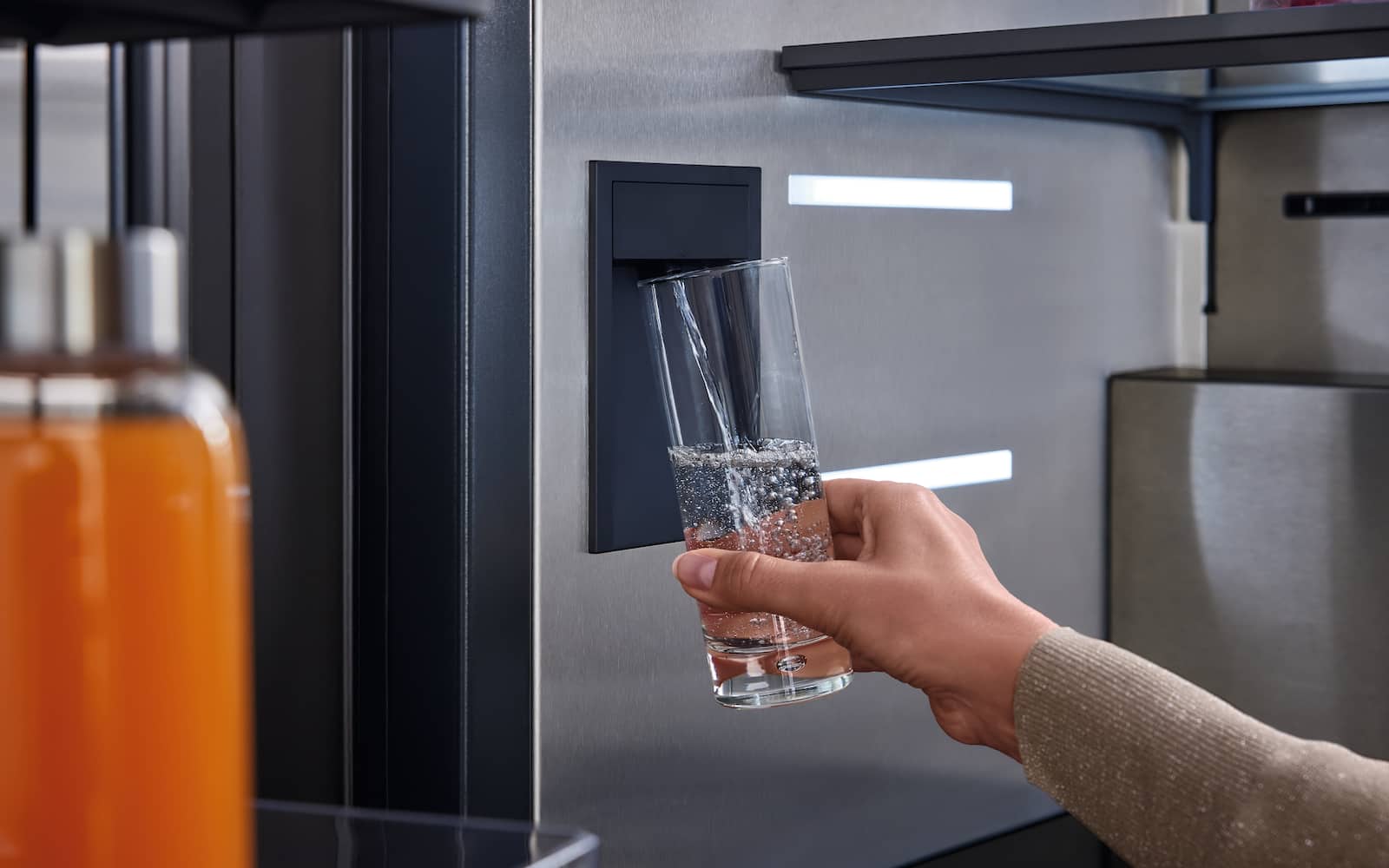

Chilled water at any time

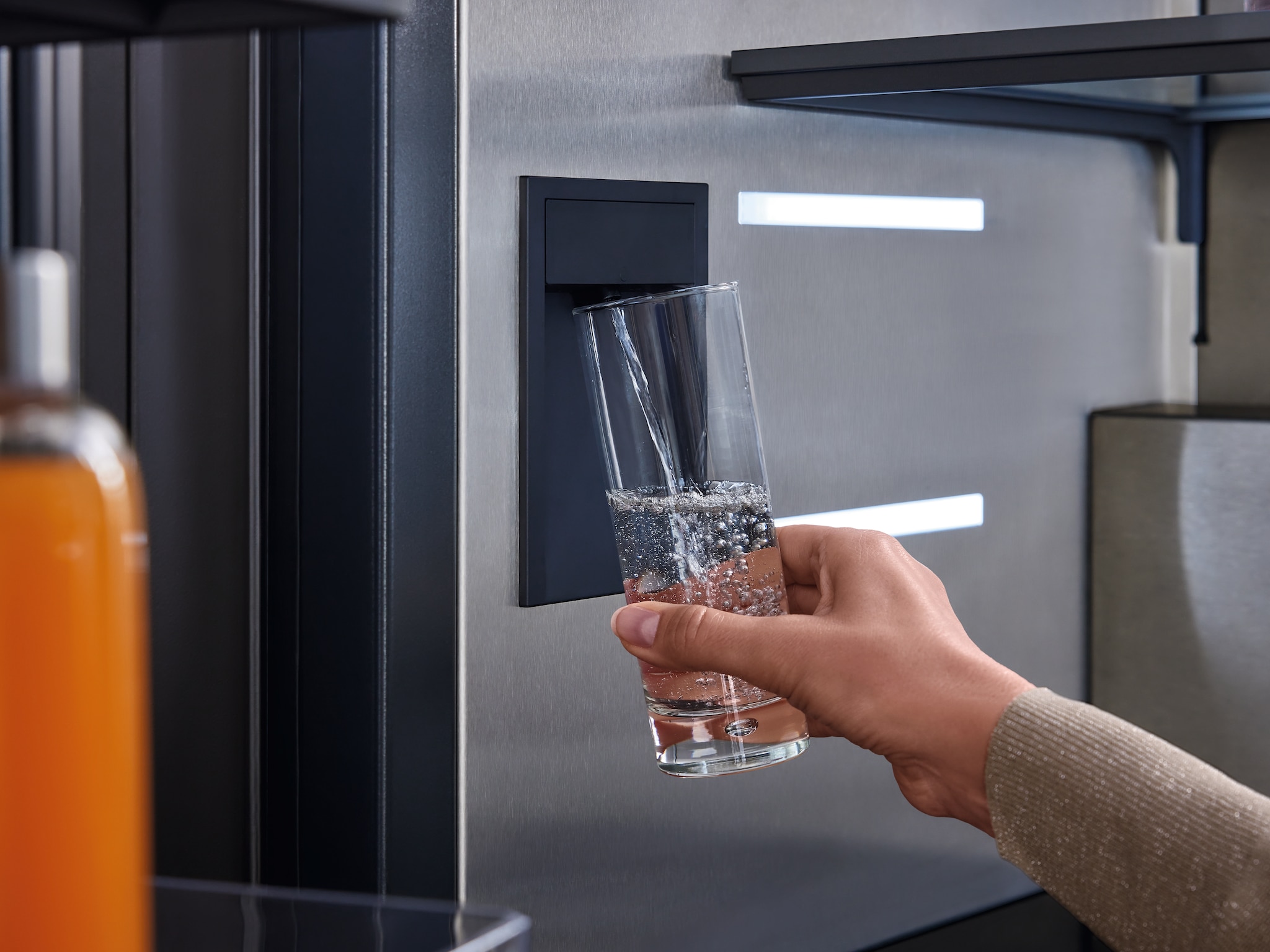

Water dispenser

Pure luxury: Treat yourself to chilled, filtered water from the water dispenser.


User convenience

Perfect food storage
DynaCool

A fan ensures a uniform temperature throughout the entire fridge section, so you are entirely free to choose where to store your food.

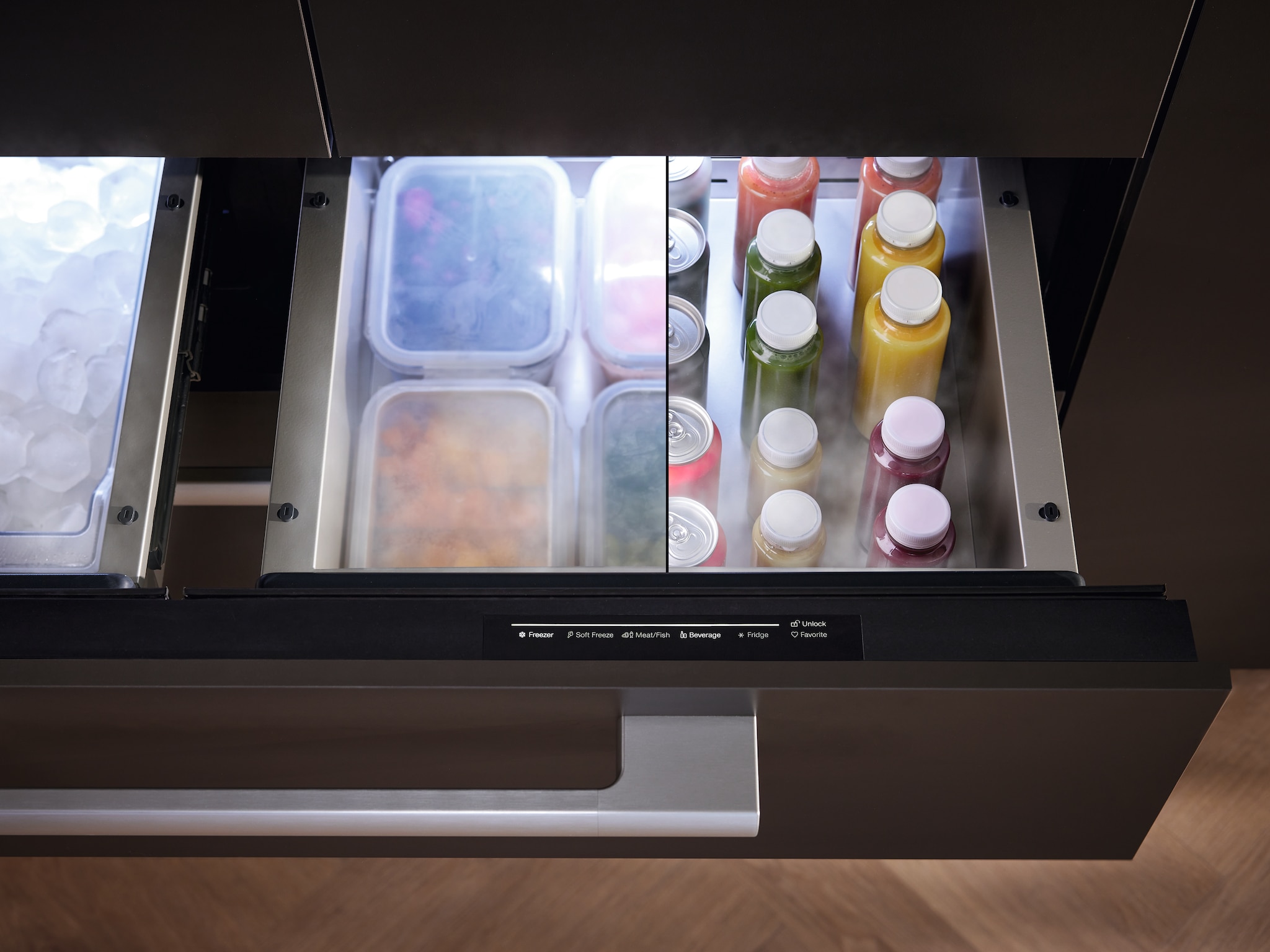

Flexible use of storage space

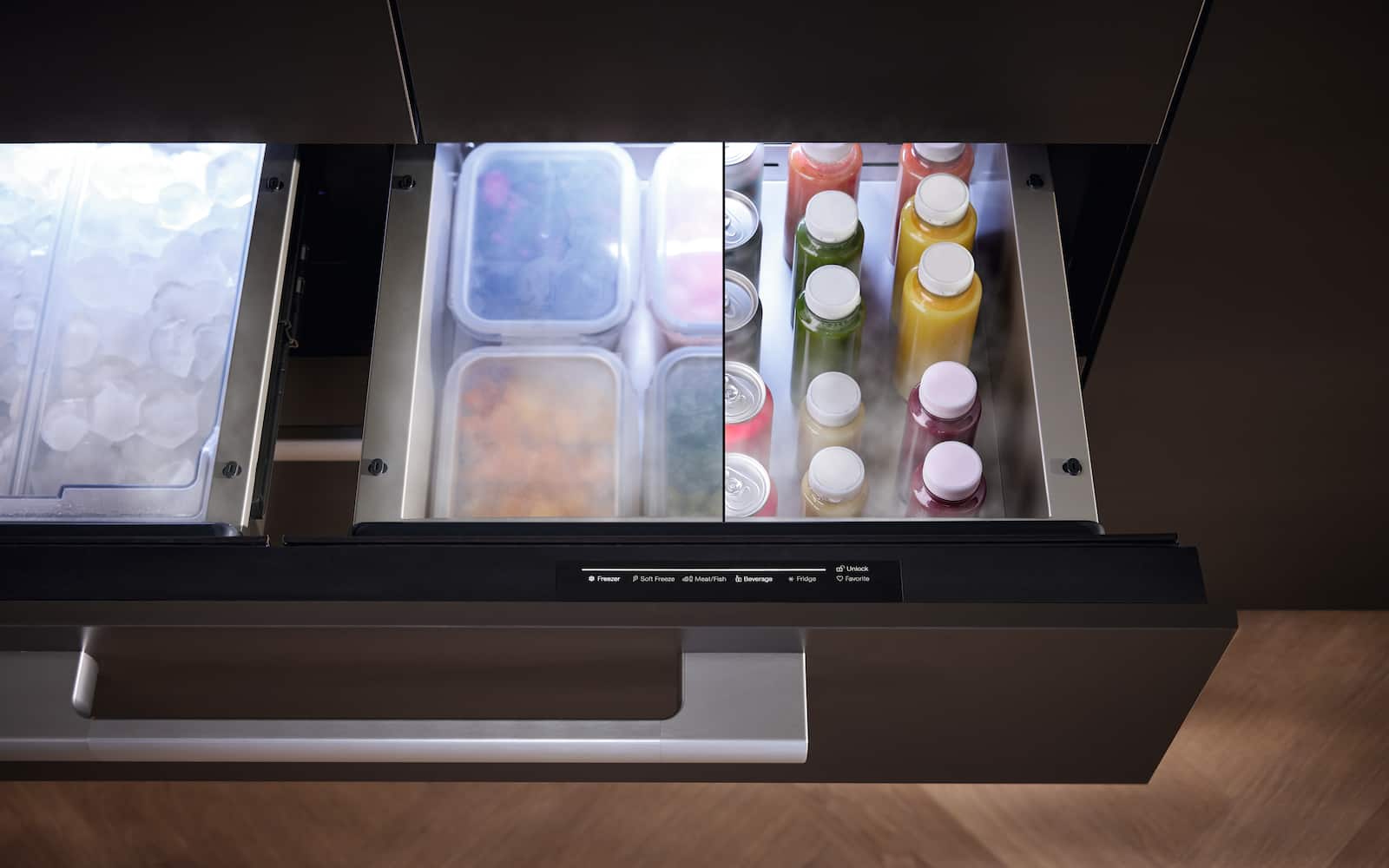

Freeze&Cool

New possibilities: Use the Freeze&Cool drawer as a fridge or freezer section and benefit from extra storage space.


Fresh food without unpleasant odors
Longlife AirClean System

The reactivatable filter reduces odors by up to 95%1, and thus preserves the freshness of your food.


Practical illumination with elegant LEDs
BrilliantLight Pro

Soft and attractive high-quality LED light strips offer perfect illumination and a beautiful lighting mood.


Protection when liquids leak
Spill-proof glass shelves

The overflow protection integrated into the glass shelves holds back liquids.


Individually customizable lighting
SmartLight

Define how much the interior lighting is dimmed down in the evening – for glare-free illumination.


Door shelves for large containers
Gallon bins

There is space for large containers in the door shelves and plenty of room inside for all your food.

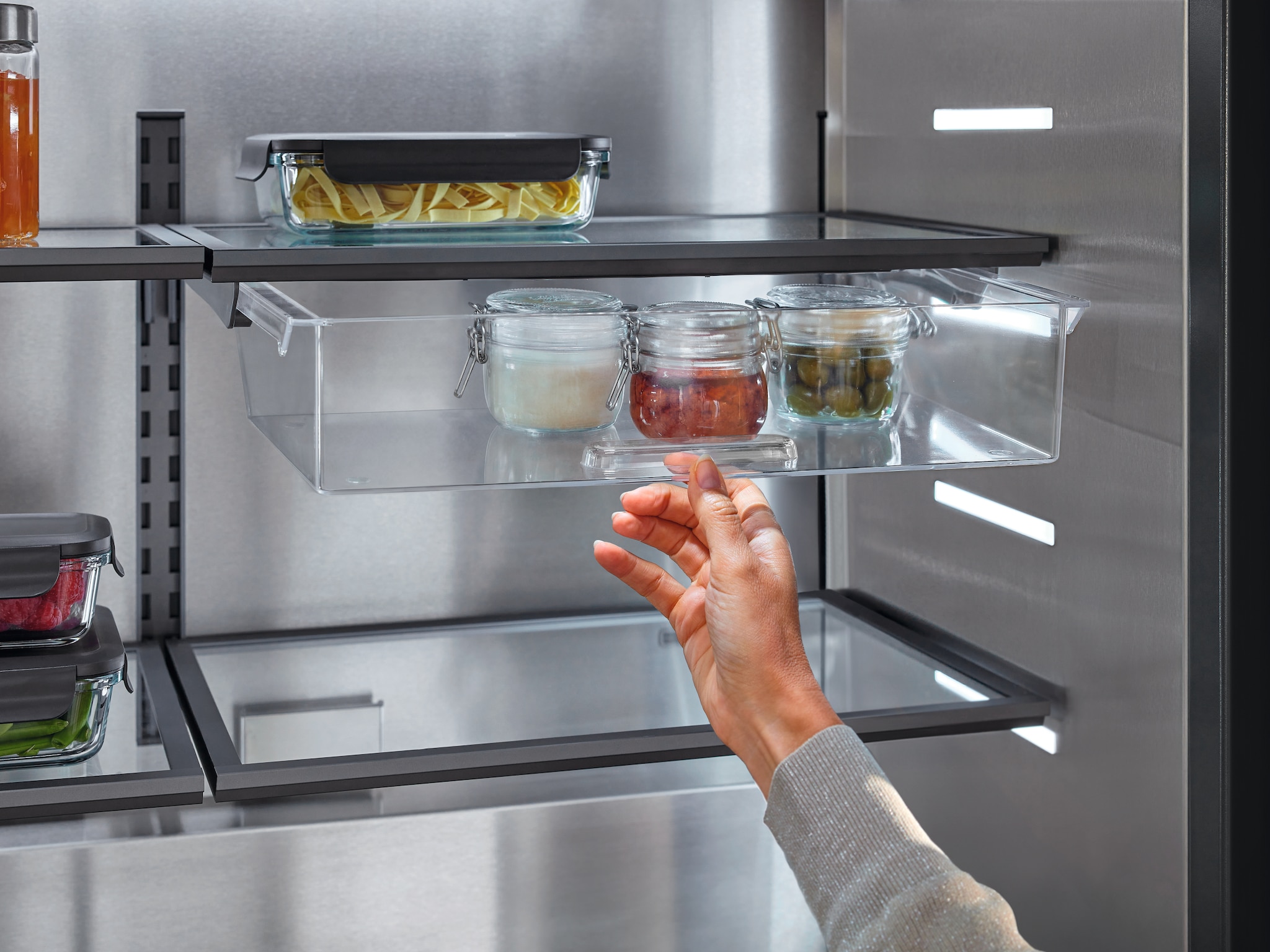

A drawer for small items
SlidingShelf

Small food items can be stored separately in a drawer below the glass shelf.


Defrosting is a thing of the past
NoFrost

The sophisticated NoFrost system provides the convenience of no longer having to defrost or clean the appliance.


Cleverly networked
Miele@home#*#ZFN_0000000000000000200018192_00

Make your life smart: Thanks to Miele@home, you can cleverly network your domestic appliances – for more options.

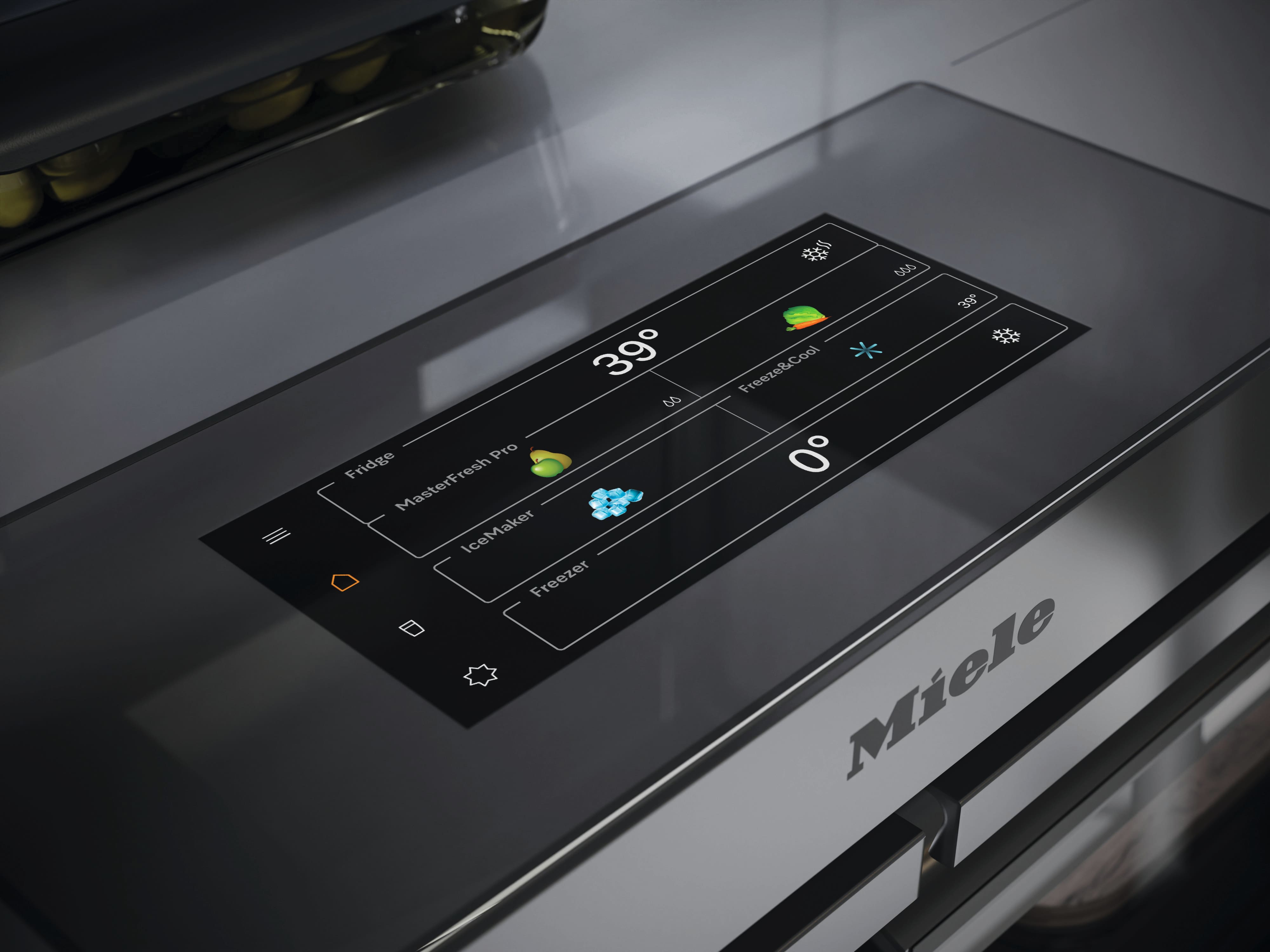

User interfaces

Convenient operation at your fingertips
M Touch Pro

For maximum convenience, a wide range of settings can be made with a touch of a fingertip.


Quality

Safe handling guaranteed
MaxLoad hinge

The high load size of the door hinges ensures smooth opening of large doors and provides stability.


Downloads

Warranty conditions
PDF
Downloads
Operating and Installation instructions
PDF
Downloads
Product sheet
PDF
Downloads
Fitting Instructions
PDF
Downloads
Fitting Instructions
PDF
Downloads
fbx
ZIP
Downloads
dwg
ZIP
Downloads
rvt
ZIP
Downloads
rfa
ZIP
Downloads
ifc
ZIP
Downloads
Energy label
PDF
Downloads
Energy label
JPEG
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts.

https://media.miele.com/images/2000021/200002195/20000219516.png
Descriptions
KFMC3846R, KFMC3846L, MasterCool III, panel ready, top view (US)
Installation drawings
Downloads
https://media.miele.com/images/2000021/200002195/20000219515.png
Descriptions
KFMC3846R, KFMC3846L, MasterCool III, PACS, with stainless steel front, top view (US)
Installation drawings
Downloads
https://media.miele.com/images/2000021/200002195/20000219506.png
Descriptions
KFMC3632R+L, KFMC3642R+L, KFMC3836R+L, KFMC3834R+L, KFMC3858FD, MasterCool III, Side-view bottom, installation
Installation drawings
Downloads
https://media.miele.com/images/2000021/200002195/20000219505.png
Descriptions
KFMC3632R+L, KFMC3642R+L, KFMC3836R+L, KFMC3834R+L, KFMC3858FD, MasterCool III, hinge clearance, installation
Installation drawings
Downloads
https://media.miele.com/images/2000021/200002195/20000219504.png
Descriptions
KFMC3632R+L, KFMC3642R+L, KFMC3836R+L, KFMC3834R+L, KFMC3858FD, MasterCool III, frame neutral, installation
Installation drawings
Downloads
https://media.miele.com/images/2000021/200002194/20000219425.png
Descriptions

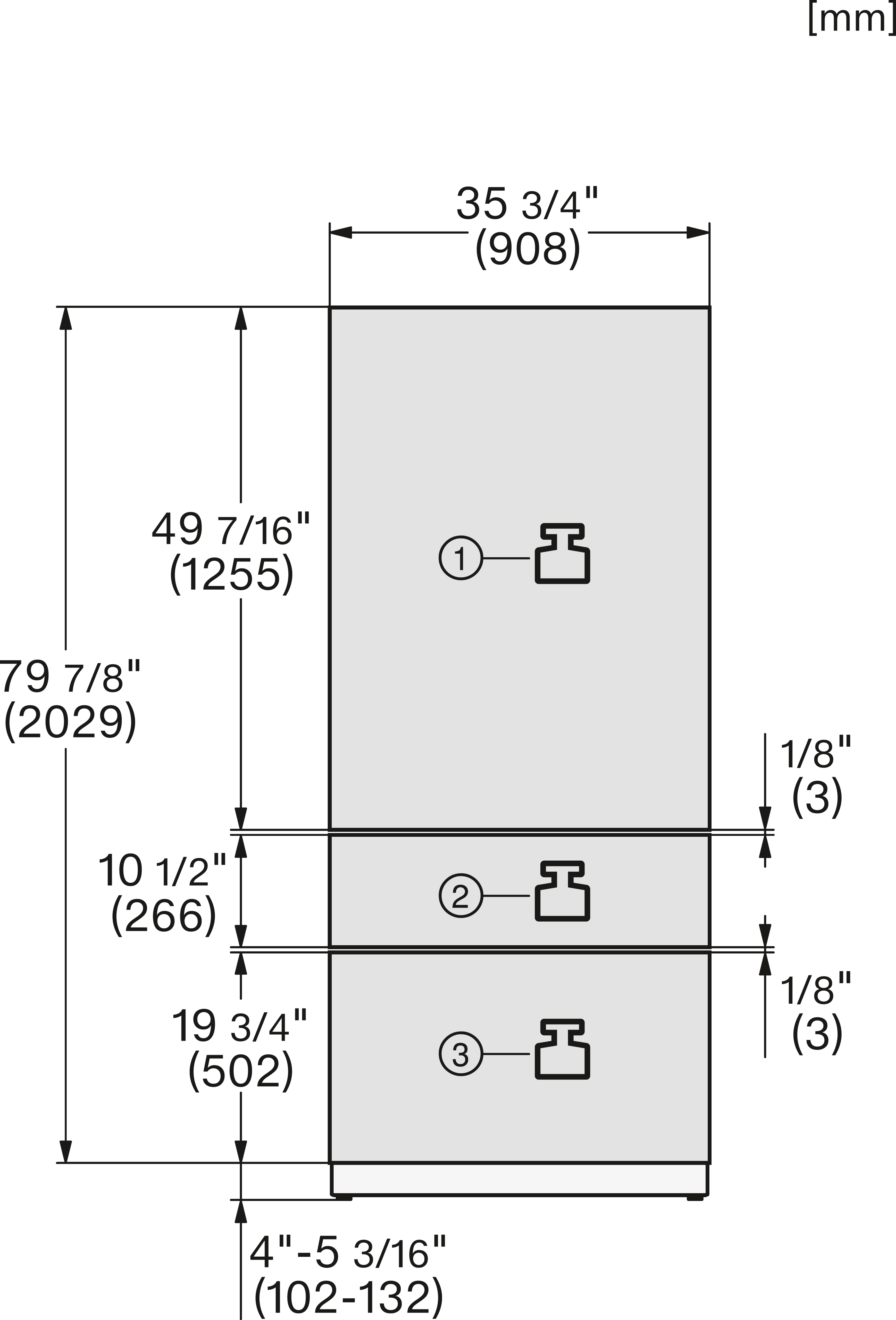

KFMC3846R, KFMC3846L, MasterCool III, front view, installation (US)
1. 47 kg, 2. 55 kg, 3. 30 kg
Downloads
https://media.miele.com/images/2000021/200002194/20000219416.png
Descriptions
KFMC3846R, KFMC3846L, MasterCool III, integration, panel ready (US)
Installation drawings
Downloads
https://media.miele.com/images/2000021/200002194/20000219414.png
Descriptions

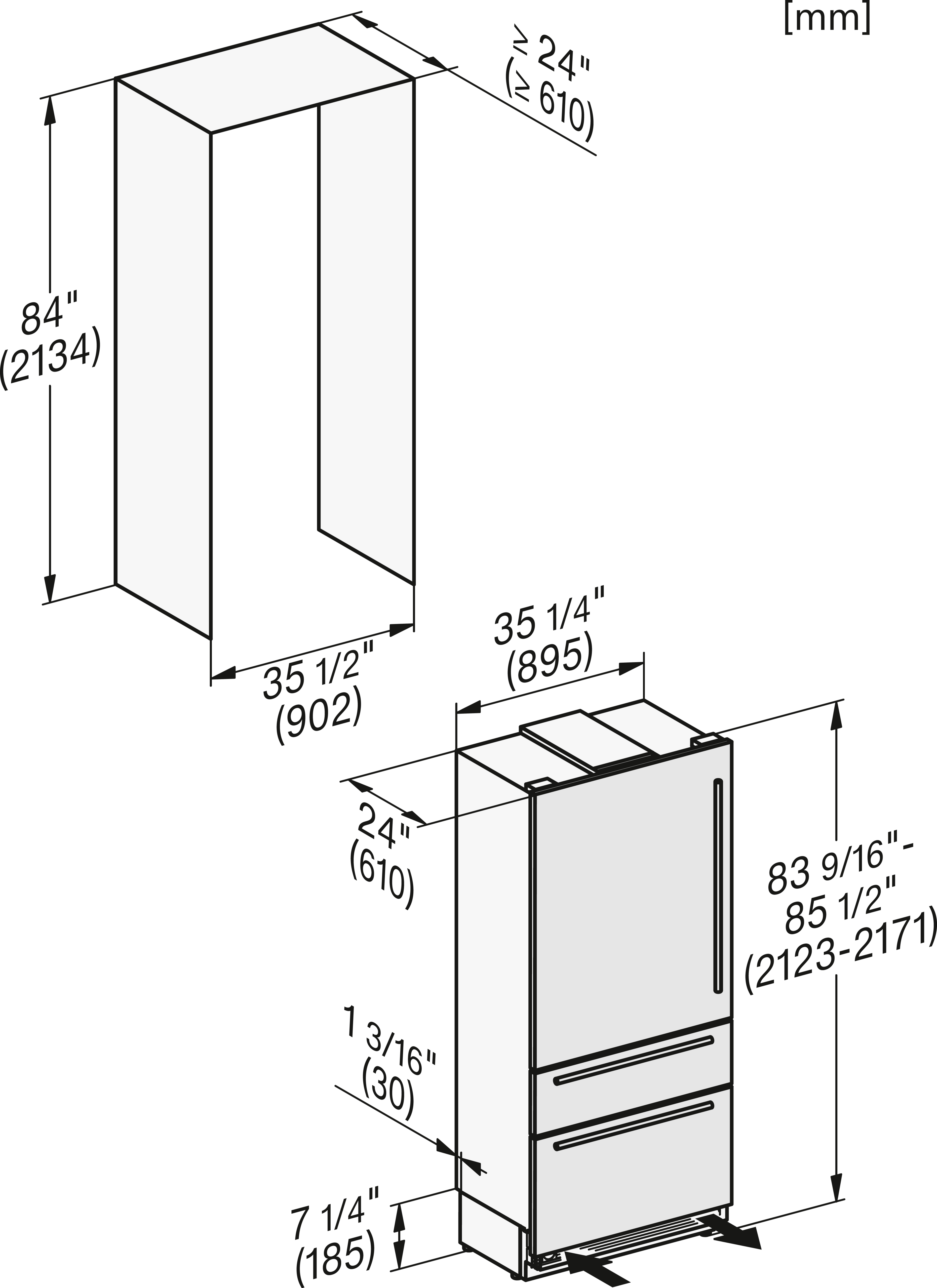

KFMC3846R, KFMC3846L, MasterCool III, PACS, with stainless steel front, integration (US)
Installation drawings
Downloads
https://media.miele.com/images/2000021/200002194/20000219402.png
Descriptions

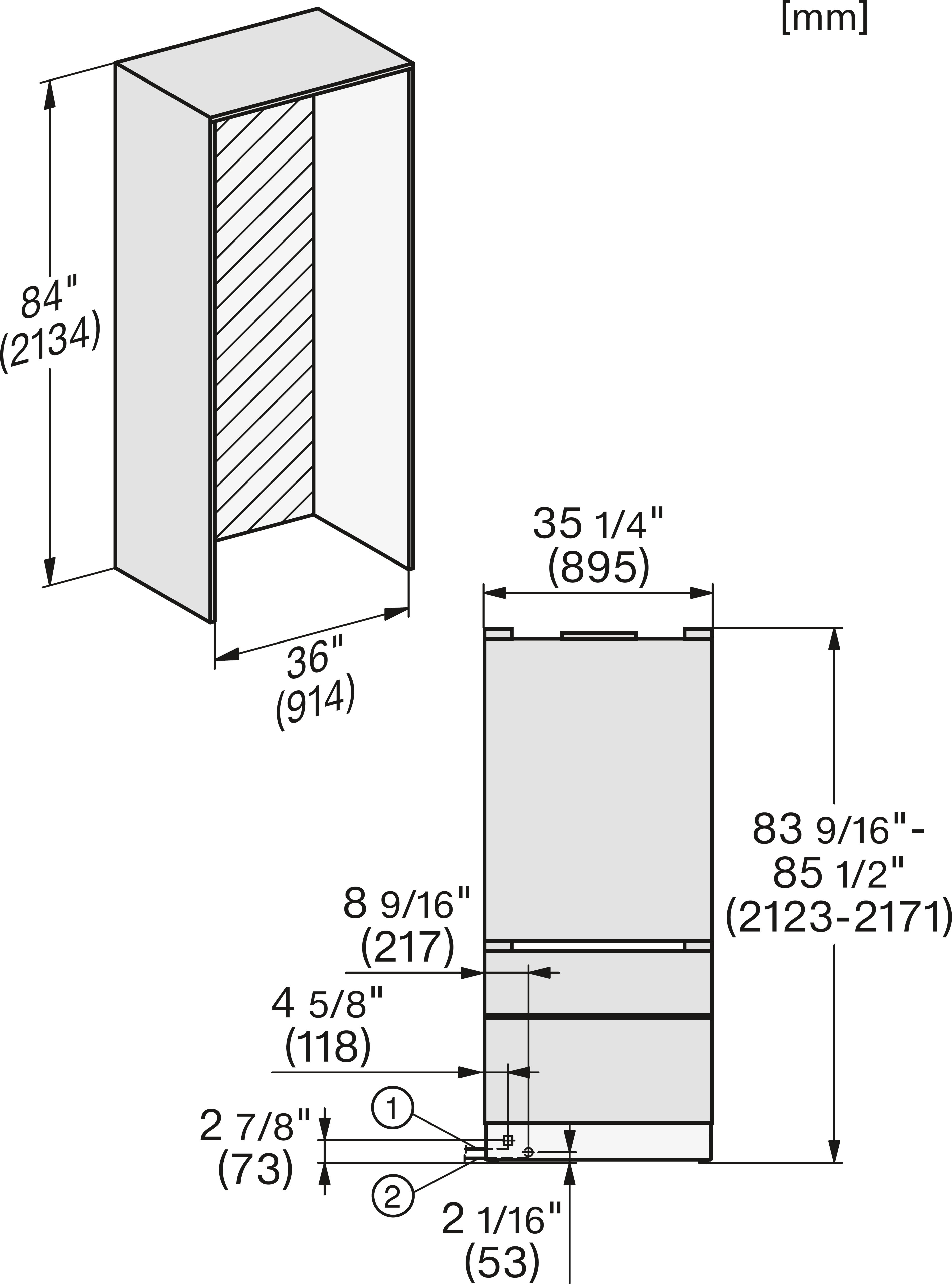

KFMC3846R, KFMC3846L, MasterCool III, installation, panel ready (US)
View from the front, 1. Mains connection cable, L = 3000 mm (118 inch), 2. Water connection L = 1800 mm (70 inch)
Downloads
https://media.miele.com/images/2000021/200002193/20000219395.png
Descriptions

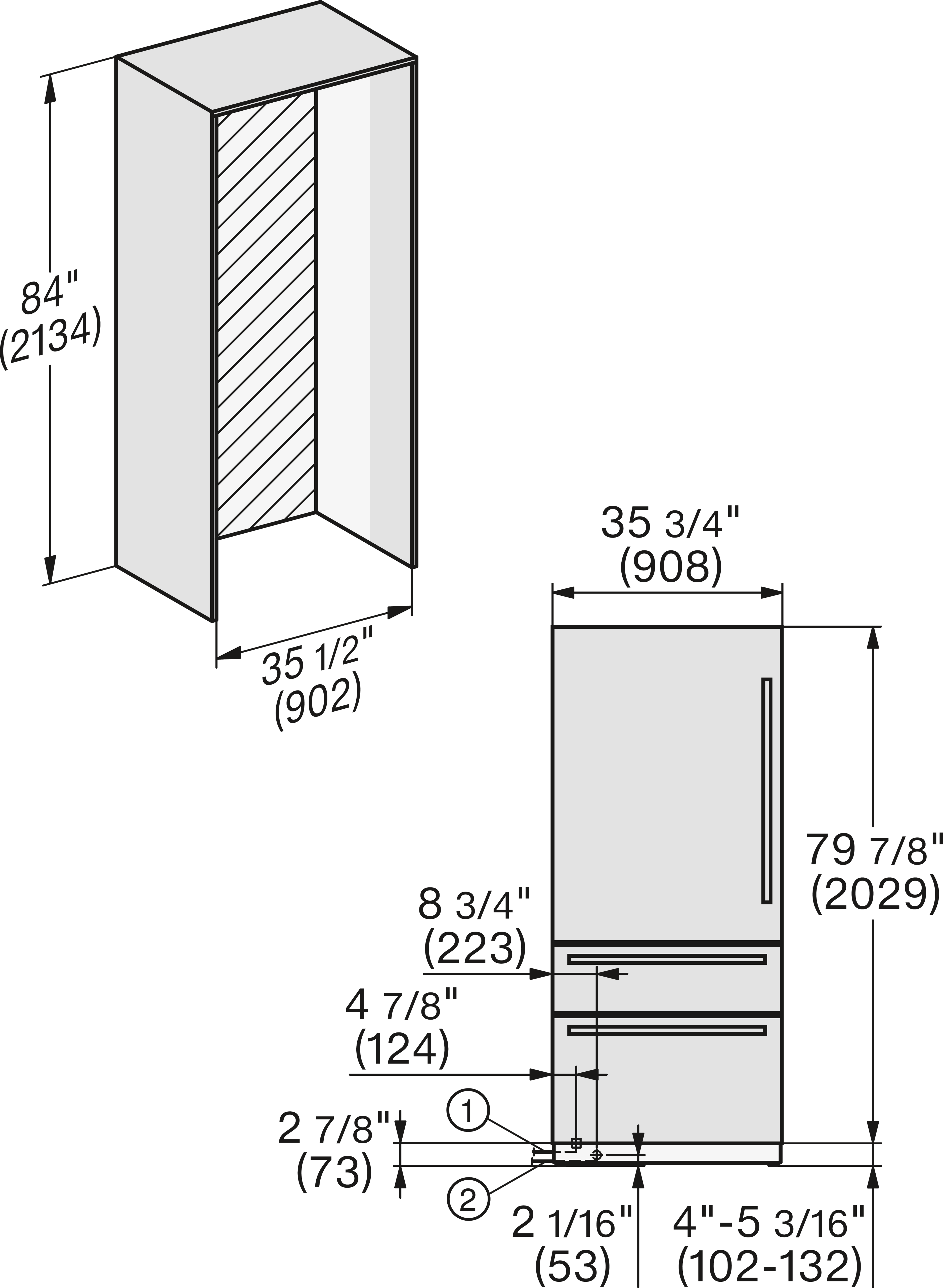

KFMC3846R, KFMC3846L, MasterCool III, PACS, with stainless steel front, installation (US)
View from the front, 1. Mains connection cable, L = 3000 mm (118 inch), 2. Water connection L = 1800 mm (70 inch)
Downloads
  • 1.Comparison of a MasterCool KFMC 3XXX model with and without Longlife AirClean System after 24 hours. Applied method according to DIN EN 13735. Tested refrigerator load: smoked fish, mature cheese, spring onions, pineapple.
