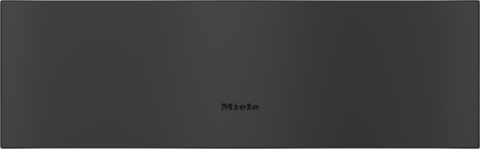

  • Miele - EVS 7670 Obsidian Black matte - 1

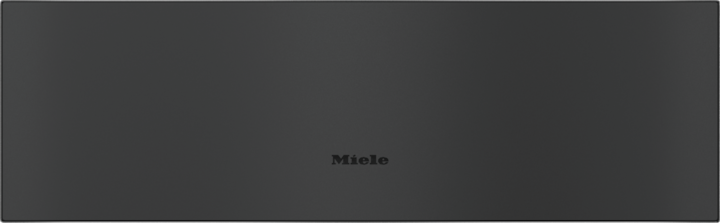

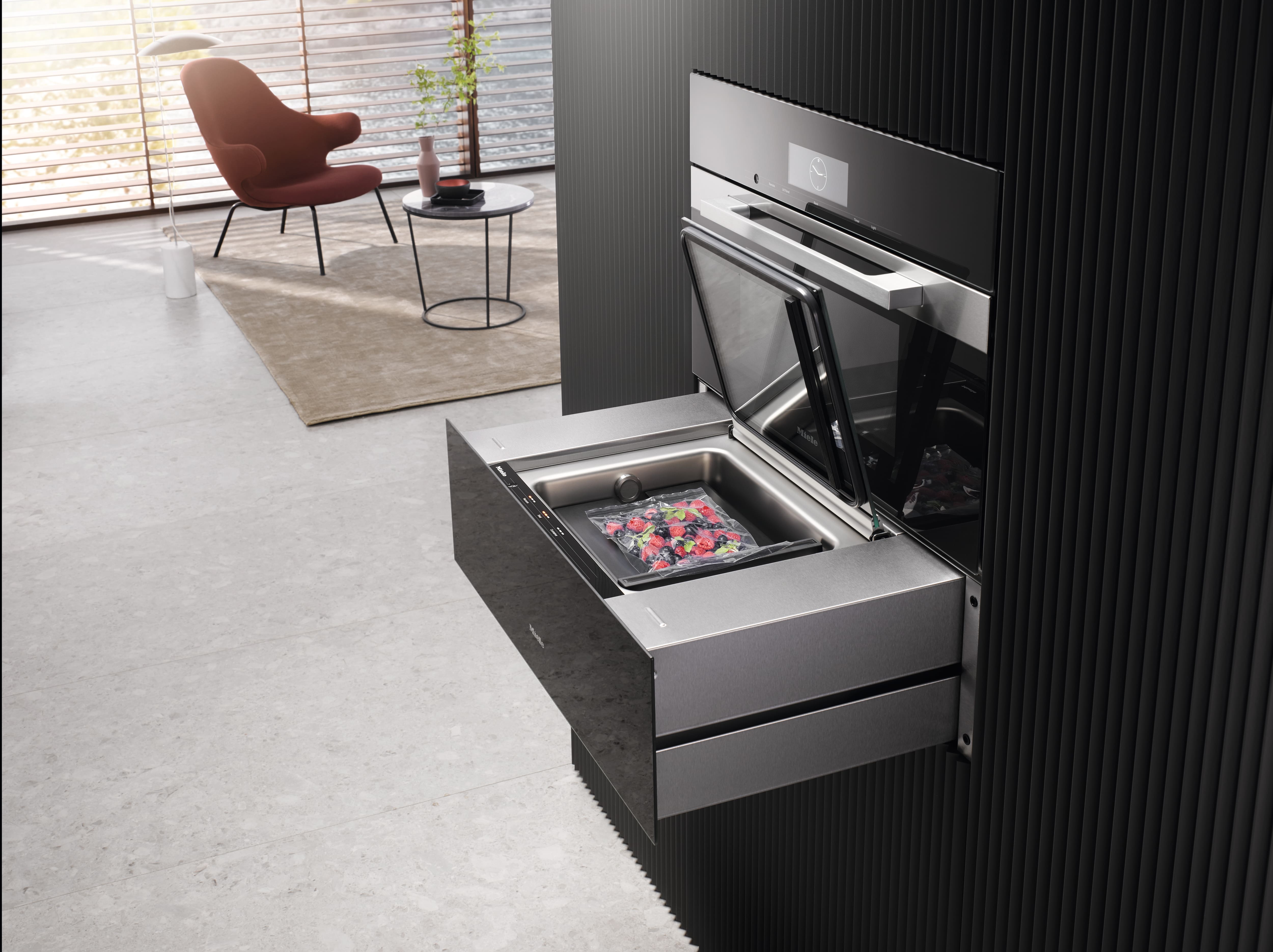

  • Miele - EVS 7670 Obsidian Black matte - 2

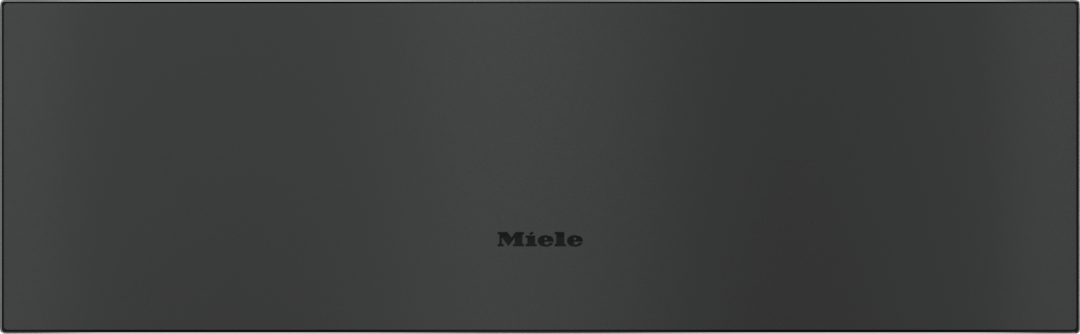

  • Miele - EVS 7670 Obsidian Black matte - 3
Handleless vacuum sealing drawer, 30" width and 9 3/16" height

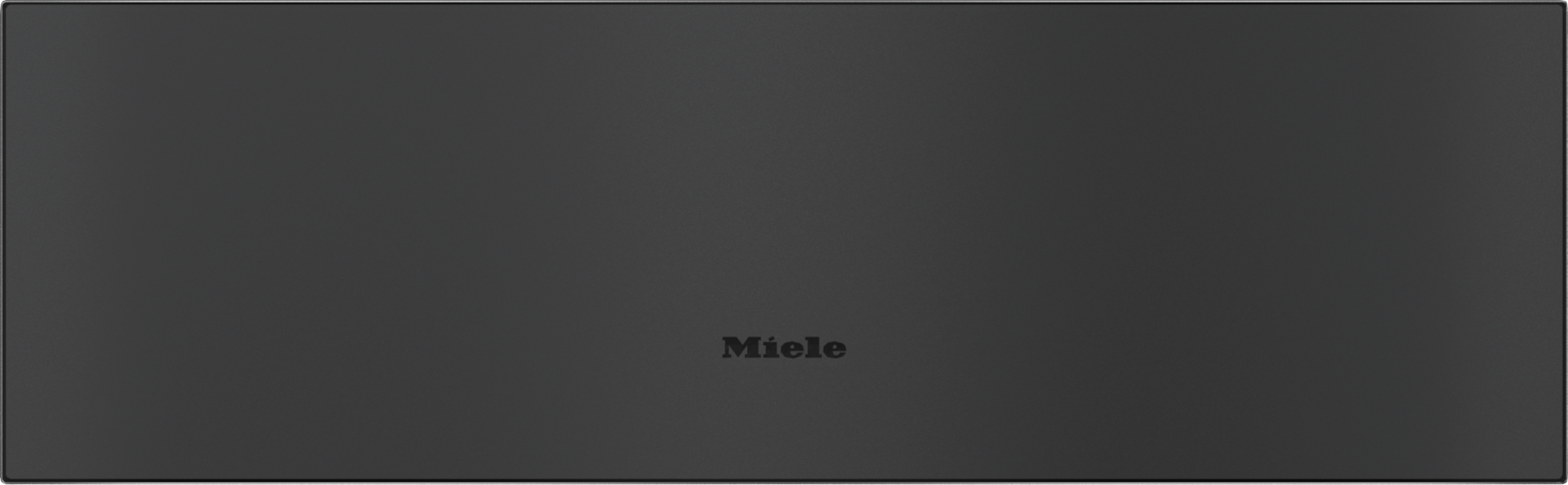

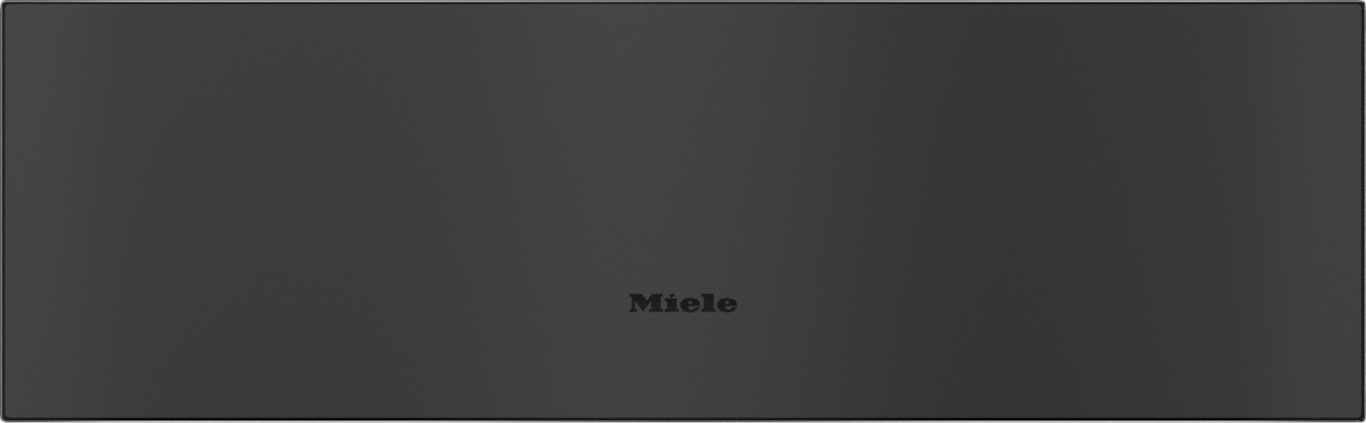

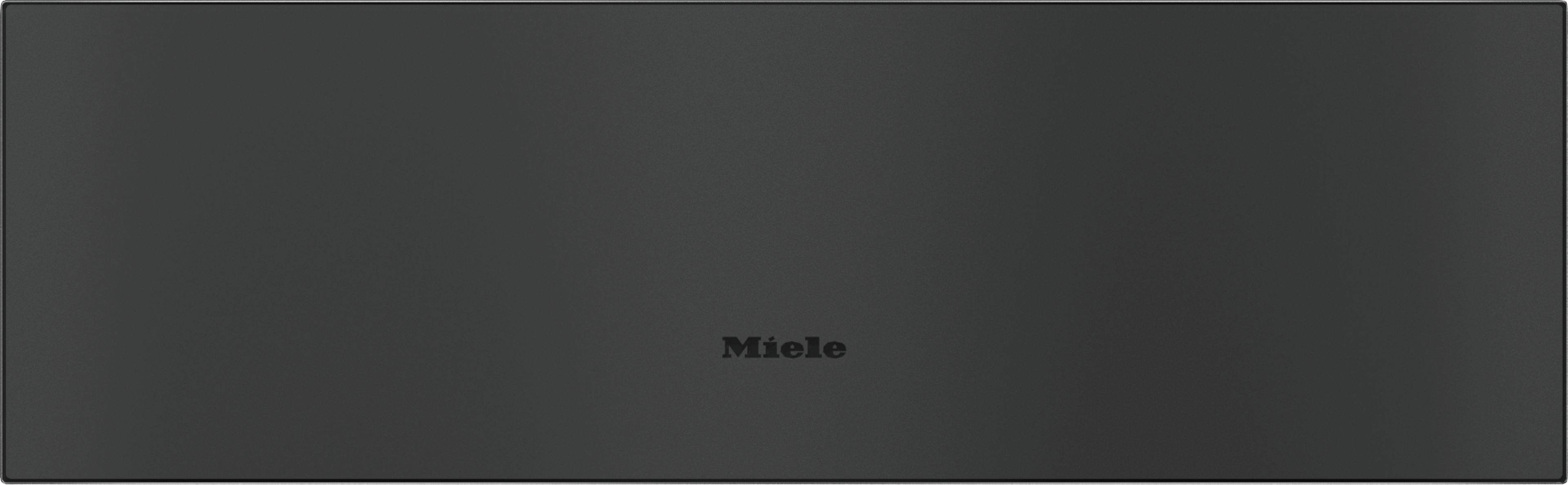

EVS 7670 Obsidian Black matte

for professional vacuum sealing of food.
Color:Obsidian Black matte
sale price$4,599.00


Product details

  • Remaining fresh for longer – storage and portioning of food
  • Intense taste sensations – food marination
  • Preparation of food for sous-vide cooking
  • Easy handling –
    Touch control
    and
    fully telescopic runners
  • Push2open
    – opening the drawer couldn’t be easier
  • View manufacturer details:
  • Safety information

Product data sheet

Model number EVS 7670
Manufacturer material number 12423610
EAN number 4002516764274
Built-in vacuum drawer
VitroLine
ArtLine
No Handles
Color Obsidian Black matte
Preparing for Sous Vide cooking
Longer food storage life
Marinating food
Vacuuming
Vacuum sealing food
Marinating food
Dividing food into portions
Vacuum sealing containers
Resealing original packaging
Sealing jars
Vacuum sealing liquids
Stainless-steel vacuum sealing chamber capacity in l 8
Storage compartment Yes
Minimum bag size in inch (mm) 9 7/8 (250)
Maximum bag size in mm 13 7/8 (350)
Push2open mechanism
Fully telescopic runners for easy loading and unloading
Control panel with sensor control
Control panel with text
Timers
Stop programming
Timer function
LED vacuum setting indicator
LED vacuum strength indicator for external containers
Sealing duration settings
1 - 3
LED sealing duration indicator
Stop function
Stainless-steel vacuum chamber
Pump capacity in m³/h 2.35 (4)
Flush control panel
Note regarding moisture removal from the vacuum pump
Replaceable sealing bar
Safety cut-out
Appliance width in in. (mm) 29 3/4 (757)
Appliance height in in. (mm) 9 3/4 (248)
Appliance depth in in. (mm) 22 1/2 (570)
Appliance dimensions (W x H x D) in inches (mm) 29 3/4 (757) x 9 3/4 (248) x 22 1/2 (570)
Useable interior height in in. (mm) 3 1/4 (80)
Total connected load in kW 0.520
Voltage in V 120
Frequency in Hz 60
Fuse rating in A 10
Number of phases 1
Connection wire with plug Yes
Wire length in ft. (m) 5 (1.8)
Adapter for vacuum-sealing container
1
Vacuum sealing bag support 1
EAN 4002516764274

What's included

Adapter for vacuum-sealing container (1)
Vacuum sealing bag support (1)

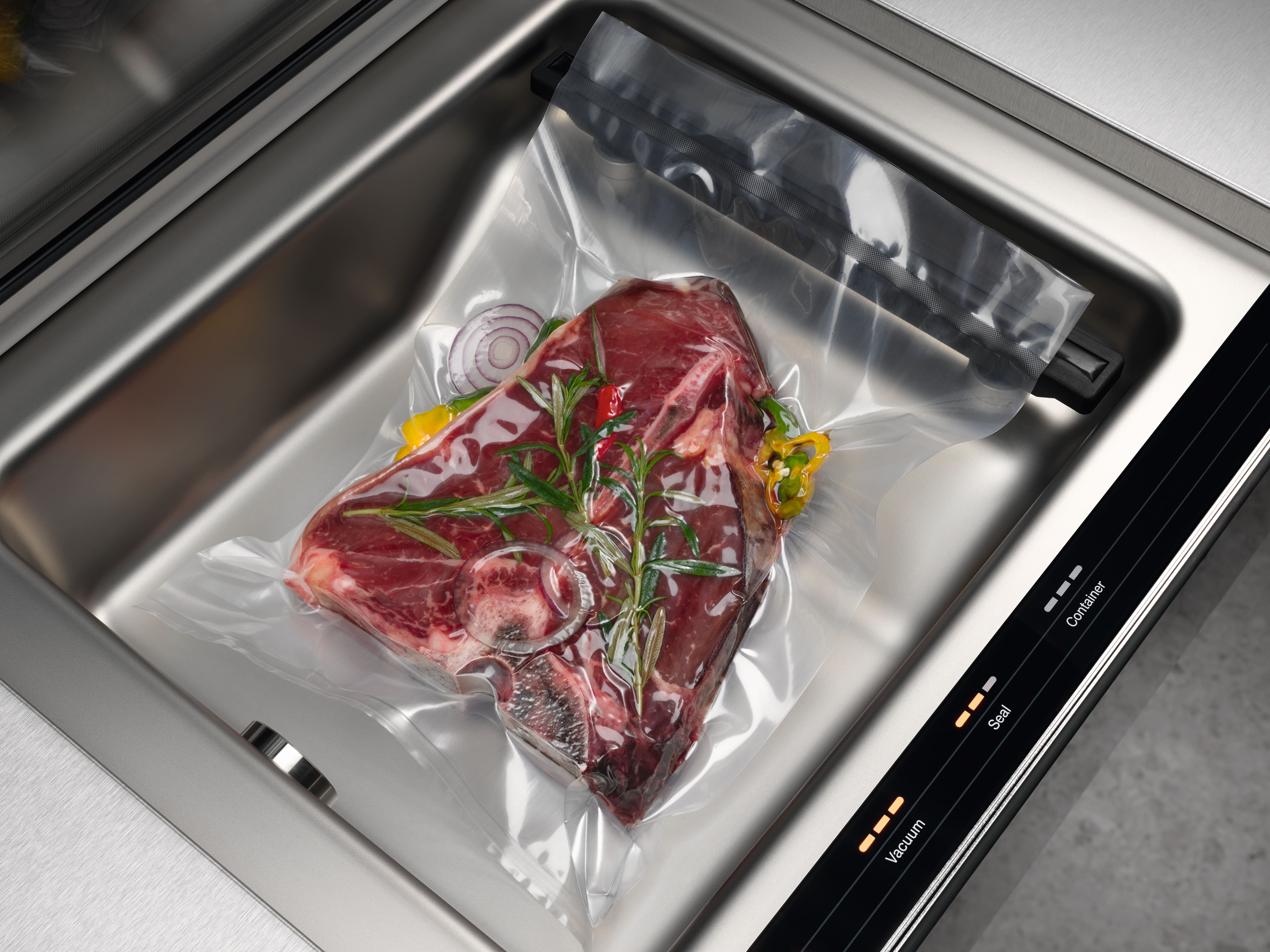

  • Food that lasts longer and is perfectly prepared

    Food that lasts longer and is perfectly prepared

    Vacuum-sealing

    Ideal conditions: Vacuum-seal food for storage, portioning, marinating, and resealing.

  • Perfectly prepared

    Perfectly prepared

    Preparation for sous-vide cooking

    Perfect for sous-vide cooking: Vacuum-sealed foods retain their flavor and nutrients.

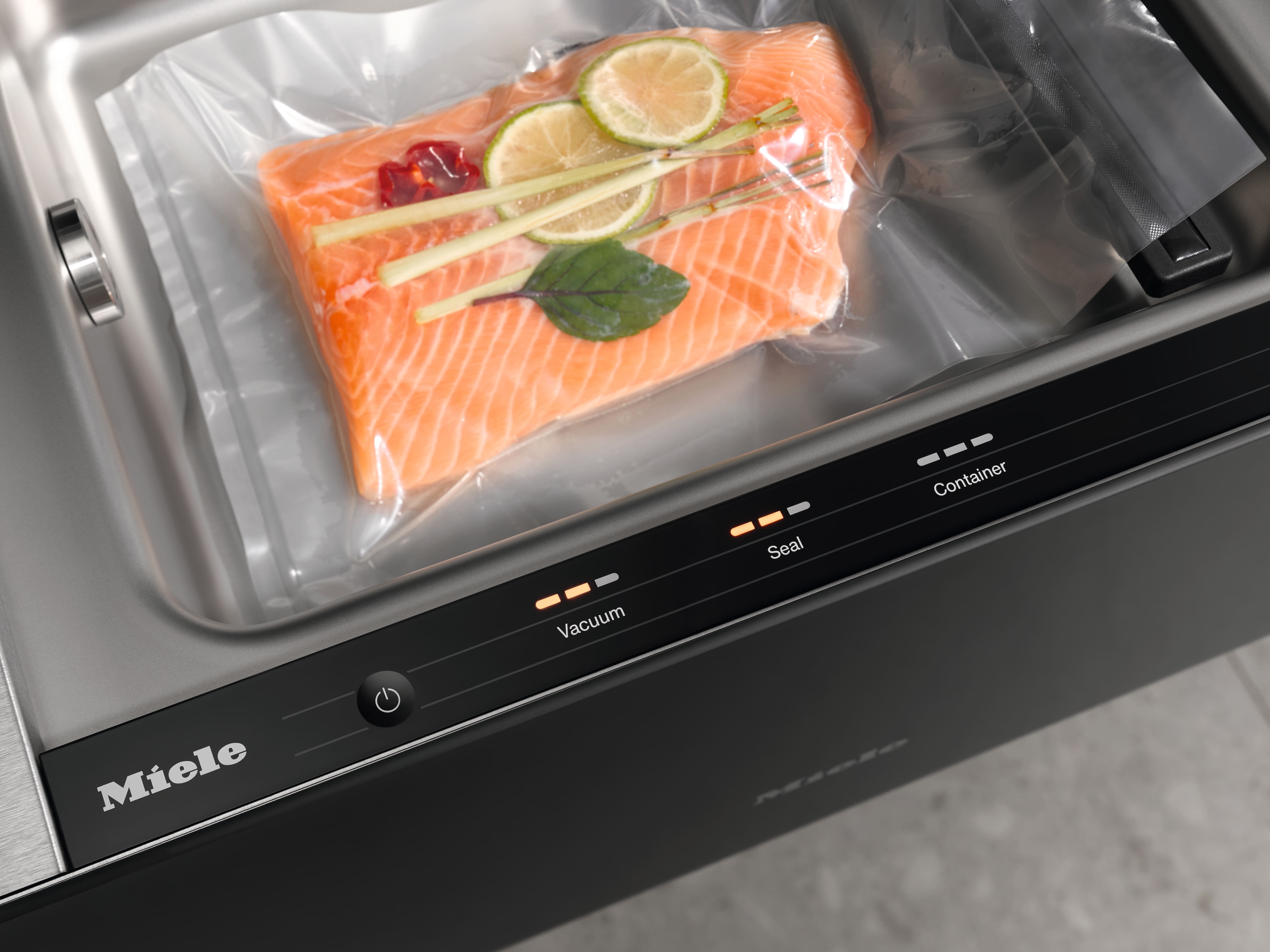

  • Intuitive and minimalist

    Intuitive and minimalist

    SensorTouch controls

    Elegant and easy to clean: A state-of-the-art, flush-mounted touch panel makes the appliance convenient to use.

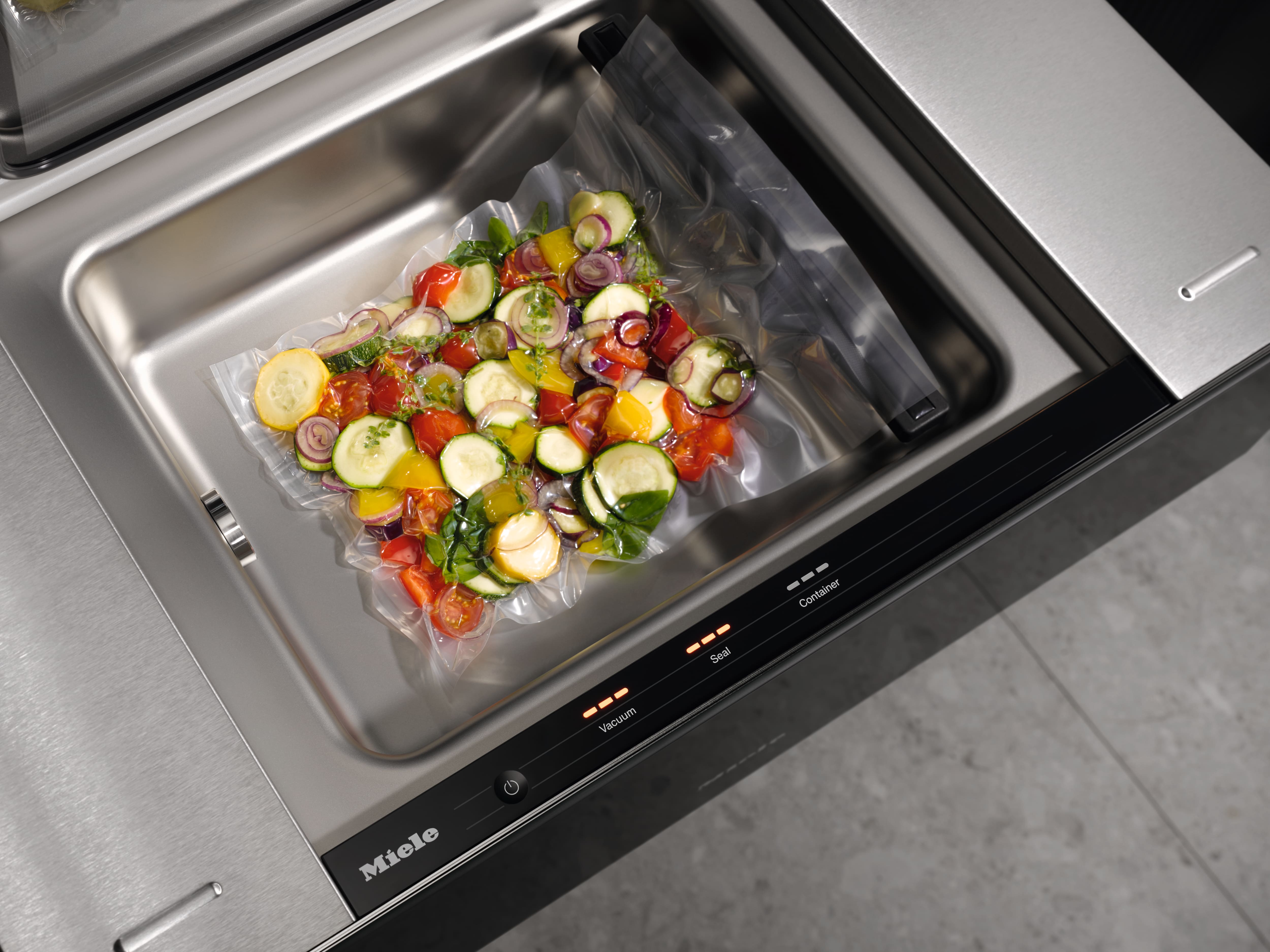

  • Suitable for every application

    Suitable for every application

    Three vacuum settings

    Customize: You can choose from 3 settings when vacuum-sealing – there is one that suits any food you may cook.

  • One touch is all it takes

    One touch is all it takes

    Push2open

    Open in no time: Light pressure on the drawer is all it takes.

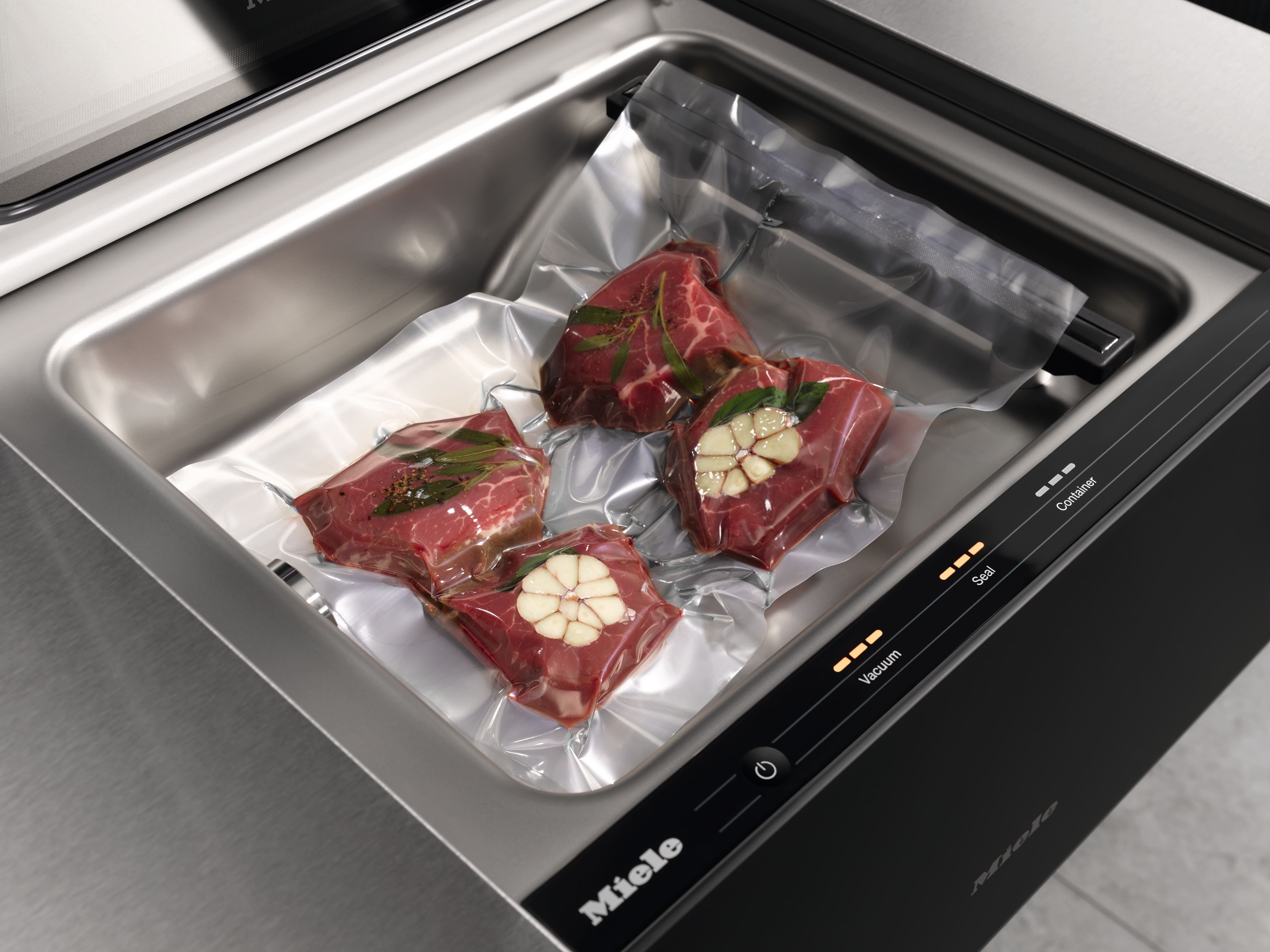

  • Enough space for every size

    Enough space for every size

    Large useable space

    Whether large or small volumes: The useable space is suitable for bags up to a size of 10 x 14" (250 x 350 mm.

  • Storage compartment

    Storage compartment

    Storage compartment

    Practical storage space: use the storage compartment to store vacuum sealing bags or steam oven pans.

User convenience

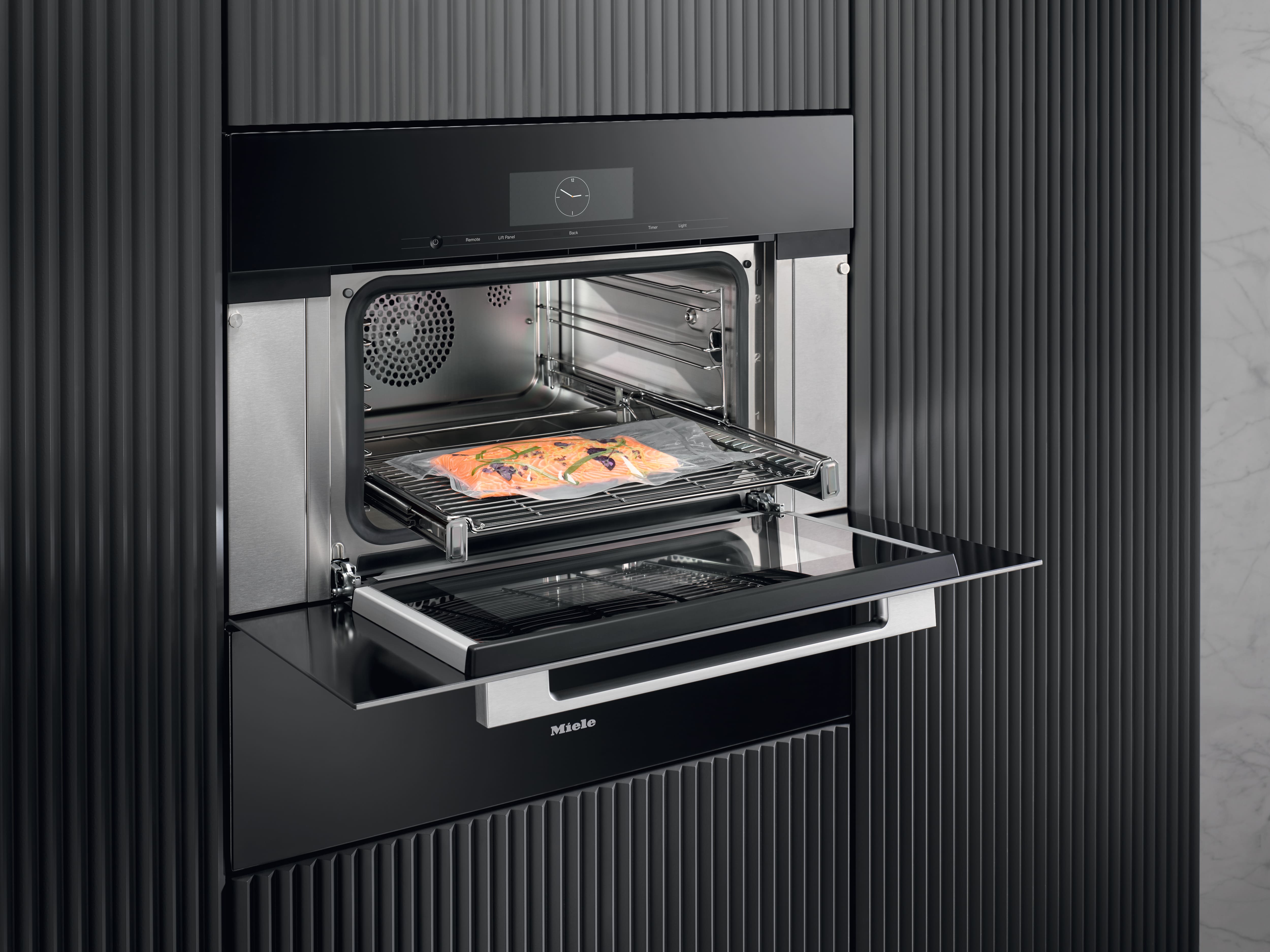

Perfectly prepared
Perfectly prepared

Preparation for sous-vide cooking

Perfect for sous-vide cooking: Vacuum-sealed foods retain their flavor and nutrients.
Intuitive and minimalist
Intuitive and minimalist

SensorTouch controls

Elegant and easy to clean: A state-of-the-art, flush-mounted touch panel makes the appliance convenient to use.

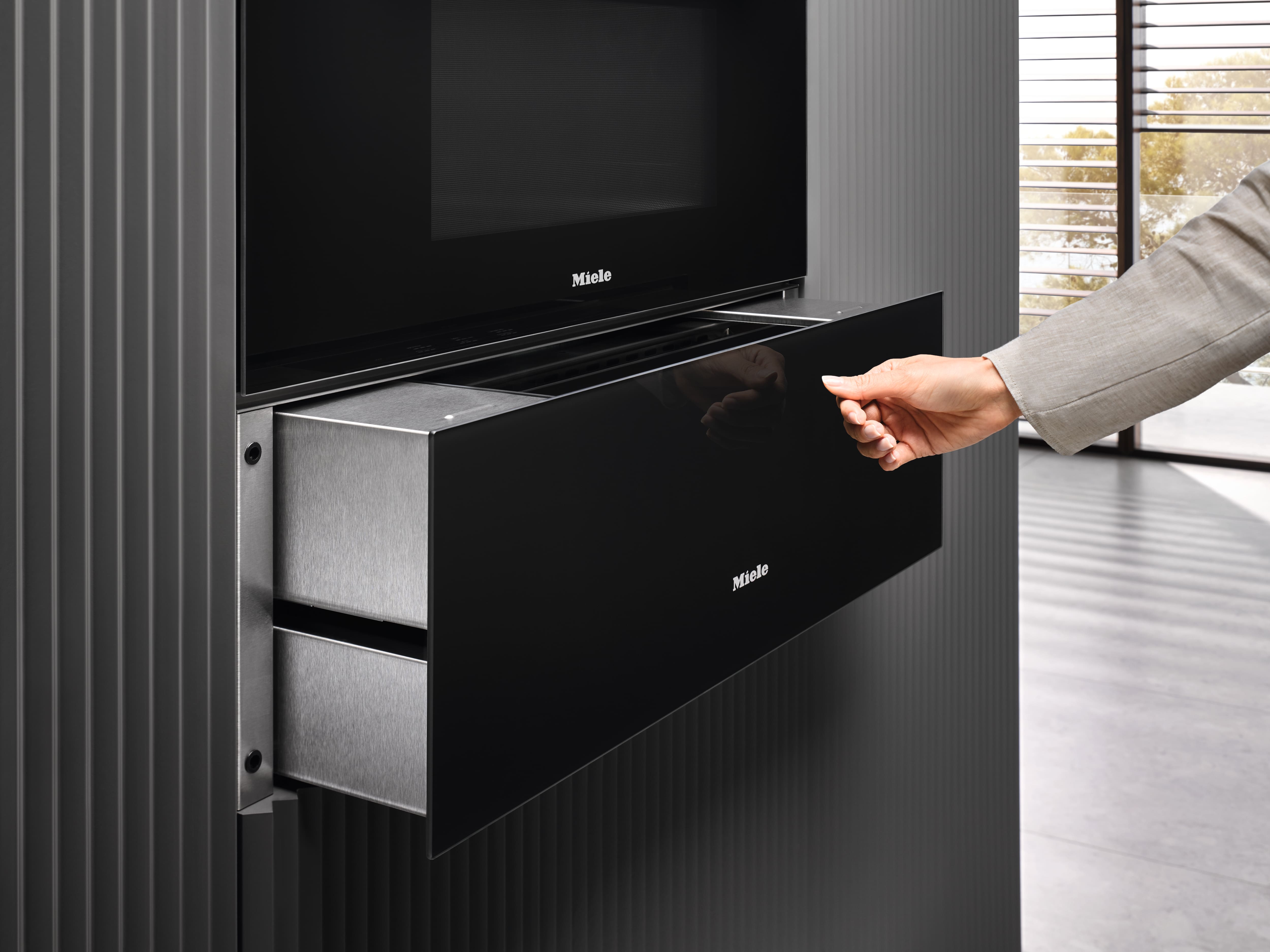

One touch is all it takes
One touch is all it takes

Push2open

Open in no time: Light pressure on the drawer is all it takes.
Enough space for every size
Enough space for every size

Large useable space

Whether large or small volumes: The useable space is suitable for bags up to a size of 10 x 14" (250 x 350 mm.

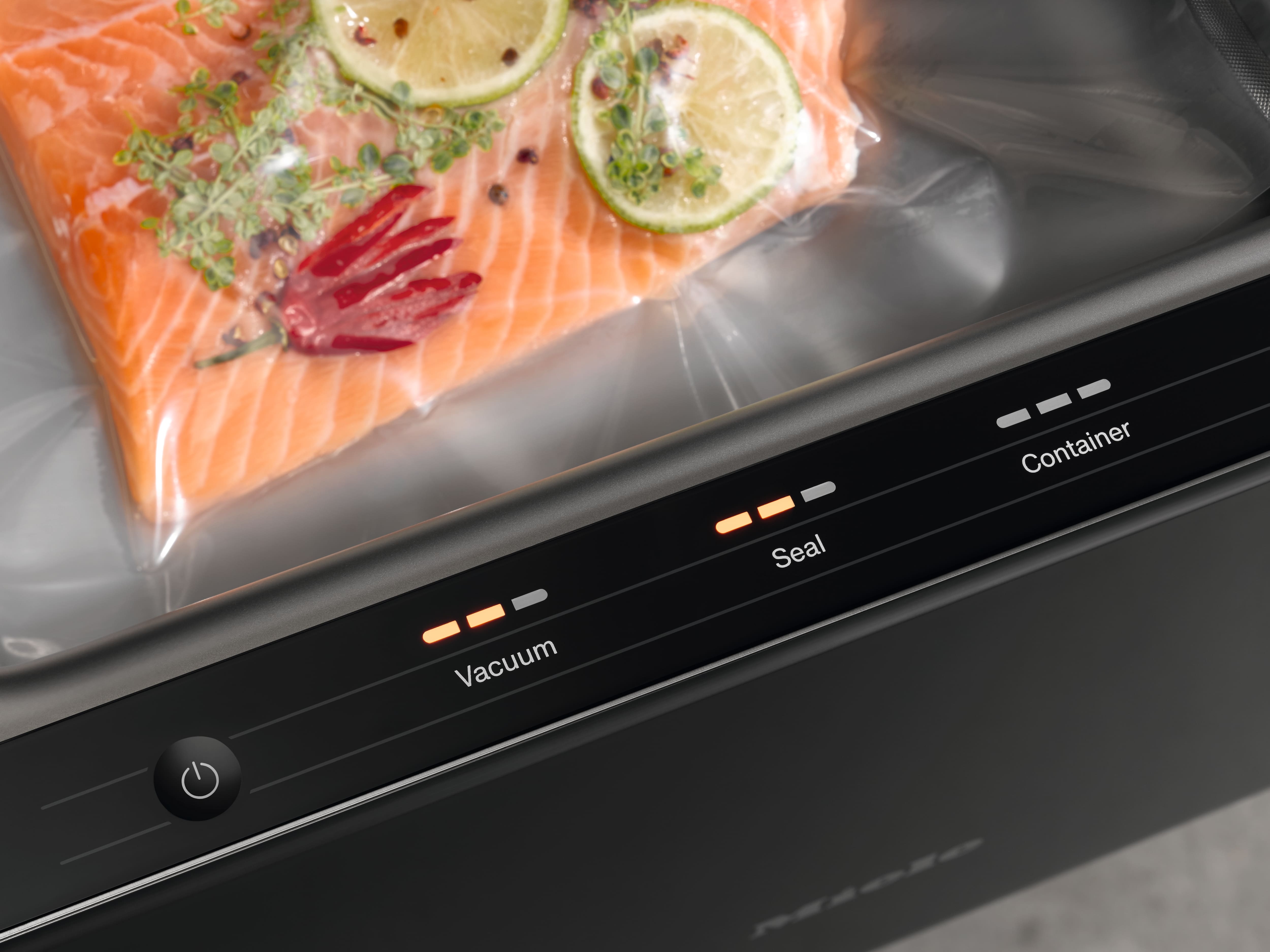

Customizable vacuum-sealing duration
Customizable vacuum-sealing duration

Variable vacuum-sealing duration

Perfect for every bag thickness: You can choose from 3 sealing settings, depending on the material of the bag.
Wide range of options
Wide range of options

Wide range of applications

With our vacuum-sealing drawer, you can divide food into portions, prepare it for storage, and much more.
Practical and ergonomic
Practical and ergonomic

Fully telescopic runners

So convenient: you can open the drawer fully so it is easy to load or unload.

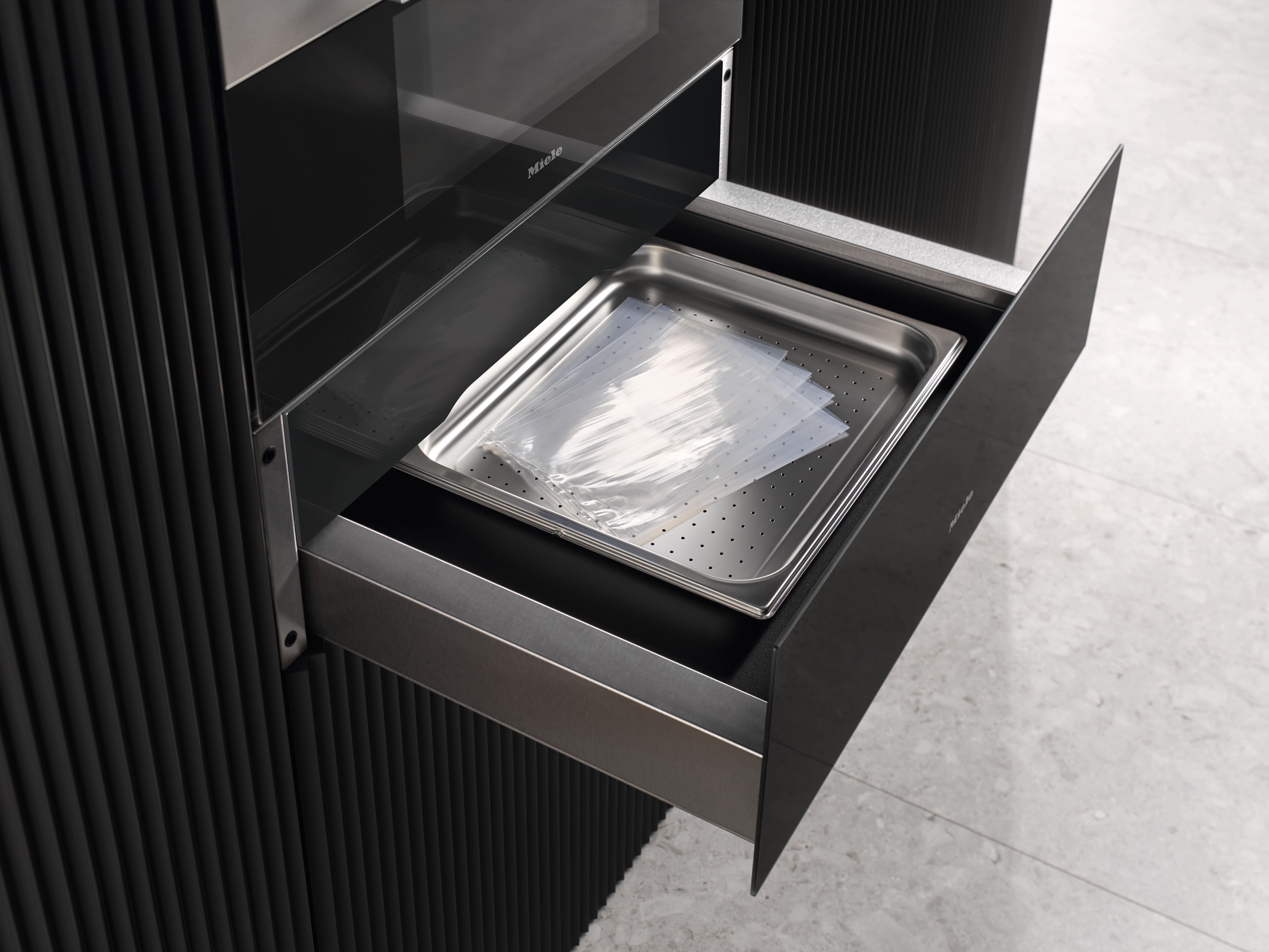

Storage compartment
Storage compartment

Storage compartment

Practical storage space: use the storage compartment to store vacuum sealing bags or steam oven pans.

Convenience features

Food that lasts longer and is perfectly prepared
Food that lasts longer and is perfectly prepared

Vacuum-sealing

Ideal conditions: Vacuum-seal food for storage, portioning, marinating, and resealing.
Suitable for every application
Suitable for every application

Three vacuum settings

Customize: You can choose from 3 settings when vacuum-sealing – there is one that suits any food you may cook.

Gourmet versatility

Longer storage life
Longer storage life

Longer storage life

Store food in ideal conditions: Vacuum seal your food to keep it fresher for longer.
The right amount
The right amount

Portioning

Whether you’re cooking a feast or dinner for one – make individual portions for storing or sous-vide cooking.
Maximum taste
Maximum taste

Marinating

Create amazing taste sensations by vacuum sealing food with herbs and marinades.
Always in perfect condition
Always in perfect condition

Vacuum sealing in containers

Preserving food in containers: Delicate foodstuffs such as fruit or herbs are left intact.
Food stays fresh – even once opened
Food stays fresh – even once opened

Re-sealing

Keep food tasting fresh: Reseal opened packaging gently and securely.
Tightly sealed
Tightly sealed

Sealing jars

Store food securely to keep it fresh: Pesto, baby food, and much more can be vacuum sealed in jars.
Securely stored
Securely stored

Vacuum sealing liquids

Save space and store food securely: Even liquids can be easily vacuum sealed in a plastic bag.

Matching products and accessories

MicroCloth kit, 3 pieces
GP MI S 0031 W

MicroCloth kit, 3 pieces

For best cleaning results and safe use.

$17.59
 MicroCloth HyClean, 1 cloth
GP MI H 0011 W

 MicroCloth HyClean, 1 cloth

 Antibacterial multi-purpose cloth for improved hygiene.

$13.19

Downloads

Operating and Installation instructions
PDF
Downloads
Product sheet
PDF
Downloads
Warranty conditions
PDF
Downloads
dwg
ZIP
Downloads
fbx
ZIP
Downloads
ifc
ZIP
Downloads
rfa
ZIP
Downloads
rvt
ZIP
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts.

https://media.miele.com/images/2000017/200001725/20000172560.png
Descriptions
DGC 6x00-1, + EBA 6808, ESW 6x85, DGC 7xxx, EBA 7848, ESW 7x70, EVS 7670 Combi, Installation drawing, Flush inset, NA
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001725/20000172568.png
Descriptions
H 6x00 BM + EBA 6808, ESW 6x85, H 7xxx, ESW7x70, EBA7848 EVS 7670 Combi, Installation drawing, Flush inset, NA
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001726/20000172609.png
Descriptions
H 6x00 BM + EBA 6808, ESW 6x85, DGC 6x00-1 + EBA 6808, DGC7xxx, EBA7848, H7xxx, Exx7x70 Install drawing, Flush inset, NA
H 6x00 BM + EBA 6808, ESW 6x85, DGC 6x00-1 + EBA 6808, DGC7xxx, EBA7848, H7xxx, Exx7x70 Install drawing, Flush inset, NA
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001726/20000172691.png
Descriptions
H 6x00 BM + EBA 6808, ESW 6x85, H 7x40BM + EBA 7848 Installation Combi, Installation drawing, Flush inset, NA
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001727/20000172791.png
Descriptions
DGC 6x00-1, + EBA 6808, ESW 6x85, DGC7x4x+EBA7848, ESW7x70, EVS7670, Combi, Installation drawing, Proud, NA
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001727/20000172799.png
Descriptions
H 6x00 BM + EBA 6808, ESW 6x85, H7x40BM, ESW7x70, EVS7670, Combi, Installation drawing, Proud, NA
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001728/20000172840.png
Descriptions
(H6x00BM, DGC6x00-1)+EBA6808, ESW6x85, (DGC7xxx,H7x40BM)+EBA7848, ESW7x70, EVS7670, Fitting Combi, Proud, NA
(H6x00BM, DGC6x00-1)+EBA6808, ESW6x85, (DGC7xxx,H7x40BM)+EBA7848, ESW7x70, EVS7670, Fitting Combi, Proud, NA
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001729/20000172922.png
Descriptions
H 6x00 BM + EBA 6808, ESW 6x85, H7x40BM+EBA7848, ESW7x70, EVS7670, Installation Combi, Installation drawing, Proud, NA
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001754/20000175470.png
Descriptions
DGC7x4x+EBA7848, ESW7x70, EVS7670, Installation, 30 Zoll, Flush inset, combi, XL
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001755/20000175552.png
Descriptions
DGC7x4x+EBA7848, ESW7x70, EVS7670, Installation, 30 Zoll, Proud, combi, XL,
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Downloads

We reserve the right to make technical changes; we assume no liability for the accuracy of the information provided.
