Product Information
Inside the Box
- Active AirClean filter

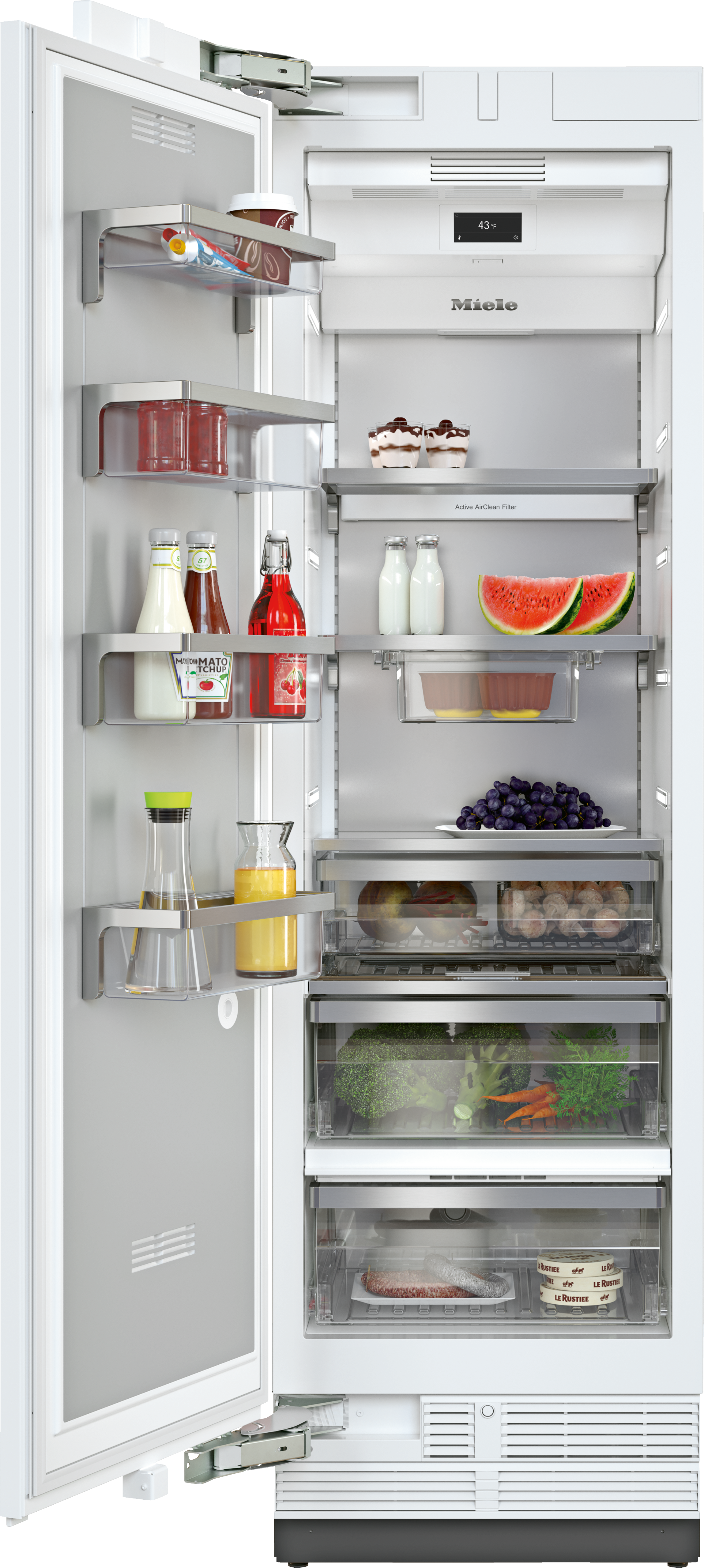

K 2612 Vi
- Subject to technical changes; no liability accepted for the accuracy of the information given.
Product Information
Inside the Box
- Active AirClean filter
Your advantages
MasterCool – BrilliantLight
Perfectly lit
MasterCool – MasterFresh
Protective storage for long-lasting freshness
MasterCool – Push2open
The perfect solution for a handleless design
MasterCool – Active AirClean filter
Provides effective protection against odors
MasterCool – MasterFresh
Protective storage for long-lasting freshness
MasterCool – DynaCool
Perfect food storage
MasterCool – MasterSensor
Convenient operation with a tap of a finger
MasterCool – BrilliantLight
Perfectly lit
MasterCool – Push2open
The perfect solution for a handleless design
MasterCool – MaxLoad hinge
Safe handling guaranteed
Product data sheet
| Fridge | • |
| Built-in | • |
| Built-in integrated | • |
| Door hinge side | Left convertible |
| Convertible hinging | • |
| Can be installed side-by-side | • |
| Tinted glass door | No |
| Lighting | BrilliantLight |
| Networking with Miele@home | • |
| Freshness system | DynaCool SelfClose BrilliantLight Full Access MaxLoad Schanier Active AirClean Filter Überlaufschutz MasterFresh SlidingShelf EasyClean |
| DynaCool | • |
| SoftClose door closing damper | • |
| SelfClose | • |
| Push2open | • |
| FullAccess | • |
| EasyClean | • |
| MaxLoad hinge | • |
| Electronic temperature display and control | MasterSensor |
| Super Cooling | • |
| No. of temperature zones | 2 |
| Sabbath mode | • |
| Height-adjustable toughened glass shelves | 2 |
| No. of removable fruit and vegetable drawers | 1 |
| No. of PerfectFresh drawers | 2 |
| SlidingShelf | • |
| Door rack for tins | 1 |
| Inner door racks for bottles | 3 |
| Energy Star Qualified | • |
| Lock function | • |
| Overflow protection | • |
| Acoustic door alarm | • |
| Acoustic temperature alarm, freezer section | • |
| Optical door alarm | • |
| Optical temperature alarm | • |
| Niche width in inches (mm), min. | 24 1/8 (610) |
| Niche width in inches (mm), max. | 24 1/8 (610) |
| Niche height in inches (mm), min. | 84 1/8 (2134) |
| Niche height in inches (mm), max. | 84 1/8 (2134) |
| Niche depth in in.(mm) | 24 7/8 (629) |
| Appliance width in in.(mm) | 23 3/4 (603) |
| Appliance height in in.(mm) | 83 3/4 (2125) |
| Appliance depth in in.(mm) | 24 (608) |
| Weight in lbs.(kg) | 297 (134.4) |
| Type of mounting | Fixed door |
| Total usable capacity in cu. ft. (l) | 12.96 (367) |
| Current consumption in milliampere (mA) | 4000 |
| Voltage in V | 110-120 |
| Fuse rating in A | 10 |
| Number of phases | 1 |
| Frequency in Hz | 60 |
| Wire length in ft (m) | 9 (3.0) |
| Replacing bulbs | Customer Service |
| Available display languages via MultiLingua | français eesti ελληνιкά čeština 繁體中文 slovenčina latviesu slovenščina 中文 polski lietuviu français (FR) magyar nederlands hrvatski yкраїнська bahasa malaysia deutsch italiano english (GB) türkçe suomi dansk 日本語 română english (AU) english (CA) español english srpski العربية svenska norsk français (CA) pусский english (US) português 한국어 |
Optional products and accessories
- Operating and Installation instructionsPDF
- Warranty conditionsPDF
- Product sheetPDF
Follow the link and you will find all the resources you need for planning and installing any of our products
- dwgZIP
- fbxZIP
- rfaZIP
- rvtZIP
- ifcZIP
Follow the link and you will find all the resources you need for planning and installing any of our products
- Energy labelPDF
- Energy labelPDF
- PNG
- PNG
- Energy labelJPEG
Follow the link and you will find all the resources you need for planning and installing any of our products
- Open Source LicencePDF
Follow the link and you will find all the resources you need for planning and installing any of our products
Opening angle 90°/115°, right side stop, MasterCool (Sketch) with footnote
A) Appliance door
K 2611 Vi
KWT 2611 Vi
KWT 2611 SF
KWT 2671 ViS: 677 mm (26 2/3 inch);
K 2612 Vi
KWT 2612 Vi
KWT 2612 SF
KWT 2672 ViS: 677 mm (26 2/3 inch);
K 2811 Vi
K 2811 SF
KF 2811 Vi
KF 2811 SF: 829 mm (32 2/3 inch);
K 2812 Vi
K 2812 SF
KF 2812 Vi
KF 2812 SF: 829 mm (32 2/3 inch);
K 2911 Vi
K 2911 SF
KF 2911 Vi
KF 2911 SF: 982 mm (38 2/3 inch);
K 2912 Vi
K 2912 SF
KF 2912 Vi
KF 2912 SF: 982 mm (38 2/3 inch);
B) Furniture front (max. 38 mm) (1 1/2 inch)
C) Door handle
D) Distance from the door to the wall (without furniture front and door handle):
K 2611 Vi
KWT 2611 Vi
KWT 2611 SF
KWT 2671 ViS: 296 mm (11 2/3 inch);
K 2612 Vi
KWT 2612 Vi
KWT 2612 SF
KWT 2672 ViS: 296 mm (11 2/3 inch);
K 2811 Vi
K 2811 SF
KF 2811 Vi
KF 2811 SF: 363 mm (14 1/3 inch);
K 2812 Vi
K 2812 SF
KF 2812 Vi
KF 2812 SF: 363 mm (14 1/3 inch);
K 2911 Vi
K 2911 SF
KF 2911 Vi
KF 2911 SF: 428 mm (16 7/8 inch);
K 2912 Vi
K 2912 SF
KF 2912 Vi
KF 2912 SF: 428 mm (16 7/8 inch);
E) ONLY valid for SF versions: A + 25 mm (1 inch)
Side-by-side, MasterCool, without partition wall, with heating mat (Sketch) (with footnote)
1) Heating mat KSK 2001 (EU
AUS
CN) or KSK 2002 (US
CA
MX
BR)
Sideview, MasterCool, Sketch
Side-by-Side, MasterCool, footnote, installation drawings
1. KSK 2001/2002
2. Device A
3. Device B
A = niche device A
B = niche device B
Installation, installation, MasterCool, *footnote, installation drawings (US, CA, AU)
1. View from the front
2. Mains connection cable
L = 3000 mm (118 inch)
3. No water/ELT connections permitted in this area
KFP2405ed/cs, KFP2404ed/cs, Front panel, Front dimensions, MasterCool, installation drawings (AU, CA, US)
