Fuel type Induction
Independent of oven
Elegant glass ceramic surface
Ceramic surface color Black
All-round stainless-steel frame
Print design LightPrint
Proud installation
No. of rings 4
No. 2
Size in mm Ø 150 – 230
Max. rating in W 2200
Max. booster rating in W 3100
Max. TwinBooster rating in W 3850
Position front left
Type Variable cooking zone
Size in mm Ø 180-280
Max. rating in W 2500
Max. booster rating in W 3100
Position rear left
Type Variable cooking zone
Size in mm Ø 100-160
Max. rating in W 1450
Max. booster rating in W 1900
Position Rear center right
Type PowerFlex bridge
Size in mm 230x390
Max. rating in W 3550
Max. booster rating in W 5000
Max. TwinBooster rating in W 7700
Automatic function Con@ctivity 2.0
Operation via touchpad sensors Multiple direct dial
Display color Red
Pan/Pan-size sensors
Loading...
Stop & Go function
Loading...
Minute minder
Loading...
Automatic switch-off for all rings
Loading...
AutoBoost
Loading...
Keep-warm function
Loading...
Individual setting options (e.g. acoustic signal tones)
Loading...
Easy to clean ceramic glass
Loading...
Safety cut-out
Loading...
Lock function
Loading...
System lock
Loading...
Overheating protection
Loading...
Residual heat indicator
Loading...
Dimensions (H x W x D) in mm 5 1/8 (128) x 30 5/8 (775) x 21 1/2 (544)
Width in in. (mm) 30 5/8 (775)
Height in in. (mm) 5 1/8 (128)
Depth in in. (mm) 21 1/2 (544)
Cut-out dimensions (W x D) with surface-mounted installation in inches (mm) 28 5/8 in (724 mm) x 20 1/2 in (518 mm)
Built-in height with mains connection box in in. (mm) 4 7/8 (121)
Cutout dimensions width in in. (mm) with proud-mounted installation 28 5/8 in (724 mm)
Cutout dimensions depth in in. (mm) with proud-mounted installation 20 1/2 in (518 mm)
Weight in lbs. (kg) 46 (21)
Total connected load in kW 7.700
Voltage in V 240
Frequency in Hz 60
Power cord length in ft. (m) 3 (1.2)
Plug type Sup. lead w/ wire-end ferrules
Connection wire
EAN 4002515472910
Connection wire
Smart controls
Con@ctivity 2.0
Innovative convenience: The ventilation hood reacts automatically to settings on the cooktop.
So that you can devote your time to other things
Keeping warm
Food ready to serve: The keep warm function controls the temperature in the pan base and prevents food burning.
EasyClean ceramic glass
Food can no longer burn: Because the cooktop surface remains relatively cool, soiling can be removed easily.
Stop & Go
So nothing will burn: With this function, all cooking zones can be reduced to power level one simultaneously.
Timer
It makes sense: This feature allows you to set a Minute minder.
Auto heat-up
Always at the right time: This function reduces the initial power boost to prevent burning.
Individual settings
Completely unique: basic cooktop settings can be adapted to suit personal preferences.
Residual heat indicator
Practical: The residual heat indicator reminds you not to touch the cooking zones when they are still hot.Safety turn off
Clever: If a cooking zone operates at the same power level for an unusually long time, switch-off is automatic.
Safety and system lock
Extremely useful: both functions prevent accidental or unauthorized switching on of the Cooktop.Overheating protection and fault monitoring
Protects the Cooktop: The cooktop automatically switches off in the case of extreme heat.Con@ctivity 2.0
Innovative convenience: The ventilation hood reacts automatically to settings on the cooktop.
Efficient and safe
A clear benefit: "no heat loss with induction, and the ceramic glass surface stays relatively cool."Pan size recognition
Convincing: the size of the pan is recognized by the cooktop and energy supplied to this area only.Keeping warm
Food ready to serve: The keep warm function controls the temperature in the pan base and prevents food burning.Matching products and accessories
Downloads
Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts.
Descriptions

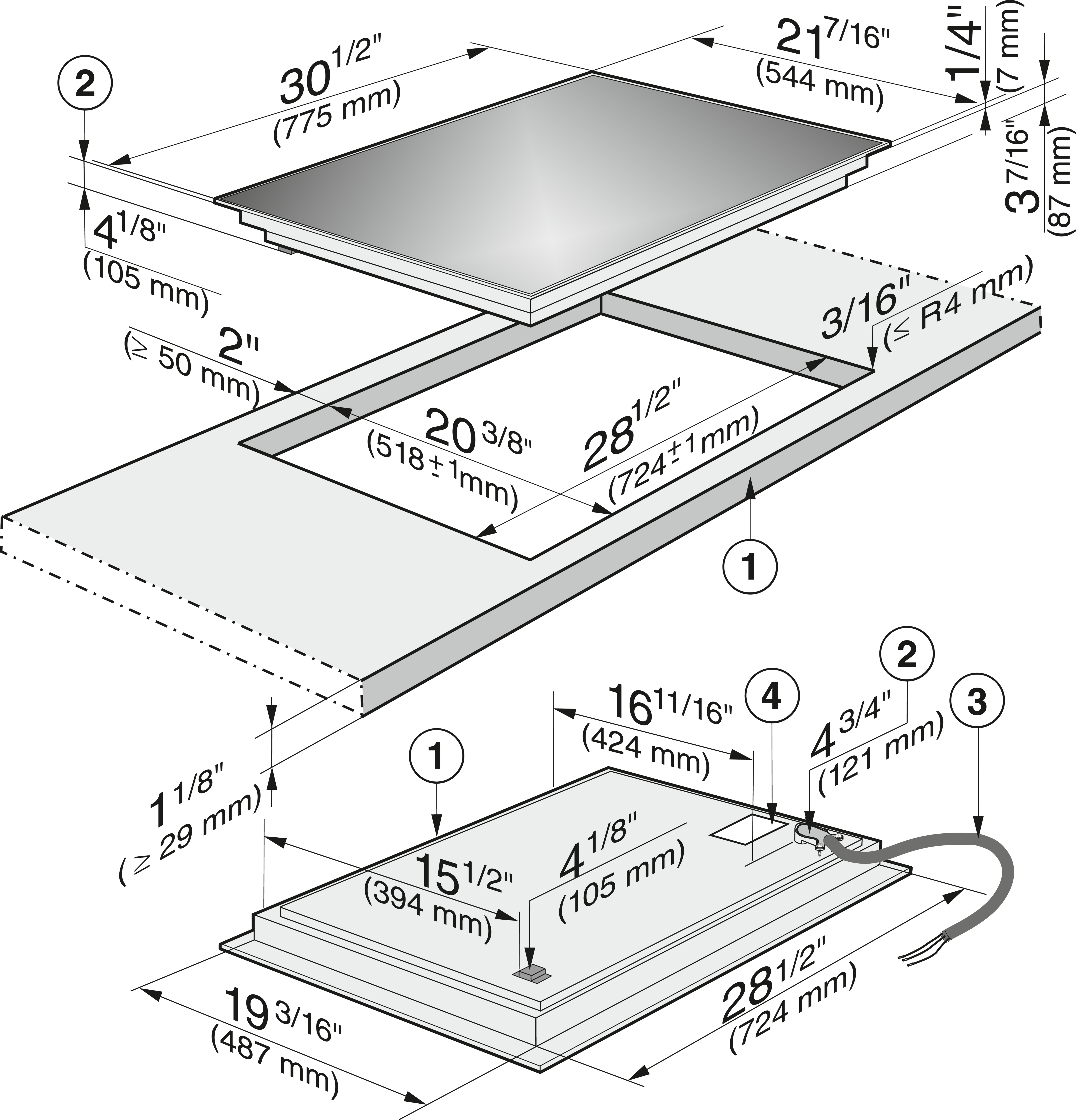

KM 6360 (Installation drawing)
1) Front, 2) Casing depth, 3) Flexible metal Extension hose L = 47 1/4" (1200 mm), 4) Data plate POSTSCRIPT
