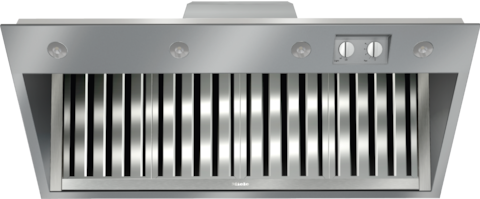

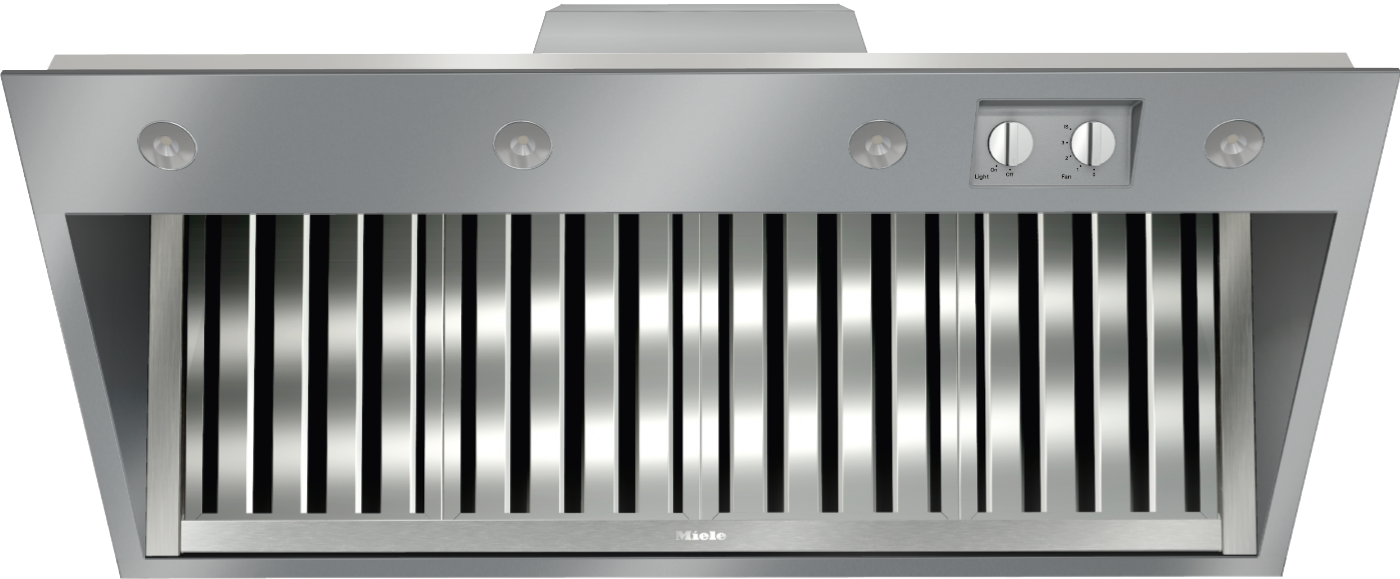

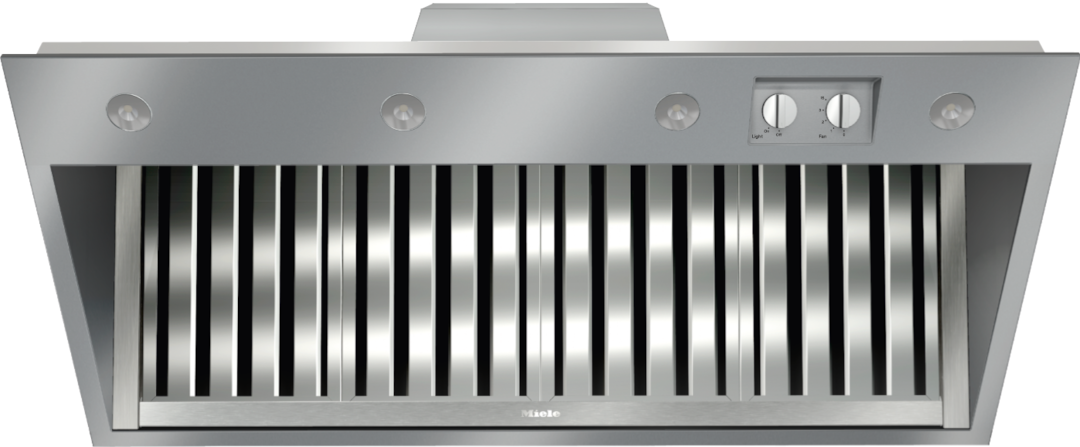

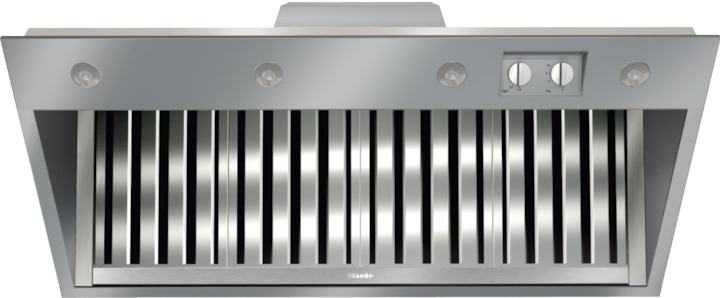

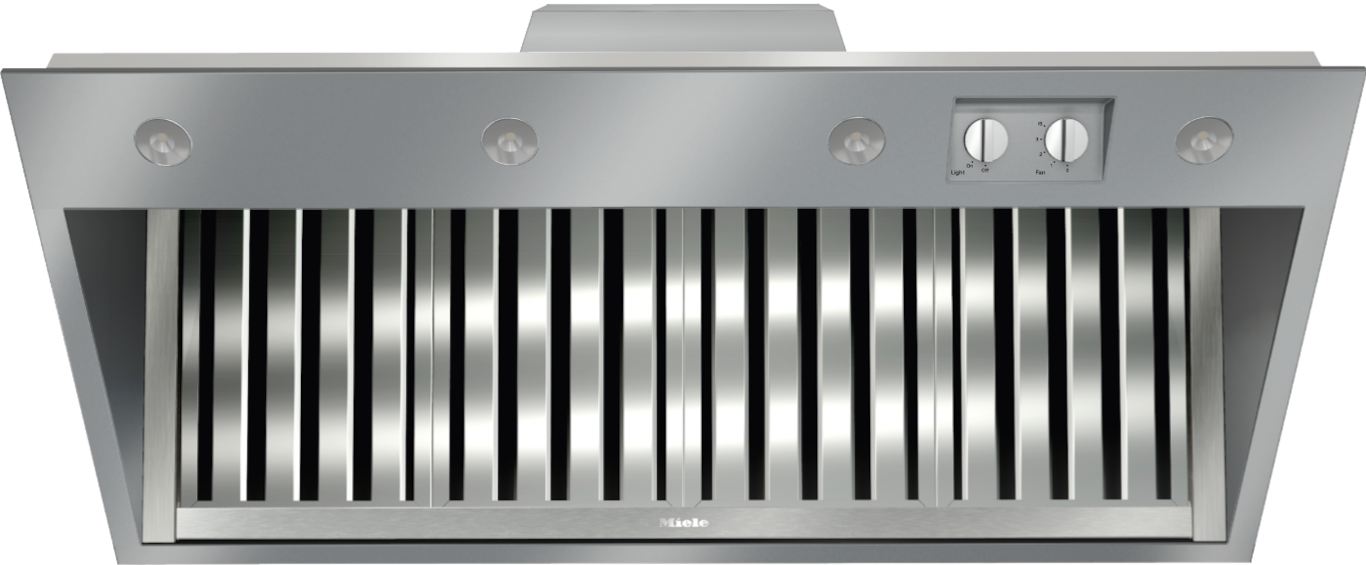

48-inch extractor unit

DAR 1150 Stainless steel

for perfect combination with Ranges and Rangetops.

Color:Stainless steel

sale price$2,149.00




Product details

  • Customized kitchen design - fully integrated in 45 1/2 (1155) in (mm)
  • Perfect illumination -
    LED ClearView lighting
  • Dishwasher-safe - 4 high-quality
    stainless steel grease filters
  • Safe and easy to clean -
    Miele CleanCover
  • Auto-vent safety sensor – protects against overheating
  • Manufactured with great care by
  • Safety information

Product data sheet

Insert ventilation hood
Blower
Recirculated mode Exhaust air
External operation possible
Rotary knob
Power levels (number excl. Intensive) 3
Temperature sensor
Easy to clean canopy interior CleanCover
Dishwasher-safe grease collection channel
Number of dishwasher-safe stainless steel baffle filters 4
Number x W 4 x 3 W
DRIB XXL internal blower in CFM (m³/h) 1869
DREB XXL external blower in CFM (m³/h) 1869
Canopy width in in.(mm) 45 1/2 (1155)
Canopy width in inches 47 15/16
Canopy height in in.(mm) 17 3/4 (449)
Canopy depth in in.(mm) 22 7/8 (579)
Net weight in lbs. (kg) 56 (25.0)
Length of electrical wire in ft (m) 2 (0.8)
Standard plug fitted
Total connected load in kW 0.812
Voltage in V 120
Fuse rating in A 15
Number of phases 1
Vent connection at top
Diameter of vent connection in in.(mm) 9 7/8 (250)
Non-return flap
EAN 4002515446829

What's included

Non-return flap

User convenience

Discreetly integrated
Knob controls

Beautiful and functional: Metal rotary controls complement the harmonious design of the range hoods.


Efficiency and sustainability

Powerful lighting with minimal energy consumption
LED ClearView lighting

Eco-friendly and very durable: With up to 4 x 2 W, they provide the cooktop with uniform, warm downlighting.


Permanent safety
Temperature sensor

Continuous monitoring: the temperature sensor ensures safety and prevents unnecessary energy consumption.


Features

Convenience and safety in detail
Miele CleanCover

Miele’s unique easy cleaning: The sealed, smooth surface prevents contact with the electrical components/motor.


Downloads

Warranty conditions
PDF
Downloads
Product sheet
PDF
Downloads
Operating instructions/Installation instructions
PDF
Downloads
Fitting Instructions
PDF
Downloads
dwg
ZIP
Downloads
3ds
ZIP
Downloads
obj
ZIP
Downloads
step
ZIP
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts.

https://media.miele.com/images/2000011/200001183/20000118350.png
Descriptions
DAR1150 (Installation drawing)
Installation drawings
Downloads

We reserve the right to make technical changes; we assume no liability for the accuracy of the information provided.
