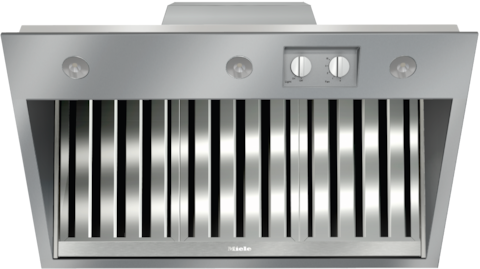

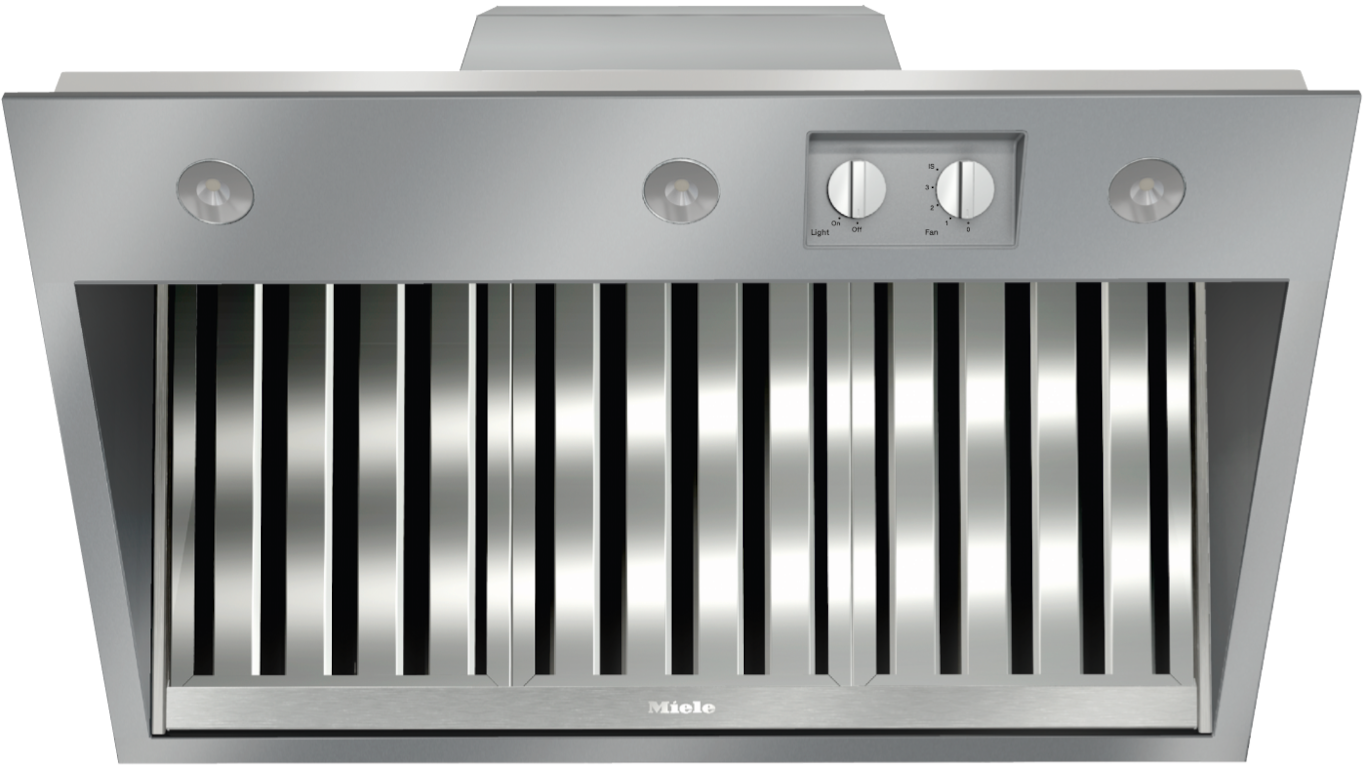

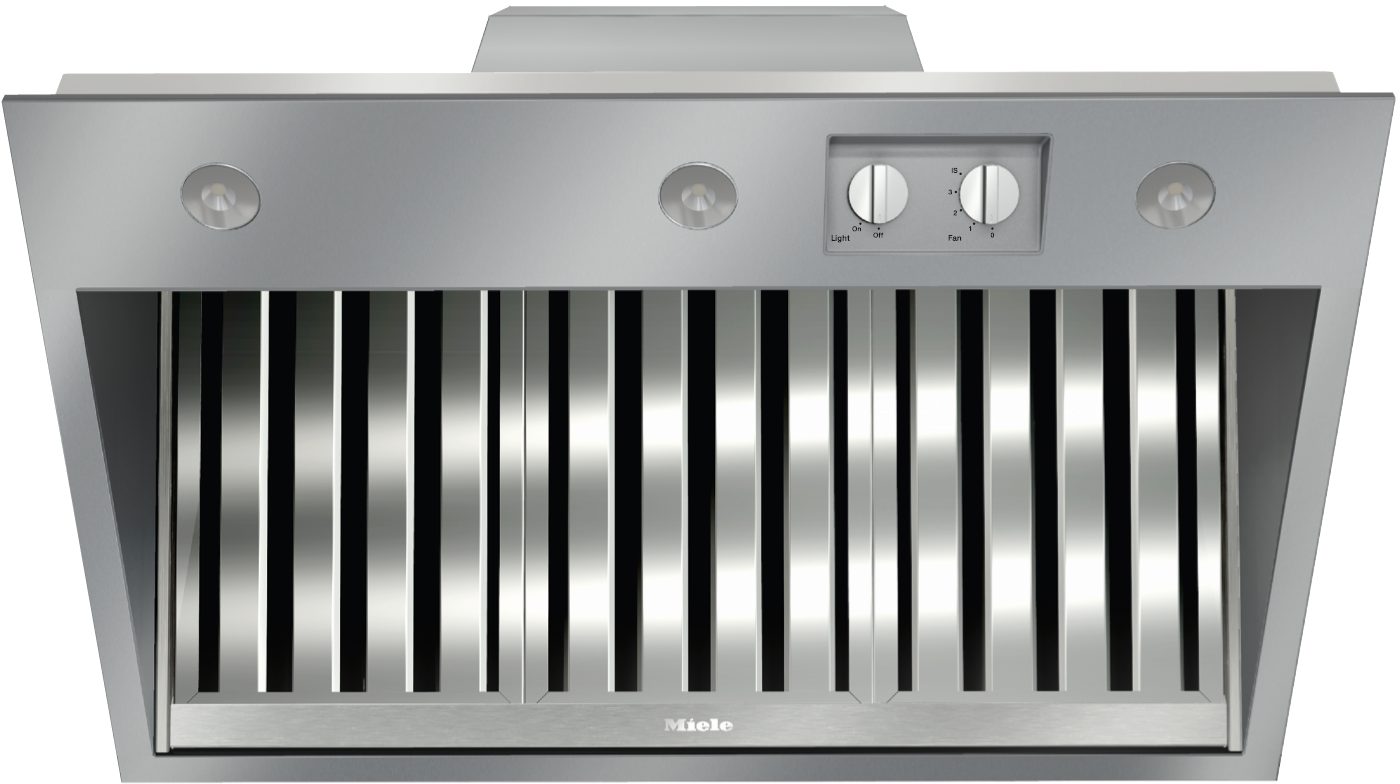

36-inch extractor unit

DAR 1130 Stainless steel

for perfect combination with Ranges and Rangetops.

Color:Stainless steel

sale price$1,949.00




Product details

  • Customized kitchen design - fully integrated in 33 1/2 (850) in (mm)
  • Perfect illumination -
    LED ClearView lighting
  • Dishwasher-safe - 3 high-quality
    stainless steel grease filters
  • Safe and easy to clean -
    Miele CleanCover
  • Auto-vent safety sensor – protects against overheating
  • Manufactured with great care by
  • Safety information

Product data sheet

Insert ventilation hood

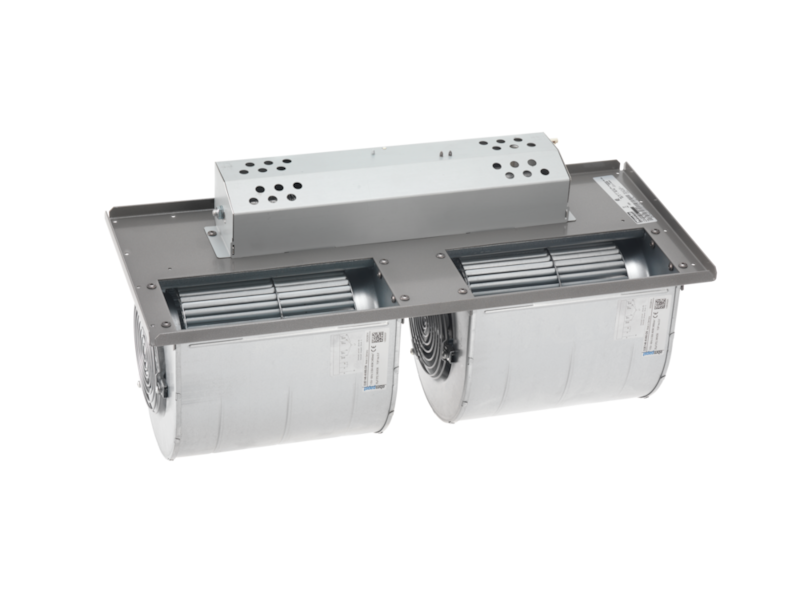

Blower
Recirculated mode Exhaust air
External operation possible
Rotary knob
Power levels (number excl. Intensive) 3
Temperature sensor
Easy to clean canopy interior CleanCover
Dishwasher-safe grease collection channel
Number of dishwasher-safe stainless steel baffle filters 3
Number x W 3 x 3 W
DRIB XL internal blower in CFM (m³(h) 1189
DRIB XXL internal blower in CFM (m³/h) 1869
DREB XL external blower in CFM (m³/h) 1189
DREB XXL external blower in CFM (m³/h) 1869
Canopy width in in.(mm) 33 1/2 (850)
Canopy width in inches 35 15/16
Canopy height in in.(mm) 17 3/4 (449)
Canopy depth in in.(mm) 22 7/8 (579)
Net weight in lbs. (kg) 42 (19.0)
Length of electrical wire in ft (m) 2 (0.8)
Standard plug fitted
Total connected load in kW 0.809
Voltage in V 120
Fuse rating in A 15
Number of phases 1
Vent connection at top
Diameter of vent connection in in.(mm) 9 7/8 (250)
Non-return flap
EAN 4002515446812

What's included

Non-return flap

User convenience

Discreetly integrated
Knob controls

Beautiful and functional: Metal rotary controls complement the harmonious design of the range hoods.


Efficiency and sustainability

Powerful lighting with minimal energy consumption
LED ClearView lighting

Eco-friendly and very durable: With up to 4 x 2 W, they provide the cooktop with uniform, warm downlighting.


Permanent safety
Temperature sensor

Continuous monitoring: the temperature sensor ensures safety and prevents unnecessary energy consumption.


Features

Convenience and safety in detail
Miele CleanCover

Miele’s unique easy cleaning: The sealed, smooth surface prevents contact with the electrical components/motor.


Downloads

Product sheet
PDF
Downloads
Warranty conditions
PDF
Downloads
Operating instructions/Installation instructions
PDF
Downloads
Fitting Instructions
PDF
Downloads
3ds
ZIP
Downloads
step
ZIP
Downloads
dwg
ZIP
Downloads
obj
ZIP
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts.

https://media.miele.com/images/2000011/200001183/20000118349.png
Descriptions

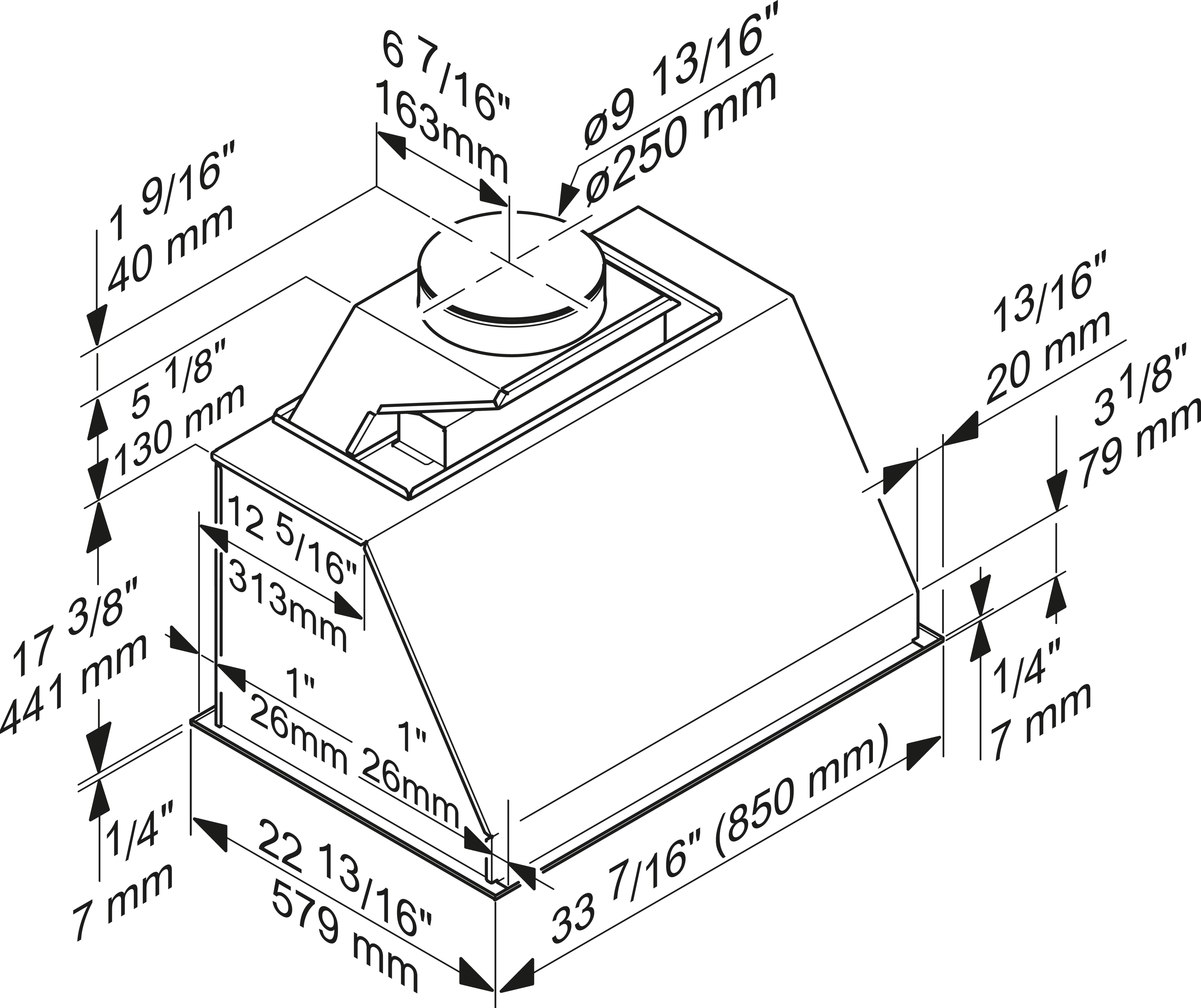

DAR1130 (installation drawing)
Installation drawings
