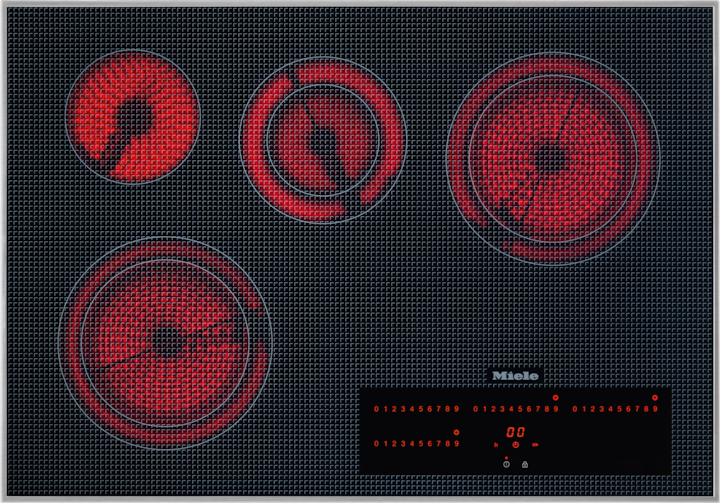

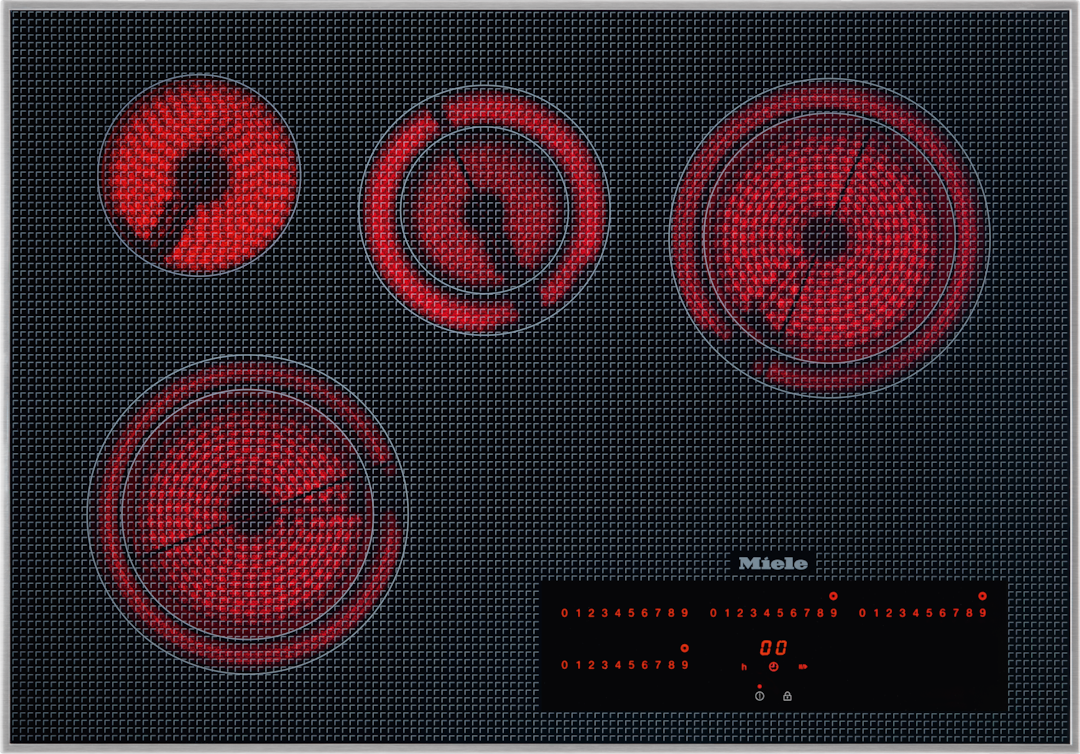

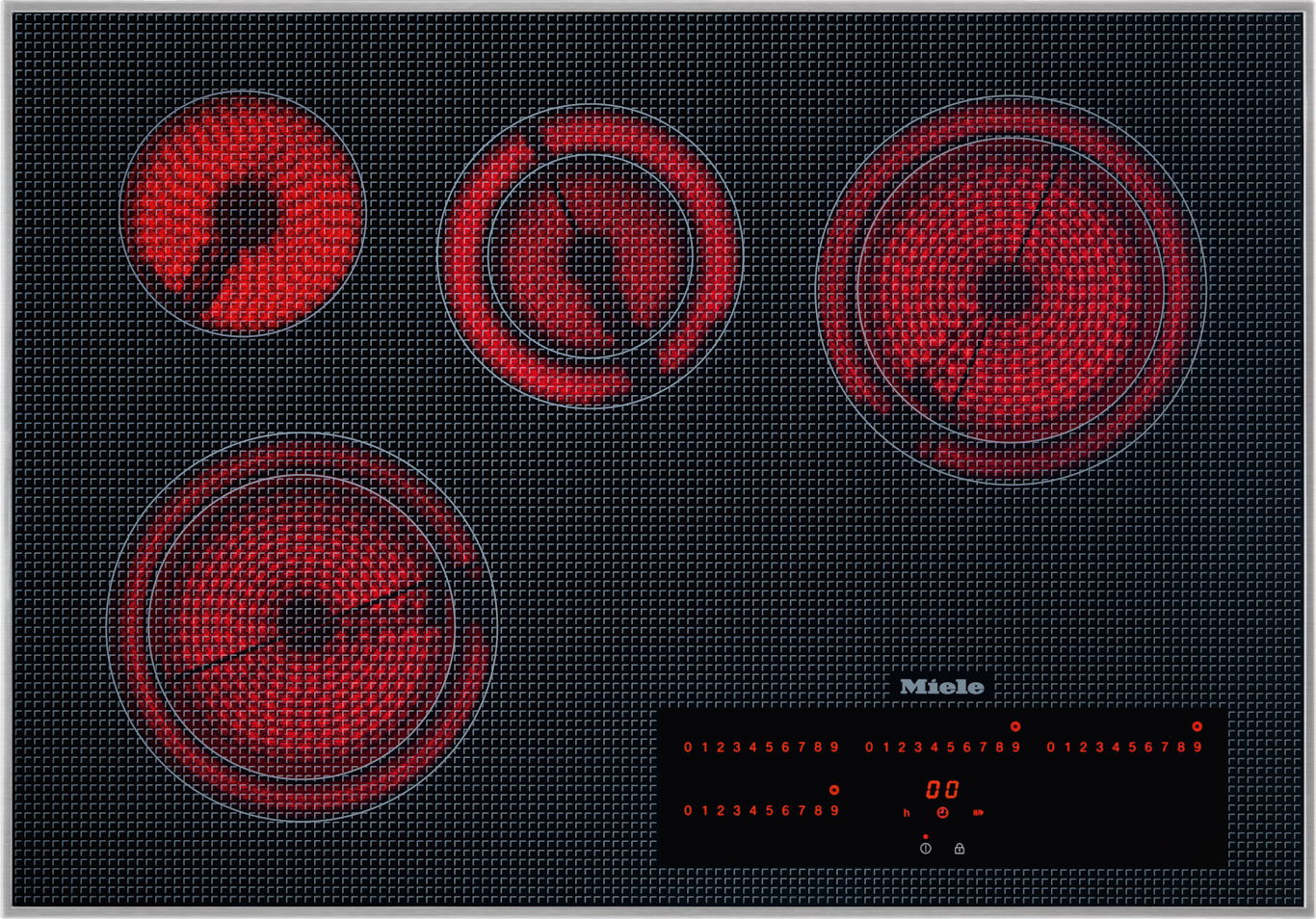

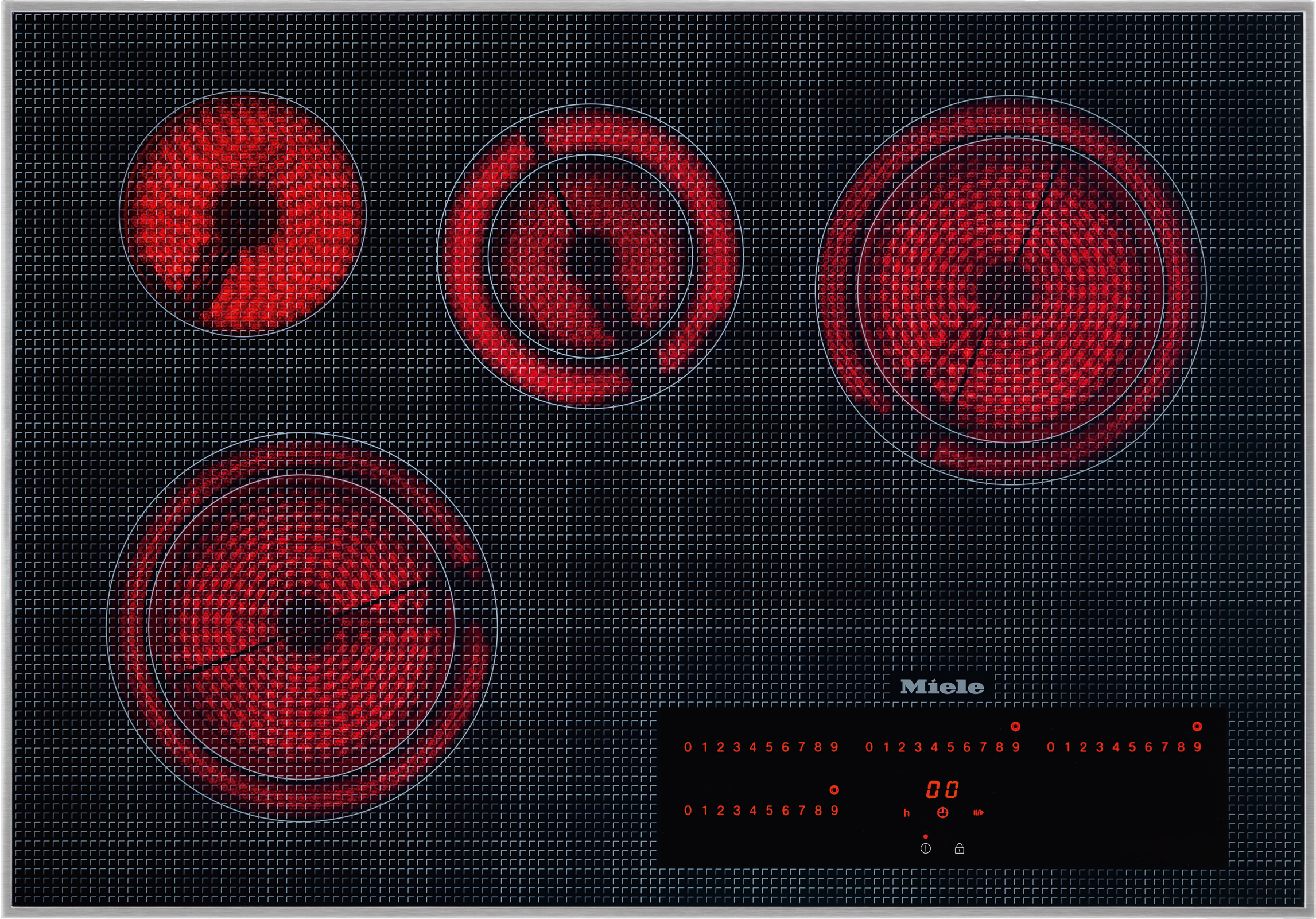

  • Miele - KM 5840 240V Stainless steel – Cooktops - 1
30-inch electric cooktop, operated with its own controlsGold

KM 5840 240V Stainless steel

30-inch | 4 cooking zones including 2 Vario cooking zones | DirectControl plus
Color:Stainless steel
sale price$2,599.00


Product details

  • Quick selection using numerical linear keybanks -
    Direct control plus
  • Attractive design - 30 5/8 (775) in (mm) wide with stainless steel frame
  • Very versatile - 4 cooking zones with 2 Vario zones
  • Convenient -
    Auto heat-up
    for every cooking zone
  • Safe - residual heat indicator for every cooking zone
  • View manufacturer details:
  • Safety information

Product data sheet

Model number
KM 5840 240V
Manufacturer material number
07821740
EAN number
4002514866673
Marketing class
Gold
Fuel type
Electric
Independent of oven
Elegant glass ceramic surface
Ceramic surface color
Black
All-round stainless-steel frame
Print design
Basalt grey decor
Proud installation
No. of rings
4
Position
front left
Type
Variable cooking zone
Size in mm
Ø 180 / Ø 230
Max. rating in W
1600/2500
Position
rear left
Type
Single-circuit ring
Size in mm
Ø 145
Max. rating in W
1200
Position
rear center
Type
Variable cooking zone
Size in mm
Ø 120 / Ø 180
Max. rating in W
700/1800
Position
front right
Type
Variable cooking zone
Size in mm
Ø 180 / Ø 230
Max. rating in W
1600/2500
Operation via touchpad sensors
Direct Control Plus
Display color
Red
Stop & Go function
Extended ring area
Minute minder
Automatic switch-off for all rings
AutoBoost
Easy to clean ceramic glass
Safety cut-out
Lock function
System lock
Overheating protection
Residual heat indicator
Dimensions (H x W x D) in mm
2 1/2 (62) x 30 5/8 (775) x 21 1/2 (544)
Width in in. (mm)
30 5/8 (775)
Height in in. (mm)
2 1/2 (62)
Depth in in. (mm)
21 1/2 (544)
Cut-out dimensions (W x D) with surface-mounted installation in inches (mm)
28 5/8 in (724 mm) x 20 1/2 in (518 mm)
Built-in height with mains connection box in in. (mm)
2 3/4 (67)
Cutout dimensions width in in. (mm) with proud-mounted installation
28 5/8 in (724 mm)
Cutout dimensions depth in in. (mm) with proud-mounted installation
20 1/2 in (518 mm)
Weight in lbs. (kg)
35 (16)
Total connected load in kW
8
Voltage in V
240
Frequency in Hz
60
Power cord length in ft. (m)
4 (1.4)
Plug type
Sup. lead w/ wire-end ferrules
Razor-blade scraper
Connection wire
EAN
4002514866673

What's included

Razor-blade scraper
Connection wire

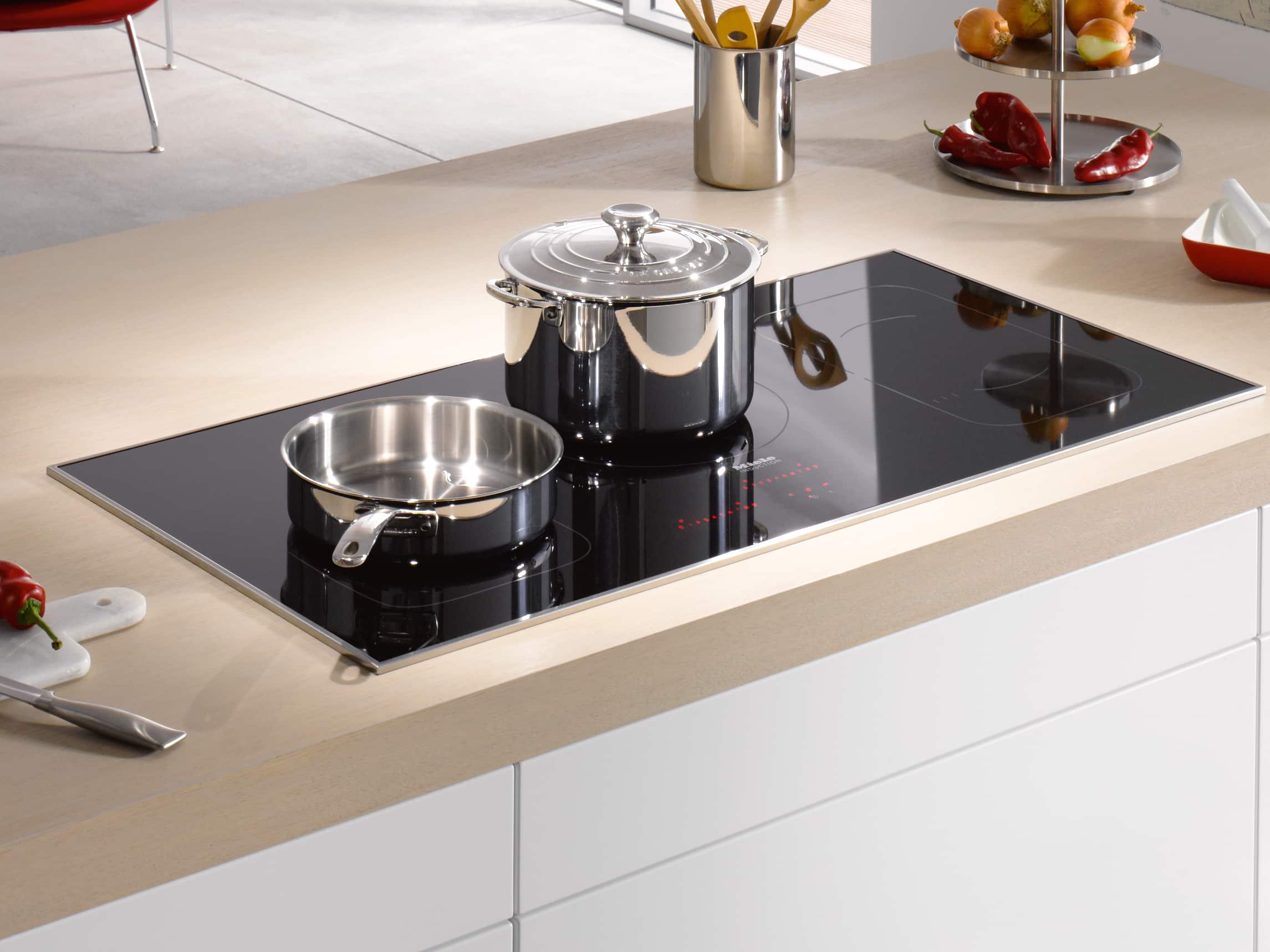

  • Intuitive operation - a Miele exclusive
    Intuitive operation - a Miele exclusive

    DirectSelection Plus

    Quick and intuitive: Power levels and times can be selected for each cooking zone using the numerical keybank.

User convenience

Intuitive operation - a Miele exclusive
Intuitive operation - a Miele exclusive

DirectSelection Plus

Quick and intuitive: Power levels and times can be selected for each cooking zone using the numerical keybank.
Saves not just energy
Saves not just energy

Auto heat-up

Always at the right time: This function reduces the initial power boost to prevent burning.

Downloads

Operating and Installation instructions
PDF
Download
Product sheet
PDF
Download
Warranty conditions
PDF
Download

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts.

https://media.miele.com/dam/ad7491c7-6699-44c5-99d7-b3c6013ae5ca/20000072585_HighresDigitalRGB.png
Descriptions

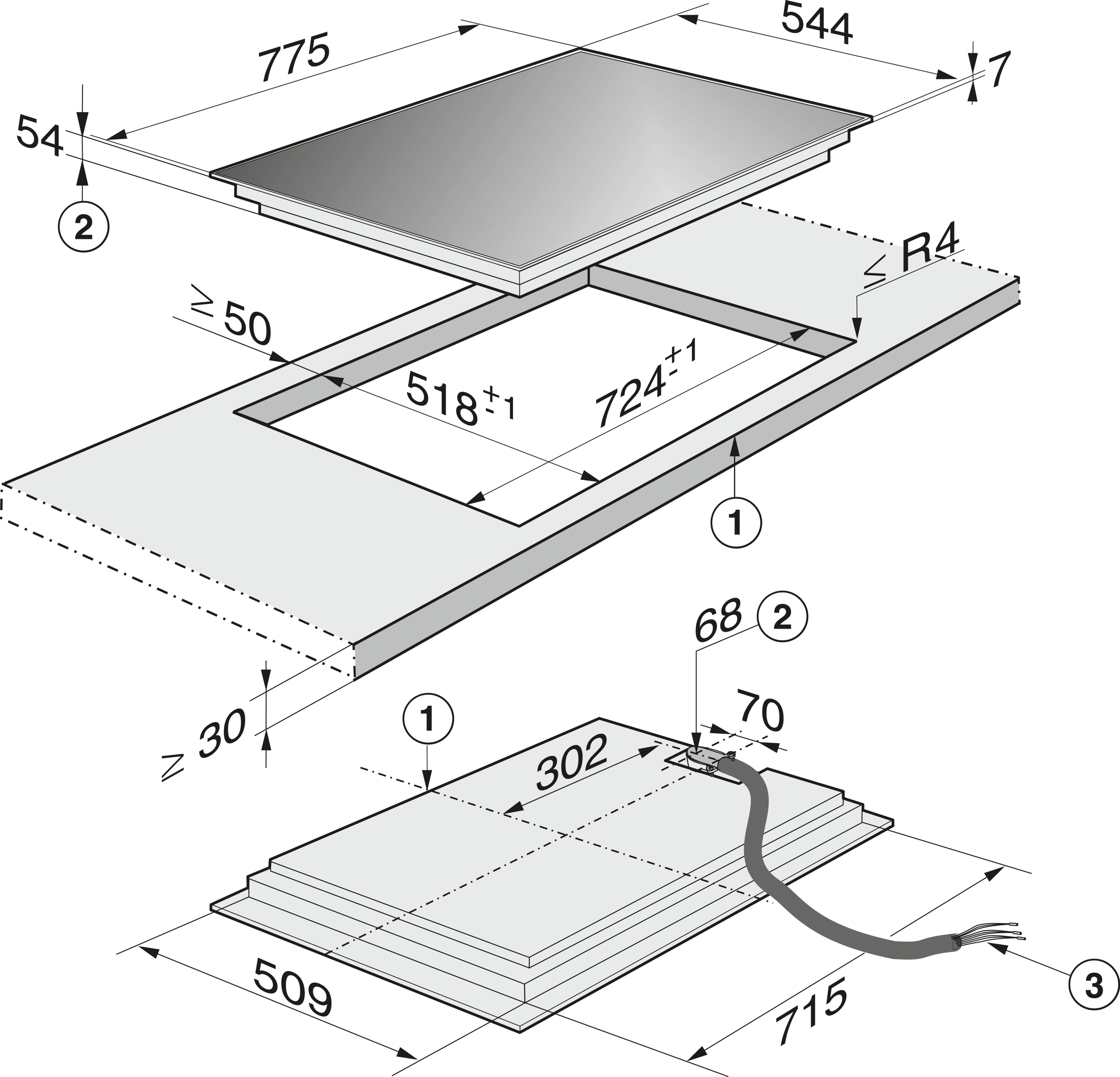

KM 5840 (Installation drawing)
1. Front, 2. Building-in depth, 3. Flexible metal hose, L = 1200 mm
POSTSCRIPT
Download
https://media.miele.com/dam/336d2cfd-fbc8-4c44-8650-b3c6013ae11b/20000072586_HighresDigitalRGB.png
Descriptions

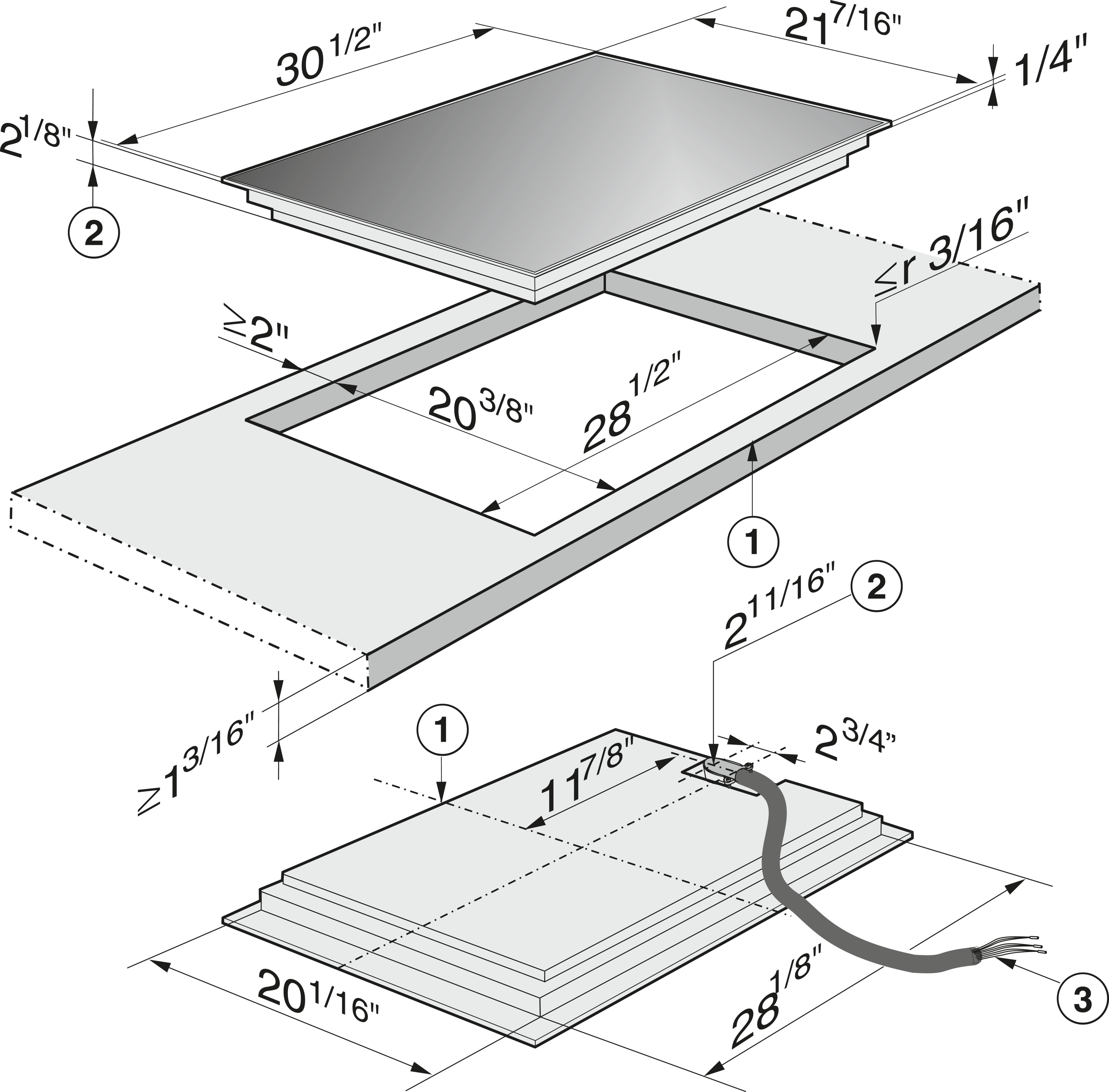

KM 5840 (Installation drawing)
1. Front, 2. Building-in depth, 3. Flexible metal hose, L = 47 1/4"
POSTSCRIPT
Download
