  • Miele - KM 5624 240V Stainless steel – Cooktops - 1
30-inch electric cooktop, operated with its own controlsGold

KM 5624 240V Stainless steel

30-inch | 4 cooking zones including 3 Vario cooking zones | Knob control
Color:Stainless steel
sale price$2,399.00


Product details

  • Easy and direct controls - operation via knob controls
  • Attractive design - 30 5/8 (775) in (mm) wide with stainless steel frame
  • Versatile - 4 cooking zones
  • Safe - residual heat indicator for every cooking zone
  • View manufacturer details:
  • Safety information

Product data sheet

Model number
KM 5624 240V
Manufacturer material number
07821680
EAN number
4002514865911
Marketing class
Gold
Fuel type
Electric
Independent of oven
Elegant glass ceramic surface
Ceramic surface color
Black
All-round stainless-steel frame
Print design
Basalt grey decor
Proud installation
No. of rings
4
Position
front left
Type
Variable cooking zone
Size in mm
Ø 180 / Ø 230
Max. rating in W
1600/2500
Position
rear left
Type
Single-circuit ring
Size in mm
Ø 145
Max. rating in W
1200
Position
rear right
Type
Variable cooking zone
Size in mm
Ø 120 / Ø 180
Max. rating in W
700/1800
Position
front right
Type
Variable cooking zone
Size in mm
Ø 120 / Ø 180
Max. rating in W
700/1800
Operation via knobs
Display color
Red
Extended ring area
Residual heat utilisation
Easy to clean ceramic glass
Overheating protection
Residual heat indicator
Dimensions (H x W x D) in mm
3 1/4 (81) x 30 5/8 (775) x 21 1/2 (544)
Width in in. (mm)
30 5/8 (775)
Height in in. (mm)
3 1/4 (81)
Depth in in. (mm)
21 1/2 (544)
Cut-out dimensions (W x D) with surface-mounted installation in inches (mm)
28 5/8 in (724 mm) x 20 1/2 in (518 mm)
Built-in height with mains connection box in in. (mm)
3 (75)
Cutout dimensions width in in. (mm) with proud-mounted installation
28 5/8 in (724 mm)
Cutout dimensions depth in in. (mm) with proud-mounted installation
20 1/2 in (518 mm)
Weight in lbs. (kg)
35 (16)
Total connected load in kW
7.300
Voltage in V
240
Frequency in Hz
60
Power cord length in ft. (m)
4 (1.4)
Plug type
Sup. lead w/ wire-end ferrules
Razor-blade scraper
Connection wire
EAN
4002514865911

What's included

Razor-blade scraper
Connection wire

Downloads

Operating and Installation instructions
PDF
Download
Product sheet
PDF
Download
Warranty conditions
PDF
Download

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts.

https://media.miele.com/dam/8f3bd5c4-c92c-4c09-9686-b3c6013af031/20000072579_HighresDigitalRGB.png
Descriptions

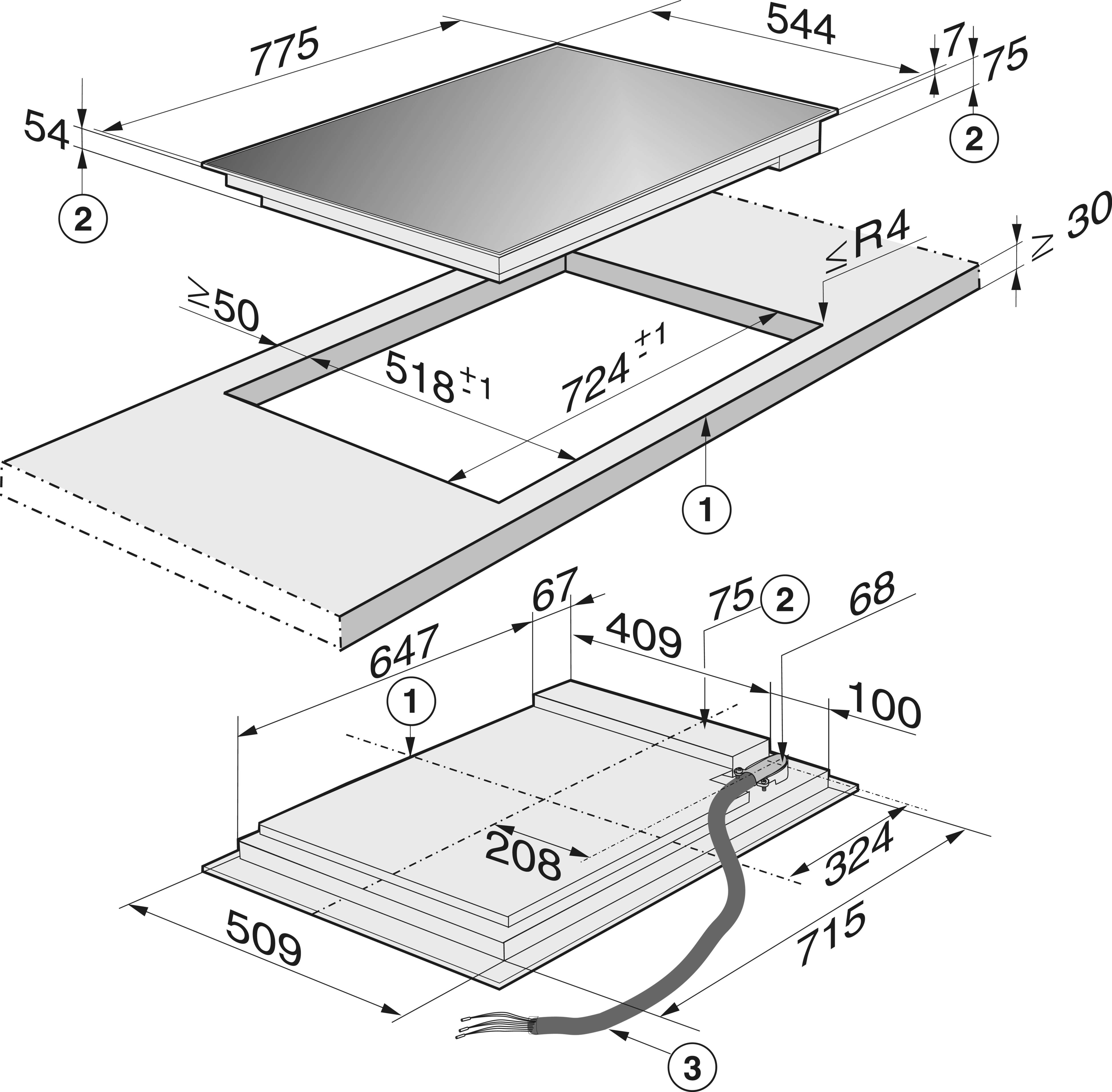

KM 5624 (Installation drawing)
1. Front, 2. Building-in depth, 3. Flexible metal hose, L = 1200 mm
POSTSCRIPT
Download
https://media.miele.com/dam/89d5611a-99aa-4dda-a6e1-b3c401045a63/20000072580_HighresDigitalRGB.png
Descriptions

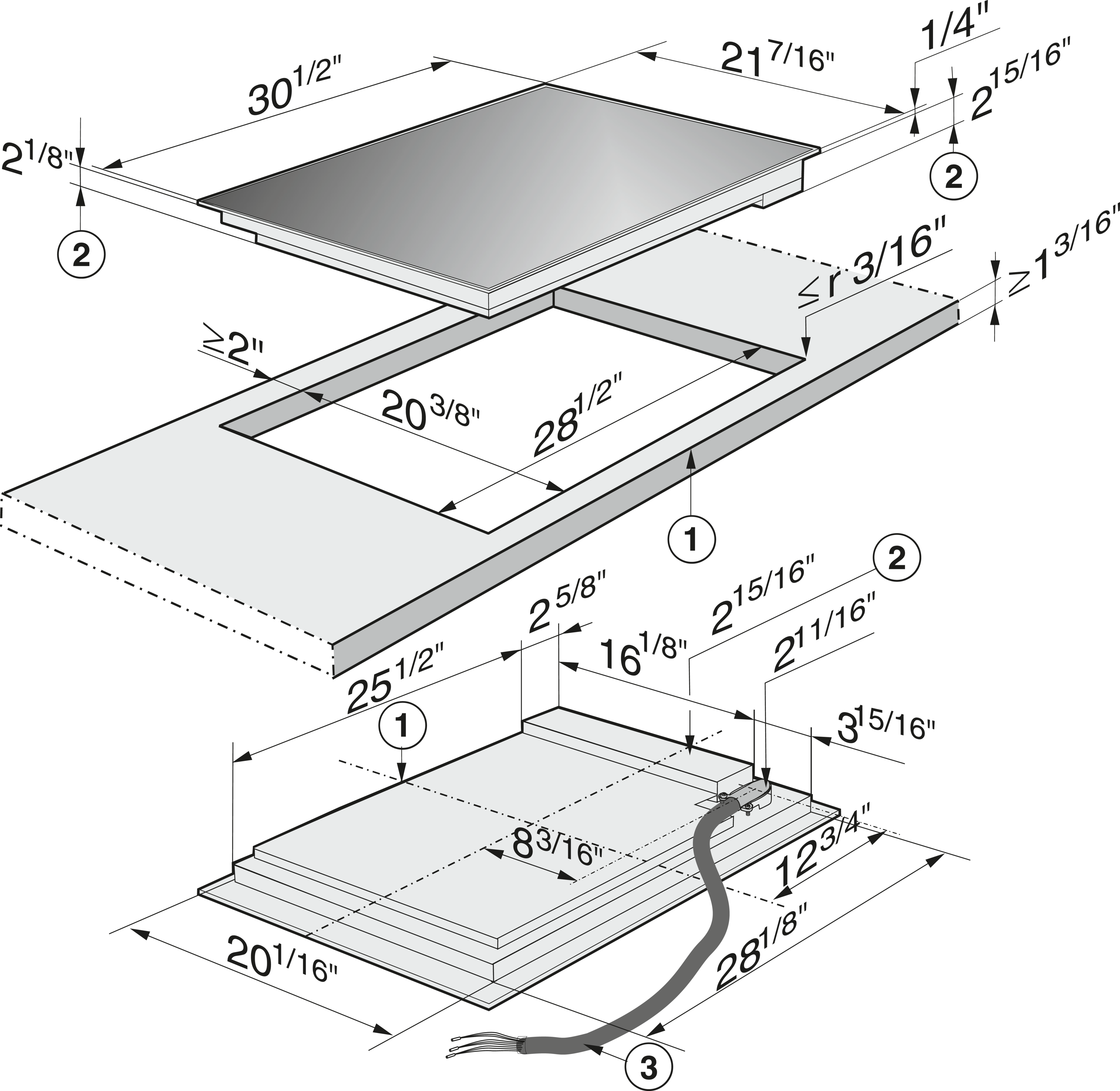

KM 5624 (Installation drawing)
1. Front, 2. Building-in depth, 3. Flexible metal hose, L = 47 1/4"
POSTSCRIPT
Download

We reserve the right to make technical changes; we assume no liability for the accuracy of the information provided.
