Product details
- Easy and direct controls - operation via knob controls
- Attractive design - 24 3/4 (626) in (mm) wide with stainless steel frame
- Versatile - 4 cooking zones
- Safe - residual heat indicator for every cooking zone
- Manufactured with great care by
- Safety information
Fuel type Electric
Independent of oven
Elegant glass ceramic surface
Ceramic surface color Black
All-round stainless-steel frame
Print design Basalt grey decor
Proud installation
Proud/flush-mounted –/–
No. of rings 4
Number of cooking zones/cooking areas –/–
Position front left
Type Variable cooking zone
Size in mm Ø 120 / Ø 210
Max. rating in W 900/2400
Position rear left
Type Single-circuit ring
Size in mm Ø 145
Max. rating in W 1200
Position rear right
Type Variable cooking zone
Size in mm Ø 120 / Ø 180
Max. rating in W 700/1800
Position front right
Type Single-circuit ring
Size in mm Ø 145
Max. rating in W 1200
Operation via knobs
Display color Red
Extended ring area
Residual heat utilisation
Easy to clean ceramic glass
Loading...
Overheating protection
Loading...
Residual heat indicator
Loading...
Dimensions (H x W x D) in mm 3 1/4 (81) x 24 3/4 (626) x 21 1/2 (544)
Width in in. (mm) 24 3/4 (626)
Height in in. (mm) 3 1/4 (81)
Depth in in. (mm) 21 1/2 (544)

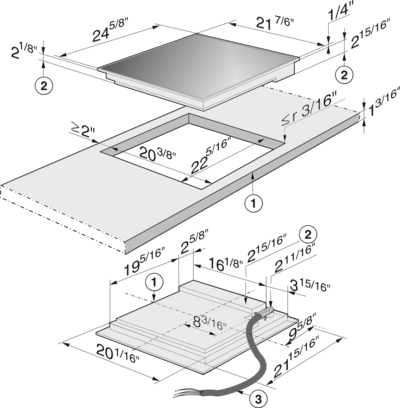

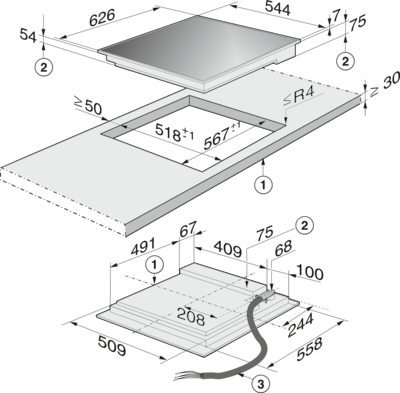

Cut-out dimensions (W x D) with surface-mounted installation in inches (mm) 22 3/8 in (567 mm) x 20 1/2 in (518 mm)
Built-in height with mains connection box in in. (mm) 3 (75)
Cutout dimensions width in in. (mm) with proud-mounted installation 22 3/8 in (567 mm)
Cutout dimensions depth in in. (mm) with proud-mounted installation 20 1/2 in (518 mm)
Weight in lbs. (kg) 28 (13)
Total connected load in kW 6.600
Voltage in V 240
Frequency in Hz 60
Power cord length in ft. (m) 4 (1.4)
Razor-blade scraper
Connection wire
EAN 4002514865898
Razor-blade scraper
Connection wire
