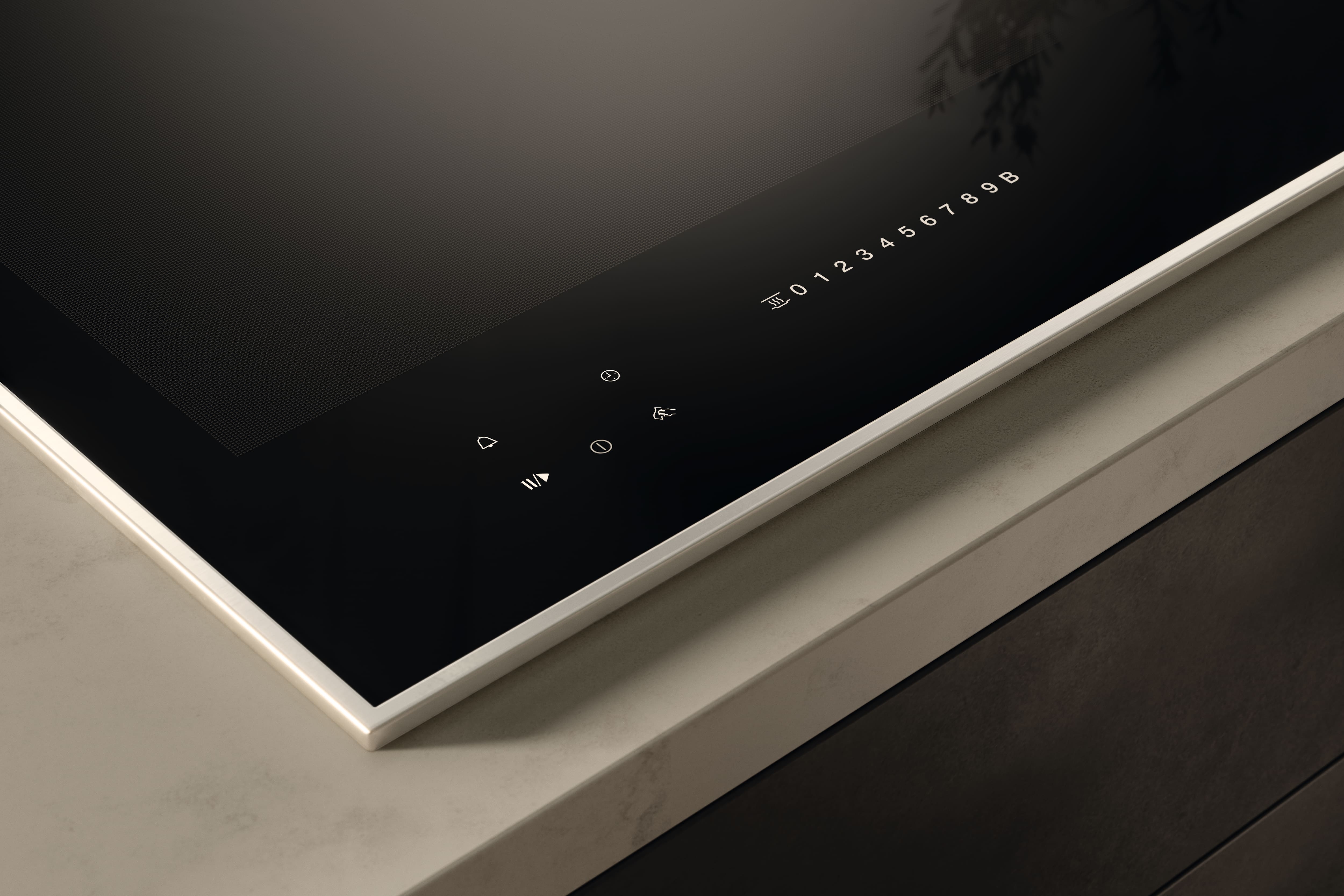

  • Miele - KM 7747 FR Diamond – Cooktops - 1
  • Miele - KM 7747 FR Diamond – Cooktops - 2
  • Miele - KM 7747 FR Diamond – Cooktops - 3
  • Miele - KM 7747 FR Diamond – Cooktops - 4
  • Miele - KM 7747 FR Diamond – Cooktops - 5

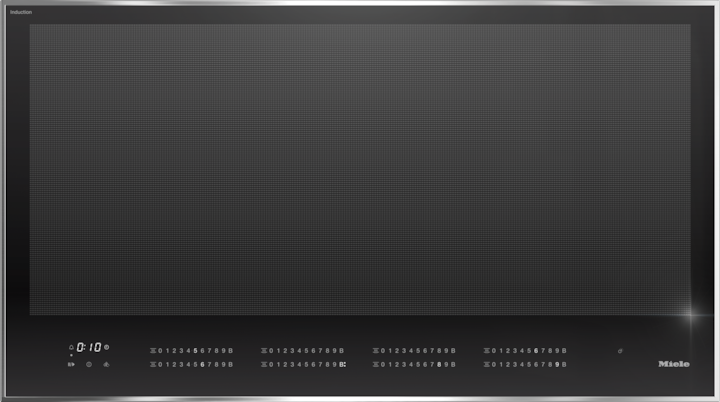

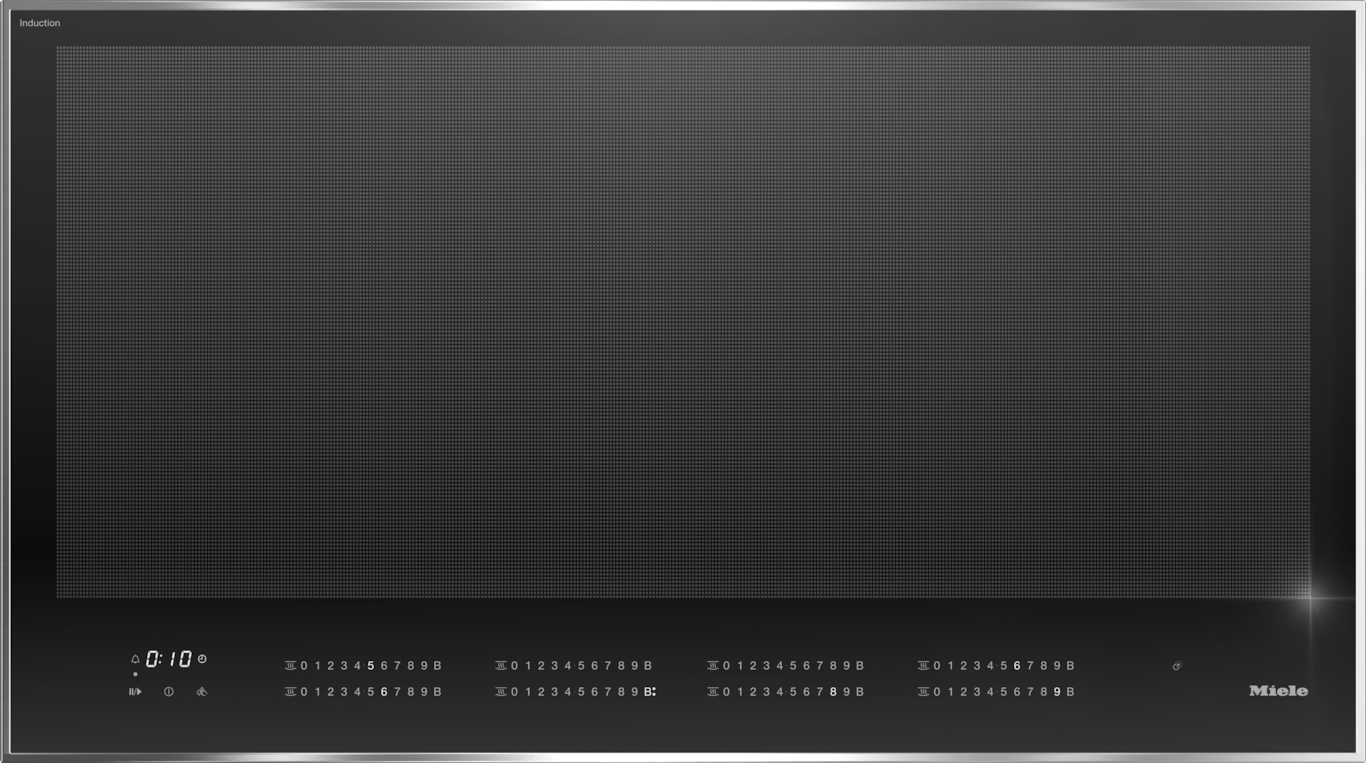

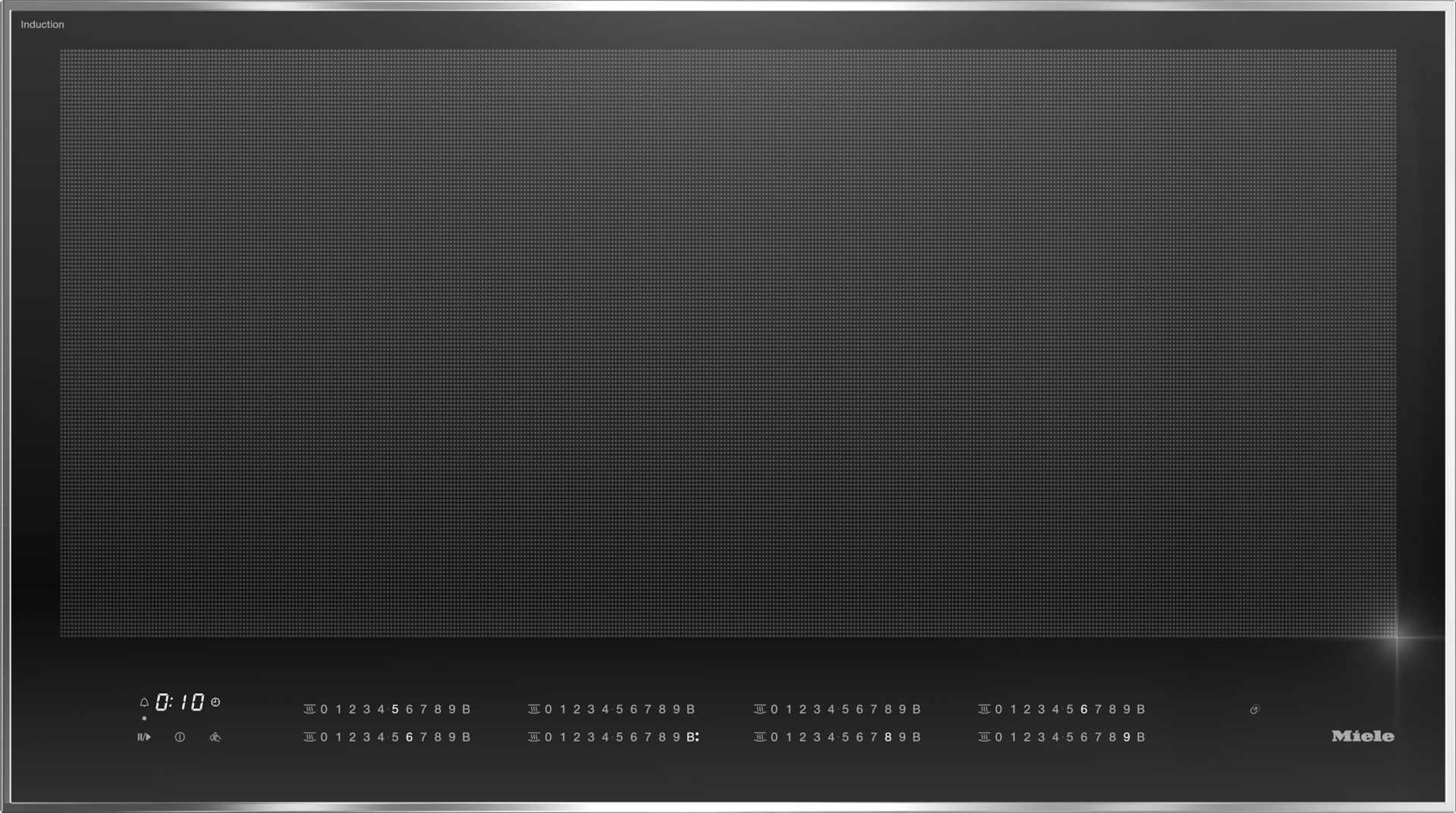

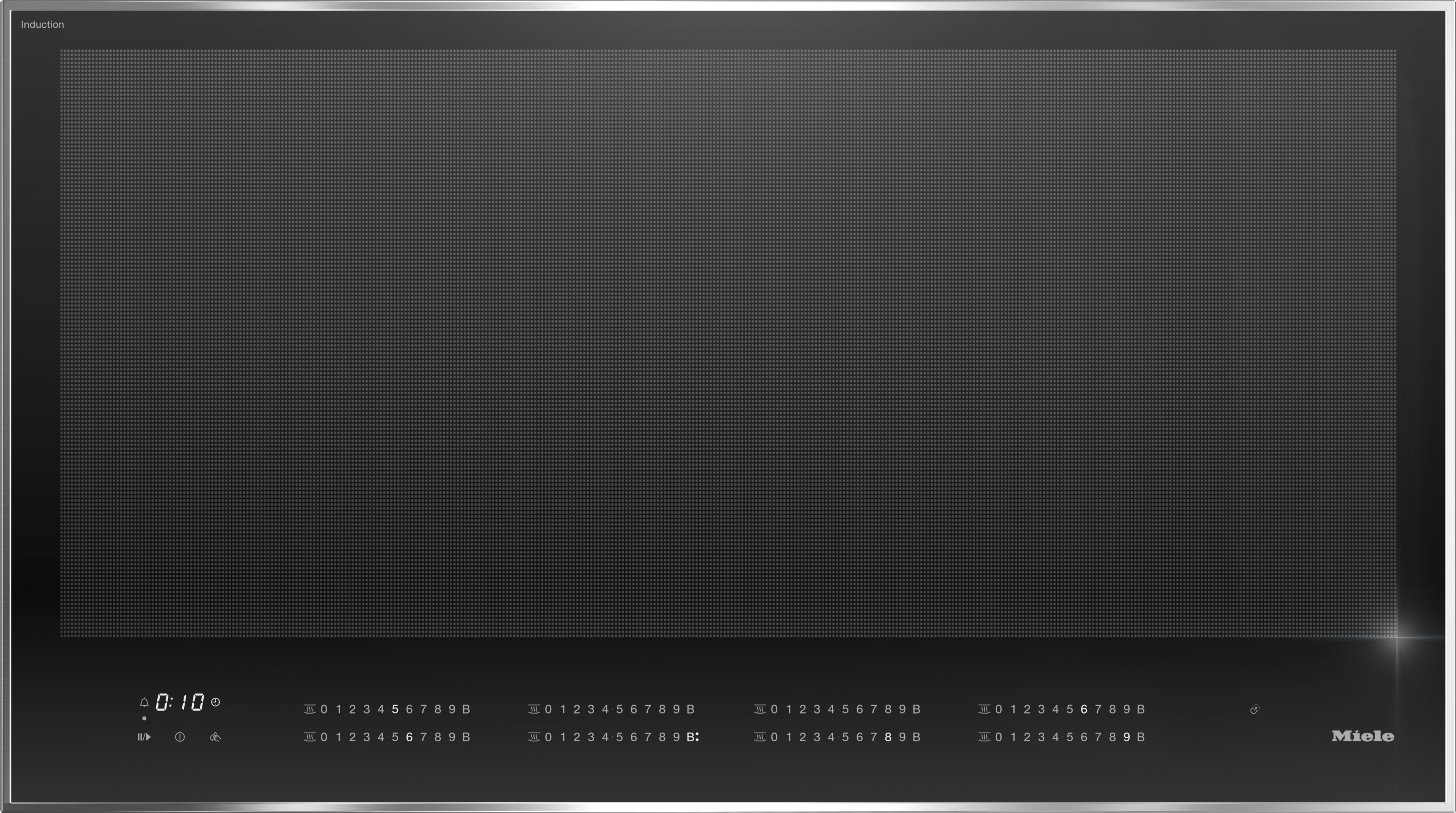

36-inch induction cooktop, operated with its own controlsDiamond

KM 7747 FR Diamond

37 1/8 (942) in (mm) | Full-surface | DiamondFinish | Con@ctivity | SmartSelect White
sale price$6,999.00


Product details

  • Hard-wearing finish –
    DiamondFinish
  • Intelligent pan recognition – for up to 6 pans
  • Intuitive quick selection via numerical displays –
    SmartSelect White
  • Communication with the ventilation hood – automatic
    Con@ctivity
    function
  • With a width of 37 1/8 (942) in (mm) and stainless steel frame for proud-mounting
  • View manufacturer details:
  • Safety information

Product data sheet

Model number KM 7747 FR Diamond
Manufacturer material number 13008690
EAN number 4002516989868
Marketing class
Diamond
Fuel type Induction
Independent of oven
Scratch-resistant surface DiamondFinish
Elegant glass ceramic surface
Ceramic surface color Graphite black

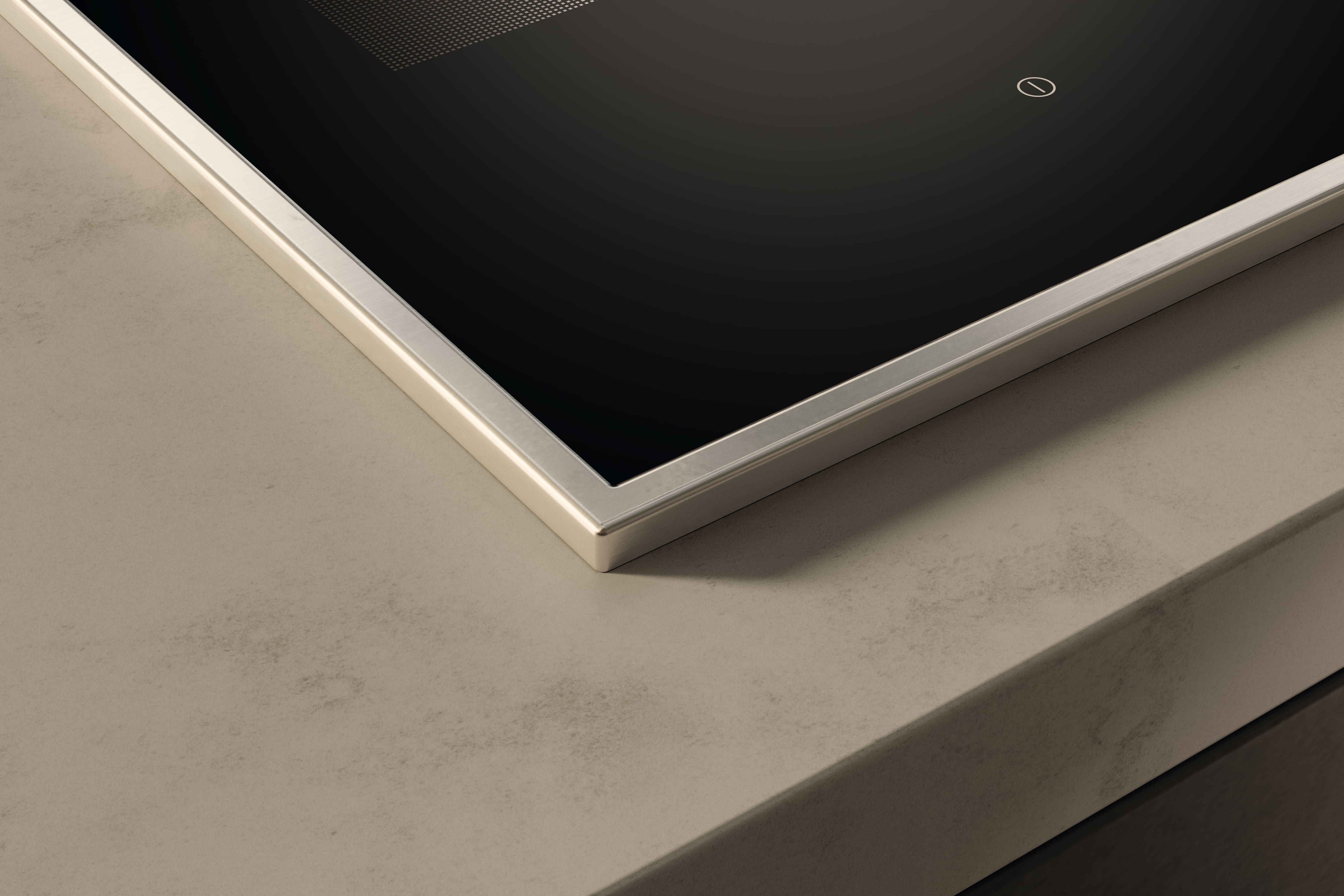

All-round stainless-steel frame
Proud installation
Number of cooking areas 1
Maximum number of pans 6
Position Can be selected freely
Type
Full area
Size in mm 870x380
Max. rating in W 2600
Max. booster rating in W 3300
Max. TwinBooster rating in W 3700
Networking with Miele@home
Con@ctivity
Operation via touchpad sensors SmartSelect White
Display color White
Intelligent pan recognition
Pan/Pan-size sensors
Positioning aid
Stop & Go function
Wipe protection
Minute minder
AutoBoost
Keep-warm function
Individual setting options (e.g. acoustic signal tones)
Recipes
Push notifications
Smart Home Integration
Easy to clean ceramic glass
Safety cut-out
Lock function
System lock
Integrated cooling blower
Overheating protection
Residual heat indicator
Dimensions (H x W x D) in mm 4 1/8 (103) x 37 1/8 (942) x 20 3/4 (526)
Width in in. (mm) 37 1/8 (942)
Height in in. (mm) 4 1/8 (103)
Depth in in. (mm) 20 3/4 (526)
Cut-out dimensions (W x D) with surface-mounted installation in inches (mm) 36 1/8 in (916 mm) x 19 3/4 in (500 mm)
Built-in height with mains connection box in in. (mm) 3 7/8 (96)
Cutout dimensions width in in. (mm) with proud-mounted installation 36 1/8 in (916 mm)
Cutout dimensions depth in in. (mm) with proud-mounted installation 19 3/4 in (500 mm)
Weight in lbs. (kg) 55 (25)
Total connected load in kW 11.100
Voltage in V 208 - 240
Frequency in Hz 60
Power cord length in ft. (m) 6 (2.0)
Connection wire
EAN 4002516989868

What's included

Connection wire
  • *This is a separate digital offer from Miele & Cie. KG. The range of functions can vary depending on the model and the country. Acceptance of the Terms and Conditions and Privacy Policy for Miele digital products and services in the Miele app required. Miele reserves the right to change or discontinue the digital offer at any time.
  • Cleverly networked
    Cleverly networked

    Domestic appliance networking with Miele@home1,

    Make your life smart: Thanks to Miele@home, you can cleverly network your domestic appliances – for more options.

  • Smart controls
    Smart controls

    Con@ctivity

    Innovative convenience: The ventilation hood reacts automatically to settings on the cooktop.

  • Flexibility in every cooking situation
    Flexibility in every cooking situation

    Full-surface

    Customize your cooktop: Position your pans wherever you like.

  • Simple operation thanks to intuitive controls
    Simple operation thanks to intuitive controls

    SmartSelect White

    Select the setting quickly and easily for each individual cooking zone and experience intuitive cooking.

User convenience

Cleverly networked
Cleverly networked

Domestic appliance networking with Miele@home1,

Make your life smart: Thanks to Miele@home, you can cleverly network your domestic appliances – for more options.
Simple operation thanks to intuitive controls
Simple operation thanks to intuitive controls

SmartSelect White

Select the setting quickly and easily for each individual cooking zone and experience intuitive cooking.

Safety

For greater safety and security
For greater safety and security

Safety functions

The safety functions protect you from any nasty surprises – even if your mind is on other things.

Setup/function

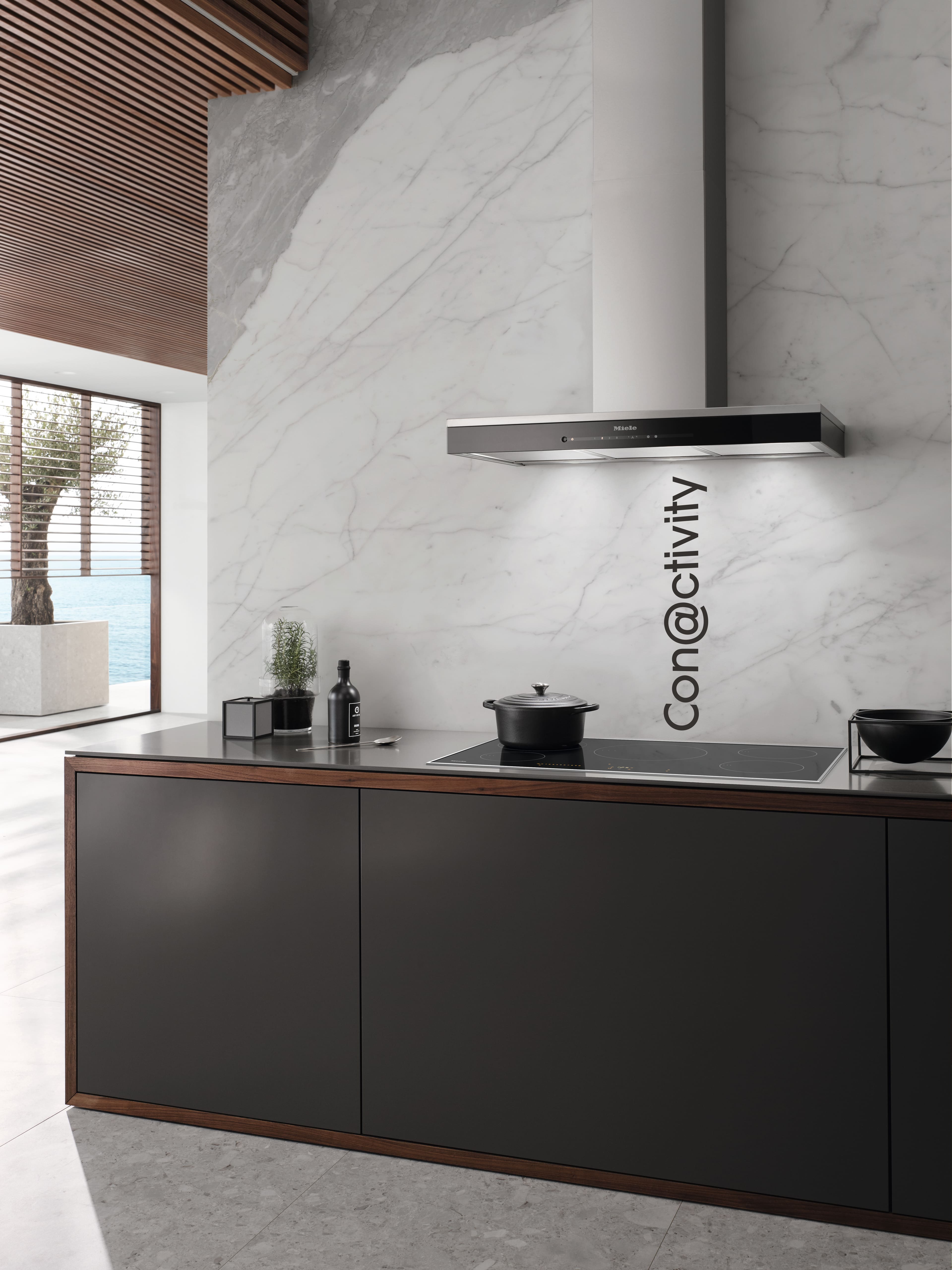

Smart controls
Smart controls

Con@ctivity

Innovative convenience: The ventilation hood reacts automatically to settings on the cooktop.
Flexibility in every cooking situation
Flexibility in every cooking situation

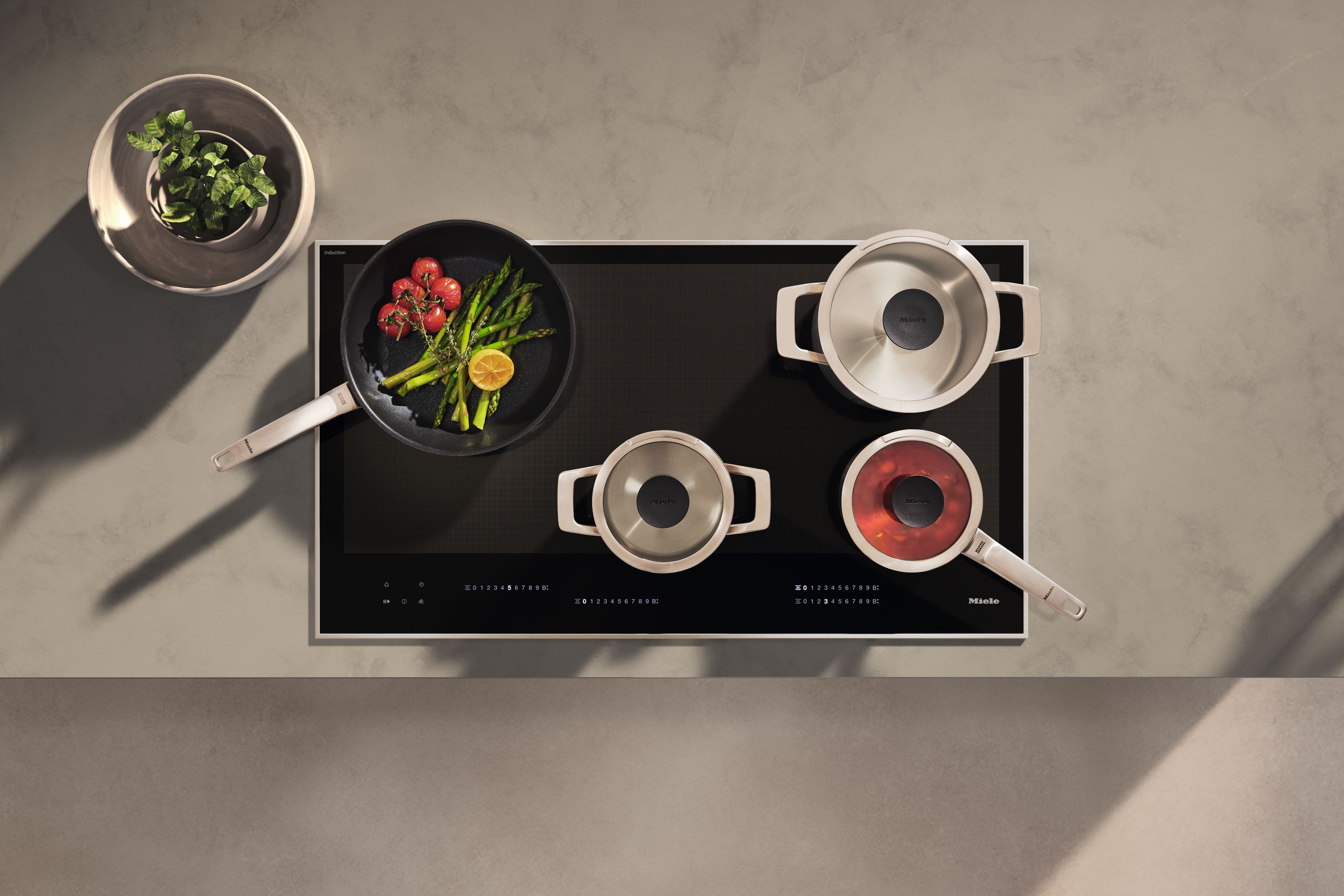

Full-surface

Customize your cooktop: Position your pans wherever you like.
Intuitive and intelligent
Intuitive and intelligent

Intelligent pan recognition

Knows where the pan is: The control elements simply move along on the full surface.
Heats up particularly quickly thanks to Booster
Heats up particularly quickly thanks to Booster

TwinBooster

Distribute the induction power across several cooking zones or concentrate the power on one cooking zone.
For greater convenience
For greater convenience

Convenient additional functions

A variety of additional functions such as Stop & Go and timers make your work in the kitchen so much easier.

Smart Extras

  • Inspiration for every taste
    Inspiration for every taste

    Recipes1,

    Discover a wide range of digital recipe ideas and get started right away.

  • Everything at a glance with smart notifications
    Everything at a glance with smart notifications

    Push notifications1,

    Receive relevant information directly on your smartphone or tablet.

  • Seamless networking throughout your home
    Seamless networking throughout your home

    Smart Home Integration1,

    Intelligent integration of Miele appliances into a Smart Home system.

Downloads

Operating and Installation instructions
PDF
Download
Product sheet
PDF
Download
Warranty conditions
PDF
Download
dwg
ZIP
Download
fbx
ZIP
Download
ifc
ZIP
Download
rfa
ZIP
Download
rvt
ZIP
Download

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts.

https://media.miele.com/images/2000022/200002254/20000225462.png
Descriptions

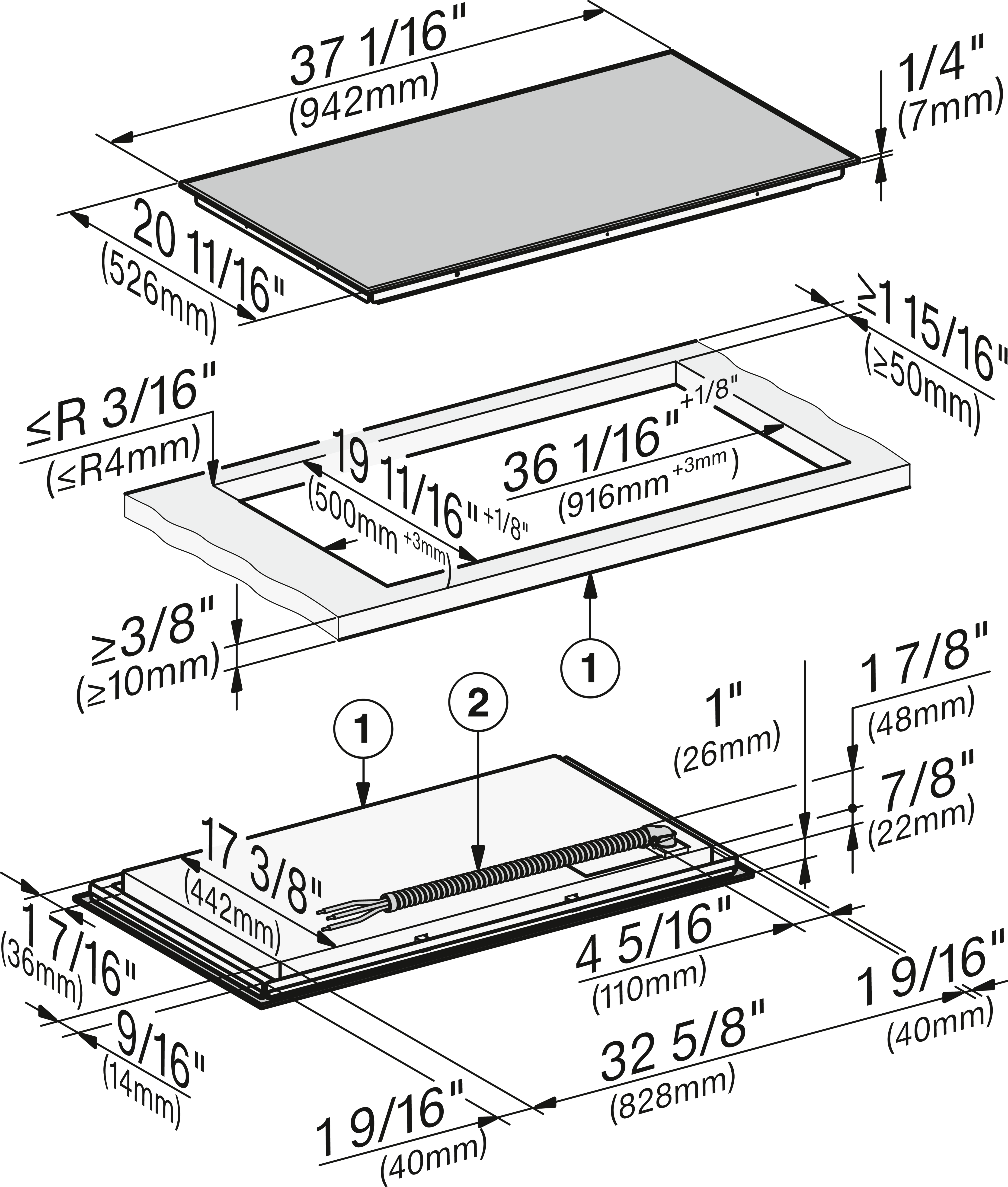

KM7747FR Diamond - frameless overlaying installation
① front, ② Flexible metal hose with power cords, L = 4' (1,200 mm)
