24" oven GOLD
Smart Home Icon

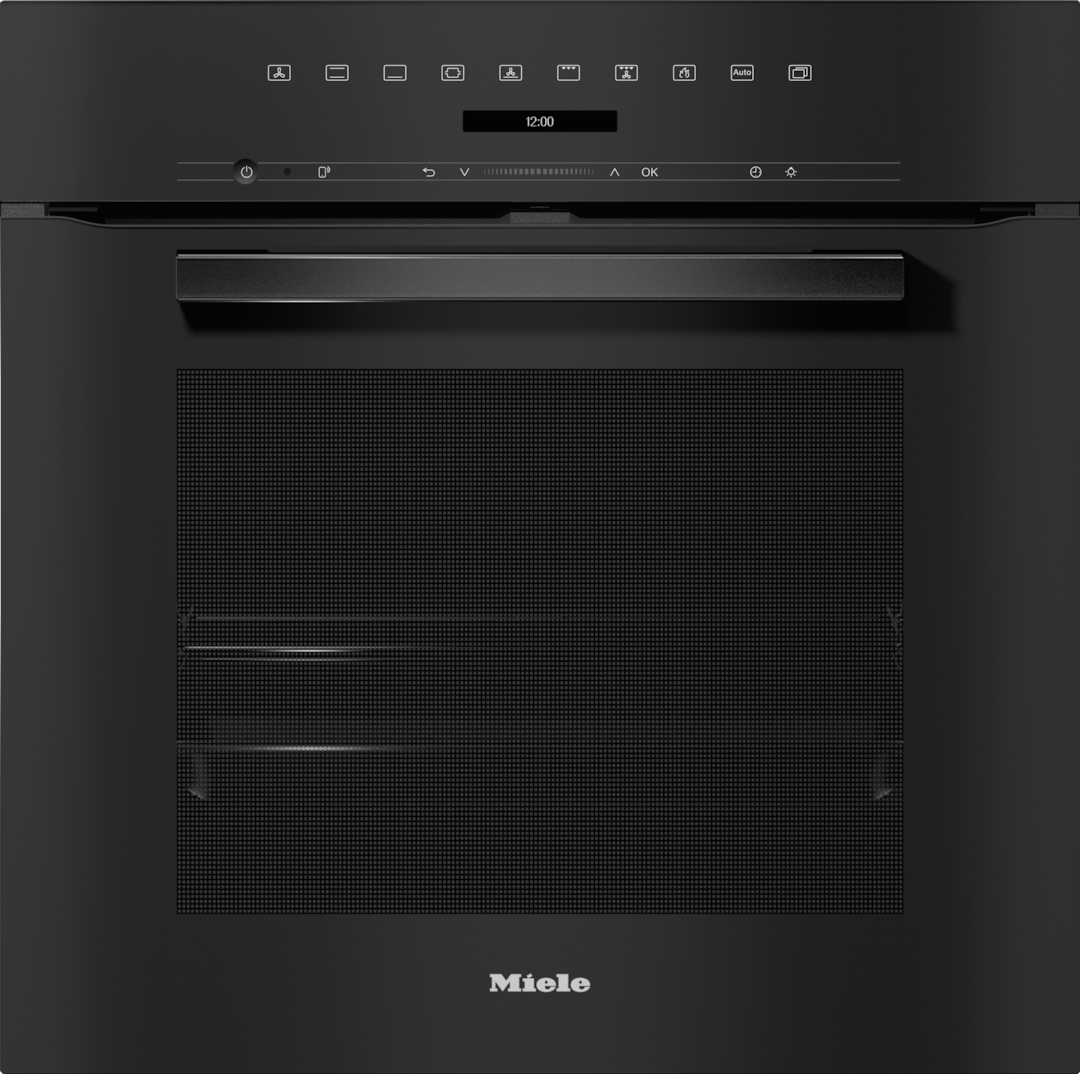

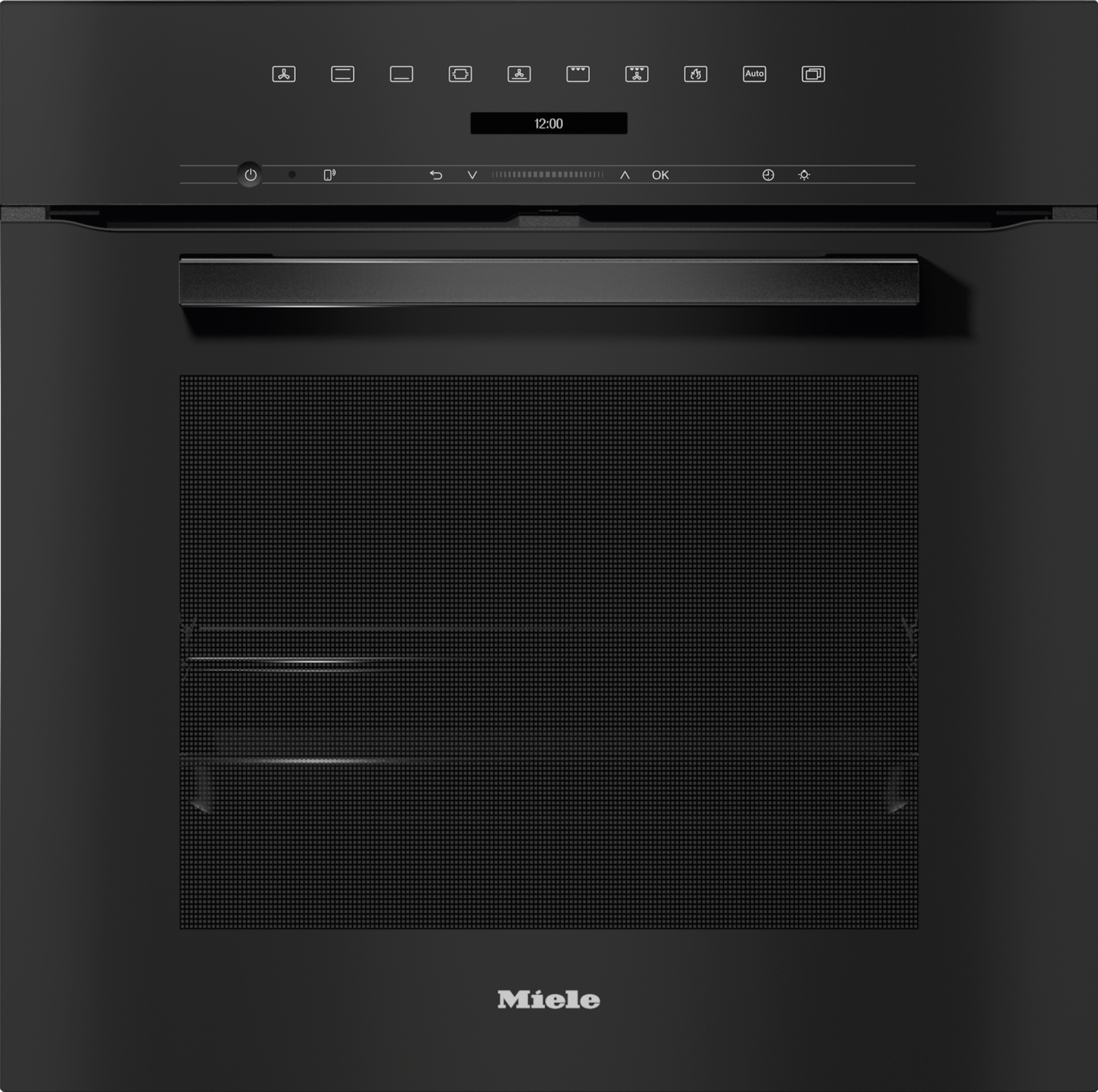

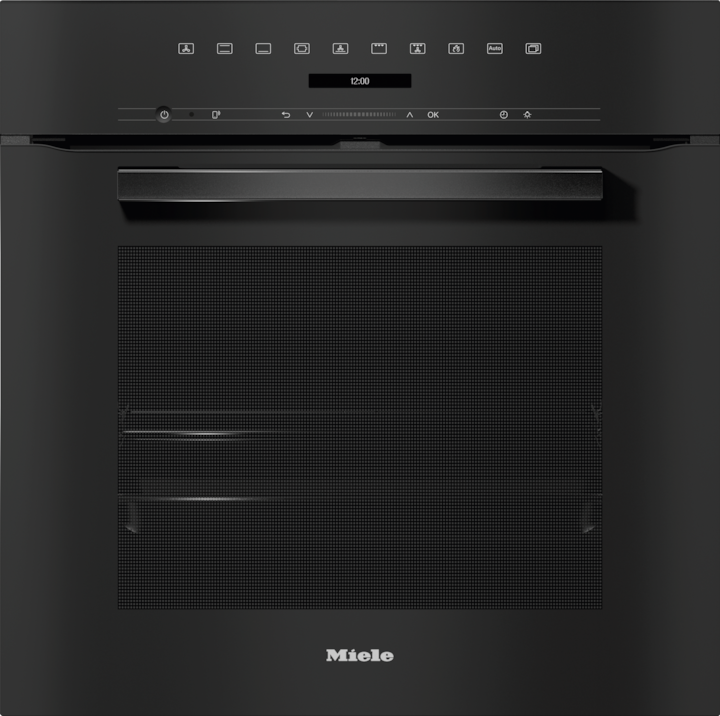

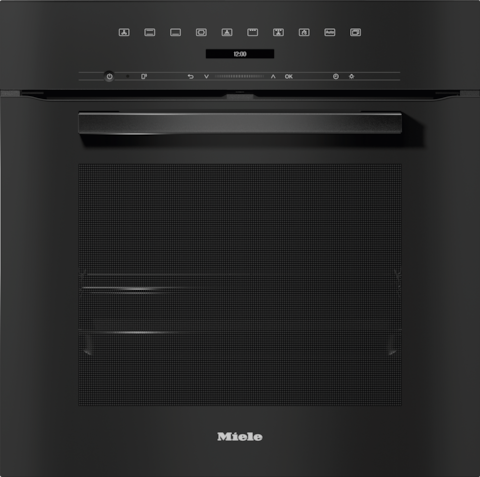

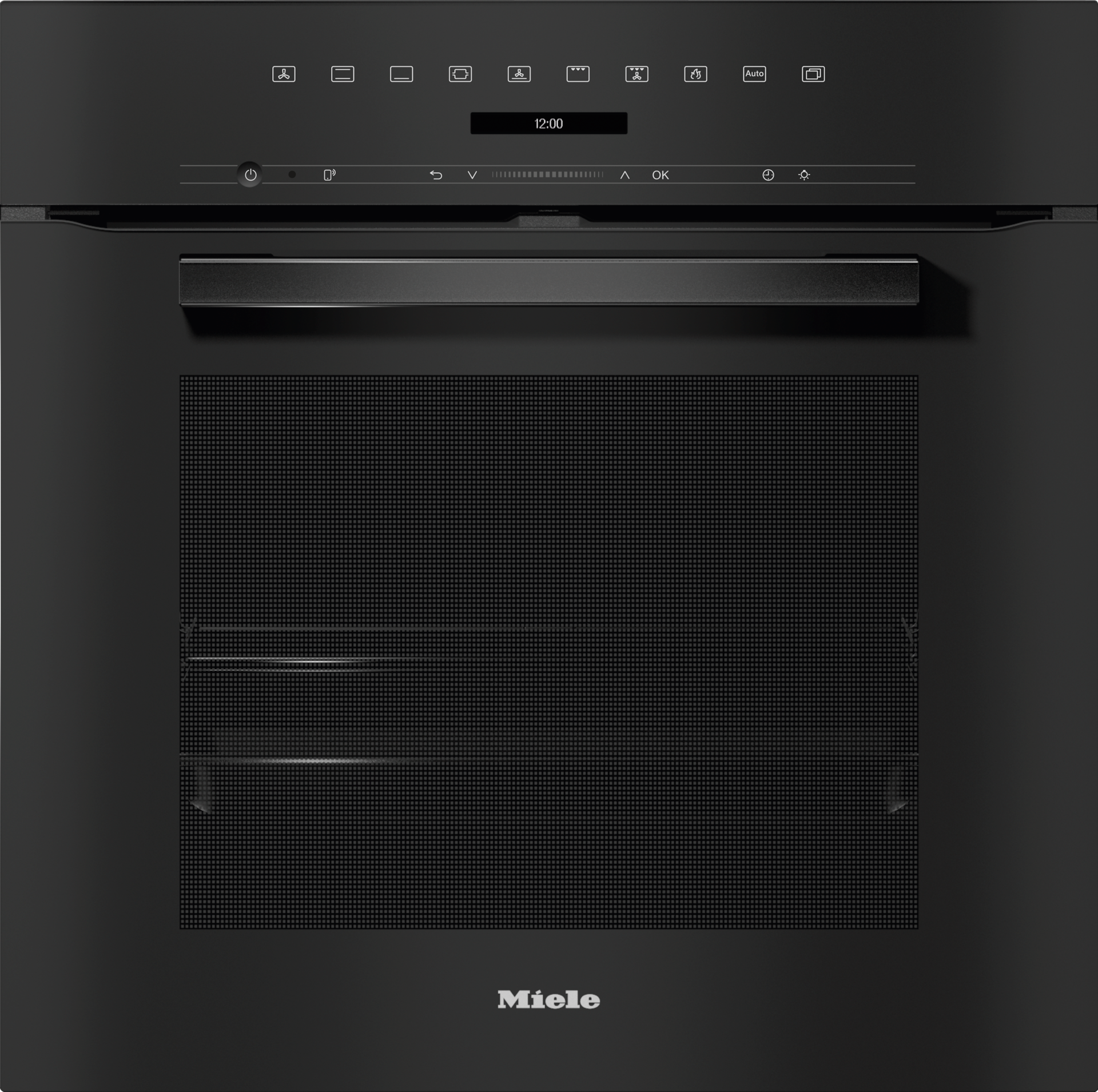

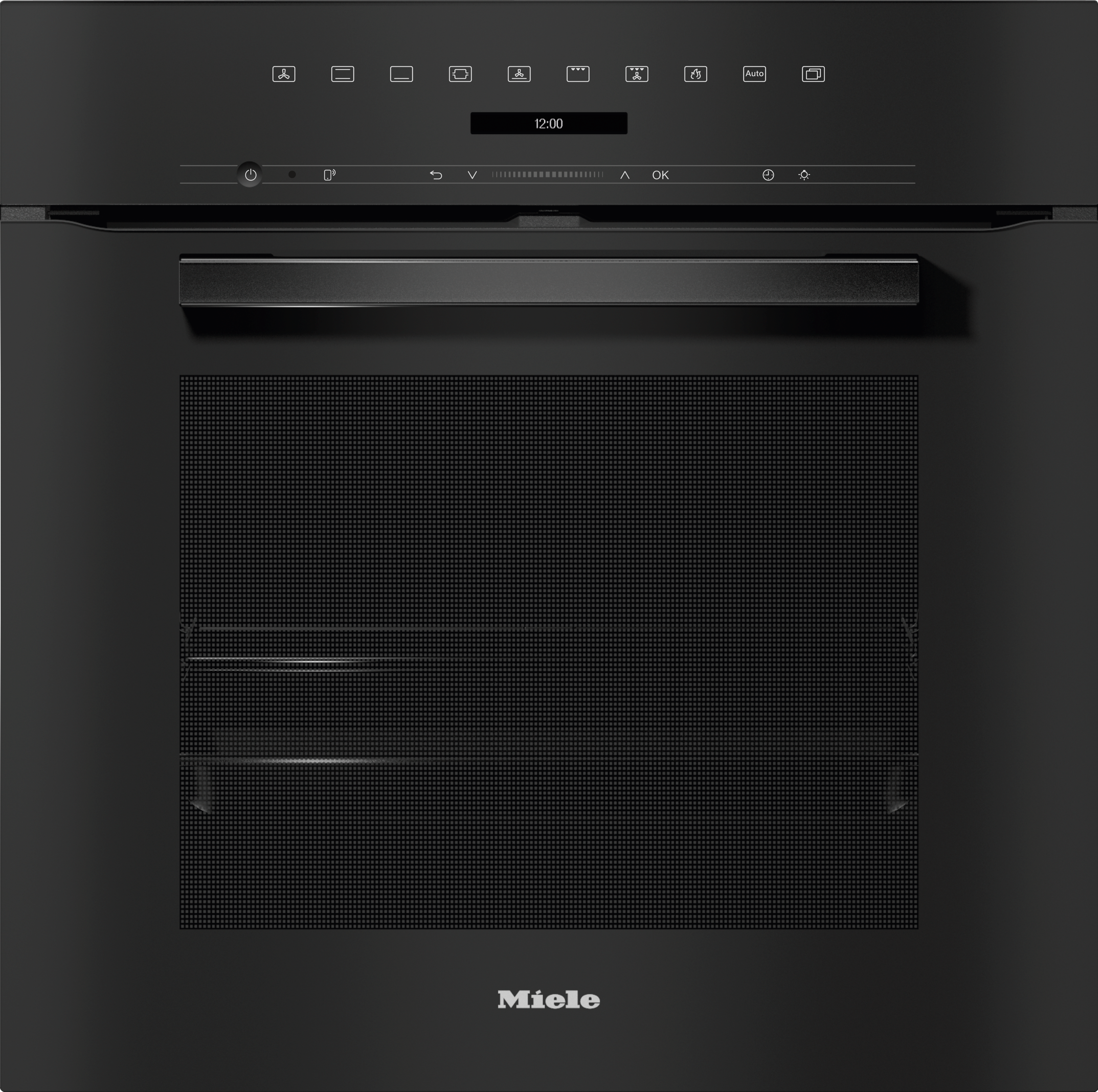

H 7263 BP Obsidian black

with clear text display, connectivity, and Self Clean.
Color:Obsidian black

sale price$3,499.00




Product details

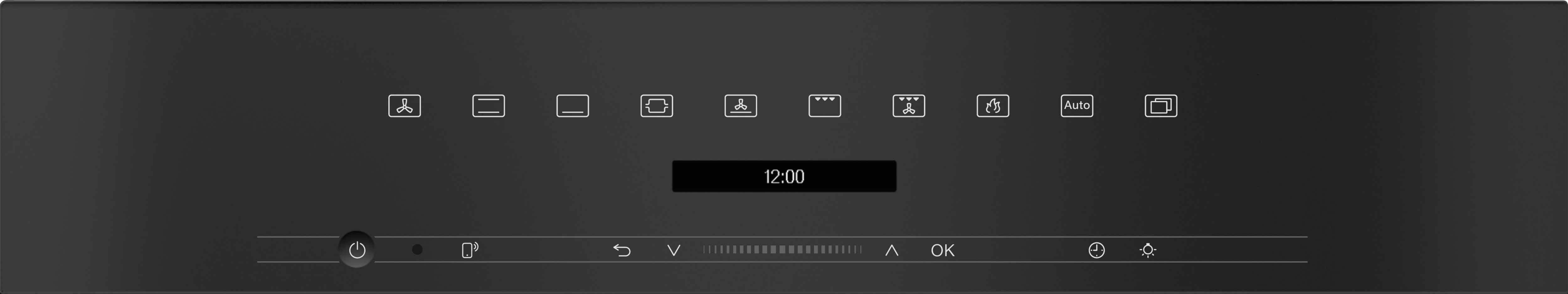

  • Clear-text display with sensor controls –
    DirectSensor S
  • Minimal cleaning effort -
    Self-cleaning
  • Achieve perfect results with ease –
    Automatic programs
  • Unlimited possibilities – volume of 2.97 cu. ft. on 5 levels
  • Network-enabled WiFi appliance –
    Miele@home
  • View manufacturer details:
  • Safety information

Product data sheet

Model number H 7263 BP
Manufacturer material number 12842730
EAN number 4002516976776
Marketing class
Gold
Built-in wall oven
VitroLine
Appliance color Obsidian black
Rapid PreHeat
Surround
Intensive Bake
Auto roast
Convection Roast
Maxi Broil
Broiling operating modes
Bake
Defrost
Automatic programs
Networking with Miele@home

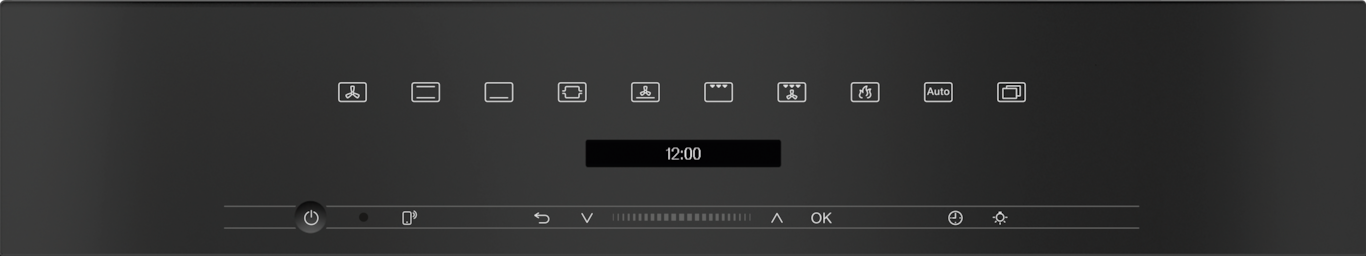

Control panel
DirectSensor S
SoftOpen
SoftClose
MultiLingua
Time synchronization
Minute minder
Programming start of cooking duration
Programming end of cooking duration
Programmable cooking time
Actual temperature display
Audible signal when desired temperature is reached
Default temperature
Individual settings
Self-cleaning
Foldable broil heater element
CleanGlass door
Appliance cooling system and cool touch front
Safety cut-out
System lock
Door lock during self cleaning
Cavity volume in cu.ft (l)
2.97 (84)
No. of rack levels 5
Oven interior lighting 1 halogen spot
Temperatures in °F (°C) 85-575 (30-300)
Niche dimensions (W x H x D) in inches (mm) 22 1/8 (560)-22 3/8 (568) x 23 1/4 (590)-23 1/2 (595) x 21 3/4 (550)
Niche width min. in inches (mm) 22 1/8 (560)
Niche width max. in inches (mm) 22 3/8 (568)
Niche height min. in inches (mm) 23 1/4 (590)
Niche height max. in inches (mm) 23 1/2 (595)
Niche depth in in. (mm) 21 3/4 (550)
Appliance dimensions (W x H x D) in inches (mm) 23 1/2 (595) x 23 1/2 (596) x 22 3/8 (568)
Weight in lbs. (kg) 98.11 (44.5)
Total connected load in kW 5.400
Power Rating in V 120
Voltage in V 240/208
Frequency in Hz 60
Fuse rating in A 30
Number of phases 1
Connection wire with plug
Plug type NEMA plug: 14–30
Length of power cord in in. (m) 1.80
Universal tray with PerfectClean HUBB 71 1
Self Clean ready baking and roasting rack 1
Removable Self Clean-ready side racks (pair) 1
Available display languages via MultiLingua [ "français", "ελληνιкά", "čeština", "繁體中文", "slovenčina", "slovenščina", "中文", "polski", "magyar", "nederlands", "hrvatski", "yкраїнська", "bahasa malaysia", "italiano", "deutsch", "türkçe", "suomi", "dansk", "日本語", "română", "español", "srpski", "english", "العربية", "svenska", "norsk", "pусский", "português", "한국어" ]
EAN 4002516976776

What's included

Universal tray with PerfectClean HUBB 71 (1)
Self Clean ready baking and roasting rack (1)
Removable Self Clean-ready side racks (pair) (1)

Maintenance

Cleaning with zero effort
Self Clean and Self Clean ready accessories

The oven compartment and (depending on the model) some accessories are automatically cleaned at high temperatures.

User convenience

Cleverly networked
Domestic appliance networking with Miele@home1,

Make your life smart: thanks to Miele@home you can cleverly network your domestic appliances – for more options.


Gentle door movement
SoftOpen and SoftClose

Sophisticated and elegant: The door opens and closes with a gentle movement – right to the very end.


Incredibly easy to understand
MultiLingua

For users who speak different languages: The controls can be set to numerous languages.

Special features

Stress-free baking and roasting, success guaranteed
MasterChef

Cooking delicious dishes with ease: cakes, fish, or meat – fully automatic cooking.

Safety

Only the food gets hot
Touch-cool front

Protection against burns: The appliance stays relatively cool – including on the outside of the door.


Maximum safety, no matter the situation
Safety functions

Always safe: Safety lock and safety shut-off provide reliable protection.

Operating modes

Defrost

Gentle on frozen food: Frozen food is gently defrosted under ideal conditions using cool air.


Auto Roast

Meat remains tender and succulent: Meat is seared at a high temperature, then roasted at a selected temperature.


Maxi Broil

Versatile function for indoors: so you can broil large quantities of steaks, sausages, kebabs, and more.


Intensive

Crispy bases, delicious toppings: pizza, quiche, or fresh fruit flans – crispy base, moist on top.


Surround

Multi-purpose, classic function: perfect results for all types of traditional baked and roasted dishes.


Bake

Individual requirements: for cooking food in a bain-marie or for browning from underneath.


Convection Broil

Crisp outside, succulent inside: ideal for chicken, duck, pork, rolled meat, and many other meat dishes.


Booster

For those who lead a busy life: If there's not much time for cooking, you will really appreciate this program.

Downloads

Operating and Installation instructions
PDF
Downloads
Product sheet
PDF
Downloads
Warranty conditions
PDF
Downloads
dwg
ZIP
Downloads
fbx
ZIP
Downloads
ifc
ZIP
Downloads
rfa
ZIP
Downloads
rvt
ZIP
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts.

https://media.miele.com/images/2000017/200001724/20000172402.png
Descriptions

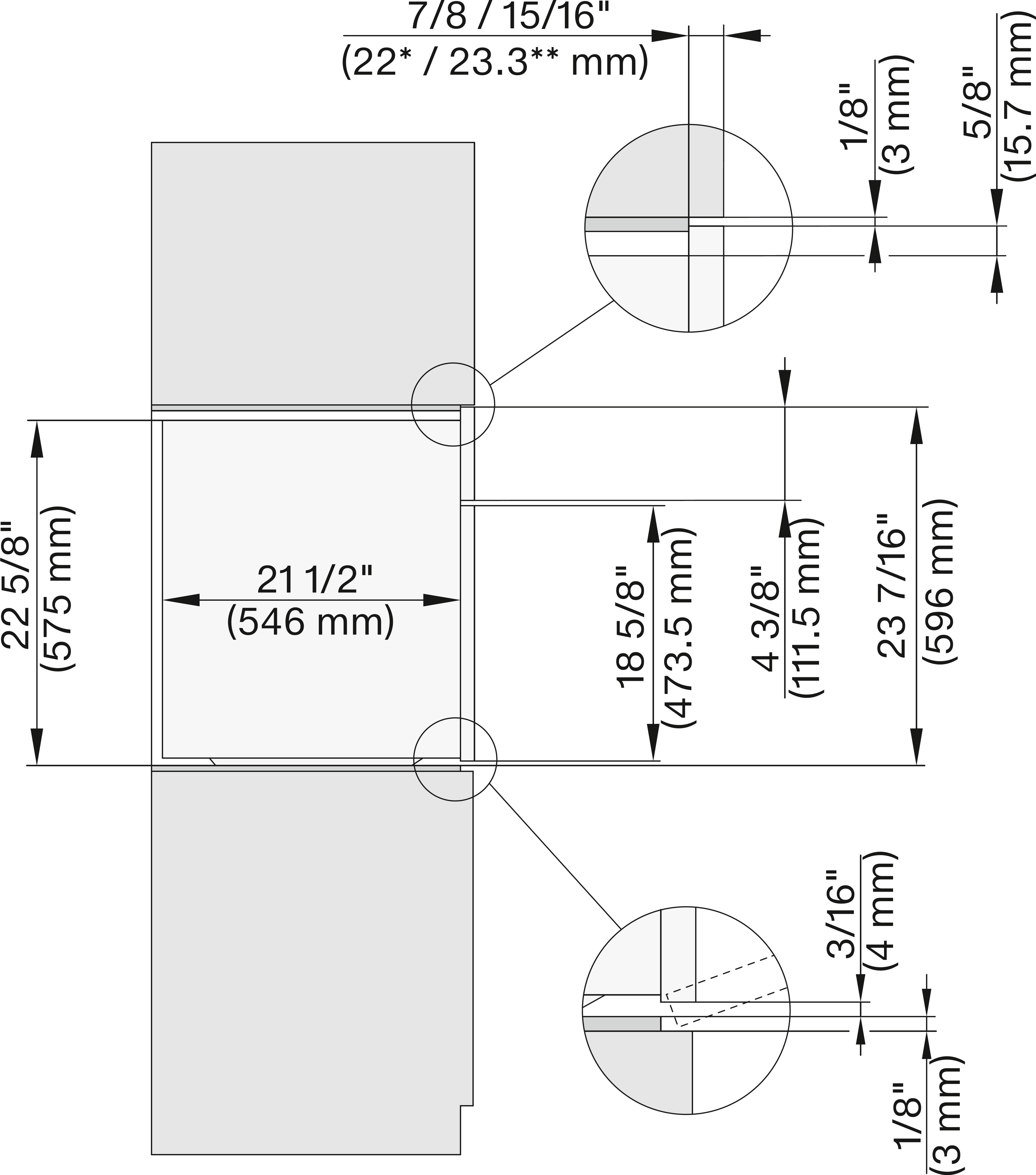

side view, 30 inch Flush inset 650S, installation drawing, NA
7/8" - 22* mm - Glas, 15/16" - 23.3** mm - Edelstahl
Downloads
https://media.miele.com/images/2000017/200001724/20000172444.png
Descriptions

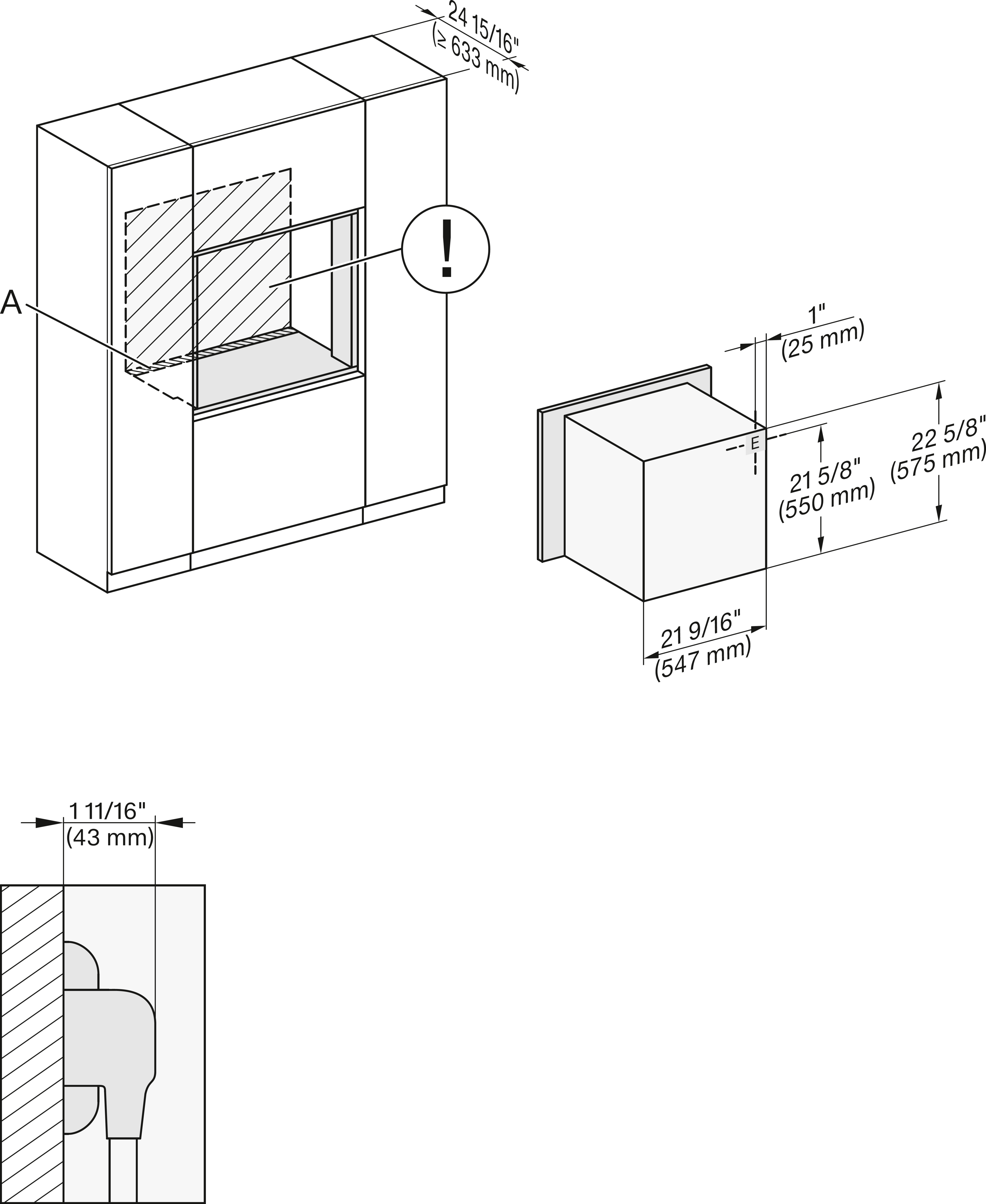

installation 30 inch Flush inset 650S, installation drawing, NA
A - Cut-out (1 9/16” x 19 11/16" / 40 mm x 500 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
Downloads
https://media.miele.com/images/2000017/200001724/20000172483.png
Descriptions
side view 30 inch Proud 650S, installation drawing, NA
7/8" - 22* mm - Glas, 15/16" - 23.3** mm - Edelstahl
Downloads
https://media.miele.com/images/2000017/200001725/20000172525.png
Descriptions

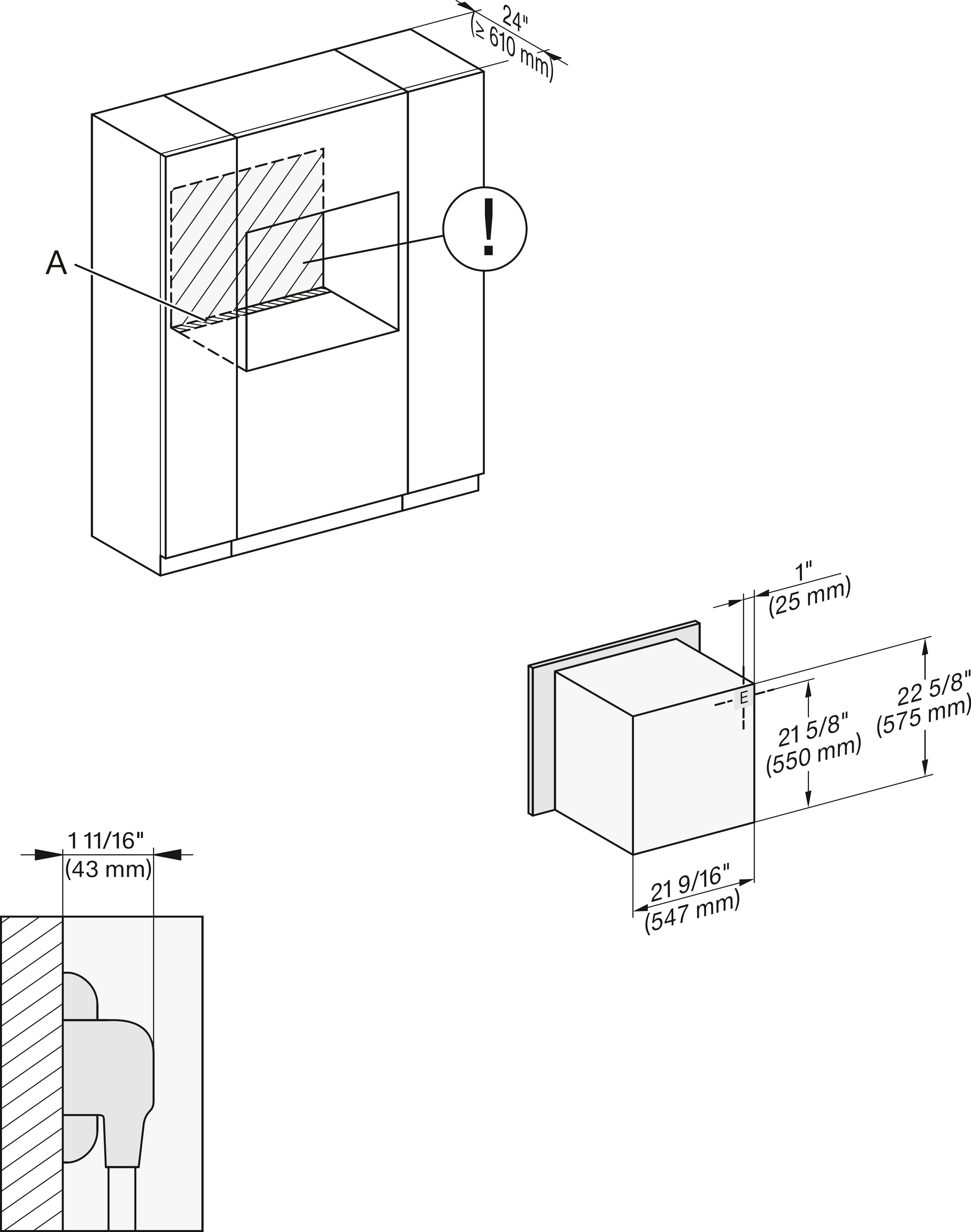

installation 30 inch Proud 650S, installation drawing, NA
A - Cut-out (1 9/16” x 19 11/16" / 40 mm x 500 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
Downloads
https://media.miele.com/images/2000017/200001753/20000175356.png
Descriptions

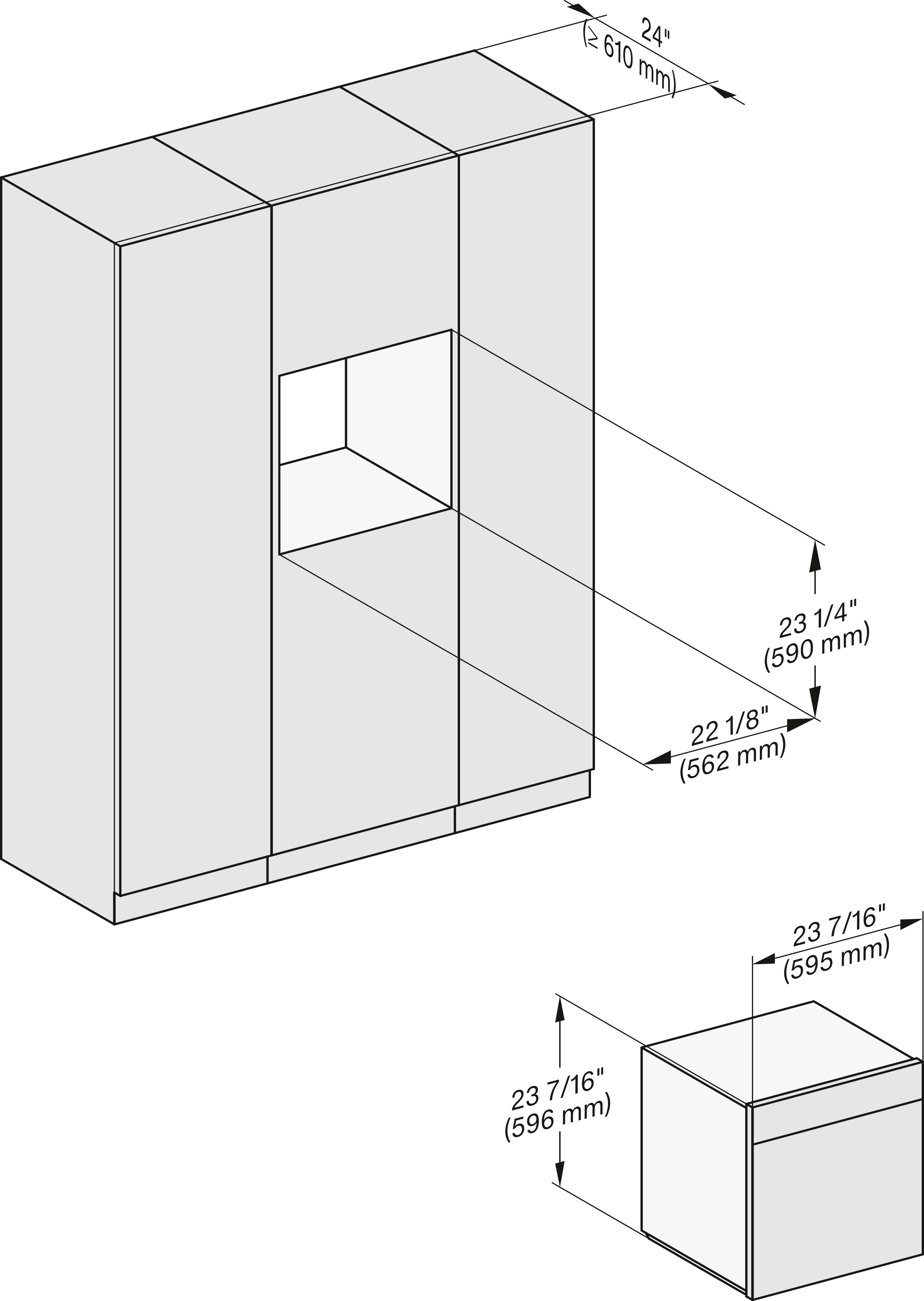

installation Proud 650S, installation drawing, NA
Installation drawings
Downloads
https://media.miele.com/images/2000017/200001754/20000175410.png
Descriptions

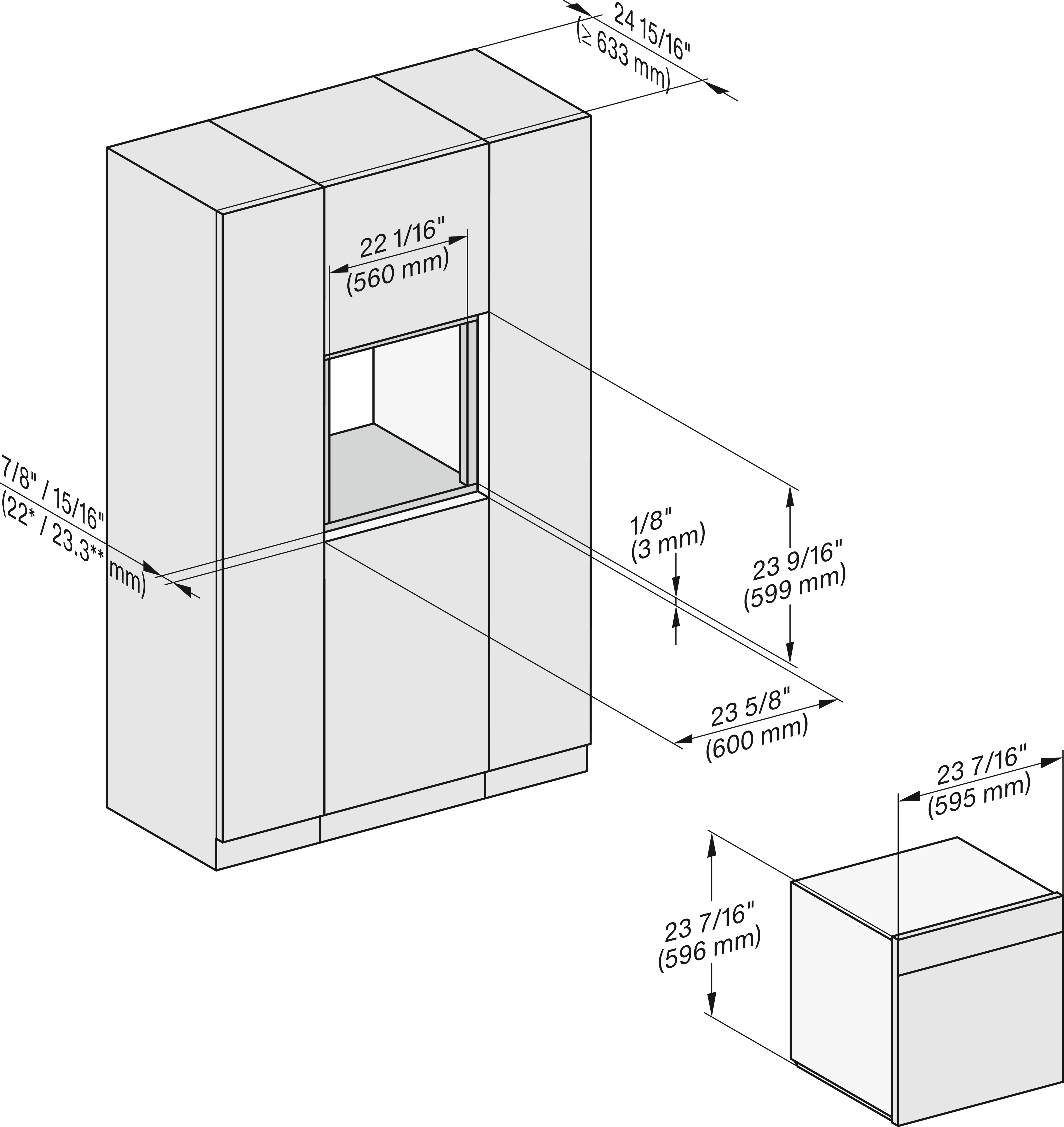

installation Flush inset 650S, installation drawing, NA
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
