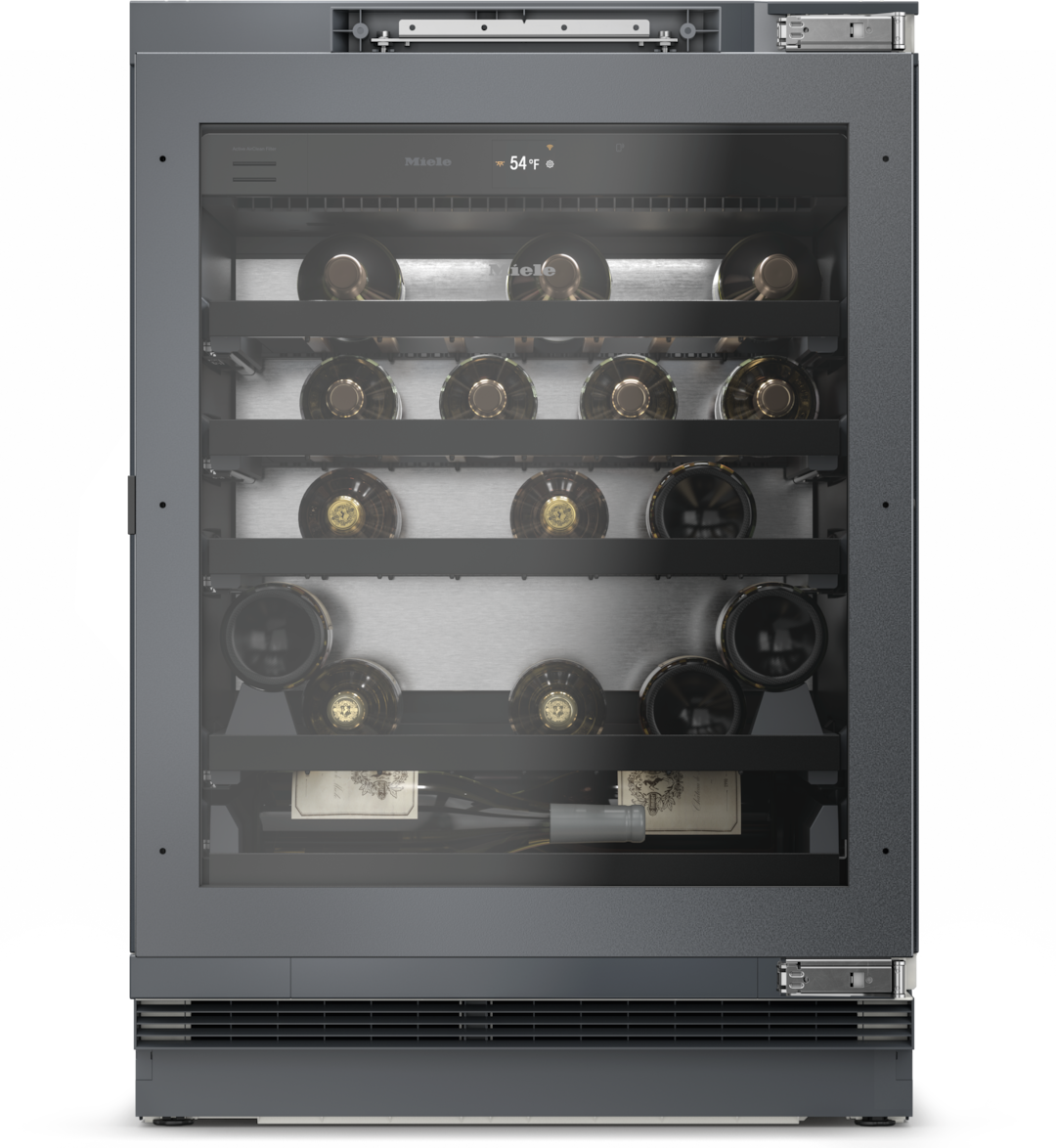

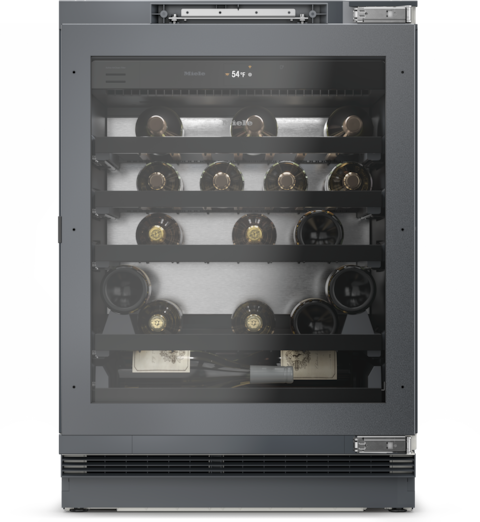

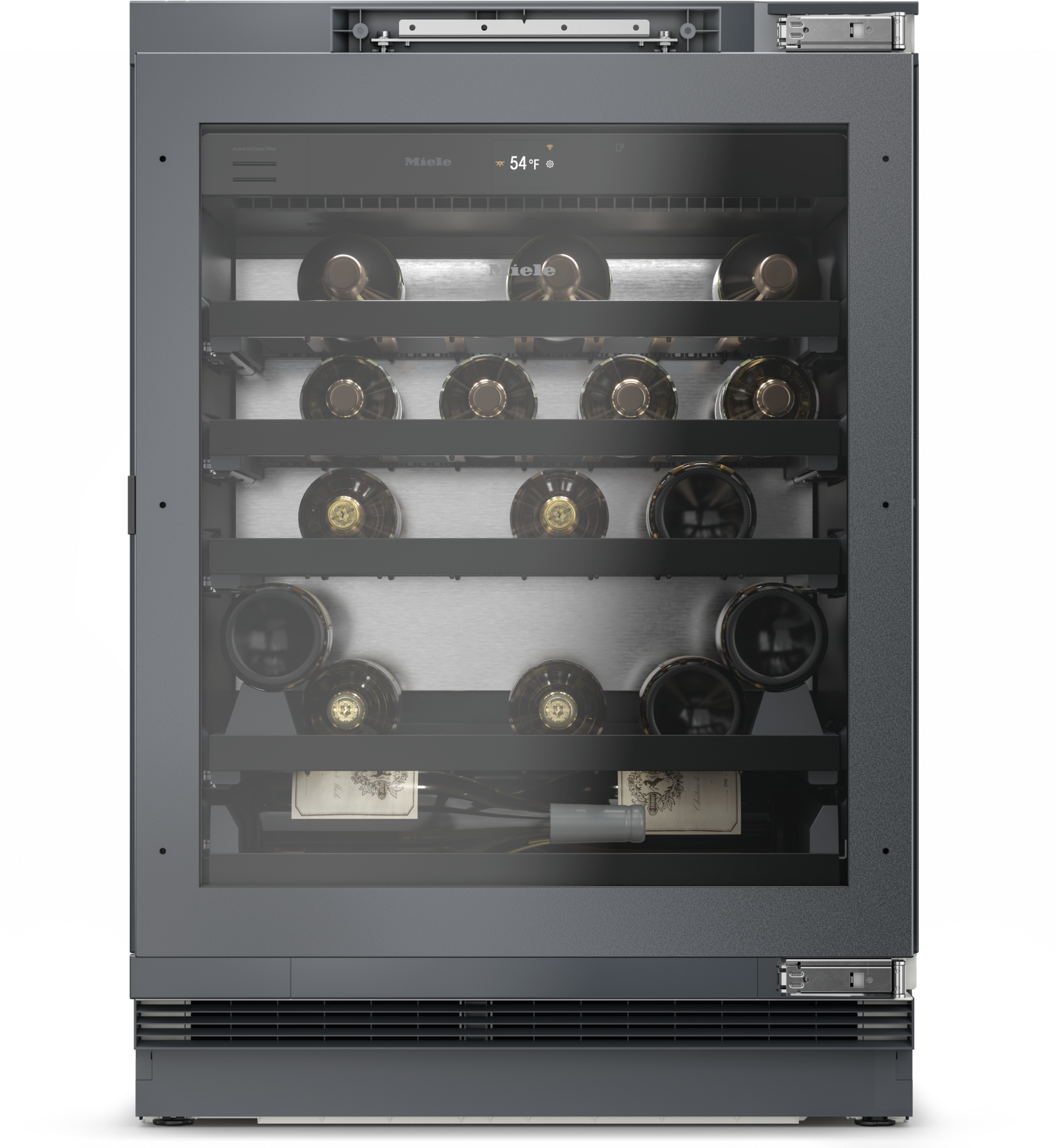

Built-under wine refrigerator, 33 7/8–36 1/4 in (86–92 cm) niche height

KWTUS 7172 F

with FlexiFrame, ActiveHumidity, and NoteBoard in a compact design.
sale price$3,799.00




Product details

  • Storage of all bottle sizes/shapes thanks to
    FlexiFrame
  • Perfect regulation of humidity with
    ActiveHumidity
  • Writing on the wooden shelves on the NoteBoard
  • UV-resistant insulated glass
    perfectly protects your wine
  • Presented in perfect light –
    LED lighting
  • Manufactured with great care by
  • Safety information

Product data sheet

Wine storage unit
Built-in
Built-in integrated
Built-in built-under
Door hinge side right
Convertible hinging
Can be installed side-by-side
Casing color black
Wine compartment lighting continuously dimmable LED
Networking with Miele@home
DynaCool
SoftClose door closing damper
Total number of shelves 5
Number of shelves 5
Shelf material Beechwood
Number of FlexiFrame Wire Racks
4
Number of shelves for crosswise storage 1
NoteBoard
Low-vibration storage
Electronic temperature display and control FreshTouch
No. of temperature zones
1
Min. temperature setting range in °F (°C) 5
Max. temperature setting range in °F (°C) 20
Sabbath mode
Dry back wall StainlessSteel
ActiveHumidity
Lock function
Acoustic door alarm
Acoustic temperature alarm
Optical door alarm
Optical temperature alarm
Niche width in inches (mm), min. 23 5/8 (600)
Niche width in inches (mm), max. 23 7/8 (604)
Niche height in inches (mm), min. 33 7/8 (860)
Niche height in inches (mm), max. 36 1/4 (920)
Niche depth in in.(mm) 22 1/2 (570)
Appliance width in in.(mm) 23 5/8 (597)
Appliance height in in.(mm) 33 7/8 (859)
Appliance depth in in.(mm) 22 1/4 (563)
Weight in lbs.(kg) 102 (46.0)
Wine compartment in L 4.03 (114)
Total usable capacity in cu. ft. (l) 4.03 (114)
0.75 l Bordeaux bottle capacity (no. of bottles) 44 bottles
Current consumption in milliampere (mA) 1500
Voltage in V 115
Fuse rating in A 10
Number of phases 1
Frequency in Hz 60
Wire length in ft (m) 7 (2.2)
Active AirClean filter
White chalk
EAN 4002516779377

What's included

Active AirClean filter
White chalk
Cleverly networked
Miele@home1,

Make your life smart: Thanks to Miele@home, you can cleverly network your domestic appliances – for more options.

Customize each rack

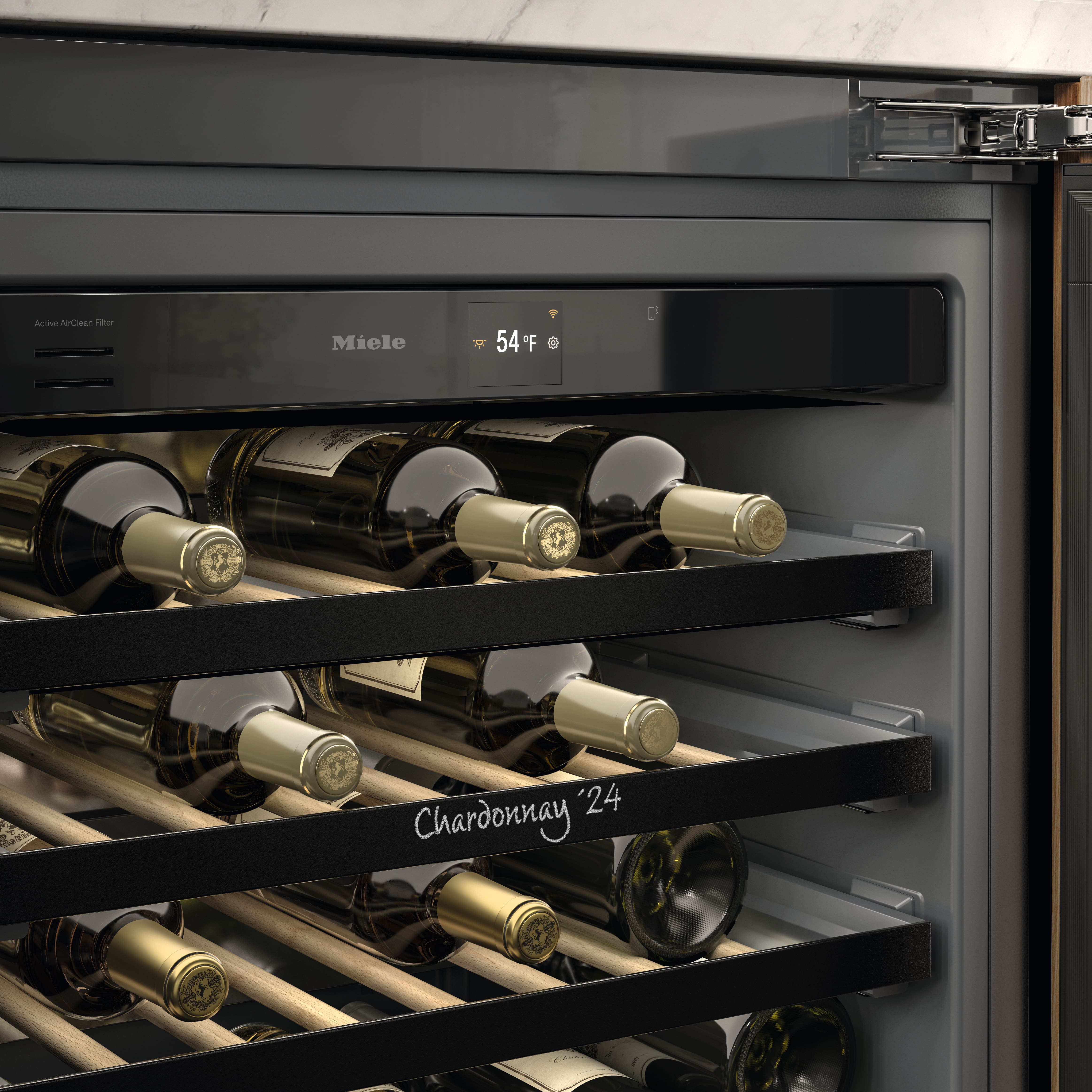

NoteBoard

For individual labelling: Every bottle rack features a removable, magnetic strip for labelling bottles.

User convenience

Cleverly networked
Miele@home1,

Make your life smart: Thanks to Miele@home, you can cleverly network your domestic appliances – for more options.

Individual humidity adjustments
ActiveHumidity

Ideal conditions: Adjust the humidity individually for perfect wine storage.

Customize each rack
NoteBoard

For individual labelling: Every bottle rack features a removable, magnetic strip for labelling bottles.

Beautiful and protects precious wines
UV protection

The best protection for valuable wine: glass door with integrated UV filter.

Quality

Specially developed for storage in the wine unit
Storage with low vibration

Low vibration: The compressor is uncoupled and cushioned against vibration.

Matching products and accessories

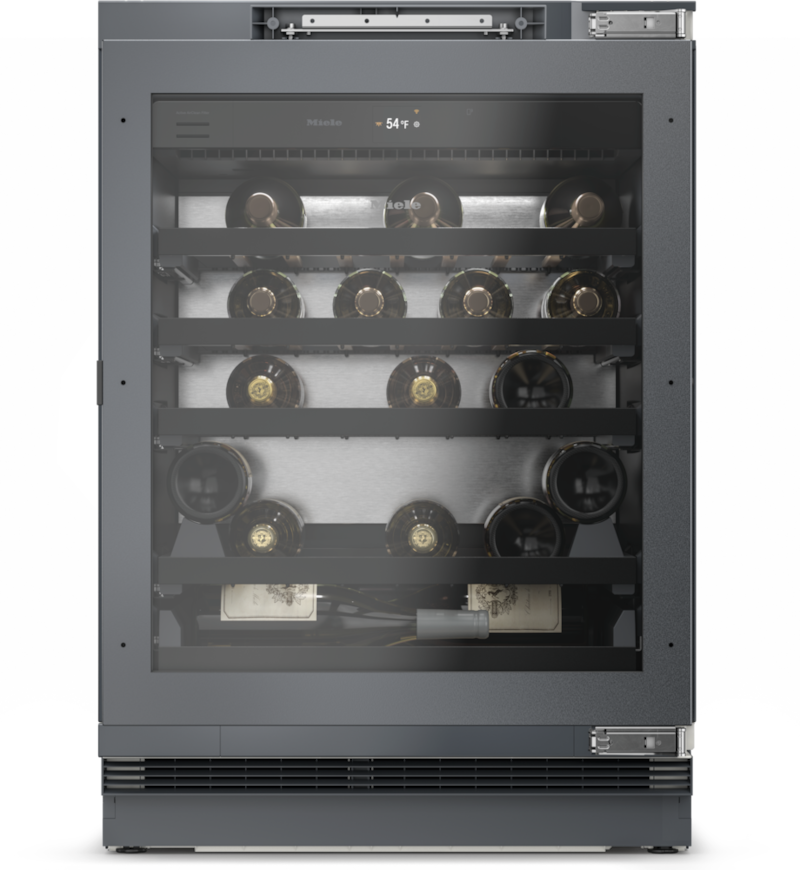

Built-under wine refrigerator, 33 7/8–36 1/4 in (86–92 cm) niche height
KWTUS 7172 F

Built-under wine refrigerator, 33 7/8–36 1/4 in (86–92 cm) niche height

with FlexiFrame, ActiveHumidity, and NoteBoard in a compact design.

$3,799.00

Downloads

Product sheet
PDF
Downloads
Warranty conditions
PDF
Downloads
Operating instructions/Installation instructions
PDF
Downloads
fbx
ZIP
Downloads
rvt
ZIP
Downloads
rfa
ZIP
Downloads
dwg
ZIP
Downloads
ifc
ZIP
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts.

https://media.miele.com/images/2000022/200002225/20000222507.png
Descriptions

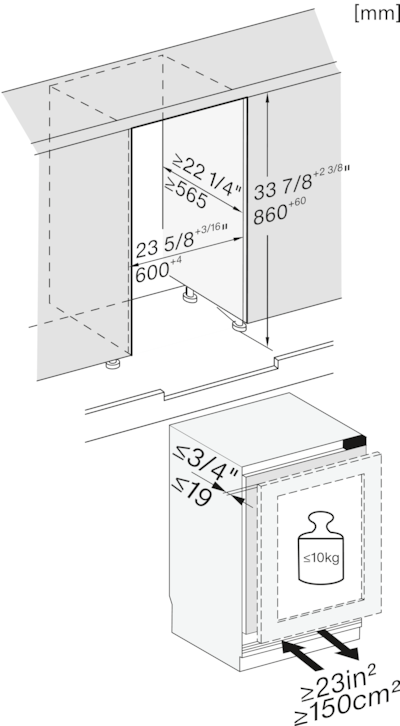

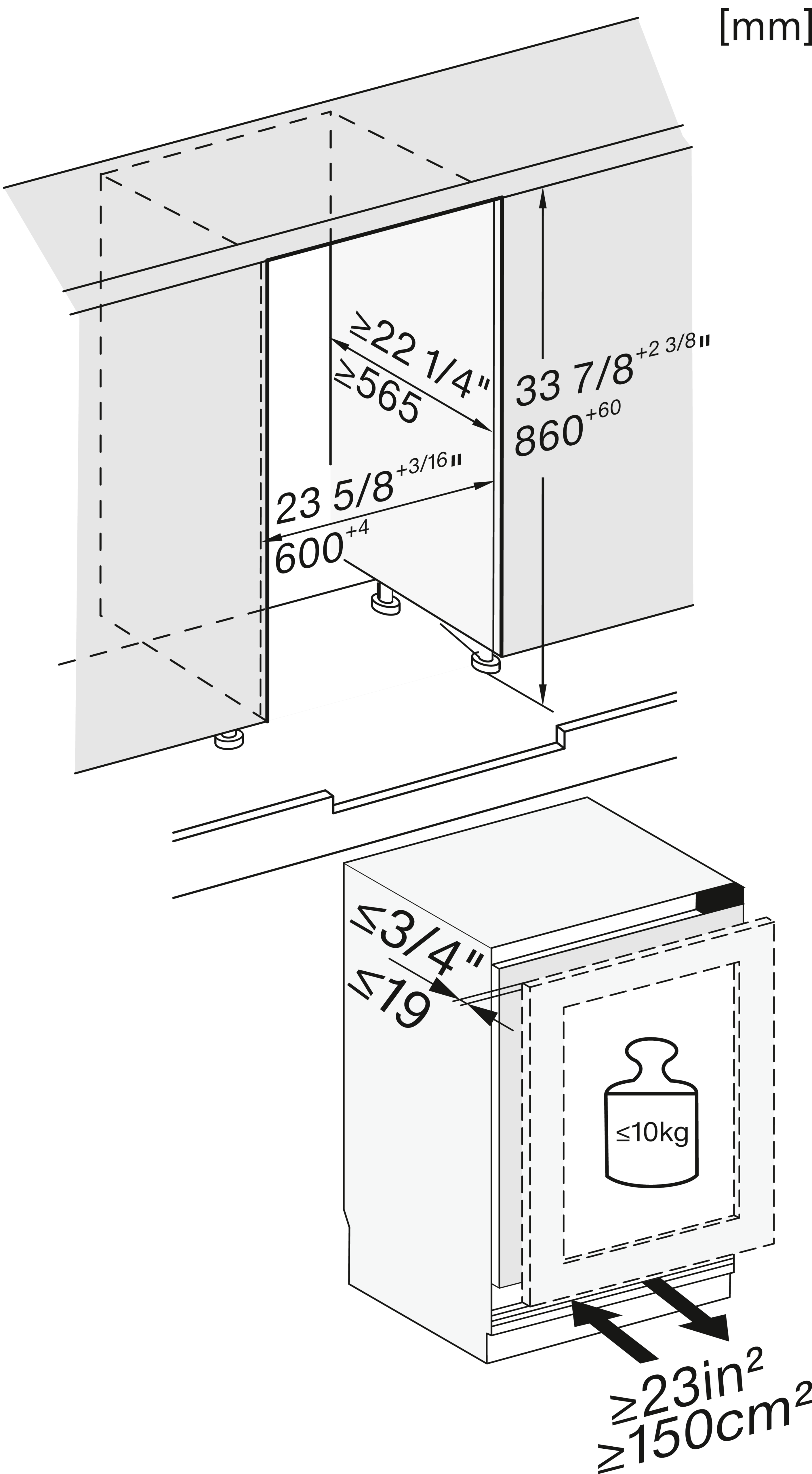

KWTUS7172F, Built-under, niche dimensions
Installation drawings
Downloads
https://media.miele.com/images/2000022/200002225/20000222506.png
Descriptions

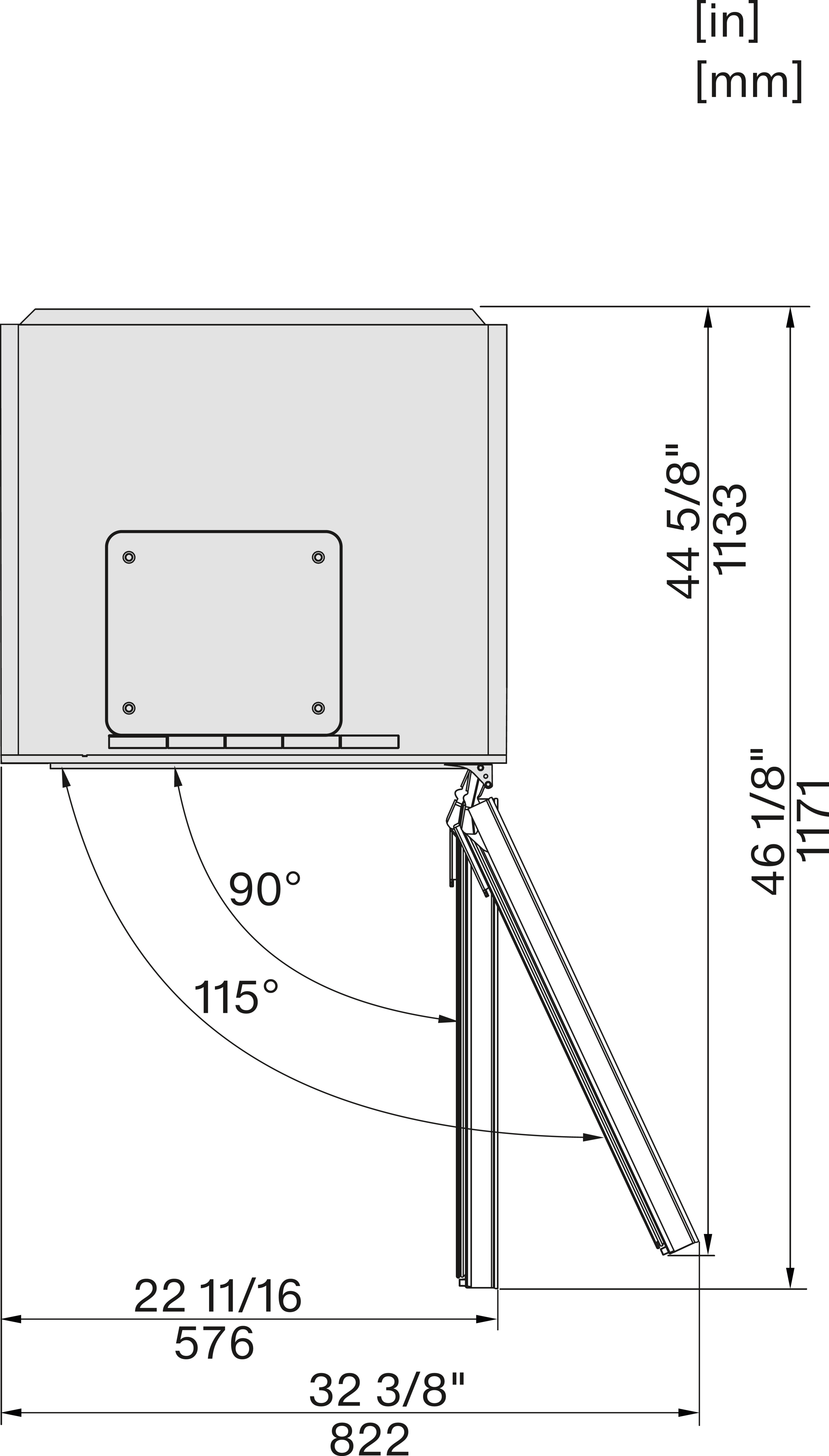

KWTUS7172F, Built-under, top view
Installation drawings
Downloads
https://media.miele.com/images/2000022/200002225/20000222505.png
Descriptions

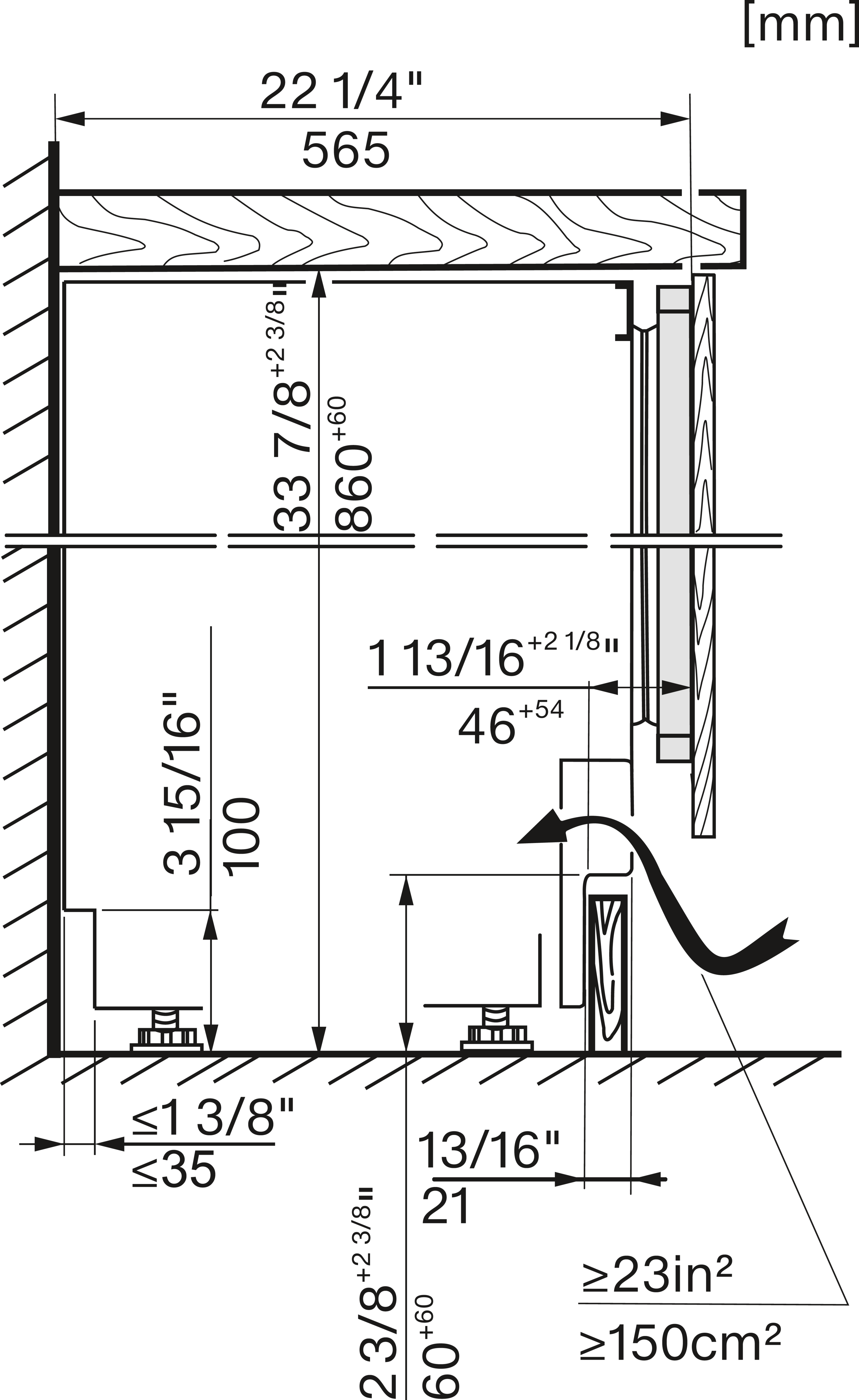

KWTUS7172F, Built-under, side view
Installation drawings
Downloads
https://media.miele.com/images/2000022/200002225/20000222504.png
Descriptions

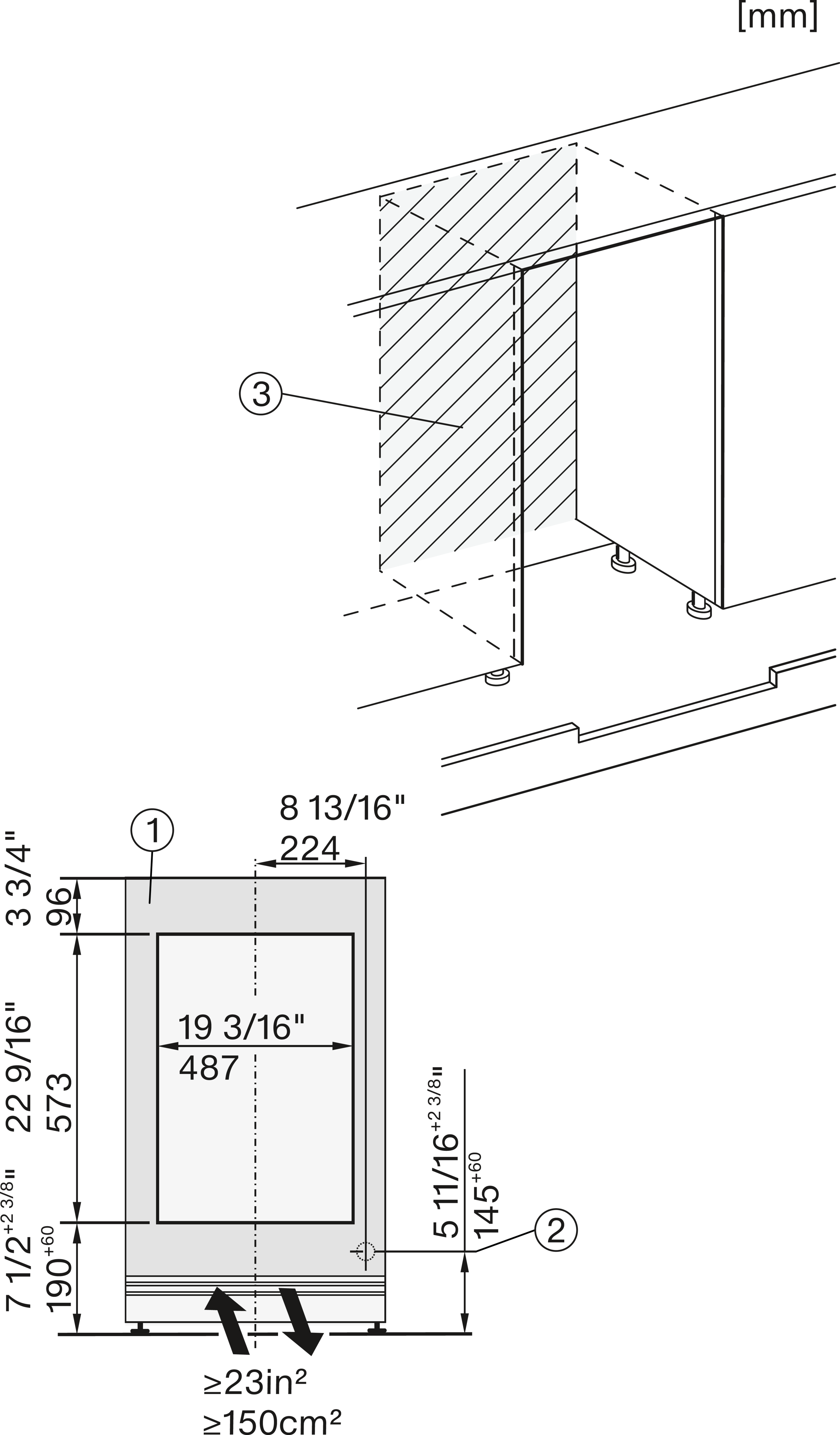

KWTUS7172F, Built-under, installation (*footnote)
*1. View from the front, 2. Mains connection cable L = 2200 mm, 3. No connection in this area,
Downloads
https://media.miele.com/images/2000022/200002217/20000221707.png
Descriptions

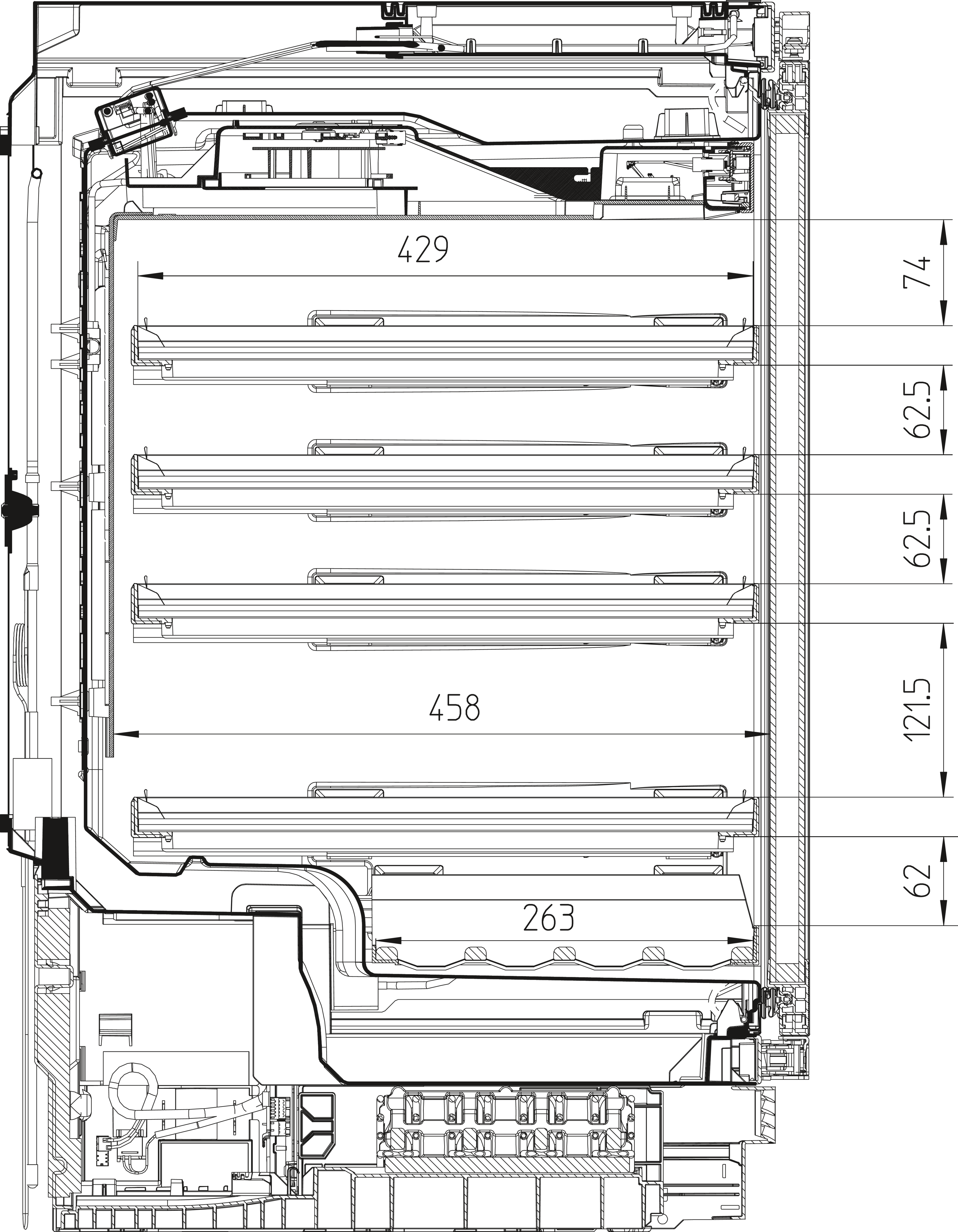

KWTUS7172F, interior dimensions (US)
Installation drawings
Downloads
https://media.miele.com/images/2000022/200002255/20000225515.png
Descriptions

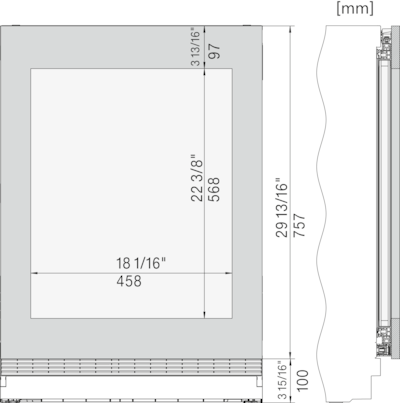

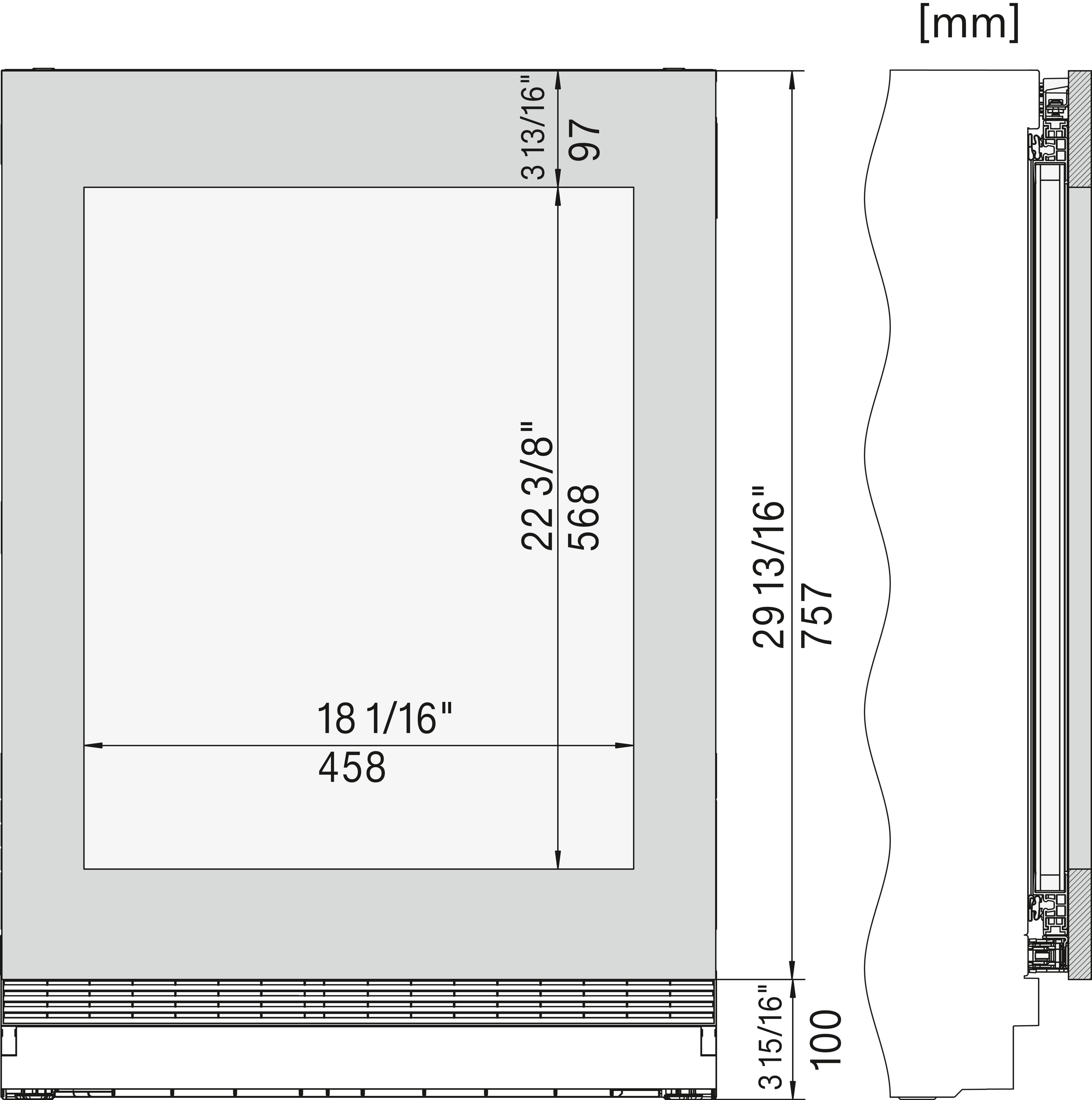

KWTUS7172F, Built-under, wooden front
Installation drawings
Downloads
https://media.miele.com/images/2000022/200002255/20000225575.png
Descriptions

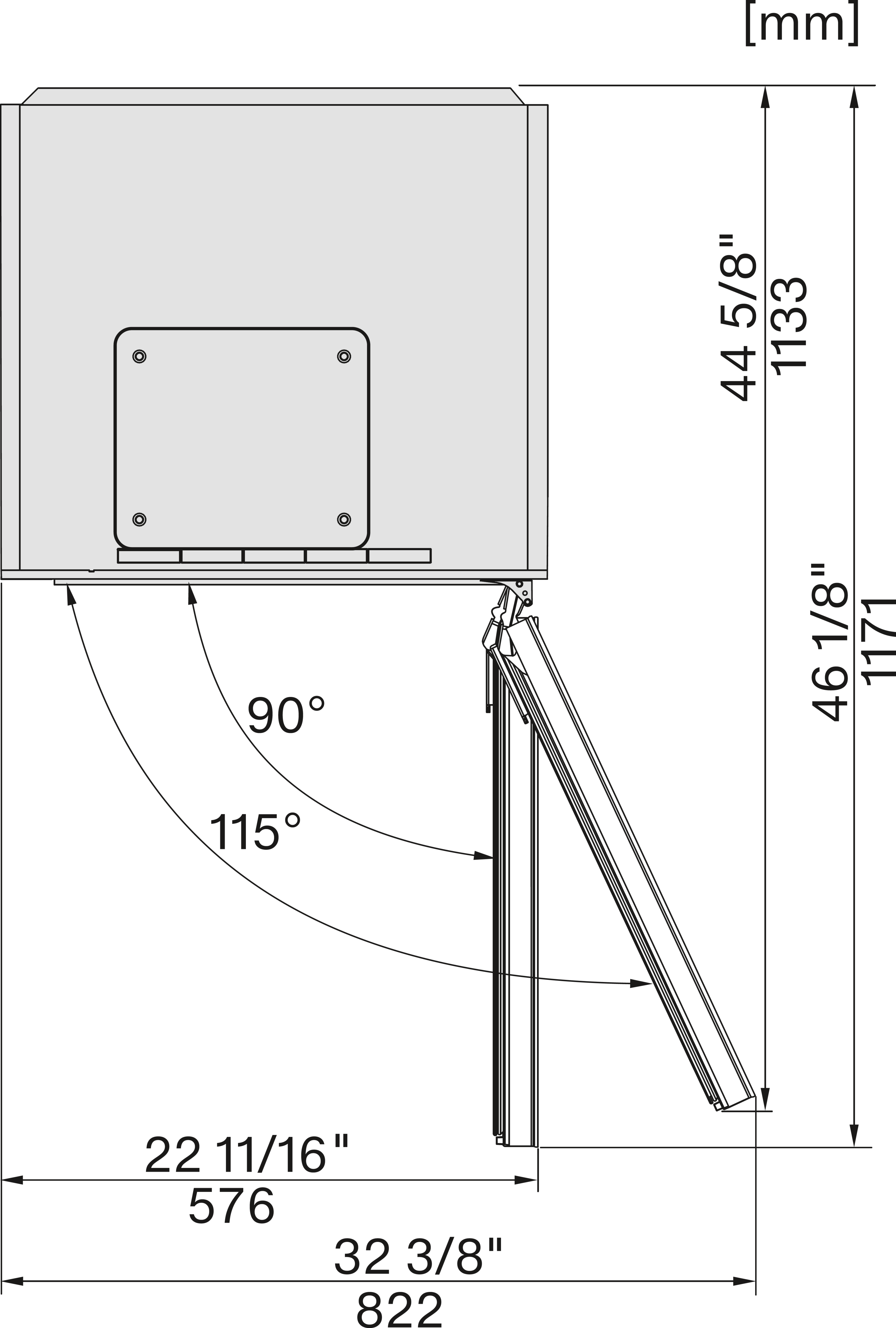

KWTUS7172F, Built-under, top view
Installation drawings
Downloads
https://media.miele.com/images/2000022/200002255/20000225598.png
Descriptions
KWTUS7172F, Built-under, top view
Installation drawings
Downloads
