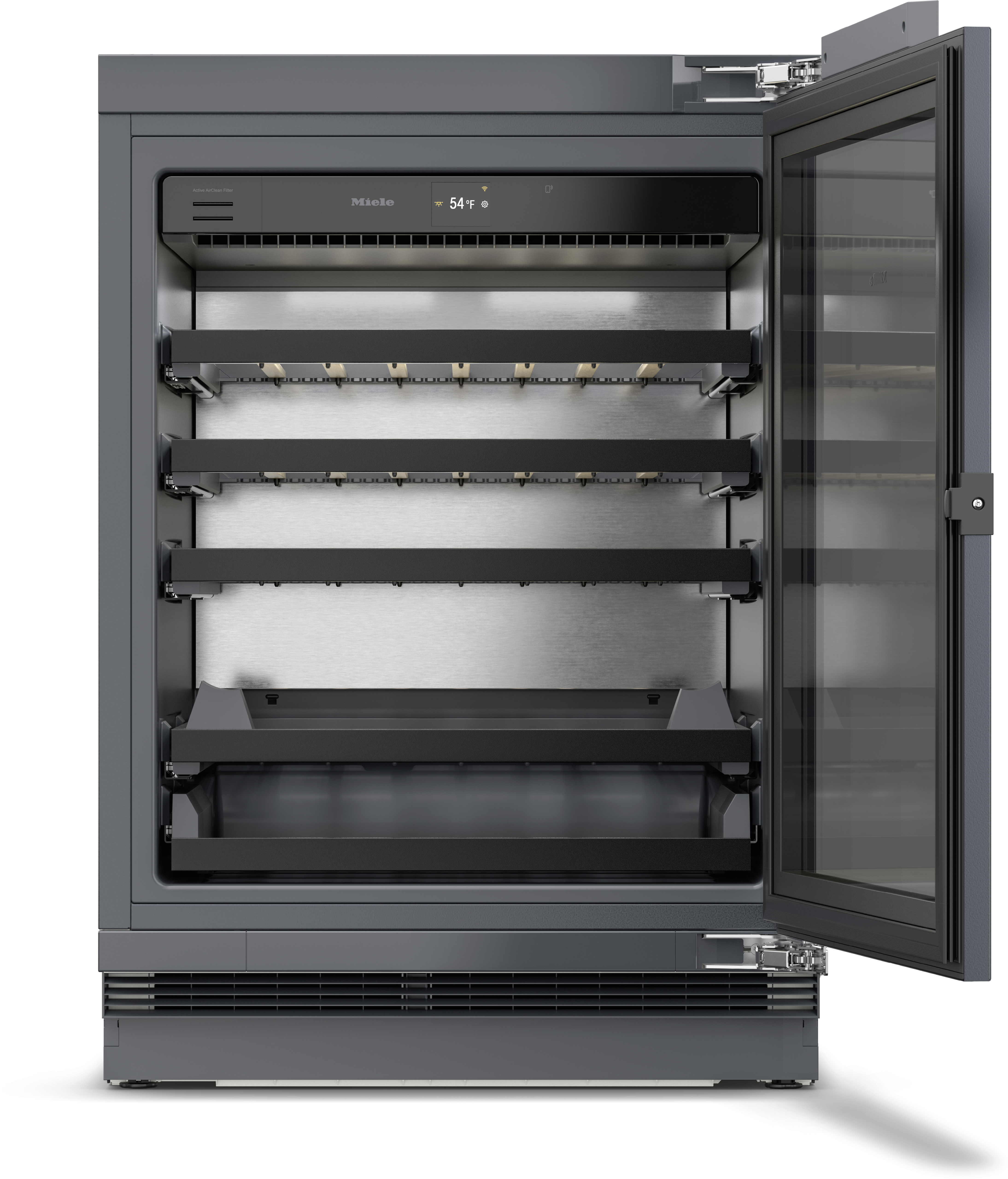

  • Miele - KWTUS 7172 F – Wine Refrigerators - 2

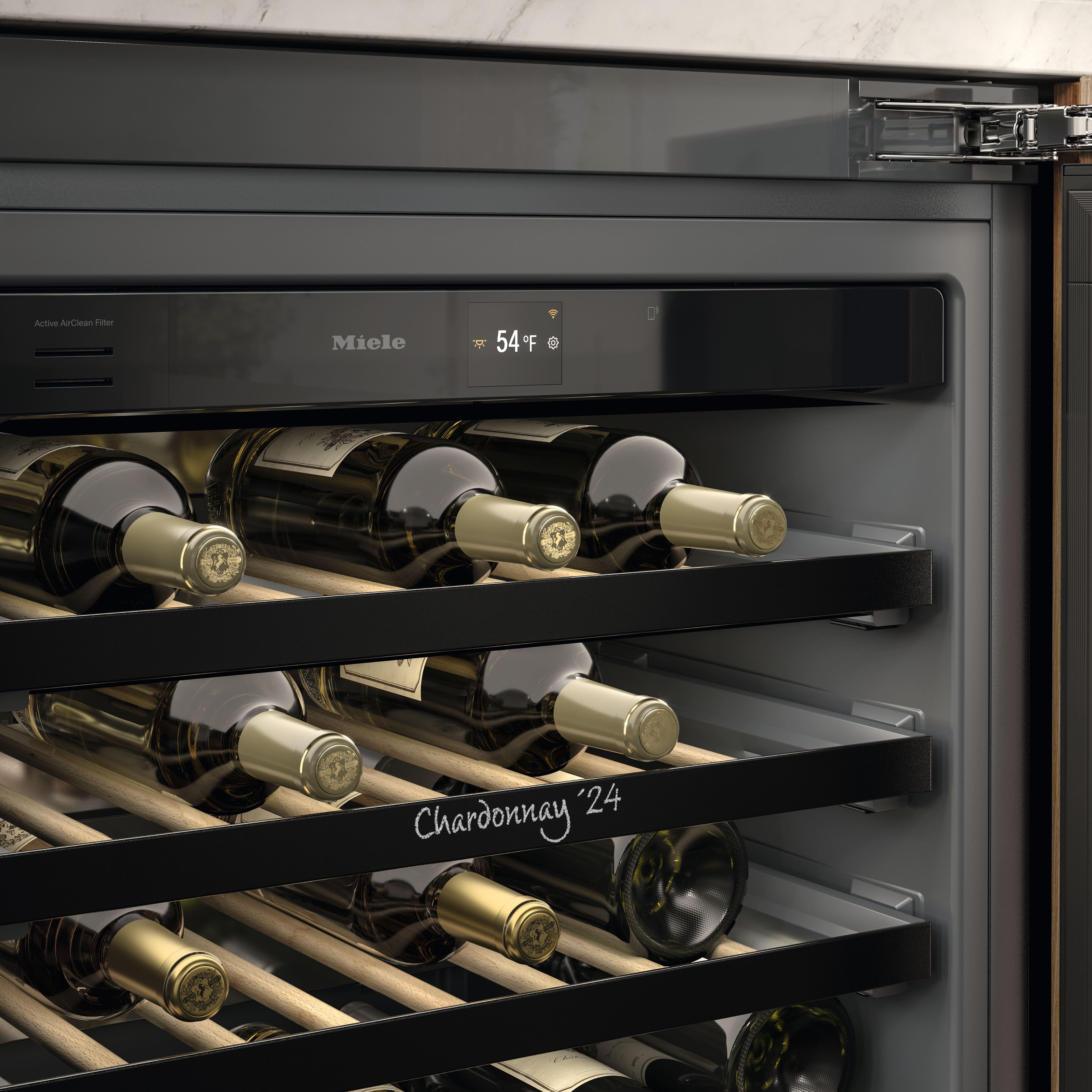

  • Miele - KWTUS 7172 F – Wine Refrigerators - 3

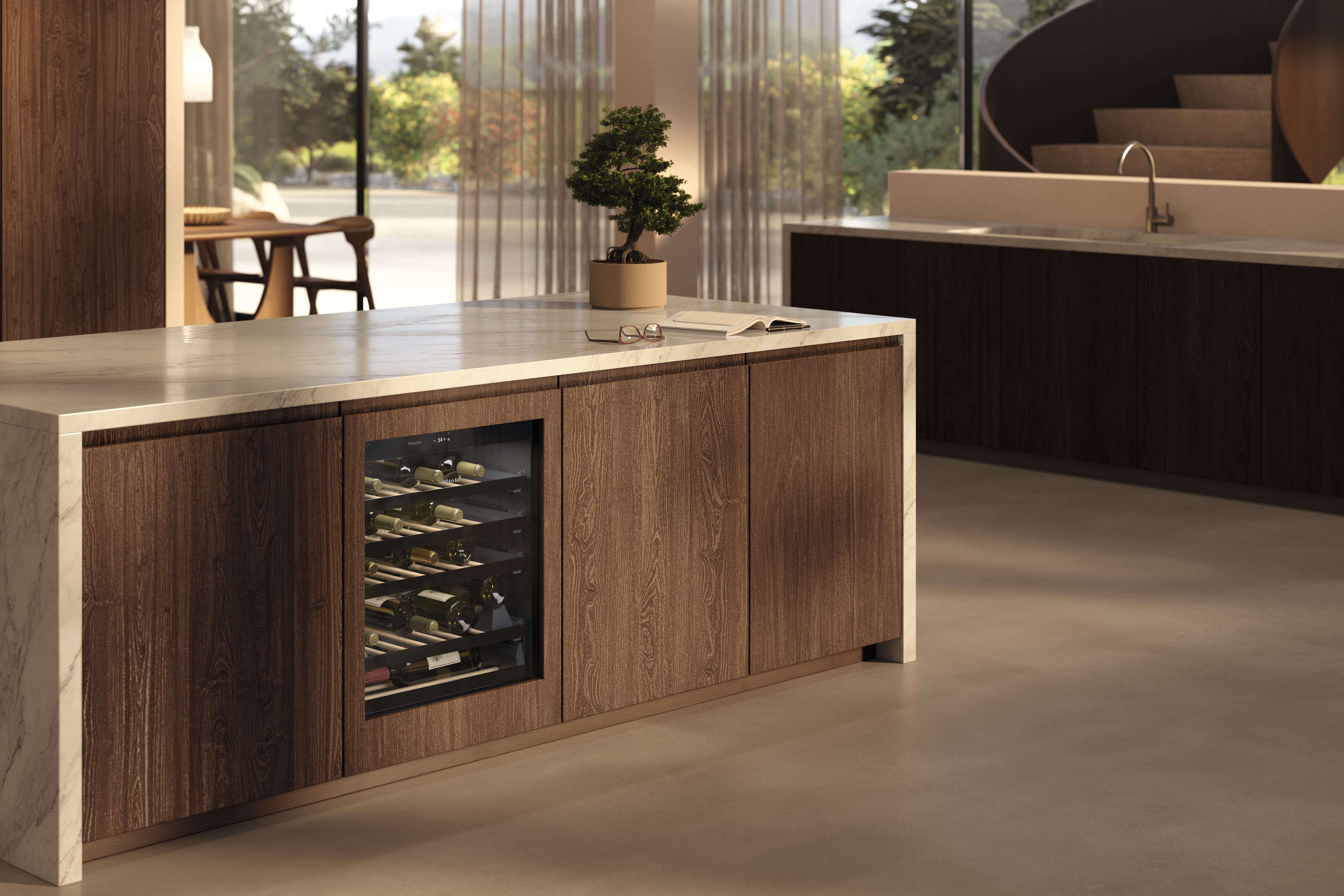

  • Miele - KWTUS 7172 F – Wine Refrigerators - 4

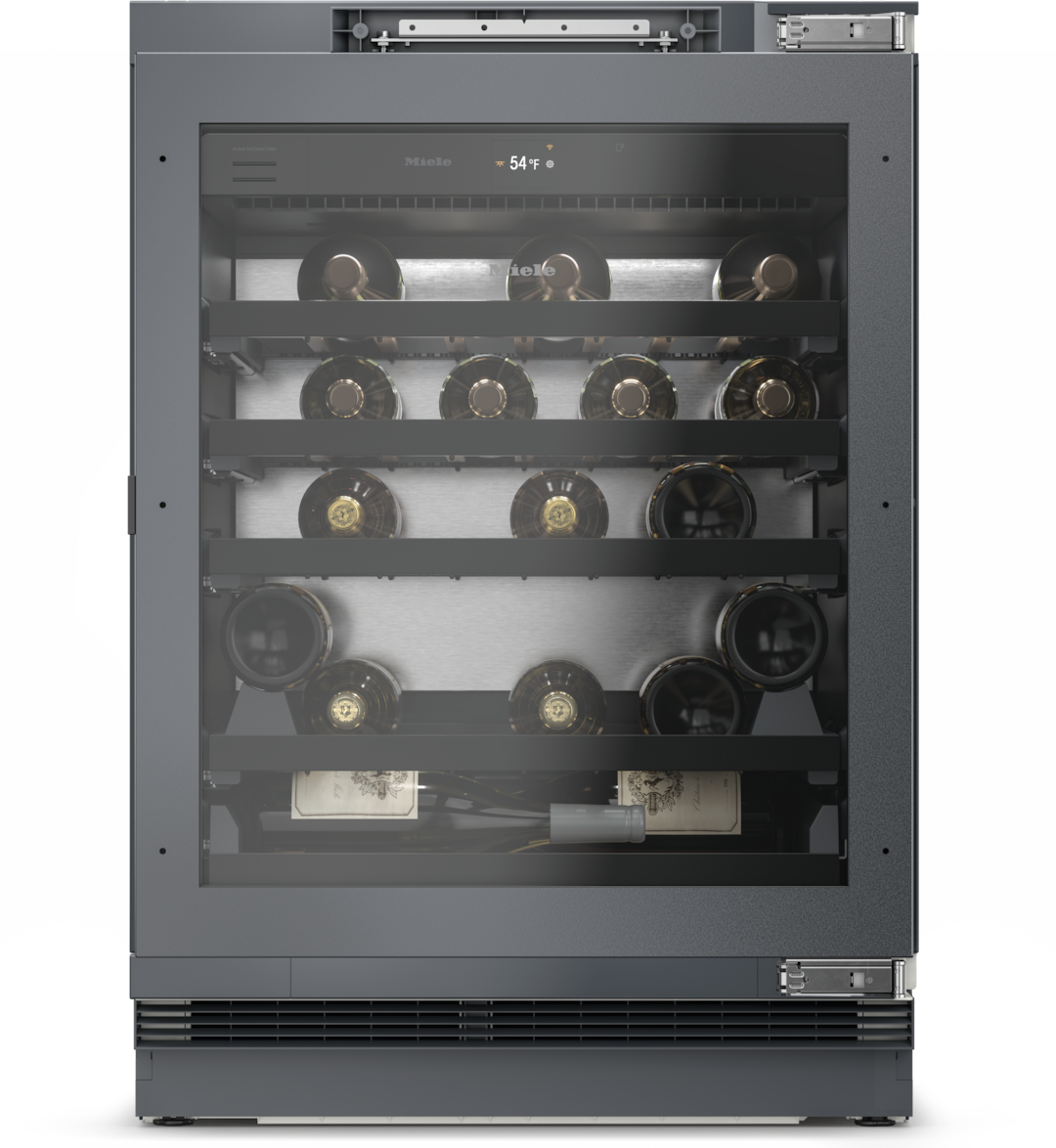

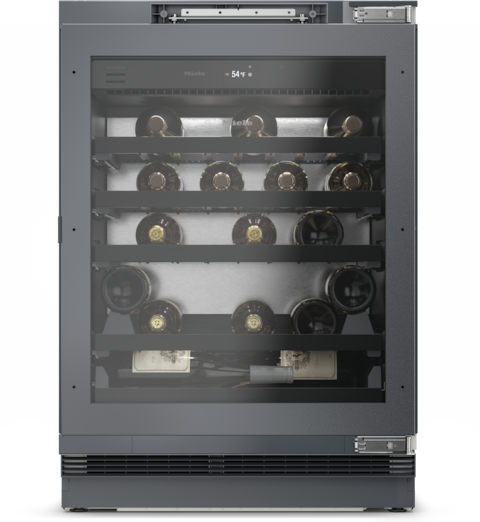

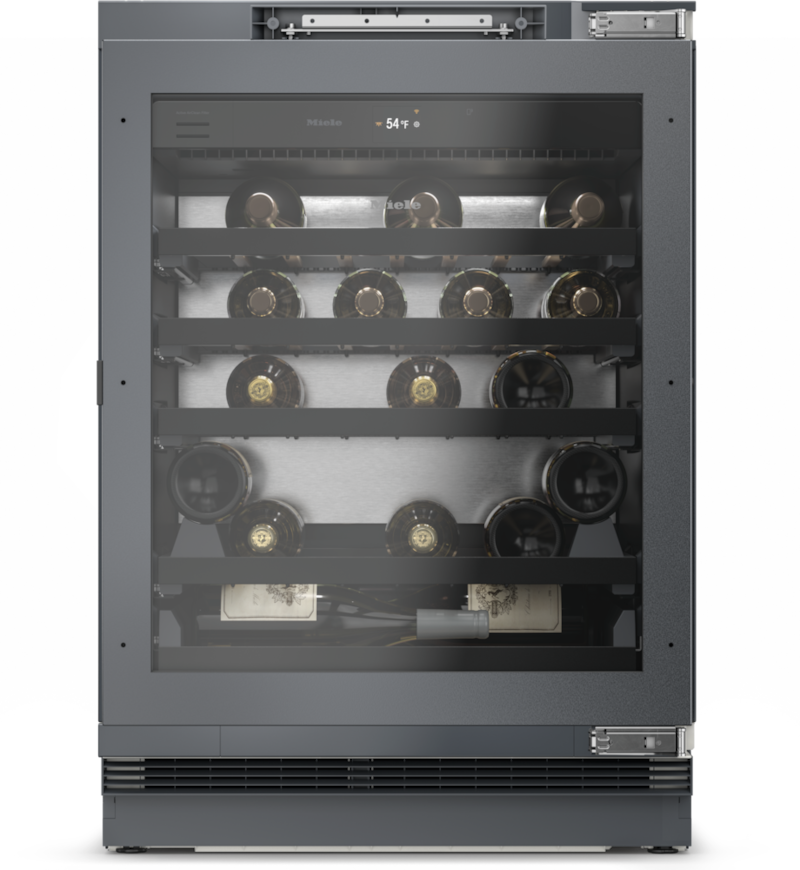

24" built-under wine refrigeratorPlatinum

KWTUS 7172 F

with FlexiFrame, ActiveHumidity, and NoteBoard in a compact design.
sale price$3,799.00


Product details

  • Storage of all bottle sizes/shapes thanks to
    FlexiFrame
  • Perfect regulation of humidity with
    ActiveHumidity
  • Writing on the wooden shelves on the NoteBoard
  • UV-resistant insulated glass
    perfectly protects your wine
  • Presented in perfect light –
    LED lighting
  • View manufacturer details:
  • Safety information

Product data sheet

Model number
KWTUS 7172 F
Manufacturer material number
12519520
EAN number
4002516779377
Marketing class
Platinum
Wine storage unit
Built-in
Built-in integrated
Built-in built-under
Door hinge side
right
Convertible hinging
Can be installed side-by-side
Casing color
black
Feature lighting
Wine compartment lighting
continuously dimmable LED
Networking with Miele@home
DynaCool
SoftClose door closing damper
Active AirClean filter
Total number of shelves
5
Number of shelves
5
Shelf material
Beechwood
Number of FlexiFrame Wire Racks
4
Number of shelves for crosswise storage
1
NoteBoard
Low-vibration storage
WineStorage Guide
Cooling modes
Feature lighting
Push notifications
ActiveHumidity
RemoteUpdate
Smart Home Integration
Electronic temperature display and control
FreshTouch
No. of temperature zones
1
Min. temperature setting range in °F (°C)
41 (5)
Max. temperature setting range in °F (°C)
68 (20)
Sabbath mode
Dry back wall
StainlessSteel
ActiveHumidity
Lock function
Acoustic door alarm
Acoustic temperature alarm
Optical door alarm
Optical temperature alarm
Niche width in inches (mm), min.
23 5/8 (600)
Niche width in inches (mm), max.
23 7/8 (604)
Niche height in inches (mm), min.
33 7/8 (860)
Niche height in inches (mm), max.
36 1/4 (920)
Niche depth in in.(mm)
22 1/2 (570)
Appliance dimensions (W x H x D) in inches (mm)
23 1/2 (597) x 33 7/8 (859) x 22 1/8 (563)
Appliance width in in.(mm)
23 1/2 (597)
Appliance height in in.(mm)
33 7/8 (859)
Appliance depth in in.(mm)
22 1/8 (563)
Weight in lbs.(kg)
102 (46.0)
Wine compartment in L
4.03 (114)
Total usable capacity in cu. ft. (l)
4.03 (114)
0.75 l Bordeaux bottle capacity (no. of bottles)
44 bottles
Current consumption in milliampere (mA)
1500
Voltage in V
115
Fuse rating in A
10
Number of phases
1
Frequency in Hz
60
Wire length in ft (m)
7.2 (2.2)
Active AirClean filter
White chalk
EAN
4002516779377

What's included

Active AirClean filter
White chalk
Active AirClean filter
  • *This is a separate digital offer from Miele & Cie. KG. The range of functions can vary depending on the model and the country. Acceptance of the Terms and Conditions and Privacy Policy for Miele digital products and services in the Miele app required. Miele reserves the right to change or discontinue the digital offer at any time.
  • Customize each rack
    Customize each rack

    NoteBoard

    For individual labelling: Every bottle rack features a removable, magnetic strip for labelling bottles.

  • Cleverly networked
    Cleverly networked

    Miele@home1,

    Make your life smart: Thanks to Miele@home, you can cleverly network your domestic appliances – for more options.

User convenience

Individual humidity adjustments
Individual humidity adjustments

ActiveHumidity

Ideal conditions: Adjust the humidity individually for perfect wine storage.
Beautiful and protects precious wines
Beautiful and protects precious wines

UV protection

The best protection for valuable wine: glass door with integrated UV filter.
Customize each rack
Customize each rack

NoteBoard

For individual labelling: Every bottle rack features a removable, magnetic strip for labelling bottles.
Cleverly networked
Cleverly networked

Miele@home1,

Make your life smart: Thanks to Miele@home, you can cleverly network your domestic appliances – for more options.

Quality

Specially developed for storage in the wine unit
Specially developed for storage in the wine unit

Storage with low vibration

Low vibration: The compressor is uncoupled and cushioned against vibration.

Smart Extras

  • Always up to date with software updates
    Always up to date with software updates

    RemoteUpdate1,

    Bringing new functions directly to your appliance.

  • Flexible storage for any occasion
    Flexible storage for any occasion

    Cooling modes1,

    Quickly adapt your cooling settings to any situation with preset options.

  • Showcase your wine
    Showcase your wine

    Feature lighting1,

    Put your wine bottles in their best light with just a few taps in the Miele app.

  • Seamless networking throughout your home
    Seamless networking throughout your home

    Smart Home Integration1,

    Intelligent integration of Miele appliances into a Smart Home system.

  • Ideal wine storage
    Ideal wine storage

    WineStorage Guide1,

    Discover the right conditions for your favorite wine bottles with our WineStorage Guide.

  • Smart alerts keep you informed
    Smart alerts keep you informed

    Push notifications1,

    Maintain optimal cooling and ideal conditions with push notifications alerting you to changes.

  • The right conditions for your bottles
    The right conditions for your bottles

    ActiveHumidity1,

    Choose the perfect humidity settings for your wines using the Miele app.

Downloads

Fitting Instructions
PDF
Download
Product sheet
PDF
Download
Operating instructions/Installation instructions
PDF
Download
Warranty conditions
PDF
Download
dwg
ZIP
Download
fbx
ZIP
Download
ifc
ZIP
Download
rfa
ZIP
Download
rvt
ZIP
Download

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts.

https://media.miele.com/dam/0d36ba1d-4e8c-40ef-9d90-b3b10141c4cb/20000221707_HighresDigitalRGB.png
Descriptions
KWTUS7172F, interior dimensions (US)
KWTUS7172F, interior dimensions (US)
POSTSCRIPT
Download
https://media.miele.com/dam/751d407c-4efa-4b89-b29b-b3b1014c539a/20000222504_HighresDigitalRGB.png
Descriptions

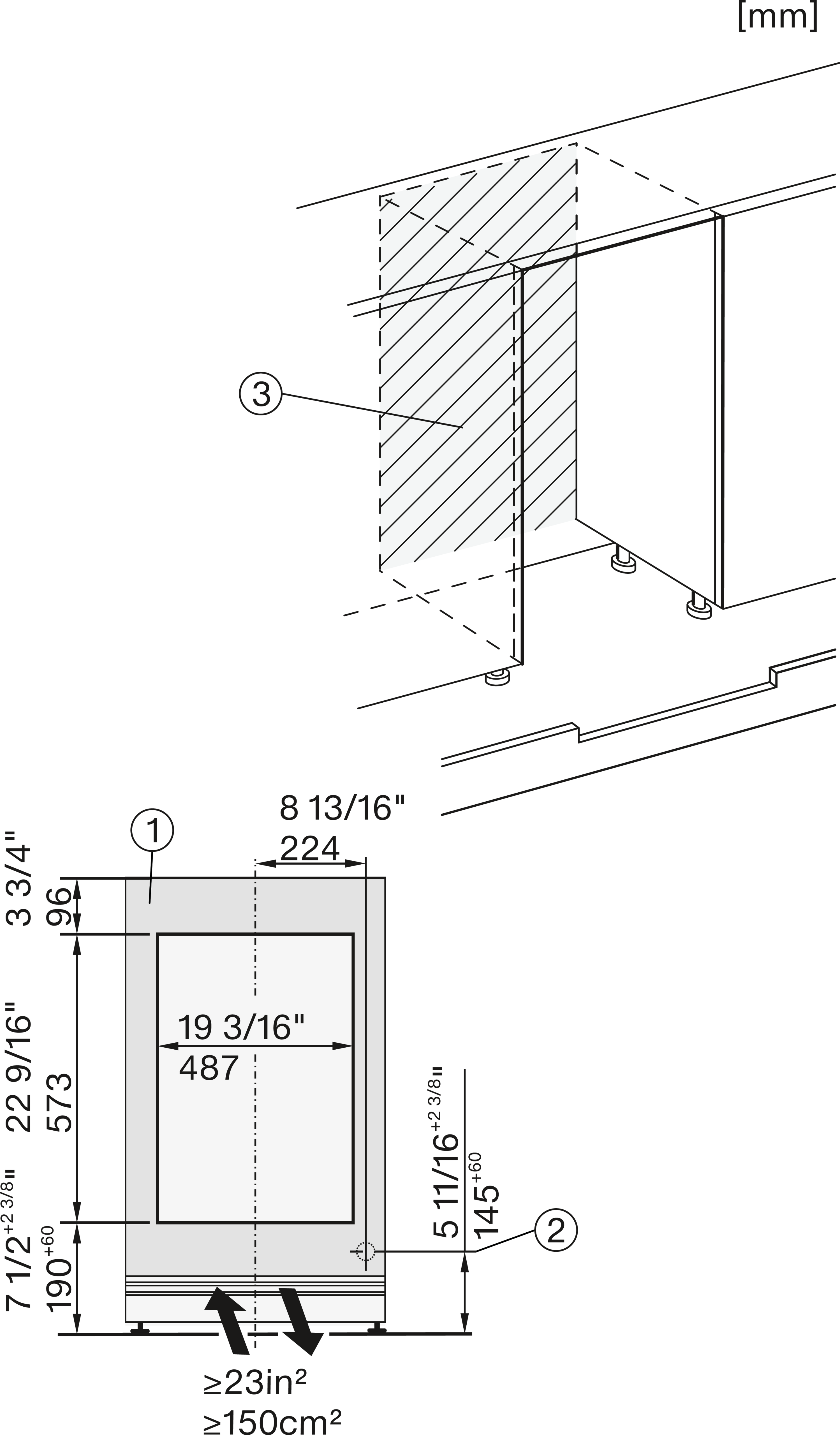

KWTUS7172F, Built-under, installation (*footnote)
*1. View from the front, 2. Mains connection cable L = 2200 mm, 3. No connection in this area,
POSTSCRIPT
Download
https://media.miele.com/dam/10a31ebe-31ed-4509-aea7-b3b1014c4c97/20000222505_HighresDigitalRGB.png
Descriptions

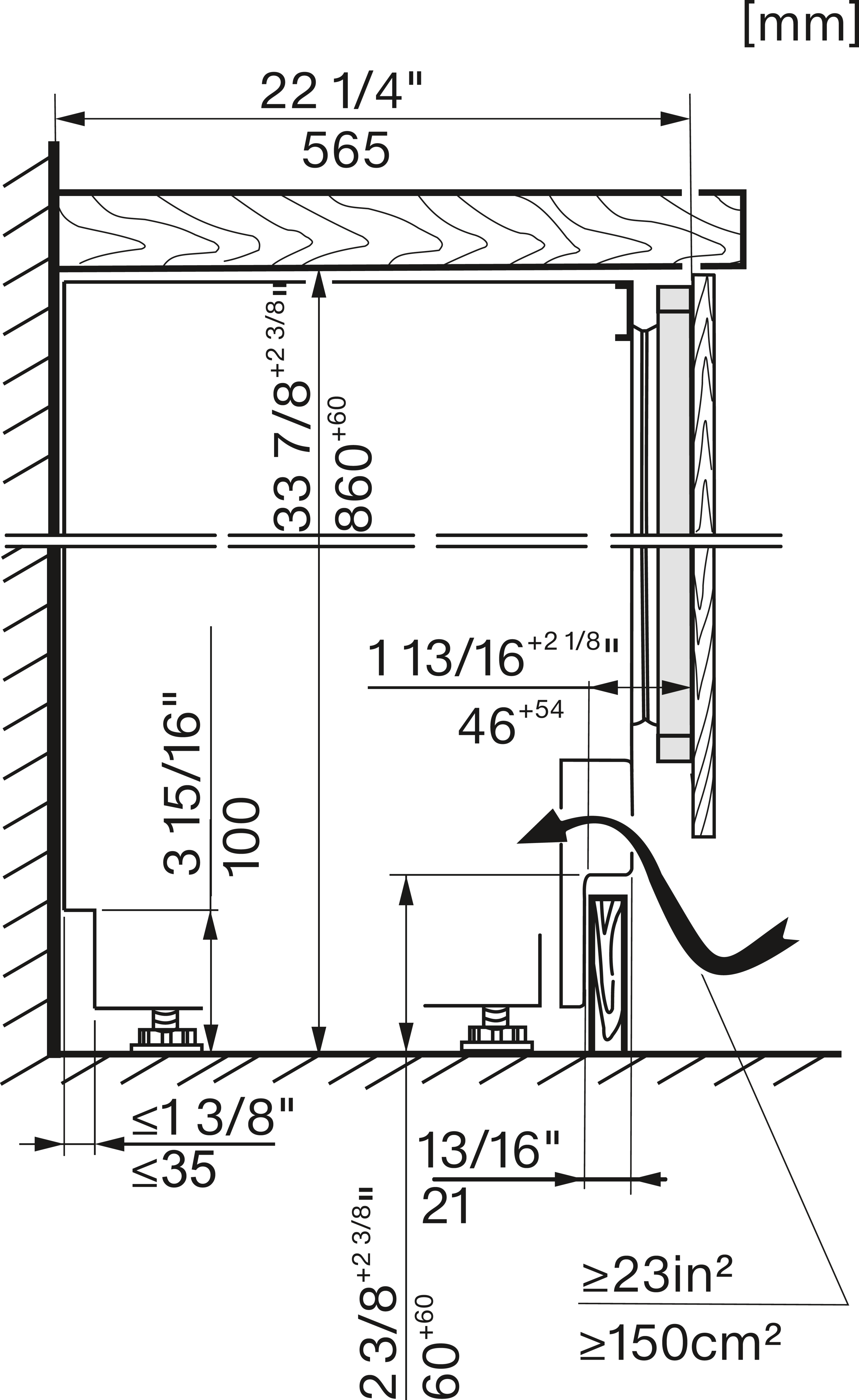

KWTUS7172F, Built-under, side view
KWTUS7172F, Built-under, side view
POSTSCRIPT
Download
https://media.miele.com/dam/77f0aad9-7083-4159-940d-b3b1014c4c9d/20000222506_HighresDigitalRGB.png
Descriptions

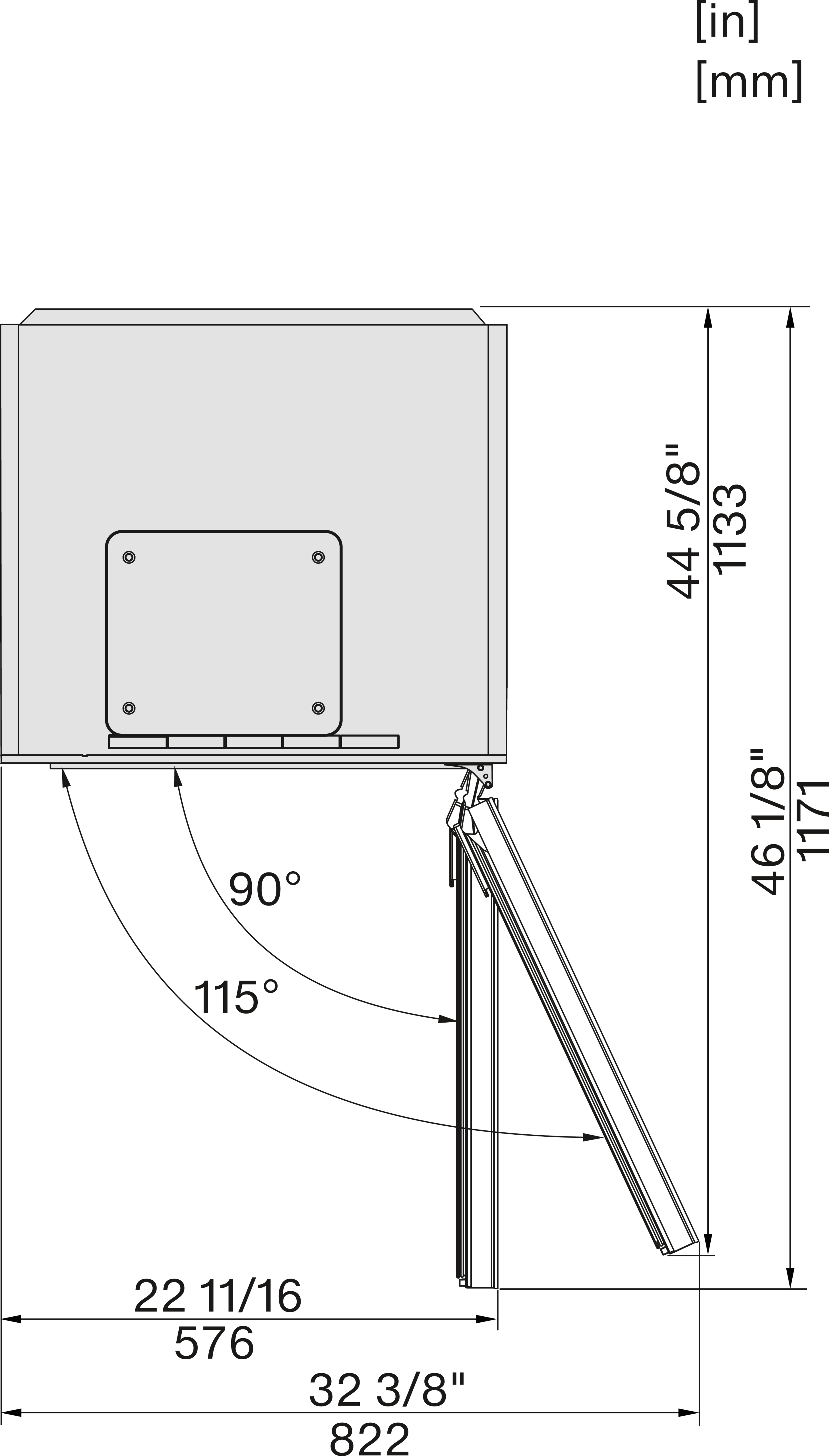

KWTUS7172F, Built-under, top view
KWTUS7172F, Built-under, top view
POSTSCRIPT
Download
https://media.miele.com/dam/b3c6b123-9b9a-4b67-a002-b3b1014c4351/20000222507_HighresDigitalRGB.png
Descriptions

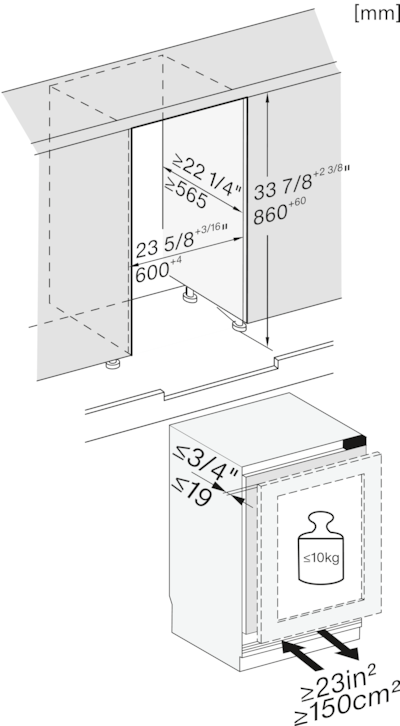

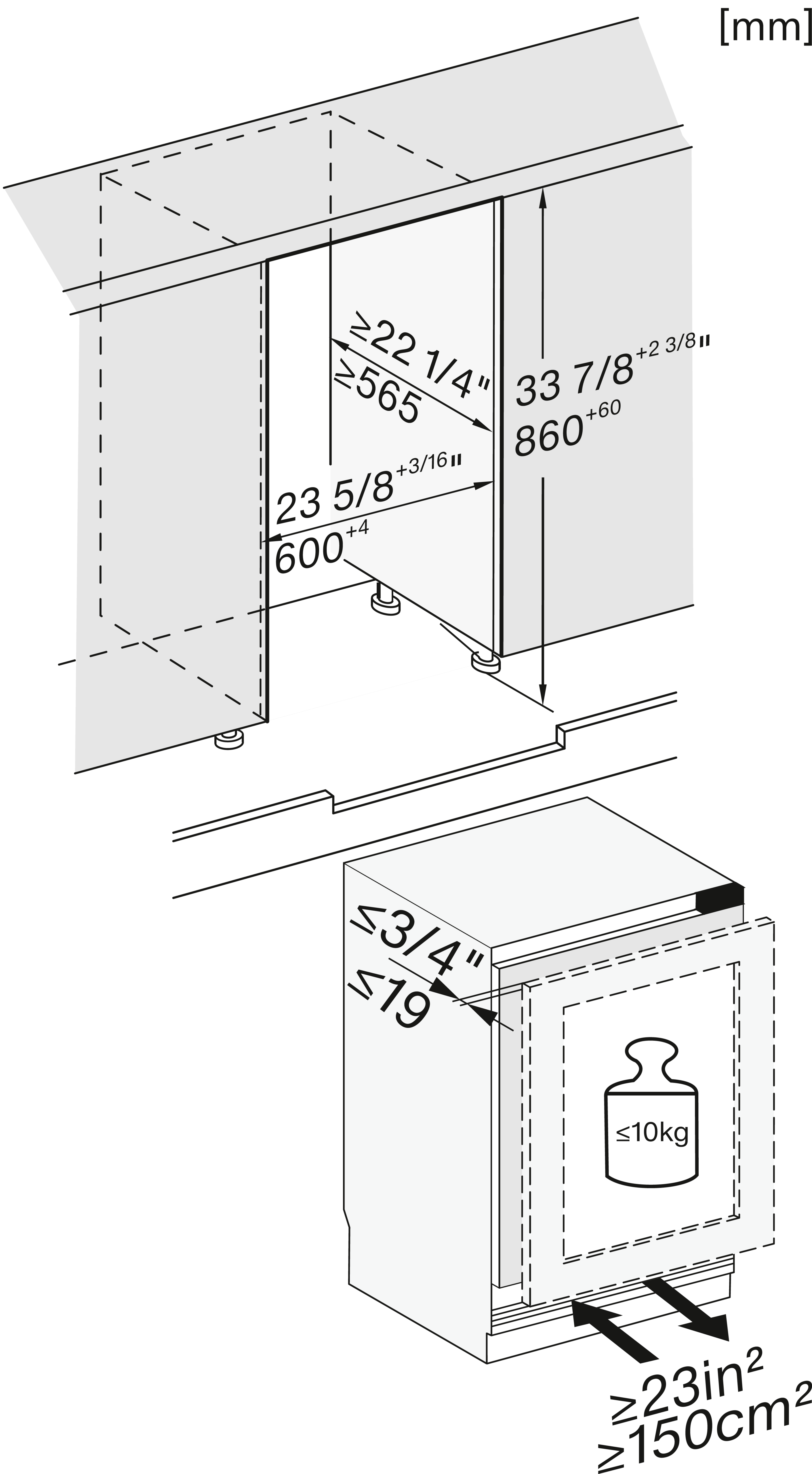

KWTUS7172F, Built-under, niche dimensions
KWTUS7172F, Built-under, niche dimensions
POSTSCRIPT
Download
https://media.miele.com/dam/91d5142f-8259-41a1-bc0c-b41a0111a654/20000225515_HighresDigitalRGB.png
Descriptions

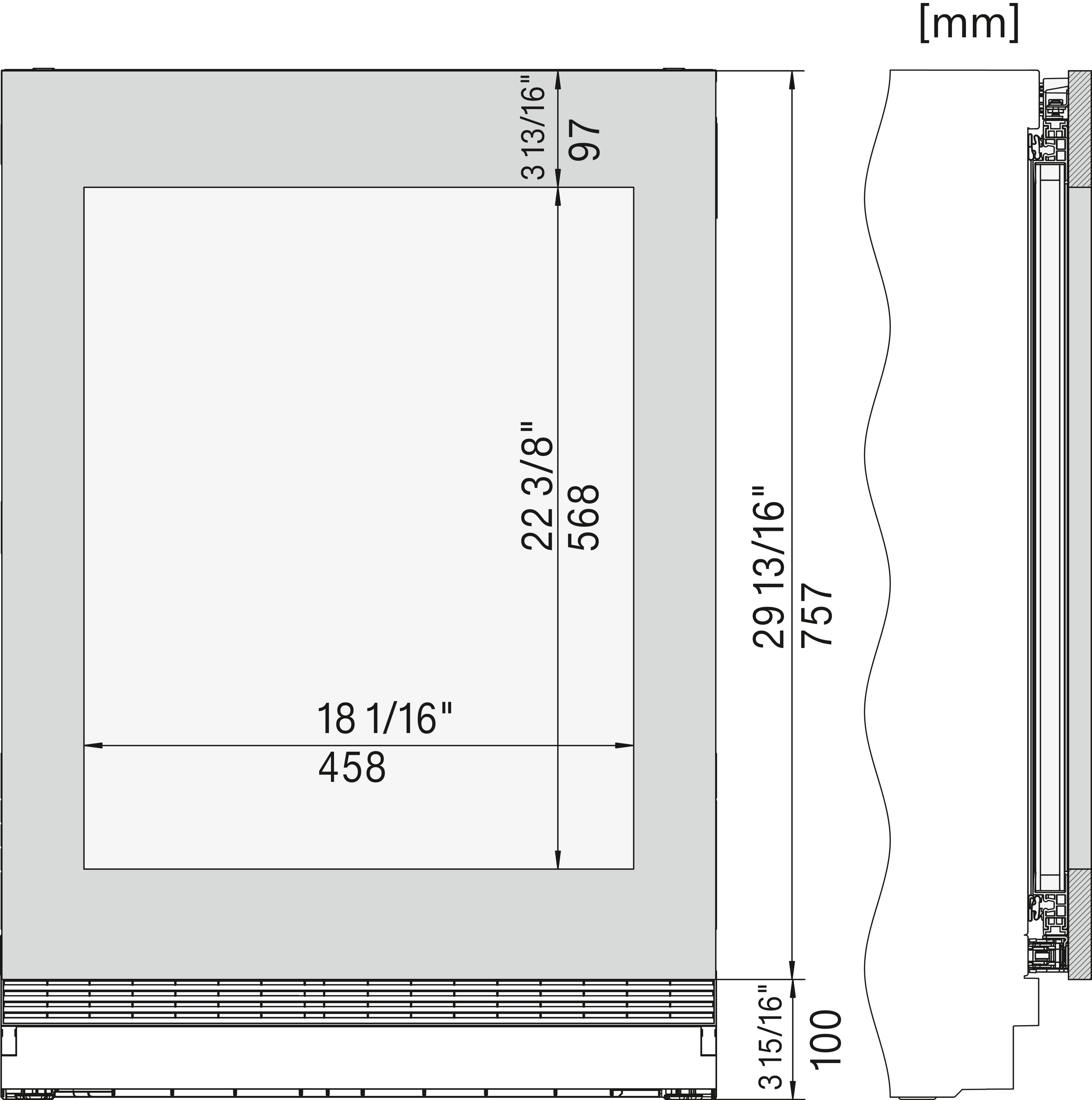

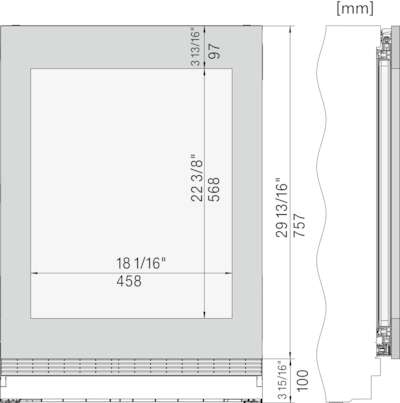

KWTUS7172F, Built-under, wooden front
KWTUS7172F, Built-under, wooden front
POSTSCRIPT
Download
https://media.miele.com/dam/9c6fee25-fef5-42e8-a560-b41a0111a26b/20000225575_HighresDigitalRGB.png
Descriptions

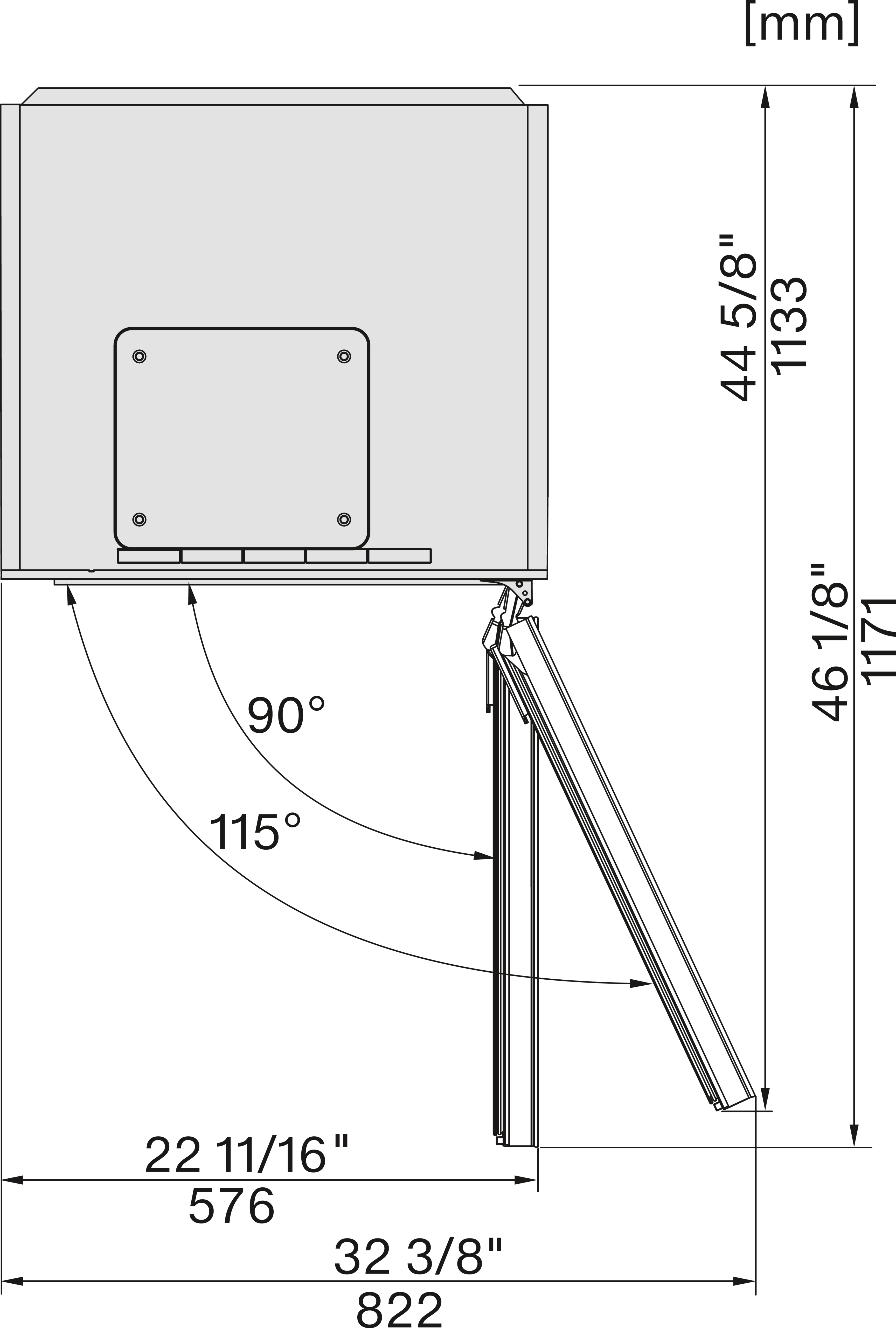

KWTUS7172F, Built-under, top view
KWTUS7172F, Built-under, top view
POSTSCRIPT
Download
https://media.miele.com/dam/561975e3-80bc-4803-8dcd-b41a01118e5f/20000225598_HighresDigitalRGB.png
Descriptions
KWTUS7172F, Built-under, top view
KWTUS7172F, Built-under, top view
POSTSCRIPT
Download
