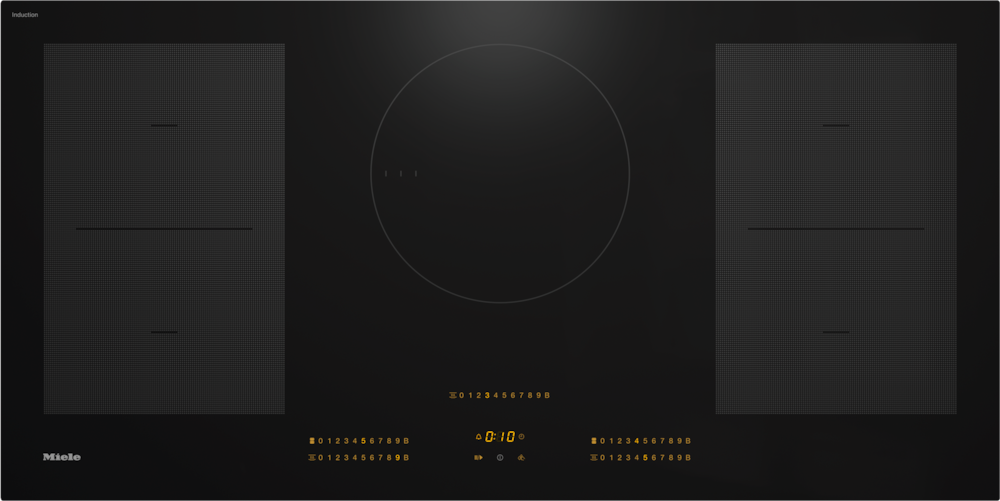

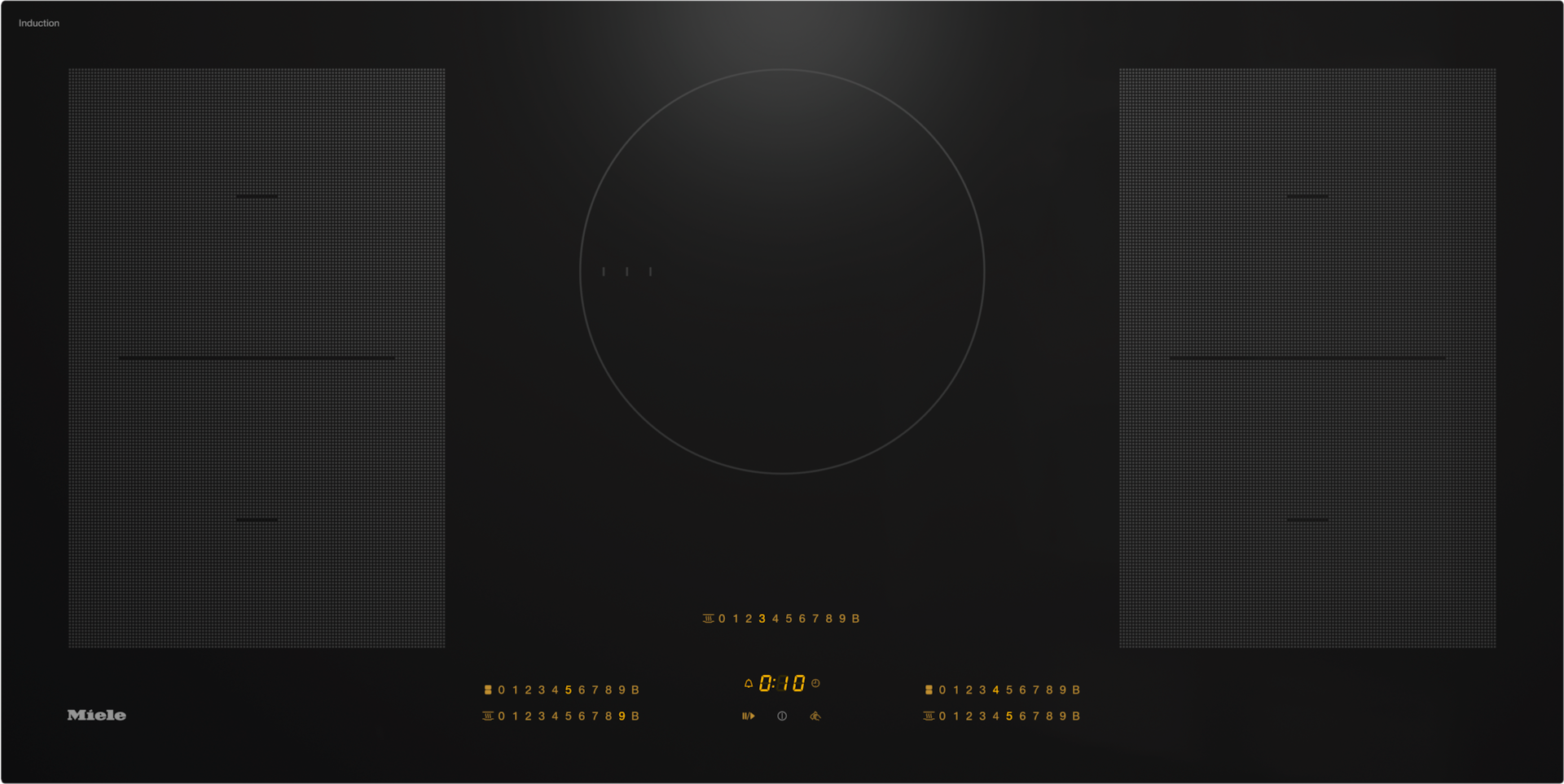

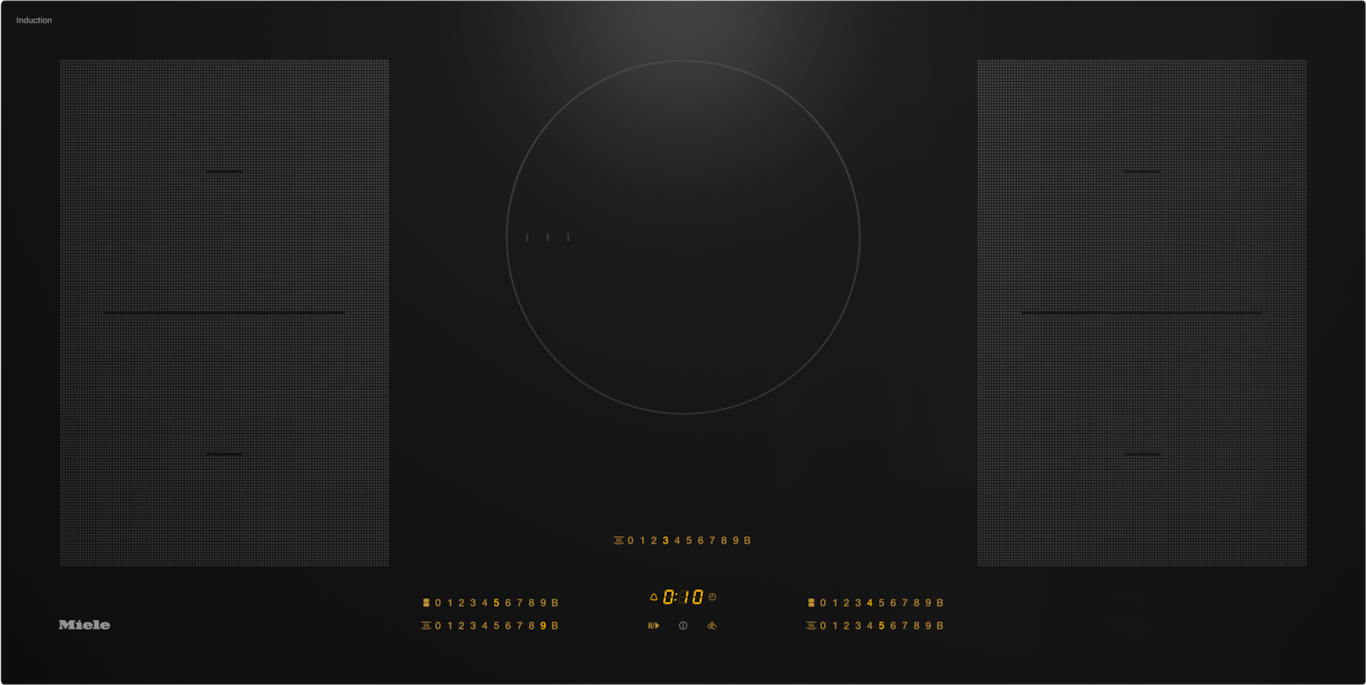

  • Miele - KM 7755 FL – Cooktops - 1
  • Miele - KM 7755 FL – Cooktops - 2
  • Miele - KM 7755 FL – Cooktops - 3

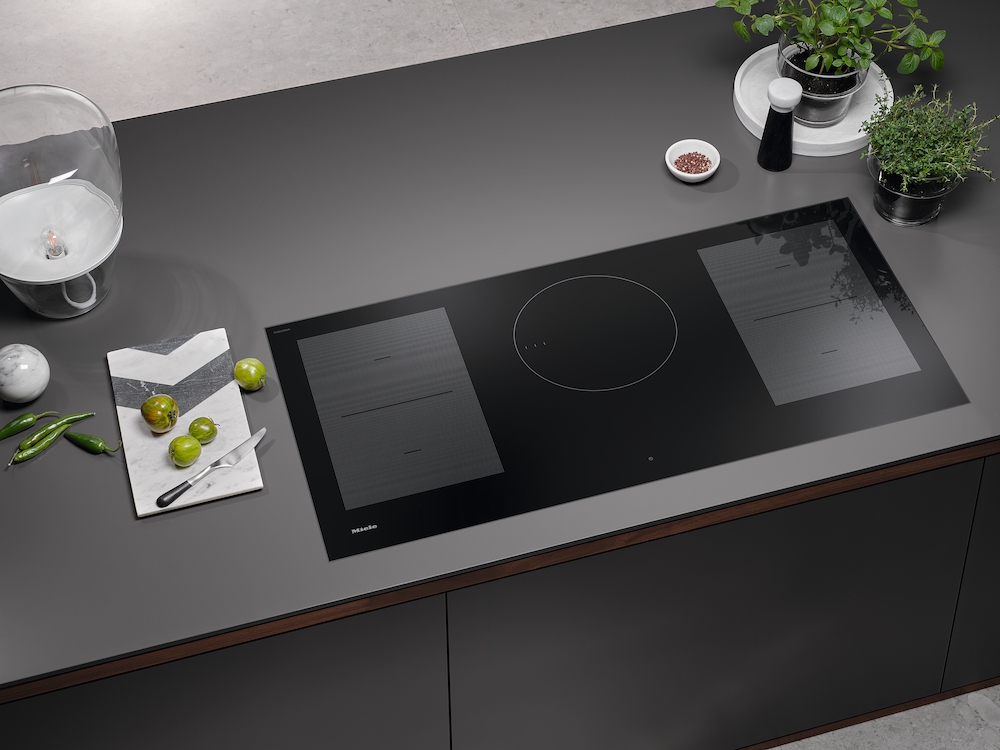

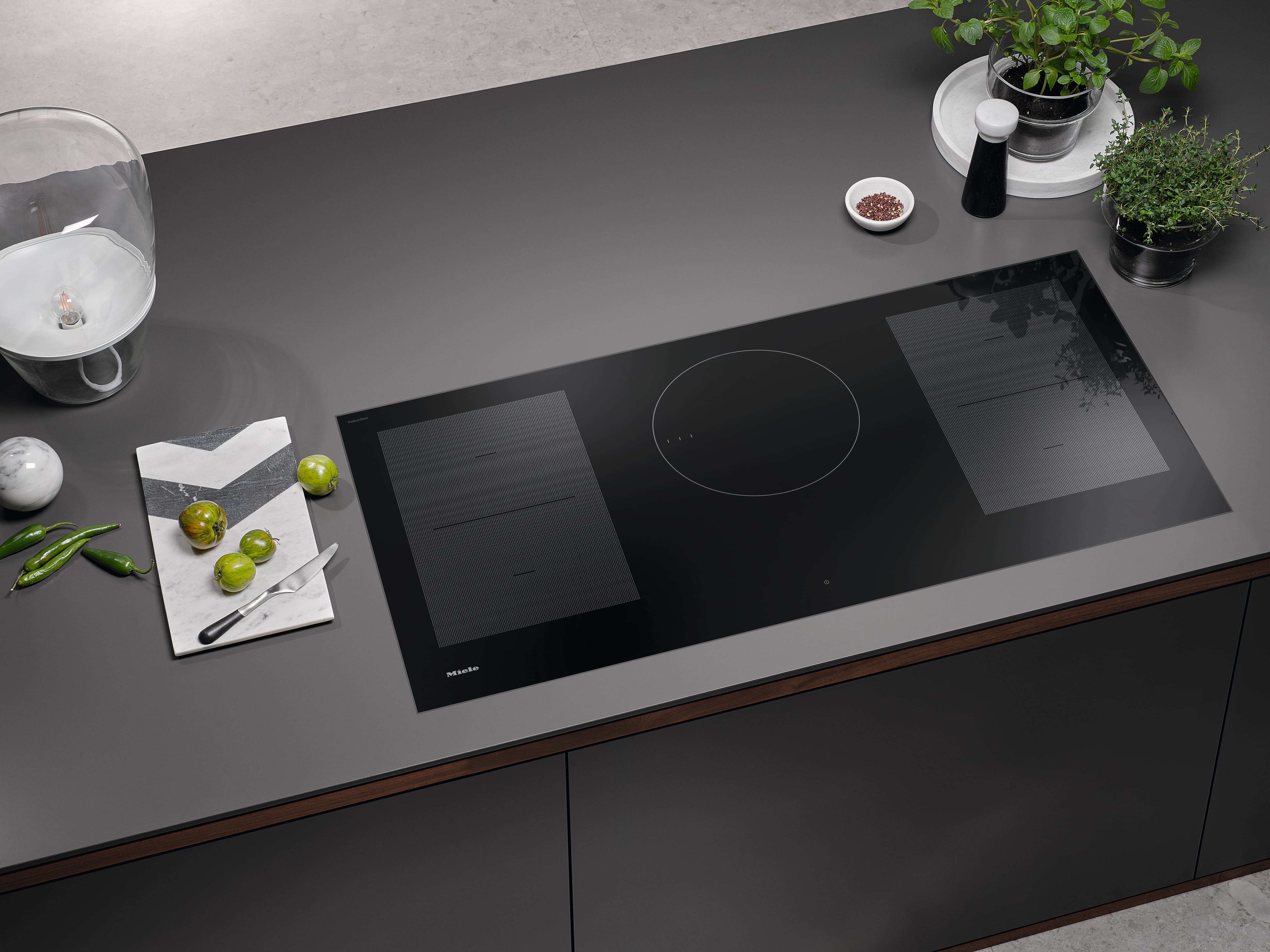

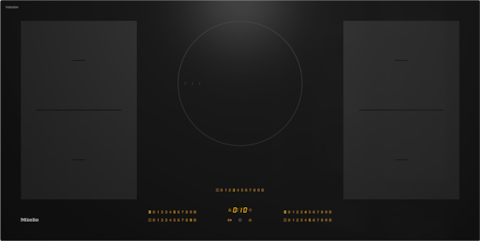

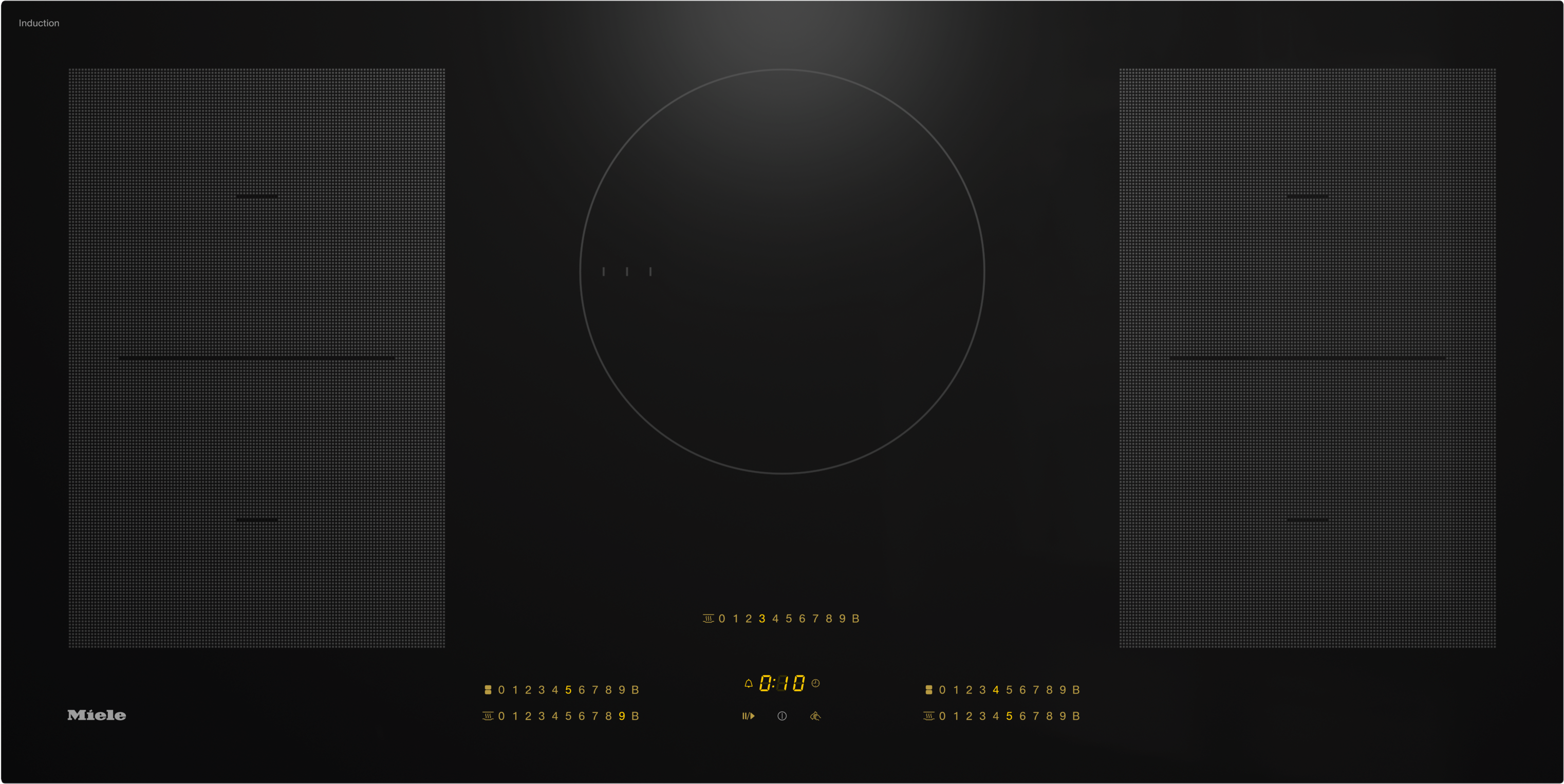

42-inch induction cooktop, operated with its own controlsPLATINUM

KM 7755 FL

with 2 PowerFlex cooking areas for maximum performance
sale price$4,999.00


Product details

  • Intuitive quick selection via number sequences –
    Smart Select
  • 5 cooking zones incl. 2 powerful
    PowerFlex cooking areas
  • With a width of 42 3/8 (1074) in (mm) for proud-mounted or flush-mounted installation
  • Shortest heating-up times - TwinBooster
  • Communication with the ventilation hood – automatic
    Con@ctivity
    function
  • View manufacturer details:
  • Safety information

Product data sheet

Fuel type Induction
Independent of oven
Elegant glass ceramic surface
Ceramic surface color Black
Flush-mounted installation
Proud installation
No. of rings 5
Number of cooking areas 2
Maximum number of pans 5
No. 4
Type PowerFlex cooking zone
Size in mm Ø 150 – 230
Max. rating in W 2100
Max. booster rating in W 3000
Max. TwinBooster rating in W 3700
Position Left
Type
PowerFlex bridge
Size in mm 230x390
Max. rating in W 3400
Max. booster rating in W 4800
Max. TwinBooster rating in W 7400
Position Centered
Type Variable cooking zone
Size in mm Ø 180-280
Max. rating in W 2600
Max. booster rating in W 3000
Max. TwinBooster rating in W 3700
Position right
Type PowerFlex bridge
Size in mm 230x390
Max. rating in W 3400
Max. booster rating in W 4800
Max. TwinBooster rating in W 7400
Networking with Miele@home
Automatic function Con@ctivity 3.0
Operation via touchpad sensors SmartSelect
Display color Yellow
Pan/Pan-size sensors
Permanent pan recognition
Stop & Go function
Wipe protection
Recall function
Minute minder
AutoBoost
Keep-warm function
Individual setting options (e.g. acoustic signal tones)
Easy to clean ceramic glass
Safety cut-out
Lock function
System lock
Integrated cooling blower
Overheating protection
Residual heat indicator
Dimensions (H x W x D) in mm 3 1/8 (77) x 42 3/8 (1074) x 21 1/4 (538)
Width in in. (mm) 42 3/8 (1074)
Height in in. (mm) 3 1/8 (77)
Depth in in. (mm) 21 1/4 (538)
Cut-out dimensions (W x D) with surface-mounted installation in inches (mm) 40 3/4 in (1035 mm) x 20 1/2 in (518 mm)
Cut-out dimensions (W x D) with flush-fit installation in inches (mm) 1054/1078 x 518/542
Built-in height with mains connection box in in. (mm) 4 1/8 (103)
Cutout dimensions width in in. (mm) with proud-mounted installation 40 3/4 in (1035 mm)
Cutout dimensions depth in in. (mm) with proud-mounted installation 20 1/2 in (518 mm)
Internal cutout dimensions width in in. (mm) with flush installation 1054
Internal cutout dimensions depth in in. (mm) with flush installation 518
External cutout dimensions width in in. (mm) with flush installation 1078
External cutout dimensions depth in in. (mm) with flush installation 542
Weight in lbs. (kg) 52 (24)
Total connected load in kW 11.200
Voltage in V 208-240
Frequency in Hz 50-60
Power cord length in ft. (m) 3 (1.2)
Connection wire
EAN 4002516611554

What's included

Connection wire
  • Smart controls

    Smart controls

    Con@ctivity 3.0

    Innovative convenience: The ventilation hood reacts automatically to settings on the cooktop.

  • Cleverly networked

    Cleverly networked

    Domestic appliance networking with Miele@home1,

    Make your life smart: Thanks to Miele@home, you can cleverly network your domestic appliances – for more options.

  • Ideal for large pots

    Ideal for large pots

    PowerFlex

    Unbeatably fast and versatile: the booster output of up to 7.3 kW.

User convenience

Cleverly networked
Cleverly networked

Domestic appliance networking with Miele@home1,

Make your life smart: Thanks to Miele@home, you can cleverly network your domestic appliances – for more options.

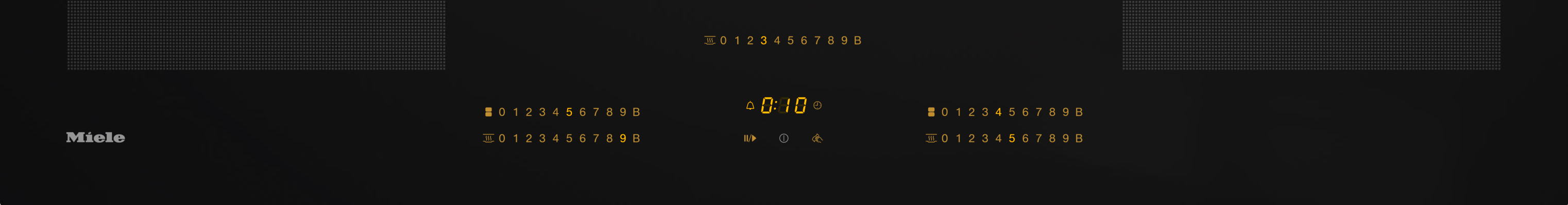

Operate your cooktop simply and intuitively
Operate your cooktop simply and intuitively

SmartSelect

Thanks to the intuitive controls, you can quickly and easily select power levels and individual timers.

Safety

For greater safety and security
For greater safety and security

Safety functions

The safety functions protect you from any nasty surprises – even if your mind is on other things.

Setup/function

Smart controls
Smart controls

Con@ctivity 3.0

Innovative convenience: The ventilation hood reacts automatically to settings on the cooktop.
Ideal for large pots
Ideal for large pots

PowerFlex

Unbeatably fast and versatile: the booster output of up to 7.3 kW.
Heats up particularly quickly thanks to Booster
Heats up particularly quickly thanks to Booster

TwinBooster

Distribute the induction power across several cooking zones or concentrate the power on one cooking zone.
For greater convenience
For greater convenience

Convenient additional functions

A variety of additional functions such as Stop & Go and timers make your work in the kitchen so much easier.
Just position your pot and start to cook
Just position your pot and start to cook

Permanent pan recognition

Automatic activation of control elements: Pans already in position are recognized when the cooktop is switched on.

Matching products and accessories

Pan set (4-piece)
KMTS 5704-3

Pan set (4-piece)

made of robust and high-quality stainless steel, lid with side steam outlet.

$799.00
Gourmet Tepan Yaki
KMTY

Gourmet Tepan Yaki

for a unique cooking experience on Miele induction cooktops.

$379.00
Fiskars “All Steel” starter pan set (4 pieces)

Fiskars “All Steel” starter pan set (4 pieces)

stainless-steel cookware with a matte brushed finish exclusively for Miele.

$529.00
Induction gourmet casserole dish

Induction gourmet casserole dish

For frying, braising and gratinating.

$273.90
Cer. and stainless cleaner 8.5 fl oz.
GP CL KM 0252 L

Cer. and stainless cleaner 8.5 fl oz.

For best cleaning results and safe use.

$15.99
MicroCloth kit, 3 pieces
GP MI S 0031 W

MicroCloth kit, 3 pieces

For best cleaning results and safe use.

$17.59
Scraper for cleaning
GP GS KM 0011 M

Scraper for cleaning

For ceramic glass Cooktops.

$19.80
CleanKitchen set
GPS 0301 L

CleanKitchen set

For cleanliness and shine throughout the kitchen.

$43.97
 MicroCloth HyClean, 1 cloth
GP MI H 0011 W

 MicroCloth HyClean, 1 cloth

 Antibacterial multi-purpose cloth for improved hygiene.

$13.19
Replacement blades, 10 pieces
GP GSB KM 0101 M

Replacement blades, 10 pieces

For cleaning scraper.

$12.94

Downloads

Operating and Installation instructions
PDF
Downloads
Product sheet
PDF
Downloads
Warranty conditions
PDF
Downloads
dwg
ZIP
Downloads
fbx
ZIP
Downloads
ifc
ZIP
Downloads
rfa
ZIP
Downloads
rvt
ZIP
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts.

https://media.miele.com/images/2000021/200002145/20000214548.png
Descriptions

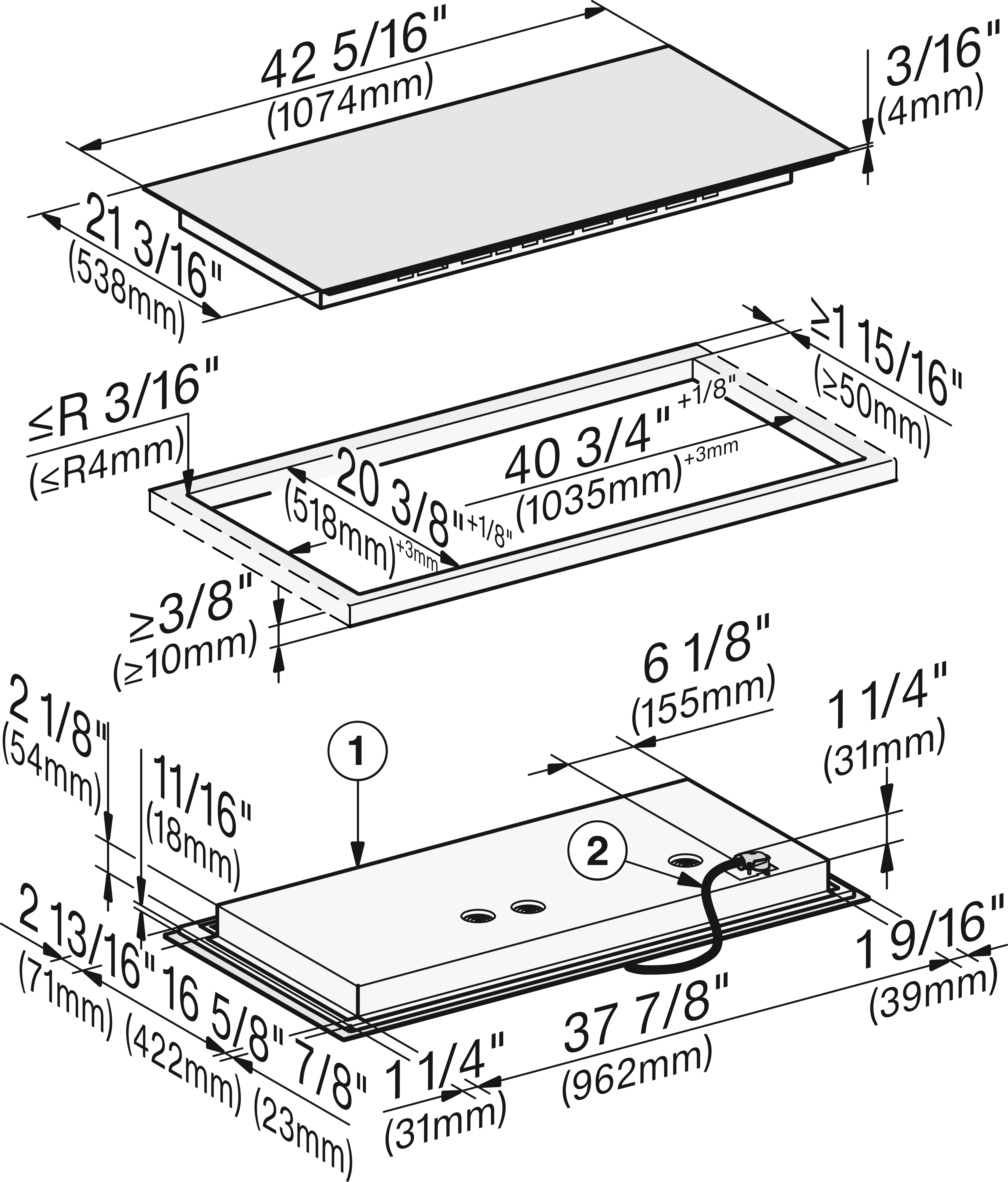

KM7755FL - frameless overlaying installation (*footnote) - drawing
① front, ② Flexible metal hose with power cords, L = 4' (1,200 mm)
POSTSCRIPT
Downloads
https://media.miele.com/images/2000021/200002145/20000214549.png
Descriptions

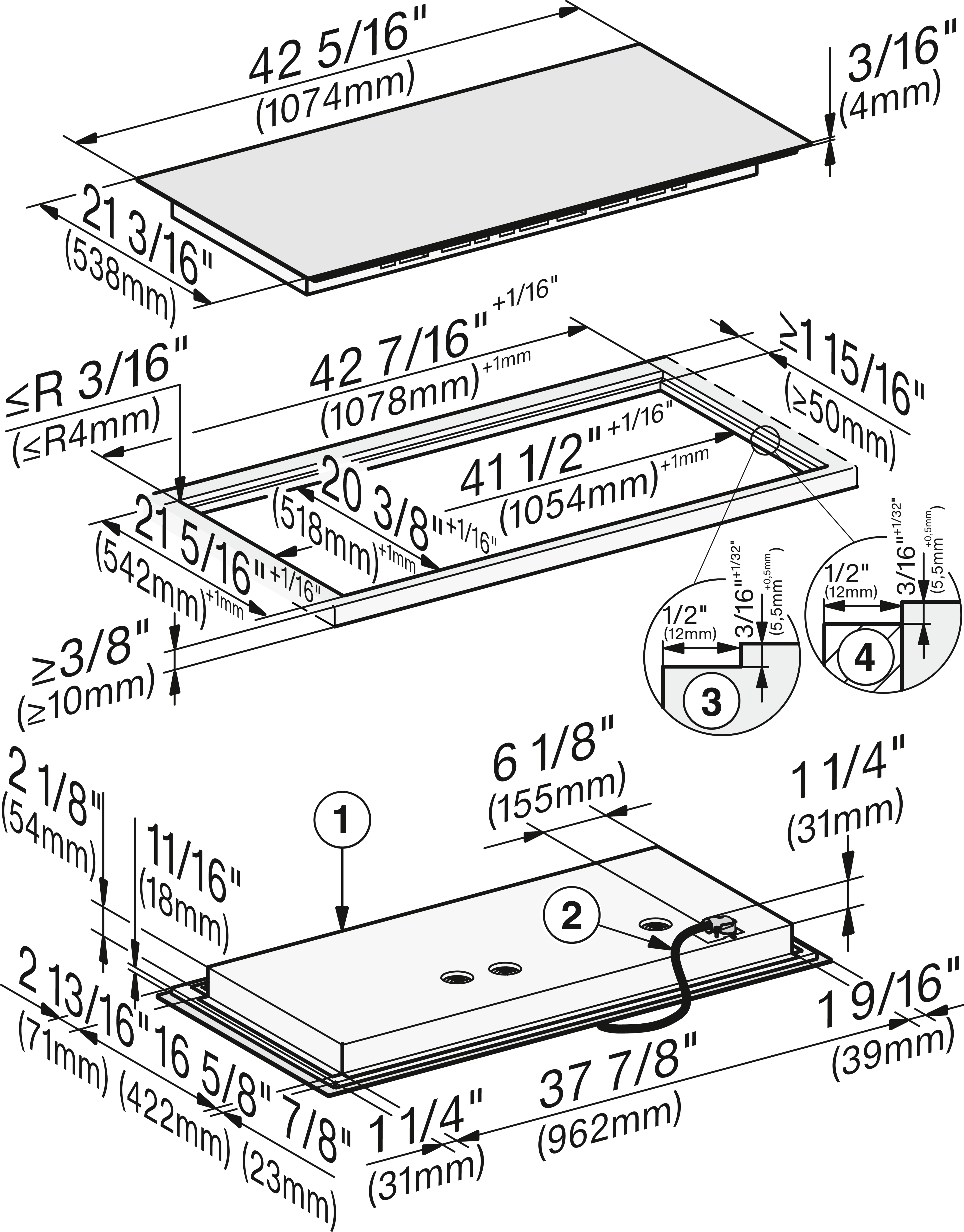

KM7755FL - flush installation (*footnote) - drawing
① Front, ② Flexible metal hose with power cords, L = 4', (1,200 mm), ③ Stepped cut-out, natural stone countertop, ④ Wooden strip 1/2" (12 mm) (not supplied)
POSTSCRIPT
Downloads
