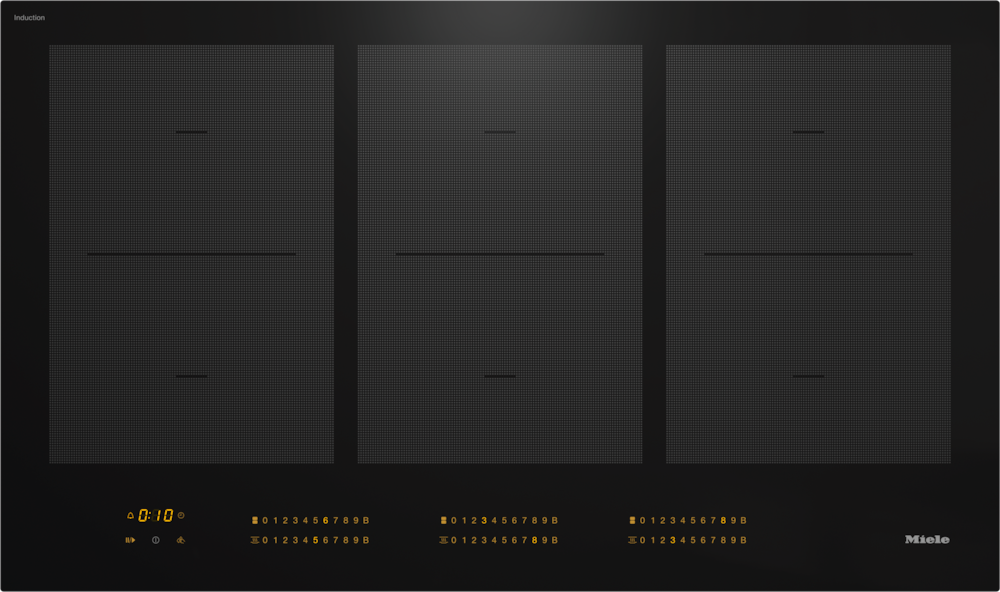

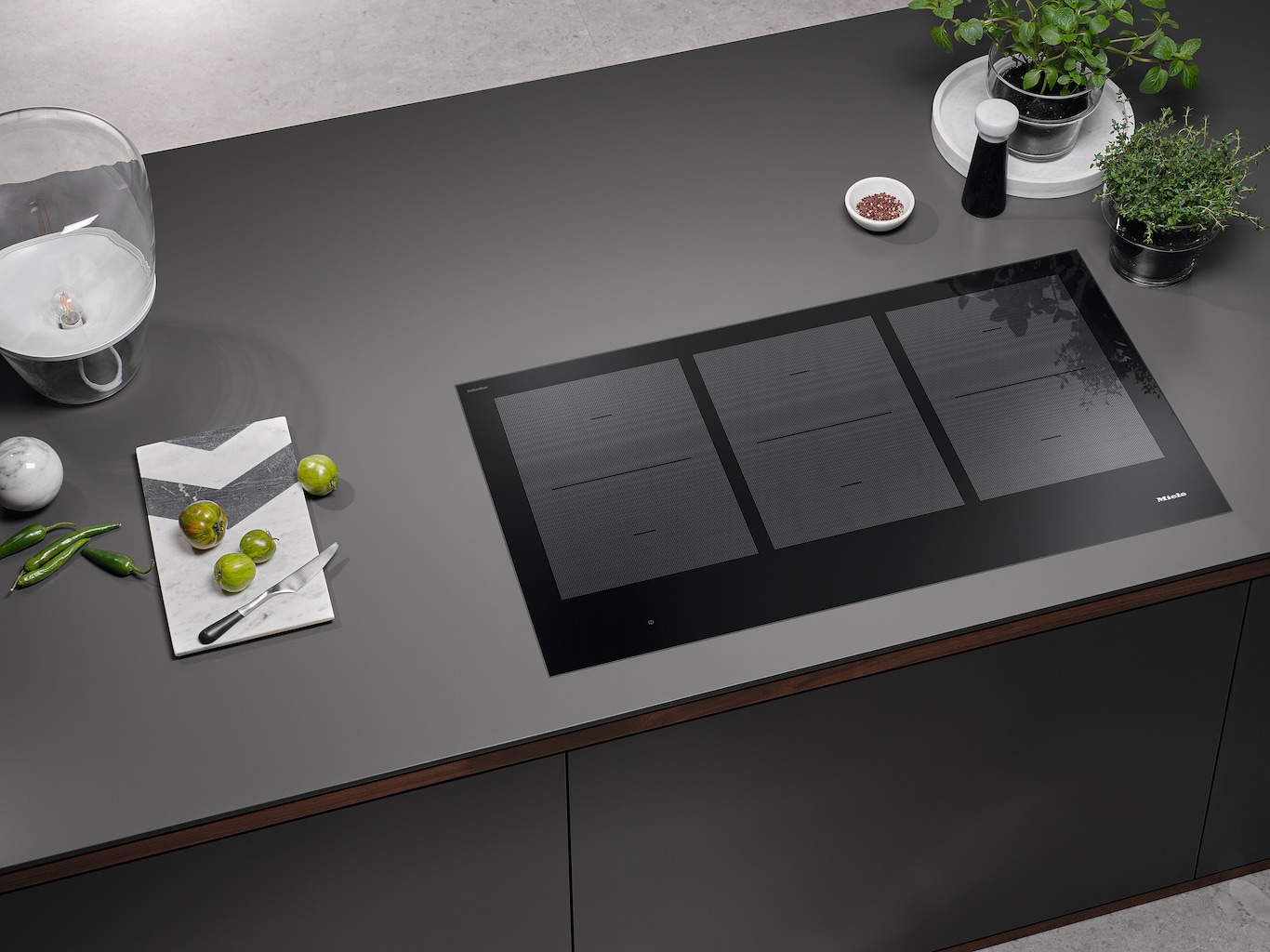

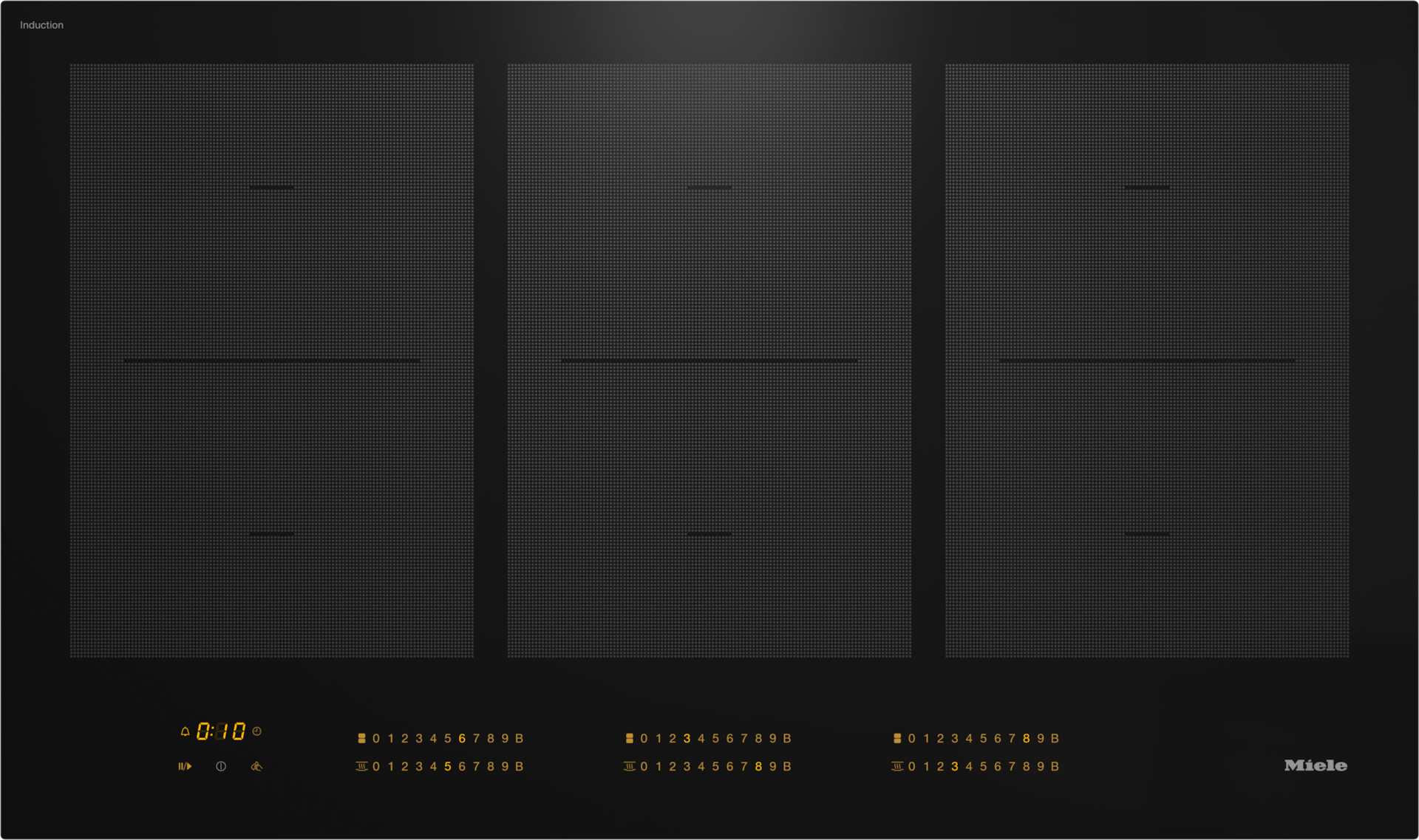

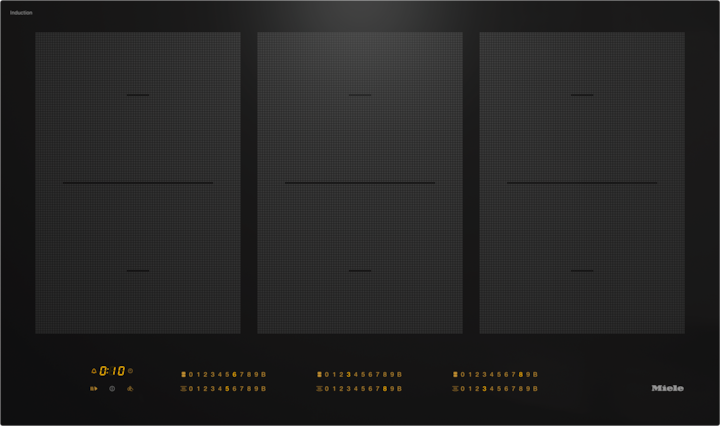

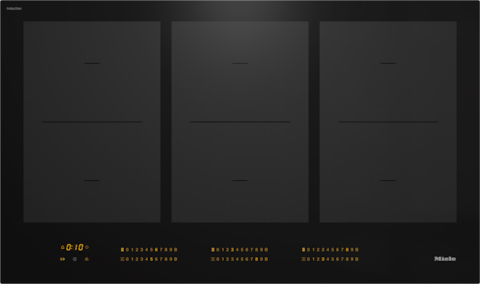

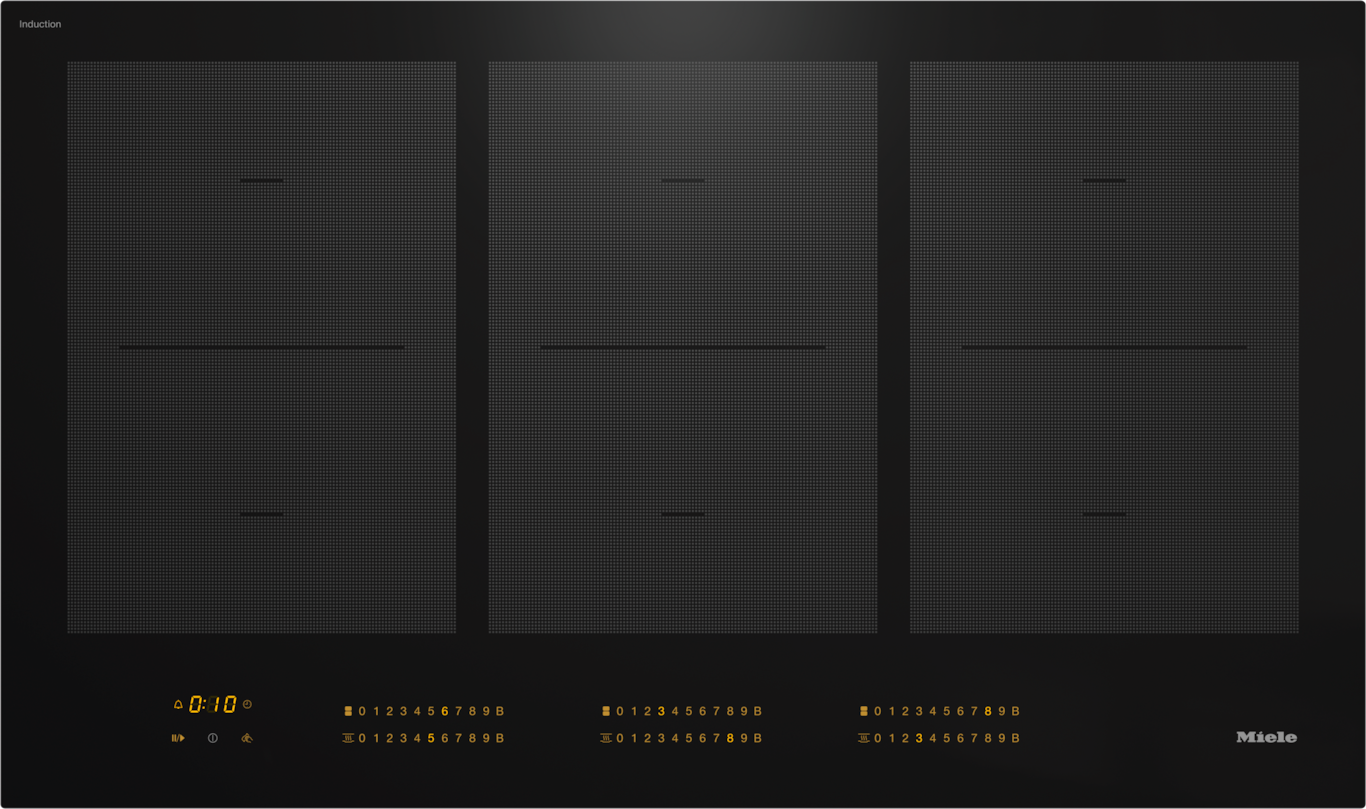

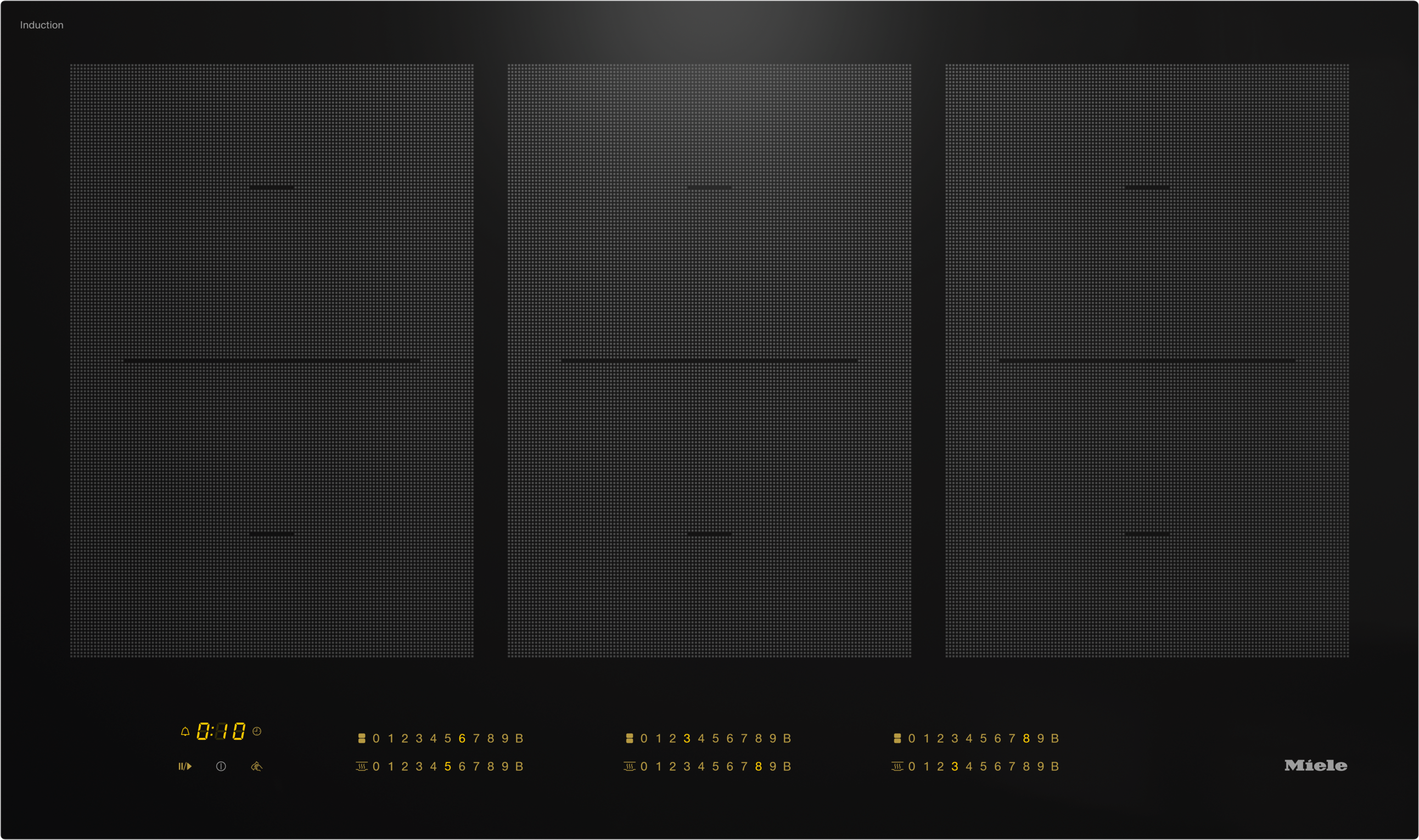

36-inch induction cooktop, operated with its own controls

KM 7745 FL

with 3 PowerFlex cooking areas for maximum performance
sale price$3,699.00




Product details

  • Intuitive quick selection via number sequences –
    Smart Select
  • 6  cooking zones incl. 3  high-power
    PowerFlex cooking areas
  • With a width of 35 7/8 (909) in (mm) for proud-mounted or flush-mounted installation
  • Shortest heating-up times - TwinBooster
  • Communication with the ventilation hood – automatic
    Con@ctivity
    function
  • Manufactured with great care by
  • Safety information

Product data sheet

Fuel type Induction
Independent of oven
Elegant glass ceramic surface
Ceramic surface color Black
Flush-mounted installation
Proud installation
Proud/flush-mounted •/•
No. of rings 6
Number of cooking areas 3
Number of cooking zones/cooking areas –/–
Maximum number of pans 6
No. 6
Type PowerFlex cooking zone
Size in mm Ø 150 – 230
Max. rating in W 2100
Max. booster rating in W 3000
Max. TwinBooster rating in W 3700
Position Left
Type PowerFlex bridge
Size in mm 230x390
Max. rating in W 3100
Max. booster rating in W 3400
Max. TwinBooster rating in W 3700
Position Centered
Type PowerFlex bridge
Size in mm 230x390
Max. rating in W 3400
Max. booster rating in W 4800
Max. TwinBooster rating in W 7400
Position right
Type PowerFlex bridge
Size in mm 230x390
Max. rating in W 3400
Max. booster rating in W 4800
Max. TwinBooster rating in W 7400
Networking with Miele@home
Automatic function Con@ctivity 3.0
Operation via touchpad sensors Smart Select
Display color Yellow
Permanent pan recognition
Pan/Pan-size sensors
Stop & Go function
Wipe protection
Recall function
Minute minder
Automatic switch-off for all rings
AutoBoost
Keep-warm function
Individual setting options (e.g. acoustic signal tones)
Easy to clean ceramic glass
Safety cut-out
Lock function
System lock
Integrated cooling blower
Overheating protection
Residual heat indicator
Dimensions (H x W x D) in mm 3 1/8 (77) x 35 7/8 (909) x 21 1/4 (538)
Width in in. (mm) 35 7/8 (909)
Height in in. (mm) 3 1/8 (77)
Depth in in. (mm) 21 1/4 (538)
Cut-out dimensions (W x D) with surface-mounted installation in inches (mm) 34 1/2 in (876 mm) x 20 1/2 in (518 mm)
Cut-out dimensions (W x D) with flush-fit installation in inches (mm) 889/913 x 518/542
Built-in height with mains connection box in in. (mm) 4 1/8 (103)
Cutout dimensions width in in. (mm) with proud-mounted installation 34 1/2 in (876 mm)
Cutout dimensions depth in in. (mm) with proud-mounted installation 20 1/2 in (518 mm)
Internal cutout dimensions width in in. (mm) with flush installation 889
Internal cutout dimensions depth in in. (mm) with flush installation 518
External cutout dimensions width in in. (mm) with flush installation 913
External cutout dimensions depth in in. (mm) with flush installation 542
Weight in lbs. (kg) 61 (28)
Total connected load in kW 11.200
Voltage in V 208-240
Frequency in Hz 50-60
Power cord length in ft. (m) 3 (1.2)
Connection wire
EAN 4002516611615

What's included

Connection wire
Ideal for large pots
PowerFlex

Unbeatably fast and versatile: the booster output of up to 7.3 kW.

Smart controls
Con@ctivity 3.0

Innovative convenience: The ventilation hood reacts automatically to settings on the cooktop.

User convenience

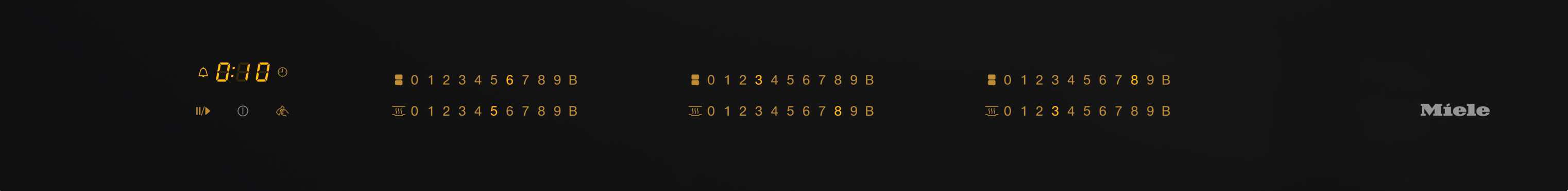

Simple operation with SmartSelect
SmartSelect

Quick and intuitive: power levels and times can be selected separately for each cooking zone.

Safety

For greater safety and security
Safety functions

The safety functions protect you from any nasty surprises – even if your mind is on other things.

Setup/function

Booster function for rapid heat
TwinBooster

Flexible power: Induction output can be individually distributed or used for one single zone.

Ideal for large pots
PowerFlex

Unbeatably fast and versatile: the booster output of up to 7.3 kW.

Smart controls
Con@ctivity 3.0

Innovative convenience: The ventilation hood reacts automatically to settings on the cooktop.

For greater convenience
Convenient additional functions

A variety of additional functions such as Stop & Go and timers make your work in the kitchen so much easier.

Just position your pot and start to cook
Permanent pan recognition

Automatic activation of control elements: Pans already in position are recognized when the cooktop is switched on.

Matching products and accessories

Fiskars “All Steel” starter pan set (4 pieces)
KMTS 5704-2

Fiskars “All Steel” starter pan set (4 pieces)

stainless-steel cookware with a matte brushed finish exclusively for Miele.

$529.00
Gourmet griddle plate

Gourmet griddle plate

for a unique grill experience on Miele induction cooktops.

$273.90
Induction gourmet casserole dish
HUB 62-22

Induction gourmet casserole dish

For frying, braising and gratinating.

$273.90
Gourmet Tepan Yaki

Gourmet Tepan Yaki

for a unique cooking experience on Miele induction cooktops.

$328.90
Gourmet casserole dish lid
HBD 60-22

Gourmet casserole dish lid

compatible with HUB 61-22, HUB 62-22, HUB 5000-M, and HUB 5001-M.

$126.00
Pan set (4-piece)

Pan set (4-piece)

made of robust and high-quality stainless steel, lid with side steam outlet.

$799.00
Silicone feet

Silicone feet

to ensure that the Gourmet griddle plate is secure on the induction cooktop

$10.00
Cer. and stainless cleaner 8.5 fl oz.
GP CL KM 0252 L

Cer. and stainless cleaner 8.5 fl oz.

For best cleaning results and safe use.

$15.99
MicroCloth kit, 3 pieces
GP MI S 0031 W

MicroCloth kit, 3 pieces

For best cleaning results and safe use.

$17.59
 MicroCloth HyClean, 1 cloth
GP MI H 0011 W

 MicroCloth HyClean, 1 cloth

 Antibacterial multi-purpose cloth for improved hygiene.

$13.19

Downloads

Operating and Installation instructions
PDF
Downloads
Product sheet
PDF
Downloads
Warranty conditions
PDF
Downloads
rvt
ZIP
Downloads
rfa
ZIP
Downloads
fbx
ZIP
Downloads
dwg
ZIP
Downloads
ifc
ZIP
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts.

https://media.miele.com/images/2000021/200002145/20000214543.png
Descriptions
KM7745FL - frameless overlaying installation (*footnote) - drawing
① front, ② Flexible metal hose with power cords, L = 4' (1.200 mm), ③ Spacer plate (only required if a protective base is installed)
Downloads
https://media.miele.com/images/2000021/200002145/20000214546.png
Descriptions
KM7745FL - flush installation (*footnote) - drawing
① Front, ② Flexible metal hose with power cords, L = 4' (1,200 mm), ③ Spacer plate (only required if a protective base is installed), ④ Stepped cut-out, natural stone countertop, ⑤ Wooden strip 1/2" (12 mm) (not supplied)
