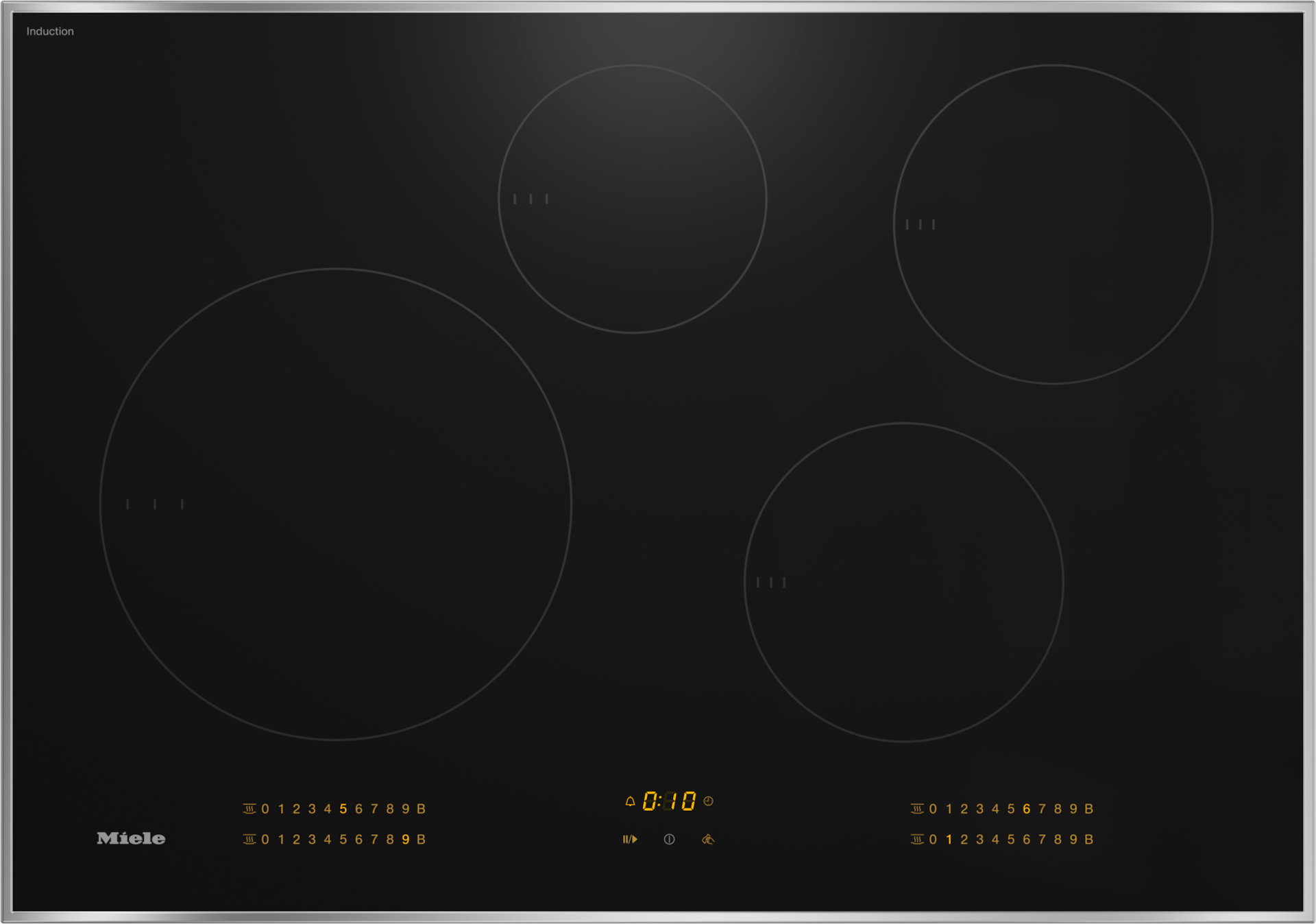

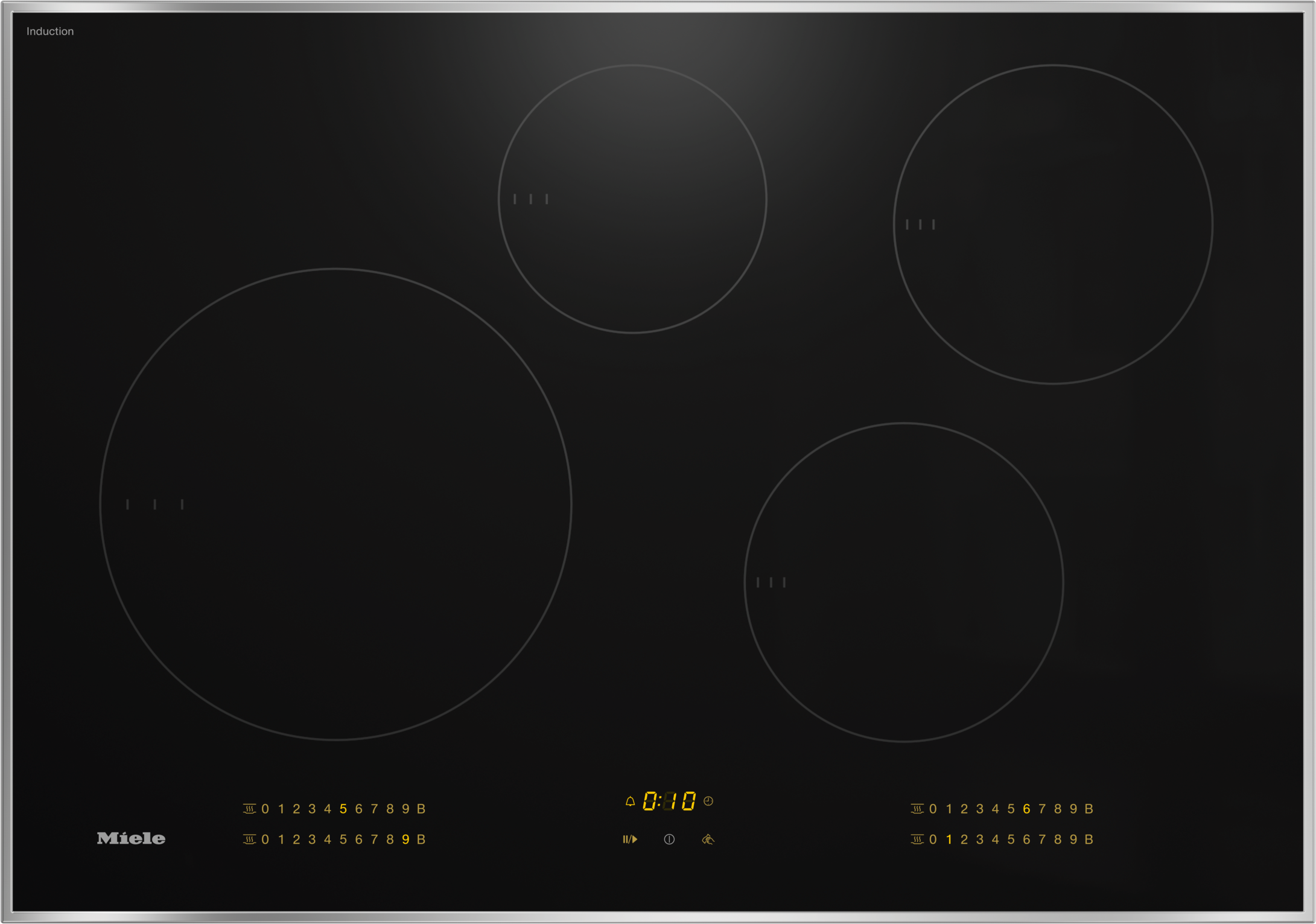

  • Miele - KM 7730 FR – Cooktops - 1

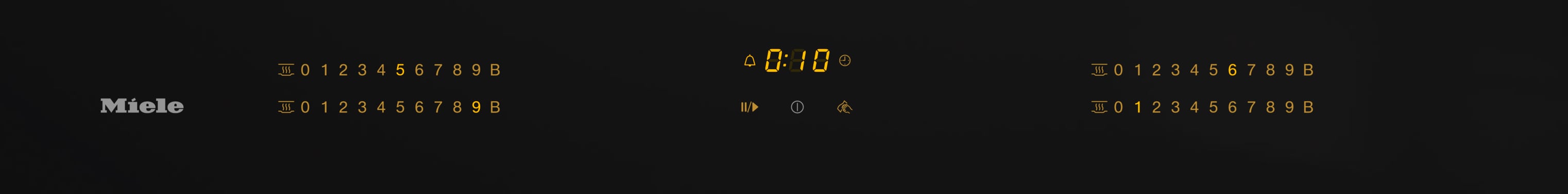

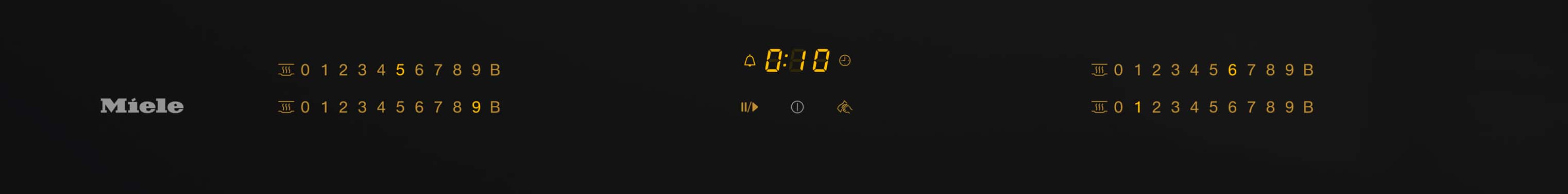

  • Miele - KM 7730 FR – Cooktops - 2

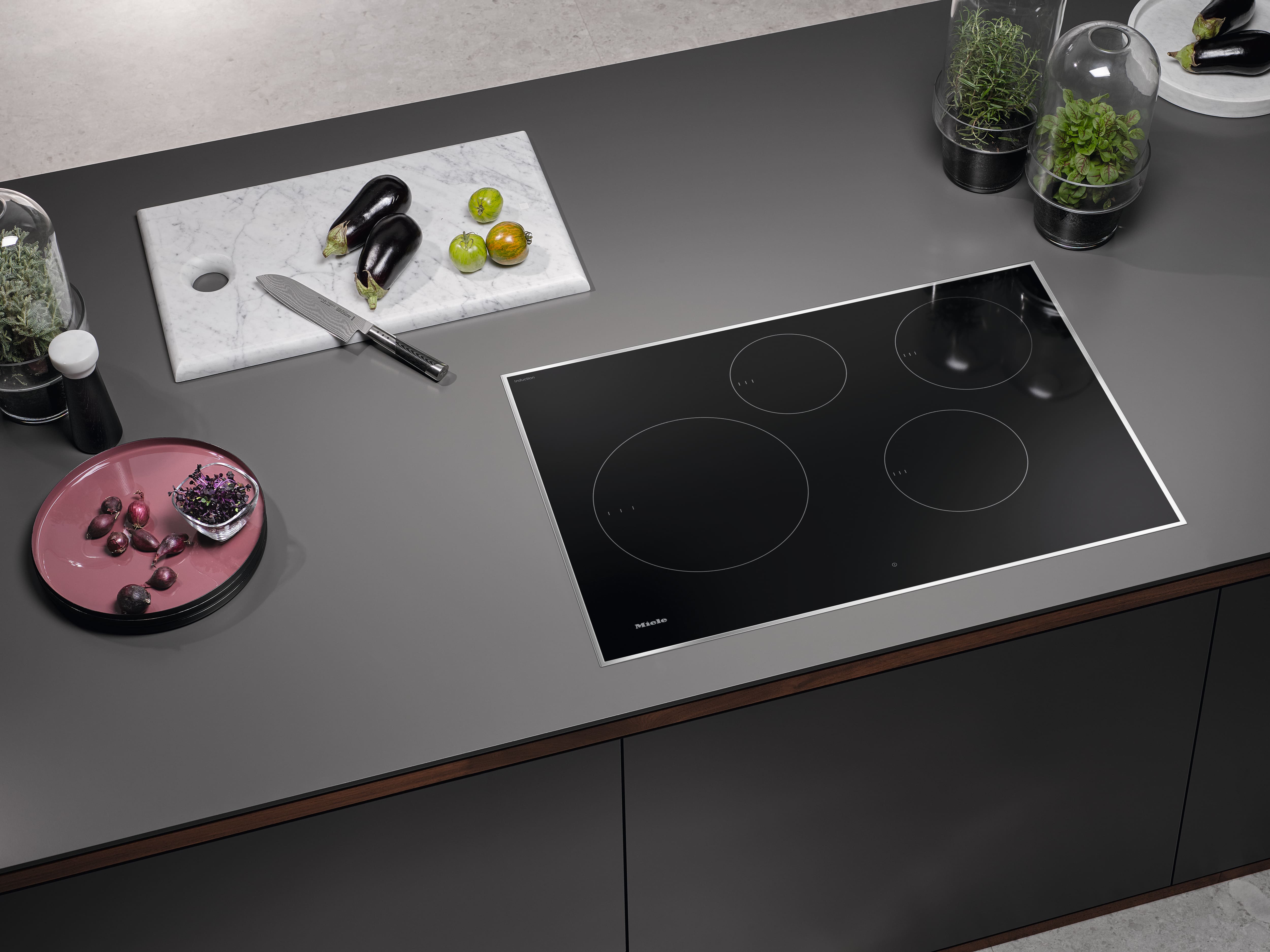

  • Miele - KM 7730 FR – Cooktops - 3

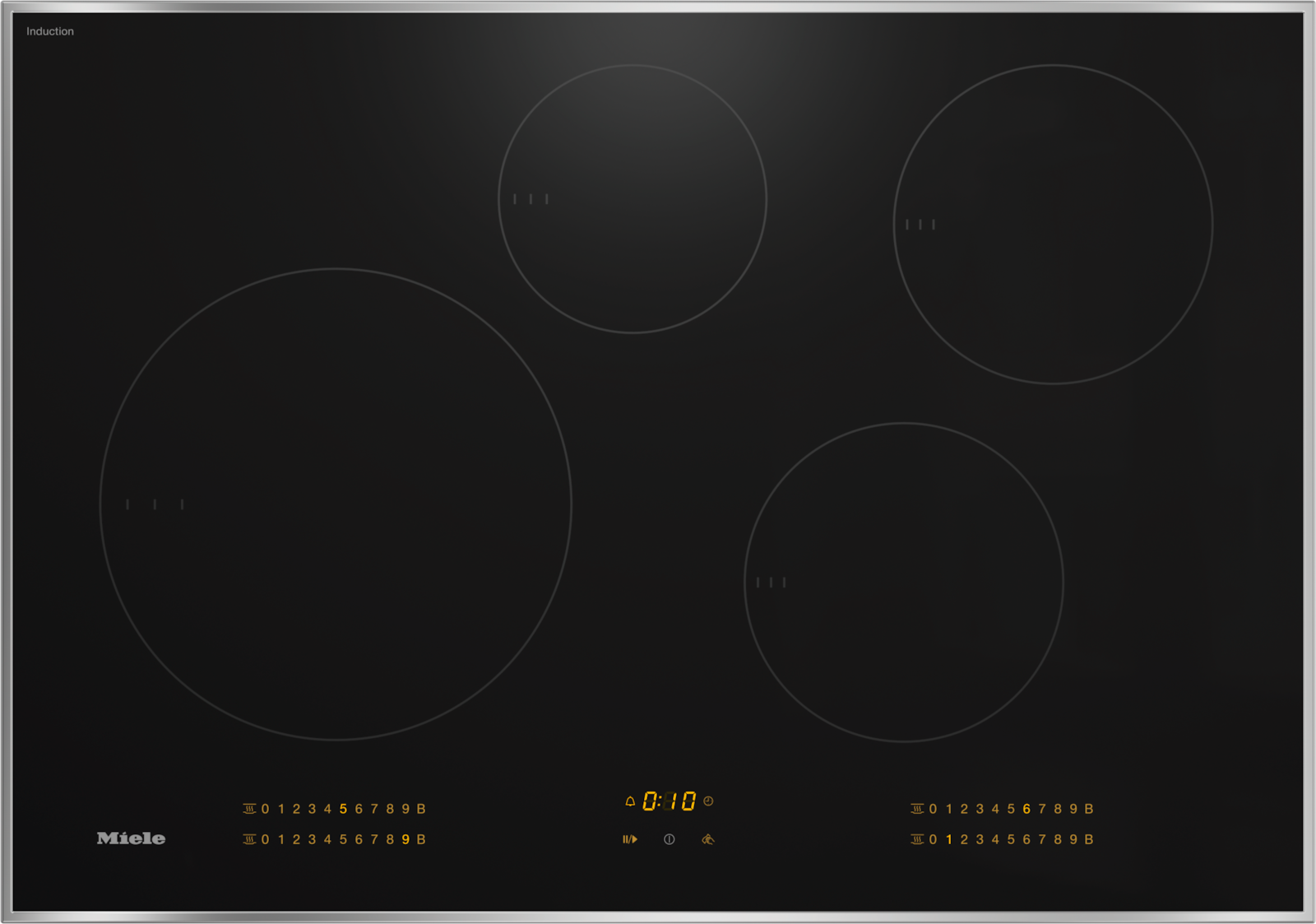

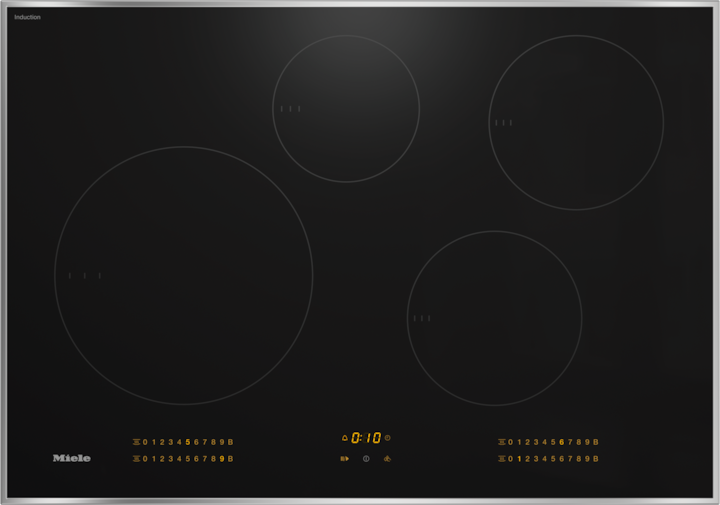

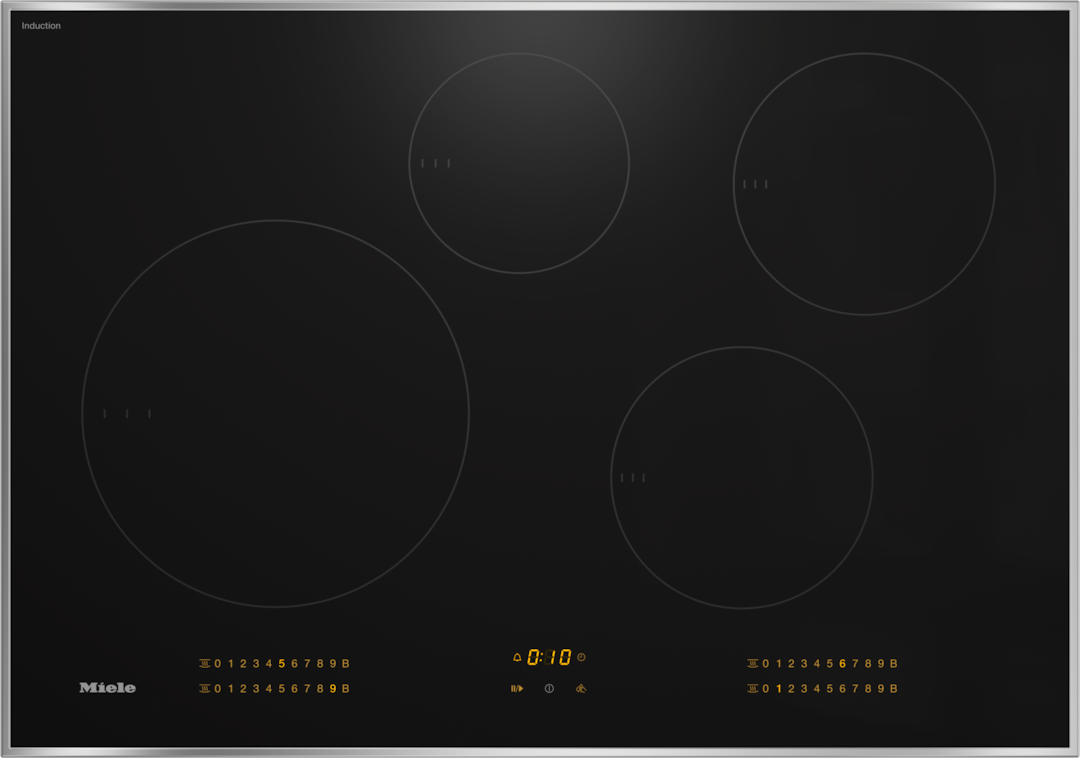

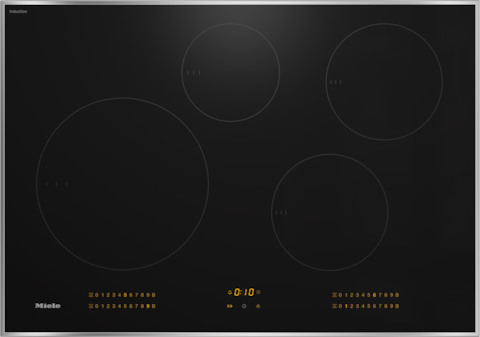

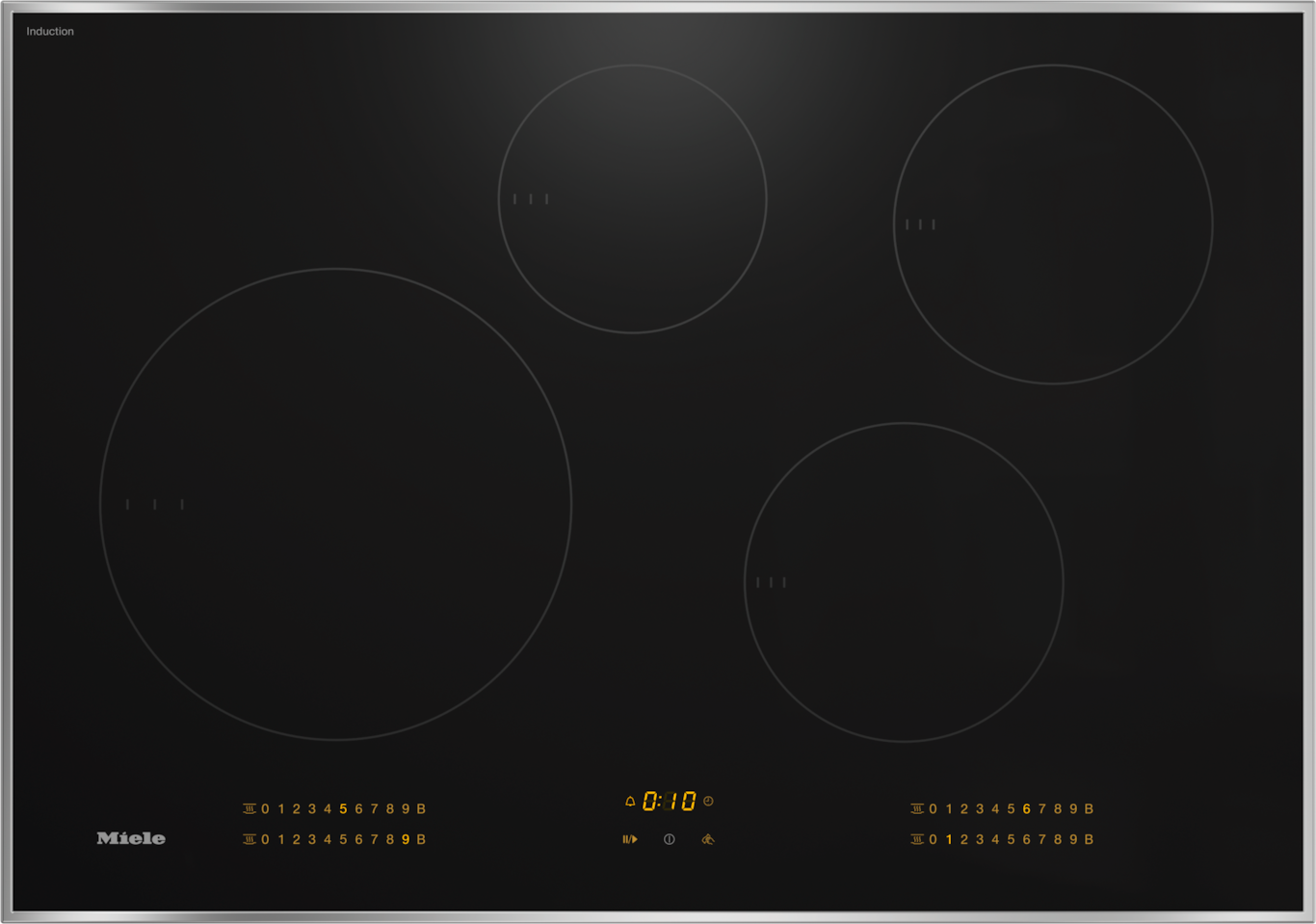

30-inch induction cooktop, operated with its own controlsSilver

KM 7730 FR

30-inch | 4 individual cooking zones
sale price$2,799.00


Product details

  • Intuitive quick selection via number sequences –
    Smart Select
  • Versatile - 4 cooking zones, 1 extra large with diameter of 11 in
  • With a width of 30 5/8 (775) in (mm) and stainless steel frame for proud-mounting
  • Shortest heating-up times - TwinBooster
  • Communication with the ventilation hood – automatic
    Con@ctivity
    function
  • View manufacturer details:
  • Safety information

Product data sheet

Model number
KM 7730 FR
Manufacturer material number
12074200
EAN number
4002516611493
Marketing class
Silver
Fuel type
Induction
Independent of oven
Elegant glass ceramic surface
Ceramic surface color
Black
All-round stainless-steel frame
Proud installation
No. of rings
4
Number of cooking areas
0
Maximum number of pans
4
Position
front left
Type
Variable cooking zone
Size in mm
Ø 180-280
Max. rating in W
2600
Max. booster rating in W
3000
Max. TwinBooster rating in W
3700
Position
rear left
Type
Variable cooking zone
Size in mm
Ø 100-160
Max. rating in W
1400
Max. booster rating in W
1700
Max. TwinBooster rating in W
2200
Position
rear right
Type
Variable cooking zone
Size in mm
Ø 140-190
Max. rating in W
1850
Max. booster rating in W
2500
Max. TwinBooster rating in W
3000
Position
front right
Type
Variable cooking zone
Size in mm
Ø 140-190
Max. rating in W
1850
Max. booster rating in W
2500
Max. TwinBooster rating in W
3000
Networking with Miele@home
Automatic function
Con@ctivity 3.0
Operation via touchpad sensors
SmartSelect
Display color
Yellow
Pan/Pan-size sensors
Permanent pan recognition
Stop & Go function
Wipe protection
Recall function
Minute minder
AutoBoost
Keep-warm function
Individual setting options (e.g. acoustic signal tones)
Recipes
Push notifications
Smart Home Integration
Easy to clean ceramic glass
Safety cut-out
Lock function
System lock
Integrated cooling blower
Overheating protection
Residual heat indicator
Dimensions (H x W x D) in mm
3 1/8 (78) x 30 5/8 (775) x 21 1/2 (544)
Width in in. (mm)
30 5/8 (775)
Height in in. (mm)
3 1/8 (78)
Depth in in. (mm)
21 1/2 (544)
Cut-out dimensions (W x D) with surface-mounted installation in inches (mm)
28 5/8 in (724 mm) x 20 1/2 in (518 mm)
Built-in height with mains connection box in in. (mm)
2 7/8 (71)
Cutout dimensions width in in. (mm) with proud-mounted installation
28 5/8 in (724 mm)
Cutout dimensions depth in in. (mm) with proud-mounted installation
20 1/2 in (518 mm)
Weight in lbs. (kg)
37 (17)
Total connected load in kW
6.600 - 7.600
Voltage in V
208 - 240
Frequency in Hz
50 - 60
Power cord length in ft. (m)
3 (1.2)
Connection wire
EAN
4002516611493

What's included

Connection wire
  • *This is a separate digital offer from Miele & Cie. KG. The range of functions can vary depending on the model and the country. Acceptance of the Terms and Conditions and Privacy Policy for Miele digital products and services in the Miele app required. Miele reserves the right to change or discontinue the digital offer at any time.
  • Smart controls
    Smart controls

    Con@ctivity 3.0

    Innovative convenience: The ventilation hood reacts automatically to settings on the cooktop.

  • Cleverly networked
    Cleverly networked

    Domestic appliance networking with Miele@home1,

    Make your life smart: Thanks to Miele@home, you can cleverly network your domestic appliances – for more options.

User convenience

Cleverly networked
Cleverly networked

Domestic appliance networking with Miele@home1,

Make your life smart: Thanks to Miele@home, you can cleverly network your domestic appliances – for more options.

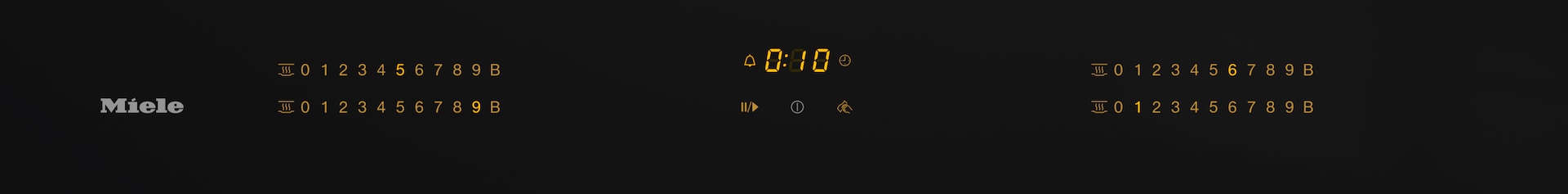

Operate your cooktop simply and intuitively
Operate your cooktop simply and intuitively

SmartSelect

Thanks to the intuitive controls, you can quickly and easily select power levels and individual timers.

Safety

For greater safety and security
For greater safety and security

Safety functions

The safety functions protect you from any nasty surprises – even if your mind is on other things.

Setup/function

Smart controls
Smart controls

Con@ctivity 3.0

Innovative convenience: The ventilation hood reacts automatically to settings on the cooktop.
Heats up particularly quickly thanks to Booster
Heats up particularly quickly thanks to Booster

TwinBooster

Distribute the induction power across several cooking zones or concentrate the power on one cooking zone.
For greater convenience
For greater convenience

Convenient additional functions

A variety of additional functions such as Stop & Go and timers make your work in the kitchen so much easier.
Just position your pot and start to cook
Just position your pot and start to cook

Permanent pan recognition

Automatic activation of control elements: Pans already in position are recognized when the cooktop is switched on.

Smart Extras

  • Inspiration for every taste
    Inspiration for every taste

    Recipes1,

    Discover a wide range of digital recipe ideas and get started right away.

  • Everything at a glance with smart notifications
    Everything at a glance with smart notifications

    Push notifications1,

    Receive relevant information directly on your smartphone or tablet.

  • Seamless networking throughout your home
    Seamless networking throughout your home

    Smart Home Integration1,

    Intelligent integration of Miele appliances into a Smart Home system.

Downloads

Operating and Installation instructions
PDF
Download
Product sheet
PDF
Download
Warranty conditions
PDF
Download
dwg
ZIP
Download
fbx
ZIP
Download
ifc
ZIP
Download
rfa
ZIP
Download
rvt
ZIP
Download

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts.

https://media.miele.com/dam/cb5d0b50-c7b3-479f-88c9-b3bb0072906f/20000214530_HighresDigitalRGB.png
Descriptions

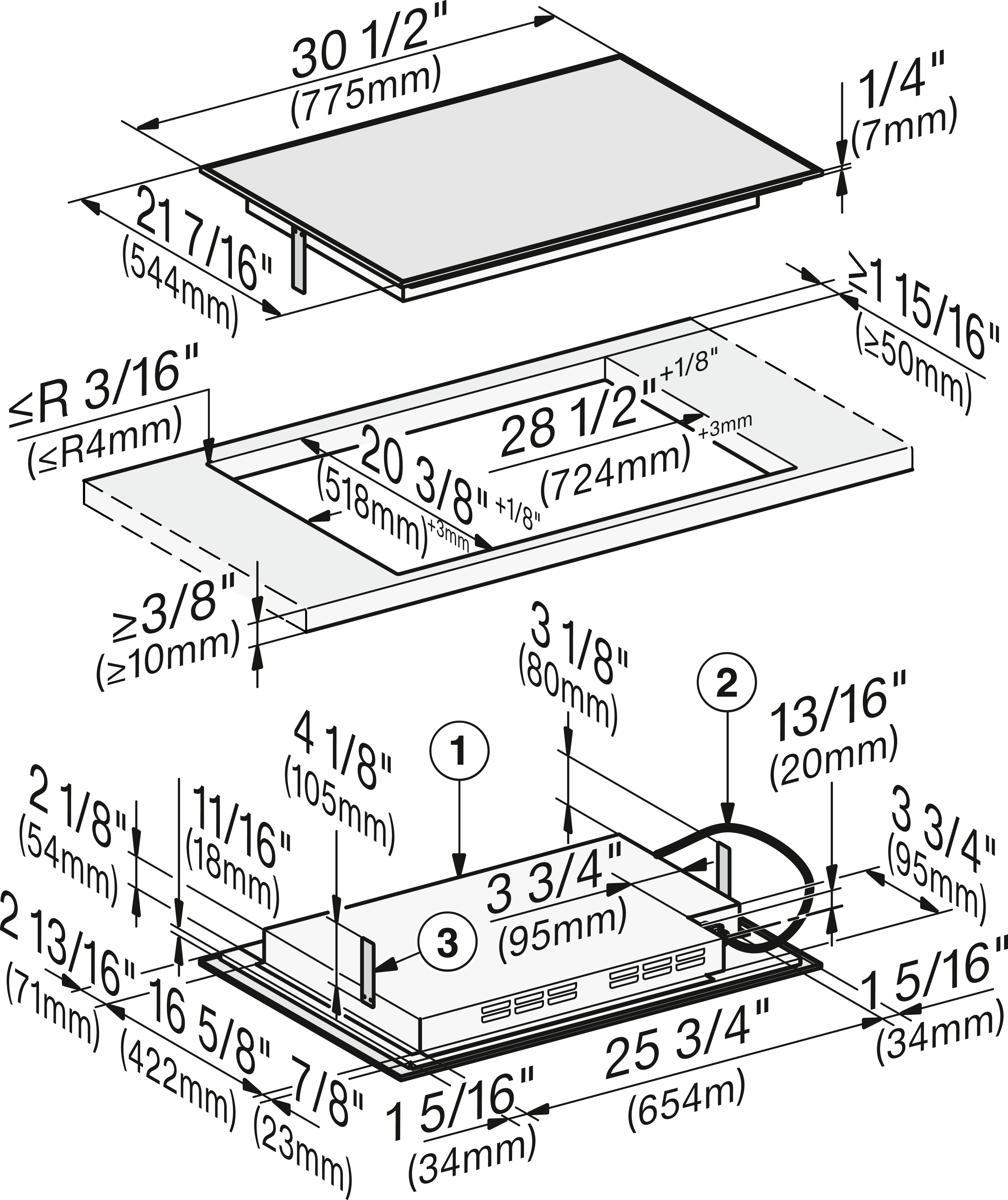

KM7730FR - with frame, surface mounted overlying installation (*footnote) - drawing
① Front, ② Flexible metal hose with power cords, L =4' (1,200 mm), ③ Spacer plate (only required if a protective base is installed)
