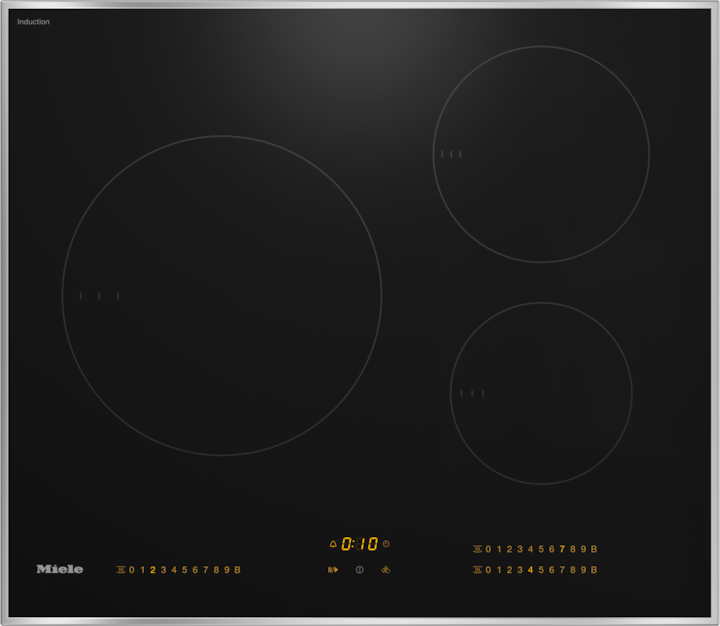

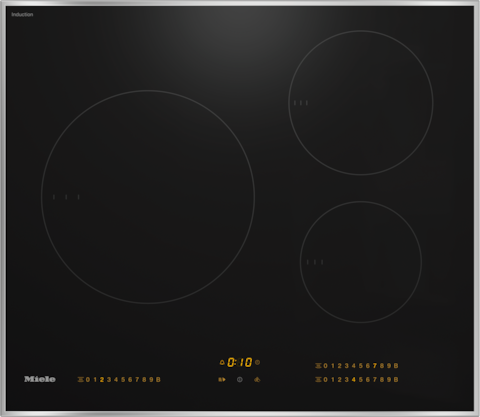

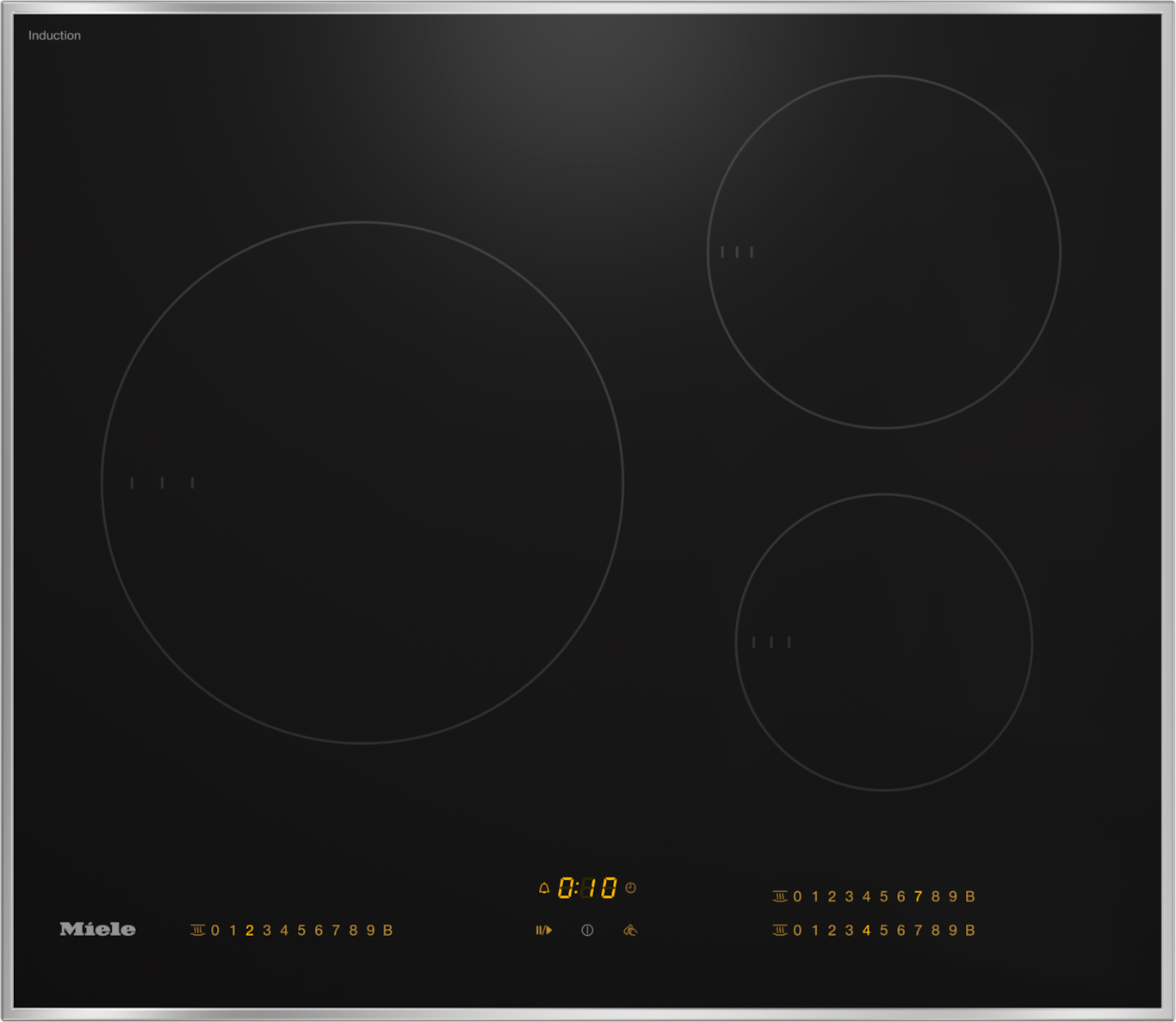

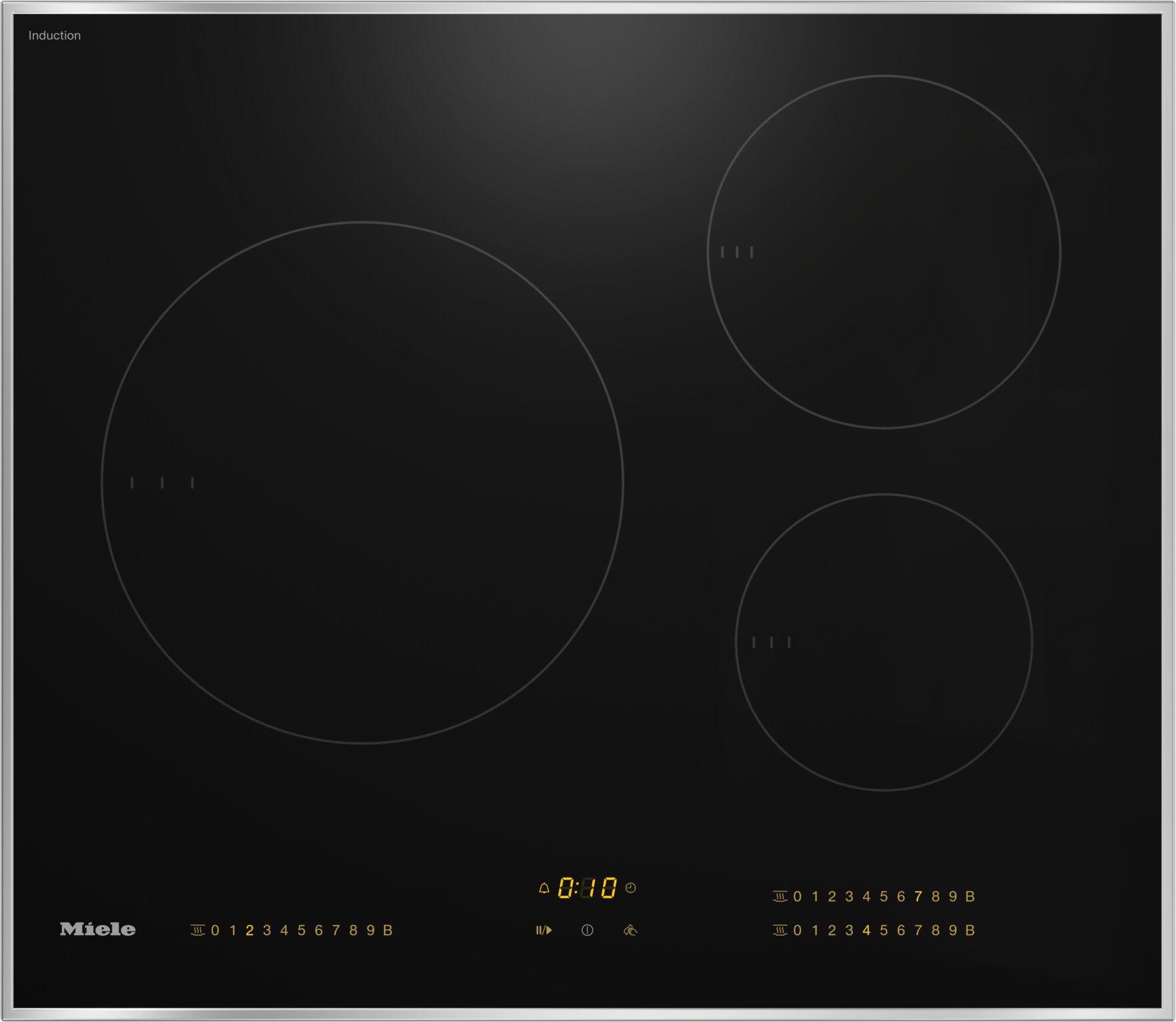

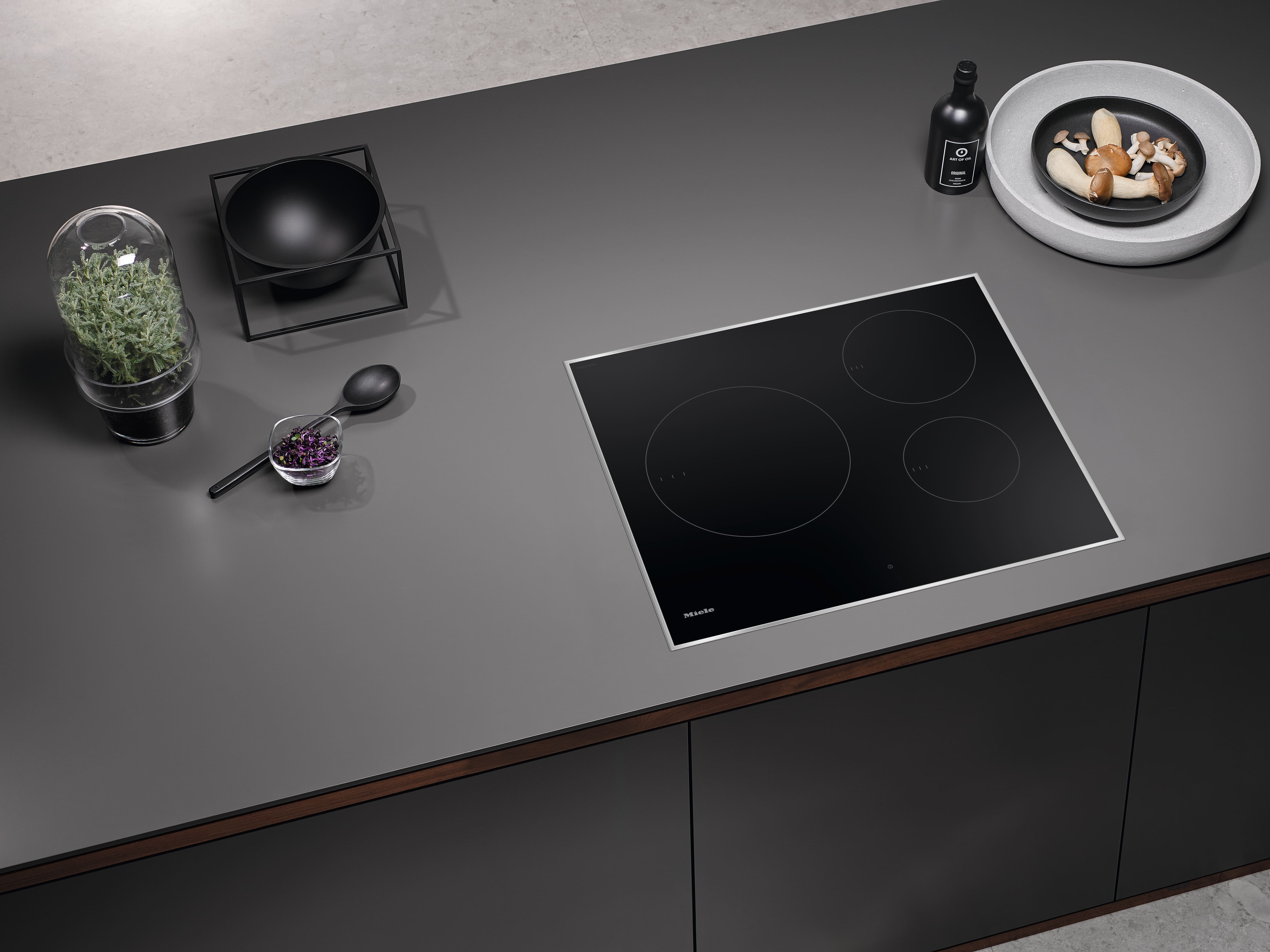

24-inch induction cooktop, operated with its own controls

KM 7720 FR

with 3 round cooking zones
sale price$2,099.00




Product details

  • Intuitive quick selection via number sequences –
    Smart Select
  • Versatile - 3 cooking zones, 1 extra large with diameter of 11 in
  • With a width of 24 3/4 (626) in (mm) and stainless steel frame for proud-mounting
  • Shortest heating-up times - TwinBooster
  • Communication with the ventilation hood – automatic
    Con@ctivity
    function
  • Manufactured with great care by
  • Safety information

Product data sheet

Fuel type Induction
Independent of oven
Elegant glass ceramic surface
Ceramic surface color Black
All-round stainless-steel frame
Proud installation
Proud/flush-mounted –/–
No. of rings 3
Number of cooking areas 0
Number of cooking zones/cooking areas –/–
Maximum number of pans 3
Position left center
Type Variable cooking zone
Size in mm Ø 180-280
Max. rating in W 2600
Max. booster rating in W 3000
Max. TwinBooster rating in W 3700
Position rear right
Type Variable cooking zone
Size in mm Ø 140-200
Max. rating in W 1850
Max. booster rating in W 2500
Max. TwinBooster rating in W 3000
Position front right
Type Variable cooking zone
Size in mm Ø 100-160
Max. rating in W 1400
Max. booster rating in W 1700
Max. TwinBooster rating in W 2200
Networking with Miele@home
Automatic function Con@ctivity 3.0

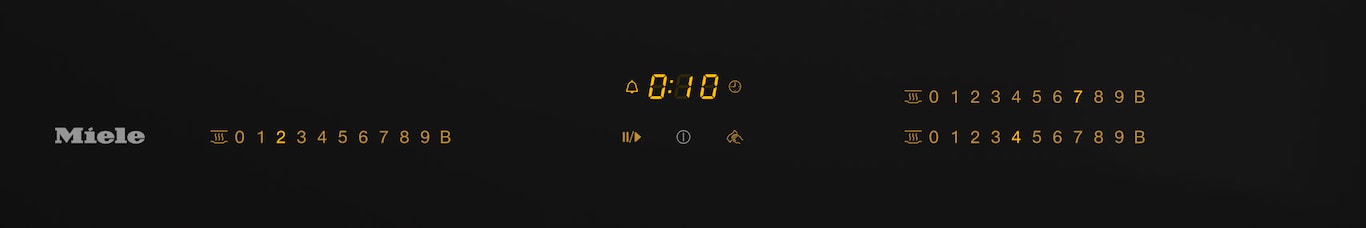

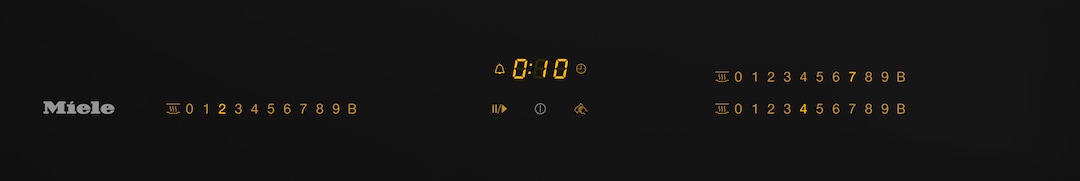

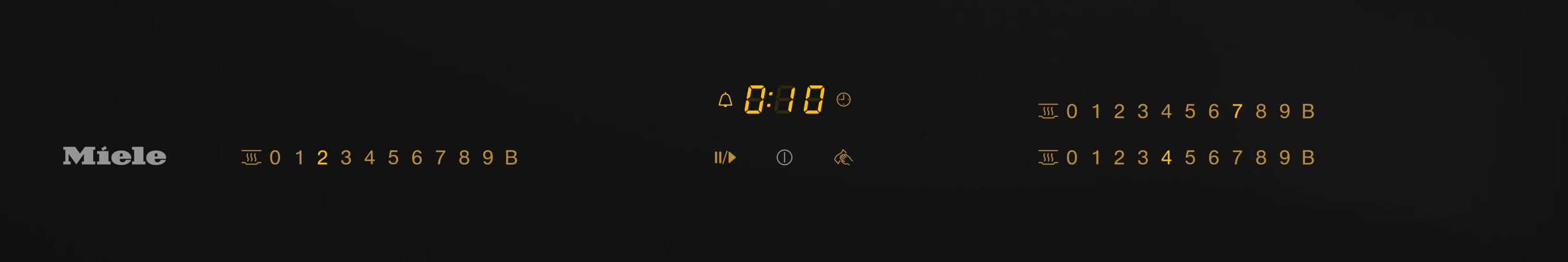

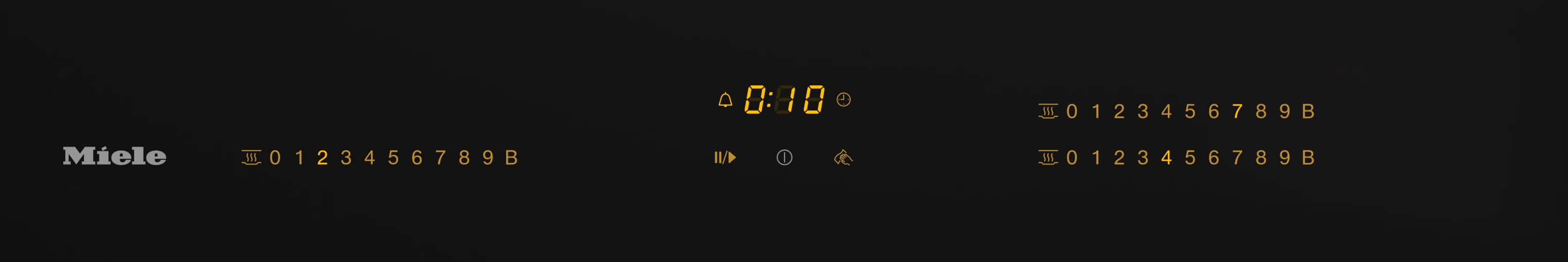

Operation via touchpad sensors Smart Select
Display color Yellow
Permanent pan recognition
Pan/Pan-size sensors
Stop & Go function
Wipe protection
Recall function
Minute minder
Automatic switch-off for all rings
AutoBoost
Keep-warm function
Individual setting options (e.g. acoustic signal tones)
Easy to clean ceramic glass
Safety cut-out
Lock function
System lock
Integrated cooling blower
Overheating protection
Residual heat indicator
Dimensions (H x W x D) in mm 3 1/8 (78) x 24 3/4 (626) x 21 1/2 (544)
Width in in. (mm) 24 3/4 (626)
Height in in. (mm) 3 1/8 (78)
Depth in in. (mm) 21 1/2 (544)
Cut-out dimensions (W x D) with surface-mounted installation in inches (mm) 22 3/8 in (567 mm) x 20 1/2 in (518 mm)
Built-in height with mains connection box in in. (mm) 2 7/8 (71)
Cutout dimensions width in in. (mm) with proud-mounted installation 22 3/8 in (567 mm)
Cutout dimensions depth in in. (mm) with proud-mounted installation 20 1/2 in (518 mm)
Weight in lbs. (kg) 30 (14)
Total connected load in kW 6.600-7.600
Voltage in V 208-240
Frequency in Hz 50-60
Power cord length in ft. (m) 3 (1.2)
Connection wire
EAN 4002516611547

What's included

Connection wire
Smart controls
Con@ctivity 3.0

Innovative convenience: The ventilation hood reacts automatically to settings on the cooktop.

User convenience

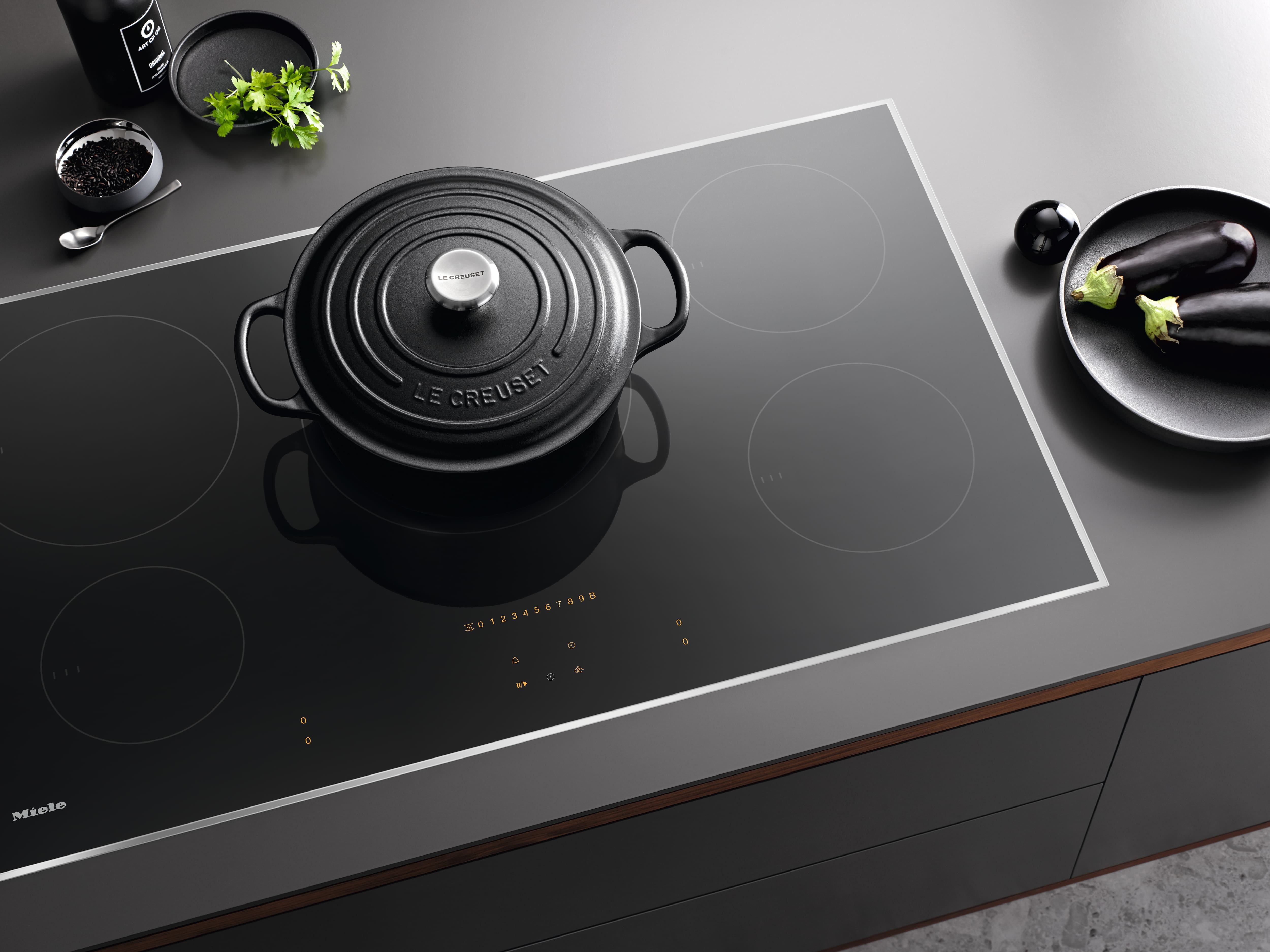

Simple operation with SmartSelect
SmartSelect

Quick and intuitive: power levels and times can be selected separately for each cooking zone.

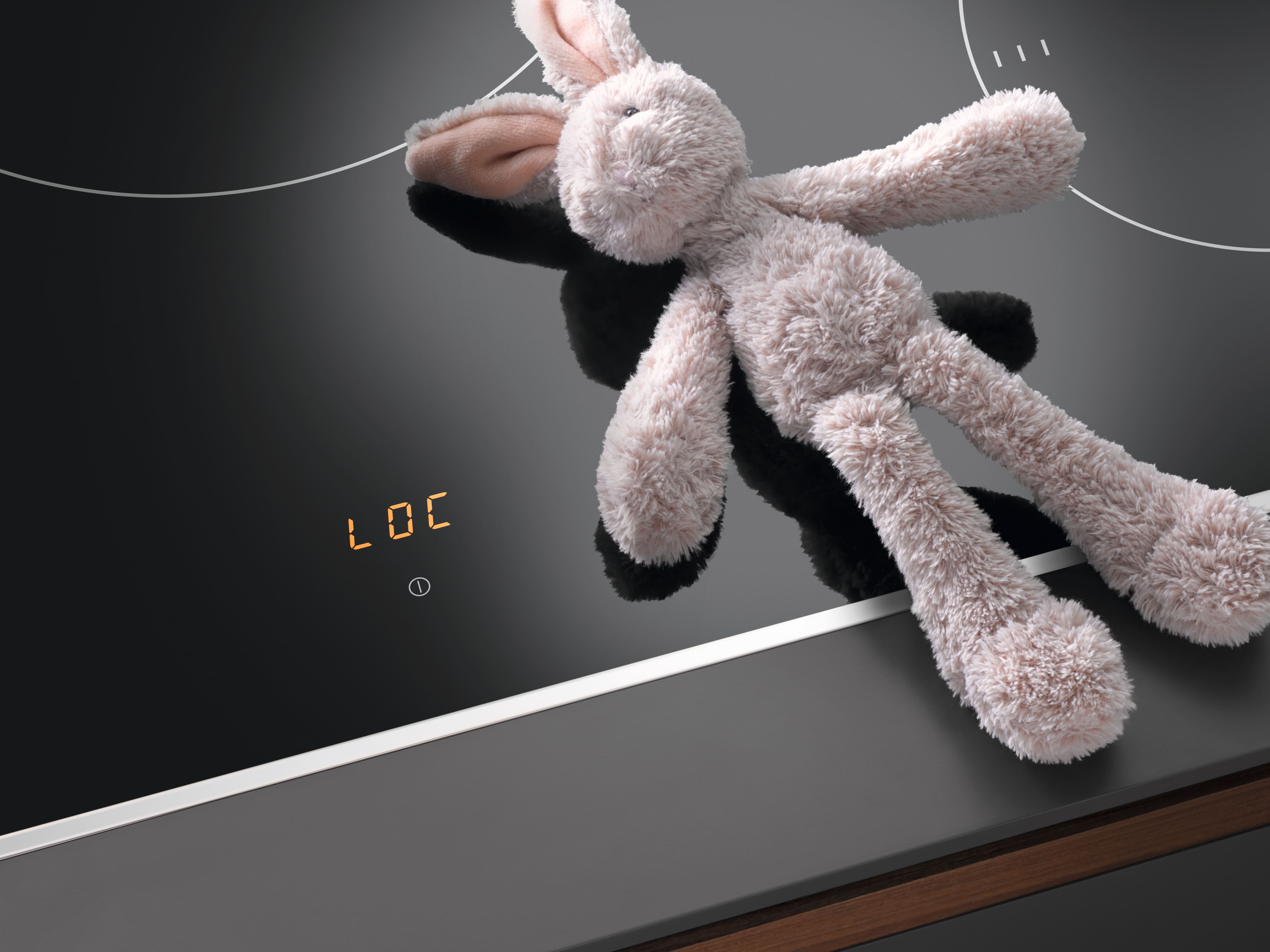

Safety

For greater safety and security
Safety functions

The safety functions protect you from any nasty surprises – even if your mind is on other things.

Setup/function

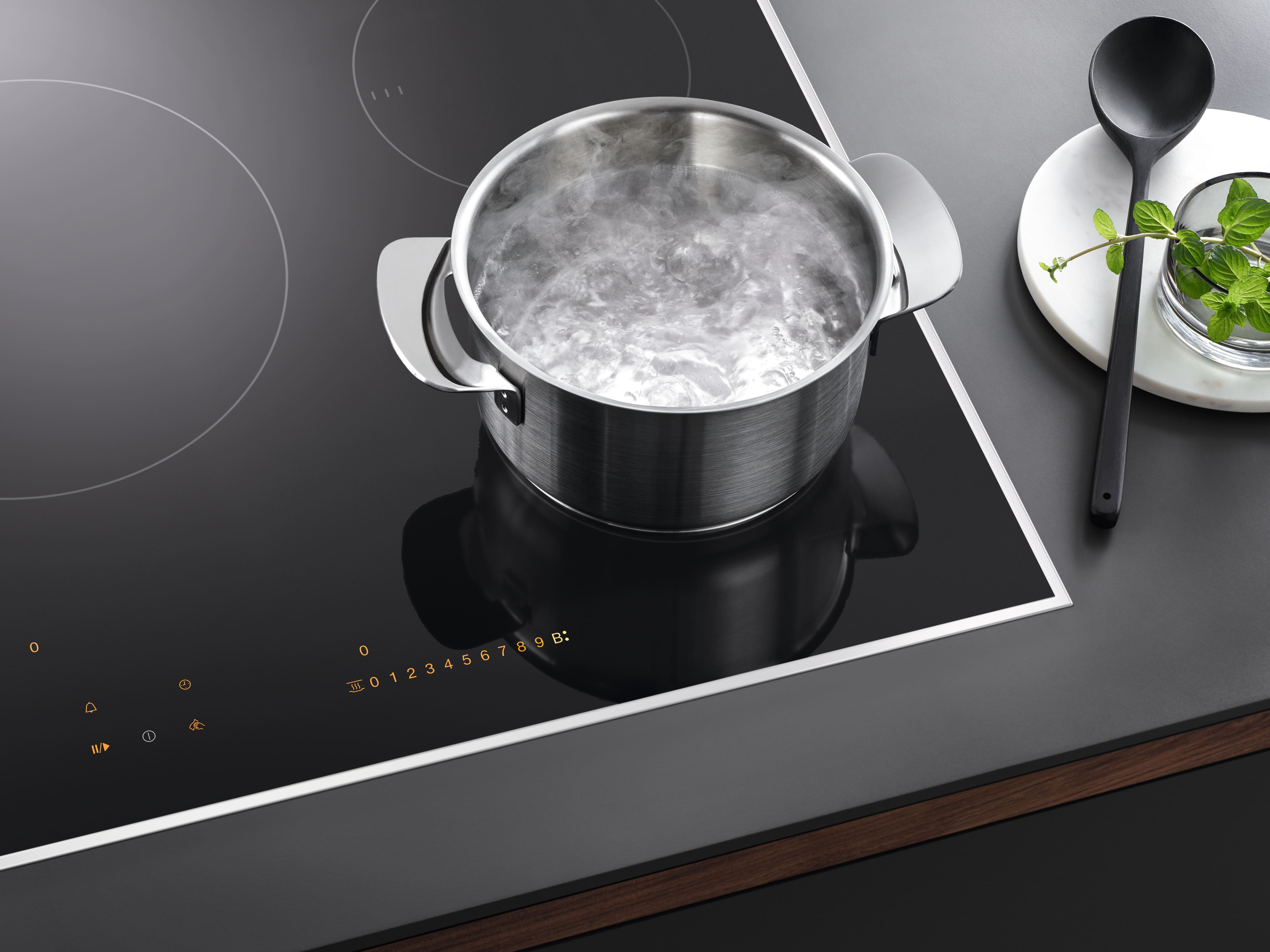

Booster function for rapid heat
TwinBooster

Flexible power: Induction output can be individually distributed or used for one single zone.

Smart controls
Con@ctivity 3.0

Innovative convenience: The ventilation hood reacts automatically to settings on the cooktop.

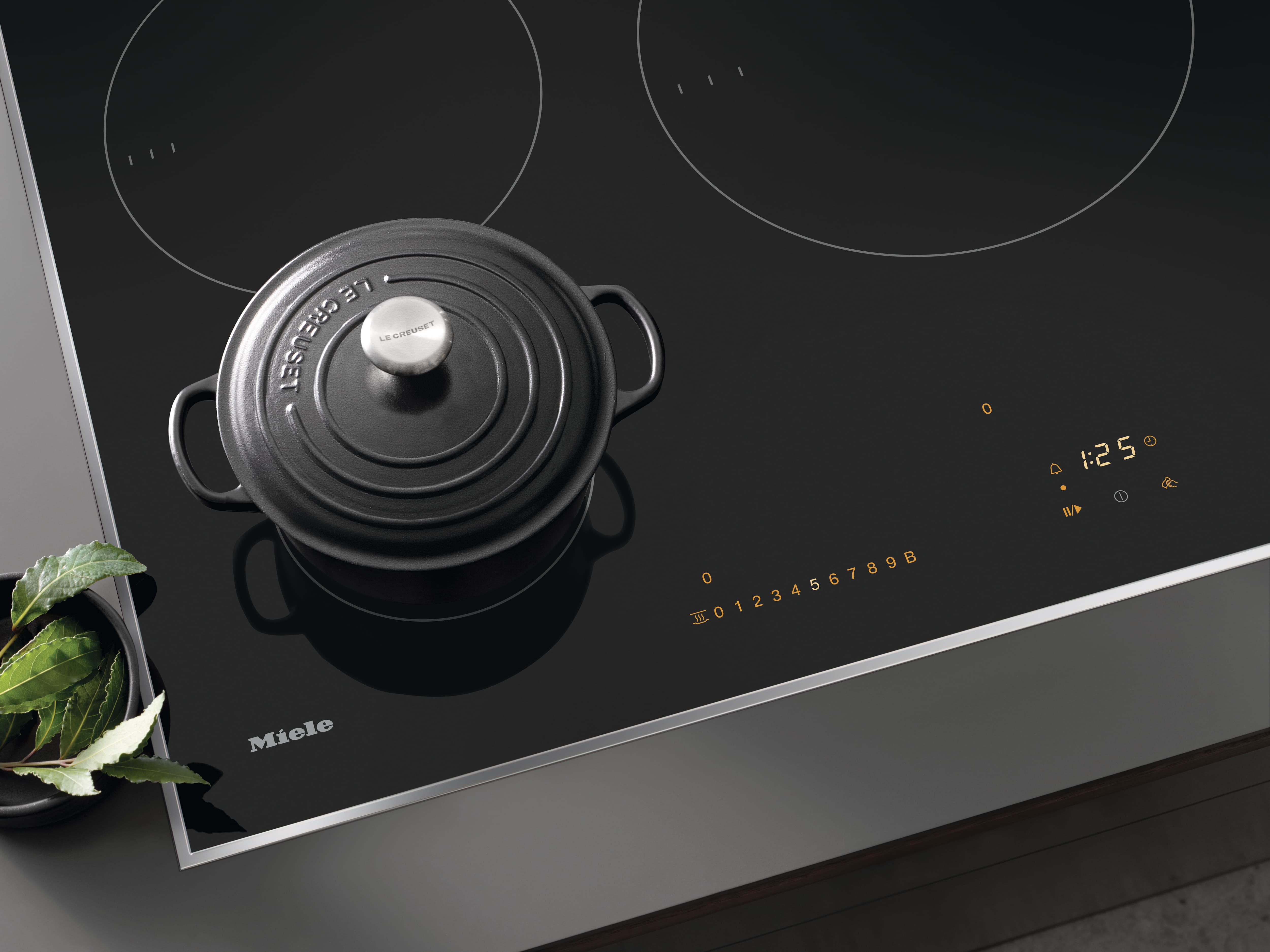

For greater convenience
Convenient additional functions

A variety of additional functions such as Stop & Go and timers make your work in the kitchen so much easier.

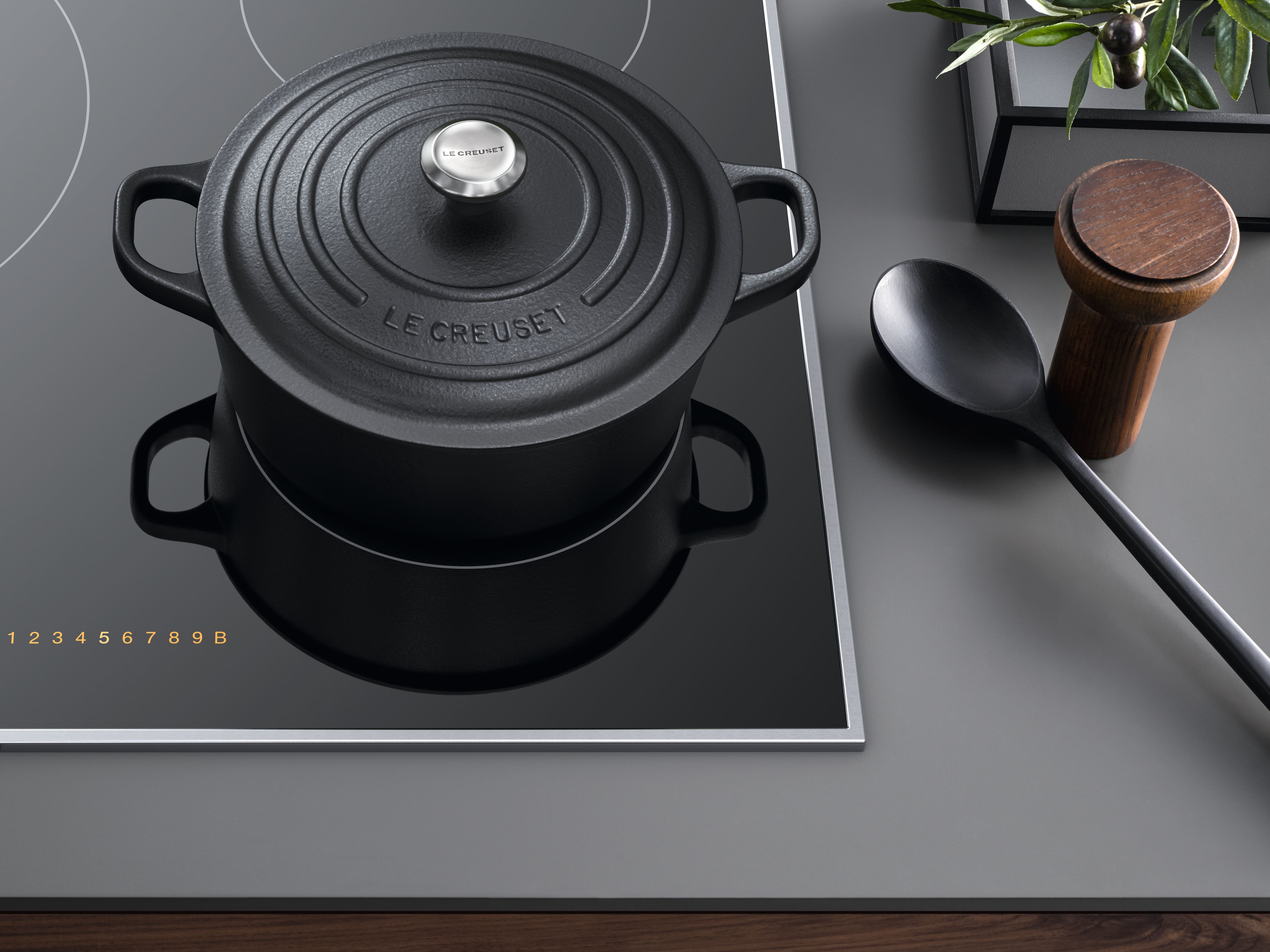

Just position your pot and start to cook
Permanent pan recognition

Automatic activation of control elements: Pans already in position are recognized when the cooktop is switched on.

Matching products and accessories

Fiskars “All Steel” starter pan set (4 pieces)
KMTS 5704-2

Fiskars “All Steel” starter pan set (4 pieces)

stainless-steel cookware with a matte brushed finish exclusively for Miele.

$529.00
Gourmet griddle plate

Gourmet griddle plate

for a unique grill experience on Miele induction cooktops.

$273.90
Induction gourmet casserole dish
HUB 62-22

Induction gourmet casserole dish

For frying, braising and gratinating.

$273.90
Pan set (4-piece)

Pan set (4-piece)

made of robust and high-quality stainless steel, lid with side steam outlet.

$799.00
Cer. and stainless cleaner 8.5 fl oz.
GP CL KM 0252 L

Cer. and stainless cleaner 8.5 fl oz.

For best cleaning results and safe use.

$15.99
Scraper for cleaning
GP GS KM 0011 M

Scraper for cleaning

For ceramic glass Cooktops.

$19.80
MicroCloth kit, 3 pieces
GP MI S 0031 W

MicroCloth kit, 3 pieces

For best cleaning results and safe use.

$17.59
 MicroCloth HyClean, 1 cloth
GP MI H 0011 W

 MicroCloth HyClean, 1 cloth

 Antibacterial multi-purpose cloth for improved hygiene.

$13.19
Replacement blades, 10 pieces
GP GSB KM 0101 M

Replacement blades, 10 pieces

For cleaning scraper.

$12.94

Downloads

Operating and Installation instructions
PDF
Downloads
Product sheet
PDF
Downloads
Warranty conditions
PDF
Downloads
rvt
ZIP
Downloads
rfa
ZIP
Downloads
fbx
ZIP
Downloads
dwg
ZIP
Downloads
ifc
ZIP
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts.

https://media.miele.com/images/2000021/200002145/20000214528.png
Descriptions
KM7720FR - with frame, surface mounted overlying installation (*footnote)  - drawing
① Front, ② Flexible metal hose with power cords, L = 4' (1,200) mm,
