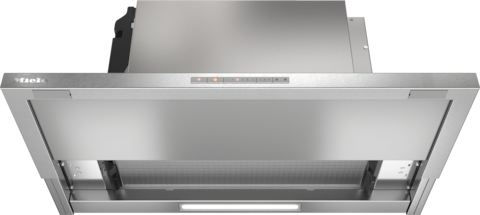

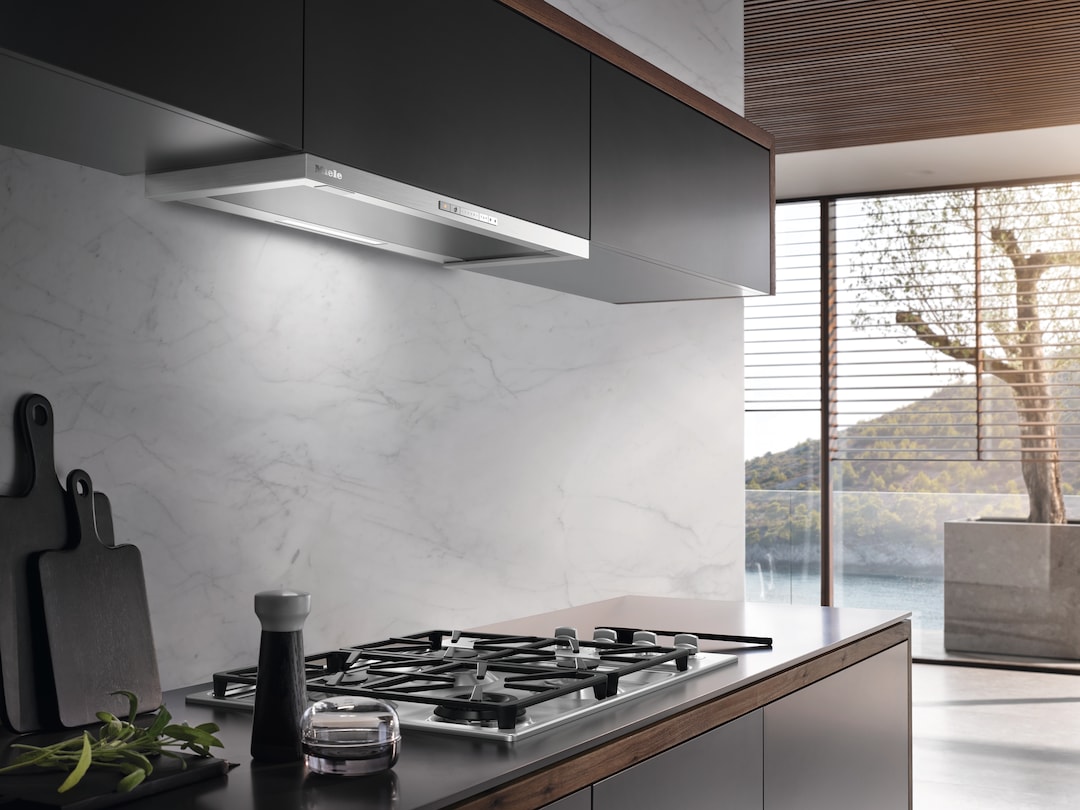

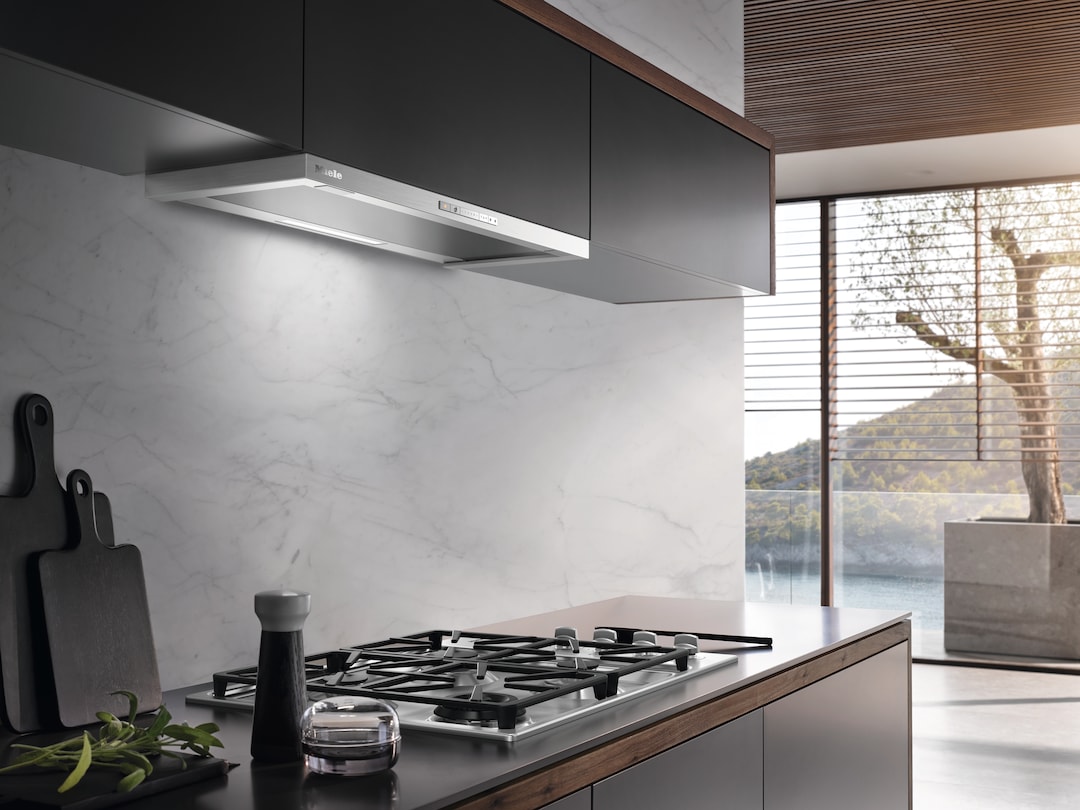

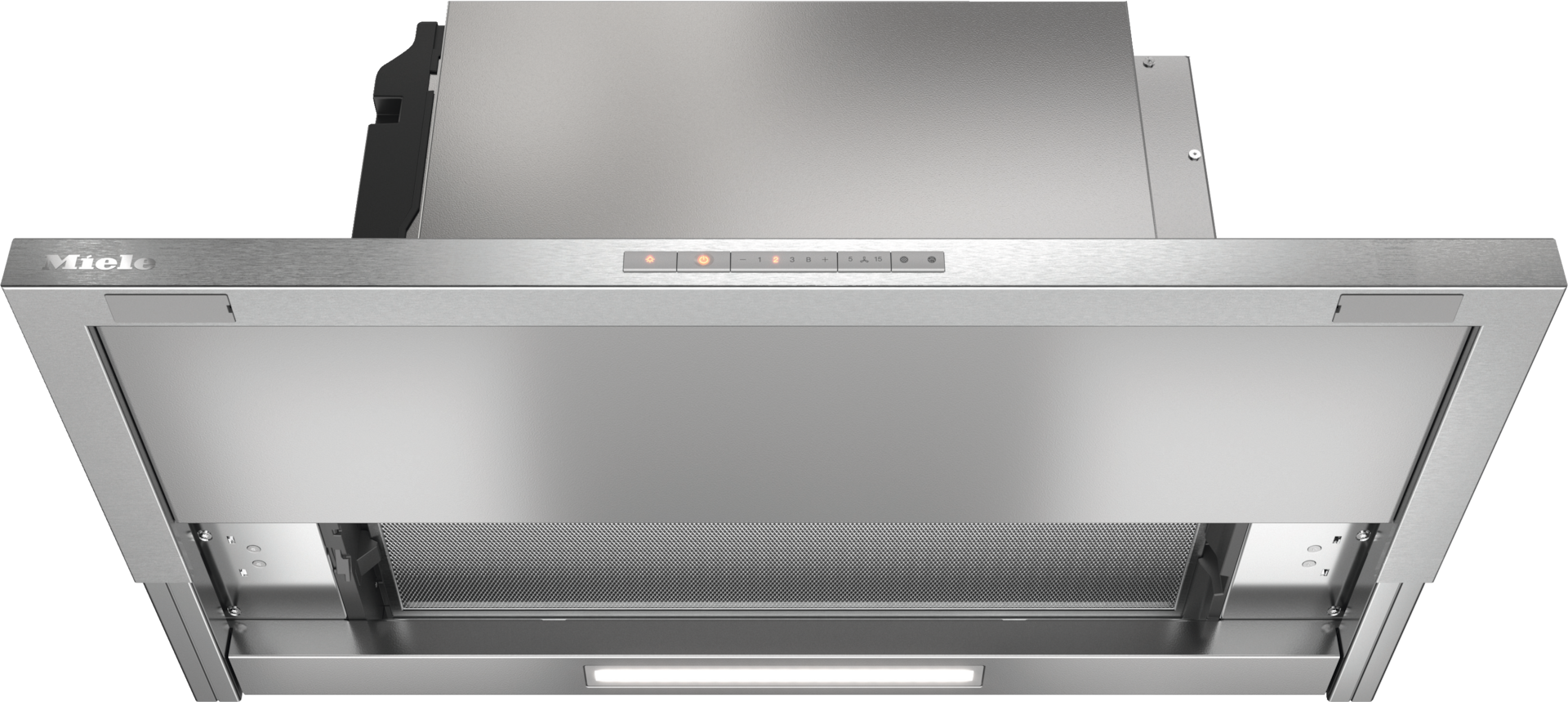

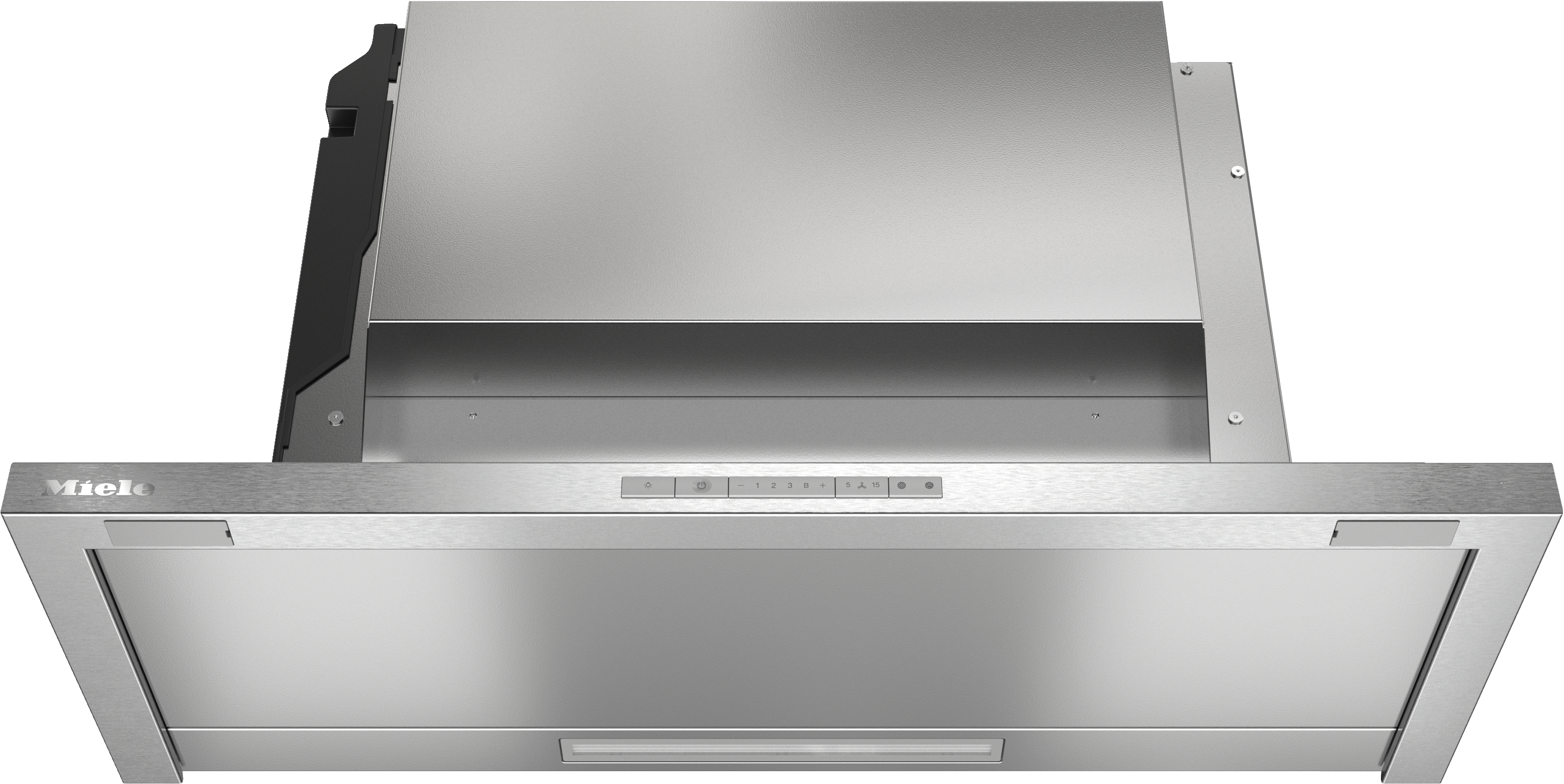

  • Miele - DAS 4720 Stainless steel – Ventilation Hoods - 1
  • Miele - DAS 4720 Stainless steel – Ventilation Hoods - 2

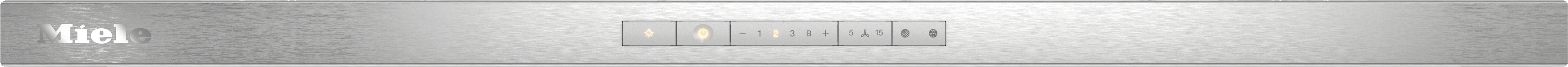

  • Miele - DAS 4720 Stainless steel – Ventilation Hoods - 3

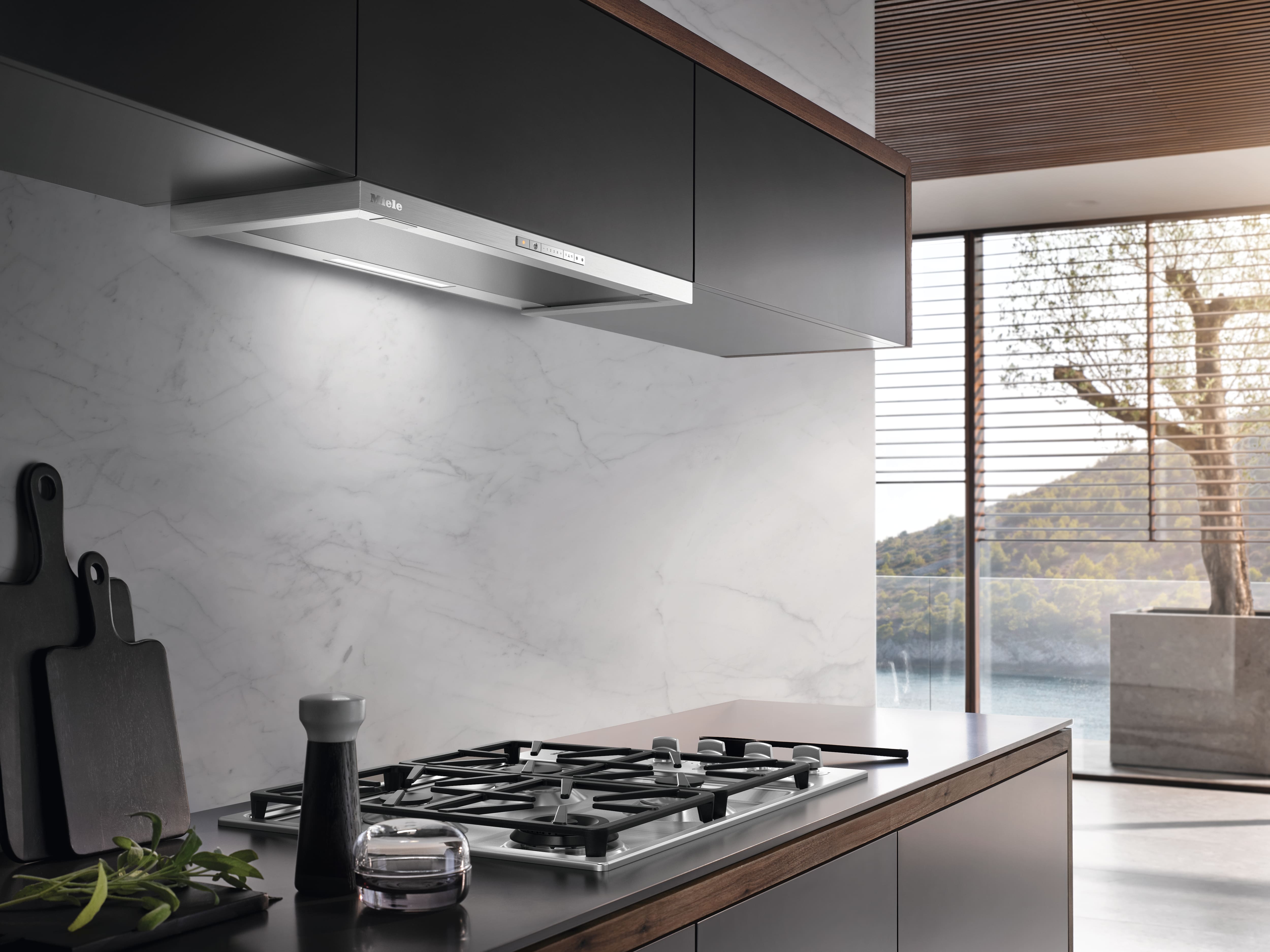

  • Miele - DAS 4720 Stainless steel – Ventilation Hoods - 4

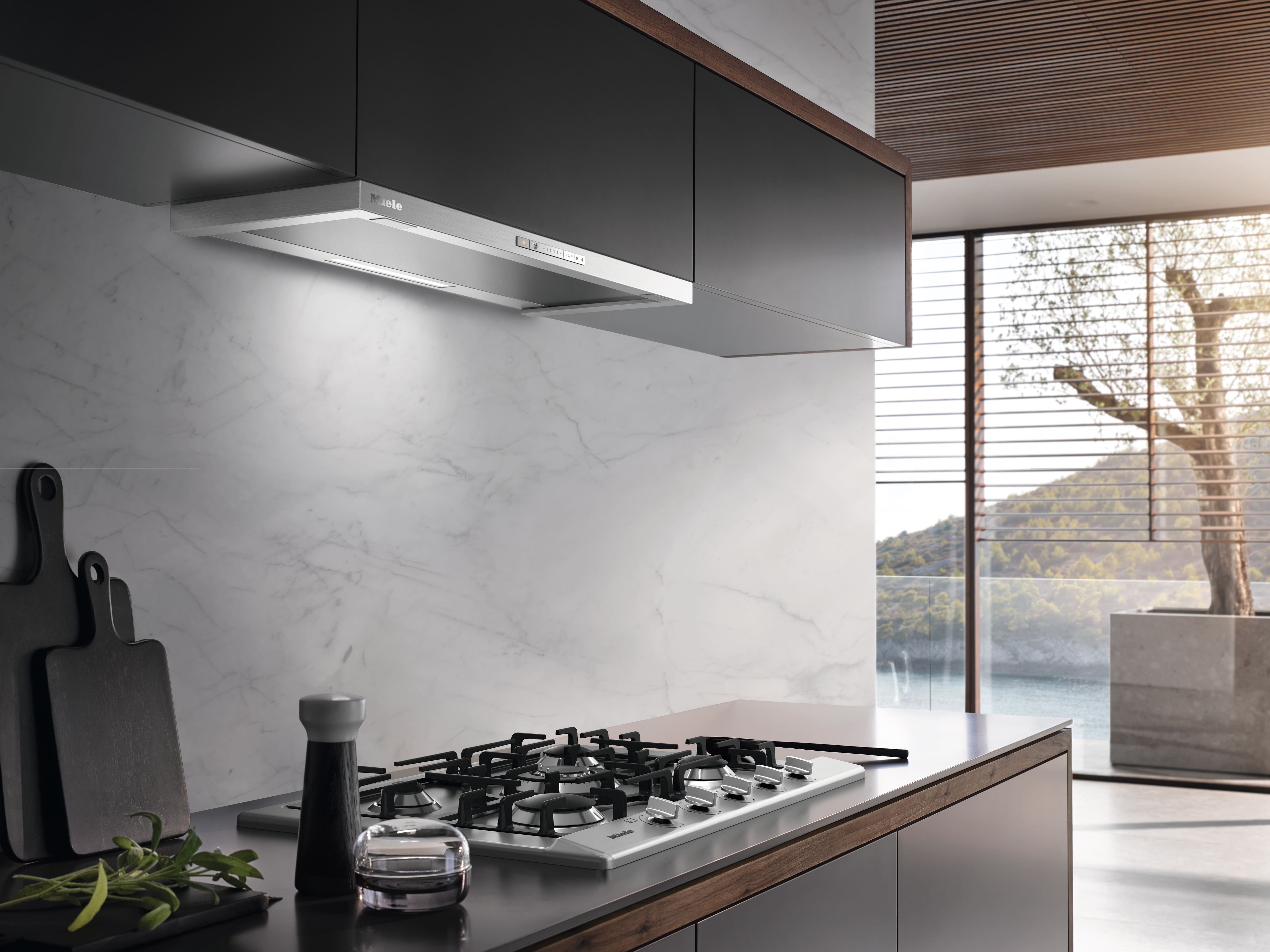

  • Miele - DAS 4720 Stainless steel – Ventilation Hoods - 5
Built-in ventilation hoodGOLD

DAS 4720 Stainless steel

for installation in narrow upper cabinets with EasySwitch controls
Color:Stainless steel
sale price$1,699.00


Product details

  • Classic design – stainless-steel panel, 30" wide
  • Unique user convenience –
    Con@ctivity
  • LED strip for uniform lighting
  • Efficient filtration-
    10-ply stainless steel grease filters
  • Recirculation mode –
    Active AirClean or Longlife AirClean filter
  • View manufacturer details:
  • Safety information

Product data sheet

Model number DAS 4720
Manufacturer material number 11878520
EAN number 4002516495925
Marketing class
Gold
Built-in ventilation hood
Recirculated mode Can be retrofitted
Recirculation conversion kit (order separately) DUU 151,DUU 150
OdorFree charcoal filter (order separately) [ "DKFS 31-R", "DKFS 31-900 P" ]
Color Stainless steel
Miele@home
Automatic function Con@ctivity 3.0
Con@ctivity Yes
Electronic controls
EasySwitch
Operation EasySwitch
Booster levels 1
Delayed shutdown for 5 or 15 minutes
Grease filter saturation indicator
Active charcoal filter saturation indicator
CleanCover
Easy-to-clean canopy interior – CleanCover
Number of dishwasher-safe stainless steel grease filters (10-ply) 1
Number x W 1 x 3 W
Light intensity in Lx 330 lx
Color temperature in K 3500 Kelvin
Light dimmer function
Dual-action blower
Air throughput in CFM in Booster 498
Air throughput with Booster level 1 (m³/h) according to EN 61591 497.35 (845)
Safety shut-off
Canopy dimensions (W x H x D) in mm 29 7/8 (758) x 1 3/8 (36) x 10 3/4 (273)
Canopy width in in. (mm) 29 7/8 (758)
Canopy height in in. (mm) 1 3/8 (36)
Depth of hood canopy in in. (mm) 10 3/4 (273)
Minimum height above electric cooktops in mm 24 (610)
Minimum safety distance above gas cooktops (max. 12.6 kW total power, burner ≤ 4.5 kW) in mm 26 (660)
Net weight in lbs. (kg) 36 (16.0)
Length of electrical wire in ft. (m) 2 (0.8)
Standard plug fitted
Plug type NEMA plug: 5–15
Total connected load in kW 0.353
Voltage in V 120
Fuse rating in A 15
Frequency in Hz 60
Number of phases 1
Vent connection at top
Non-return flap
EAN 4002516495925

What's included

Non-return flap
  • Smart controls

    Smart controls

    Con@ctivity 3.0

    Innovative convenience: The ventilation hood reacts automatically to settings on the cooktop.

  • Automatic operation for intelligent blower control

    Automatic operation for intelligent blower control

    Con@ctivity

    Innovative convenience: the ventilation hood reacts automatically to settings on the cooktop.

  • Easy to use and effective against grease

    Easy to use and effective against grease

    Stainless-steel grease filters (10-layer)

    Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.

  • Convenience and safety in detail

    Convenience and safety in detail

    Miele CleanCover

    Protection and easy cleaning: The sealed, smooth surface prevents contact with cables and the motor.

User convenience

Automatic operation for intelligent blower control
Automatic operation for intelligent blower control

Con@ctivity

Innovative convenience: the ventilation hood reacts automatically to settings on the cooktop.
Automatic blower run-on
Automatic blower run-on

Delayed shutdown

Odor-free room air: "after cooking, the blower can be set to switch off automatically after 5 or 15 minutes."
Countdown time conveniently in view
Countdown time conveniently in view

filter saturation indicator

Easy filter replacement: a red light lets you know when the grease and/or charcoal filter is saturated.

Safety

Always on the safe side
Always on the safe side

Safety turn off

Sensible, even in case of operating errors: The ventilation hood switches off automatically after 10 hours.

Setup/function

Smart controls
Smart controls

Con@ctivity 3.0

Innovative convenience: The ventilation hood reacts automatically to settings on the cooktop.

Features

Easy to use and effective against grease
Easy to use and effective against grease

Stainless-steel grease filters (10-layer)

Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.
Convenience and safety in detail
Convenience and safety in detail

Miele CleanCover

Protection and easy cleaning: The sealed, smooth surface prevents contact with cables and the motor.

Matching products and accessories

Recirculation conversion kit for DA 3xxx/2xxx and DAS 2xxx, 4xxx, and 8xxx

Recirculation conversion kit for DA 3xxx/2xxx and DAS 2xxx, 4xxx, and 8xxx

To convert slimline/integrated ventilation hoods from vented to recirculation.

$126.50
Recirculation conversion kit for DA 3xxx/2xxx and DAS 2xxx, 4xxx, and 8xxx
DUU 150

Recirculation conversion kit for DA 3xxx/2xxx and DAS 2xxx, 4xxx, and 8xxx

To convert slimline/integrated ventilation hoods from vented to recirculation.

$126.50
Reducing collar

Reducing collar

For reducing the exhaust air vent cross-section.

$137.50
Reactivatable Longlife AirClean charcoal filter

Reactivatable Longlife AirClean charcoal filter

for Miele DAS 2x20, DAS 4x20, and DAS 4x30 Recirculation Hoods.

$449.00
Reducing collar

Reducing collar

For reducing the exhaust air vent cross-section.

$69.00
Panel installation kit

Panel installation kit

For attaching a light shield strip to match cabinetry.

$53.90
Active AirClean charcoal filter

Active AirClean charcoal filter

for Miele DAS 2x20, DAS 4x20, and DAS 4x30 Recirculation Hoods.

$189.00
Active AirClean charcoal filter

Active AirClean charcoal filter

DAS 4x40, DAS 8x30, and DKFS 31-P for DAS 2x20, DAS 4x20, and DAS 4x30.

$176.00
MicroCloth kit, 3 pieces
GP MI S 0031 W

MicroCloth kit, 3 pieces

For best cleaning results and safe use.

$17.59
 MicroCloth HyClean, 1 cloth
GP MI H 0011 W

 MicroCloth HyClean, 1 cloth

 Antibacterial multi-purpose cloth for improved hygiene.

$13.19

Downloads

Mounting plan
PDF
Downloads
Operating and Installation instructions
PDF
Downloads
Product sheet
PDF
Downloads
Warranty conditions
PDF
Downloads
dwg
ZIP
Downloads
fbx
ZIP
Downloads
ifc
ZIP
Downloads
rfa
ZIP
Downloads
rvt
ZIP
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts.

https://media.miele.com/images/2000017/200001780/20000178034.png
Descriptions

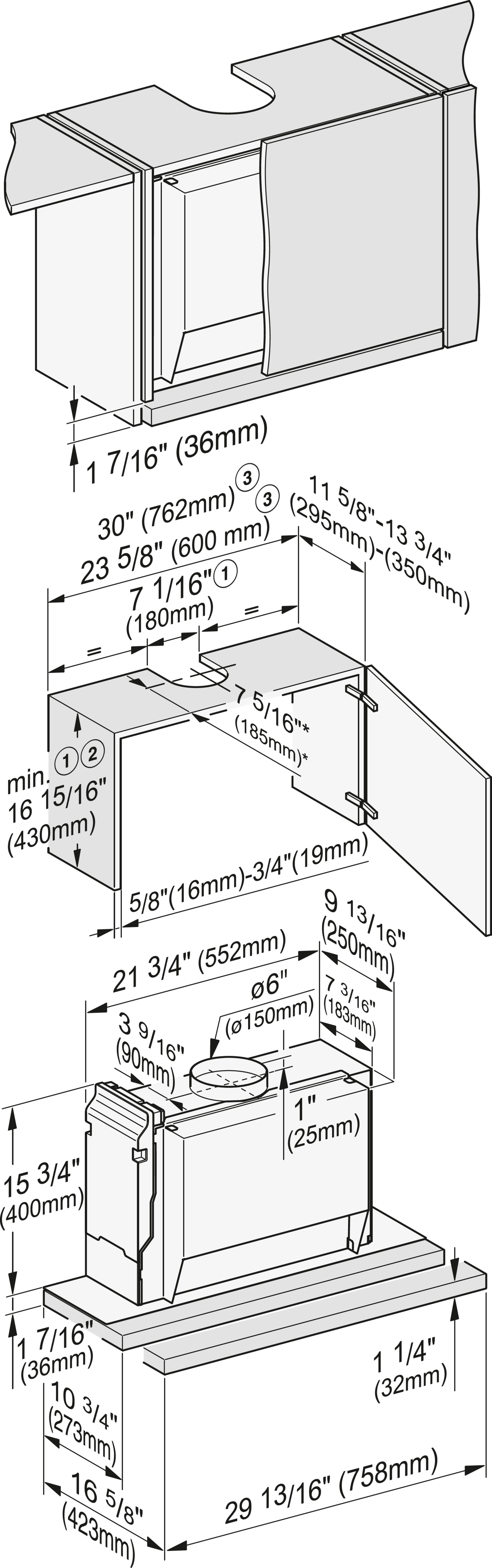

DAS4720 US, Installation drawings, VG USA
① Extraction mode: the height of the wall unit and the cut-out dimensions must take into account any accessories fitted., ② Recirculation with recirculation conversion kit., ③ Installation is also possible in a 600 mm wide unit., , * In this installation situation, the deflector plate is flush with the front edge of the housing unit carcase. If you wish to position the cooker hood further forward or further back (e.g. because it has a front panel), dimensions have to be adapted accordingly.
