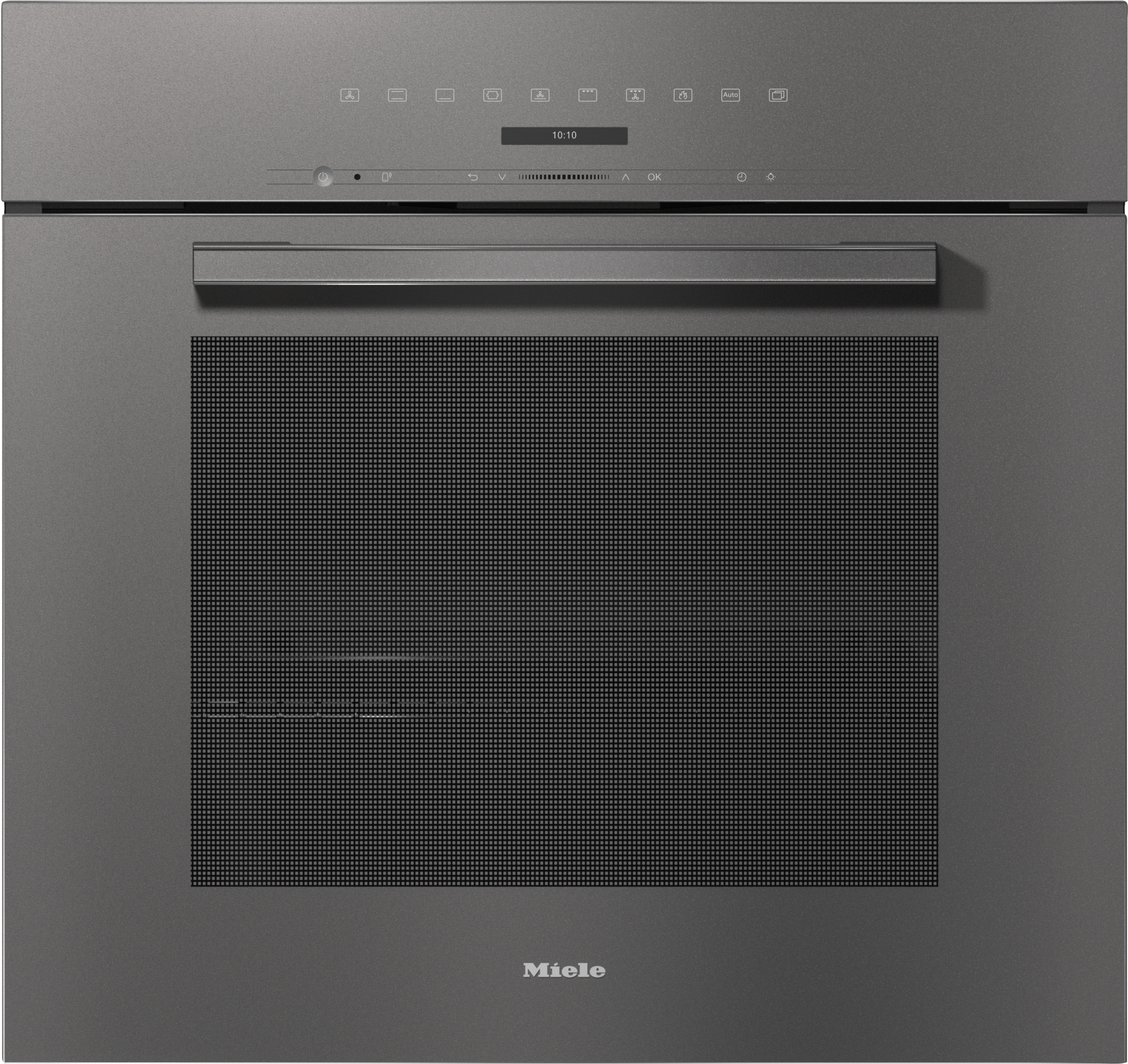

  • Miele - H 7280 BP Graphite grey – Ovens - 1

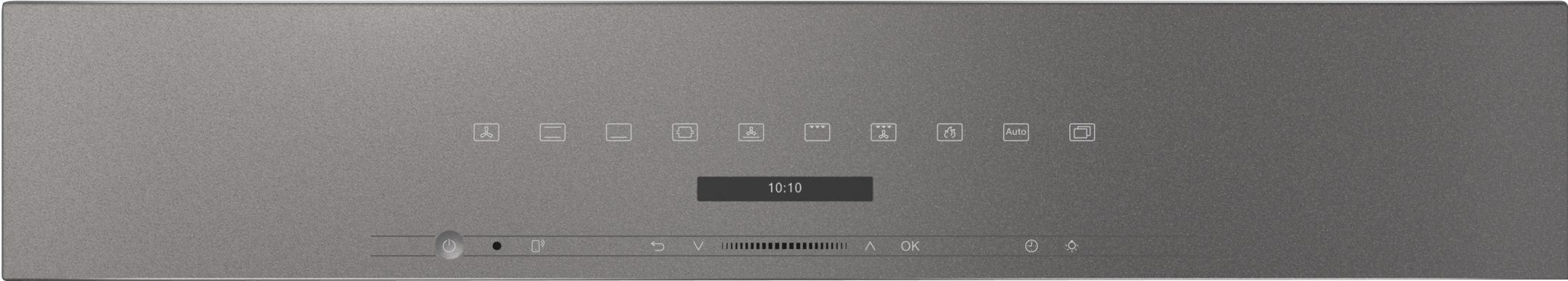

  • Miele - H 7280 BP Graphite grey – Ovens - 2
30 Inch Convection OvenGold

H 7280 BP Graphite grey

with clear text display, connectivity, and Self Clean.
Color:Graphite grey
sale price$6,199.00


Product details

  • Clear-text display with sensor controls –
    DirectSensor S
  • Minimal cleaning effort -
    Self-cleaning
  • Achieve perfect results with ease –
    Automatic programs
  • Unlimited possibilities – volume of 4.59 cu. ft. on 6 levels
  • Network-enabled WiFi appliance –
    Miele@home
  • View manufacturer details:
  • Safety information

Product data sheet

Model number
H 7280 BP
Manufacturer material number
11805520
EAN number
4002516487425
Marketing class
Gold
Built-in wall oven
VitroLine
Appliance color
Graphite grey
Rapid PreHeat
Convection Bake
Surround
Intensive Bake
Auto roast
Convection Broil
Maxi Broil
Broil
Broiling operating modes
Bake
Defrost
Automatic programs
Networking with Miele@home

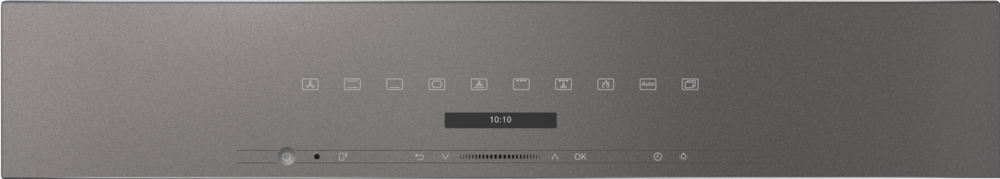

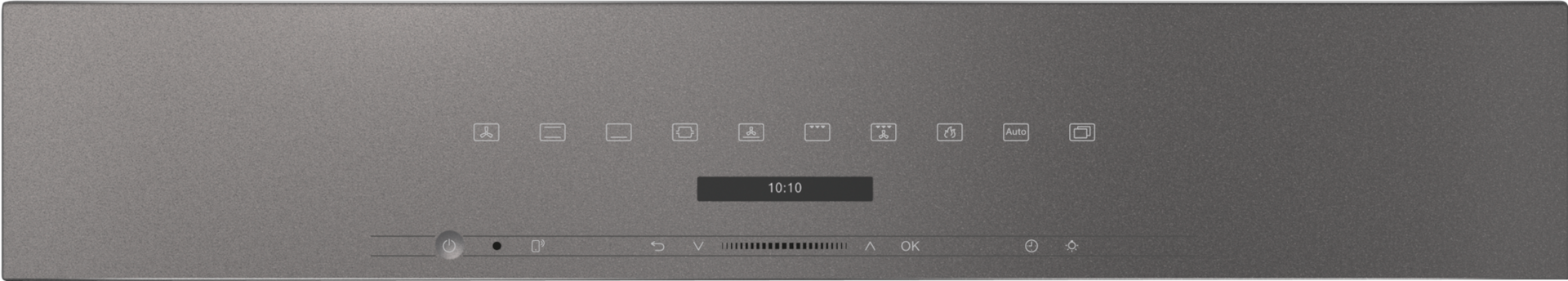

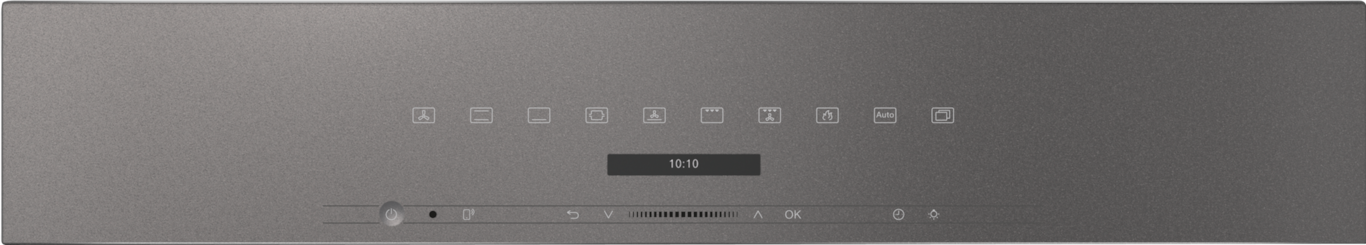

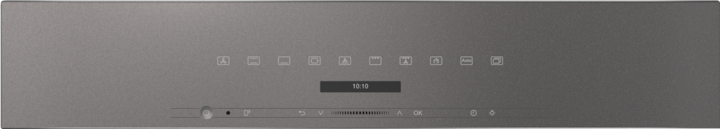

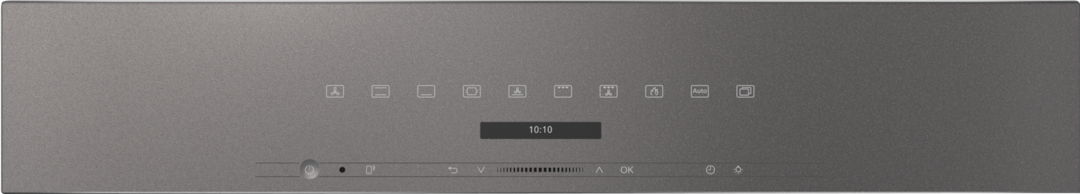

Control panel
DirectSensor S
SoftOpen
SoftClose
MultiLingua
Timers
Time of day display
Time synchronization
Minute minder
Programming start of cooking duration
Programming end of cooking duration
Programmable cooking time
Actual temperature display
Audible signal when desired temperature is reached
Default temperature
Individual settings
Recipes
RemoteUpdate
Alexa voice control
Google voice control
Push notifications
Smart Home Integration
Self-cleaning
CleanGlass door
Appliance cooling system and cool touch front
Safety cut-out
System lock
Door lock during self cleaning
Cavity volume in cu.ft (l)
4.59 (130)
No. of rack levels
6
Labeling of rack levels
Oven interior lighting
2 halogen spots
TwinPower hot air fans
Temperatures in °F (°C)
85-575 (30-300)
Niche width min. in inches (mm)
28 1/2 (724)
Niche height min. in inches (mm)
28 1/4 (718)
Niche depth in in. (mm)
24 (610)
Appliance dimensions (W x H x D) in inches (mm)
29 3/4 (757) x 28 5/8 (727) x 24 5/8 (625)
Appliance dimensions (W x H x D) in inches (mm)
29 7/8 (757) x 28 5/8 (727) x 24 5/8 (625)
Weight in lbs. (kg)
185 (83.7)
Total connected load in kW
6.500
Power Rating in V
120
Voltage in V
240/208
Frequency in Hz
60
Fuse rating in A
30
Number of phases
1
Plug type
NEMA plug: 14–30
Length of power cord in in. (m)
1.80
Universal tray with PerfectClean
1
Self Clean ready baking and roasting rack
1
Self Clean ready wire rack with rail system
1
Removable Self Clean-ready side racks (pair)
1
Available display languages via MultiLingua
[ "français", "ελληνιкά", "čeština", "繁體中文", "slovenčina", "slovenščina", "中文", "polski", "magyar", "nederlands", "hrvatski", "yкраїнська", "bahasa malaysia", "italiano", "deutsch", "türkçe", "suomi", "日本語", "dansk", "română", "español", "srpski", "english", "العربية", "svenska", "norsk", "pусский", "português", "한국어" ]
EAN
4002516487425

What's included

Universal tray with PerfectClean
1
Self Clean ready baking and roasting rack
1
Self Clean ready wire rack with rail system
1
Removable Self Clean-ready side racks (pair)
1
  • *This is a separate digital offer from Miele & Cie. KG. The range of functions can vary depending on the model and the country. Acceptance of the Terms and Conditions and Privacy Policy for Miele digital products and services in the Miele app required. Miele reserves the right to change or discontinue the digital offer at any time.
  • Stress-free baking and roasting, success guaranteed
    Stress-free baking and roasting, success guaranteed

    MasterChef

    Cooking delicious dishes with ease: cakes, fish, or meat – fully automatic cooking.

  • Cleverly networked
    Cleverly networked

    Domestic appliance networking with Miele@home1,

    Make your life smart: thanks to Miele@home you can cleverly network your domestic appliances – for more options.

Maintenance

Cleaning with zero effort
Cleaning with zero effort

Self Clean and Self Clean ready accessories

The oven compartment and (depending on the model) some accessories are automatically cleaned at high temperatures.

User convenience

Cleverly networked
Cleverly networked

Domestic appliance networking with Miele@home1,

Make your life smart: thanks to Miele@home you can cleverly network your domestic appliances – for more options.

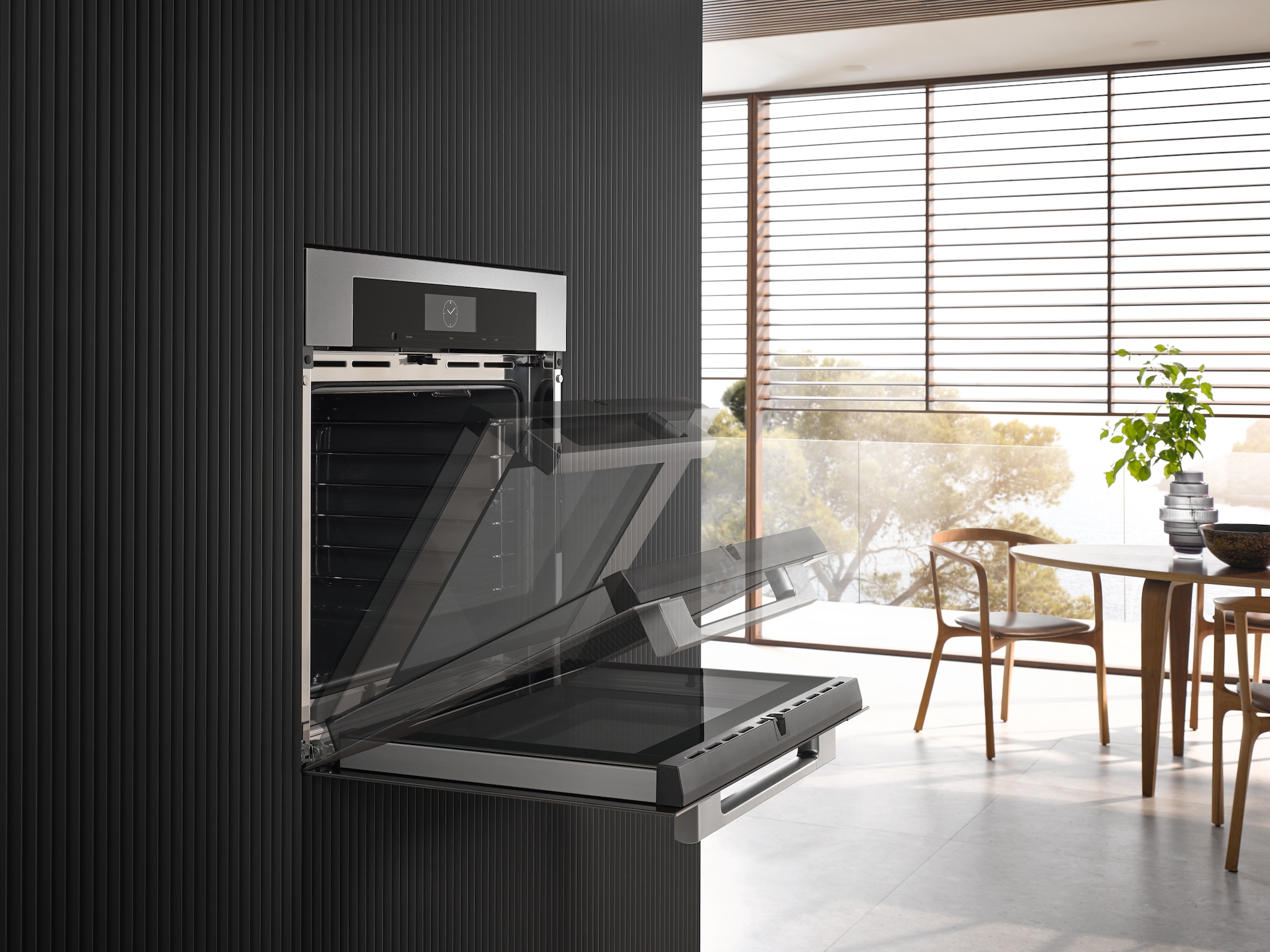

Gentle door movement
Gentle door movement

SoftOpen and SoftClose

Sophisticated and elegant: The door opens and closes with a gentle movement – right to the very end.
Let your oven take care of time management
Let your oven take care of time management

Timers

Always on time: Set the start time, end time, and duration of the cooking process, or the kitchen timer.
Incredibly easy to understand
Incredibly easy to understand

MultiLingua

For users who speak different languages: The controls can be set to numerous languages.

Convenience features

Stress-free baking and roasting, success guaranteed
Stress-free baking and roasting, success guaranteed

MasterChef

Cooking delicious dishes with ease: cakes, fish, or meat – fully automatic cooking.

Oven cabinets

From cold to hot
From cold to hot

TwinPower convection fan

Exclusively for wide ovens: With two convection fans, the oven reaches operating temperature in no time.

Safety

Only the food gets hot
Only the food gets hot

Touch-cool front

Protection against burns: The appliance stays relatively cool – including on the outside of the door.
Maximum safety, no matter the situation
Maximum safety, no matter the situation

Safety functions

Always safe: Safety lock and safety shut-off provide reliable protection.

Operating modes

Convection

Convection

Perfectly soft and light: ideal for gentle baking and roasting on several levels.
Defrost

Defrost

Gentle on frozen food: Frozen food is gently defrosted under ideal conditions using cool air.
Auto Roast

Auto Roast

Meat remains tender and succulent: Meat is seared at a high temperature, then roasted at a selected temperature.
Maxi Broil

Maxi Broil

Versatile function for indoors: so you can broil large quantities of steaks, sausages, kebabs, and more.
Broil

Broil

Designed for small quantities: ideal for small amounts of food such as steaks and sausages. Perfect every time.
Intensive

Intensive

Crispy bases, delicious toppings: pizza, quiche, or fresh fruit flans – crispy base, moist on top.
Surround

Surround

Multi-purpose, classic function: perfect results for all types of traditional baked and roasted dishes.
Bake

Bake

Individual requirements: for cooking food in a bain-marie or for browning from underneath.
Convection Broil

Convection Broil

Crisp outside, succulent inside: ideal for chicken, duck, pork, rolled meat, and many other meat dishes.
Booster

Booster

For those who lead a busy life: If there's not much time for cooking, you will really appreciate this program.

Smart Extras

  • Always up to date with software updates
    Always up to date with software updates

    RemoteUpdate1,

    Bringing new functions directly to your appliance.

  • Inspiration for every taste
    Inspiration for every taste

    Recipes1,

    Discover a wide range of digital recipe ideas and get started right away.

  • Everything at a glance with smart notifications
    Everything at a glance with smart notifications

    Push notifications1,

    Receive relevant information directly on your smartphone or tablet.

  • A spark of magic for the kitchen
    A spark of magic for the kitchen

    Voice control 1, 2,

    Convenient operation via voice control.

  • Seamless networking throughout your home
    Seamless networking throughout your home

    Smart Home Integration1,

    Intelligent integration of Miele appliances into a Smart Home system.

Downloads

Operating and Installation instructions
PDF
Download
Product sheet
PDF
Download
Warranty conditions
PDF
Download
dwg
ZIP
Download
fbx
ZIP
Download
ifc
ZIP
Download
rfa
ZIP
Download
rvt
ZIP
Download

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts.

https://media.miele.com/dam/5179cd58-97be-46bf-bd17-b3c3008a1725/20000172403_HighresDigitalRGB.png
Descriptions
side view 30 inch Flush inset, installation drawing, NA
7/8" - 22* mm - Glas, 15/16" - 23.3** mm - Edelstahl
POSTSCRIPT
Download
https://media.miele.com/images/2000017/200001724/20000172425.png
Descriptions
installation 30 inch Flush inset built-under, installation drawing, NA
7/8" - 22* mm - Glas, 15/16" - 23.3** mm - Edelstahl
POSTSCRIPT
Download
https://media.miele.com/dam/97e65be2-1124-4206-953b-b3c300895c00/20000172484_HighresDigitalRGB.png
Descriptions
side view 30 inch Proud, installation drawing, NA
7/8" - 22* mm - Glas, 15/16" - 23.3** mm - Edelstahl
POSTSCRIPT
Download
https://media.miele.com/dam/6e1ef718-cb80-4d1e-8f73-b3c300893b61/20000172499_HighresDigitalRGB.png
Descriptions
installation 30 inch Proud, installation drawing, NA
installation 30 inch Proud, installation drawing, NA
POSTSCRIPT
Download
https://media.miele.com/dam/68370a8a-c9b2-483e-90a8-b3c30087f52c/20000172578_HighresDigitalRGB.png
Descriptions
H 6x80 BP, H 6x70 BM, H 6x80-2BP, DGC 7x7x, H 7xxx Combi, Installation drawing, Flush inset, NA
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
POSTSCRIPT
Download
https://media.miele.com/dam/515845e4-dc66-410d-ad0b-b3c30087f534/20000172579_HighresDigitalRGB.png
Descriptions
H 6x80 BP, ESW 6x80, H 6x80-2BP, H2x80, H7x80m ESW7x80 Combi, Installation drawing, Flush inset, NA
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
POSTSCRIPT
Download
https://media.miele.com/dam/7049a0b5-70ae-4ce0-aa1a-b3c30087b9c3/20000172605_HighresDigitalRGB.png
Descriptions
H 6x80 BP, H 6x70 BM, ESW 6x80, H 6x80-2BP, DGC7xxx, H 7xxx, ESW7x80 Combi, Installation drawing, Flush inset, NA
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
POSTSCRIPT
Download
https://media.miele.com/dam/044e607d-a8e1-493b-b57f-b3c30087b549/20000172607_HighresDigitalRGB.png
Descriptions
DGC 6x6x(AM)+EBA 6808, H 6x80 BP, H 6x80-2BP, DGC786x, EBA7868, H7xxx, Fitting Combi, Install. drawing, Flush inset, NA
DGC 6x6x(AM)+EBA 6808, H 6x80 BP, H 6x80-2BP, DGC786x, EBA7868, H7xxx, Fitting Combi, Install. drawing, Flush inset, NA
POSTSCRIPT
Download
https://media.miele.com/dam/9dd792bf-07de-414d-ba8a-b3c3008799a3/20000172618_HighresDigitalRGB.png
Descriptions
H 6x80, H 6x00 + EBA 6808, DGC 6x00-1, H 6x80, DGC7x7x, EBA7848, H7x8x Fitting Combi, Install drawing, Flush inset, NA
H 6x80, H 6x00 + EBA 6808, DGC 6x00-1, H 6x80, DGC7x7x, EBA7848, H7x8x Fitting Combi, Install drawing, Flush inset, NA
POSTSCRIPT
Download
https://media.miele.com/dam/d08833a4-7584-4eac-88bb-b3c30087999c/20000172619_HighresDigitalRGB.png
Descriptions
H 6x80 BP, H 6x70 BM, H 6x80-2BP, DGC7x7x, H7xxx Fitting Combi, Installation drawing, Flush inset, NA
H 6x80 BP, H 6x70 BM, H 6x80-2BP, DGC7x7x, H7xxx Fitting Combi, Installation drawing, Flush inset, NA
POSTSCRIPT
Download
https://media.miele.com/dam/e643369f-7bea-4ac7-b937-b3c30087950b/20000172620_HighresDigitalRGB.png
Descriptions
H 6x80 BP, ESW 6x80, H 6x80-2BP, H7x8x, ESW7x80, H 2x8x Fitting Combi, Installation drawing, Flush inset, NA
H 6x80 BP, ESW 6x80, H 6x80-2BP, H7x8x, ESW7x80, H 2x8x Fitting Combi, Installation drawing, Flush inset, NA
POSTSCRIPT
Download
https://media.miele.com/dam/3f34bc0b-32f8-4500-836b-b3c300878bc4/20000172624_HighresDigitalRGB.png
Descriptions
DGC6x6x (AM)+EBA6808, H 6x80, ESW 6x80, H 6x80-2, DGC786x, EBA7868, H 7x80, Fitting Combi, Install draw, Flush inset, NA
DGC6x6x (AM)+EBA6808, H 6x80, ESW 6x80, H 6x80-2, DGC786x, EBA7868, H 7x80, Fitting Combi, Install draw, Flush inset, NA
POSTSCRIPT
Download
https://media.miele.com/dam/2cdee26a-0f3c-4fa6-8730-b3c30087741d/20000172635_HighresDigitalRGB.png
Descriptions
H 6x80 BP, H 6x00 BM + EBA 6808, ESW 6x85, DGC 6x00-1, H 6x80-2BP, Fitting Combi, H 7x40BM, ESW 7x70, Flush inset, NA
H 6x80 BP, H 6x00 BM + EBA 6808, ESW 6x85, DGC 6x00-1, H 6x80-2BP, Fitting Combi, H 7x40BM, ESW 7x70, Flush inset, NA
POSTSCRIPT
Download
https://media.miele.com/dam/32e278d0-a94b-4e16-ab32-b3c300876f7a/20000172636_HighresDigitalRGB.png
Descriptions
H 6x80 BP, H 6x00 BM + EBA 6808, ESW 6x80, DGC 6x00-1, H 6x80-2BP, DGC7x40, EBA 7848, H2880BP, H7x80BP, Flush inset, NA
H 6x80 BP, H 6x00 BM + EBA 6808, ESW 6x80, DGC 6x00-1, H 6x80-2BP, DGC7x40, EBA 7848, H2880BP, H7x80BP, Flush inset, NA
POSTSCRIPT
Download
https://media.miele.com/dam/64c995b2-160c-4427-8335-b3c300876ad4/20000172638_HighresDigitalRGB.png
Descriptions
H 6x80 BP, H 6x70 BM, ESW 6x80, H 6x80-2BP, DGC7xxx, H7xxxBM/BMX/BP/BPX, H2x80BP, ESW7x80, Installation drawing, NA
H 6x80 BP, H 6x70 BM, ESW 6x80, H 6x80-2BP, DGC7xxx, H7xxxBM/BMX/BP/BPX, H2x80BP, ESW7x80, Installation drawing, NA
POSTSCRIPT
Download
https://media.miele.com/dam/d8a2be5d-4346-4afb-ab54-b3c300876ad8/20000172639_HighresDigitalRGB.png
Descriptions
H 6x80 BP, H 6x80-2BP, H 2x80BP, H 7x80BP/PBX Fitting Combi side by side, Installation drawing, Flush inset, NA
H 6x80 BP, H 6x80-2BP, H 2x80BP, H 7x80BP/PBX Fitting Combi side by side, Installation drawing, Flush inset, NA
POSTSCRIPT
Download
https://media.miele.com/dam/06687a19-45cd-4f7a-ab1f-b3c300876639/20000172640_HighresDigitalRGB.png
Descriptions
H 6x80BP, H 6x70 BM, ESW 6x85, H 6x80-2BP, H7xxx BM/BP/BPX,BMX, ESW7x70, EVS7670 , Installation drawing, Flush inset, NA
H 6x80BP, H 6x70 BM, ESW 6x85, H 6x80-2BP, H7xxx BM/BP/BPX,BMX, ESW7x70, EVS7670 , Installation drawing, Flush inset, NA
POSTSCRIPT
Download
https://media.miele.com/dam/54020d94-4111-4bbf-839f-b3c300876645/20000172641_HighresDigitalRGB.png
Descriptions
H 6x80 BP, H 6x80-2BP, H 2x80BP, H7x80BP/BPX, Installation drawing, Flush inset, NA
H 6x80 BP, H 6x80-2BP, H 2x80BP, H7x80BP/BPX, Installation drawing, Flush inset, NA
POSTSCRIPT
Download
https://media.miele.com/dam/027b53e3-443d-4e46-929a-b3c300876178/20000172642_HighresDigitalRGB.png
Descriptions
H 6x80 BP, H 6x70 BM, ESW 6x85, H 6x80-2BP, H 7xxx BP/BM/BPX/BMX, EXX 7x70 Fitting Combi side by side without wall, NA
H 6x80 BP, H 6x70 BM, ESW 6x85, H 6x80-2BP, H 7xxx BP/BM/BPX/BMX, EXX 7x70 Fitting Combi side by side without wall, NA
POSTSCRIPT
Download
https://media.miele.com/dam/b5746285-8432-42e9-9773-b3c300875cec/20000172644_HighresDigitalRGB.png
Descriptions
DGC 6x6x (AM) + EBA 6808, H 6x80 BP, H 6x80-2BP, DGC 786x, EBA 7868, H2880BP, H7x80BP/BPX,Fitting Combi wide front, NA
DGC 6x6x (AM) + EBA 6808, H 6x80 BP, H 6x80-2BP, DGC 786x, EBA 7868, H2880BP, H7x80BP/BPX,Fitting Combi wide front, NA
POSTSCRIPT
Download
https://media.miele.com/dam/184de193-def0-4504-bd0a-b3c300874588/20000172655_HighresDigitalRGB.png
Descriptions
H 6x80 BP, H 6x00 BM, EBA 6808, DGC 6x00-1, H 6x80-2BP, DGC 7x4x, EBA 7848, H 7x80BP, H 2880BP, Flush inset, NA
H 6x80 BP, H 6x00 BM, EBA 6808, DGC 6x00-1, H 6x80-2BP, DGC 7x4x, EBA 7848, H 7x80BP, H 2880BP, Flush inset, NA
POSTSCRIPT
Download
https://media.miele.com/dam/875d4177-83b2-4839-be32-b3c300873794/20000172660_HighresDigitalRGB.png
Descriptions
DGC 6x6x (AM) + EBA 6808, H 6x80 BP, ESW 6x80, H 6x80-2BP, DGC 786x, EBA 7868, H7x80BP/BPX, ESW 7x80, Flush inset, NA
DGC 6x6x (AM) + EBA 6808, H 6x80 BP, ESW 6x80, H 6x80-2BP, DGC 786x, EBA 7868, H7x80BP/BPX, ESW 7x80, Flush inset, NA
POSTSCRIPT
Download
https://media.miele.com/dam/f7ae2378-678f-4d78-8f67-b3c30087204b/20000172671_HighresDigitalRGB.png
Descriptions
H 6x80 BP, H 6x00 BM + EBA 6808, ESW 6x85, DGC 6x00 + EBA 6808, H 6x80-2BP, H2880BP, H7xxxBM/BP/BPX, ESW7x70 NA
H 6x80 BP, H 6x00 BM + EBA 6808, ESW 6x85, DGC 6x00 + EBA 6808, H 6x80-2BP, H2880BP, H7xxxBM/BP/BPX, ESW7x70 NA
POSTSCRIPT
Download
https://media.miele.com/dam/194bd675-38f5-4cd5-8763-b3c300871bb0/20000172672_HighresDigitalRGB.png
Descriptions
H 6x80 BP, H 6x00 BM + EBA 6808, ESW 6x80, DGC 6x00, H 6x80-2BP, DGC7x4x, EBA7848, H2880BP, H7x80PB, ESW7x80, NA
H 6x80 BP, H 6x00 BM + EBA 6808, ESW 6x80, DGC 6x00, H 6x80-2BP, DGC7x4x, EBA7848, H2880BP, H7x80PB, ESW7x80, NA
POSTSCRIPT
Download
https://media.miele.com/dam/234abbb6-b630-467b-b42c-b3c3008716d6/20000172675_HighresDigitalRGB.png
Descriptions
H 6x80 BP, H 6x80-2BP, H 2x8xBP, H 7x80 BP/BPX Fitting Combi wide front side by side, Install. drawing, Flush inset, NA
H 6x80 BP, H 6x80-2BP, H 2x8xBP, H 7x80 BP/BPX Fitting Combi wide front side by side, Install. drawing, Flush inset, NA
POSTSCRIPT
Download
https://media.miele.com/dam/746a26c6-1a95-4e18-8498-b3c300871228/20000172677_HighresDigitalRGB.png
Descriptions
H 6x80 BP, H 6x80-2BP, H 2x80BP, G 7x80 BP/BBX, Installation drawing, Flush inset, NA
H 6x80 BP, H 6x80-2BP, H 2x80BP, G 7x80 BP/BBX, Installation drawing, Flush inset, NA
POSTSCRIPT
Download
https://media.miele.com/dam/bb2b5b09-d3fc-4633-ba79-b3c30086d9f1/20000172700_HighresDigitalRGB.png
Descriptions
H 6x80 BP, H 6x00 BM + EBA 6808, H 6x80-2BP, H7xxx BM/BP/BPX, EBA 7848, Installation drawing, Flush inset, NA
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Download
https://media.miele.com/dam/dd590a1f-8234-4e1a-88ca-b3c30086d9f5/20000172701_HighresDigitalRGB.png
Descriptions
H 6x80 BP, H 6x70 BM, H 6x80-2BP, H 7xxx BM/BMX/BP/BPX, H 2x90BP Installation drawing, Flush inset, NA
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Download
https://media.miele.com/dam/920f1996-7cab-41bf-b7a4-b3c30086d534/20000172702_HighresDigitalRGB.png
Descriptions
H 6x80 BP, ESW 6x80, H 6x80-2BP, H 2x80BP, H 7xxx BP/BPX, ESW 7x80 Installation drawing, Flush inset, NA
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Download
https://media.miele.com/dam/098853a0-60a5-4122-b266-b3c300869df5/20000172726_HighresDigitalRGB.png
Descriptions
H 6x80 BP, H 6x00 BM + EBA 6808, H 6x80-2BP, H 7xxxBM/BP/BPC, EBA 7848, ESW 7x80, Installation drawing, Flush inset, NA
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Download
https://media.miele.com/dam/350c8eee-f9e2-4ec8-9489-b3c30086998a/20000172728_HighresDigitalRGB.png
Descriptions
H 6x80BP, H 6x70 BM, ESW 6x80, H 6x80-2BP, H 2880BP, H 7xxxBP/BPX/BM/BMX, ESW 7x80 Installation drawing, Flush inset, NA
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Download
https://media.miele.com/dam/c8187159-9e24-4b85-8b43-b3c300869999/20000172729_HighresDigitalRGB.png
Descriptions
H 6x80 BP, H 6x80-2BP, H2x80BP, H7x80BP/BPX Combi, side by side, Installation drawing, Flush inset, NA
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Download
https://media.miele.com/dam/99ac120a-4148-4315-a608-b3c3008694f1/20000172730_HighresDigitalRGB.png
Descriptions
H 6x80BP, H 6x70BM, ESW 6x85, H 6x80-2BP, H2x80BP, H 7x80BP/BPX, ESW 7x70, EVS7670, Install. drawing, Flush inset, NA
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Download
https://media.miele.com/dam/16599787-4b38-43a4-b7f6-b3c3008694ef/20000172731_HighresDigitalRGB.png
Descriptions
H 6x80 BP, H 6x80-2BP, H2x80B/BP, H 7x80BP/BPX, Installation drawing, Flush inset, NA
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Download
https://media.miele.com/dam/62060731-399e-4d01-bc16-b3c30086904d/20000172732_HighresDigitalRGB.png
Descriptions
H 6x80 BP, H 6x70 BM, ESW 6x85, H 6x80-2BP, H 2x80BP, H 7x80BP/BPX, ESW 7x70, EVS 7670 , drawing, Flush inset, NA
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Download
https://media.miele.com/dam/ff969551-b642-49e0-a53d-b3c30085e021/20000172809_HighresDigitalRGB.png
Descriptions
H 6x80 BP, H 6x70 BM, H 6x80-2BP, DGC7x7x, H7x70BM, H7x80BPX, Combi, Installation drawing, Proud, NA
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
POSTSCRIPT
Download
https://media.miele.com/dam/00f2c97e-2ac8-4539-92d5-b3c30085db90/20000172810_HighresDigitalRGB.png
Descriptions
H 6x80 BP, ESW 6x80, H 6x80-2BP, H2x80BP, H7x80BP(X), ESW7x80, Combi, Installation drawing, Proud, NA
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
POSTSCRIPT
Download
https://media.miele.com/dam/f3e486df-ab86-42ac-8134-b3c300859eb1/20000172836_HighresDigitalRGB.png
Descriptions
H6x80(2)BP, H6x70BM, ESW6x80, DGC7x7x(X), H7x70BM(X), H7x80BP, ESW7x80, Combi, Installation drawing, Proud, Flush inset,
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
POSTSCRIPT
Download
https://media.miele.com/dam/16cdd816-7c90-4e13-a7e6-b3c30085998b/20000172838_HighresDigitalRGB.png
Descriptions
DGC6x6x+EBA6808, H6x80BP, H6x80-2BP, DGC786x+EBA7868, H2880BP, H7x80BPX, Fitting Combi, Installation drawing, Proud, NA
DGC6x6x+EBA6808, H6x80BP, H6x80-2BP, DGC786x+EBA7868, H2880BP, H7x80BPX, Fitting Combi, Installation drawing, Proud, NA
POSTSCRIPT
Download
https://media.miele.com/dam/9432b832-2878-4269-9324-b3c3008581dc/20000172849_HighresDigitalRGB.png
Descriptions
H6x80BP, (H6x00BM, DGC6x00-1)+EBA6808, H6x80-2BP, DGC7x4x+EBA7848, H2880BP, H7x80BPX, Fitting Combi, InstallationProud,
H6x80BP, (H6x00BM, DGC6x00-1)+EBA6808, H6x80-2BP, DGC7x4x+EBA7848, H2880BP, H7x80BPX, Fitting Combi, InstallationProud,
POSTSCRIPT
Download
https://media.miele.com/dam/b4d3411c-bd24-4ff9-a6aa-b3c300857ce9/20000172850_HighresDigitalRGB.png
Descriptions
H6x80BP, H6x70BM, H6x80-2BP, DGC7x7x, H7x70BM, H2x80BP, H7x80BP(X), Fitting Combi, Installation drawing, Proud, NA
H6x80BP, H6x70BM, H6x80-2BP, DGC7x7x, H7x70BM, H2x80BP, H7x80BP(X), Fitting Combi, Installation drawing, Proud, NA
POSTSCRIPT
Download
https://media.miele.com/dam/9b393449-a6dc-46d7-8e8d-b3c300857cef/20000172851_HighresDigitalRGB.png
Descriptions
H6x80BP, ESW6x80, H6x80-2BP, H2x80BP, H7x80BPX, ESW7x80, Fitting Combi, Installation drawing, Proud, NA
H6x80BP, ESW6x80, H6x80-2BP, H2x80BP, H7x80BPX, ESW7x80, Fitting Combi, Installation drawing, Proud, NA
POSTSCRIPT
Download
https://media.miele.com/dam/77fae092-1bf7-488a-9f92-b3c3008573eb/20000172855_HighresDigitalRGB.png
Descriptions
DGC6x6x(AM)+EBA6808,H6x80(-2)BP,ESW6x80, DGC786x+EBA7868, H2880BP, H7x80BP, ESW7x80, Fitting Combi, Installation, Proud,
DGC6x6x(AM)+EBA6808,H6x80(-2)BP,ESW6x80, DGC786x+EBA7868, H2880BP, H7x80BP, ESW7x80, Fitting Combi, Installation, Proud,
POSTSCRIPT
Download
https://media.miele.com/dam/f86401b7-2c86-4e10-8a2a-b3c3008557a3/20000172866_HighresDigitalRGB.png
Descriptions
H6x80BP, H6x00BM+EBA6808, ESW6x85, DGC6x00-1 + EBA6808, H6x80-2BP, NA7000 Fitting Combi, Installation drawing, Proud, NA
H6x80BP, H6x00BM+EBA6808, ESW6x85, DGC6x00-1 + EBA6808, H6x80-2BP, NA7000 Fitting Combi, Installation drawing, Proud, NA
POSTSCRIPT
Download
https://media.miele.com/dam/02e6aef6-75f4-4ac8-9975-b3c30085579a/20000172867_HighresDigitalRGB.png
Descriptions
H6x80BP, H6x00BM+EBA6808, ESW6x80, DGC6x00-1+EBA6808, H6x80-2BP, NA7000 Fitting Combi, Installation drawing, Proud, NA
H6x80BP, H6x00BM+EBA6808, ESW6x80, DGC6x00-1+EBA6808, H6x80-2BP, NA7000 Fitting Combi, Installation drawing, Proud, NA
POSTSCRIPT
Download
https://media.miele.com/dam/23302748-63e2-4736-b503-b3c3008552f1/20000172869_HighresDigitalRGB.png
Descriptions
H 6x80 BP, H 6x70 BM, ESW 6x80, H 6x80-2BP, NA7000 Fitting Combi, Installation drawing, Proud, NA
https://miele-mms.de.miele.net/mms/admin/forward.php#
POSTSCRIPT
Download
https://media.miele.com/dam/e907ee57-fd25-4c75-9df5-b3c300854e40/20000172870_HighresDigitalRGB.png
Descriptions
H 6x80 BP, H 6x80-2BP, NA7000, Fitting Combi side by side, Installation drawing, Proud, NA
H 6x80 BP, H 6x80-2BP, NA7000, Fitting Combi side by side, Installation drawing, Proud, NA
POSTSCRIPT
Download
https://media.miele.com/dam/c987777d-074d-47bd-bf39-b3c300854e3c/20000172871_HighresDigitalRGB.png
Descriptions
H 6x80 BP, H 6x70 BM, ESW 6x85, H 6x80-2BP, NA7000, Fitting Combi side by side, Installation drawing, Proud, NA
H 6x80 BP, H 6x70 BM, ESW 6x85, H 6x80-2BP, NA7000, Fitting Combi side by side, Installation drawing, Proud, NA
POSTSCRIPT
Download
https://media.miele.com/dam/1305466b-8111-4db6-a1e0-b3c3008549b5/20000172872_HighresDigitalRGB.png
Descriptions
H 6x80 BP, H 6x80-2BP, NA7000 Fitting Combi side by side without wall, Installation drawing, Proud, NA
H 6x80 BP, H 6x80-2BP, NA7000 Fitting Combi side by side without wall, Installation drawing, Proud, NA
POSTSCRIPT
Download
https://media.miele.com/dam/960f8f76-e405-45bb-aec1-b3c3008549cd/20000172873_HighresDigitalRGB.png
Descriptions
H6x80BP, H6x70BM, ESW6x85, H6x80-2BP, NA7000, Fitting Combi side by side without wall, Installation drawing, Proud, NA
H6x80BP, H6x70BM, ESW6x85, H6x80-2BP, NA7000, Fitting Combi side by side without wall, Installation drawing, Proud, NA
POSTSCRIPT
Download
https://media.miele.com/dam/5b39cf63-4024-4289-a3b2-b3c300854503/20000172875_HighresDigitalRGB.png
Descriptions
DGC 6x6x (AM) + EBA 6808, H 6x80 BP, H 6x80-2BP, NA7000, Fitting Combi wide front, Installation drawing, Proud, NA
DGC 6x6x (AM) + EBA 6808, H 6x80 BP, H 6x80-2BP, NA7000, Fitting Combi wide front, Installation drawing, Proud, NA
POSTSCRIPT
Download
https://media.miele.com/dam/9d691740-3ac9-45ab-bfa2-b3c300852995/20000172886_HighresDigitalRGB.png
Descriptions
H6x80BP, (H6x00BM, DGC6x00-1 ) + EBA6808, H6x80-2BP, NA7000, Fitting Combi wide front, Installation drawing, Proud
H6x80BP, (H6x00BM, DGC6x00-1 ) + EBA6808, H6x80-2BP, NA7000, Fitting Combi wide front, Installation drawing, Proud
POSTSCRIPT
Download
https://media.miele.com/dam/442a26af-3680-4711-9461-b3c300852028/20000172891_HighresDigitalRGB.png
Descriptions
DGC 6x6x (AM) + EBA 6808, H 6x80 BP, ESW 6x80, H 6x80-2BP, NA7000 Fitting Combi wide front, Installation drawing, Proud
DGC 6x6x (AM) + EBA 6808, H 6x80 BP, ESW 6x80, H 6x80-2BP, NA7000 Fitting Combi wide front, Installation drawing, Proud
POSTSCRIPT
Download
https://media.miele.com/dam/58c66166-7fb1-468c-a278-b3c3008503e8/20000172902_HighresDigitalRGB.png
Descriptions
H 6x80 BP, H 6x00 BM + EBA 6808, ESW 6x85, DGC6x00 + EBA6808, H6x80-2BP, NA7000, Fitting Combi w. front, drawing, Proud
H 6x80 BP, H 6x00 BM + EBA 6808, ESW 6x85, DGC6x00 + EBA6808, H6x80-2BP, NA7000, Fitting Combi w. front, drawing, Proud
POSTSCRIPT
Download
https://media.miele.com/dam/ff2a704f-6825-4821-a89a-b3c3008503df/20000172903_HighresDigitalRGB.png
Descriptions
H6x80BP, H6x00BM + EBA6808, ESW6x80, DGC6x00 + EBA 6808, H 6x80-2BP, NA7000 Fitting Combi w. front, drawing, Proud, NA
H6x80BP, H6x00BM + EBA6808, ESW6x80, DGC6x00 + EBA 6808, H 6x80-2BP, NA7000 Fitting Combi w. front, drawing, Proud, NA
POSTSCRIPT
Download
https://media.miele.com/dam/d138a0d0-16db-4366-b38b-b3c30084fa65/20000172906_HighresDigitalRGB.png
Descriptions
H 6x80 BP, H 6x80-2BP, H2x80BP, H7x80BP(X), Fitting Combi wide front side by side, Installation drawing, Proud, NA
H 6x80 BP, H 6x80-2BP, H2x80BP, H7x80BP(X), Fitting Combi wide front side by side, Installation drawing, Proud, NA
POSTSCRIPT
Download
https://media.miele.com/dam/e64df4c4-bcd3-49e7-a9ec-b3c30084f60c/20000172908_HighresDigitalRGB.png
Descriptions
H 6x80 BP, H 6x80-2BP, NA7000 Fitting Combi wide front side by side without wall, Installation drawing, Proud, NA
H 6x80 BP, H 6x80-2BP, NA7000 Fitting Combi wide front side by side without wall, Installation drawing, Proud, NA
POSTSCRIPT
Download
https://media.miele.com/dam/bb28a5f7-4190-4703-8673-b3c30084c3e1/20000172931_HighresDigitalRGB.png
Descriptions
H6x80(-2)BP, H6x00BM + EBA6808, H7x40BM, H2880BP, H7x80BP(X), Installation Combi, Installation drawing, Proud, NA
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Download
https://media.miele.com/dam/2e0f5829-71c5-4cd8-b5c3-b3c30084bf01/20000172932_HighresDigitalRGB.png
Descriptions
H 6x80 BP, H 6x70 BM, H 6x80-2BP, Hx70BM, H2x80BP(X), H7x80BP(X), Installation Combi, Installation drawing, Proud, NA
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Download
https://media.miele.com/dam/e54fb086-e2b0-4c08-8386-b3c30084befe/20000172933_HighresDigitalRGB.png
Descriptions
H 6x80 BP, ESW 6x80, H 6x80-2BP, H2x80BP, H7x80BP, ESW7x80, Installation Combi, Installation drawing, Proud, NA
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Download
https://media.miele.com/dam/39a1ceef-3c7d-4eaf-89a4-b3c3008486d7/20000172956_HighresDigitalRGB.png
Descriptions
H 6x80 BP, H 6x00 BM + EBA 6808, ESW 6x85, H 6x80-2BP, NA7000 Installation Combi, Installation drawing, Proud, NA
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Download
https://media.miele.com/dam/cab809d1-52fa-48a5-9be8-b3c3008486dc/20000172957_HighresDigitalRGB.png
Descriptions
H 6x80 BP, H 6x00 BM + EBA 6808, ESW 6x80, H 6x80-2BP, NA7000 Installation Combi, Installation drawing, Proud, NA
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Download
https://media.miele.com/dam/6d70a6e5-b3fa-40fb-9071-b3c30084824e/20000172958_HighresDigitalRGB.png
Descriptions
H 6x80 BP, H 6x70 BM, ESW 6x85, H 6x80-2BP, NA7000 Installation Combi, Installation drawing, Proud, NA
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Download
https://media.miele.com/dam/22fcbdde-f81f-4120-b0b5-b3c30084825b/20000172959_HighresDigitalRGB.png
Descriptions
H 6x80 BP, H 6x70 BM, ESW 6x80, H 6x80-2BP, NA7000, Installation Combi, Installation drawing, Proud, NA
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Download
https://media.miele.com/dam/70630038-b0b6-4341-8fa7-b3c300847d88/20000172960_HighresDigitalRGB.png
Descriptions
H 6x80 BP, H 6x80-2BP, H2x80BP, H7x80BP, Installation Combi, side by side, Installation drawing, Proud, NA
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Download
https://media.miele.com/dam/63a6de80-3b20-40d8-b344-b3c300847d8e/20000172961_HighresDigitalRGB.png
Descriptions
H6x80(-2)BP, H6x70BM, ESW6x85, H2x80BP, H7x80BP, ESW7x70, EVS7670, Installation Combi side by side, Installation drawing
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Download
https://media.miele.com/dam/51f4ff62-8072-47e1-b4a9-b3c3008478f0/20000172962_HighresDigitalRGB.png
Descriptions
H 6x80 BP, H 6x80-2BP, H2x80BP, H7x80BP(X),Installation Combi side by side without wall, Installation drawing, Proud, NA
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Download
https://media.miele.com/dam/b581004d-d8f9-4cd5-9315-b3c3008478f8/20000172963_HighresDigitalRGB.png
Descriptions
H 6x80 BP, H 6x70 BM, ESW 6x85, H 6x80-2BP, NA7000, Installation Combi side by side without wall, drawing, Proud, NA
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Download
https://media.miele.com/dam/1ba2c675-4c1f-4d9f-9e07-b3c300846187/20000172973_HighresDigitalRGB.png
Descriptions
DGC 6x6x (AM) + EBA 6808, H 6x80 BP, H 6x80-2BP, Installation Combi wide front, Installation drawing, Proud, NA
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Download
https://media.miele.com/dam/282e97f1-aeb2-40a8-9e2b-b3c300844546/20000172985_HighresDigitalRGB.png
Descriptions
H 6x80 BP, H 6x00 BM + EBA 6808, H 6x80-2BP, NA7000, Installation Combi wide front, Installation drawing, Proud, NA
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Download
https://media.miele.com/dam/c8b6c92e-4e3a-43b7-a41f-b3c300844063/20000172986_HighresDigitalRGB.png
Descriptions
H 6x80 BP, H 6x70 BM, H 6x80-2BP, NA7000, Installation Combi wide front, Installation drawing, Proud, NA
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Download
https://media.miele.com/dam/f9998e65-06f9-4947-ae9b-b3c30084406f/20000172987_HighresDigitalRGB.png
Descriptions
H 6x80 BP, ESW 6x80, H 6x80-2BP, NA7000, Installation Combi wide front, Installation drawing, Proud, NA
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Download
https://media.miele.com/dam/f20876fd-10b3-459e-8bee-b3c300828383/20000173010_HighresDigitalRGB.png
Descriptions
H6x80BP, H6x00BM + EBA6808, ESW6x85, H6x80-2BP, NA7000, Installation Combi wide front, Installation drawing, Proud, NA
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Download
https://media.miele.com/dam/e2a19724-6b5b-4bc0-98c9-b3c300828383/20000173011_HighresDigitalRGB.png
Descriptions
H6x80BP, H6x00BM + EBA6808, ESW6x80, H 6x80-2BP, NA7000, Installation Combi wide front, Installation drawing, Proud, NA
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Download
https://media.miele.com/dam/e3a65037-1b24-4c6a-8714-b3c300827f19/20000173012_HighresDigitalRGB.png
Descriptions
H 6x80 BP, H 6x70 BM, ESW 6x85, H 6x80-2BP, NA7000, Installation Combi wide front, Installation drawing, Proud, NA
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Download
https://media.miele.com/dam/3b6ca281-bb8c-4fa6-be1e-b3c300827f11/20000173013_HighresDigitalRGB.png
Descriptions
H 6x80 BP, H 6x70 BM, ESW 6x80, H 6x80-2BP, NA7000, Installation Combi wide front, Installation drawing, Proud, NA
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Download
https://media.miele.com/dam/d94407b1-f900-4996-920e-b3c300827a9f/20000173014_HighresDigitalRGB.png
Descriptions
H 6x80 BP, H 6x80-2BP, H2x80BP, H7x80BP, Installation Combi wide front side by side, Installation drawing, Proud, NA
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Download
https://media.miele.com/dam/b654c1bd-4adf-4190-b457-b3c300827aa8/20000173015_HighresDigitalRGB.png
Descriptions
H6x80(2)BP, H6x70BM, ESW6x85, H2x80BP, H7x80BP, Installation Combi wide front side by side, Installation drawing, Proud
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Download
https://media.miele.com/dam/95c43c90-d60b-46ca-96d1-b3c3008275dd/20000173016_HighresDigitalRGB.png
Descriptions
H6x80BP, H6x80-2BP, H2x80BP, H7x80BP, Installation Combi wide front side by side without wall, Installation drawing
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Download
https://media.miele.com/dam/c8b3d33c-b594-4341-ad21-b3c3008275ec/20000173017_HighresDigitalRGB.png
Descriptions
H6x80 BP, H6x70BM, ESW6x85, H6x80-2BP, NA7000, Installation Combi w. front side by side without wall, drawing, Proud, NA
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Download
https://media.miele.com/dam/ce4a1d51-0a39-443e-b599-b3c3009d8319/20000175429_HighresDigitalRGB.png
Descriptions
DGC7x7x(X), H7x8x(X)BP, side view, 30 Zoll, Flush inset, combi, XL, 650
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
POSTSCRIPT
Download
https://media.miele.com/dam/35cf7707-6c82-4335-b295-b3c3009d751d/20000175434_HighresDigitalRGB.png
Descriptions
DGC7x8x, H2x80BP, H7x8xBP(X), side view, 30 Zoll, Flush inset, combi, XXL 650
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel, DGC: Minimum installation height 36” - 914 mm from floor to the device installation surface
POSTSCRIPT
Download
https://media.miele.com/dam/ca908351-47ca-4ec2-b0e0-b3c3009d6292/20000175442_HighresDigitalRGB.png
Descriptions
DGC7x8x(X), H2x80BP, H7x8xBP, ESW7x80, side view, 30 Zoll, Flush inset, combi, XXL, 650, ESW30
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel, DGC: Minimum installation height 36” - 914 mm from floor to the device installation surface
POSTSCRIPT
Download
https://media.miele.com/dam/ef9e728d-3e6a-4710-bc97-b3c3009d25dc/20000175469_HighresDigitalRGB.png
Descriptions
DGC7x4x+EBA7848, H2880BP, H7x8BP(X), Installation, 30 Zoll, Flush inset, combi, XL, 650
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Download
https://media.miele.com/dam/356c82e9-96ff-4a57-9386-b3c3009d161c/20000175475_HighresDigitalRGB.png
Descriptions
DGC786x+EBA7868, H280BP, H7x8xBP(X), Installation, 3 Zoll, Flush inset, combi, XXL, 650
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Download
https://media.miele.com/dam/2a6e4c6b-e2e0-4955-914b-b3c3009d0227/20000175482_HighresDigitalRGB.png
Descriptions
DGC7x4x+EBA7848, H280BP, H7x8xBP(X), ESW7x80, Installation, 30 Zoll, Flush inset, combi, XL, 650
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Download
https://media.miele.com/dam/84065257-4070-4bfc-9c6e-b3c3009cf432/20000175488_HighresDigitalRGB.png
Descriptions
DGC786x+EBA7868, H7x80BP(X), ESW7x80, Installation, 30 Zoll, Flush inset, combi, XXL, 650
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Download
https://media.miele.com/dam/e7265936-e0d3-4b58-ada2-b3c3009cb71f/20000175515_HighresDigitalRGB.png
Descriptions
DGC7xxx, H2x80BP, H7x8xBP(X), side view, 30 Zoll, Proud, combi, XL, 650
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
POSTSCRIPT
Download
https://media.miele.com/dam/62a67cc0-b37f-4fac-8ca1-b3c3009cadac/20000175518_HighresDigitalRGB.png
Descriptions
DGC7x8x, H2x80BP, H7x8xBP(X), side view, 30 Zoll, Proud, combi, XXL 650
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel, DGC: Minimum installation height 36” - 914 mm from floor to the device installation surface
POSTSCRIPT
Download
https://media.miele.com/dam/edc48025-fc58-423e-af22-b3c3009c9b27/20000175526_HighresDigitalRGB.png
Descriptions
DGC7x8x(X), H2x80BP, H7x8xBP(X), ESW7x80, side view, 30 Zoll, Proud, combi, XXL, 650
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel, DGC: Minimum installation height 36” - 914 mm from floor to the device installation surface
POSTSCRIPT
Download
https://media.miele.com/dam/61d79370-96b8-40b2-8df8-b3c3009c6384/20000175551_HighresDigitalRGB.png
Descriptions
DGC7x4x+EBA7848, H2880BP, H7x8xBP(X), Installation, 30 Zoll, Proud, combi, 650
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Download
https://media.miele.com/dam/62442379-0051-40b7-b4d0-b3c3009c5514/20000175556_HighresDigitalRGB.png
Descriptions
DGC786x+EBA7868, H2880BP, H7x8xBP(X), Installation, 30 Zollm Proud, combi, XXL, 650
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Download
https://media.miele.com/dam/23581464-1880-43fb-bb8f-b3c3009c4732/20000175563_HighresDigitalRGB.png
Descriptions
DGC7x4x+EBA7848, H2880BP, H7x6xBP(X), ESW7x80, Installation, 30 Zoll, Proud, combi, XL, 650
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Download
https://media.miele.com/dam/84bf7dbb-ce0d-4fa9-8b6b-b3c3009c3925/20000175569_HighresDigitalRGB.png
Descriptions
DGC786x+EBA7868, H7x8xBP, ESW7x80, Installation, 30 Zoll, Proud, combi, XXL, 650
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Download
https://media.miele.com/dam/aaf0dea1-edb1-4210-8552-b3c3009c2f82/20000175573_HighresDigitalRGB.png
Descriptions
DGC7x4x+EBA7848, H2880BP, H7280BPX, Installation, 30 Zoll, Proud, combi, wide front, XL, 650
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Download
https://media.miele.com/dam/d663dcad-bfcb-4e30-a1fd-b3c3009c2170/20000175579_HighresDigitalRGB.png
Descriptions
DGC7x4x+EBA7848, H2880BP, H7x8xBP, ESW7x80, Installation, 30 Zoll, Proud, combi, wide front, XL, 650
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Download
https://media.miele.com/dam/83dfdc5d-7fe7-4853-a091-b3c300c80576/20000180245_HighresDigitalRGB.png
Descriptions
Handle H72xx, H76xx, H78xx, PureLine - NA7000 - Installation drawing
H2880BP, H7270BM, H7670BM, H7870BM, H7280BP, H7680BP, H7880BP, H7880BP2:, ① 19 11/16" / 500 mm, ② 17 1/2" / 444 mm, ③ 1 7/8 " / 47 mm, ④ 15/16" / 24 mm, ⑤ 1 1/4 " / 32,5 mm, ⑥ 2 9/16“ / 65 mm, , H7240BM, H7640BM, H7840BM, H7263BP, H7660BP:, ① 15 3/4“ / 400 mm, ② 14 3/16“ / 360 mm, ③ 1 7/8“ / 47 mm, ④ 15/16“ / 24 mm, ⑤ 1 1/4“ / 32,5 mm, ⑥ 2 9/16“ / 65 mm
POSTSCRIPT
Download
  • 1.This is a separate digital offer from Miele & Cie. KG. The range of functions can vary depending on the model and the country. Acceptance of the Terms and Conditions and Privacy Policy for Miele digital products and services in the Miele app required. Miele reserves the right to change or discontinue the digital offer at any time.
  • 2.Voice control uses the Google LLC and Amazon Alexa services and is based on their availability. The range of functions can vary depending on the country. Google, Google Home, and Google Nest Mini are trademarks of Google LLC. Google Nest Mini requires Wi-Fi, an internet connection, a nearby power socket, a Google account, and a compatible mobile device. Minimum requirements for the operating system can be found at: g.co/home/req. Compatible with Alexa. Amazon, Alexa, and all associated trademarks are trademarks of Amazon.com, Inc. or their affiliated companies.

We reserve the right to make technical changes; we assume no liability for the accuracy of the information provided.
