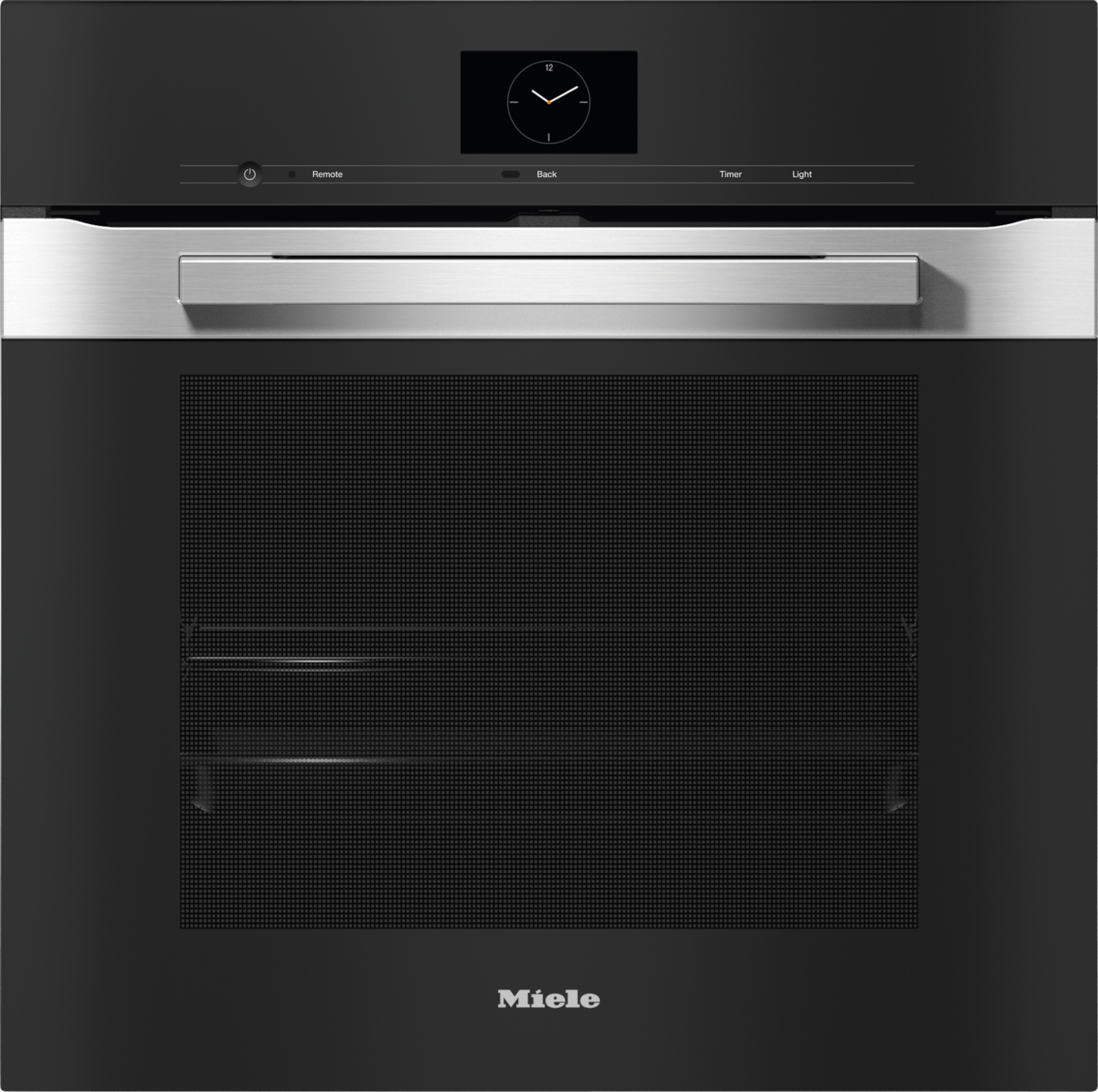

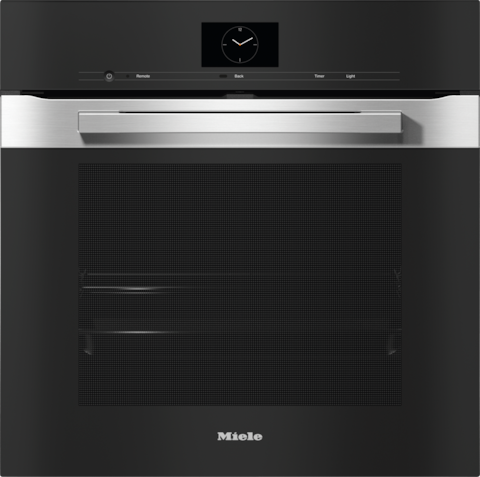

24" oven PLATINUM

H 7660 BP AM Stainless steel/Clean Touch Steel

in a perfectly combinable design with roast probe and BrilliantLight.
Color:Stainless steel/Clean Touch Steel
sale price$5,099.00


Product details

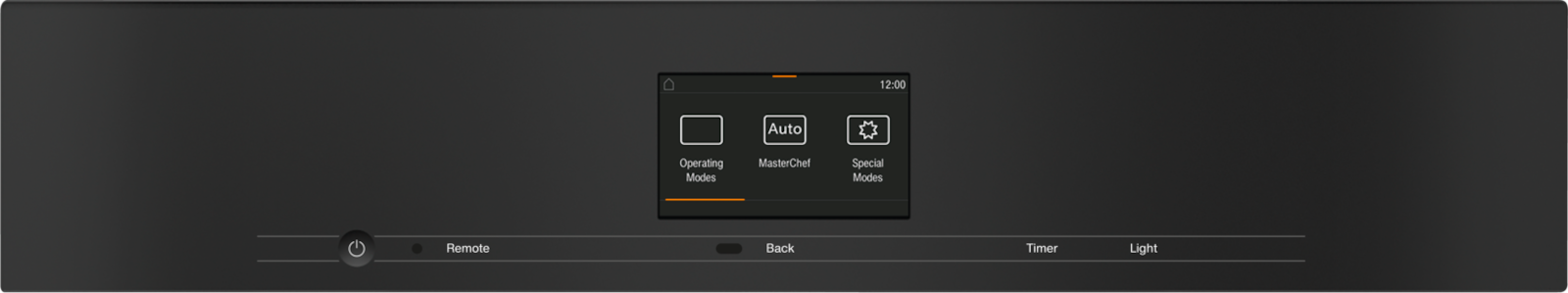

  • Touch display with proximity sensor –
    M Touch S
    +
    MotionReact
  • Minimal cleaning effort –
    Self Clean equipment
    & Self Clean ready

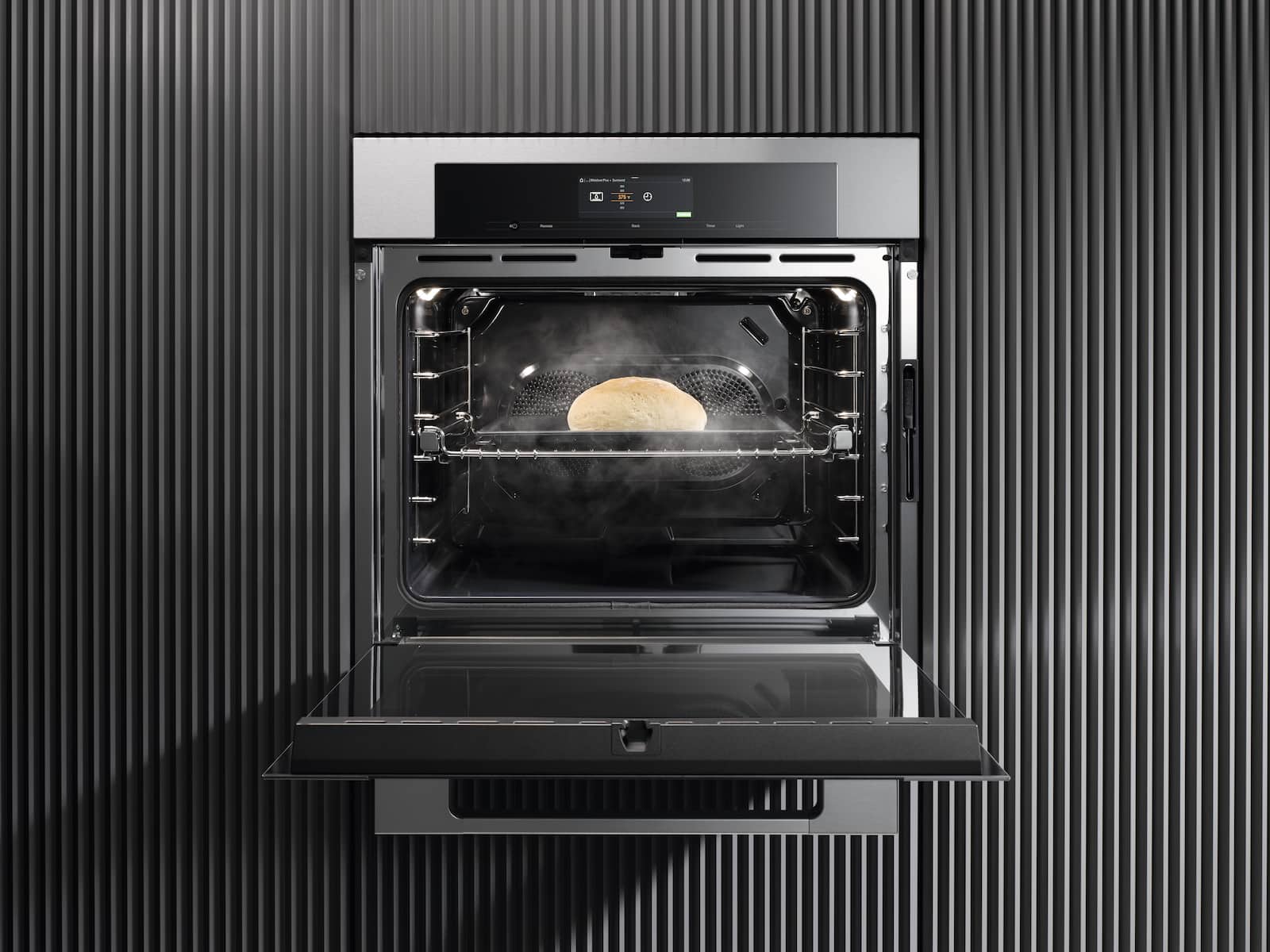

  • Especially fluffy dough and nicely browned crusts –
    Moisture Plus
  • Ensures your food won’t overcook –
    TasteControl
  • Network-enabled WiFi appliance –
    Miele@home
  • View manufacturer details:
  • Safety information

Product data sheet

Built-in wall oven
PureLine
Appliance color Stainless steel/Clean Touch Steel
TasteControl
Rapid PreHeat
Roast probe wired
Keep-warm function
Crisp Function
Surround
Moisture Plus
Moisture Plus with AutoRoast
Moisture Plus with Convection Bake
Moisture Plus with Intensive
Moisture Plus with Surround
Intensive Bake
Auto roast
Convection Roast
Maxi Broil
Broil
Broiling operating modes
Browning
Bake
Slow roast
Defrost
Automatic programs
Special modes
Networking with Miele@home
Control panel

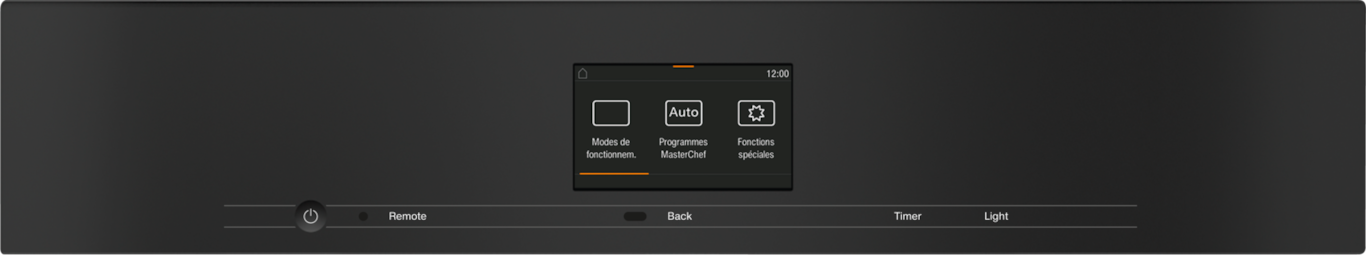

M Touch S Display
MotionReact proximity sensor
SoftOpen
SoftClose

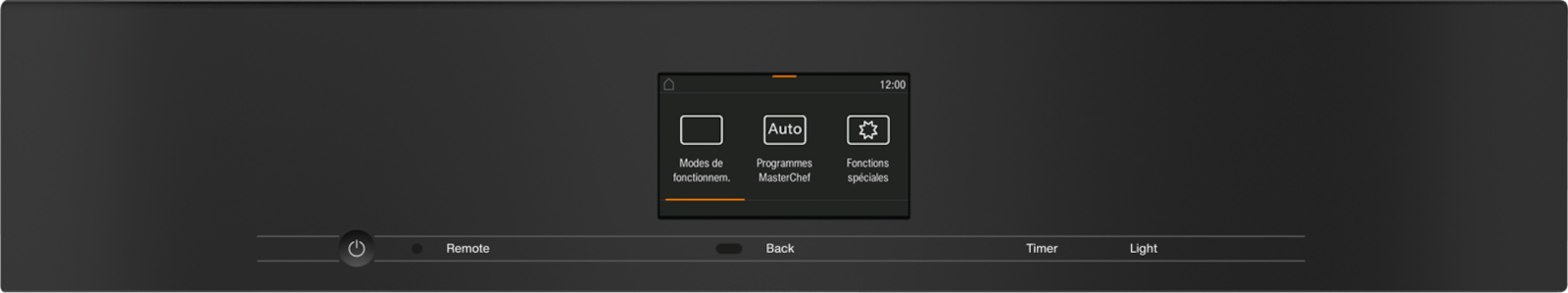

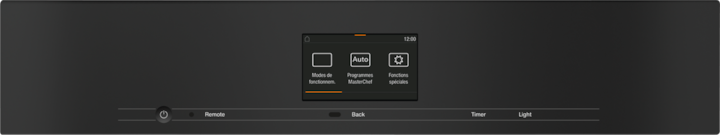

MultiLingua
MyMiele
Show me how
Timed bursts of steam
Timers
Time of day display
Time synchronization
Date display
Minute minder
Programming start of cooking duration
Programming end of cooking duration
Programmable cooking time
Actual temperature display
Audible signal when desired temperature is reached
Default temperature
Favorites
Sabbath program
Individual settings
Intake pipe for collecting water
Automatic residual heat utilization
Clean Touch Steel surface
Self-cleaning
Foldable broil heater element
CleanGlass door
Steam generator power in kW 1.100
Fresh water container volume in l 0.3
Intake pipe for collecting water
Appliance cooling system and cool touch front
Safety cut-out
System lock
Door lock during self cleaning
Sensor lock
Cavity volume in cu.ft (l)
2.97 (84)
No. of rack levels 5
Labeling of rack levels
Oven interior lighting 1 halogen spot
Temperatures in °F (°C) 85-575 (30-300)
Niche dimensions (W x H x D) in inches (mm) 22 (560)-22 3/8 (568) x 23 1/4 (590)-23 3/8 (595) x 21 5/8 (550)
Niche width min. in inches (mm) 22 (560)
Niche width max. in inches (mm) 22 3/8 (568)
Niche height min. in inches (mm) 23 1/4 (590)
Niche height max. in inches (mm) 23 3/8 (595)
Niche depth in in. (mm) 21 5/8 (550)
Appliance dimensions (W x H x D) in inches (mm) 23 3/8 (595) x 23 1/2 (596) x 22 3/8 (569)
Appliance dimensions (W x H x D) in inches (mm) 23 1/2 (595) x 23 1/2 (596) x 22 1/2 (569)
Weight in lbs. (kg) 103 (46.5)
Total connected load in kW 5.400
Power Rating in V 120
Voltage in V 240/208
Frequency in Hz 60
Fuse rating in A 30
Number of phases 1
Plug type NEMA plug: 14–30
Length of power cord in in. (m) 1.80
Universal tray with PerfectClean HUBB 71 1
Self Clean ready baking and roasting rack 2
Self-Clean-ready FlexiClip telescopic runners (pair)
1
Wired food probe 1
Removable Self Clean-ready side racks (pair) 1
Grilling and roasting insert with PerfectClean 1
Descaling tablets 2
Available display languages via MultiLingua [ "français", "ελληνιкά", "čeština", "繁體中文", "slovenčina", "slovenščina", "中文", "polski", "magyar", "nederlands", "hrvatski", "yкраїнська", "bahasa malaysia", "deutsch", "italiano", "türkçe", "日本語", "dansk", "suomi", "română", "español", "srpski", "english", "العربية", "svenska", "norsk", "pусский", "português", "한국어" ]
EAN 4002516483823

What's included

Universal tray with PerfectClean HUBB 71 (1)
Self Clean ready baking and roasting rack (2)
Self-Clean-ready FlexiClip telescopic runners (pair) (1)
Removable Self Clean-ready side racks (pair) (1)
Grilling and roasting insert with PerfectClean (1)
Descaling tablets (2)
Wired food probe (1)
  • Optimum results with additional moisture

    Optimum results with additional moisture

    Moisture Plus2,

    Better roasting and baking results: Moisture ensures an incredibly light dough and nicely browned crusts.

  • Stress-free baking and roasting, success guaranteed

    Stress-free baking and roasting, success guaranteed

    MasterChef

    Cooking delicious dishes with ease: cakes, fish, or meat – fully automatic cooking.

  • Only continues to cook if you want it to.

    Only continues to cook if you want it to.

    TasteControl3,

    The automatic rapid cool-down prevents food from continuing to cook and can, if desired, keep the food warm.

  • Cleverly networked

    Cleverly networked

    Domestic appliance networking with Miele@home1,

    Make your life smart: thanks to Miele@home you can cleverly network your domestic appliances – for more options.

Maintenance

Cleaning with zero effort
Cleaning with zero effort

Self Clean and Self Clean ready accessories

The oven compartment and (depending on the model) some accessories are automatically cleaned at high temperatures.
A finish for flawless stainless steel surfaces
A finish for flawless stainless steel surfaces

Clean Touch Steel

No fingerprints on stainless steel: The surface is protected and no special cleaning agents are required.

User convenience

Cleverly networked
Cleverly networked

Domestic appliance networking with Miele@home1,

Make your life smart: thanks to Miele@home you can cleverly network your domestic appliances – for more options.
Responds when you approach
Responds when you approach

MotionReact
*

Responds on approach: Oven lighting or display comes on, buzzers switch off, and cabinet fronts are detected.
Optimized access to your food
Optimized access to your food

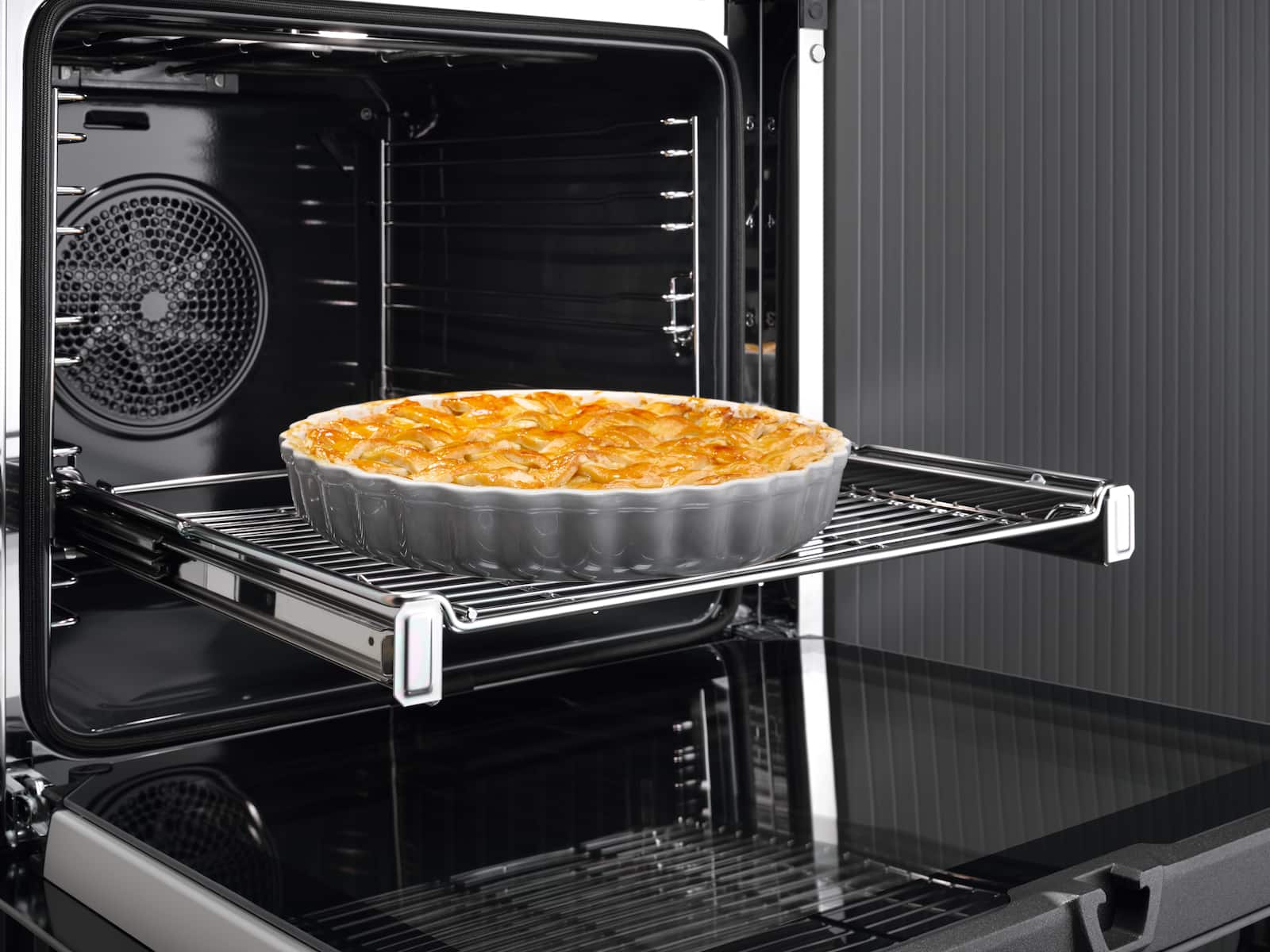

FlexiClip telescopic runners

Ergonomic and convenient: With fully telescopic runners, you can reach the food inside the oven easily and safely.
Gentle door movement
Gentle door movement

SoftOpen and SoftClose

Sophisticated and elegant: The door opens and closes with a gentle movement – right to the very end.
Let your oven take care of time management
Let your oven take care of time management

Timers

Always on time: Set the start time, end time, and duration of the cooking process, or the kitchen timer.
Incredibly easy to understand
Incredibly easy to understand

MultiLingua

For users who speak different languages: The controls can be set to numerous languages.

Convenience features

Optimum results with additional moisture
Optimum results with additional moisture

Moisture Plus2,

Better roasting and baking results: Moisture ensures an incredibly light dough and nicely browned crusts.
Stress-free baking and roasting, success guaranteed
Stress-free baking and roasting, success guaranteed

MasterChef

Cooking delicious dishes with ease: cakes, fish, or meat – fully automatic cooking.
Only continues to cook if you want it to.
Only continues to cook if you want it to.

TasteControl3,

The automatic rapid cool-down prevents food from continuing to cook and can, if desired, keep the food warm.
Makes food crunchy and crisp
Makes food crunchy and crisp

Crisp function

Perfect for pizza or fries: Reducing the moisture achieves a crispy, golden finish.

Safety

Only the food gets hot
Only the food gets hot

Touch-cool front

Protection against burns: The appliance stays relatively cool – including on the outside of the door.
Maximum safety, no matter the situation
Maximum safety, no matter the situation

Safety functions

Always safe: Safety lock and safety shut-off provide reliable protection.

Operating modes

Defrost

Defrost

Gentle on frozen food: Frozen food is gently defrosted under ideal conditions using cool air.
Auto Roast

Auto Roast

Meat remains tender and succulent: Meat is seared at a high temperature, then roasted at a selected temperature.
Maxi Broil

Maxi Broil

Versatile function for indoors: so you can broil large quantities of steaks, sausages, kebabs, and more.
Broil

Broil

Designed for small quantities: ideal for small amounts of food such as steaks and sausages. Perfect every time.
Intensive

Intensive

Crispy bases, delicious toppings: pizza, quiche, or fresh fruit flans – crispy base, moist on top.
Slow Roasting

Slow Roasting

Tender and succulent: Meat is cooked evenly at a low temperature – without drying the outside.
Surround

Surround

Multi-purpose, classic function: perfect results for all types of traditional baked and roasted dishes.
Browning

Browning

Finishing touch for the eye and palate: Perfect results when cooking gratins, baking toppings, and browning foods.
Bake

Bake

Individual requirements: for cooking food in a bain-marie or for browning from underneath.
Convection Broil

Convection Broil

Crisp outside, succulent inside: ideal for chicken, duck, pork, rolled meat, and many other meat dishes.
Booster

Booster

For those who lead a busy life: If there's not much time for cooking, you will really appreciate this program.
Moisture Plus

Moisture Plus

As if fresh from the bakery: Moisture ensures an incredibly light dough and a nicely browned crust.

Moisture Plus with AutoRoast

Perfect roasts: Meat is seared at high temperature, then roasted at a customized temperature with added moisture.
Moisture Plus with Convection Bake

Moisture Plus with Convection Bake

Perfectly soft and light: ideal for baking and roasting with added moisture on up to 3 levels.
Moisture Plus with Intensive

Moisture Plus with Intensive

Pizza, quiche, or fresh fruit flans: Added moisture makes bases crispy, while toppings stay moist.
Moisture Plus with Surround

Moisture Plus with Surround

Classic function: Added moisture provides perfect results for all types of traditional baked and roasted dishes.
Sabbath Program

Sabbath Program

The oven stays on for 72 hours: the intelligent Sabbath program helps with periods of religious observance.
