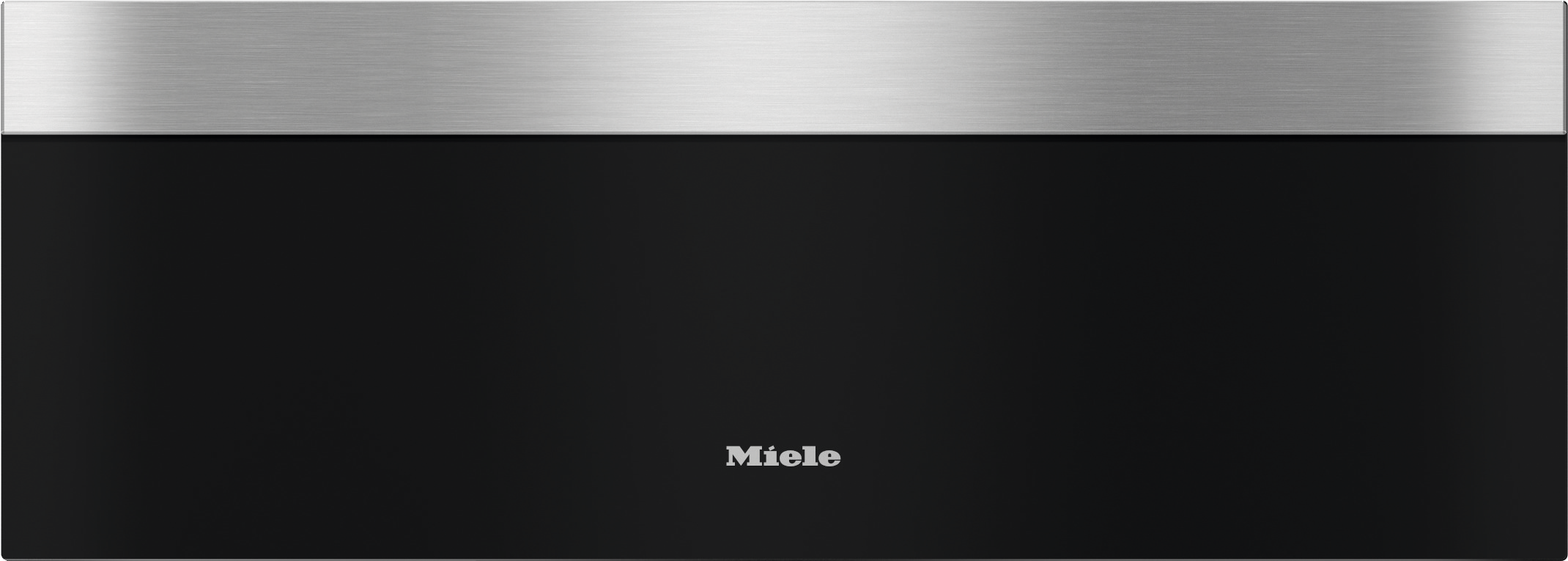

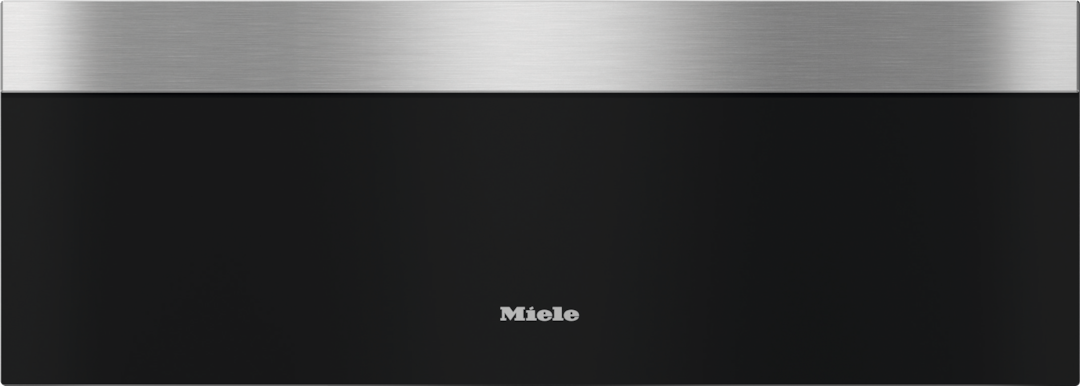

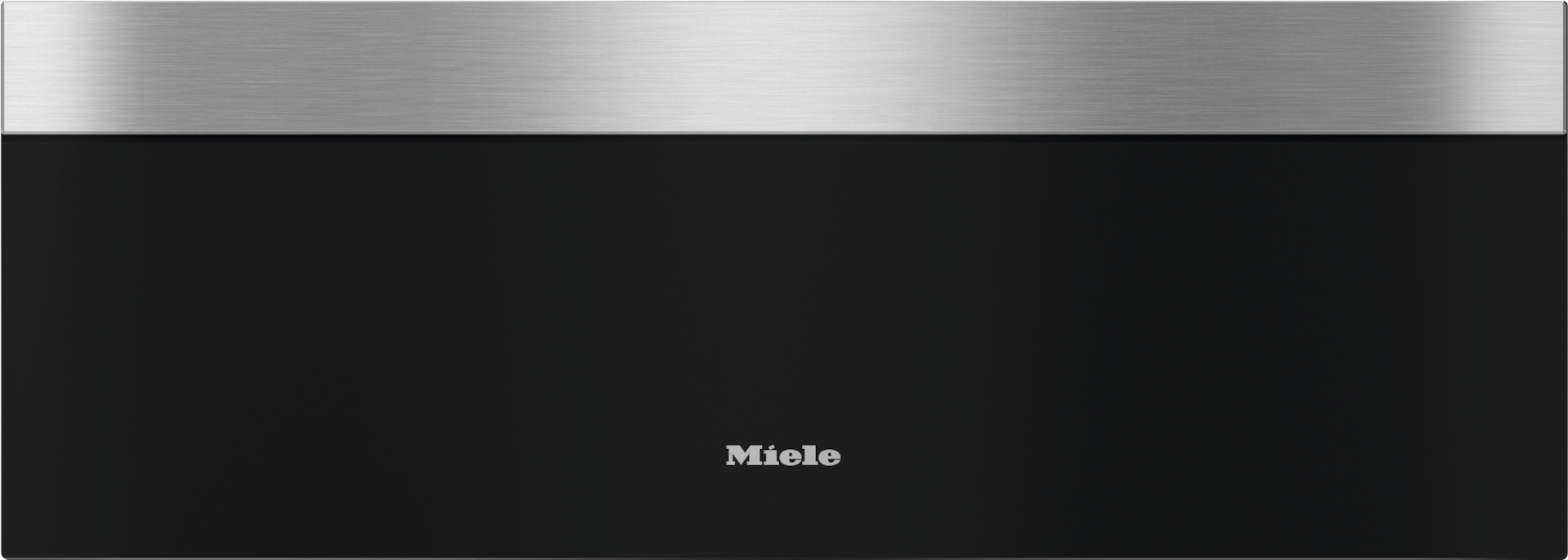

Handleless Gourmet warming drawer, 30-" width and 10 13/16" height

ESW 7680 Stainless steel/Clean Touch Steel

for preheating dishware, keeping food warm, and Slow Roasting.
Color:Stainless steel/Clean Touch Steel
sale price$2,999.00


Product details

  • The ultimate in enjoyment –
    Slow Roasting
  • Always at the right temperature –
    4 operating modes
  • Convenient and easy –
    Touch control
    and
    Miele@home
  • Push2open
    – opening the drawer couldn’t be easier
  • Better safe than sorry –
    timer
    with automatic switch-off
  • View manufacturer details:
  • Safety information

Product data sheet

Gourmet drawer
PureLine
No Handles
Color Stainless steel/Clean Touch Steel
Prewarming of dishware
Keeping food warm
Perfect cooking results at low temperatures
Warm cups
Warm plates
Keeping food warm
Slow roast
Miele@home
Capacity 12 place settings
Push2open mechanism
Fully telescopic runners for easy loading and unloading
Control panel with sensor control
Control panel with text
Timers
Stop programming
Timer function
Sabbath program
Clean Touch Steel surface
Flush control panel
Cool front
Anti-slip mat
Safety cut-out
Temperature in °F (°C) 105-185 (40-85)
Appliance width in in. (mm) 29 3/4 (757)
Appliance height in in. (mm) 10 7/8 (275)
Appliance depth in in. (mm) 23 7/8 (608)
Appliance dimensions (W x H x D) in inches (mm) 29 3/4 (757) x 10 7/8 (275) x 23 7/8 (608)
Useable interior height in in. (mm) 6 3/4 (170)
Total connected load in kW 1
Voltage in V 120
Frequency in Hz 60
Fuse rating in A 16
Number of phases 1
Connection wire with plug Yes
Plug type NEMA plug: 5–15
Wire length in ft. (m) 6 (2.0)
Non-slip liner 1
Rack for increased capacity 1
EAN 4002516487357

What's included

Non-slip liner (1)
Rack for increased capacity (1)

User convenience

Universal use
Four functions

4 in 1: Warm up cups or plates, keep food warm, or cook at low temperatures.


Intuitive and minimalist
SensorTouch controls

Elegant and easy to clean: A state-of-the-art, flush-mounted touch panel makes the appliance convenient to use.


One touch is all it takes
Push2open

Open in no time: Light pressure on the drawer is all it takes..


Straightforward convenience
Timer function

For your flexibility: The drawer switches off automatically at the end of the programmed time.


Cleverly networked

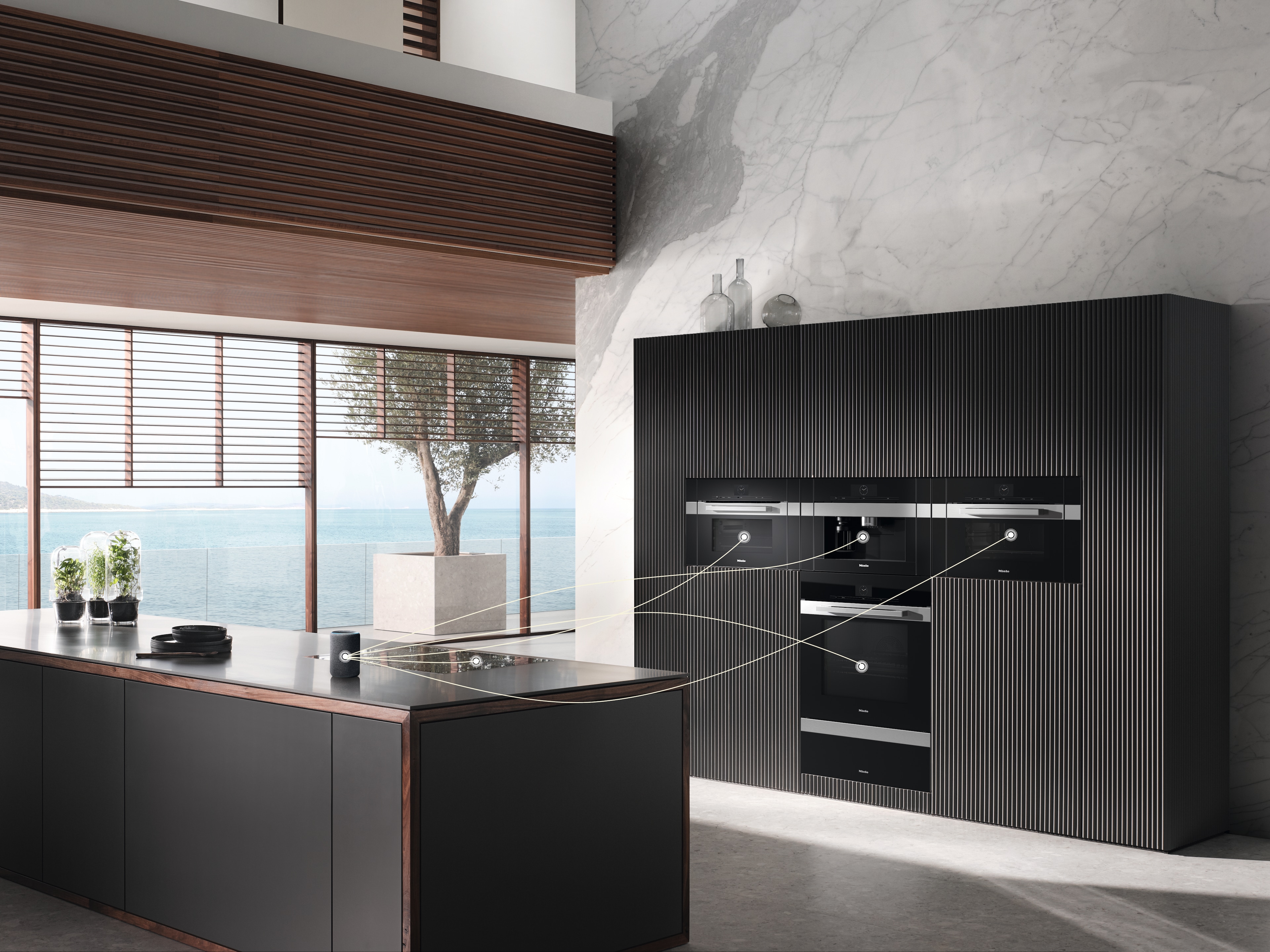

Appliance networking with Miele@home1,

Make your life smart: thanks to Miele@home you can cleverly network your domestic appliances – for more options.


Practical and ergonomic
Fully telescopic runners

So convenient: You can open the drawer fully so it is easy to load or unload.


Wide range of options
Wide range of applications

The drawer is also ideal for drying fruit and herbs, proofing dough, or melting chocolate.

Convenience features

Less heat for flavorsome results
Slow Roasting

Professional results: Cooking at low temperatures turns every meat dish into a sumptuous delight.

Gourmet versatility

Veal and beef

Slow Roasting gives meat an aromatic flavor and keeps it juicy and succulent.


Lamb and poultry

Slow Roasting ensures gentle cooking of these meats and achieves succulent and tender results.


Fish

Cooking fish gently preserves its delicate structure and locks in vital nutrients – making it healthy and tasty.


Desserts

Dessert provides the perfect end to any meal – a sumptuous meringue, for instance.


Side dishes

Potatoes, pasta, rice, or vegetables – a perfectly cooked side dish rounds off any meal.


Melting chocolate

Whether you’re making cake or muffins – you can melt chocolate at precise temperatures for baking.


Proofing dough

Yeast dough is particularly suitable for bread, rolls, and pizza – it’s a breeze to prepare.


Making yogurt

Make your very own yogurt from scratch – for dessert or to use in baking.


Allowing rice to swell

Soak rice to make it soft and light. Perfect in all variations, particularly puddings.


Dissolving gelatine

Desserts such as panna cotta are prepared to perfection with gelatin.


Defrost

Defrost food gently, with no compromise on quality, to keep it fresh.

Features

Non-slip liner

The mat ensures that cups and plates stand securely in the Gourmet drawer.


Only the food gets hot
Touch-cool front

Protection against burns: the appliance stays relatively cool – including on the outside of the door.

Downloads

Operating and Installation instructions
PDF
Downloads
Product sheet
PDF
Downloads
Warranty conditions
PDF
Downloads
dwg
ZIP
Downloads
fbx
ZIP
Downloads
ifc
ZIP
Downloads
rfa
ZIP
Downloads
rvt
ZIP
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts.
