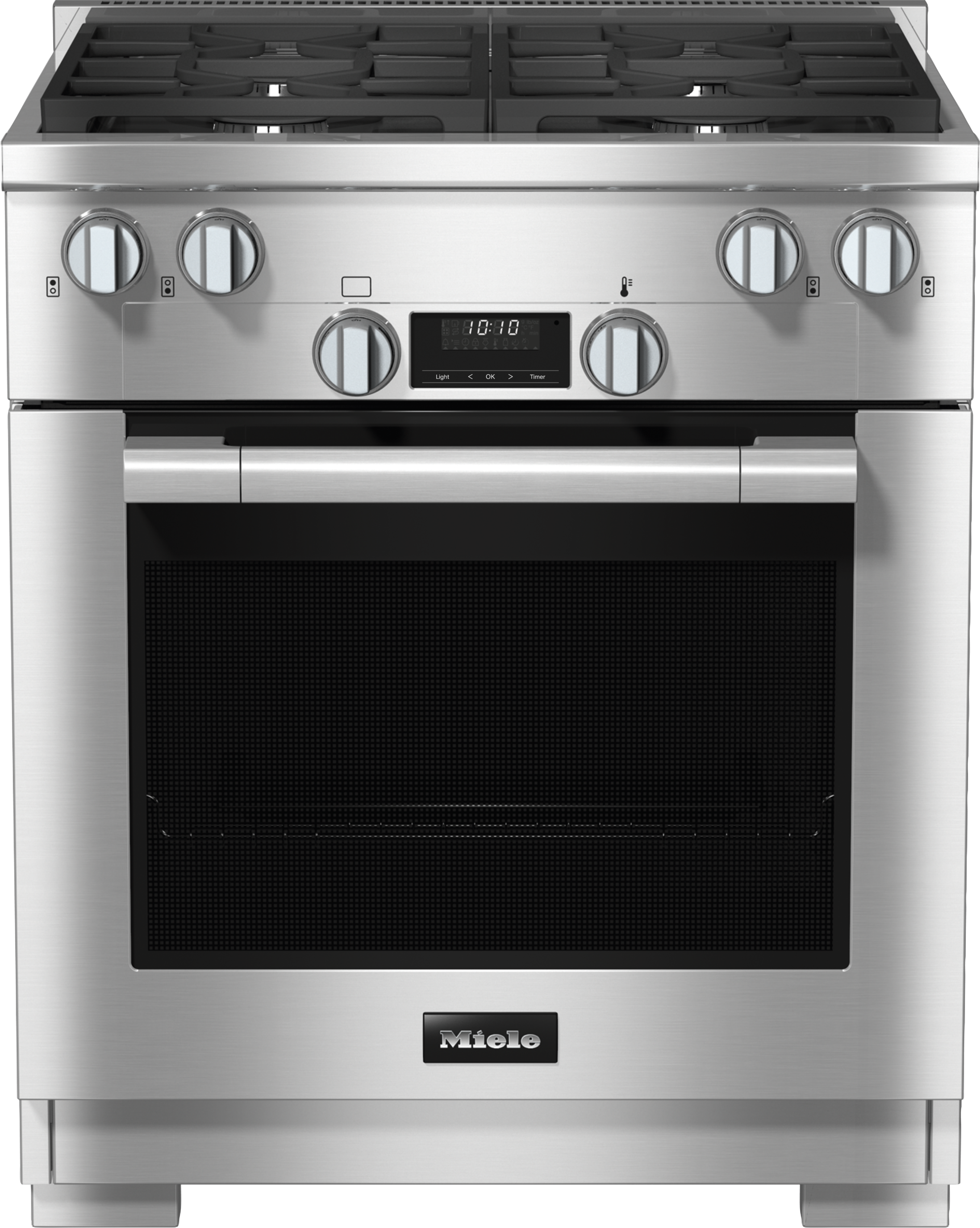

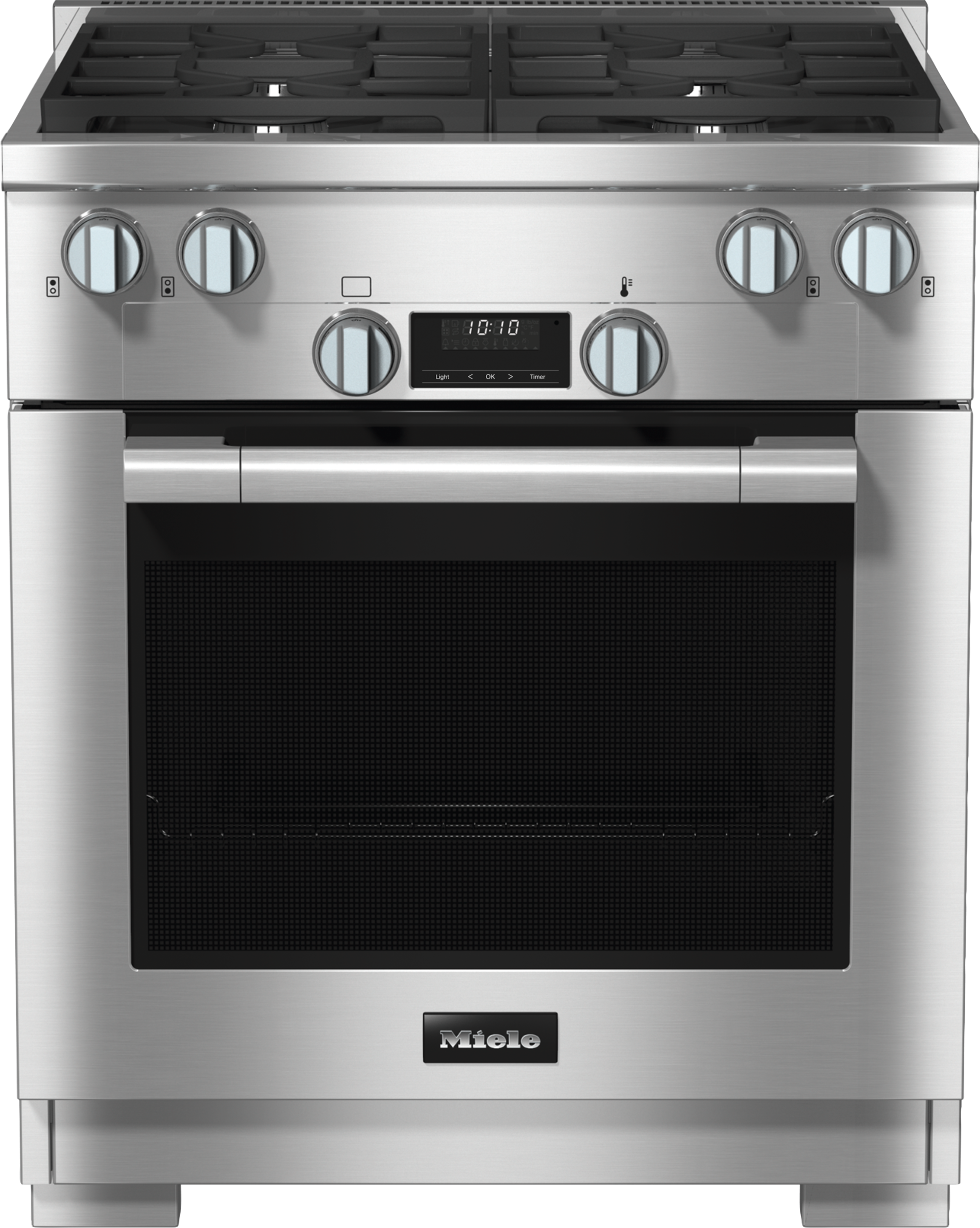

30" RangeGold
HR 1124-3 G AG Stainless steel/Clean Touch Steel
All-gas model with DirectSelect controlsColor:Stainless steel/Clean Touch Steel
sale price$7,399.00
Product details

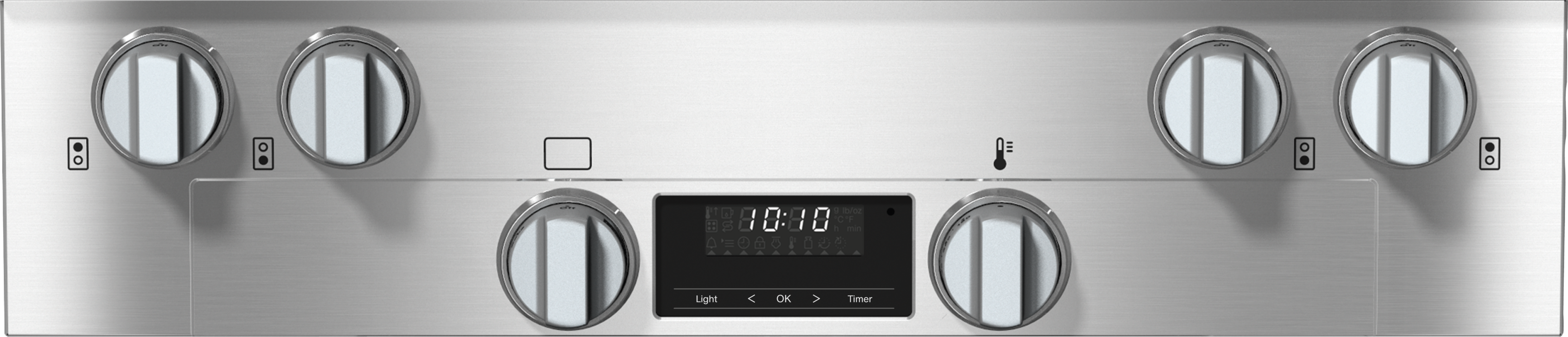

- Turn dial operation with display -DirectSelectLoading...
- Plenty of space for cooking - four powerful burners
- Fast heating time and even heat distribution –TwinPowerLoading...
- Easy clean-up -Self-cleaningand dishwasher-safe gratesLoading...
- Easy opening & closing - noise and vibration absorbers
- View manufacturer details:
- Safety information
Treat yourself to minimum effortSelf Clean Oven and Self Clean Ready Accessories
Less cleaning effort: The grease residue is broken down, helping to keep the oven and cooking accessories clean.
Self Clean Oven and Self Clean Ready Accessories
Less cleaning effort: The grease residue is broken down, helping to keep the oven and cooking accessories clean.
Clean Touch Steel™Front
No fingerprints on stainless steel: surface has special finish which keeps clean without special cleaning agents.
ComfortClean Dishwasher-Safe Grates
Fast cleaning: Remove the pot rests and wash in the dishwasher. Fast clean-up with dishwasher-safe grates.
Individual settings
You decide: Language, buzzer tones, display brightness and much more can be individually adjusted.
Timer Function
Always on time: The start time, finish time and duration of the cooking process are easy to select.
Soft Open and Soft Close
The Range oven door effortlessly opens and closes, preventing the door from shutting or slamming.
TwinPower Convection Blowers and Power Convection Blower
Quickly ready for use: 2 hot air blowers heat the oven very rapidly with optimum hot air distribution.
Cooling System and Cool-Touch Fronts
Maximum protection: All surfaces on and around the appliance remain cool and can be touched safely.
Safety functions
Your guardian angel: If you forget to switch off the appliance, the safety switch-off steps in for you.
Convection Roast
Crispy on the outside, succulent inside: Ideal for chicken, duck, joints, rolled meat and many other meat dishes.
Bake
Individual requirements: For dishes which need to be cooked in a bain marie or browned from below.
Broil
Designed for small quantities: Ideal for small amounts of food such as steak and sausages. Perfect every time.
Convection Bake
Perfectly soft and light: ideal for gentle baking on up to two levels.
Convection Roast
Perfectly soft and light: ideal for gentle roasting on up to two levels.Matching products and accessories
Downloads
Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts.
Descriptions

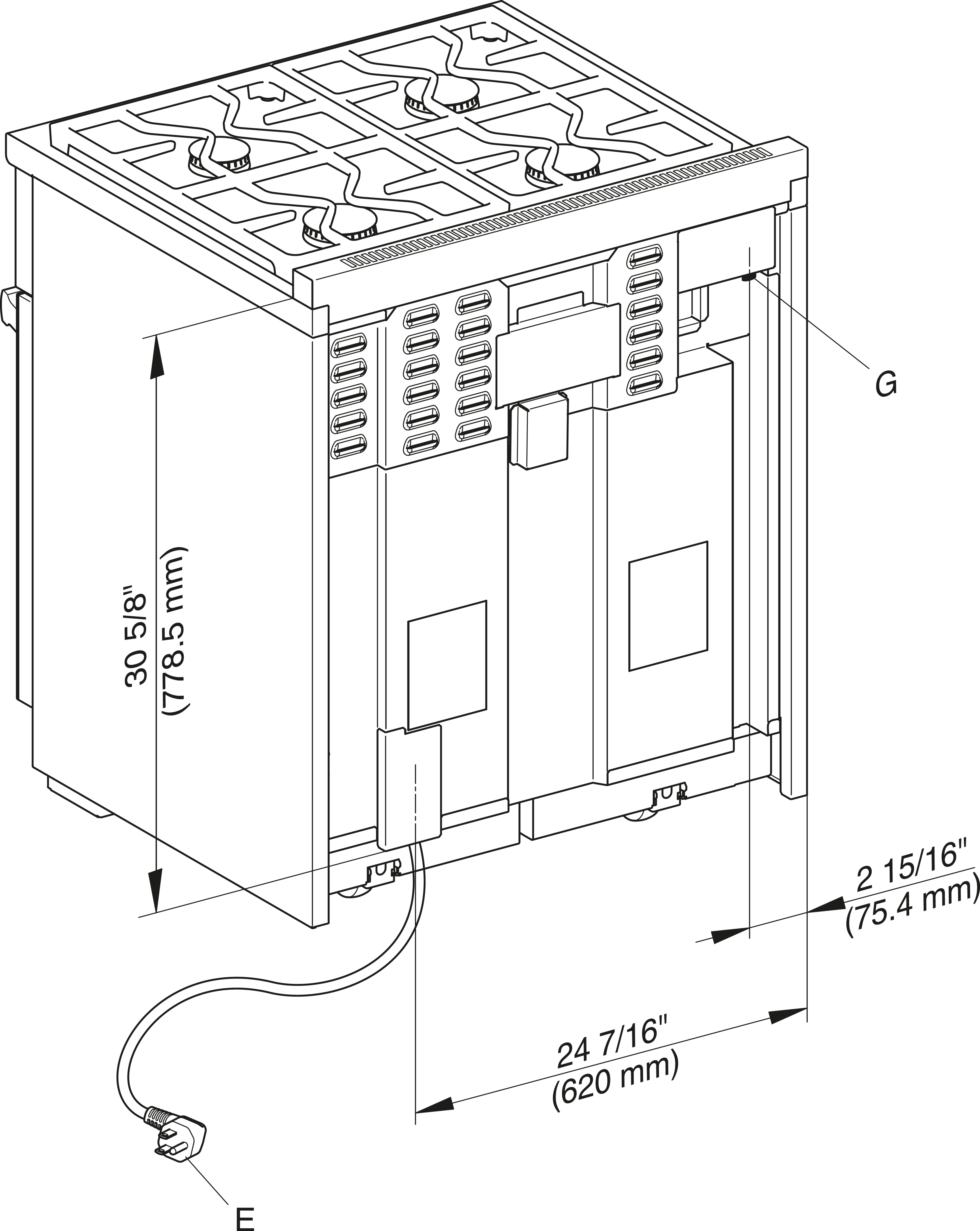

HR1421, HR1241-3 (Installation drawing)
E = Electric connection, G = Gasanschluss POSTSCRIPT
Descriptions
HR11xx, HR1724 (Installation drawing)
HR11xx, HR1724 (Installation drawing) POSTSCRIPT
Descriptions
HR11xx, HR19xx, HR 17xx - Installation drawing
1 Anti-tip device , 2 Screws, 3 Locking nut POSTSCRIPT
Descriptions
HR11xx, HR19xx - Installation drawing
1 Anti-tip device , 2 Screws, 3 Locking nut POSTSCRIPT
Descriptions
HR11xx, HR19xx, HR17xx - Installation drawing
1 Anti-tip device , 2 Screws, 3 Locking nut POSTSCRIPT
Descriptions
HR11xx, HR19xx, HR17xx - Installation drawing
X 3 13/16" (97 mm): HR1124, HR1134, HR1135, HR1136, HR1724, HR1924, HR1934, HR1935, HR1936, HR1954, HR1955, HR1956, , X 3 1/4" (82 mm): HR1134-2, HR1134-3, HR1135-2, HR1135-3, HR1136-2, HR1136-3, HR1924-2, HR1924-3, HR1934-2, HR1934-3, HR1935-2, HR1935-3, HR1936-2, HR1936-3, HR1954-2, HR1954-3, HR1955-2, HR1955-3, HR1956-2, HR1956-3 POSTSCRIPT
Descriptions
HR11xx, HR19xx, HR17xx - Installation drawing
1 Toe kick cover , 2 Locking clamp POSTSCRIPT
Descriptions
HR11xx, HR19xx, HR17xx - Installation drawing
1 Opening in the range housing , 2 Bolt of the anti-tip device , 3 Locking clamp with slot POSTSCRIPT
Descriptions
HR1124, HR1134, HR1135, HR1136HR1124-1, HR1134-1, HR1135-1, HR1136-1, HR1124-3, HR1134-3, HR1135-3, HR1136-3 - Installation drawing
① Maximum depth of top cabinet, ② Minimum distance to bottom edge of top cabinet , ③ Distance from the floor to cooktop surface, ④ Minimum distance to combustible surfaces, , E = Electric connection, G = Gas connection, , (A) Width of cabinet opening, (B) Minimum distance between the top of the cooking area and the bottom of an unprotected combustible surface., Minimum distance to a protected combustible surface or when a Miele Ventilation Hood is installed. For all other, Hoods please consult the manufacturer's specifications for required distances., (C) Maximum connection width right and left , (D) Maximum connection height , (E) Maximum connection depth POSTSCRIPT
Descriptions
HR11xx, HR19xx, HR17xx - Installation drawing
A = Distance between the rear of the range to the supporting wall POSTSCRIPT
Descriptions

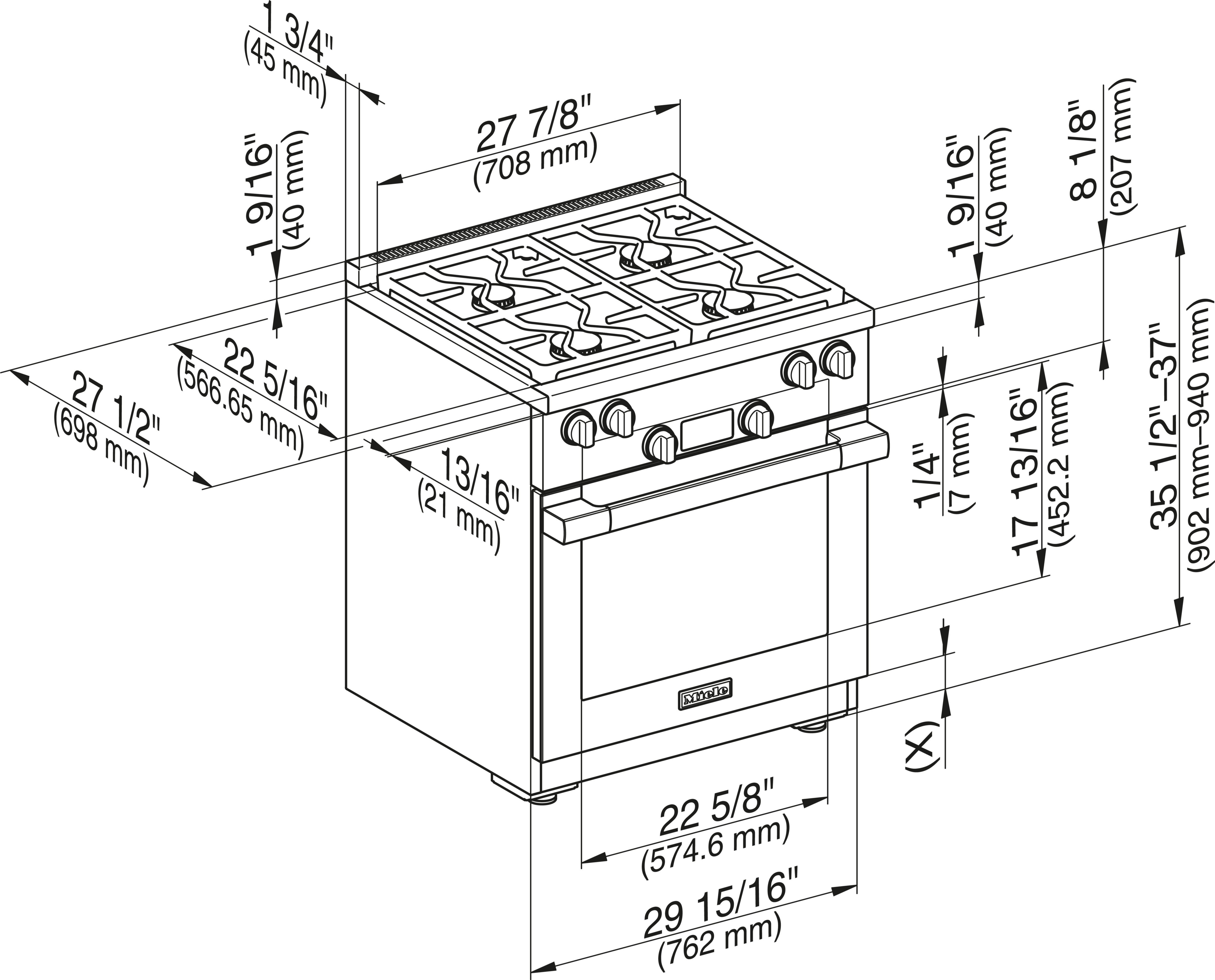

HR1124-3, HR1134-3, HR1135-3, HR1136-3, HR1724-3, Side view, (*Fußnote) installation drawing
(x) = Toe-kick height adjustment 5” - 6 1/2” (127 mm - 165.1 mm) POSTSCRIPT
Descriptions
HR11xx-3, HR14xx-3, HR16xx-3i, HR17xx-3, HR19xx-3 installation drawings
30", ① 20 ¾” / 527,6 mm, ② 16 5/8” / 422,6 mm, ③ 2 ½” / 64 mm, ④ 1 11/16” / 43 mm, ⑤ 1 11/16” / 42,5 mm, , 36", ① 28 9/16” / 725 mm, ② 22 5/8” / 575 mm, ③ 2 ½” / 64 mm, ④ 1 11/16” / 43 mm, ⑤ 1 11/16” / 42,5 mm POSTSCRIPT
Descriptions
HR1124-3 (installation drawing)
(x) = Toe-kick height adjustment 5" - 6 1/2" (127 mm - 165.1 mm) POSTSCRIPT
Descriptions
HR1124-3, HR1134-3, HR1135-3, HR1136-3, HR1724-3 (installation drawing)
HR1124-3, HR1134-3, HR1135-3, HR1136-3, HR1724-3 (installation drawing) POSTSCRIPT
We reserve the right to make technical changes; we assume no liability for the accuracy of the information provided.
