  • Miele - KWT 6322 UG Obsidian Black glass – Wine Refrigerators - 1

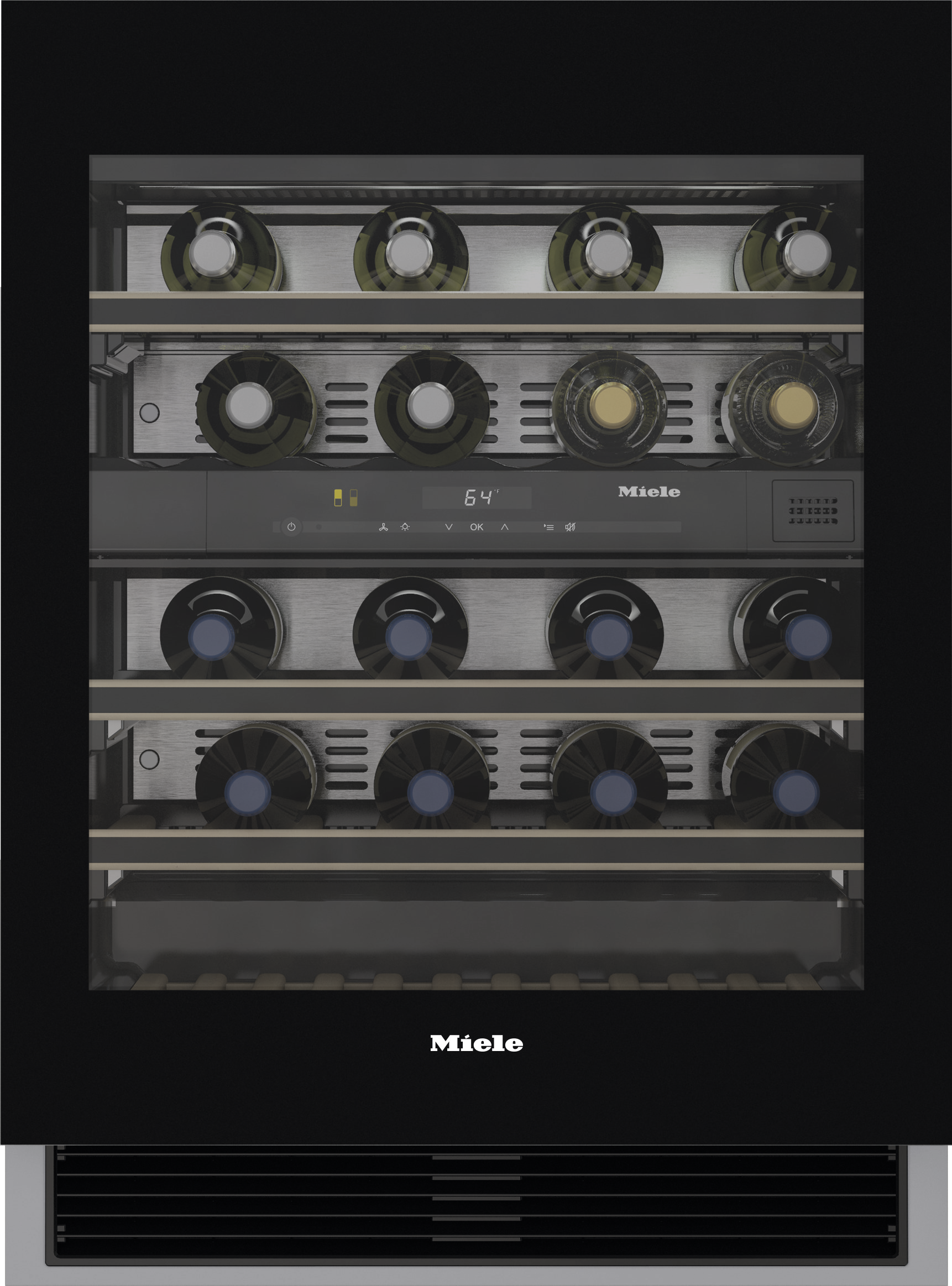

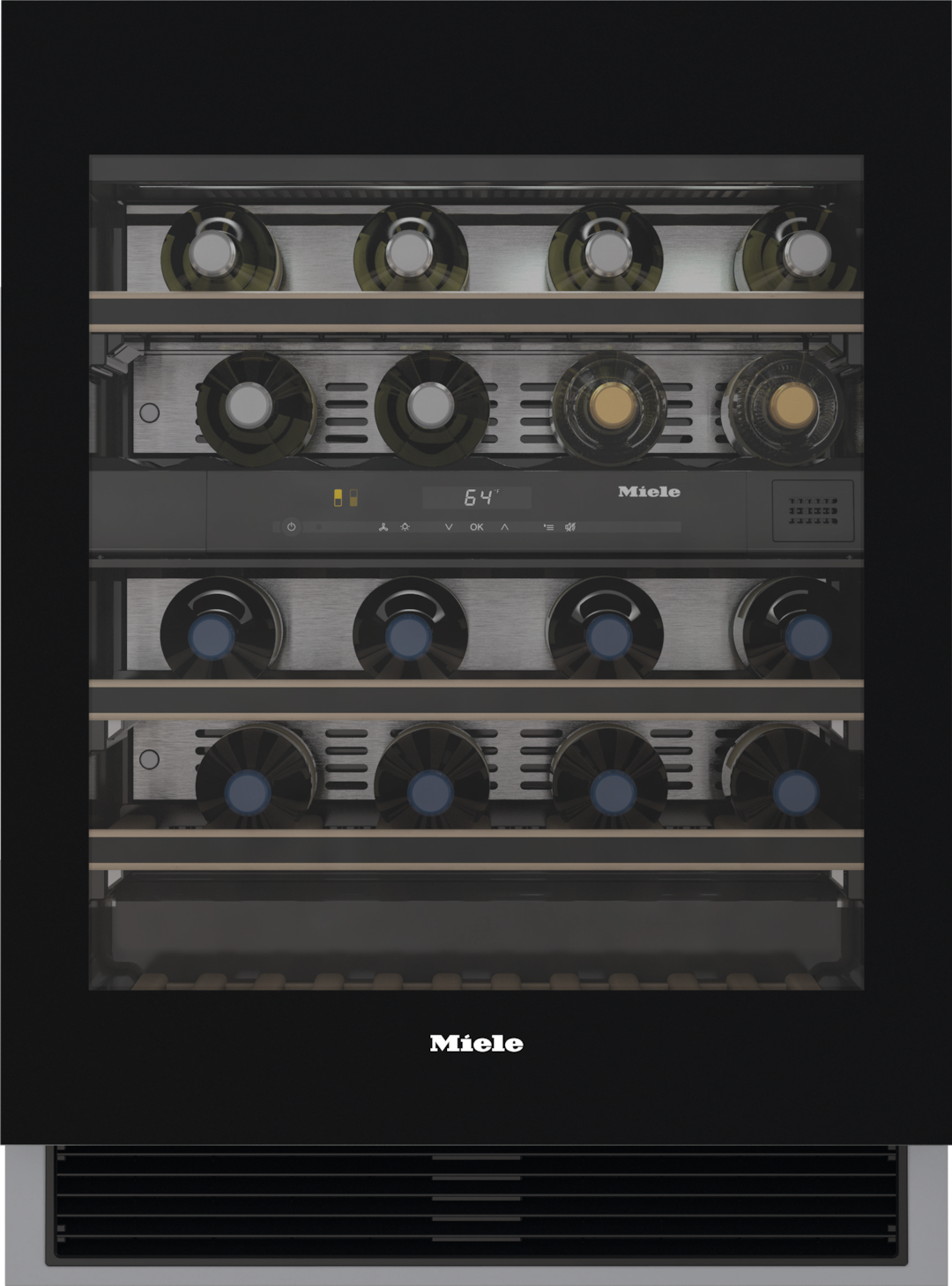

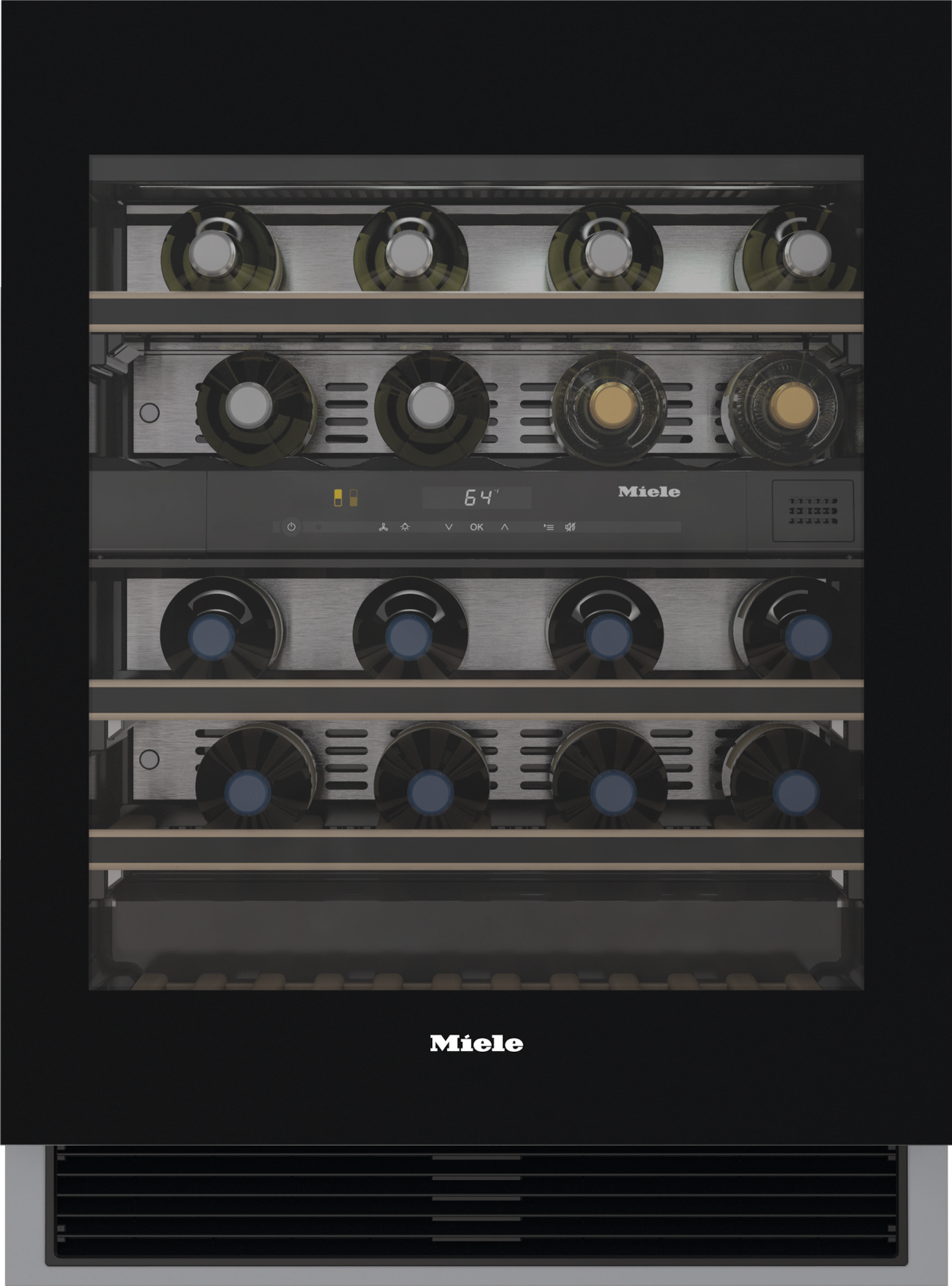

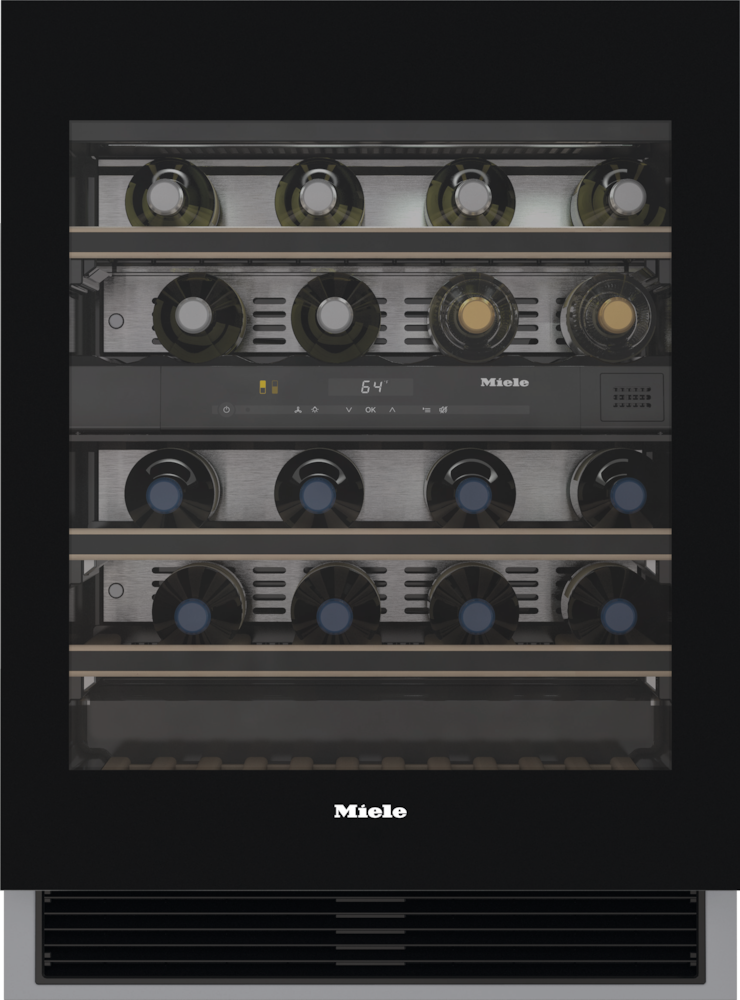

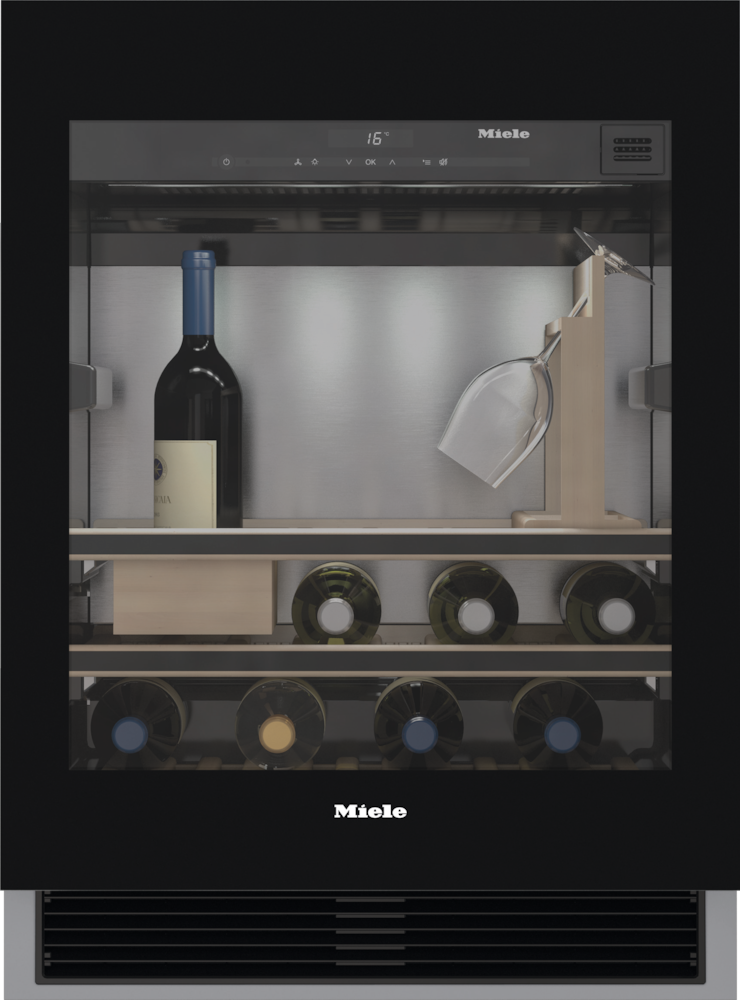

24" built-under wine refrigeratorDiamond

KWT 6322 UG Obsidian Black glass

with FlexiFrame and Push2open for greater versatility and top-quality design.
Color:Obsidian Black glass
Permanently out of stock
View alternative products

Product data sheet

Model number
KWT 6322 UG
Manufacturer material number
10028620
EAN number
4002515539699
Marketing class
Diamond
Wine storage unit
Built-in
Built-in integrated
Built-in built-under
Door hinge side
right
Convertible hinging
Can be installed side-by-side
Front color
Obsidian Black glass
Feature lighting
Wine compartment lighting
LED illumination
DynaCool
SoftClose door closing damper
Active AirClean filter
Total number of shelves
5
Number of shelves
4
Number of FlexiFrame Wire Racks
3
NoteBoard
Low-vibration storage
Electronic temperature display and control
TouchControl
No. of temperature zones
2
Min. temperature setting range in °F (°C)
41 (5)
Max. temperature setting range in °F (°C)
68 (20)
Lock function
Acoustic door alarm
Acoustic temperature alarm
Optical door alarm
Niche width in inches (mm), min.
23 5/8 (600)
Niche width in inches (mm), max.
23 5/8 (600)
Niche height in inches (mm), min.
32 3/8 (820)
Niche height in inches (mm), max.
34 3/8 (870)
Niche depth in in.(mm)
22 7/8 (580)
Appliance dimensions (W x H x D) in inches (mm)
23 1/2 (597) x 32 1/4 (820) x 22 3/4 (577)
Appliance width in in.(mm)
23 1/2 (597)
Appliance height in in.(mm)
32 1/4 (820)
Appliance depth in in.(mm)
22 3/4 (577)
Weight in lbs.(kg)
109 (49.0)
Wine compartment in L
3.32 (94)
Total usable capacity in cu. ft. (l)
3.32 (94)
0.75 l Bordeaux bottle capacity (no. of bottles)
34 bottles
Storage time in case of fault in h
0
Current consumption in milliampere (mA)
2000
Voltage in V
115
Fuse rating in A
10
Number of phases
1
Frequency in Hz
60
Wire length in ft (m)
7.9 (2.4)
Active AirClean filter
EAN
4002515539699

What's included

Active AirClean filter
Active AirClean filter
  • Customize each rack
    Customize each rack

    NoteBoard

    For individual labelling: Every bottle rack features a removable, magnetic strip for labelling bottles.

  • Several temperature zones in one appliance
    Several temperature zones in one appliance

    Temperature zones

    Separate controls: Up to three different types of wine can be stored at the same time at different temperatures.

  • Holds bottles of all sizes securely
    Holds bottles of all sizes securely

    FlexiFrame with NoteBoard

    Just one movement: Move individual slats so that you can even store large wine bottles in a flexible manner.

Convenience features

Several temperature zones in one appliance
Several temperature zones in one appliance

Temperature zones

Separate controls: Up to three different types of wine can be stored at the same time at different temperatures.

User convenience

Beautiful and protects precious wines
Beautiful and protects precious wines

UV protection

The best protection for valuable wine: glass door with integrated UV filter.
Customize each rack
Customize each rack

NoteBoard

For individual labelling: Every bottle rack features a removable, magnetic strip for labelling bottles.
Appliance door closes softly
Appliance door closes softly

Soft Open/Soft Close

Quiet and safe: The doors close quietly, gently, and as if of their own accord for storage without any vibrations.
Perfect storage conditions for food and wine
Perfect storage conditions for food and wine

DynaCool

Uniform distribution of temperature: a ventilator ensures excellent circulation and distribution of cold air.
Holds bottles of all sizes securely
Holds bottles of all sizes securely

FlexiFrame with NoteBoard

Just one movement: Move individual slats so that you can even store large wine bottles in a flexible manner.

Quality

Specially developed for storage in the wine unit
Specially developed for storage in the wine unit

Storage with low vibration

Low vibration: The compressor is uncoupled and cushioned against vibration.

Downloads

Product sheet
PDF
Download
dwg
ZIP
Download
fbx
ZIP
Download
ifc
ZIP
Download
rfa
ZIP
Download
rvt
ZIP
Download

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts.

https://media.miele.com/dam/84e22dee-37a9-4553-9baf-b3c5003b909f/20000107908_HighresDigitalRGB.png
Descriptions

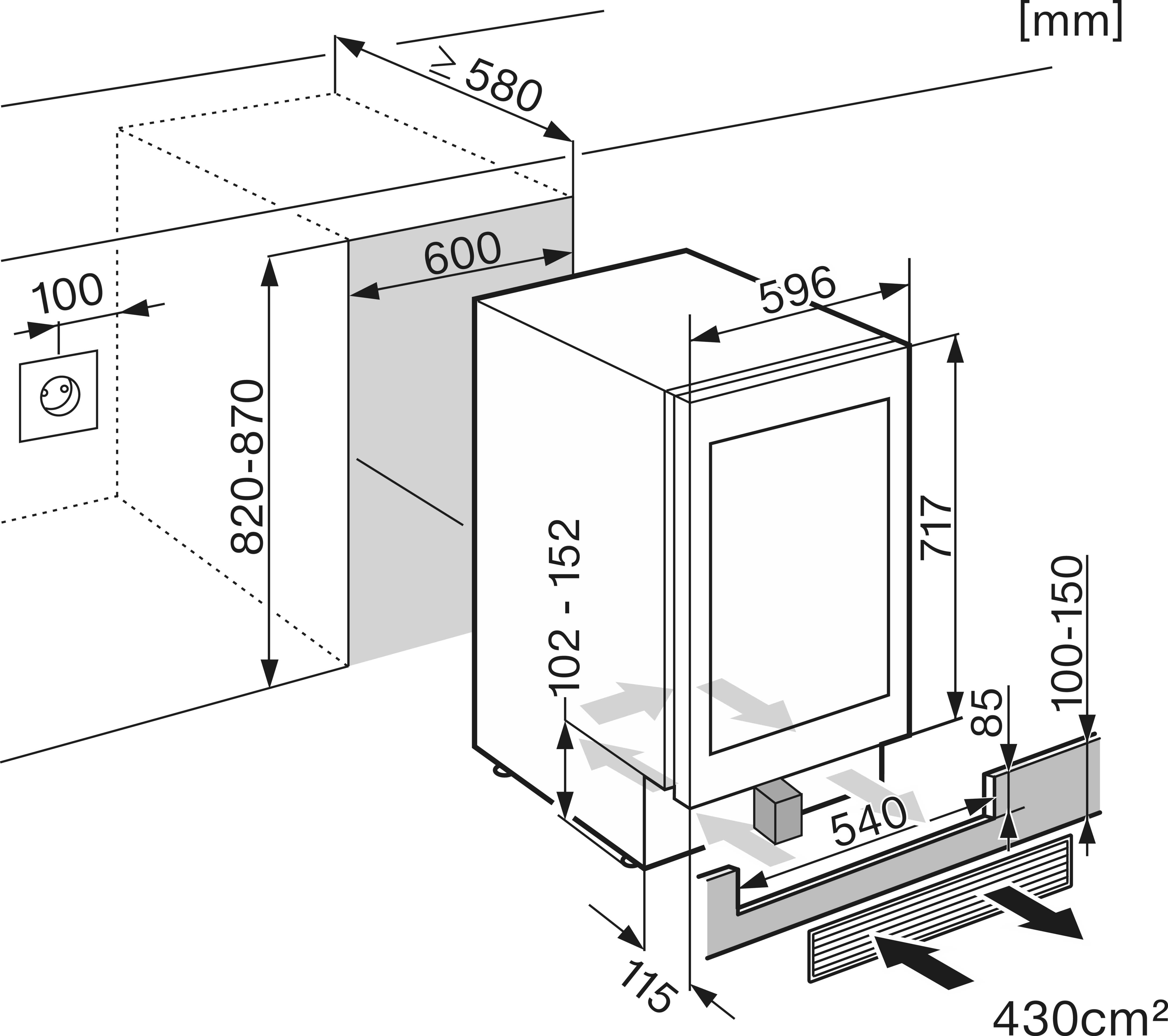

KWT6312UGS, KWT6322UG, KWT6322UG-1, KWT6322UG edt/cs (installation drawings)
KWT6312UGS, KWT6322UG, KWT6322UG-1, KWT6322UG edt/cs (installation drawings)
POSTSCRIPT
Download
https://media.miele.com/dam/5f1aff4e-9899-45e7-bc0e-b3c500669190/20000112851_HighresDigitalRGB.png
Descriptions

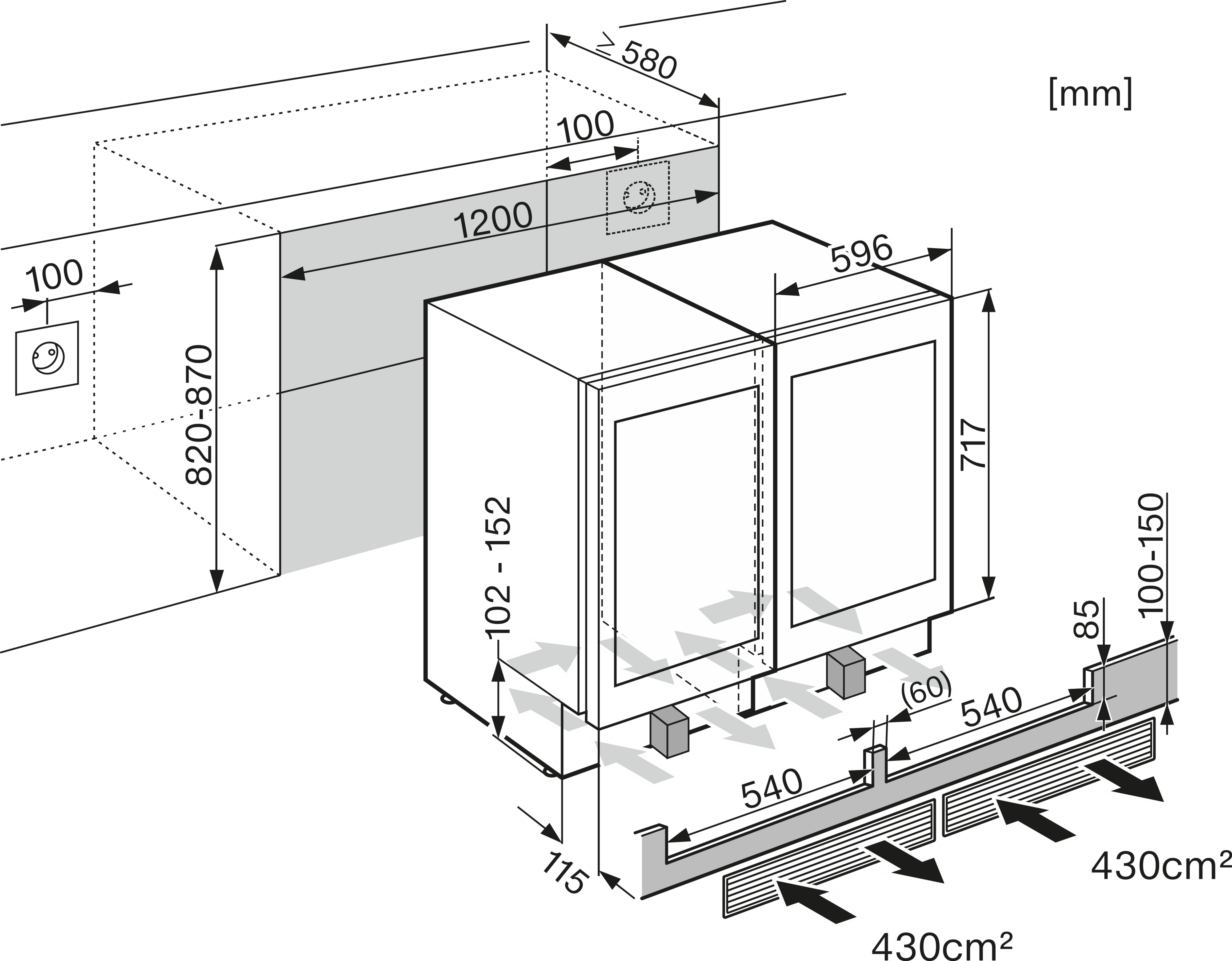

KWT6312UGS, KWT6322UG, KWT6322UG-1, KSK6300, Side by Side (installation drawing)
KWT6312UGS, KWT6322UG, KWT6322UG-1, KSK6300, Side by Side (installation drawing)
POSTSCRIPT
Download
https://media.miele.com/dam/94e1f870-28aa-48c7-9960-b3c2017f82d2/20000155348_HighresDigitalRGB.png
Descriptions

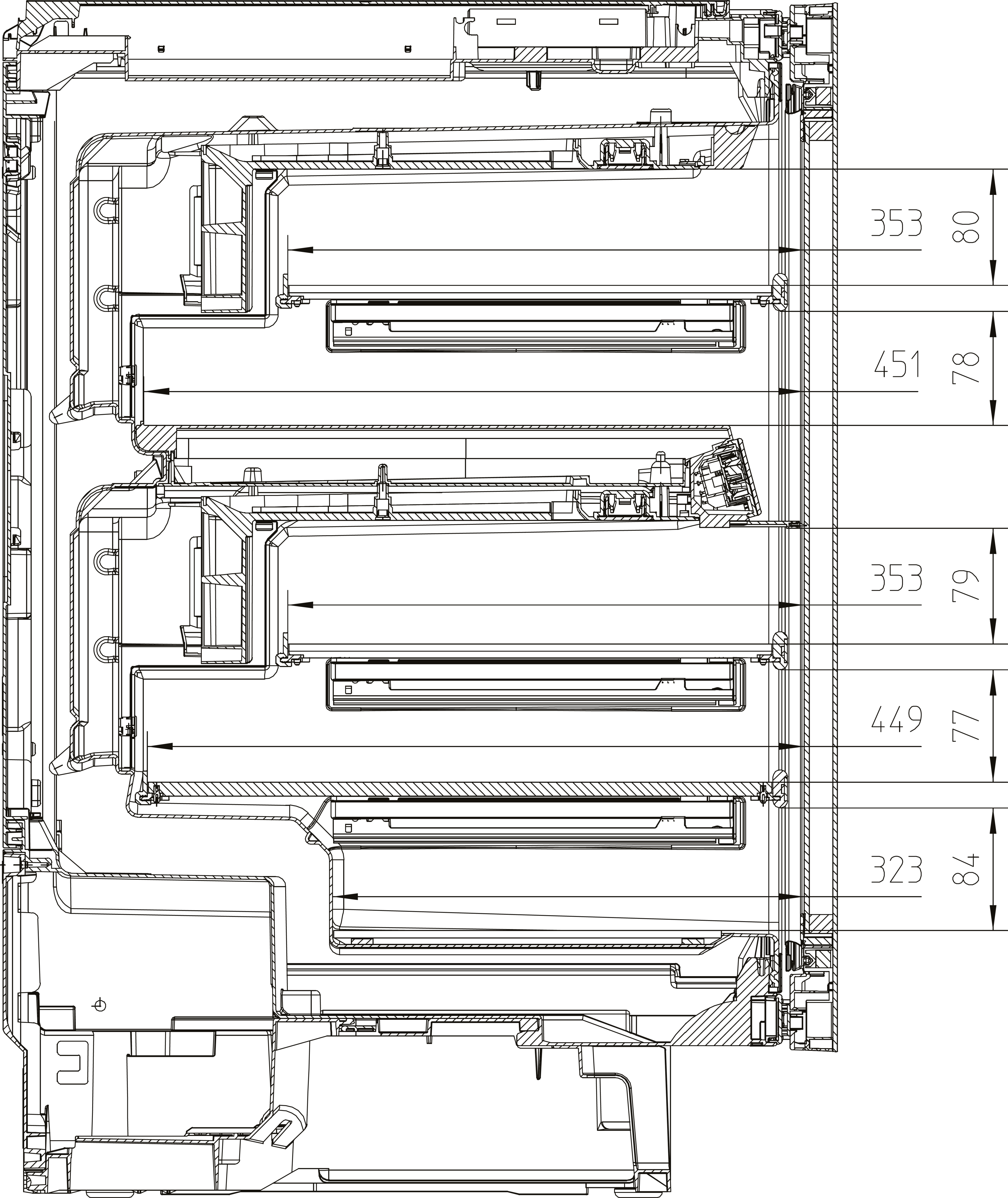

KWT6322UG, KWT6322UG-1, KWT6322UG edt/cs, Interior dimensions (Installation drawings)
KWT6322UG, KWT6322UG-1, KWT6322UG edt/cs, Interior dimensions (Installation drawings)
POSTSCRIPT
Download
https://media.miele.com/dam/2956625e-907a-4011-836a-b3c30036e40d/20000163057_HighresDigitalRGB.png
Descriptions

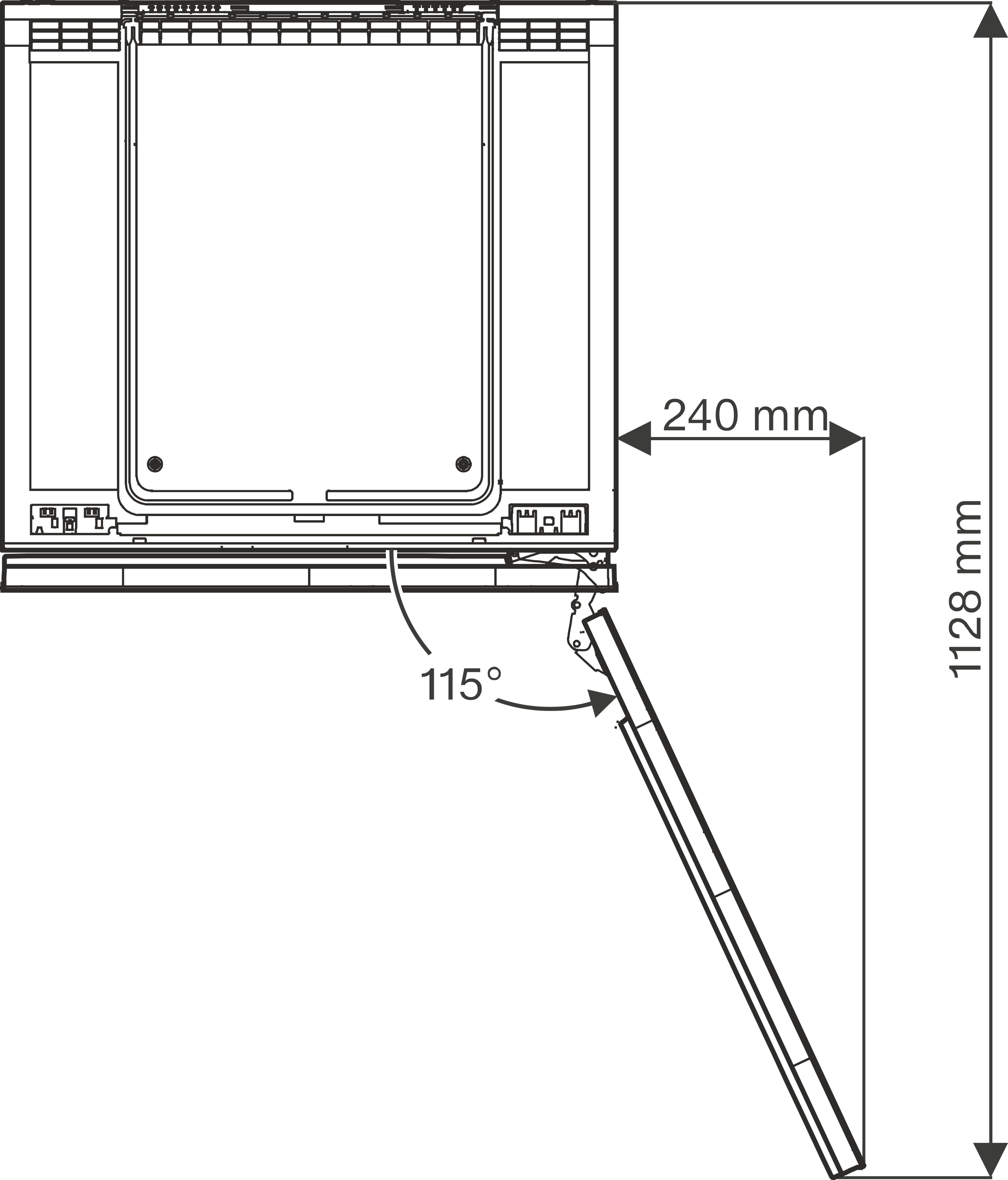

KWT6312UGS, KWT6322UG, KWT6322UG-1, KWT6322UG edt/cs (installation drawings)
KWT6312UGS, KWT6322UG, KWT6322UG-1, KWT6322UG edt/cs (installation drawings)
POSTSCRIPT
Download
