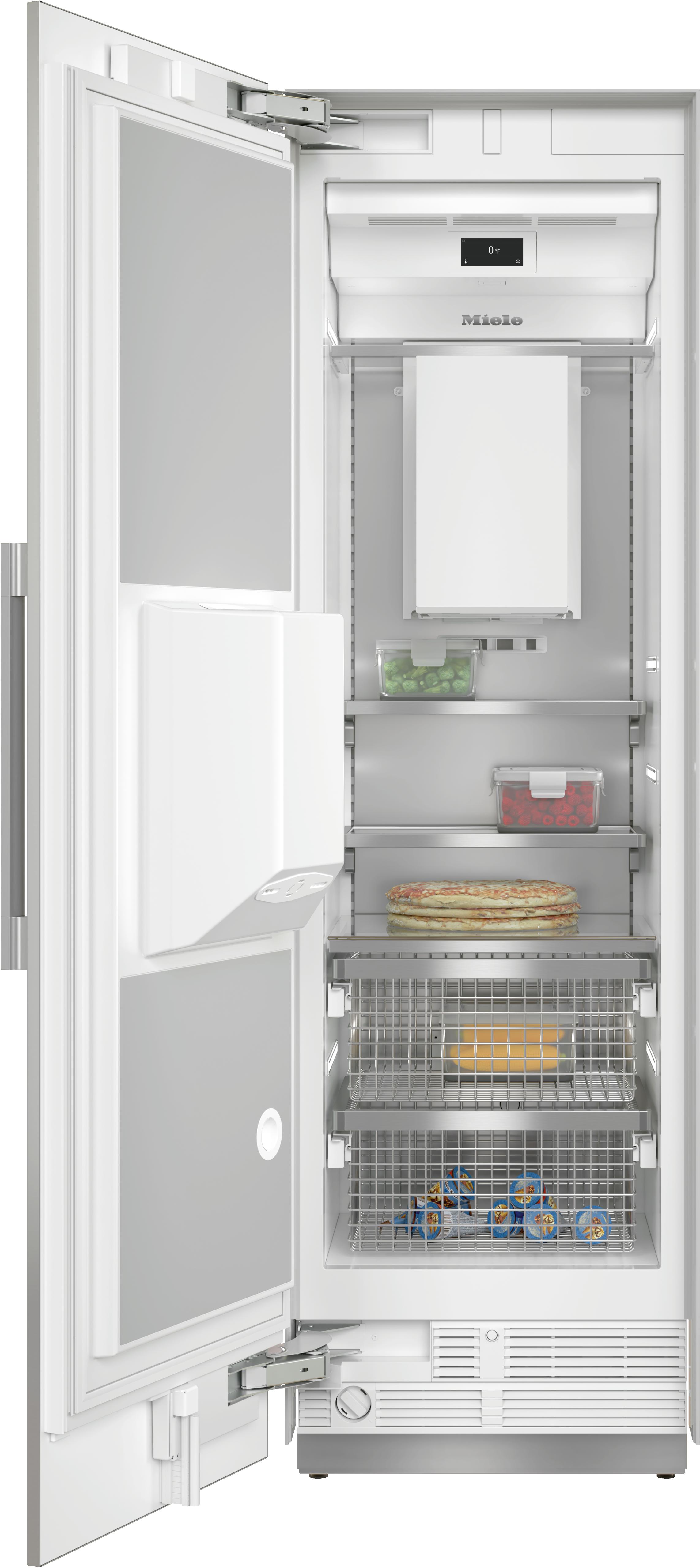

Product Information
F 2672 SF
- Subject to technical changes; no liability accepted for the accuracy of the information given.
Product Information
Your advantages
MasterCool™ - Ice/water dispenser
Ice and chilled water at the touch of a button
MasterCool – NoFrost
Defrosting is a thing of the past
MasterCool – BrilliantLight
Perfectly lit
MasterCool – Push2open
The perfect solution for a handleless design
MasterCool™ - IceMaker
Ice cubes for cold drinks
MasterCool – NoFrost
Defrosting is a thing of the past
MasterCool – MasterSensor
Convenient operation with a tap of a finger
MasterCool – BrilliantLight
Perfectly lit
MasterCool – Push2open
The perfect solution for a handleless design
MasterCool™ - Ice/water dispenser
Ice and chilled water at the touch of a button
MasterCool™ - IceMaker
Ice cubes for cold drinks
MasterCool – MaxLoad hinge
Safe handling guaranteed
Product data sheet
| Freezer | • |
| Built-in | • |
| Built-in integrated | • |
| Door hinge side | Left |
| Can be installed side-by-side | • |
| Front color | Stainless steel/CleanSteel |
| Lighting | BrilliantLight |
| Networking with Miele@home | • |
| Ice/water dispenser | • |
| Freshness system | Ice-/WaterDispenser BrilliantLight Full Access MaxLoad Schanier NoFrost IceMaker mit Frischwasseransch EasyClean |
| NoFrost | • |
| NoFrost | • |
| SoftClose door closing damper | • |
| IceMaker with mains water connection | • |
| Push2open | • |
| FullAccess | • |
| EasyClean | • |
| MaxLoad hinge | • |
| Electronic temperature display and control | MasterSensor |
| SuperFrost | • |
| No. of temperature zones | 1 |
| Sabbath mode | • |
| Eco mode | • |
| Door baskets – small | 1 |
| Door baskets – large | 3 |
| Number of shelves | 2 |
| Number of freezer baskets | 2 |
| Energy Star Qualified | • |
| Lock function | • |
| Acoustic door alarm | • |
| Acoustic temperature alarm, freezer section | • |
| Optical door alarm | • |
| Optical temperature alarm | • |
| Niche width in inches (mm), min. | 24 1/8 (610) |
| Niche width in inches (mm), max. | 24 1/8 (610) |
| Niche height in inches (mm), min. | 84 1/8 (2134) |
| Niche height in inches (mm), max. | 84 1/8 (2134) |
| Niche depth in in.(mm) | 24 1/8 (610) |
| Appliance width in in.(mm) | 23 3/4 (603) |
| Appliance height in in.(mm) | 83 3/4 (2125) |
| Appliance depth in in.(mm) | 24 (608) |
| Weight in lbs.(kg) | 390 (176.7) |
| Type of mounting | Fixed door |
| Storage time in case of fault in h | 10 |
| Current consumption in milliampere (mA) | 4000 |
| Voltage in V | 110-120 |
| Fuse rating in A | 10 |
| Number of phases | 1 |
| Frequency in Hz | 60 |
| Wire length in ft (m) | 9 (3.0) |
| Replacing bulbs | Customer Service |
| Available display languages via MultiLingua | français eesti ελληνιкά čeština 繁體中文 slovenčina latviesu slovenščina 中文 polski français (FR) lietuviu magyar nederlands hrvatski yкраїнська bahasa malaysia italiano deutsch english (GB) türkçe dansk suomi 日本語 română english (AU) english (CA) español srpski english العربية svenska norsk français (CA) pусский português english (US) 한국어 |
Optional products and accessories
- Product sheetPDF
- Operating and Installation instructionsPDF
- Warranty conditionsPDF
Follow the link and you will find all the resources you need for planning and installing any of our products
- fbxZIP
- rfaZIP
- rvtZIP
- ifcZIP
- dwgZIP
Follow the link and you will find all the resources you need for planning and installing any of our products
- PNG
- PNG
- Energy labelPDF
- Energy labelPDF
- JPEG
Follow the link and you will find all the resources you need for planning and installing any of our products
- Open Source LicencePDF
Follow the link and you will find all the resources you need for planning and installing any of our products
Side-by-side, MasterCool, without partition wall, with heating mat (Sketch) (with footnote)
1) Heating mat KSK 2001 (EU
AUS
CN) or KSK 2002 (US
CA
MX
BR)
MasterCool, top view, doorway, installation drawings
F2672SF, F2671SF, MasterCool, installation, installation drawings (US, CA)
Sideview, MasterCool, Sketch
F2672Vi, F2672SF, F2662Vi, F2671Vi, F2671SF, F2661Vi, MasterCool, installation, installation drawings
1. View from the front
2. Mains Connection cable
L = 3000 mm (118 inch)
3. Water inlet positon
L = 2000mm (not for KON USA)
4. No water/ELT conections permitted in this area
Side-by-Side, MasterCool, footnote, installation drawings
1. KSK 2001/2002
2. Device A
3. Device B
A = niche device A
B = niche device B
