Product Information
Induction Cooktop with PowerFlex cooking area for maximum versatility and performance.
Inside the Box
- Connection wire
KM 6365

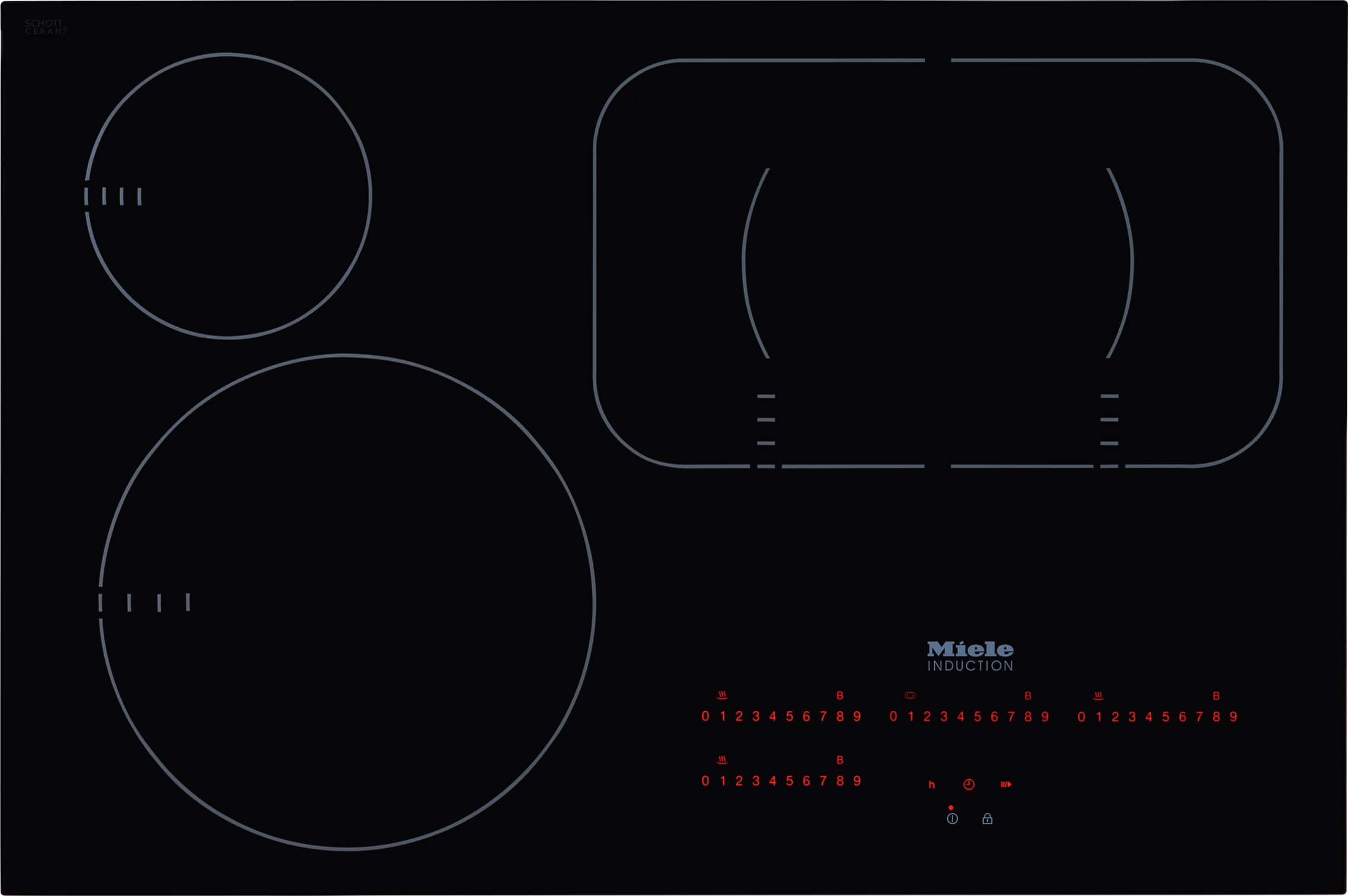

Induction Cooktop with PowerFlex cooking area for maximum versatility and performance.
- Subject to technical changes; no liability accepted for the accuracy of the information given.
Product Information
Induction Cooktop with PowerFlex cooking area for maximum versatility and performance.
Inside the Box
- Connection wire
Your advantages
Exclusive to Miele
Keeping warm
So that you can devote your time to other things
Food ready to serve: The keep warm function controls the temperature in the pan base and prevents food burning.
Features depend on model – images are only examples and used for explanation purposes
Maintenance (1)

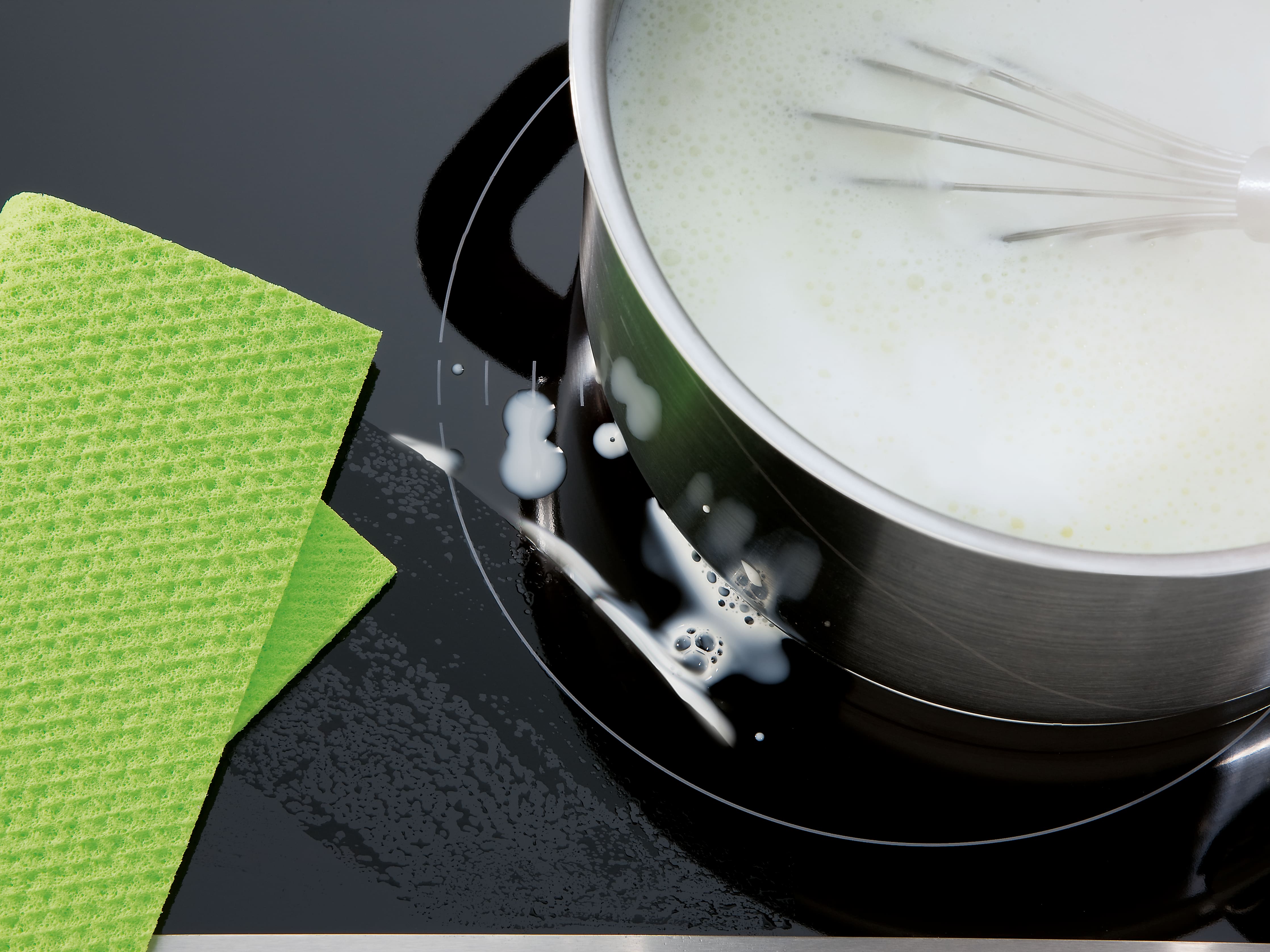

EasyClean ceramic glass
A real relief
Food can no longer burn: Because the cooktop surface remains relatively cool, soiling can be removed easily.
User convenience (4)
Stop & Go
A safety plus
So nothing will burn: With this function, all cooking zones can be reduced to power level one simultaneously.

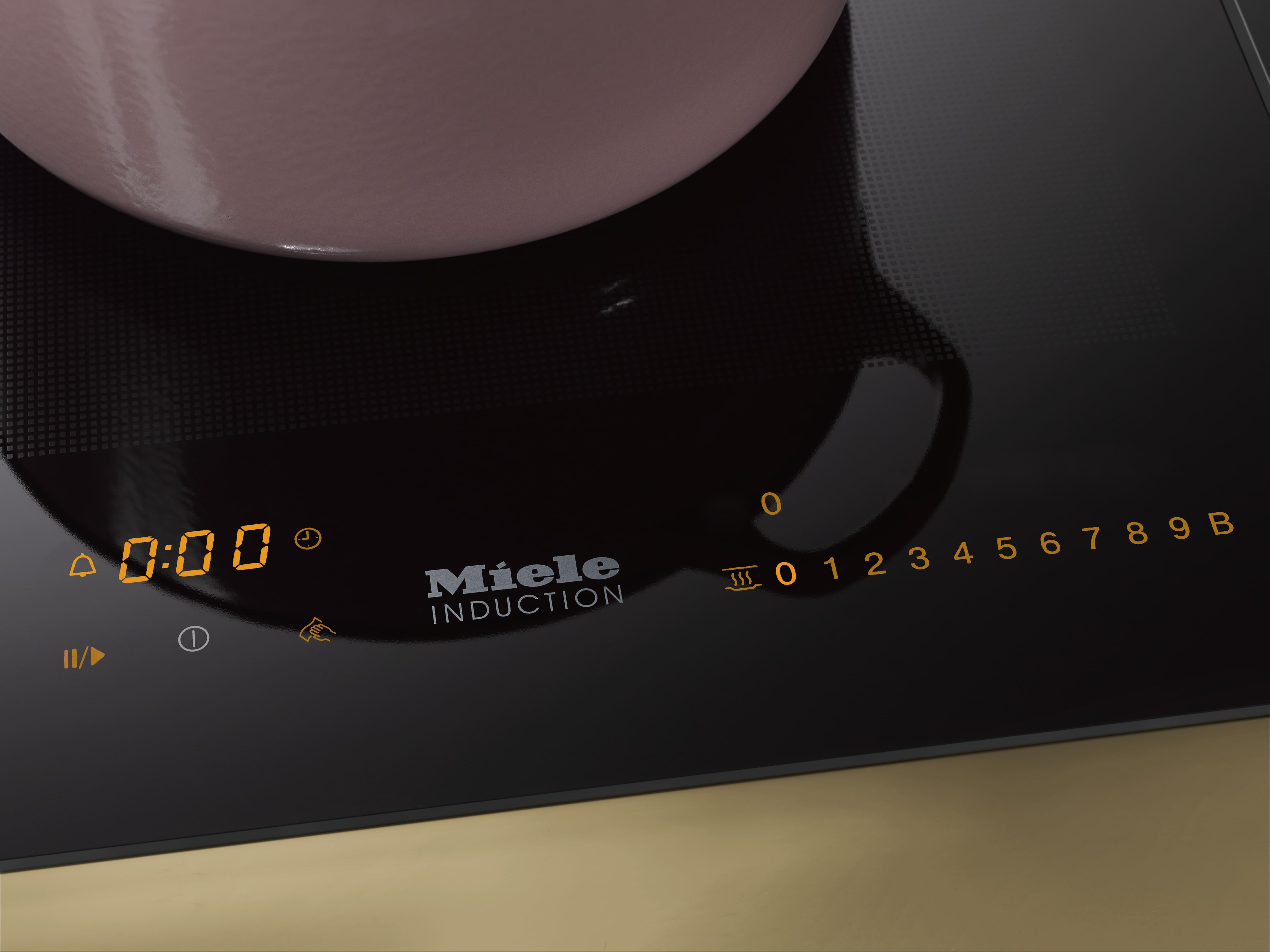

Timer
Makes cooking easier
It makes sense: This feature allows you to set a Minute minder.
Auto heat-up
Saves not just energy
Always at the right time: This function reduces the initial power boost to prevent burning.
TwinBooster
Quick start with unique versatility
Speed is not wizardry: "Up to 7,400 Watts accelerate the cooking process."
Safety (5)
Residual heat indicator
Absolutely safe
Practical: The residual heat indicator reminds you not to touch the cooking zones when they are still hot.
Safety turn off
Safe is safe
Clever: If a cooking zone operates at the same power level for an unusually long time, switch-off is automatic.
Safety and system lock
Safety for all
Extremely useful: both functions prevent accidental or unauthorized switching on of the Cooktop.
Overheating protection and fault monitoring
To ensure the appliance has a long service life
Protects the Cooktop: The cooktop automatically switches off in the case of extreme heat.
Turns off if no cookware is in place
Reassuringly safe
Only on induction: If no pan is on a zone when the cooktop is switched on, the power supply is stopped immediately.
Setup/function (3)

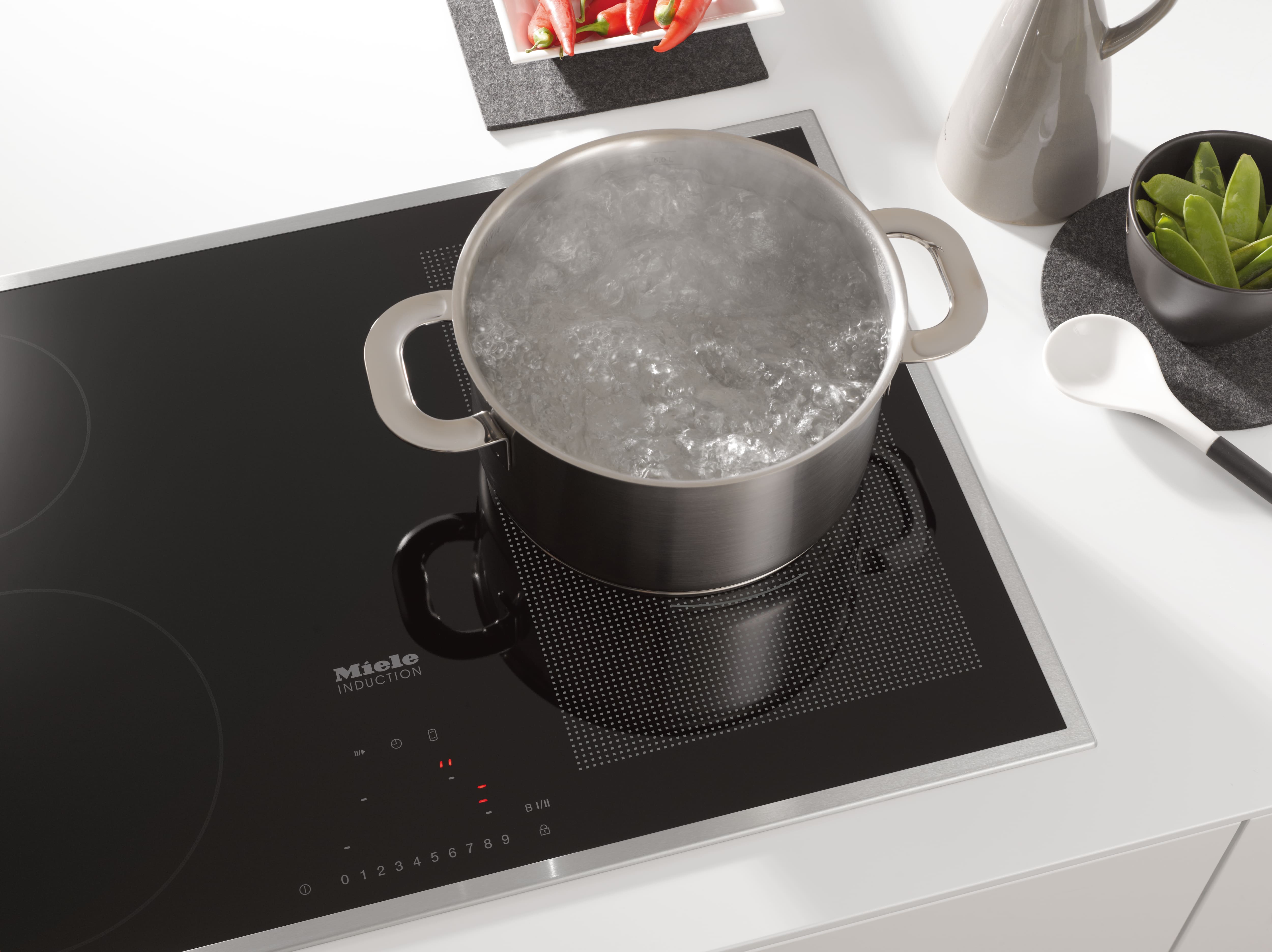

Efficient and safe
Heat is generated where it is needed.
A clear benefit: "no heat loss with induction, and the ceramic glass surface stays relatively cool."
Pan size recognition
Best possible use of energy
Convincing: the size of the pan is recognized by the cooktop and energy supplied to this area only.
Exclusive to Miele
Keeping warm
So that you can devote your time to other things
Food ready to serve: The keep warm function controls the temperature in the pan base and prevents food burning.
Product data sheet
Type of heating
| Fuel type | Induction |
Construction type
| Independent of oven | • |
Design
| Elegant glass ceramic surface | • |
| Ceramic surface color | Black |
| Print design | LightPrint |
| Flush-mounted installation | • |
Ring features
| No. of rings | 4 |
PowerFlex cooking zones
| No. | 2 |
| Size in mm | 150x230 |
| Max. rating in W | 2200 |
| Max. booster rating in W | 3100 |
| Max. TwinBooster rating in W | 3850 |
1st cooking zone/cooking area
| Position | front left |
| Type | Variable cooking zone |
| Size in mm | Ø 180-280 |
| Max. rating in W | 2500 |
| Max. booster rating in W | 3100 |
2nd cooking zone/cooking area
| Position | rear left |
| Type | Variable cooking zone |
| Size in mm | Ø 100-180 |
| Max. rating in W | 1450 |
| Max. booster rating in W | 1900 |
3rd cooking zone/cooking area
| Position | Rear center right |
| Type | PowerFlex bridge |
| Size in mm | 230x390 |
| Max. rating in W | 3550 |
| Max. booster rating in W | 5000 |
| Max. TwinBooster rating in W | 7700 |
Control panel
| Operation via touchpad sensors | Multiple direct dial |
| Display color | Red |
| Pan/Pan-size sensors | • |
| Stop & Go function | • |
| Minute minder | • |
| Automatic switch-off for all rings | • |
| AutoBoost | • |
| Keep-warm function | • |
Cleaning convenience
| Easy to clean ceramic glass | • |
Safety
| Safety cut-out | • |
| Lock function | • |
| System lock | • |
| Overheating protection | • |
| Residual heat indicator | • |
Technical data
| Width in in. (mm) | 30 3/8 (770) |
| Height in in. (mm) | 4 7/8 (121) |
| Built-in height with mains connection box in in. (mm) | 5 1/8 (128) |
| 748/774 x 490/516 | |
| Depth in in. (mm) | 20 1/4 (512) |
| Internal cutout dimensions width in in. (mm) with flush installation | 748 |
| Internal cutout dimensions depth in in. (mm) with flush installation | 490 |
| External cutout dimensions width in in. (mm) with flush installation | 774 |
| External cutout dimensions depth in in. (mm) with flush installation | 516 |
| Weight in lbs. (kg) | 46 (21) |
| Total connected load in kW | 7.70 |
| Voltage in V | 240 |
| Frequency in Hz | 60 |
Optional products and accessories
Downloads, CAD, & apps
- Operating and Installation instructionsPDF
- Product sheetPDF
- Warranty conditionsPDF
Follow the link and you will find all the resources you need for planning and installing any of our products
- stepZIP
- objZIP
- 3dsZIP
- dwgZIP
Follow the link and you will find all the resources you need for planning and installing any of our products
Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorized experts. In the event of queries, please call us for some no-obligation advice!
Descriptions

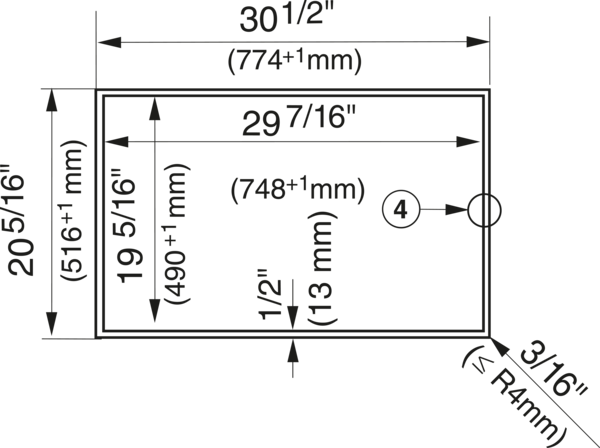

KM 6365 (Installation drawing)
4) Wooden frame ½“ / 13 mm (not supplied with appliance)

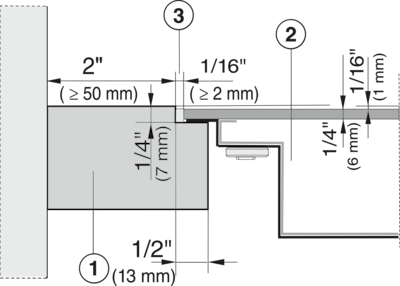

Descriptions
KM 6365 (Installation drawing)
1) Worktop
2) Hob
3) Width of gap

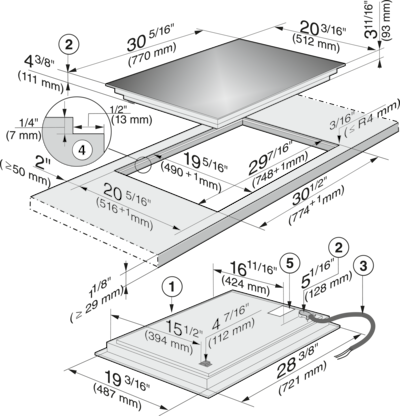

Descriptions
KM 6365 (Installation drawing)
1) Front
2) Casing depth
3) Flexible metal Extension hose L = 47 1/4" (1200 mm)
4) Stepped cut-out
5) Data plate

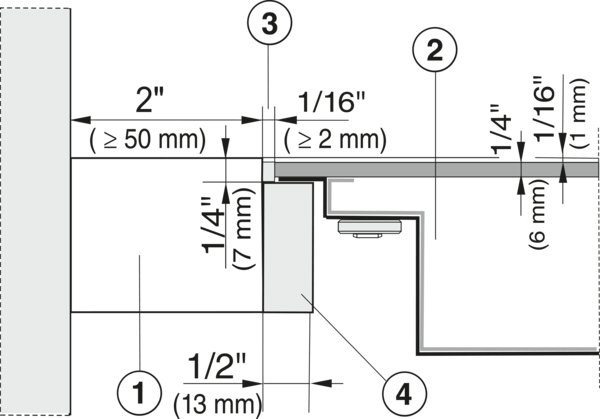

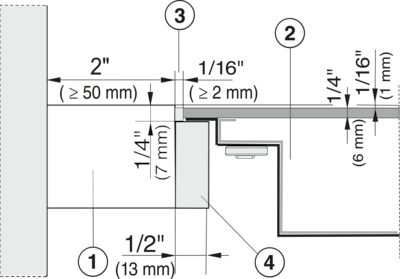

Descriptions
KM 6365 (Installation drawing)
1) Worktop
2) Hob
3) Width of gap
4) Wooden frame ½“ / 13 mm (not supplied with appliance)
