CVA 7775
$6,199.00
Find a dealer

Product Information

Built-in coffee machine with DirectWater Perfectly combinable design with CoffeeSelect + AutoDescale for highest demands.
  • Large touch display with proximity sensor – M Touch + MotionReact
  • Individual coffee enjoyment with 3 bean containers – CoffeeSelect
  • Perfect care – fully automatic with AutoDescale and AutoClean
  • Perfectly positioned: thanks to the patented CupSensor
  • 2 coffees at once at the touch of a button – OneTouch for Two

Inside the Box

  • Glass milk container

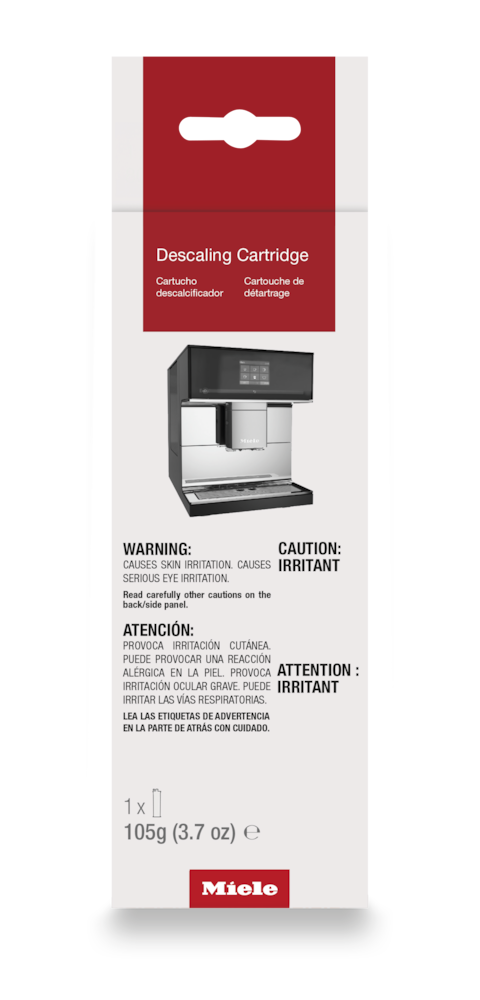

  • Descaling cartridge
  • AutoCleaner
  • Miele coffee 250 gr

CVA 7775

Built-in coffee machine with DirectWater Perfectly combinable design with CoffeeSelect + AutoDescale for highest demands.
  • Subject to technical changes; no liability accepted for the accuracy of the information given.

Product Information

Built-in coffee machine with DirectWater Perfectly combinable design with CoffeeSelect + AutoDescale for highest demands.
  • Large touch display with proximity sensor – M Touch + MotionReact
  • Individual coffee enjoyment with 3 bean containers – CoffeeSelect
  • Perfect care – fully automatic with AutoDescale and AutoClean
  • Perfectly positioned: thanks to the patented CupSensor
  • 2 coffees at once at the touch of a button – OneTouch for Two

Inside the Box

  • Glass milk container
  • Descaling cartridge
  • AutoCleaner
  • Miele coffee 250 gr

Your exclusive advantages

Features depend on model – images are only examples and used for explanation purposes

Product data sheet

Built-in bean-to-cup coffee machine
VitroLine
ArtLine
ColorClean Touch Steel
AromaticSystemFresh
CoffeeSelect
OneTouch preparation
One Touch and OneTouch for Two
DoubleShot
Programmable User profile 10
Flavor preserving conical grinding unit
Grinding grade selectable
Ground quantity programmable
Water quantity programmable
Water temperature programmable
Amount of milk can be programmed
Amount of milk froth can be programmed
Pre-brewing programmable
TeaTimer
Control panelM Touch
Networking with Miele@home
MotionReact: light comes on when movement is detected
MotionReact: display comes on when movement is detected
CupSensor
Height adjustment of infinitely adjustable central spout min in in.(cm)1 5/8 (4.0)
Height adjustment of infinitely adjustable central spout max in in.(cm)6 1/2 (16.5)
PerformanceMode
EasyClick milk container
ComfortDoor
Hidden door handle
BrilliantLight
Brew unit lighting
Expert mode
MultiLingua
MyMiele
Help function
No. of bean types3
No. of bean containers3
Bean container capacity, each in oz (g)300
Capacity of bean container B in g150
Capacity of bean container C in g150
Bean container capacity, total in oz (g)21.16 (600)
Removable bean container
Capacity of water container in fl oz (l)91.3 (2.7)
Milk container capacity in l0.70
Drip tray capacity in fl oz (l)54.1 (1.6)
Easily accessible containers
Time-of-day display
Time synchronization
Date display
Programmable switch-on time
Programmable switch-off time
Programmable stand-by time
Individual settings
Adjustable beverage portion size in ml20-300
Ristretto, single
Ristretto, double
Espresso, single
Espresso, double
Coffee, single
Coffee, double
Long coffee, single
Long coffee, double
Cappuccino, single
Cappuccino, double
Latte macchiato, single
Latte macchiato, double
Hot milk, single
Latte macchiato, double
Milk froth, single
Milk froth, double
Espresso macchiato, single
Espresso macchiato, double
Cappuccino italiano, single
Cappuccino italiano, double
Flat white, single
Flat white, double
Café au lait, single
Café au lait, double
Caffè latte, single
Caffè latte, double
Caffè americano, single
Caffè Americano, double
Long black, single
Long black, double
Allwater
Warm water, double
Hot water, single
Hot water, double
Black tea, single
Black tea, double
Herbal tea, single
Herbal tea, double
Fruit tea, single
Fruit tea, double
Green tea, single
Green tea, double
White tea, single
White tea, double
Japanese tea, single
Japanese tea, double
Chai latte, single
Chai latte, double
Coffee pot
Teapot
Energy-saving Eco mode option
Power rating in standby mode in W1.00
Power rating in networked standby in W1.40
Time until automatic switch to off mode in min20
Time until automatic switch to standby in min20
Time until automatic switch to networked standby in min20
Stainless steel front with Clean Touch Steel surface
AutoDescale
Manual descaling
AutoClean
Automatic rinsing of the milk pipework from the water container
Convenient cleaning programs
Auto-Off function
ComfortClean
Removable milk pipework
Removable brew unit
Adjustable water hardness
System lock
Niche width min in in.(mm)28 5/8 (724)
Niche width max in in.(mm)28 3/4 (728)
Niche height min in in.(mm)18 1/8 (460)
Niche height max in in.(mm)18 5/8 (472)
Niche depth in in.(mm)24 1/8 (610)
Appliance width in in.(mm)29 7/8 (757)
Applicance height in in.(mm)18 7/8 (479)
Appliance depth in in.(mm)18 7/8 (478)
Depth with door open in in.(cm)48 3/4 (123.8)
Total connected load in kW1.45
Voltage in V120
Fuse rating in A15
Number of phases1
Length of electrical wire in ft (m)6 (2.0)

Optional products and accessories

Downloads, CAD, & apps
  • Product sheet
    PDF
  • Short user manual
    PDF
  • Operating and Installation instructions
    PDF

Follow the link and you will find all the resources you need for planning and installing any of our products

  • fbx
    ZIP
  • rvt
    ZIP
  • rfa
    ZIP
  • ifc
    ZIP
  • dwg
    ZIP

Follow the link and you will find all the resources you need for planning and installing any of our products

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorized experts. In the event of queries, please call us for some no-obligation advice!
Descriptions

CVA7370, CVA7775, installation drawing, view from above, 30 Inch, Flush inset

Descriptions

CVA7370, CVA7775, installation drawing, view from above, 30 Inch, Flush inset

Descriptions

CVA7370, CVA7775, installation drawing, view from above, 30 Inch, Flush inset

Descriptions

CVA7370, CVA7775, installation drawing, built in, 30 Inch, Flush inset

7/8“ - 22* mm - Glass

15/16“ - 23.3** mm - Stainless steel

Descriptions

CVA7775, installation drawing, installation, 30 Inch, Flush inset

A - Cut-out (1 1/2" x 20" / 38 mm x 508 mm) in the bottom of the cabinet for power cord and ventilation

- Electrical and water supplies are recommended to be placed in adjacent cabinetry.

Additional cabinet depth is required when placing the electrical and water supplies behind the appliance.

E = Electric connection

W = Water connection

Descriptions

CVA7775, installation drawing, side view, 30 Inch, Flush inset, NA

7/8“ - 22* mm - Glass

15/16“ - 23.3** mm - Stainless steel

Descriptions

CVA7370, side view, 30 Inch, Proud

7/8“ - 22* mm - Glass

15/16“ - 23.3** mm - Stainless steel

Descriptions

CVA7370, CVA7775, installation drawing, view from above, 30 Inch, Flush inset

Descriptions

CVA7775, side view, 30 Inch, Proud

7/8“ - 22* mm - Glass

15/16“ - 23.3** mm - Stainless steel

Descriptions

CVA7370, CVA7775, installation drawing, view from above, 30 Inch, Proud

Descriptions

CVA7370, CVA7775, installation drawing, view from above, 30 Inch, Proud

Descriptions

CVA7370, CVA7775, installation drawing, view from above, 30 Inch, Proud

Descriptions

CVA7370, CVA7775, installation drawing, view from above, 30 Inch, Proud

Descriptions

CVA7370, CVA7775, installation drawing, built in, 30 Inch, Proud

Descriptions

CVA7775, installation drawing, installation, 30 Inch, Proud

A - Cut-out (1 1/2" x 20" / 38 mm x 508 mm) in the bottom of the cabinet for power cord and ventilation

- Electrical and water supplies are recommended to be placed in adjacent cabinetry.

Additional cabinet depth is required when placing the electrical and water supplies behind the appliance.

E = Electric connection

W = Water connection

Monitor your Miele appliances while you are on the go.
With the Miele@mobile app for your smartphone or tablet you can now connect all your Miele appliances and benefit from its smart home features.
  • 1.Patent: EP 2454977 B1
  • 2.Patent: EP 2705783 B1, US 201400060338 A1
  • Subject to technical changes; no liability accepted for the accuracy of the information given.
