Product Information
30 inch range fully electric model with induction cooktop and M Touch.
Inside the Box
- Anti-splash insert (1)
- Self Clean ready baking and roasting rack (2)
- Self clean ready baking and roasting racks with rail system (1)
- Side racks self clean ready (1)
HR 1622-3 I
30 inch range fully electric model with induction cooktop and M Touch.
- Subject to technical changes; no liability accepted for the accuracy of the information given.
Product Information
30 inch range fully electric model with induction cooktop and M Touch.
Inside the Box
- Anti-splash insert (1)
- Self Clean ready baking and roasting rack (2)
- Self clean ready baking and roasting racks with rail system (1)
- Side racks self clean ready (1)
Your advantages
Exclusive to Miele
Moisture Plus
Added moisture for optimal results.
Improved roasting and baking: moisture ensures an incredibly light dough and a nicely browned crust.
ComfortSwivel Handle
Perfect ergonomic design
Convenient opening and closing: The ergonomic twist handle makes operating the appliance door easy.
Rapid PreHeat
Your guarantee for perfect results
The All Gas Range allows for constant airflow resulting in quick preheat times, powerful bake and broil elements.
Self Clean Oven and Self Clean Ready Accessories
Treat yourself to minimum effort
Less cleaning effort: The grease residue is broken down, helping to keep the oven and cooking accessories clean.
Appliance networking with Miele@home*
Cleverly networked
Make your life smart: thanks to Miele@home you can cleverly network your domestic appliances – for more options.
Features depend on model – images are only examples and used for explanation purposes
Maintenance (3)
AirCleanCatalyzer
Removes odors and grease from cooking vapours
Reduces grease and odors and prevents deposits from collecting on furniture, walls and curtains.
Self Clean Oven and Self Clean Ready Accessories
Treat yourself to minimum effort
Less cleaning effort: The grease residue is broken down, helping to keep the oven and cooking accessories clean.
Clean Touch Steel™Front
Protection for immaculate stainless steel surfaces
No fingerprints on stainless steel: surface has special finish which keeps clean without special cleaning agents.
User convenience (6)
ComfortSwivel Handle
Perfect ergonomic design
Convenient opening and closing: The ergonomic twist handle makes operating the appliance door easy.
Favorites
Save frequently used settings
For favorite dishes: Simply select operating mode, temperature and duration and save settings for repeated use.
Individual settings
Appliance configuration according to your wishes
You decide: Language, buzzer tones, display brightness and much more can be individually adjusted.
Timer Function
Leave time management to your oven
Always on time: The start time, finish time and duration of the cooking process are easy to select.
Soft Open and Soft Close
Everything is well thought through
The Range oven door effortlessly opens and closes, preventing the door from shutting or slamming.
Appliance networking with Miele@home*
Cleverly networked
Make your life smart: thanks to Miele@home you can cleverly network your domestic appliances – for more options.
Special features (2)
Exclusive to Miele
Moisture Plus
Added moisture for optimal results.
Improved roasting and baking: moisture ensures an incredibly light dough and a nicely browned crust.
Crisp function
Targeted moisture reduction in compartment
For a crispy finish: Some food is cooked better using dry heat, such as pizza or French fries.
Efficiency and sustainability (1)
Residual Heat Utilization
Conserve heat and energy
Ecological and economical: Miele ovens turn off early and use residual heat to complete the cooking process.
Oven cabinets (2)
Rapid PreHeat
Your guarantee for perfect results
The All Gas Range allows for constant airflow resulting in quick preheat times, powerful bake and broil elements.
TwinPower Convection Blowers and Power Convection Blower
Reaches the desired temperature very quickly
Quickly ready for use: 2 hot air blowers heat the oven very rapidly with optimum hot air distribution.
Safety (2)
Safety functions
Automatic switch-off for maximum safety
Your guardian angel: If you forget to switch off the appliance, the safety switch-off steps in for you.
Cooling System and Cool-Touch Fronts
Pleasantly cool surfaces
Maximum protection: All surfaces on and around the appliance remain cool and can be touched safely.
Operating modes (17)
Surround
Multi-purpose, classic function: perfect results on all traditional baking and roasting dishes.
Moisture Plus
As if fresh from the baker: moisture ensures an incredibly light dough and a nicely browned crust.
Intensive
Crispy bases, tasty toppings: For pizza, quiche or flans, the base will be crispy, the topping will be moist.
Auto Roast
Meat stays tender: Meat is seared at a high temperature and cooked to perfection with individual temperatures.
Convection Roast
Crispy on the outside, succulent inside: Ideal for chicken, duck, joints, rolled meat and many other meat dishes.
Bake
Individual requirements: For dishes which need to be cooked in a bain marie or browned from below.
Favorites
For favorite dishes: Simply select operating mode, temperature and duration and save settings for repeated use.
Maxi Broil
Versatile function for indoors: For grilling large quantities of steak, sausages, kebabs, etc.
Broil
Designed for small quantities: Ideal for small amounts of food such as steak and sausages. Perfect every time.
Browning
Perfect finish: The final touch - ideal for gratins, glazing and browning
Slow Roasting
For perfect results: With low temperatures, meat recipes automatically become specialities.
Special Modes
The ideal assistant for special tasks: for example thawing, dehydrating, heating up or quick pre-cooking.
Sabbath
Miele's unique Sabbath mode allows individuals up to 72 hours of pre-programmed cooking in their oven.
Crisp function
For a crispy finish: Some food is cooked better using dry heat, such as pizza or French fries.
Defrosting
Gentle on frozen food: Frozen food is gently defrosted under ideal conditions using cool air.
Convection Bake
Perfectly soft and light: ideal for gentle baking on up to two levels.
Convection Roast
Perfectly soft and light: ideal for gentle roasting on up to two levels.
Product data sheet
Type of heating
| Electric/Induction | • |
| Cooktop | Induction |
Construction type
| Range | • |
| Appliance width in inches | 30 |
Operating modes
| Defrost | • |
| Speed oven automatic programs | • |
| Auto roast | • |
| Maxi Broil | • |
| Broil | • |
| • | |
| • | |
| Intensive | • |
| Moisture plus | • |
| Slow roast | • |
| Surround | • |
| Browning | • |
| Bake | • |
| Convection Roast | • |
| Special modes | • |
Design
| Appliance color | Clean Touch Steel |
| Oven display | M Touch |
Convenience features
| Wireless Precision Probe | • |
| Keep-warm function | • |
| Crisp function | • |
Cooktop features
| Heating type | Induction |
| Number of induction cooking zones | 4 |
| Cooking zones with Booster function | 4 cooking zones |
| Cooking zones with TwinBooster | 2 cooking zones |
| Power level display | • |
| Cooking zones with keeping warm function | 4 rings |
| Vario zone | 4 rings |
| Residual heat indicator | • |
Control panel
| • | |
| Precision knobs | • |
| Illuminated knob | • |
| ComfortSwivel handle | • |
| Motorized lift-up control panel | • |
| Sabbath program | • |
| MultiLingua | • |
| MyMiele | • |
| Time synchronization | • |
| Time of day display | • |
| Date display | • |
| Minute minder | • |
| Automatic switch-off | • |
| Programmable cooking time | • |
| Actual temperature display | • |
| Default temperatures | • |
| Acoustic signal when desired temperature is reached | • |
| Favorites | Yes |
| Individual settings | • |
| Timed bursts of steam | • |
Door
| CleanGlass door | • |
| Door contact switch | • |
| SoftClose oven door/ SoftOpen | • |
Cavity
| Oven cavity volume in cu. ft. (l) | 4.59 (130) ft³ (l) |
| Number of oven shelf levels | 6 |
| No. of halogen lamps | double |
| TwinPower hot air fans | • |
Efficiency and sustainability
| Energy-saving lighting circuit | • |
| Residual heat utilization | • |
| Rapid PreHeat | • |
Cleaning convenience
| Stainless-steel front with partial Clean Touch Steel finish | • |
| Oven with self-cleaning program | • |
| AirClean catalyzer | • |
| heated | |
| Cooktop surface | Ceramic surface |
Safety
| Appliance cooling system with cool touch front | • |
| Safety cut-out | • |
| System lock | • |
| Door contact switch | • |
| Door lock during self cleaning | • |
Technical data
| Appliance width in inches | 29 15/16 |
| Appliance width in in.(mm) | 30 (762) |
| Appliance height min in in.(mm) | 35 5/8 (902) |
| Appliance height max in in.(mm) | 37 1/8 (940) |
| Appliance depth in in. (depth) with bullnose | 27 3/4 (702) |
| Power Rating in V | 120 |
| Convertible voltage in V | 240/208 |
| Fuse rating in A | 50 |
| Number of phases | 1 |
| Fresh water connection for Moisture Plus | • |
| Plumbed water connection for Moisture Plus | 1.50 |
Optional products and accessories
Downloads, CAD, & apps
- Operating and Installation instructionsPDF
- Operating and Installation instructionsPDF
- Warranty conditionsPDF
- Product sheetPDF
Follow the link and you will find all the resources you need for planning and installing any of our products
- fbxZIP
- dwgZIP
- rfaZIP
- rvtZIP
- ifcZIP
Follow the link and you will find all the resources you need for planning and installing any of our products
Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorized experts. In the event of queries, please call us for some no-obligation advice!
Descriptions
HR1622, HR1622-2, HR1622-3i (Installation drawing)
E = Electric connection
W = Water connection
Descriptions
HR11xx, HR19xx, HR 17xx - Installation drawing
1 Anti-tip device
2 Screws
3 Locking nut
Descriptions
HR1421, HR1622, HR1622-2, HR1421-3, HR1422-3i, HR1622-3i - Installation drawing
① Maximum depth of top cabinet
② Minimum distance to bottom edge of top cabinet
③ Distance from the floor to cooktop surface
④ Minimum distance to combustible surfaces
E = Electric connection
W = Water connection
(A) Width of cabinet opening
(B) Minimum distance between the top of the cooking area and the bottom of an unprotected combustible surface.
Minimum distance to a protected combustible surface or when a Miele Ventilation Hood is installed. For all other
Hoods please consult the manufacturer's specifications for required distances.
(C) Maximum connection width right and left
(E) Maximum connection height
Descriptions

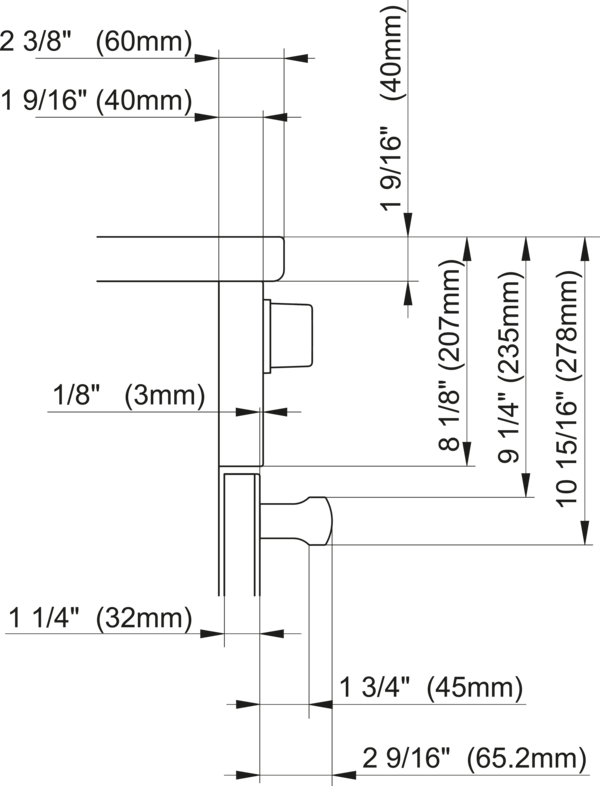

HR1622-3i Side view, installation drawing
(x) = Toe-kick height adjustment 5” - 6 1/2” (127 mm - 165.1 mm)
