  • Miele - DA 6596 W Puristic Canto Stainless steel – Ventilation Hoods - 1
Wall ventilation hoodGOLD

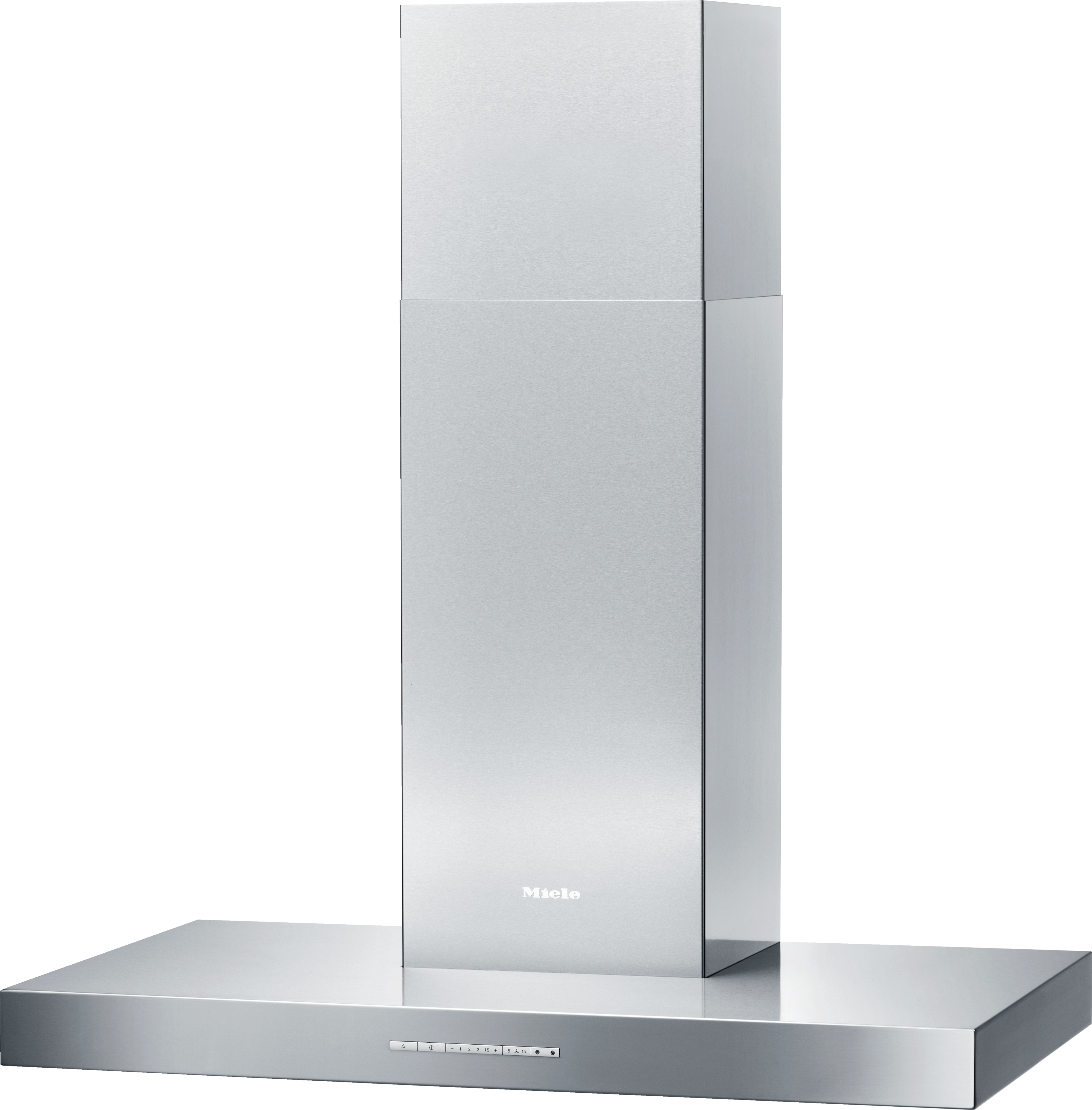

DA 6596 W Puristic Canto Stainless steel

with energy-efficient LED lighting and backlit controls for easy use.
Color:Stainless steel
Permanently out of stock
View alternative products

Product data sheet

Model number DA 6596 W Puristic Canto
Manufacturer material number 09762220
EAN number 4002515523971
Marketing class
Gold
Wall ventilation hood
Recirculated mode Can be retrofitted
Recirculation conversion kit (order separately) DUW 20
OdorFree charcoal filter (order separately) DKF12-900
Decor elements in glass (order separately) DRP 6590W
Color Stainless steel
Multi-zone edge extraction
Automatic function Con@ctivity 2.0
Electronic controls
Operation Light-touch switches with LEDs
Power levels (number excl. Intensive) 3
Booster levels 1
Delayed shutdown for 5 or 15 minutes
Grease filter saturation indicator
Active charcoal filter saturation indicator
Acoustic package
CleanCover
Easy-to-clean canopy interior – CleanCover
Number of dishwasher-safe stainless steel grease filters (10-ply) 3
Number x W 3 x 3 W
Light intensity in Lx 460 lx
Color temperature in K 3500 Kelvin
Dual-action blower
Safety shut-off
Canopy dimensions (W x H x D) in mm 35 3/8 (898) x 2 3/4 (70) x 19 5/8 (500)
Overall min. height for vented and external in in. (mm) 27 1/4 (693)
Overall max. height for vented and external in in. (mm) 39 3/4 (1010)
Overall min. height for recirculation in in. (mm) 32 1/4 (820)
Overall max. height for recirculation in in. (mm) 45 (1143)
Canopy width in in. (mm) 35 3/8 (898)
Canopy height in in. (mm) 2 3/4 (70)
Depth of hood canopy in in. (mm) 19 5/8 (500)
Minimum height above electric cooktops in mm 24 (610)
Minimum safety distance above gas cooktops (max. 12.6 kW total power, burner ≤ 4.5 kW) in mm 26 (660)
Net weight in lbs. (kg) 56 (25.0)
Length of electrical wire in ft. (m) 4 (1.5)
Standard plug fitted
Plug type US earthed plug
Total connected load in kW 0.359
Voltage in V 120
Fuse rating in A 15
Frequency in Hz 60
Number of phases 1
Vent connection at top
Diameter of vent connection in in. (mm) 6 (150)
Telescopic chimney
Non-return flap
Reducer from 150 to 125 mm Ø
Communication module for Con@ctivity XKM 2000 DA XKS 3000 Z
EAN 4002515523971

What's included

Non-return flap
Reducer from 150 to 125 mm Ø
Communication module for Con@ctivity XKM 2000 DA
  • Smart controls

    Smart controls

    Con@ctivity 2.0

    Innovative convenience: The ventilation hood reacts automatically to settings on the cooktop.

  • Easy to use and effective against grease

    Easy to use and effective against grease

    Stainless-steel grease filters (10-layer)

    Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.

  • Performance and convenience as standard

    Performance and convenience as standard

    Silence

    Efficient and quiet: The fan is effectively insulated with special soundproofing mats.

  • Convenience and safety in detail

    Convenience and safety in detail

    Miele CleanCover

    Protection and easy cleaning: The sealed, smooth surface prevents contact with cables and the motor.

User convenience

Automatic blower run-on
Automatic blower run-on

Delayed shutdown

Odor-free room air: "after cooking, the blower can be set to switch off automatically after 5 or 15 minutes."
Countdown time conveniently in view
Countdown time conveniently in view

filter saturation indicator

Easy filter replacement: a red light lets you know when the grease and/or charcoal filter is saturated.

Safety

Always on the safe side
Always on the safe side

Safety turn off

Sensible, even in case of operating errors: The ventilation hood switches off automatically after 10 hours.

Setup/function

Smart controls
Smart controls

Con@ctivity 2.0

Innovative convenience: The ventilation hood reacts automatically to settings on the cooktop.

Features

Easy to use and effective against grease
Easy to use and effective against grease

Stainless-steel grease filters (10-layer)

Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.
Performance and convenience as standard
Performance and convenience as standard

Silence

Efficient and quiet: The fan is effectively insulated with special soundproofing mats.
Convenience and safety in detail
Convenience and safety in detail

Miele CleanCover

Protection and easy cleaning: The sealed, smooth surface prevents contact with cables and the motor.
Blowercy single panel instead of metal grease filter
Blowercy single panel instead of metal grease filter

Edge vented

Efficient and good-looking: With edge extraction, the grease filters are covered by a panel.

Matching products and accessories

Active AirClean charcoal filter

Active AirClean charcoal filter

prevents unpleasant odors in the kitchen.

$149.99
Chimney Extension

Chimney Extension

to lengthen the chimney for DA 39x-7, DA 42xx W, DA 5xxx W, DA 6698 W.

$361.90
Recirc. conversion kit for wall hood

Recirc. conversion kit for wall hood

To convert wall mounted ventilation hoods from air vented to recirculation mode.

$139.00
Edge vented panel

Edge vented panel

for the DA 290x ventilation system.

$132.00
Edge vented panel

Edge vented panel

for the DA 290x ventilation system.

$132.00
Chimney Extension

Chimney Extension

to lengthen the chimney for DA 39x-7, DA 42xx W, DA 5xxx W, DA 6698 W.

$284.90
Silencer connection

Silencer connection

between silencer and connector.

$49.00
Active AirClean charcoal filter
DKF 12-900 P

Active AirClean charcoal filter

for a wide range of Miele Ventilation Hoods.

$149.99
MicroCloth kit, 3 pieces
GP MI S 0031 W

MicroCloth kit, 3 pieces

For best cleaning results and safe use.

$17.59
 MicroCloth HyClean, 1 cloth
GP MI H 0011 W

 MicroCloth HyClean, 1 cloth

 Antibacterial multi-purpose cloth for improved hygiene.

$13.19

Downloads

Fitting Instructions
PDF
Downloads
Product sheet
PDF
Downloads
Warranty conditions
PDF
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts.

https://media.miele.com/images/2000011/200001152/20000115207.png
Descriptions

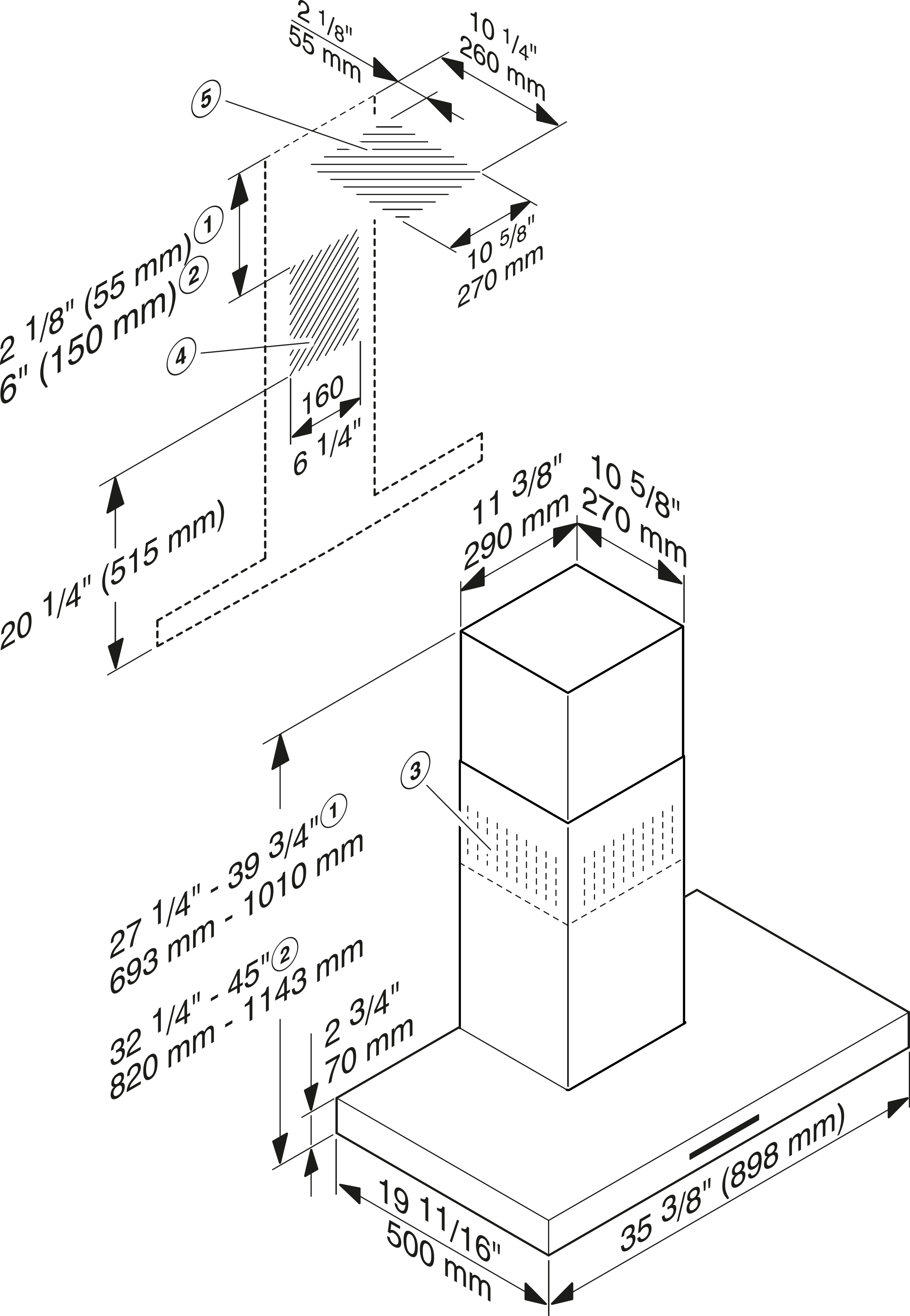

DA 6596 W (Installation drawing) - USA
1) Extraction, 2) Recirculation, 3) Ventilation grille at top for recirculation, 4+5) Installation cut-out (5 not required for recirculation)
