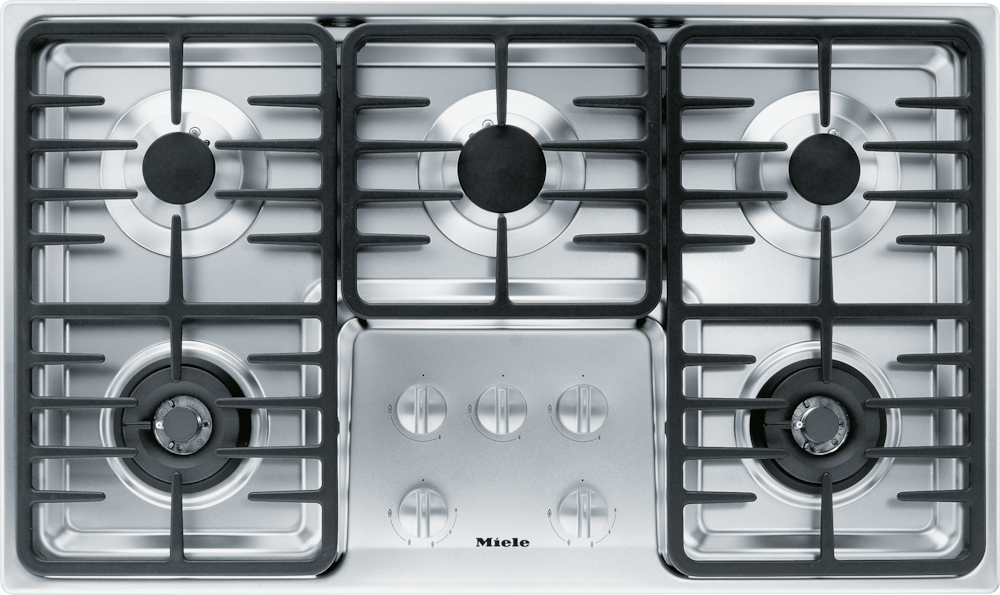

36-inch gas cooktop

KM 3475 LP Stainless steel

with 2 dual wok burners for particularly versatile cooking convenience.

Color:Stainless steel

sale price$2,899.00




Product details

  • Simple controls -single-handed operation via rotary dial control
  • Professional design - 36 (914) in (mm) wide stainless steel trough
  • Particularly versatile - 5 burners incl. Two dual woks
  • Extremely safe -
    GasStop function
  • Easy cleaning - ComfortClean dishwasher-safe grates
  • Manufactured with great care by
  • Safety information

Product data sheet

Fuel type Gas
Independent of oven
Proud/flush-mounted –/–
Stainless steel trough
Cast iron pot rest (matte black enameled)
No. of rings 5
Number of cooking zones/cooking areas –/–
Normal burner in kW 2.60
Normal burner in BTU/h 9000
Large burner in kW 3.50
Dual wok burner in kW 4.50
Dual wok burner in BTU/h 15300
Position front left
Type Dual wok burner
Position rear left
Type Standard burner
Position rear center
Type High-speed burner
Position rear right
Type Standard burner
Position front right
Type Dual wok burner
Operation via knobs
Electronic ignition with one-handed operation
QuickStart
GasStop & ReStart
Dimensions (H x W x D) in mm 5 (125) x 36 (914) x 21 3/8 (542)
Dimensions (W x D) in mm 36 (914) x 5 (125) x 21 3/8 (542)
Width in in. (mm) 36 (914)
Height in in. (mm) 5 (125)
Depth in in. (mm) 21 3/8 (542)
Cut-out dimensions (W x D) with surface-mounted installation in inches (mm) 35 in (889 mm) x 20 1/2 in (518 mm)
Cutout dimensions width in in. (mm) with proud-mounted installation 35 in (889 mm)
Cutout dimensions depth in in. (mm) with proud-mounted installation 20 1/2 in (518 mm)
Weight in lbs. (kg) 55 (25)
Total connected load in kW 17
Position of gas connection Hinten links
Voltage in V 120
Frequency in Hz 60
Power cord length in ft. (m) 3 (1.2)
EAN 4002514141176

Maintenance

Best quality features for a long service life
Enamelled grates and grates and burner cap

Nothing lasts longer and is easier to clean: enamelled cast-iron grates and burners with PerfectClean.


Design

A gas cooktop for every kitchen style
Individual design

Attractive design to suit all tastes: a minimalist stainless-steel look or elegant ceramic glass.


User convenience

Switch on with a flick of the wrist
QuickStart

No need to press or hold the control: convenient rotary electronic controls switch the burners on.


Comfortably reignite the flame
Single-handed electronic ignition

No need for matches or lighters: automatic ignition of burners thanks to intelligent technology.


Everything under control
Comfort handle with integrated controls with knobs

Easy controls to regulate: Convenient power level control via plastic or metal knobs.


Efficiency and sustainability

Efficient and environmentally friendly
Gas - efficient and environmentally friendly

With environmental and economic benefits: Cooking with gas


Safety

Automatic reignition for extra safety
GasStop and ReStart

Safe cooking: Automatic re-ignition for flame failure If unsuccessful, the gas supply is switched off immediately.


Features

The innovative
Gas cooktops with electronic controls

More safety and convenience: Intelligent features make cooking with gas a great choice.


Large variety of burner sizes for every application
Versatile burner configuration

From economical to powerful: There is a suitable burner with the optimum output for every application.


Downloads

Product sheet
PDF
Downloads
Warranty conditions
PDF
Downloads
Operating instructions/Installation instructions
PDF
Downloads
rvt
ZIP
Downloads
rfa
ZIP
Downloads
fbx
ZIP
Downloads
dwg
ZIP
Downloads
ifc
ZIP
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts.

https://media.miele.com/images/2000004/200000404/20000040418.png
Descriptions
KM 3474/KM3475 (Installation Drawing) - USA
1. Front, 2. Installation heigth, 3. Gas connection, 4. Electrical connection
