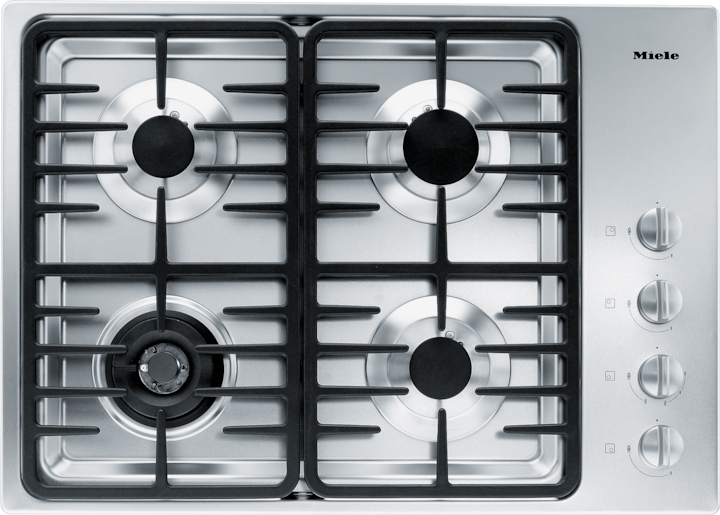

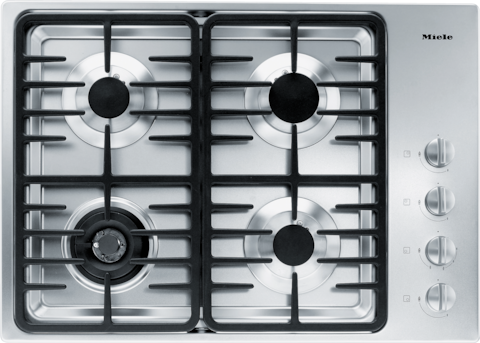

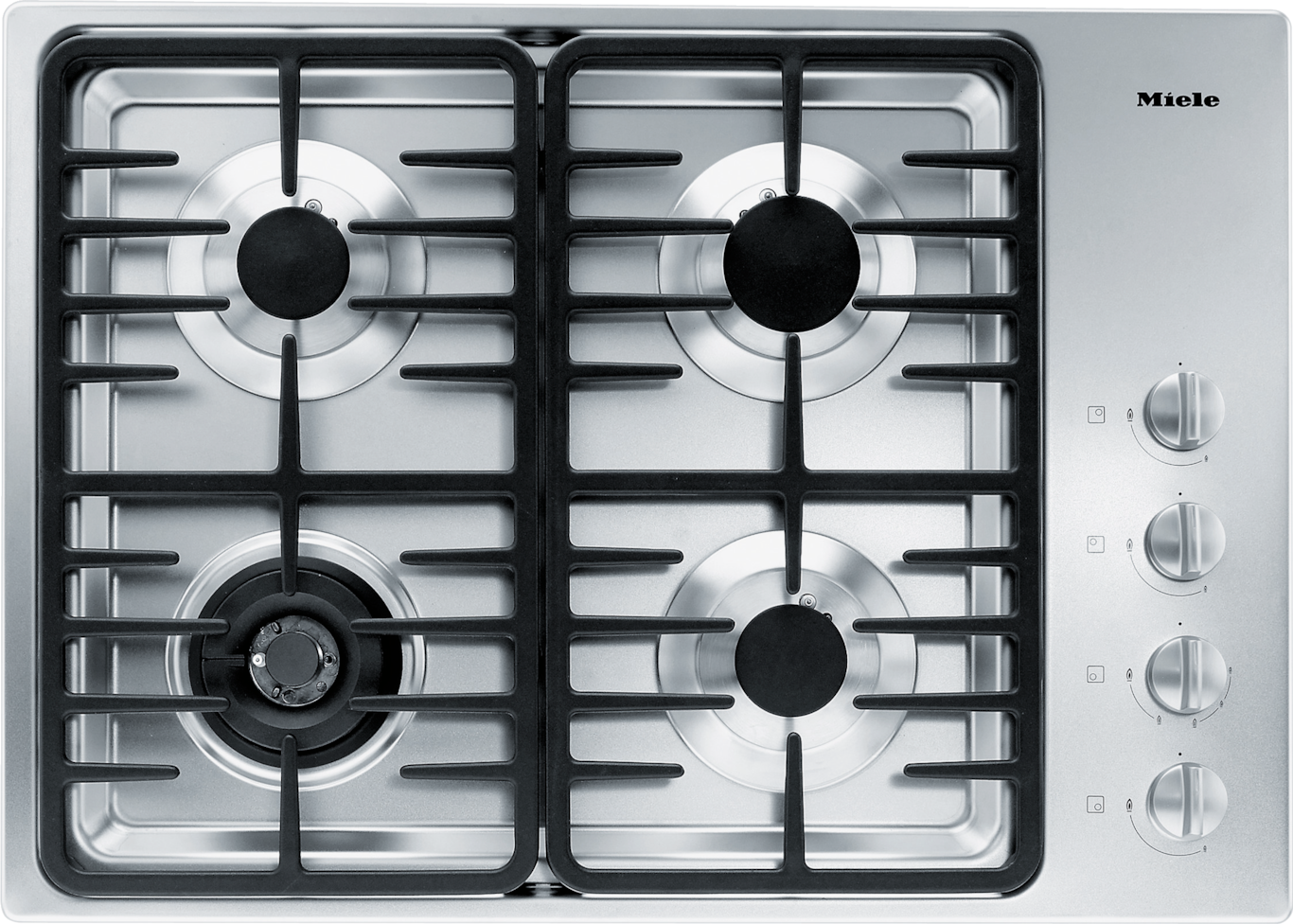

30-inch gas cooktopGOLD
KM 3465 LP Stainless steel
with a dual wok burner for particularly wide ranging burner capacity.Color:Stainless steel
sale price$2,799.00
Product details
- Simple controls -single-handed operation via rotary dial control
- Professional design - 30 (762) in (mm) wide stainless steel trough
- Particularly versatile - 4 burners incl. 1 dual wok
- Easy cleaning - ComfortClean dishwasher-safe grates
- View manufacturer details:
- Safety information
Model number KM 3465 LP
Manufacturer material number 06792730
EAN number 4002514141022
Marketing class Gold
Loading...
Fuel type Gas
Independent of oven
Stainless steel trough
Loading...
Cast iron pot rest (matte black enameled)
Loading...
No. of rings 4
Normal burner in kW 2.60
Normal burner in BTU/h 9000
Large burner in kW 3.50
Large burner in BTU/h 12000
Dual wok burner in kW 4.50
Dual wok burner in BTU/h 15300
Position front left
Type Dual wok burner
Position rear left
Type Standard burner
Position rear right
Type High-speed burner
Position front right
Type Standard burner
Operation via knobs
Electronic ignition with one-handed operation
Loading...
QuickStart
Loading...
GasStop & ReStart
Loading...
Dimensions (H x W x D) in mm 5 (125) x 30 (762) x 21 3/8 (542)
Dimensions (W x D) in mm 30 (762) x 5 (125) x 21 3/8 (542)
Width in in. (mm) 30 (762)
Height in in. (mm) 5 (125)
Depth in in. (mm) 21 3/8 (542)
Cut-out dimensions (W x D) with surface-mounted installation in inches (mm) 28 3/8 in (720 mm) x 20 1/2 in (518 mm)
Cutout dimensions width in in. (mm) with proud-mounted installation 28 3/8 in (720 mm)
Cutout dimensions depth in in. (mm) with proud-mounted installation 20 1/2 in (518 mm)
Weight in lbs. (kg) 41 (19)
Total connected load in kW 13.200
Position of gas connection Hinten rechts
Voltage in V 120
Frequency in Hz 60
Power cord length in ft. (m) 3 (1.2)
Plug type NEMA plug: 5–15
EAN 4002514141022
Switch on with a flick of the wrist
QuickStart
No need to press or hold the control: convenient rotary electronic controls switch the burners on.
Automatic reignition for extra safety
GasStop and ReStart
Safe cooking: Automatic re-ignition for flame failure If unsuccessful, the gas supply is switched off immediately.
Large variety of burner sizes for every application
Versatile burner configuration
From economical to powerful: There is a suitable burner with the optimum output for every application.
The innovative
Gas cooktops with electronic controls
More safety and convenience: Intelligent features make cooking with gas a great choice.
Enamelled grates and grates and burner cap
Nothing lasts longer and is easier to clean: enamelled cast-iron grates and burners with PerfectClean.
Individual design
Attractive design to suit all tastes: a minimalist stainless-steel look or elegant ceramic glass.QuickStart
No need to press or hold the control: convenient rotary electronic controls switch the burners on.
Single-handed electronic ignition
No need for matches or lighters: automatic ignition of burners thanks to intelligent technology.
Comfort handle with integrated controls with knobs
Easy controls to regulate: Convenient power level control via plastic or metal knobs.GasStop and ReStart
Safe cooking: Automatic re-ignition for flame failure If unsuccessful, the gas supply is switched off immediately.Versatile burner configuration
From economical to powerful: There is a suitable burner with the optimum output for every application.Gas cooktops with electronic controls
More safety and convenience: Intelligent features make cooking with gas a great choice.Matching products and accessories
Downloads
Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts.
Descriptions
KM 3464/KM3565 (USA) (Installation drawing)
1. Front, 2. Installation heigth, 3. Gas connection, 4. Electrical connection POSTSCRIPT
We reserve the right to make technical changes; we assume no liability for the accuracy of the information provided.
