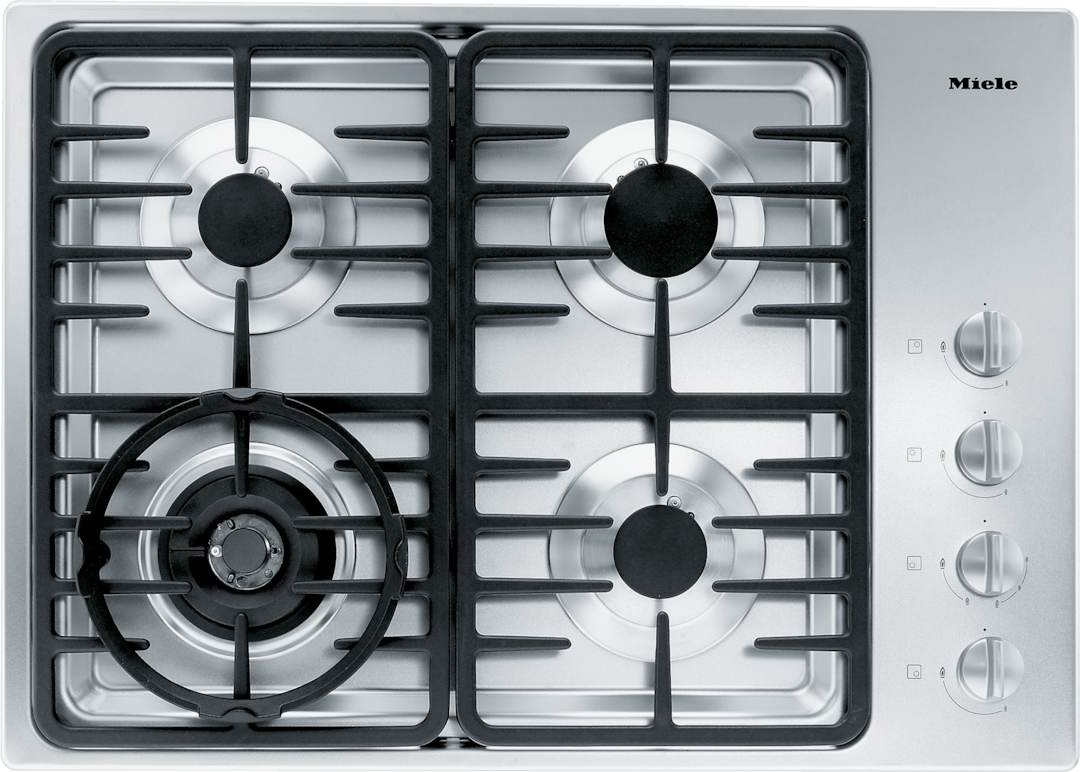

30-inch gas cooktopGOLD
KM 3465 G Stainless steel
with a dual wok burner for particularly wide ranging burner capacity.Color:Stainless steel
sale price$2,799.00
Product details
- Simple controls -single-handed operation via rotary dial control
- Professional design - 30 (762) in (mm) wide stainless steel trough
- Particularly versatile - 4 burners incl. 1 dual wok
- Easy cleaning - ComfortClean dishwasher-safe grates
- View manufacturer details:
- Safety information
Fuel type Gas
Independent of oven
Stainless steel trough
Loading...
Cast iron pot rest (matte black enameled)
Loading...
No. of rings 4
Normal burner in kW 2.60
Normal burner in BTU/h 9000
Large burner in kW 3.50
Large burner in BTU/h 12000
Dual wok burner in kW 4.50
Dual wok burner in BTU/h 15300
Position front left
Type Dual wok burner
Position rear left
Type Standard burner
Position rear right
Type High-speed burner
Position front right
Type Standard burner
Operation via knobs
Electronic ignition with one-handed operation
Loading...
QuickStart
Loading...
GasStop & ReStart
Loading...
Dimensions (H x W x D) in mm 5 (125) x 30 (762) x 21 3/8 (542)
Dimensions (W x D) in mm 30 (762) x 5 (125) x 21 3/8 (542)
Width in in. (mm) 30 (762)
Height in in. (mm) 5 (125)
Depth in in. (mm) 21 3/8 (542)
Cut-out dimensions (W x D) with surface-mounted installation in inches (mm) 28 3/8 in (720 mm) x 20 1/2 in (518 mm)
Cutout dimensions width in in. (mm) with proud-mounted installation 28 3/8 in (720 mm)
Cutout dimensions depth in in. (mm) with proud-mounted installation 20 1/2 in (518 mm)
Weight in lbs. (kg) 41 (19)
Total connected load in kW 13.200
Position of gas connection Hinten rechts
Voltage in V 120
Frequency in Hz 60
Power cord length in ft. (m) 3 (1.2)
Plug type NEMA plug: 5–15
EAN 4002514141008
Switch on with a flick of the wrist
QuickStart
No need to press or hold the control: convenient rotary electronic controls switch the burners on.
Automatic reignition for extra safety
GasStop and ReStart
Safe cooking: Automatic re-ignition for flame failure If unsuccessful, the gas supply is switched off immediately.
Large variety of burner sizes for every application
Versatile burner configuration
From economical to powerful: There is a suitable burner with the optimum output for every application.
The innovative
Gas cooktops with electronic controls
More safety and convenience: Intelligent features make cooking with gas a great choice.
Enamelled grates and grates and burner cap
Nothing lasts longer and is easier to clean: enamelled cast-iron grates and burners with PerfectClean.
Individual design
Attractive design to suit all tastes: a minimalist stainless-steel look or elegant ceramic glass.QuickStart
No need to press or hold the control: convenient rotary electronic controls switch the burners on.
Single-handed electronic ignition
No need for matches or lighters: automatic ignition of burners thanks to intelligent technology.
Comfort handle with integrated controls with knobs
Easy controls to regulate: Convenient power level control via plastic or metal knobs.GasStop and ReStart
Safe cooking: Automatic re-ignition for flame failure If unsuccessful, the gas supply is switched off immediately.Versatile burner configuration
From economical to powerful: There is a suitable burner with the optimum output for every application.Gas cooktops with electronic controls
More safety and convenience: Intelligent features make cooking with gas a great choice.Matching products and accessories
Downloads
Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts.
Descriptions
KM 3464/KM3565 (USA) (Installation drawing)
1. Front, 2. Installation heigth, 3. Gas connection, 4. Electrical connection POSTSCRIPT
We reserve the right to make technical changes; we assume no liability for the accuracy of the information provided.
