Built-under refrigerator, 33 7/8–36 1/4 in (86–92 cm) niche heightPLATINUM
Smart Home Icon

KU 7175 D

with two individually adjustable temperature zones for more flexibility.
sale price$3,999.00



Product details

  • From 32°F (0°C) for chilled drinks to 57°F (14°C) for an ideal cellar climate
  • Optimum and maintenance-free #LED# lighting in compartmentCO_19869984
  • Uniform temperature distribution inside the appliance –
    DynaCool

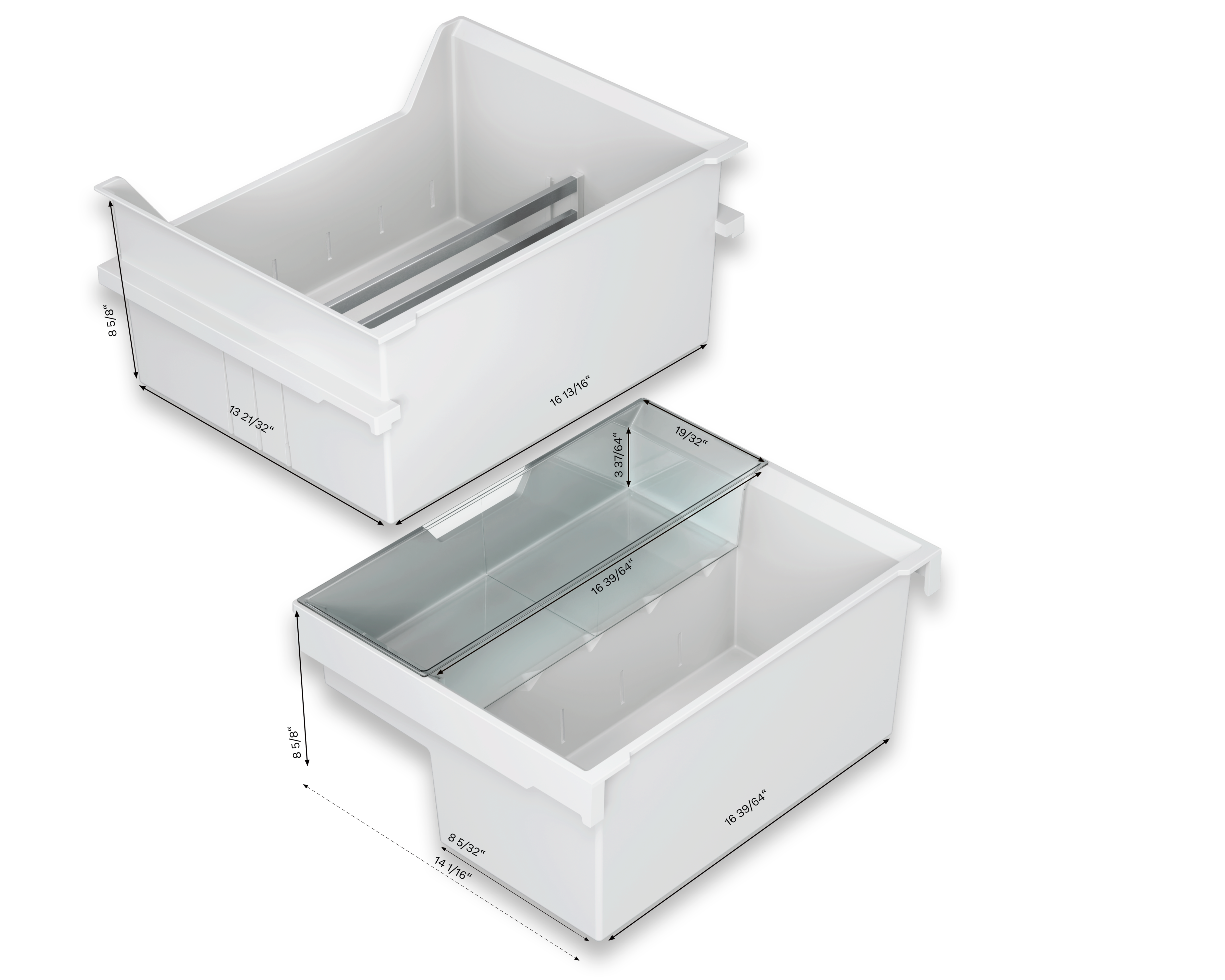

  • Cleaning the VeggieBox in the dishwasher – ComfortClean
  • Cool food down quickly thanks to SuperCool
  • Soft closing of the door with
    SoftClose
  • View manufacturer details:
  • Safety information

Product data sheet

Fridge
Built-in integrated
Built-in built-under
Door hinge side Pull-out front
Type of lighting
LED
Networking with Miele@home
ComfortClean
DynaCool
SoftClose door closing damper

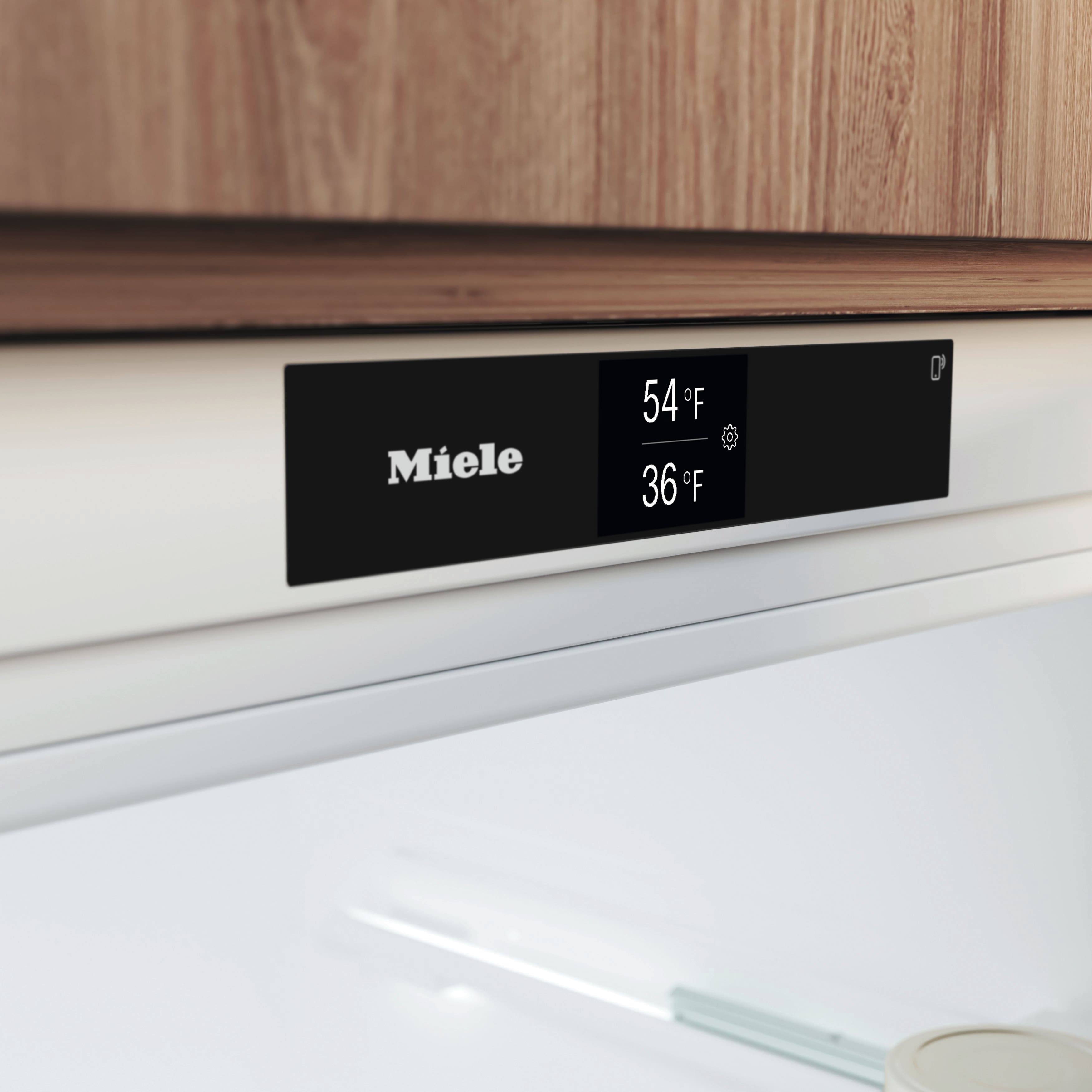

Electronic temperature display and control FreshTouch
SuperCool
No. of temperature zones 2
Sabbath mode
Holiday mode
No. of shelves 2
Lock function
Acoustic door alarm
Optical door alarm
Niche width in inches (mm), min. 23 5/8 (600)
Niche width in inches (mm), max. 23 5/8 (600)
Niche height in inches (mm), min. 33 7/8 (860)
Niche height in inches (mm), max. 36 1/4 (920)
Niche depth in in.(mm) 22 1/8 (560)
Appliance width in in.(mm) 23 1/2 (597)
Appliance height in in.(mm) 33 7/8 (859)
Appliance depth in in.(mm) 21 7/8 (556)
Weight in lbs.(kg) 96 (43.1)
Maximum fridge compartment door front weight in lbs. (kg) 23 (10)
Climatic classification SN-T
Fridge compartment volume in cu. ft. (l) 2.15 (61)
of which pantry compartment in L 2.05 (58)
Total usable capacity in cu. ft. (l) 4.2 (119)
Sound emissions in dB(A) re 1 pW 32
Current consumption in milliampere (mA) 2000
Voltage in V 115
Fuse rating in A 10
Number of phases 1
Frequency in Hz 60
Wire length in ft (m) 7 (2.2)
Replacing bulbs Customer Service
EAN 4002516951285
Atmospheric
LED lighting

Maintenance-free and economical: Efficient and durable LEDs ensure perfect illumination of the interior.

Cleverly networked
Miele@home1,

Make your life smart: Thanks to Miele@home, you can cleverly network your domestic appliances – for more options.

User convenience

Atmospheric
LED lighting

Maintenance-free and economical: Efficient and durable LEDs ensure perfect illumination of the interior.

Cleverly networked
Miele@home1,

Make your life smart: Thanks to Miele@home, you can cleverly network your domestic appliances – for more options.

Dishwasher-safe shelves on the inside of the door
ComfortClean

The high-quality door shelves are easy to clean in the dishwasher.

Appliance door closes softly
SoftClose

Quiet and reliable closing: the gently self-closing doors prevent items from falling out.

Matching products and accessories

MicroCloth kit, 3 pieces
GP MI S 0031 W

MicroCloth kit, 3 pieces

For best cleaning results and safe use.

$17.59
 MicroCloth HyClean, 1 cloth
GP MI H 0011 W

 MicroCloth HyClean, 1 cloth

 Antibacterial multi-purpose cloth for improved hygiene.

$13.19

Downloads

Product sheet
PDF
Downloads
Operating instructions/Installation instructions
PDF
Downloads
Warranty conditions
PDF
Downloads
dwg
ZIP
Downloads
fbx
ZIP
Downloads
ifc
ZIP
Downloads
rfa
ZIP
Downloads
rvt
ZIP
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts.

https://media.miele.com/images/2000022/200002255/20000225573.png
Descriptions

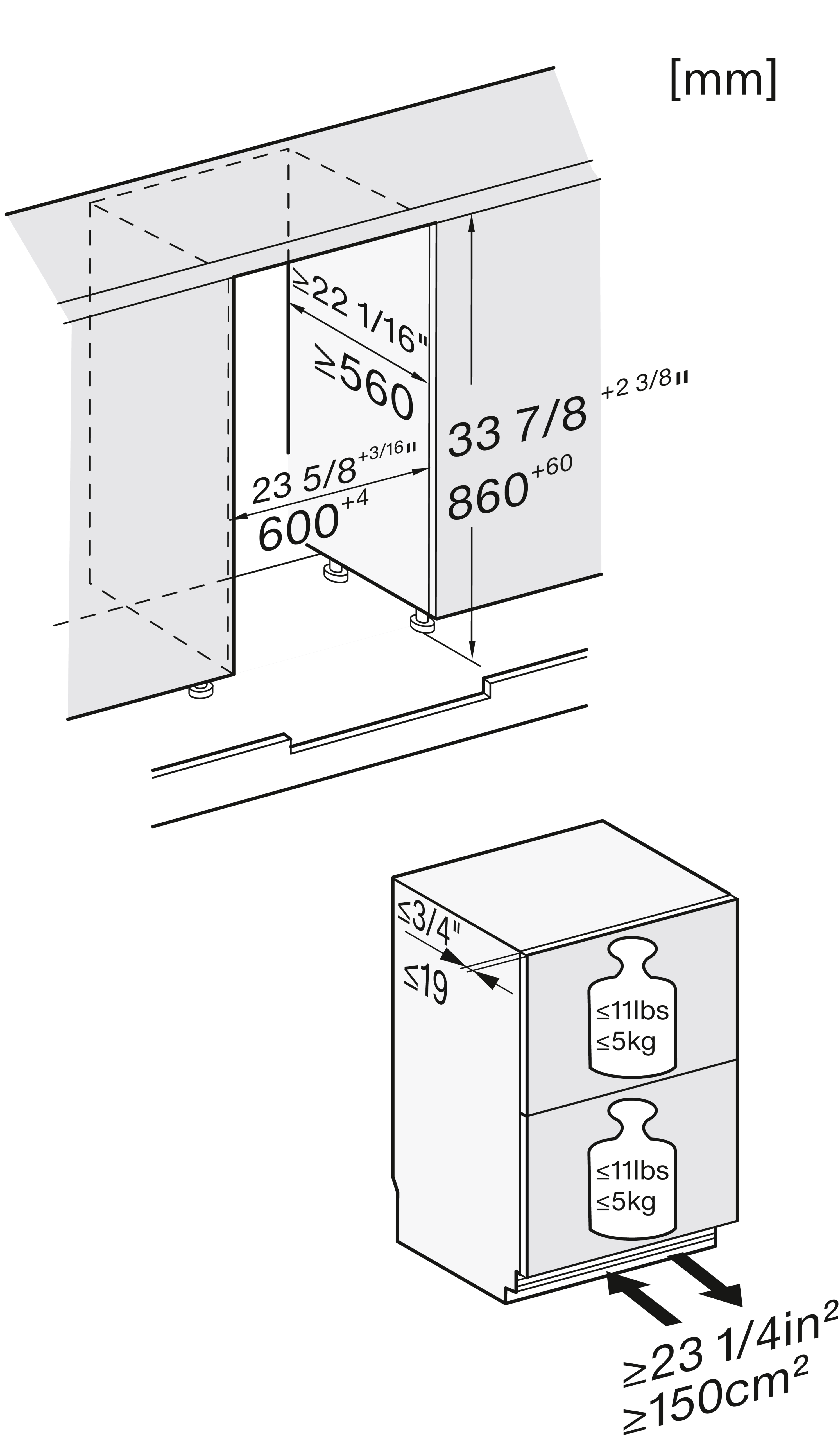

KU7175D, Built-under, niche dimensions
Installation drawings
Downloads

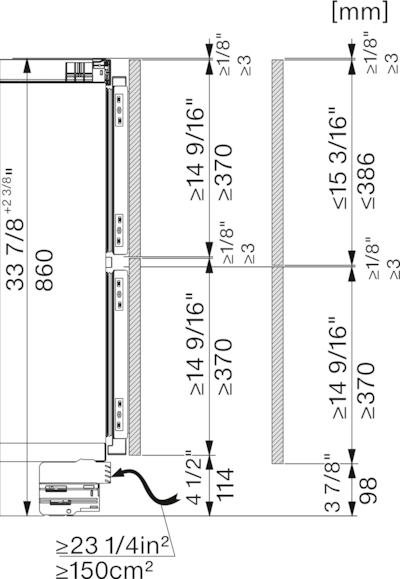

https://media.miele.com/images/2000022/200002255/20000225578.png
Descriptions

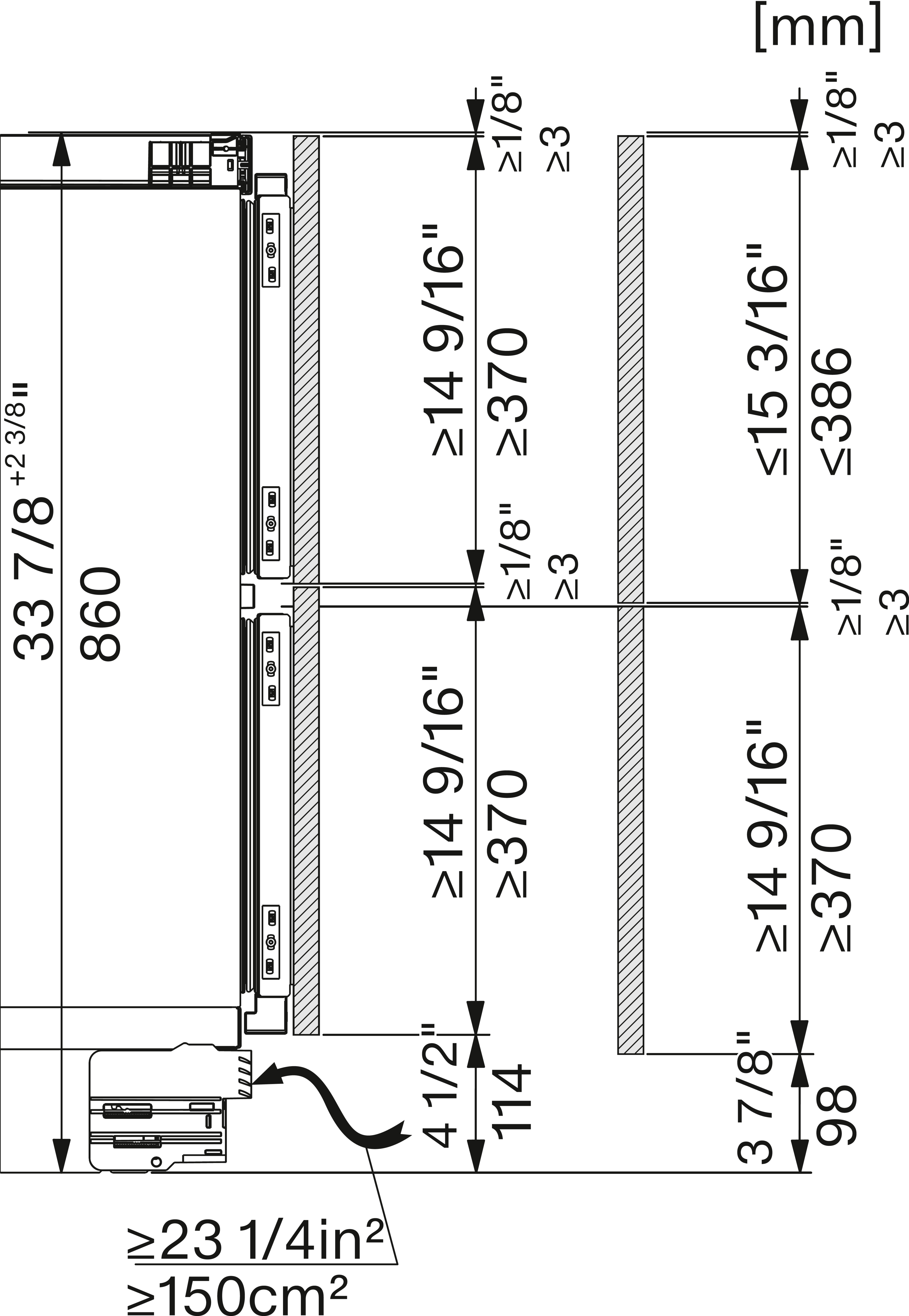

KU7175D, Built-under, side view
Installation drawings
Downloads
https://media.miele.com/images/2000022/200002255/20000225597.png
Descriptions

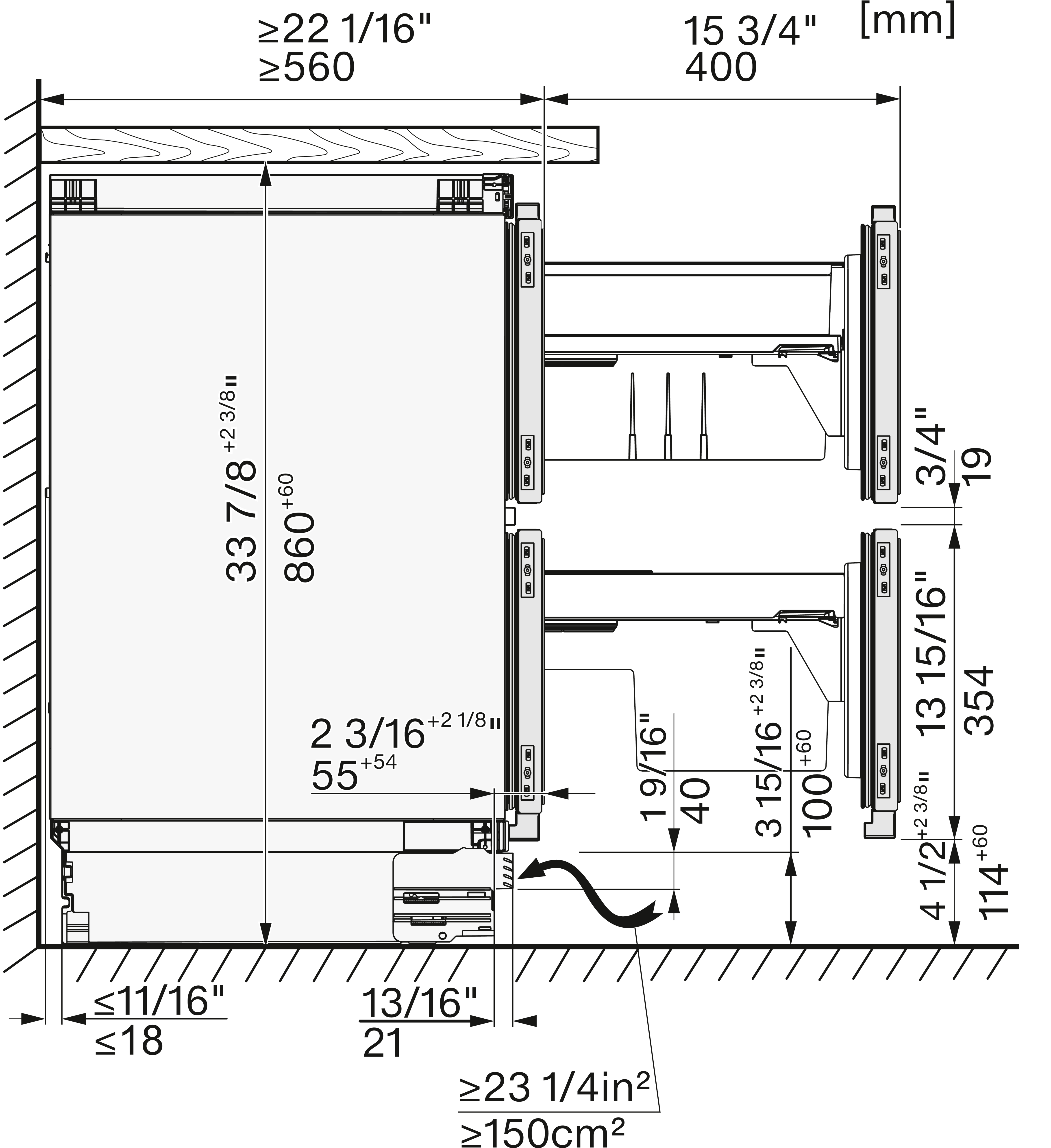

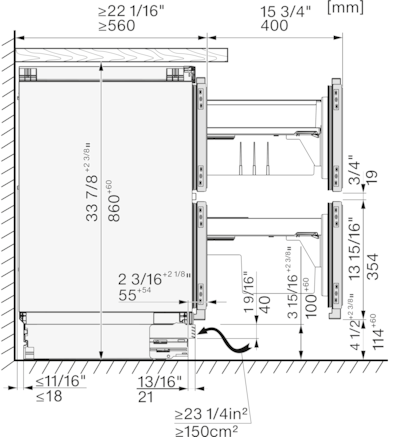

KU7175D, Built-under, side view
Installation drawings
Downloads
https://media.miele.com/images/2000022/200002256/20000225602.png
Descriptions

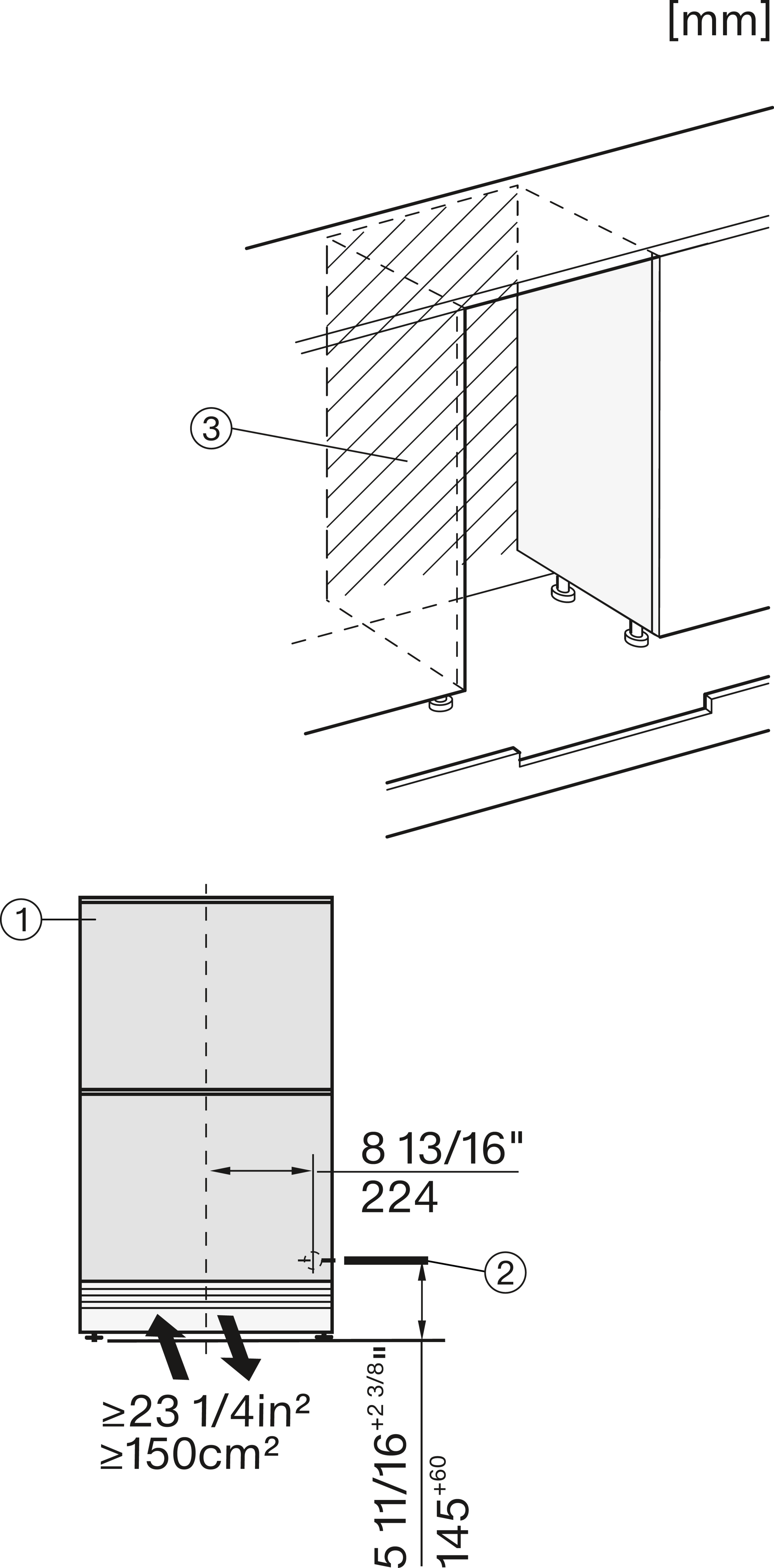

KU7175D, Built-under, installation drawing (*footnote)
*1. View from the front, 2. Mains connection cable L = 2200 mm, 3. No connection in this area,
