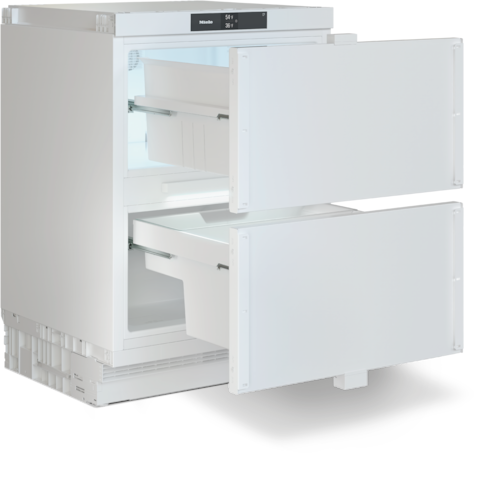

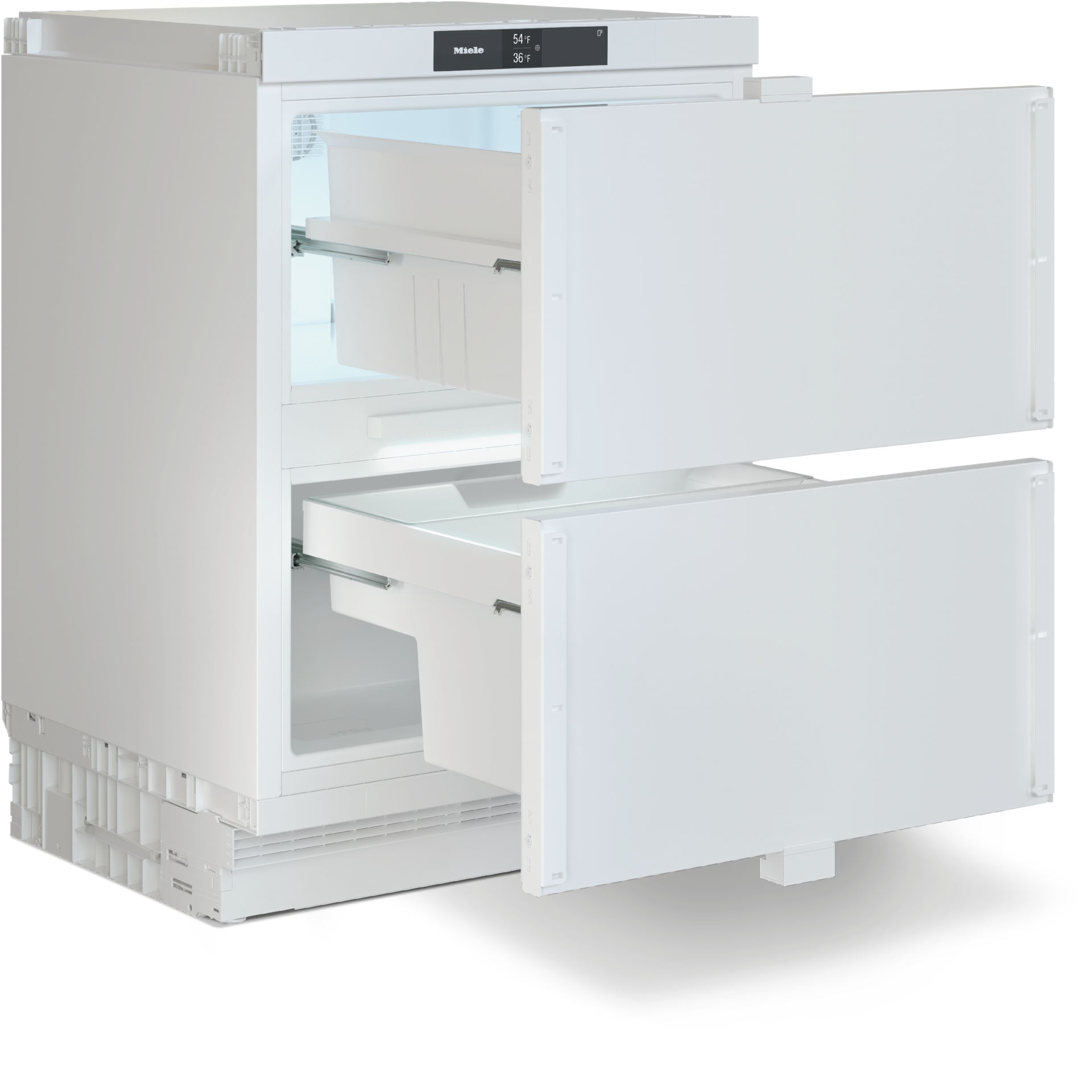

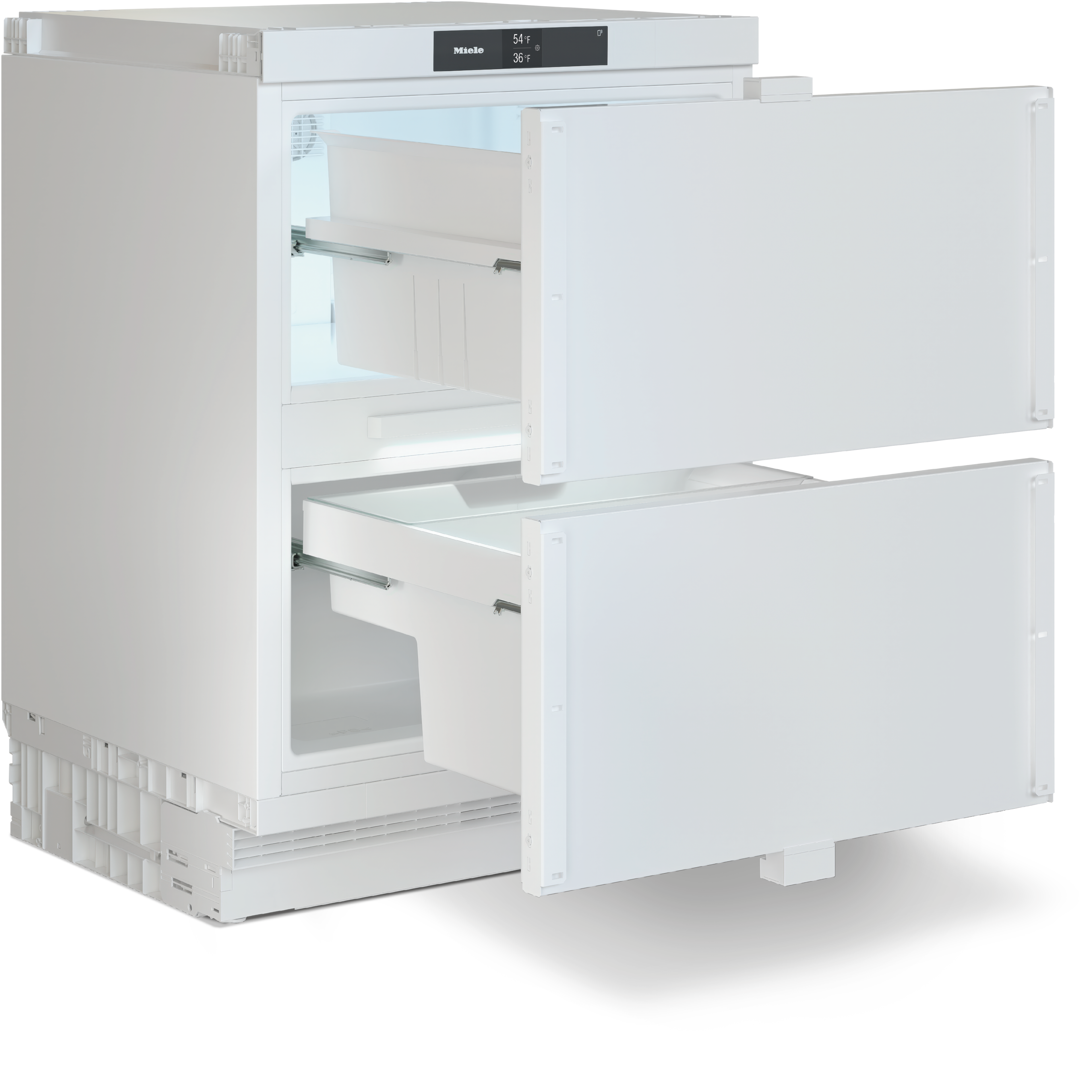

24" built-under refrigeratorPlatinum

KU 7175 D

with two individually adjustable temperature zones for more flexibility.
sale price$3,999.00


Product details

  • From 32°F (0°C) for chilled drinks to 57°F (14°C) for an ideal cellar climate
  • Optimal, maintenance-free interior lighting with
    LED
  • Uniform temperature distribution inside the appliance –
    DynaCool

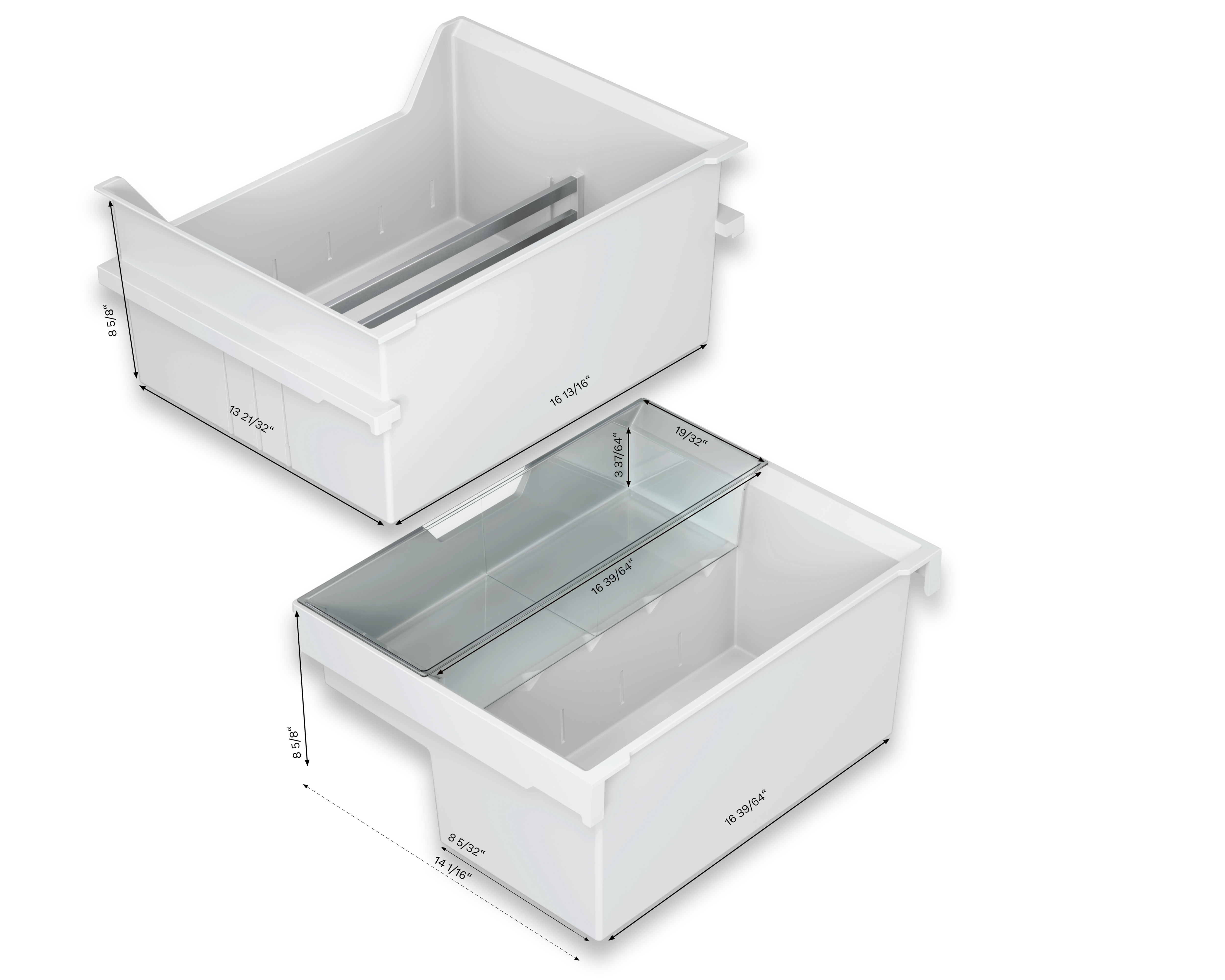

  • Cleaning the VeggieBox in the dishwasher – ComfortClean
  • Cool food down quickly thanks to SuperCool
  • Soft closing of the door with
    SoftClose
  • View manufacturer details:
  • Safety information

Product data sheet

Model number
KU 7175 D
Manufacturer material number
12930520
EAN number
4002516951285
Marketing class
Platinum
Fridge
Built-in integrated
Built-in built-under
Door hinge side
Pull-out front
Type of lighting
LED
Networking with Miele@home
ComfortClean
DynaCool
SoftClose door closing damper
Cooling tips
Cooling modes
Push notifications
RemoteUpdate
Smart Home Integration

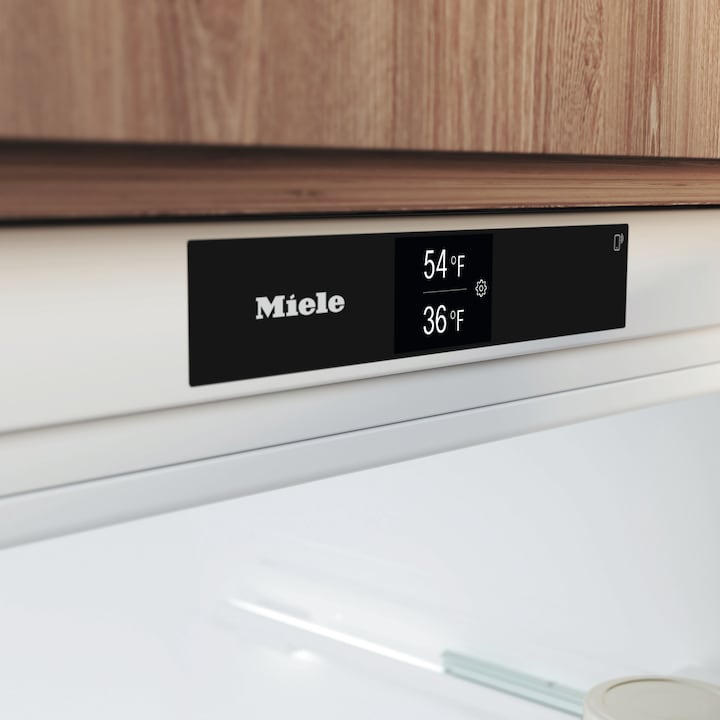

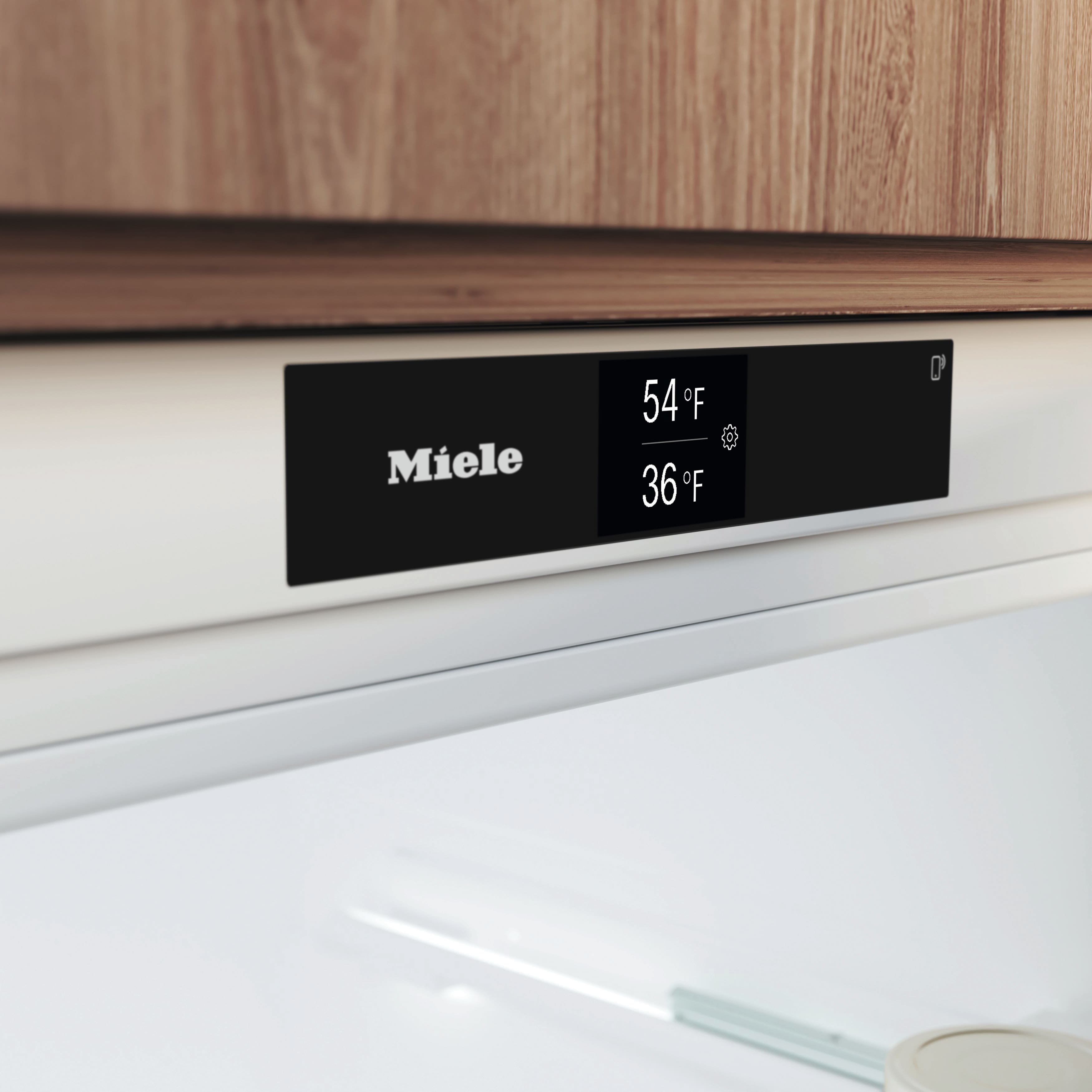

Electronic temperature display and control
FreshTouch
SuperCool
No. of temperature zones
2
Sabbath mode
Holiday mode
No. of shelves
2
Lock function
Acoustic door alarm
Optical door alarm
Niche width in inches (mm), min.
23 5/8 (600)
Niche width in inches (mm), max.
23 5/8 (600)
Niche height in inches (mm), min.
33 7/8 (860)
Niche height in inches (mm), max.
36 1/4 (920)
Niche depth in in.(mm)
22 1/8 (560)
Appliance dimensions (W x H x D) in inches (mm)
23 1/2 (597) x 33 7/8 (859) x 21 7/8 (556)
Appliance width in in.(mm)
23 1/2 (597)
Appliance height in in.(mm)
33 7/8 (859)
Appliance depth in in.(mm)
21 7/8 (556)
Weight in lbs.(kg)
96 (43.1)
Maximum fridge compartment door front weight in lbs. (kg)
23 (10)
Climatic classification
SN-T
Fridge compartment volume in cu. ft. (l)
2.15 (61)
of which pantry compartment in L
2.05 (58)
Total usable capacity in cu. ft. (l)
4.2 (119)
Sound emissions in dB(A) re 1 pW
32
Current consumption in milliampere (mA)
2000
Voltage in V
115
Fuse rating in A
10
Number of phases
1
Frequency in Hz
60
Wire length in ft (m)
7.2 (2.2)
Replacing bulbs
Customer Service
EAN
4002516951285
  • *This is a separate digital offer from Miele & Cie. KG. The range of functions can vary depending on the model and the country. Acceptance of the Terms and Conditions and Privacy Policy for Miele digital products and services in the Miele app required. Miele reserves the right to change or discontinue the digital offer at any time.
  • Atmospheric
    Atmospheric

    LED lighting

    Maintenance-free and economical: Efficient and durable LEDs ensure perfect illumination of the interior.

  • Cleverly networked
    Cleverly networked

    Miele@home1,

    Make your life smart: Thanks to Miele@home, you can cleverly network your domestic appliances – for more options.

User convenience

Atmospheric
Atmospheric

LED lighting

Maintenance-free and economical: Efficient and durable LEDs ensure perfect illumination of the interior.
Cleverly networked
Cleverly networked

Miele@home1,

Make your life smart: Thanks to Miele@home, you can cleverly network your domestic appliances – for more options.
Dishwasher-safe shelves on the inside of the door
Dishwasher-safe shelves on the inside of the door

ComfortClean

The high-quality door shelves are easy to clean in the dishwasher.
Appliance door closes softly
Appliance door closes softly

SoftClose

Quiet and reliable closing: the gently self-closing doors prevent items from falling out.

Smart Extras

  • Get more out of your refrigeration appliance
    Get more out of your refrigeration appliance

    Cooling tips1,

    Get the most out of your refrigeration appliances thanks to tips and advice in the Miele app.

  • Always up to date with software updates
    Always up to date with software updates

    RemoteUpdate1,

    Bringing new functions directly to your appliance.

  • Flexible storage for any occasion
    Flexible storage for any occasion

    Cooling modes1,

    Quickly adapt your cooling settings to any situation with preset options.

  • Seamless networking throughout your home
    Seamless networking throughout your home

    Smart Home Integration1,

    Intelligent integration of Miele appliances into a Smart Home system.

  • Smart alerts keep you informed
    Smart alerts keep you informed

    Push notifications1,

    Maintain optimal cooling and ideal conditions with push notifications alerting you to changes.

Downloads

Product sheet
PDF
Download
Operating instructions/Installation instructions
PDF
Download
Warranty conditions
PDF
Download
dwg
ZIP
Download
fbx
ZIP
Download
ifc
ZIP
Download
rfa
ZIP
Download
rvt
ZIP
Download
Energy label
PDF
Download
PNG
Download
Energy label
JPEG
Download

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts.

https://media.miele.com/dam/c9e34a2f-3e9e-43ae-8d01-b41a0111a26f/20000225573_HighresDigitalRGB.png
Descriptions

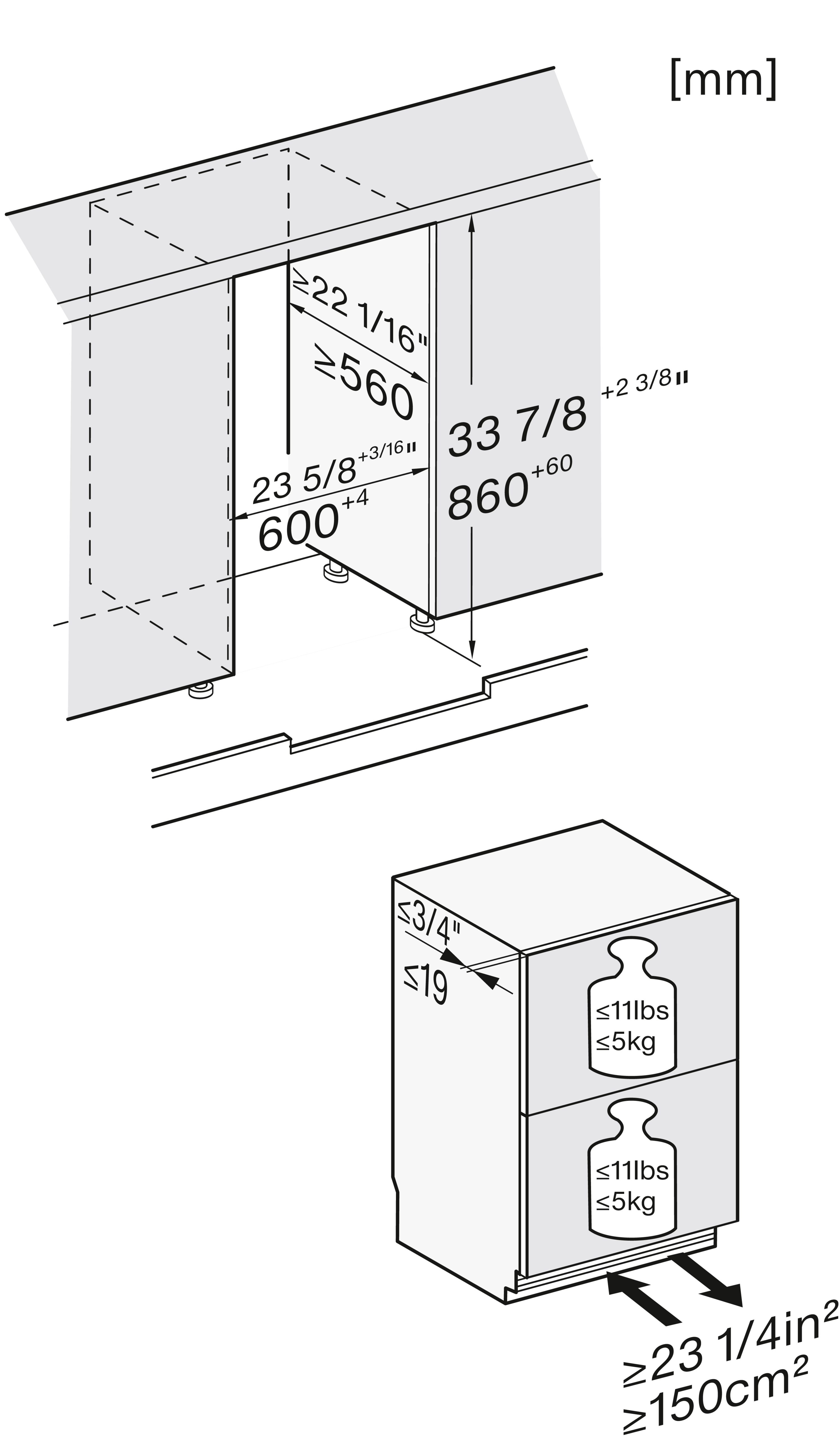

KU7175D, Built-under, niche dimensions
KU7175D, Built-under, niche dimensions
POSTSCRIPT
Download
https://media.miele.com/dam/6888e1d2-ed65-40cf-8348-b41a01119e59/20000225578_HighresDigitalRGB.png
Descriptions

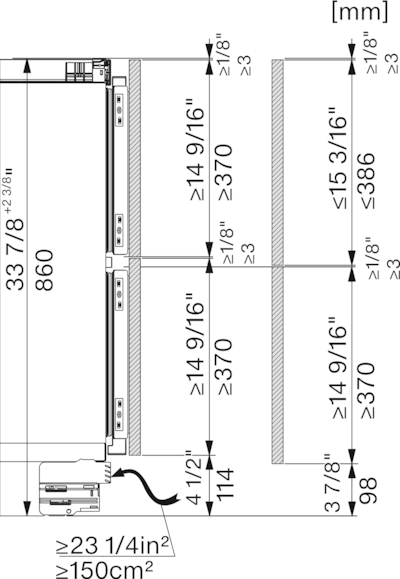

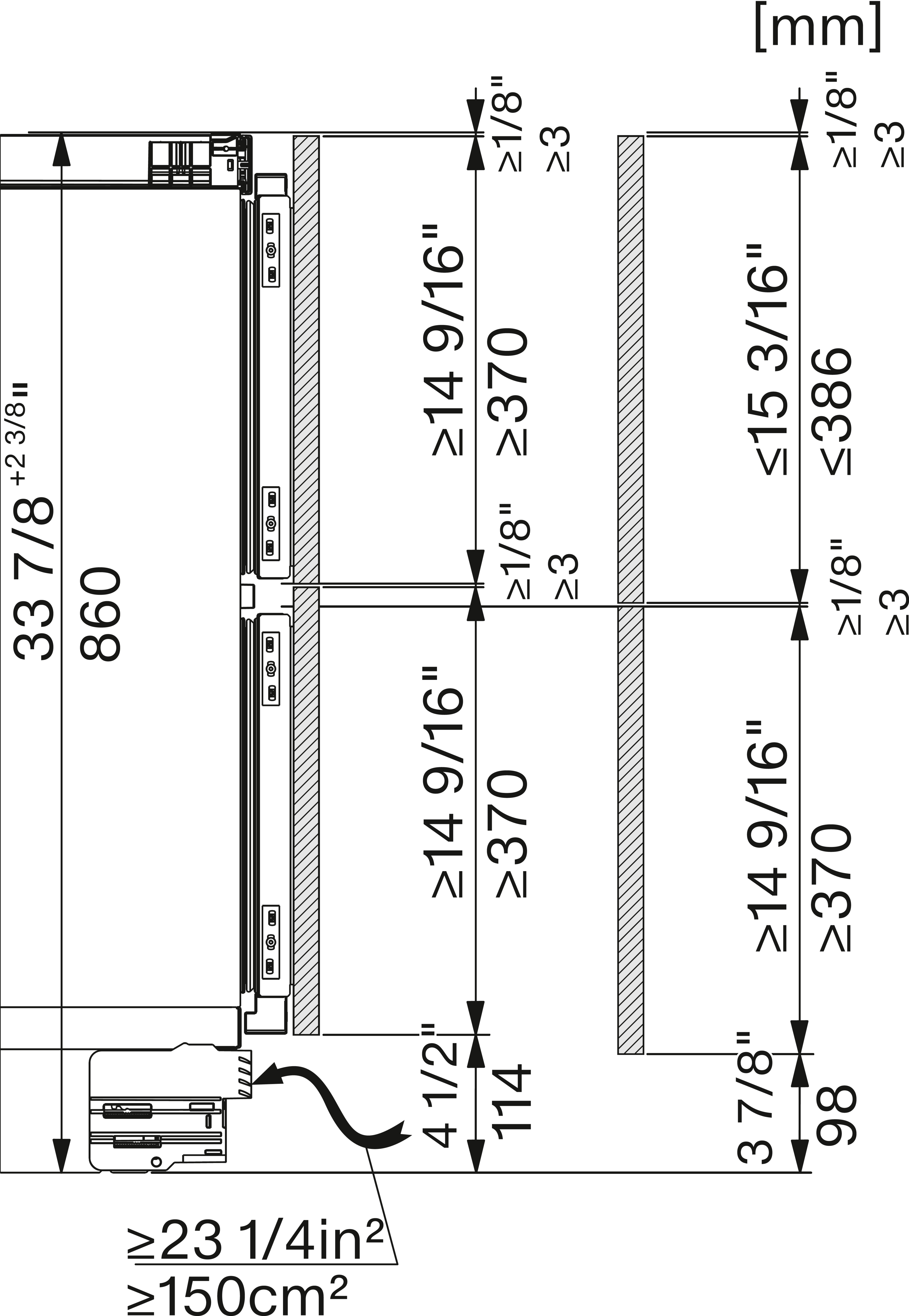

KU7175D, Built-under, side view
KU7175D, Built-under, side view
POSTSCRIPT
Download
https://media.miele.com/dam/30560fce-9f81-4959-ada8-b41a0111926c/20000225597_HighresDigitalRGB.png
Descriptions

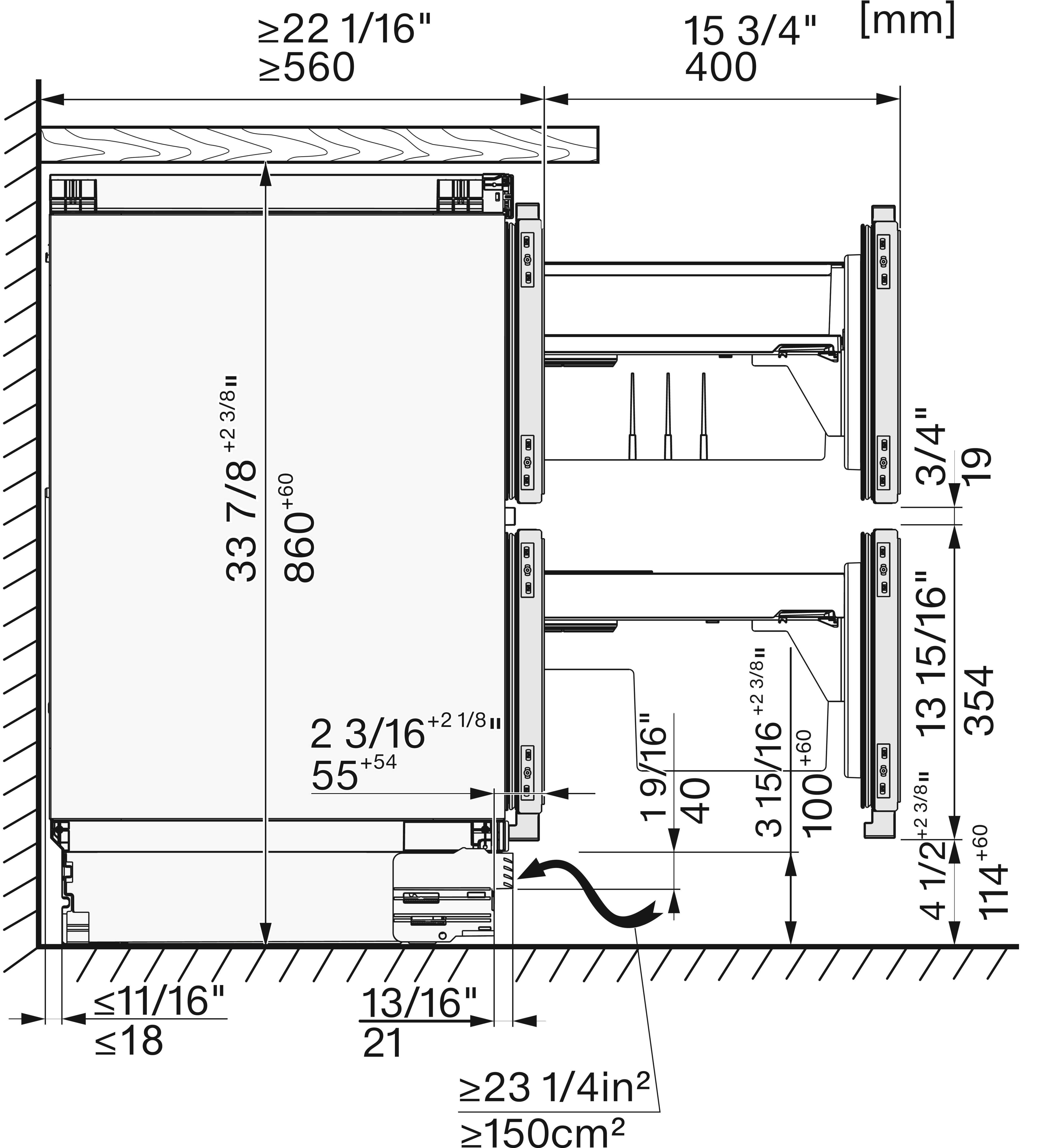

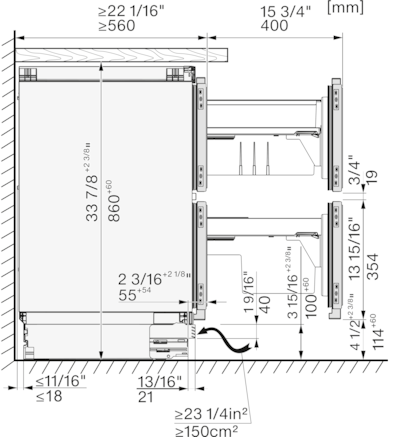

KU7175D, Built-under, side view
KU7175D, Built-under, side view
POSTSCRIPT
Download
https://media.miele.com/dam/954017f3-8075-4d41-b529-b41a0112b4cf/20000225602_HighresDigitalRGB.png
Descriptions

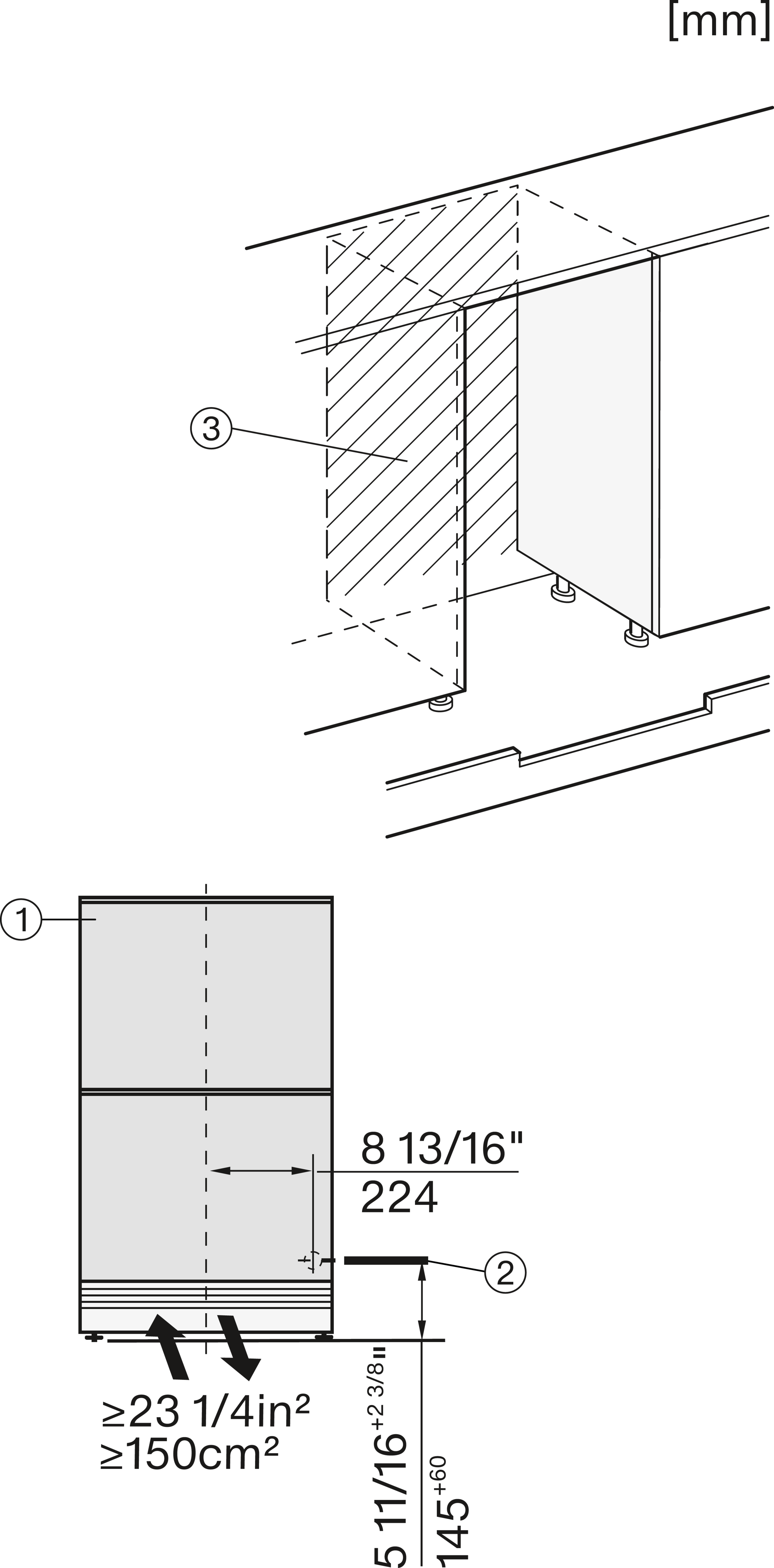

KU7175D, Built-under, installation drawing (*footnote)
*1. View from the front, 2. Mains connection cable L = 2200 mm, 3. No connection in this area,
POSTSCRIPT
Download
