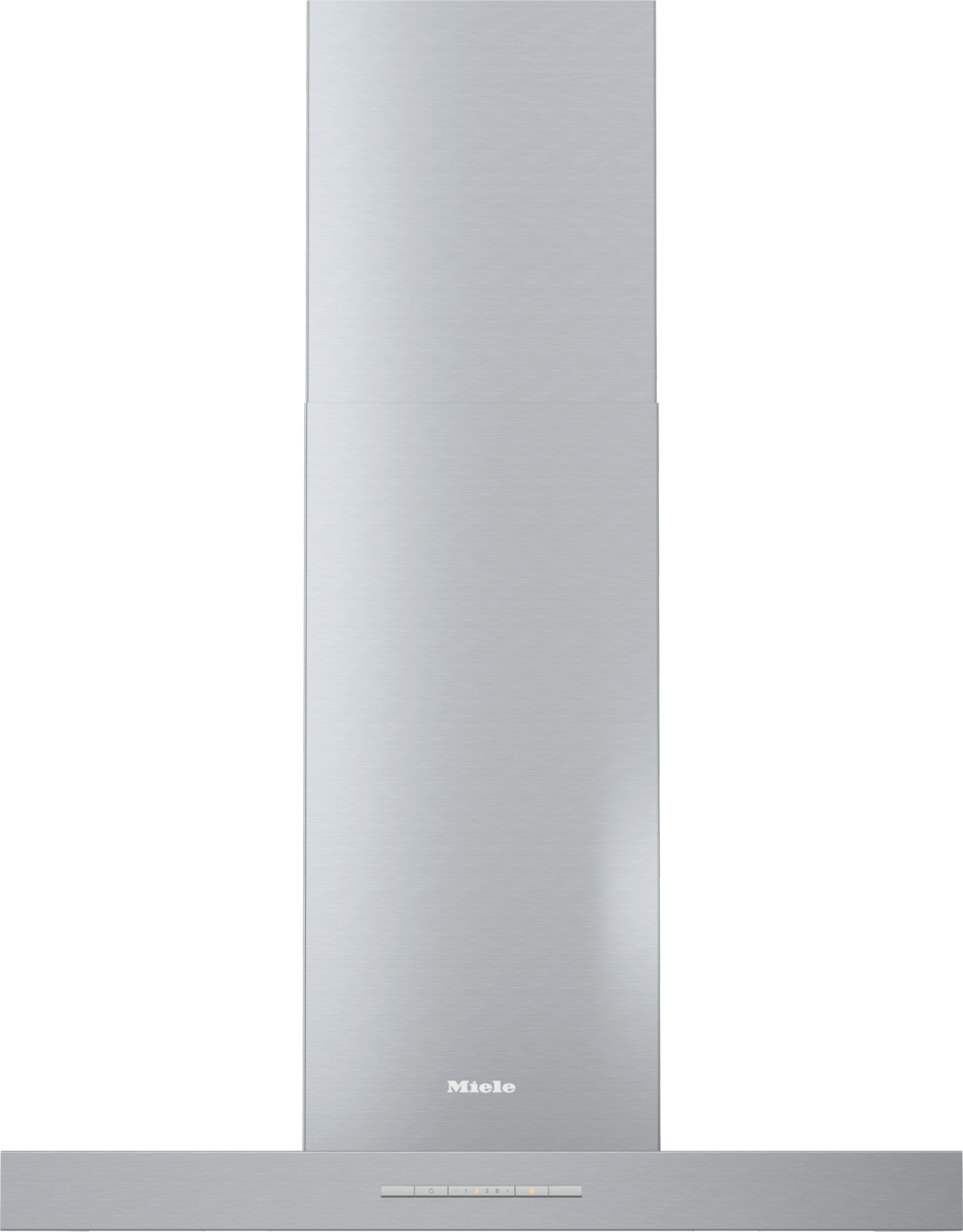

  • Miele - DAP 1727 Stainless steel – Ventilation Hoods - 1

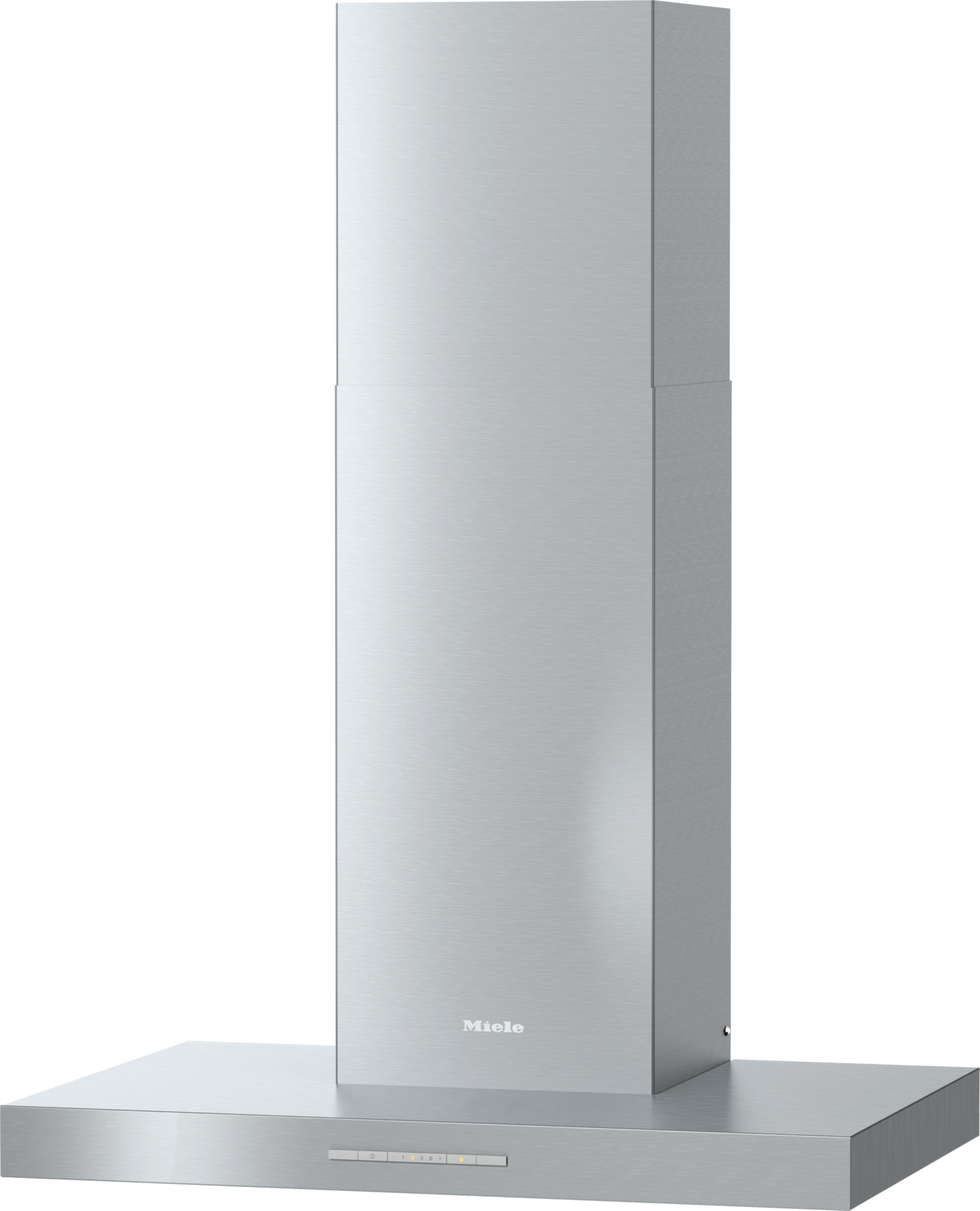

  • Miele - DAP 1727 Stainless steel – Ventilation Hoods - 2

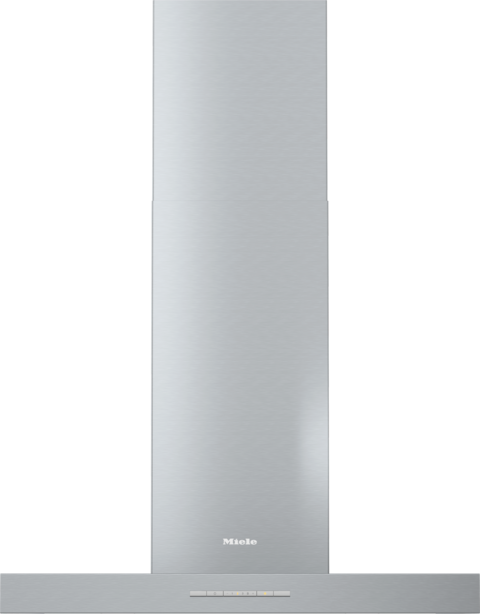

  • Miele - DAP 1727 Stainless steel – Ventilation Hoods - 3

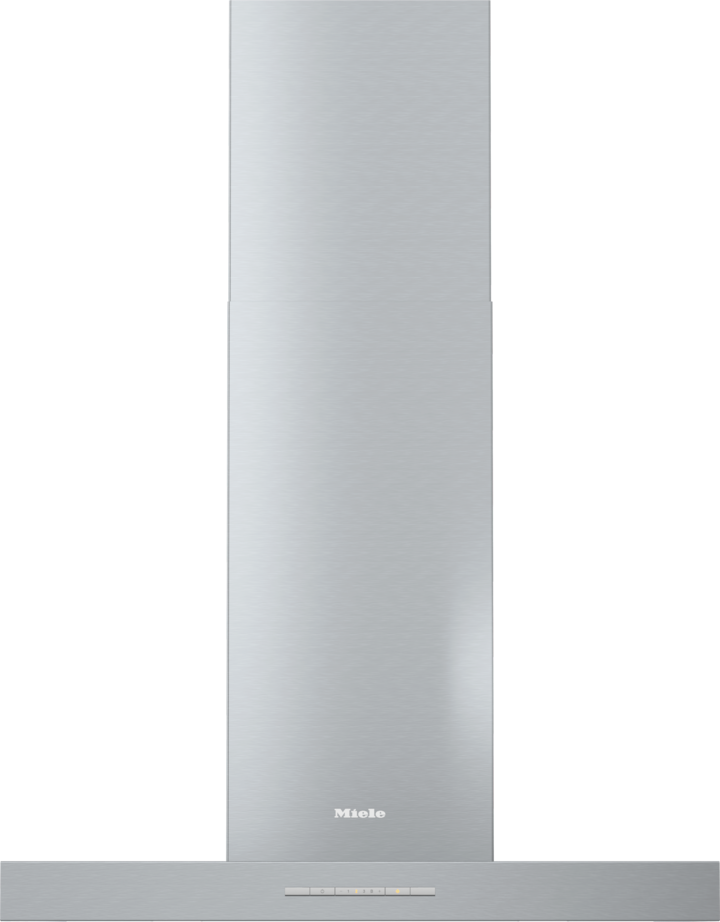

  • Miele - DAP 1727 Stainless steel – Ventilation Hoods - 4

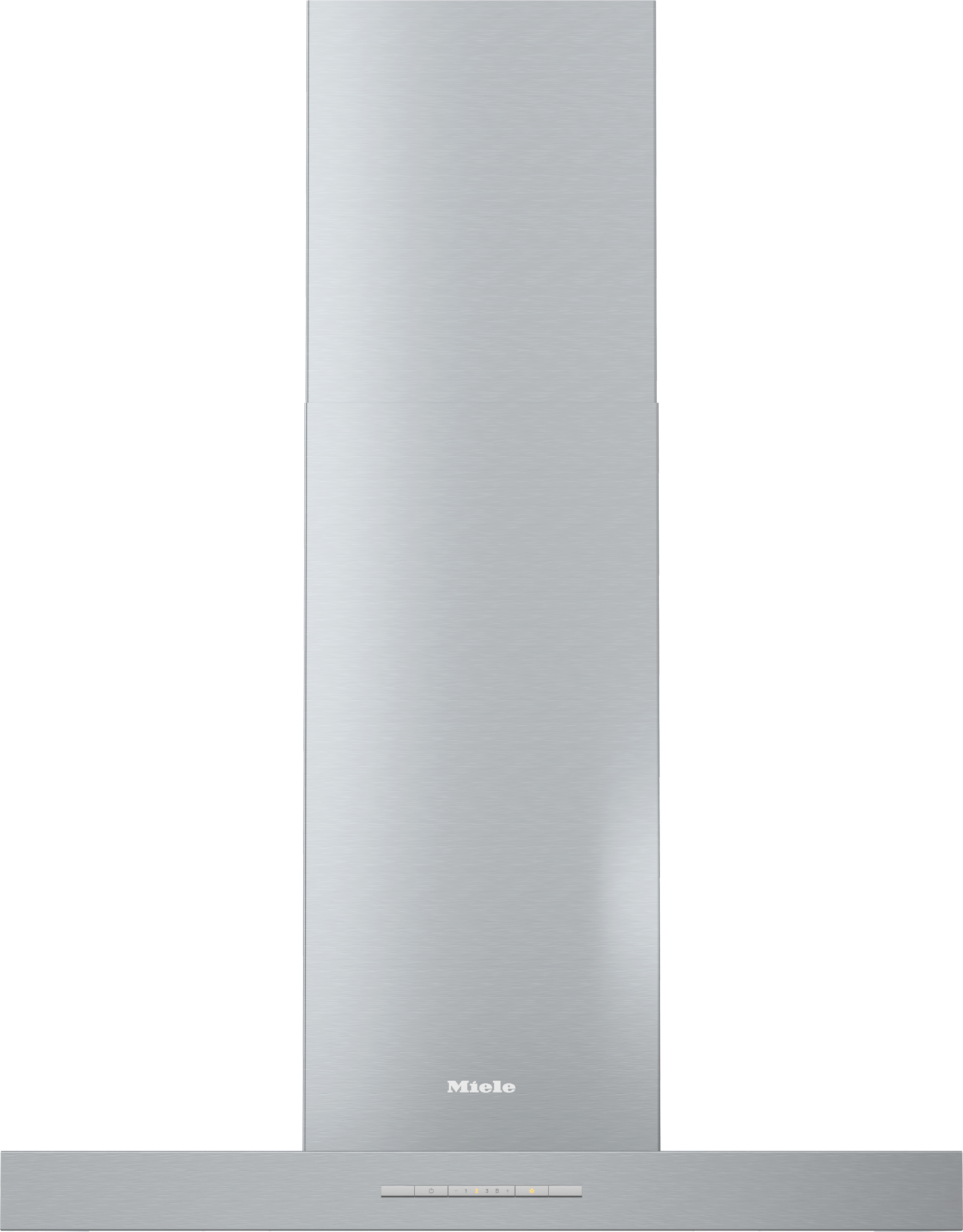

  • Miele - DAP 1727 Stainless steel – Ventilation Hoods - 5
30-inch wall-mounted ventilation hoodSilver

DAP 1727 Stainless steel

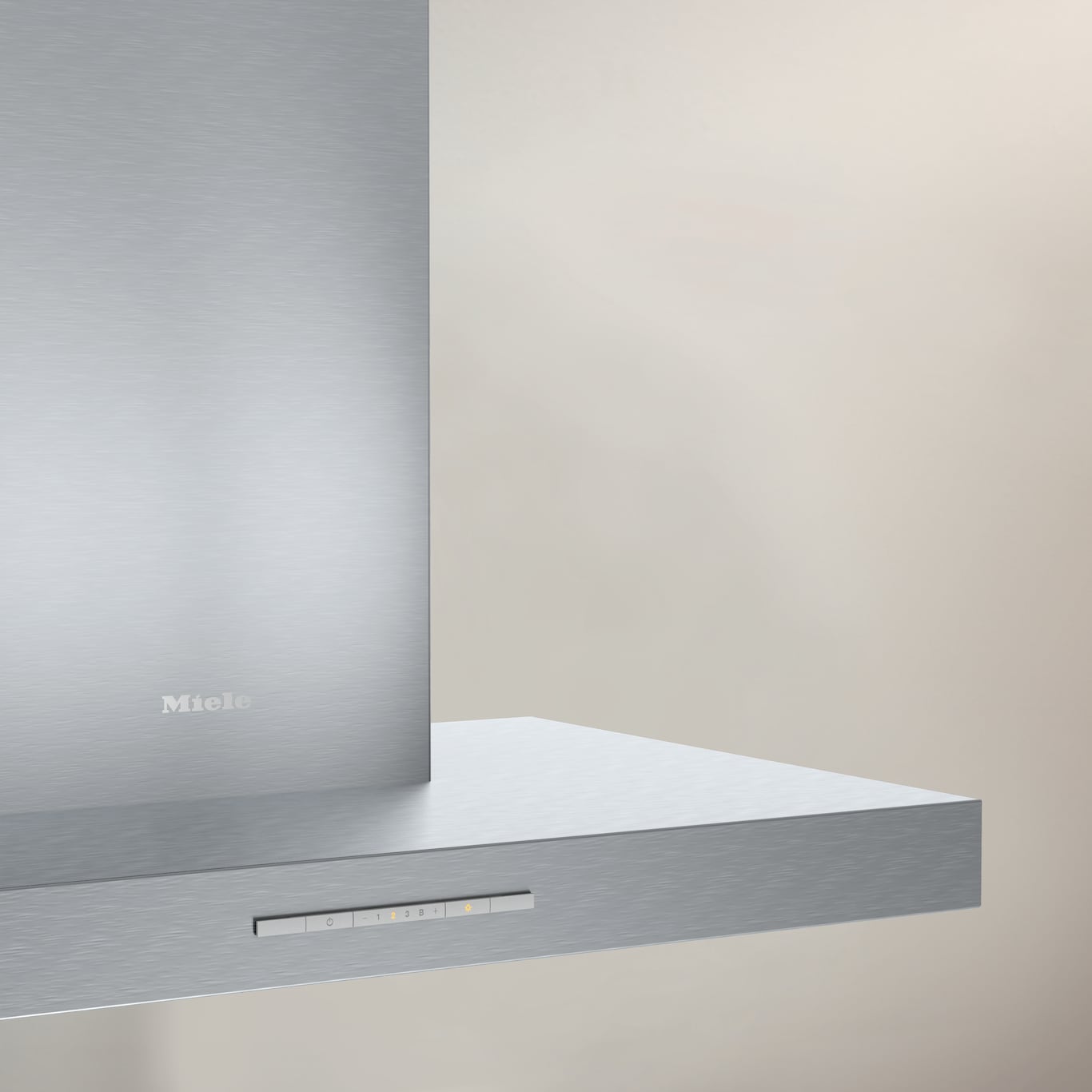

with energy-efficient LED lighting and backlit controls for easy use.
Color:Stainless steel
sale price$1,199.00


Product details

  • Timeless design – stainless steel canopy 29 1/2 (748) in (mm) wide
  • Powerful – 512.06 (870) ft³/min (m3/h) in Booster level
  • Efficient filtration-
    10-ply stainless steel grease filters
  • Safe and easy to clean -
    Miele CleanCover
  • Suitable for every home - vented or recirculating
  • View manufacturer details:
  • Safety information

Product data sheet

Model number
DAP 1727
Manufacturer material number
12784040
EAN number
4002516878872
Marketing class
Silver
Wall ventilation hood
Recirculated mode
Can be retrofitted
Recirculation conversion kit (order separately)
DUW 20
OdorFree charcoal filter (order separately)
DKF12-900P
Color
Stainless steel
Electronic controls
EasySwitch
Operation
EasySwitch
Power levels (number excl. Intensive)
3
Booster levels
1
CleanCover
Easy-to-clean canopy interior – CleanCover
Number of dishwasher-safe stainless steel grease filters (10-ply)
2
Number x W
2 x 3 W
Light intensity in Lx
330 lx
Color temperature in K
3000 Kelvin
Dual-action blower
Air throughput in CFM in Booster
510
Air throughput with Booster level 1 (m³/h) according to EN 61591
512.06 (870)
Safety shut-off
Canopy dimensions (W x H x D) in mm
29 1/2 (748) x 2 1/2 (62) x 19 5/8 (500)
Overall min. height for vented and external in in. (mm)
27 (685)
Overall max. height for vented and external in in. (mm)
39 5/8 (1005)
Overall min. height for recirculation in in. (mm)
32 1/8 (815)
Overall max. height for recirculation in in. (mm)
44 5/8 (1135)
Canopy width in in. (mm)
29 1/2 (748)
Canopy height in in. (mm)
2 1/2 (62)
Depth of hood canopy in in. (mm)
19 5/8 (500)
Minimum height above electric cooktops in mm
24 (610)
Minimum safety distance above gas cooktops (max. 12.6 kW total power, burner ≤ 4.5 kW) in mm
26 (660)
Net weight in lbs. (kg)
51 (23.0)
Length of electrical wire in ft. (m)
4 (1.5)
Standard plug fitted
Plug type
NEMA plug: 5–15
Total connected load in kW
0.356
Voltage in V
120
Fuse rating in A
15
Frequency in Hz
60
Number of phases
1
Vent connection at top
Diameter of vent connection in in. (mm)
6 (150)
Telescopic chimney
Non-return flap
EAN
4002516878872

What's included

Non-return flap

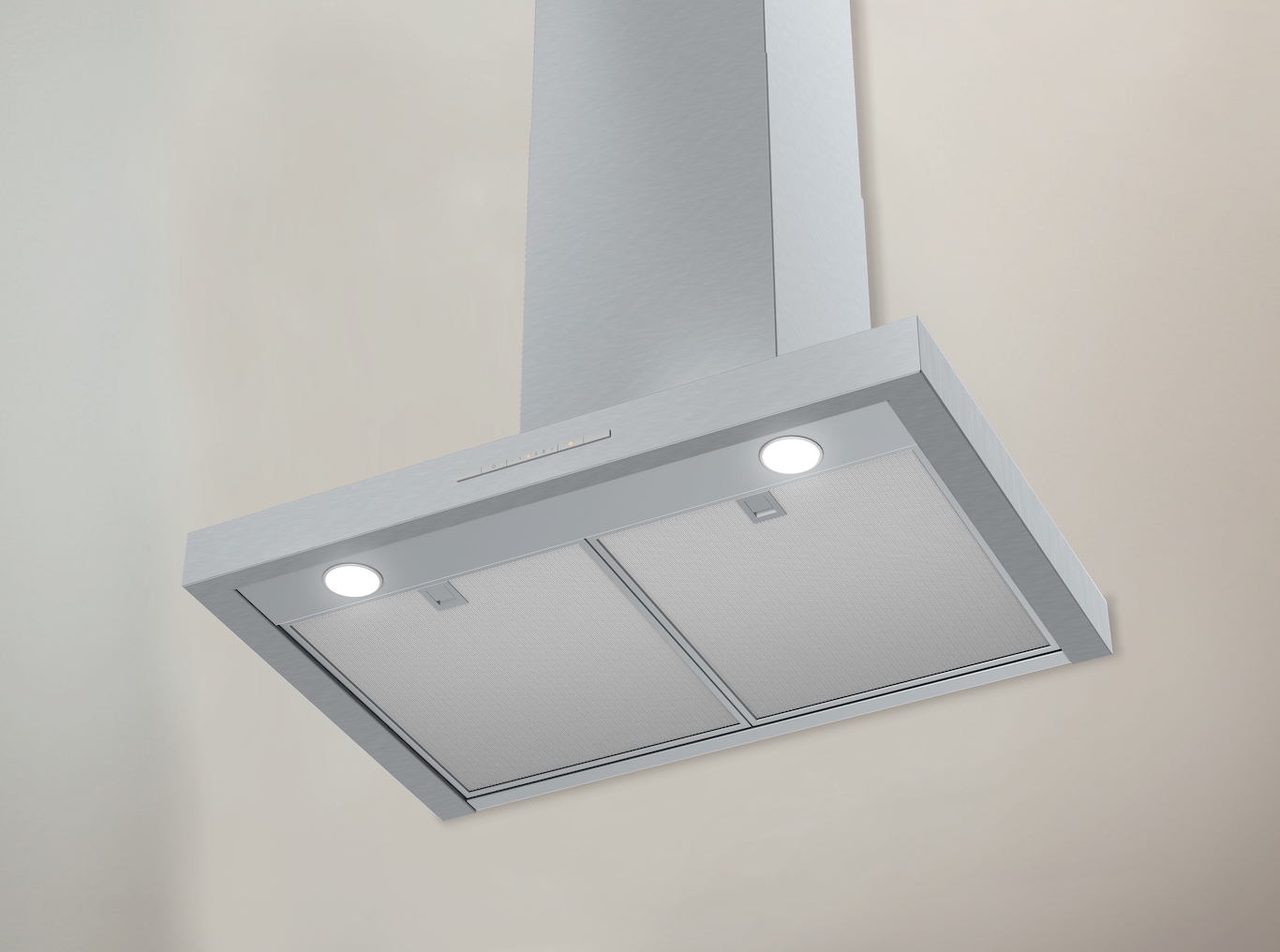

  • Easy to use and effective against grease
    Easy to use and effective against grease

    Stainless-steel grease filters (10-layer)

    Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.

  • Convenience and safety in detail
    Convenience and safety in detail

    Miele CleanCover

    Protection and easy cleaning: The sealed, smooth surface prevents contact with cables and the motor.

Safety

Always on the safe side
Always on the safe side

Safety turn off

Sensible, even in case of operating errors: The ventilation hood switches off automatically after 10 hours.

Features

Easy to use and effective against grease
Easy to use and effective against grease

Stainless-steel grease filters (10-layer)

Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.
Convenience and safety in detail
Convenience and safety in detail

Miele CleanCover

Protection and easy cleaning: The sealed, smooth surface prevents contact with cables and the motor.

Downloads

Mounting plan
PDF
Download
Operating and Installation instructions
PDF
Download
Product sheet
PDF
Download
Warranty conditions
PDF
Download
dwg
ZIP
Download
fbx
ZIP
Download
ifc
ZIP
Download
rfa
ZIP
Download
rvt
ZIP
Download

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts.

https://media.miele.com/dam/7e7c19a2-ffa0-4da8-83d4-b3bd006518b9/20000134628_HighresDigitalRGB.png
Descriptions
PUR88W, DAP1727 (Installation drawing) - USA/CDN
1) Extraction, 2) Recirculation, 3) Ventilation grille at top for recirculation, 4+5) Installation cut-out (5 not required for recirculation)
