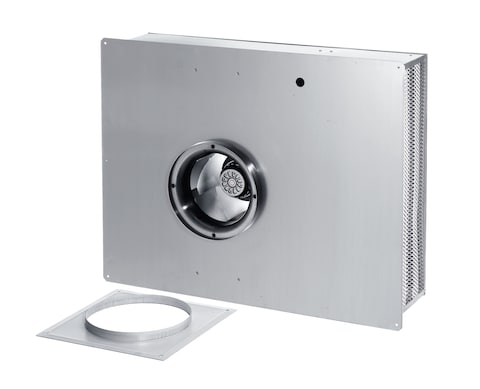

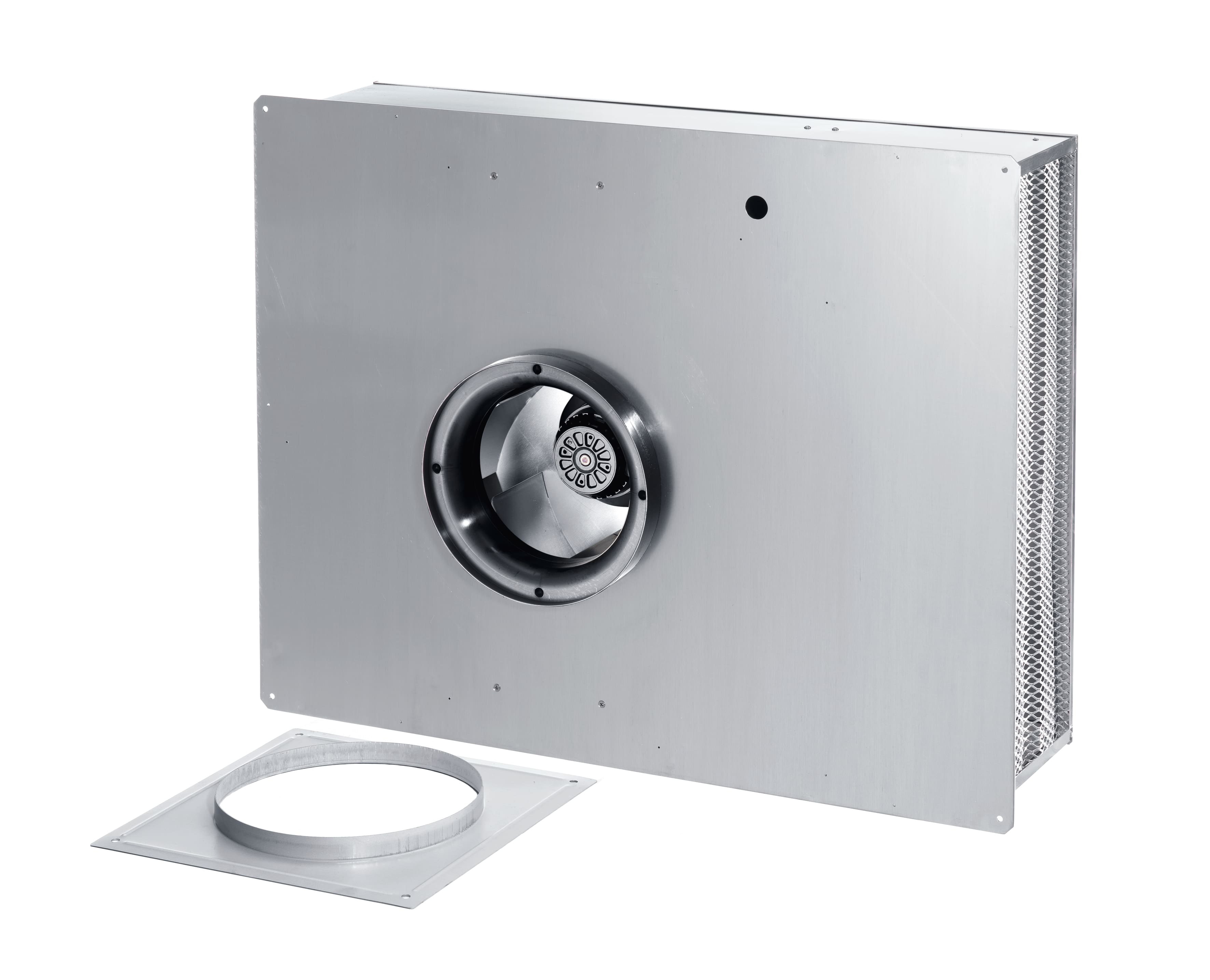

DAG 1000
External blower
additionally necessary for DA 68x1.sale price$949.00
Product details
- The blower can be positioned in front of or behind the hood
- Vent connection 10" (254 mm) Ø
- View manufacturer details:
- Safety information
Downloads
Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts.
Descriptions
DA 6480 W, DA 6490 W, appliance measurements (Installation drawing)
<lt/>B<gt/> = Connection plate when using the DAG 1000 external blower, The blower or the connection plate can also be mounted in the same position on the rear of the appliance., x = Distance to the rear of the cabinet or wall. Must be a minimum of 1/2" (13 mm). POSTSCRIPT
Descriptions
DA 6480 W, DA 6490 W, Furniture measurements (Installation drawings)
<lt/>E<gt/> Using the DAG 1000 external blower, install exhaust ducting to the rear (vent duct 10" ø (254 mm))., If installing the exhaust ducting to the front, appropriate clearances must be maintained in the cabinet. POSTSCRIPT
We reserve the right to make technical changes; we assume no liability for the accuracy of the information provided.
