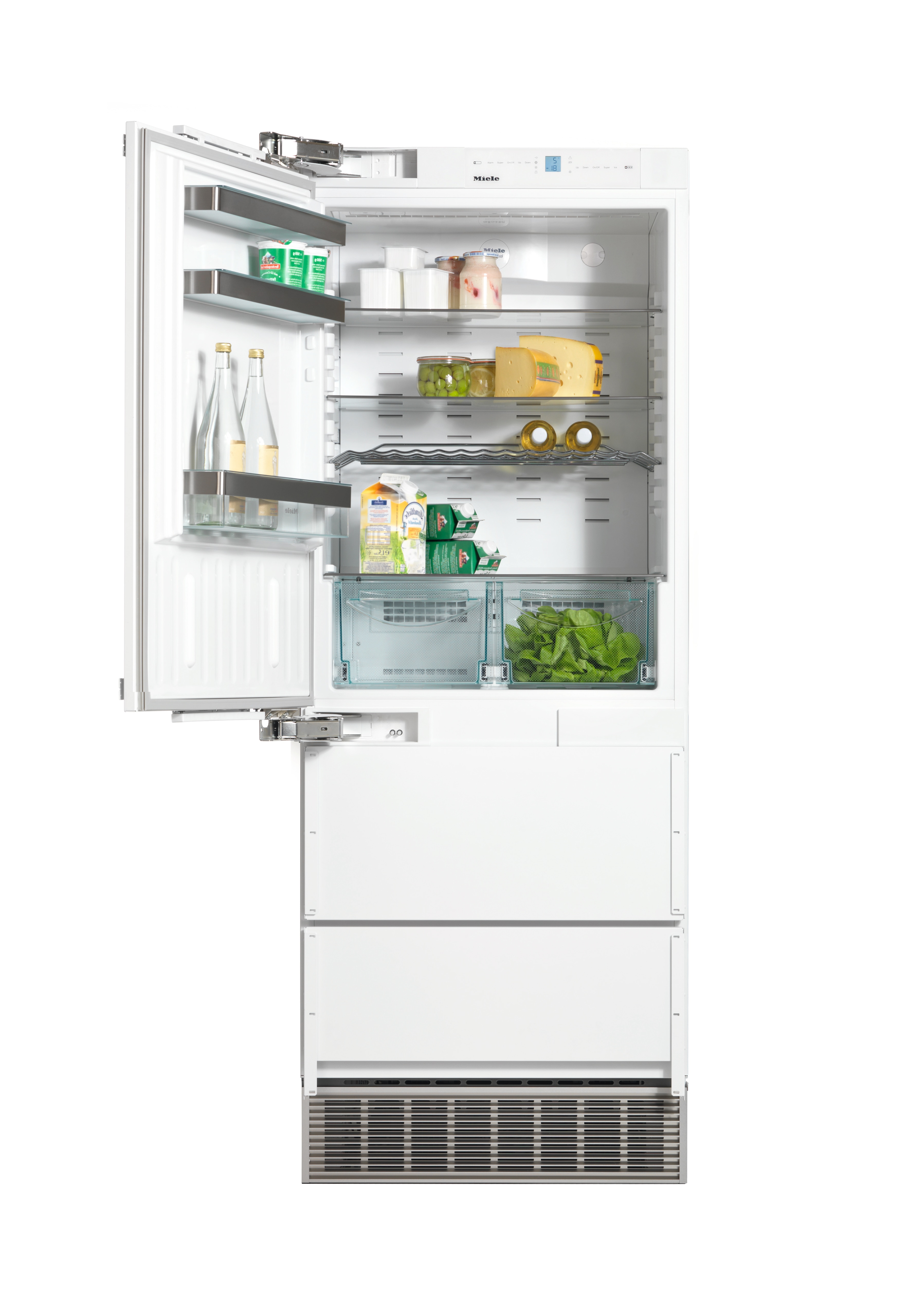

30" built-in bottom-mount unitPlatinum

KFN 9859 iDE

maximum convenience thanks to generous large capacity and ice maker.
sale price$8,199.00


Product details

  • Optimum and maintenance-free LED lighting in compartment
  • Store food anywhere in the refrigerator - Dynamic cooling
  • No icing up of food and no need to defrost thanks to
    Frost free
  • Ice cubes thanks to the plumbed
    IceMaker
  • Door shelves can be cleaned in the dishwasher - ComfortClean
  • View manufacturer details:
  • Safety information

Product data sheet

Model number
KFN 9859 iDE
Manufacturer material number
12153760
EAN number
4002516611226
Marketing class
Platinum
Fridge-freezer
Built-in
Built-in integrated
Door hinge side
Left
Type of lighting
LED
ComfortClean
DynaCool
NoFrost
DuplexCool
SoftClose door closing damper
IceMaker with plumbed water connection
Fridge compartment can be switched off
SuperCool
No. of temperature zones
2
No. of shelves
3
Chrome-plated metal bottle rack
Number of door racks for cans
2
Door rack for bottles
1
Number of freezer drawers
2
Energy Star Qualified
Optical door alarm
Optical temperature alarm
Power cut indication for freezer compartment
Niche width in inches (mm), min.
30 (762)
Niche width in inches (mm), max.
30 (762)
Niche height in inches (mm), min.
80 (2032)
Niche height in inches (mm), max.
81 5/8 (2072)
Niche depth in in.(mm)
24 1/8 (610)
Appliance dimensions (W x H x D) in inches (mm)
29 3/4 (757) x 79 5/8 (2024) x 24 (610)
Appliance width in in.(mm)
29 3/4 (757)
Appliance height in in.(mm)
79 5/8 (2024)
Appliance depth in in.(mm)
24 (610)
Weight in lbs.(kg)
309 (140.0)
Type of mounting
Fixed door
Climatic classification
SN-T
Fridge compartment volume in cu. ft. (l)
9.82 (278)
4-star freezer compartment volume in cu. ft. (l)
4.31 (122)
Total usable capacity in cu. ft. (l)
14.13 (400)
Storage time in case of fault in h
30
Current consumption in milliampere (mA)
2500
Voltage in V
115
Fuse rating in A
10
Number of phases
1
Frequency in Hz
60
Wire length in ft (m)
9.2 (2.8)
Replacing bulbs
Customer Service
EAN
4002516611226

Convenience features

Ice cubes for cold drinks
Ice cubes for cold drinks

IceMaker

Fresh ice, fully automatically: produces up to 100 ice cubes per day with ease thanks to plumbed water connection.

User convenience

Pleasant atmosphere
Pleasant atmosphere

LED lighting

Maintenance-free and economical: efficient and durable LEDs ensure perfect illumination of the interior.
Defrosting is a thing of the past
Defrosting is a thing of the past

NoFrost

Save yourself the hassle of defrosting thanks to the recirculating air cooling system, which prevents ice from forming.
Ideal storage conditions for food and wine
Ideal storage conditions for food and wine

DynaCool

Even temperature distribution: a fan ensures excellent circulation and distribution of the cold air.
Dishwasher-safe shelves on the inside of the door
Dishwasher-safe shelves on the inside of the door

ComfortClean

The high-quality door shelves are easy to clean in the dishwasher.
Appliance door closes softly
Appliance door closes softly

SoftClose

Quiet and reliable closing: the gently self-closing doors prevent items from falling out.

Downloads

Operating and Installation instructions
PDF
Download
Product sheet
PDF
Download
dwg
ZIP
Download
fbx
ZIP
Download
ifc
ZIP
Download
rfa
ZIP
Download
rvt
ZIP
Download
Energy label
PDF
Download
PNG
Download
Energy label
JPEG
Download

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts.

https://media.miele.com/images/2000010/200001015/20000101561.png
Descriptions
KFN9859iDE, KFN9855iDE with footnote* (installation drawings)
* A = 3" ( 76 mm), B = 79- 13/16" ( 2027 mm), C = 29- 7/8" ( 757 mm), D = 24" ( 610 mm), E = 55 1/4" ( 1413 mm), F = 37- 1/8" ( 952 mm)
POSTSCRIPT
Download

We reserve the right to make technical changes; we assume no liability for the accuracy of the information provided.
