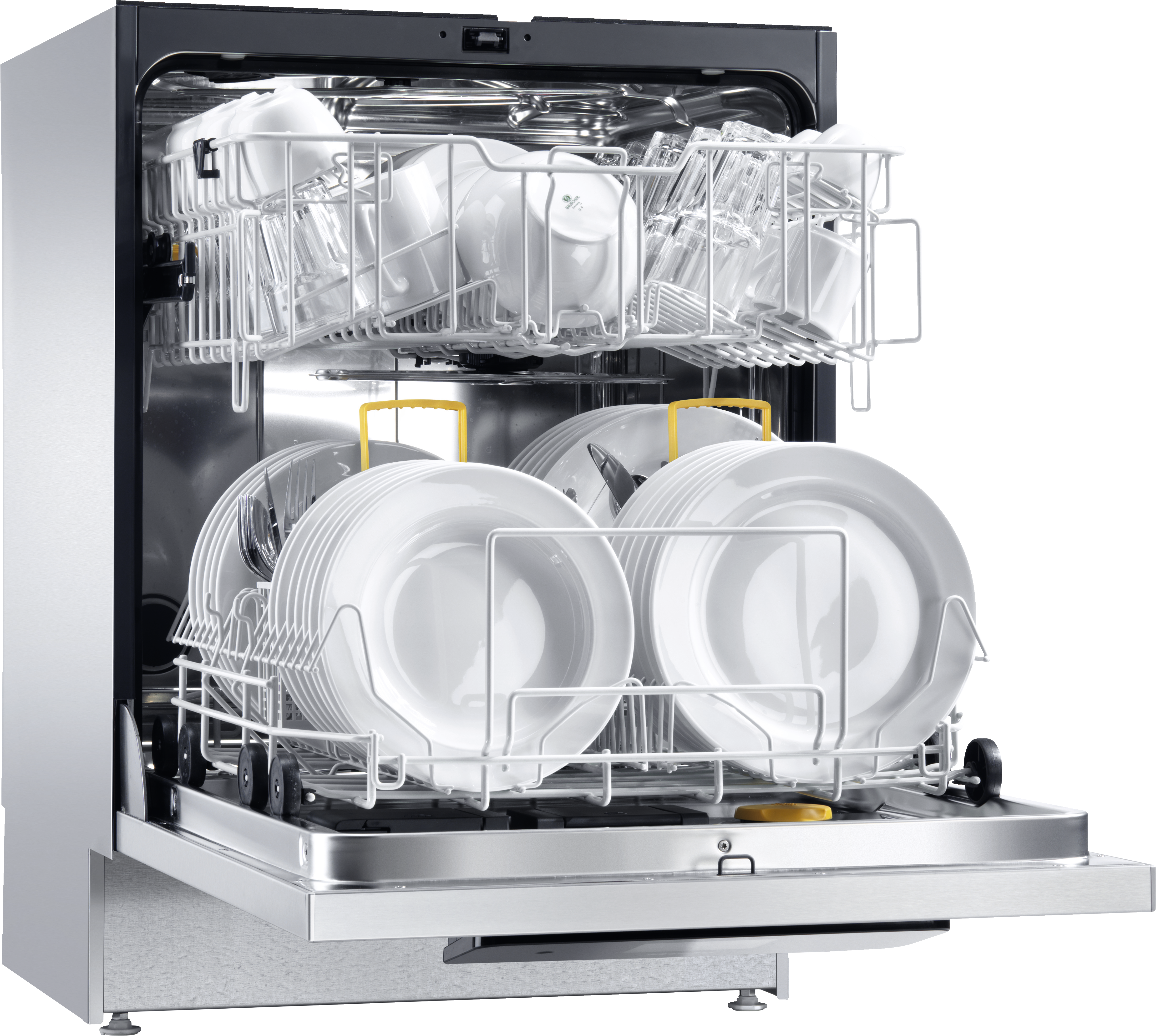

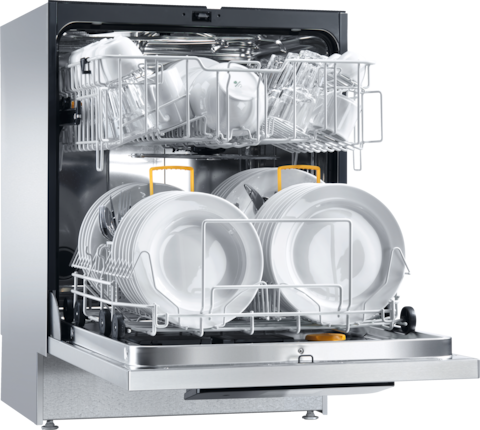

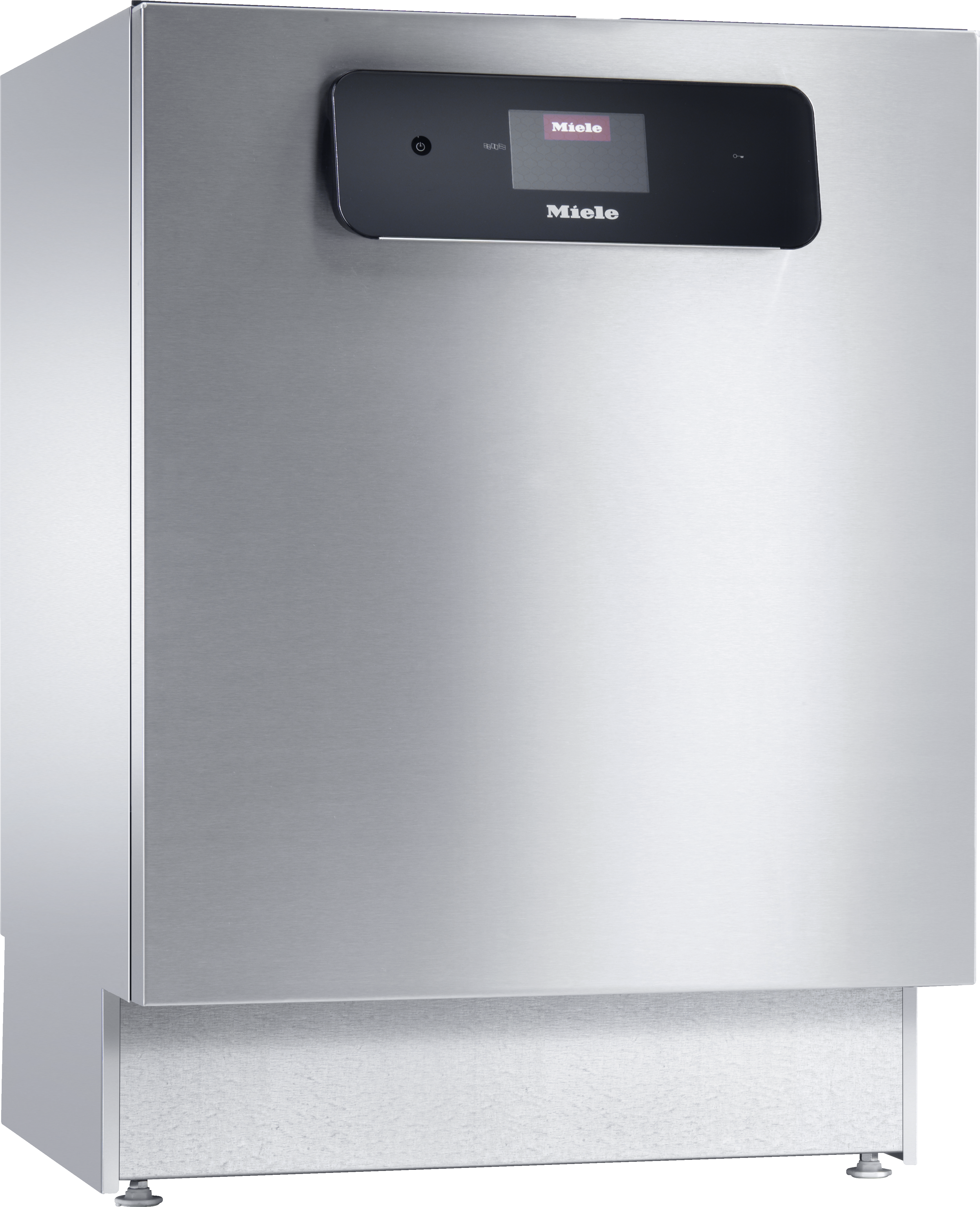

PFD 404 U [240V]
w/ baskets for care homes, nursery schools and people w/ hygiene requirements.Product details
- Max. cleaning performance4, : 380 plates/h or 20baskets/hLoading...
- First-class results thanks tofresh water systemLoading...
- Extremely hygienic results –final rinse temperature of 185 (85) °F (°C)Loading...
- Safe and easy operation -automatic door openingLoading...
- Max. user convenience withM Touch Flex full-touch color displayLoading...
- View manufacturer details:
- Safety information
Product data sheet
- ModelLoading...
- Built-under dishwasher
- Range
- MasterLine
- Model
- Hygiene
- Wash systemLoading...
- Fresh water front loader
- Number of levels
- 2
- Front
- Stainless steel
- Lid
- Without lid
- Side walls
- Galvanised
- Suitable for retirement and care homesLoading...
- Suitable for hospitalsLoading...
- Suitable for child care facilitiesLoading...
- Suitable for universities and schoolsLoading...
- Tested virucidal efficacyLoading...
- Certified hygieneLoading...
- Shortest program duration in min.
- 6Loading...
- Maximum final rinse temperature in °F (°C)
- 185 (85)
- Cleaning performance, plates/h
- 380Loading...
- Cleaning performance, baskets/h
- 20Loading...
- Possible to wash plastic baskets on two levelsLoading...
- Service life in wash cycles
- 28000Loading...
- Control systemLoading...
- M Touch Flex
- Max. delay start in h
- 24
- Countdown indicator
- Dishwashing programs [number]
- 12
- Program sequence indicator
- Choice of display languageLoading...
- Language-neutral operation
- Electrical connection
- 2 AC 240V 60HZ
- Heater rating in kW
- 5.400
- Total connected load in kW
- 5.800
- Fuse rating in A
- 30
- Length of power cord in ft (m)
- 6 (1.90)Loading...
- NEMA plug: Twist Lock L6-30
- Electrical connection
- 3 AC 240V 60HZ
- Heater rating in kW
- 5.400
- Total connected load in kW
- 5.800
- Fuse rating in A
- 20
- Cold water [number]
- 1
- Hot water [number]Loading...
- 1
- Required flow pressure in bar
- 1.00 - 10.00
- Drain hose [DN]
- 22
- Maximum delivery head for drain pump in inches (cm)
- 39 3/8 (100)
- Integrated water softenerLoading...
- Maximum water hardness in gpg (mmol/l)
- 62.595 (10.70)Loading...
- Water protection systemLoading...
- Waterproof system
- Water consumption per wash cycle in gal (l)
- 2.1 (8.00) gll (l)
- Length of water inlet hose in inches (cm)
- 67 (170)
- Length of water drain hose in inches (cm)
- 59 1/8 (150)
- External dimensions, net height in inches
- 32 5/16 (820)Loading...
- Maximum height adjustment in inches (mm)
- 60
- External dimensions, net width in inches
- 23 9/16 (598)
- External dimensions, net depth in inches
- 23 7/16 (595)
- External dimensions, gross height in inches
- 36 1/4 (920)Loading...
- External dimensions, gross width in inches
- 26 7/16 (670)Loading...
- External dimensions, gross depth in inches
- 29 3/16 (740)Loading...
- Usable space in wash cabinet, width in inches (mm)
- 22 1/16 (559)
- Usable space in wash cabinet, height in inches (mm)
- 21 1/8 (536)
- Usable space in wash cabinet, depth of upper basket in inches (mm)
- 18 11/16 (474)
- Usable space in wash cabinet, depth of lower basket in inches (mm)
- 20 3/8 (516)
- In-feed height above floor in inches (mm)
- 8 9/16 (216)
- Required niche width in mm
- 23 5/8 (600)
- Net weight [kg]
- 166 (75)
- Gross weight in lbs.
- 188 (85)Loading...
- Maximum floor load in N/m²
- 1200Loading...
- Emission sound pressure level in workplace (LpA)
- 45 dB(A) re 20 µPaLoading...
- Sound power (LwA) in dB(A) re 1 pW
- 57Loading...
- Heat dissipation into the room in MJ/h
- 1.44Loading...
- Normal PlusLoading...
- RapidLoading...
- NormalLoading...
- SaniWashLoading...
- SaniWash PlusLoading...
- Cold/Pre-wash
- GlassesLoading...
- Beer glassesLoading...
- CutleryLoading...
- PlasticLoading...
- EnergySave
- IntensiveLoading...
- Reactivation
- Drainage by pump
- MasterLine basketsLoading...
- Height-adjustable upper basketLoading...
- Combinable with APFD 210 bottle basketLoading...
- DryingLoading...
- AutoOpen assisted drying
- Adjustable temperature holding time
- Adjustable final rinse temperature
- Wi-FiLoading...
- AutoClose
- Loading...
- 1 Combi dispenser/door for powder and liquid media
- In-door salt containerLoading...
- Door lock, code-protected if requiredLoading...
- Safe modeLoading...
- Perfect GlassCareLoading...
- Highly effective filter system with filter monitoringLoading...
- Aerosol steam condenserLoading...
- Wash cabinet made from high-quality stainless steel
- Optical interface
- A wide range of accessories (optional)Loading...
- External dispenser module for liquid cleaning agentLoading...
- Complies with Machinery Directive 2006/42/EC
- Splash protection IPX1
- EMC radio suppressed
- DIN 10512
- DIN EN 17735
- ETL
- ADA compliant
- EAN
- 4002516577379
- *If the machine can be converted to a different voltage option, additional possible rated load values for electrical connection can be found here. This conversion can be carried out by Miele Service for a fee.
Gleaming results in no timeVery short cycle times
Thanks to intelligent professional technology you can benefit from very short programs and perfect results.
For dry dishware in next to no timeAutoOpen assisted drying
Completely dry: The dishwasher door opens automatically at the end of the program.
HygienicHigh rinse temperature
Even the most demanding hygiene requirements are met by using high final rinse temperatures.
- Maximum hygiene assurance
Fresh water system
Constantly high cleaning performance and filtration thanks to repeated water changes.
Large wash cabinetPowerful cleaning performance on two levels
High capacity: The most diverse items can be arranged safely on two wash levels.
Variable adjustment optionsAdjustable program parameters
Adjusting the program parameters as required ensures consistently perfect dishwashing results
Long service lifeQuality you can rely on
Durability: Miele Professional dishwashers are tested for a long service life.

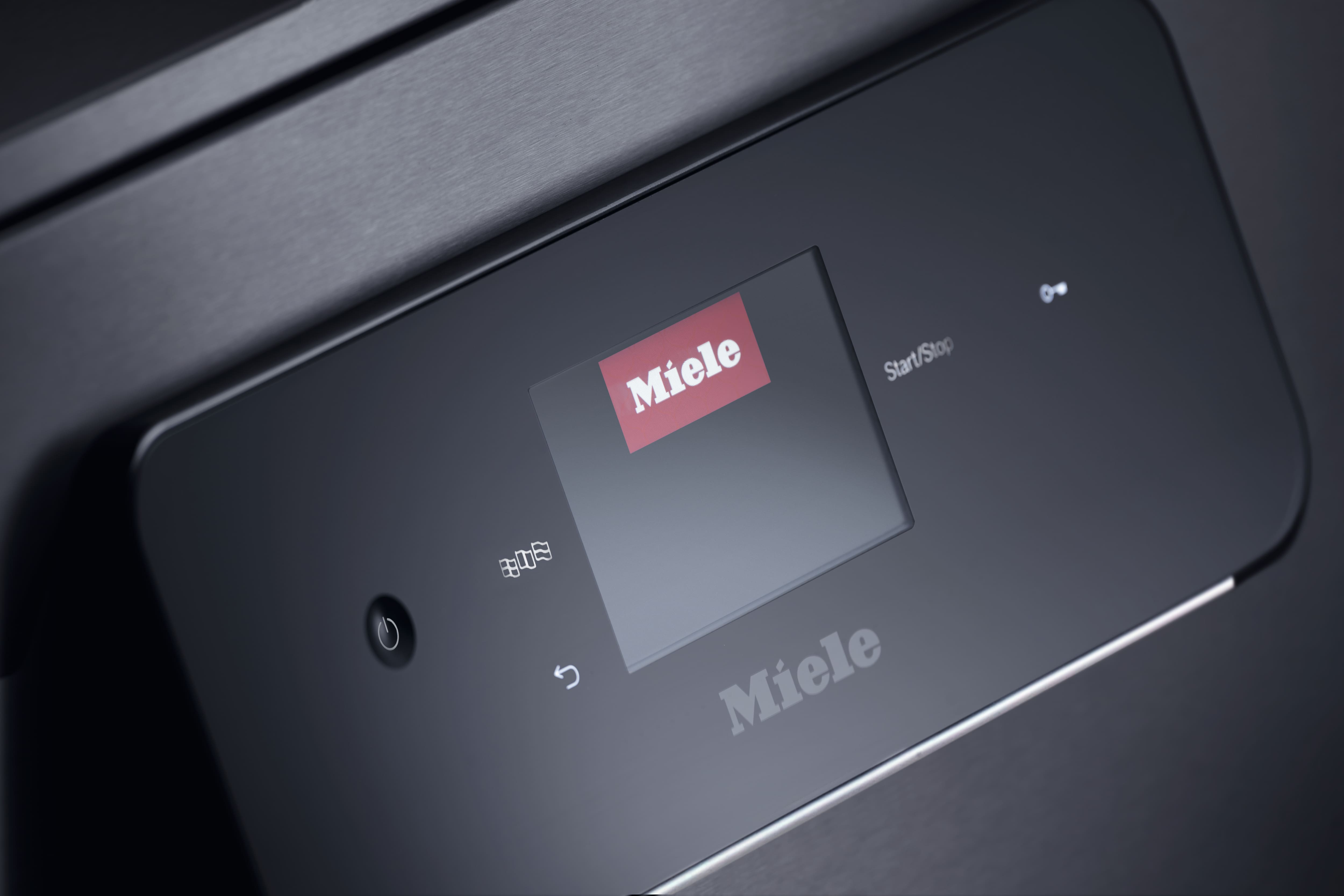

The benchmark for modern user convenienceM Touch Flex controls
Use all dishwashing programs and machine functions conveniently with a tap on the clear text touch display.
User convenience

Delay start and time left display
For maximum flexibility, a delay start time of up to 24 hours can be selected.
Door salt container
Ergonomic convenience: The salt container can be conveniently refilled without removing the lower basket.
AutoClose
A light touch is all it takes: With AutoClose the door closes on its own.
Extensive range of accessories
Always perfect ergonomics and efficiency - with practical accessories, from special baskets to dispenser pumps.
M Touch Flex controls
Use all dishwashing programs and machine functions conveniently with a tap on the clear text touch display.
Choice of display languages
Multi-talented: set various languages on the display so that you fully understand every piece of information.Hygiene

High rinse temperature
Even the most demanding hygiene requirements are met by using high final rinse temperatures.Fresh water system
Constantly high cleaning performance and filtration thanks to repeated water changes.
Proven hygiene
Our dishwashers in the PFD 40x series remove 99.999%1, of most bacteria.
Proven hygiene
Our dishwashers in the PFD 40x series remove more than 99.9%2, of viruses (including coronaviruses).Efficiency

Connection for detergent dispenser module
An optional dispenser module can be connected for convenient and economical use of liquid agents.
Low consumption values
Economical and efficient: Miele Professional dishwashers stand out with low consumption values.
Powerful cleaning performance on two levels
High capacity: The most diverse items can be arranged safely on two wash levels.
Integrated water softener
The built-in softener ensures the optimum hardness level of the water for perfect dishwashing results.
Efficient hot water connection
Connection to a hot water supply shortens the program run times, reducing energy consumption.

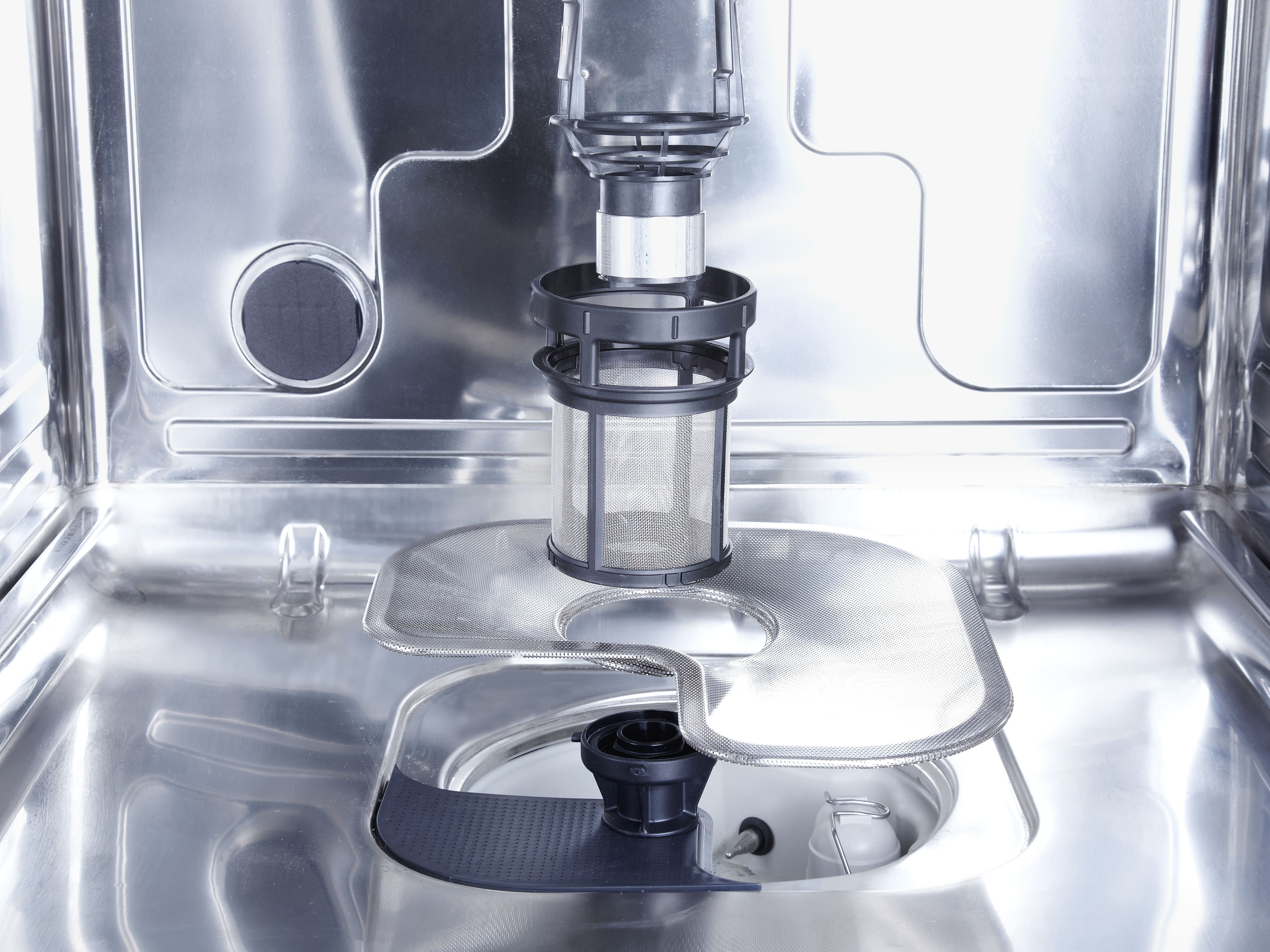

Highly effective filter system
Outstanding dishwashing results and reliability are largely due to the highly effective filter system.Basket design

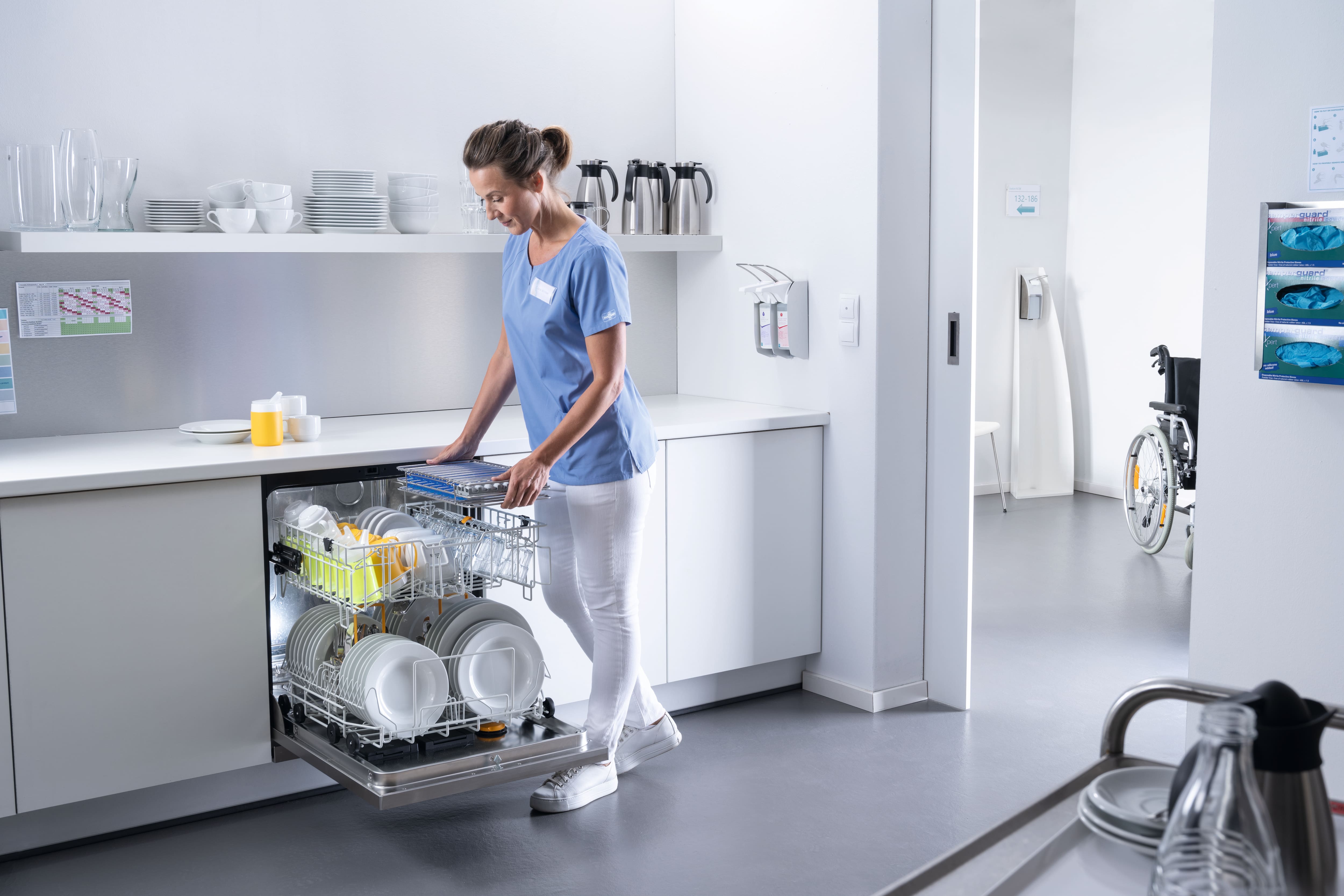

Hygienic cleanliness down to the very last detail
Medication cups and lids can also be cleaned hygienically using inserts that are available separately.
Plastic baskets on two levels
It is possible to use the plastic baskets on two levels as an option.
Professional baskets
Functional design for superb washing and reliable drying results.
Practical bottle basket
Bottles can be reliably cleaned inside using the APFD 210 basket, which is available to purchase separately.Performance

Very short cycle times
Thanks to intelligent professional technology you can benefit from very short programs and perfect results.
AutoOpen assisted drying
Completely dry: The dishwasher door opens automatically at the end of the program.
Perfect GlassCare
A gentle way to a perfect shine: With Perfect GlassCare, your glasses are thoroughly and gently cleaned.
Adjustable program parameters
Adjusting the program parameters as required ensures consistently perfect dishwashing results

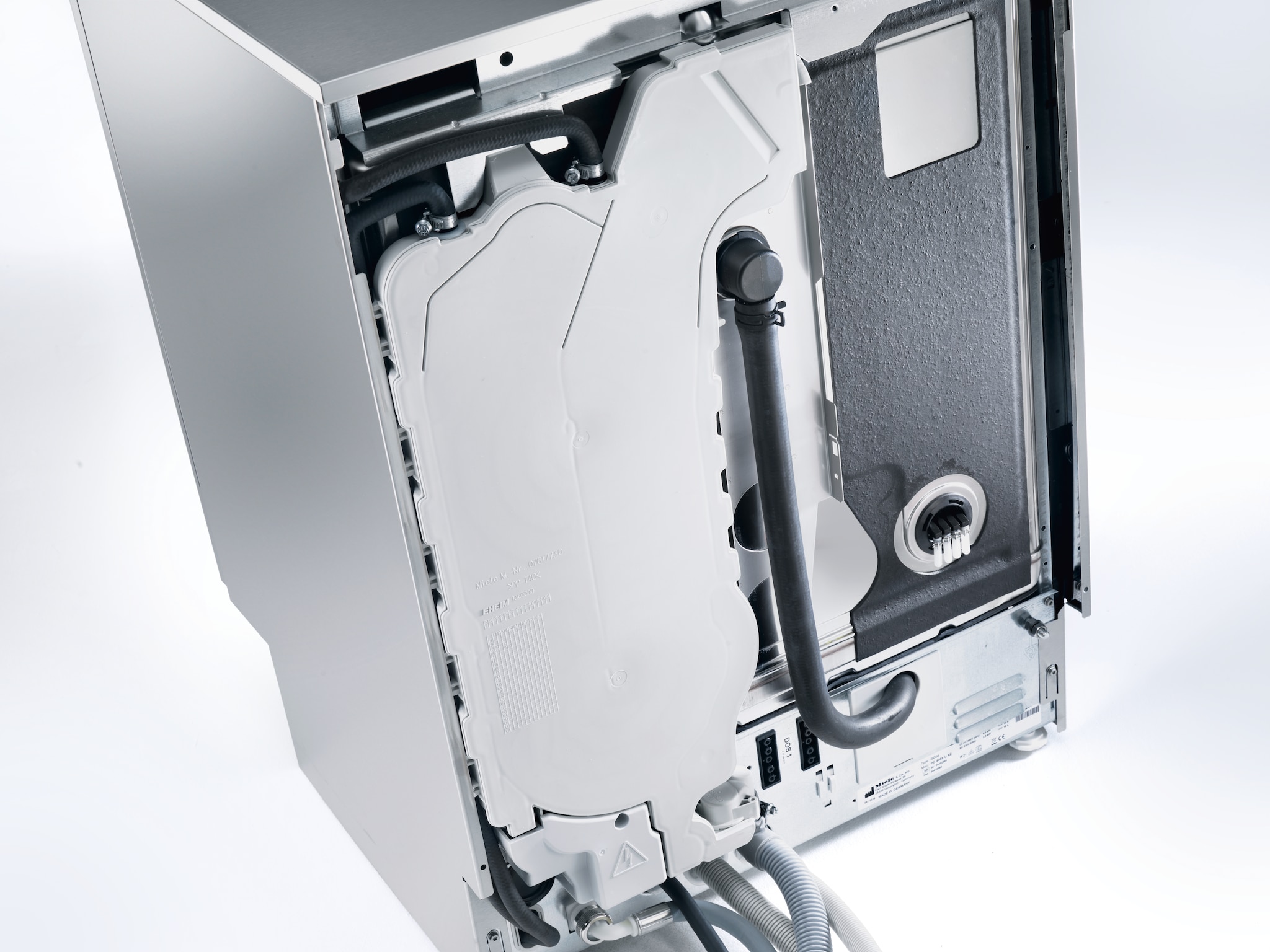

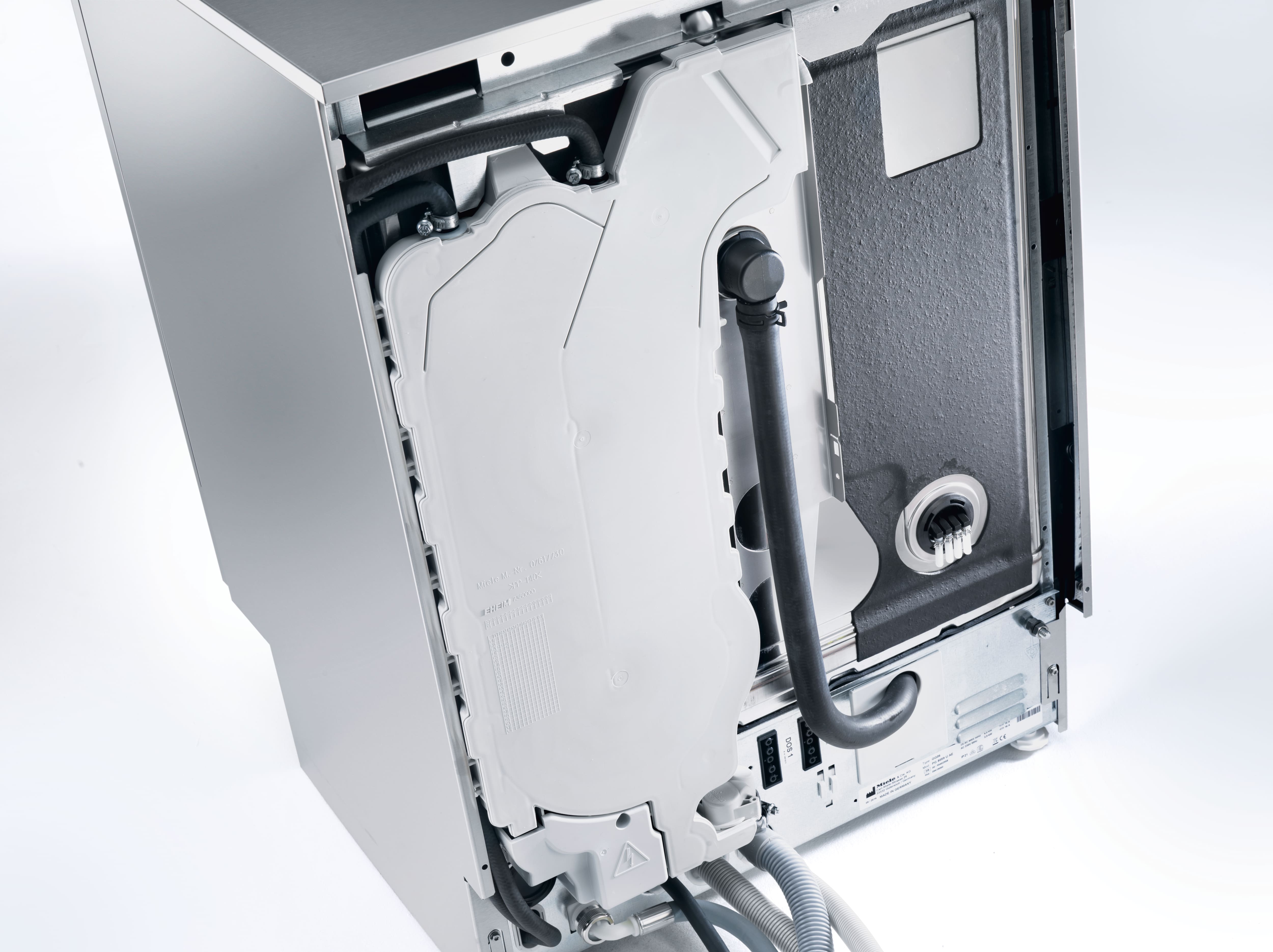

Aerosol steam condenser
Dry dishes and good room climate are the result of exceptional condensation performance.

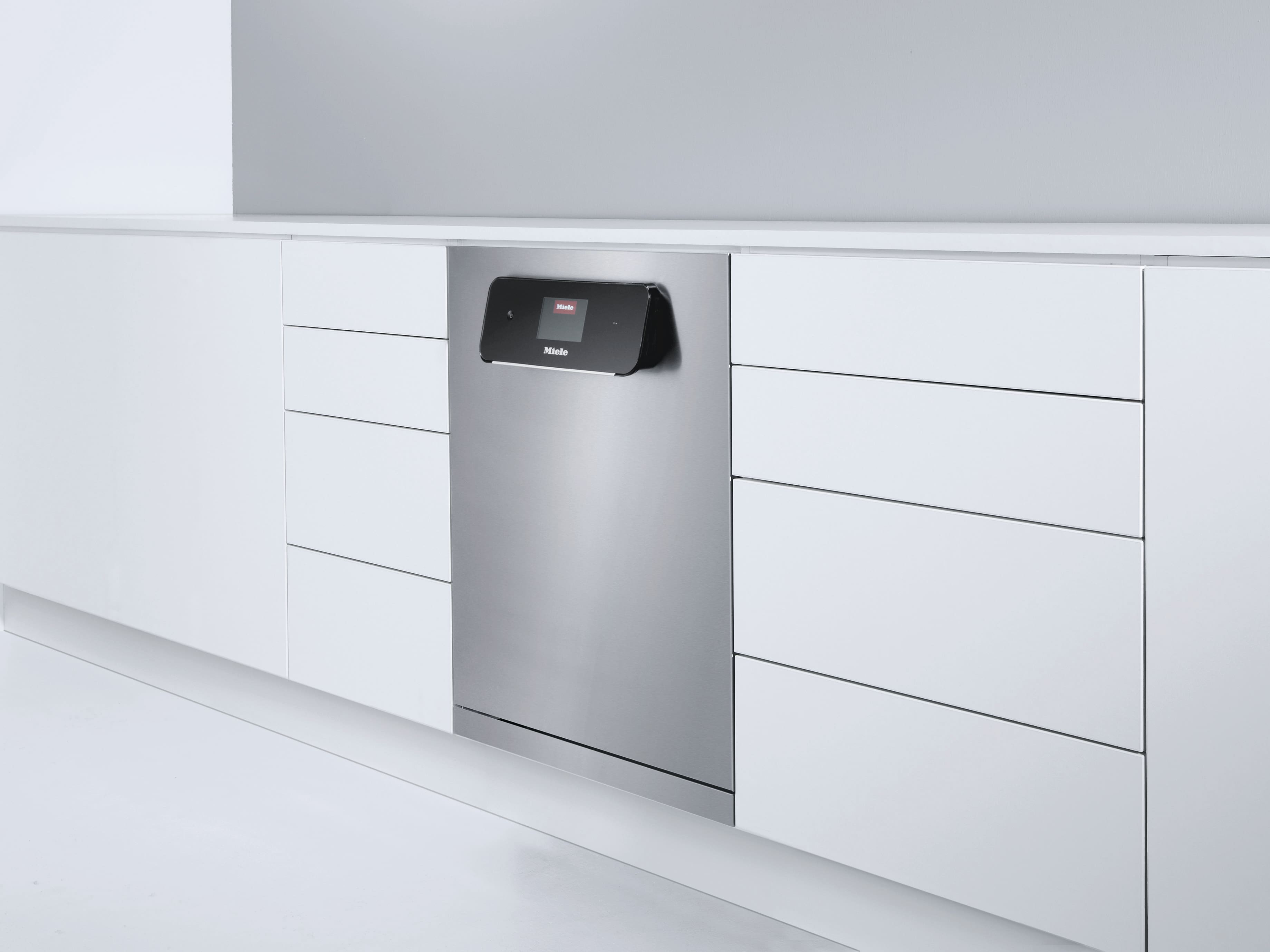

Perfect integration under countertops
Perfect appearance thanks to dishwashers that can be built-under.Quality

Conforms to Machinery Directive
Miele commercial machines comply with applicable safety regulations.
Reliable water protection3,
Peace of mind: Your dishwasher is built to prevent water-related mishaps.
Quality you can rely on
Durability: Miele Professional dishwashers are tested for a long service life.Connectivity

Future-proof networking via WiFi
Fully informed with a high-performance network connection.Matching products and accessories
Downloads
- 1.The hygiene certificate can be found at the following link: https://www.miele.com/media/ex/com/Professional/Pruefberichte_Virussiegel/Hygienezertifikat_MasterLine_2023-zusammengefuegt.pdf
- 2.A description of the relevant methodology can be found at the following link: https://www.miele.com/media/ex/com/Professional/Pruefberichte_Virussiegel/PFD40x_Viruswirksamkeit_Testkriterien_Virus_effectiveness_test_criteria_2022-08_DE_EN.pdf
- 3.For details please refer to our warranty terms and conditions for water protection.
- 4.Program runtime without drying. The values quoted may vary depending on the on-site conditions (water intake temperature/electrical connection).
We reserve the right to make technical changes; we assume no liability for the accuracy of the information provided.
