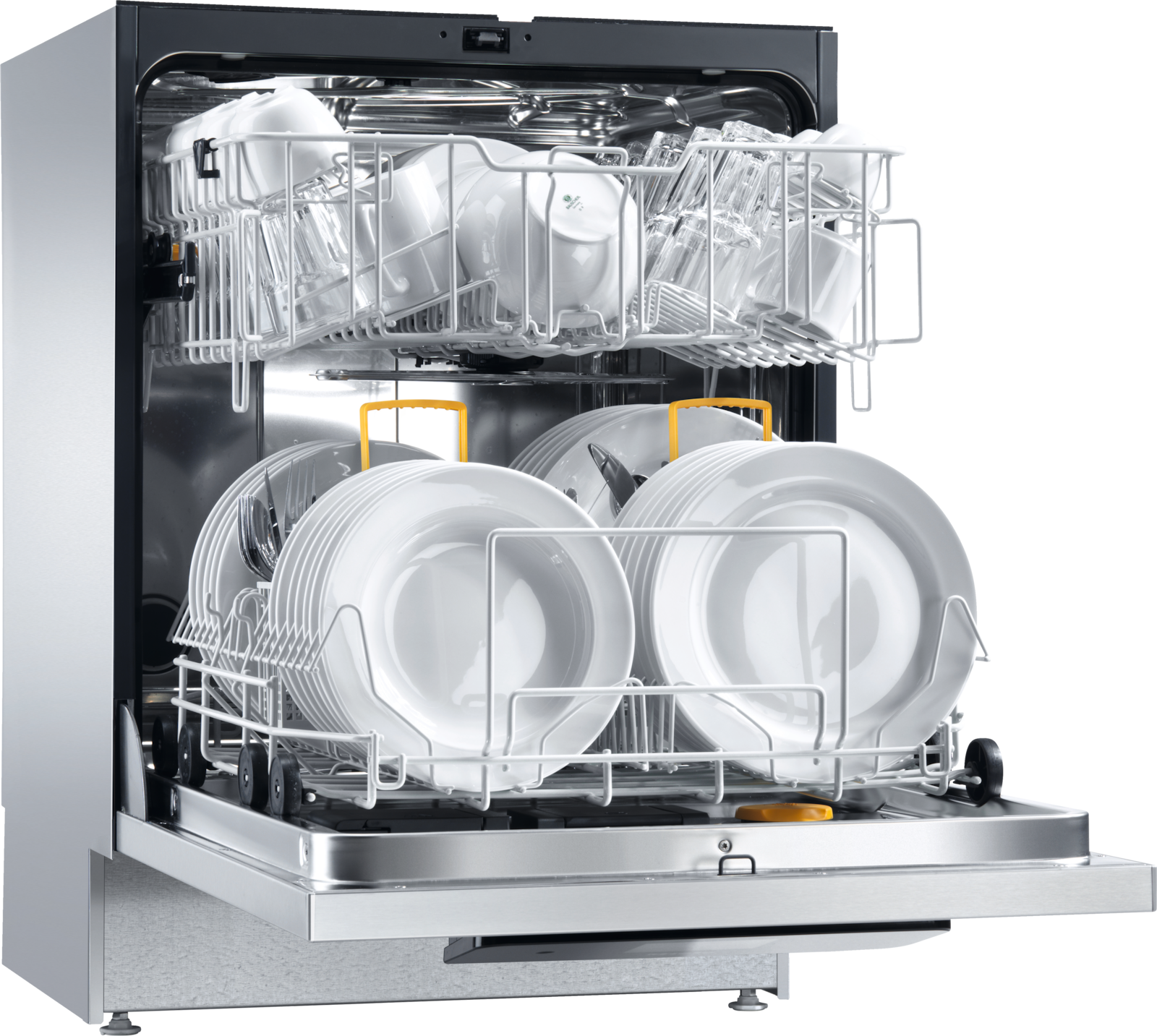

  • Miele - PFD 404 U [208V] – Professional Dishwashers - 1

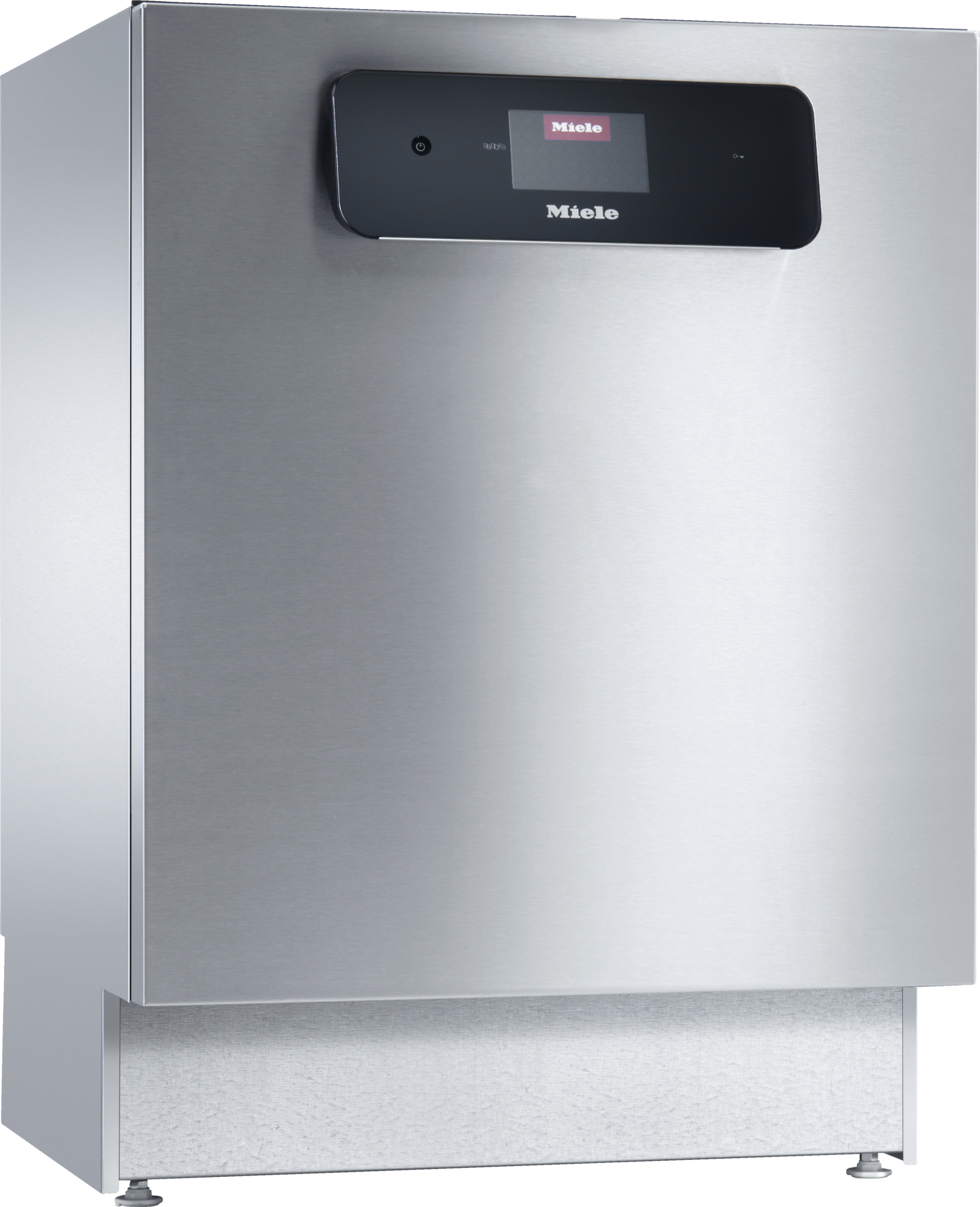

  • Miele - PFD 404 U [208V] – Professional Dishwashers - 2
Built-under fresh water dishwasher

PFD 404 U [208V]

w/ baskets for care homes, nursery schools and people w/ hygiene requirements.
sale price$7,730.00


Product details

  • Max. cleaning performance4, : 380 plates/h or 20
    baskets/h
  • First-class results thanks to
    fresh water system
  • Extremely hygienic results –
    final rinse temperature of 185 (85) °F (°C)
  • Safe and easy operation -
    automatic door opening
  • Max. user convenience with
    M Touch Flex full-touch color display
  • View manufacturer details:
  • Safety information

Product data sheet

Model
Built-under dishwasher
Range MasterLine
Model Hygiene
Wash system
Fresh water front loader
Number of levels 2
Front Stainless steel
Lid Without lid
Side walls Galvanised
Suitable for retirement and care homes
Suitable for hospitals
Suitable for child care facilities
Suitable for universities and schools
Tested virucidal efficacy
Certified hygiene
Shortest program duration in min. 6
Maximum final rinse temperature in °F (°C) 185 (85)
Cleaning performance, plates/h 380
Cleaning performance, baskets/h 20
Possible to wash plastic baskets on two levels
Service life in wash cycles 28000
Control system
M Touch Flex
Max. delay start in h 24
Countdown indicator
Dishwashing programs [number] 12
Program sequence indicator
Choice of display language
Language-neutral operation
Electrical connection 2 AC 208V 60HZ
Heater rating in kW 5.400
Total connected load in kW 5.800
Fuse rating in A 30
Length of power cord in ft (m) 6 (1.90)
NEMA plug: Twist Lock L6-30
Electrical connection 3 AC 208V 60HZ
Heater rating in kW 5.400
Total connected load in kW 5.800
Fuse rating in A 20
Cold water [number] 1
Hot water [number]
1
Required flow pressure in bar 1-10
Drain hose [DN] 22
Maximum delivery head for drain pump in inches (cm) 39 3/8 (100)
Integrated water softener
Maximum water hardness in gpg (mmol/l) 62.595 (10.70)
Water protection system
Waterproof system
Water consumption per wash cycle in gal (l) 2.1 (8.00) gll (l)
Length of water inlet hose in inches (cm) 67 (170)
Length of water drain hose in inches (cm) 59 1/8 (150)
External dimensions, net height in inches 32 5/16 (820)
Maximum height adjustment in inches (mm) 60
External dimensions, net width in inches 23 9/16 (598)
External dimensions, net depth in inches 23 7/16 (595)
External dimensions, gross height in inches 36 1/4 (920)
External dimensions, gross width in inches 26 7/16 (670)
External dimensions, gross depth in inches 29 3/16 (740)
Usable space in wash cabinet, width in inches (mm) 22 1/16 (559)
Usable space in wash cabinet, height in inches (mm) 21 1/8 (536)
Usable space in wash cabinet, depth of upper basket in inches (mm) 18 11/16 (474)
Usable space in wash cabinet, depth of lower basket in inches (mm) 20 3/8 (516)
In-feed height above floor in inches (mm) 8 9/16 (216)
Required niche width in mm 23 5/8 (600)
Net weight [kg] 166 (75)
Gross weight in lbs. 188 (85)
Maximum floor load in N/m² 1200
Emission sound pressure level in workplace (LpA) 45 dB(A) re 20 µPa
Sound power (LwA) in dB(A) re 1 pW 57
Heat dissipation into the room in MJ/h 1.44
Normal Plus
Rapid
Normal
SaniWash
SaniWash Plus
Cold/Pre-wash
Glasses
Beer glasses
Cutlery
Plastic
Intensive
Reactivation
Drainage by pump
MasterLine baskets
Height-adjustable upper basket
Combinable with APFD 210 bottle basket
Drying
AutoOpen assisted drying
Adjustable temperature holding time
Adjustable final rinse temperature
Wi-Fi
AutoClose
1 Combi dispenser/door for powder and liquid media
In-door salt container
Door lock, code-protected if required
Safe mode
Perfect GlassCare
Highly effective filter system with filter monitoring
Aerosol steam condenser
Wash cabinet made from high-quality stainless steel
Optical interface
A wide range of accessories (optional)
External dispenser module for liquid cleaning agent
Complies with Machinery Directive 2006/42/EC
Splash protection IPX1
EMC radio suppressed
DIN 10512
DIN EN 17735
ETL
ADA compliant
EAN 4002516577348
  • *If the machine can be converted to a different voltage option, additional possible rated load values for electrical connection can be found here. This conversion can be carried out by Miele Service for a fee.
  • Gleaming results in no time

    Gleaming results in no time

    Very short cycle times

    Thanks to intelligent professional technology you can benefit from very short programs and perfect results.

  • For dry dishware in next to no time

    For dry dishware in next to no time

    AutoOpen assisted drying

    Completely dry: The dishwasher door opens automatically at the end of the program.

  • Maximum hygiene assurance

    Maximum hygiene assurance

    Fresh water system

    Constantly high cleaning performance and filtration thanks to repeated water changes.

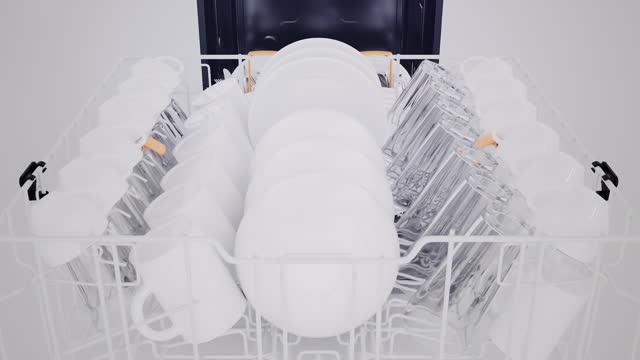

  • Large wash cabinet

    Large wash cabinet

    Powerful cleaning performance on two levels

    High capacity: The most diverse items can be arranged safely on two wash levels.

  • Variable adjustment options

    Variable adjustment options

    Adjustable program parameters

    Adjusting the program parameters as required ensures consistently perfect dishwashing results

  • Long service life

    Long service life

    Quality you can rely on

    Durability: Miele Professional dishwashers are tested for a long service life.

  • The benchmark for modern user convenience

    The benchmark for modern user convenience

    M Touch Flex controls

    Use all dishwashing programs and machine functions conveniently with a tap on the clear text touch display.

User convenience

An eye on the time
An eye on the time

Delay start and time left display

For maximum flexibility, a delay start time of up to 24 hours can be selected.
Replenish salt conveniently
Replenish salt conveniently

Door salt container

Ergonomic convenience: The salt container can be conveniently refilled without removing the lower basket.
Automatically closing door
Automatically closing door

AutoClose

A light touch is all it takes: With AutoClose the door closes on its own.
Optimum features
Optimum features

Extensive range of accessories

Always perfect ergonomics and efficiency - with practical accessories, from special baskets to dispenser pumps.
The benchmark for modern user convenience
The benchmark for modern user convenience

M Touch Flex controls

Use all dishwashing programs and machine functions conveniently with a tap on the clear text touch display.
Your dishwasher “speaks” multiple languages
Your dishwasher “speaks” multiple languages

Choice of display languages

Multi-talented: set various languages on the display so that you fully understand every piece of information.

Hygiene

Maximum hygiene assurance
Maximum hygiene assurance

Fresh water system

Constantly high cleaning performance and filtration thanks to repeated water changes.
Effective against bacteria – scientifically proven
Effective against bacteria – scientifically proven

Proven hygiene

Our dishwashers in the PFD 40x series remove 99.999%1, of most bacteria.
Effective against viruses – scientifically proven
Effective against viruses – scientifically proven

Proven hygiene

Our dishwashers in the PFD 40x series remove more than 99.9%2, of viruses (including coronaviruses).

Efficiency

Optional dispensing of liquid agents
Optional dispensing of liquid agents

Connection for detergent dispenser module

An optional dispenser module can be connected for convenient and economical use of liquid agents.
Economical
Economical

Low consumption values

Economical and efficient: Miele Professional dishwashers stand out with low consumption values.
Large wash cabinet
Large wash cabinet

Powerful cleaning performance on two levels

High capacity: The most diverse items can be arranged safely on two wash levels.
Ensures the optimum water hardness level
Ensures the optimum water hardness level

Integrated water softener

The built-in softener ensures the optimum hardness level of the water for perfect dishwashing results.
Economical
Economical

Efficient hot water connection

Connection to a hot water supply shortens the program run times, reducing energy consumption.
Professional and effective
Professional and effective

Highly effective filter system

Outstanding dishwashing results and reliability are largely due to the highly effective filter system.

Basket design

Secure positioning of medication cups
Secure positioning of medication cups

Hygienic cleanliness down to the very last detail

Medication cups and lids can also be cleaned hygienically using inserts that are available separately.
Perfect results on all levels
Perfect results on all levels

Plastic baskets on two levels

It is possible to use the plastic baskets on two levels as an option.
Spotless results and ergonomic operation
Spotless results and ergonomic operation

Professional baskets

Functional design for superb washing and reliable drying results.
Reliable internal cleaning of lumened instruments
Reliable internal cleaning of lumened instruments

Practical bottle basket

Bottles can be reliably cleaned inside using the APFD 210 basket, which is available to purchase separately.

Performance

Gleaming results in no time
Gleaming results in no time

Very short cycle times

Thanks to intelligent professional technology you can benefit from very short programs and perfect results.
For dry dishware in next to no time
For dry dishware in next to no time

AutoOpen assisted drying

Completely dry: The dishwasher door opens automatically at the end of the program.
A gentle way to a perfect shine
A gentle way to a perfect shine

Perfect GlassCare

A gentle way to a perfect shine: With Perfect GlassCare, your glasses are thoroughly and gently cleaned.
Variable adjustment options
Variable adjustment options

Adjustable program parameters

Adjusting the program parameters as required ensures consistently perfect dishwashing results
Perfect drying results and optimum room climate
Perfect drying results and optimum room climate

Aerosol steam condenser

Dry dishes and good room climate are the result of exceptional condensation performance.
Perfect Integration
Perfect Integration

Perfect integration under countertops

Perfect appearance thanks to dishwashers that can be built-under.

Quality

For the protection of personnel in the workplace
For the protection of personnel in the workplace

Conforms to Machinery Directive

Miele commercial machines comply with applicable safety regulations.
Safeguarding your home from water damage.
Safeguarding your home from water damage.

Reliable water protection3,

Peace of mind: Your dishwasher is built to prevent water-related mishaps.
Long service life
Long service life

Quality you can rely on

Durability: Miele Professional dishwashers are tested for a long service life.

Connectivity

Convenience & efficiency in demanding applications
Convenience & efficiency in demanding applications

Future-proof networking via WiFi

Fully informed with a high-performance network connection.

Matching products and accessories

Plinth panel

Plinth panel

for built-under machines, height-adjustable.

$185.00
Plinth panel

Plinth panel

for built-under appliances.

$80.00
Filler panel for the plinth area

Filler panel for the plinth area

For visual height adjustment of 28" (72 cm) units.

$70.00
80 detergent tabs
ProCare Shine 12 GC - 80 Tabs

80 detergent tabs

for cleaning heavily soiled dishware, cutlery, and glasses.

$65.00
Regeneration salt, 3 x 2 kg (13.2 lb total)
ProCare Universal 61 - 6 kg

Regeneration salt, 3 x 2 kg (13.2 lb total)

for regeneration of the integrated water softener.

$65.00
Liquid detergent, mildly alkaline, 5 l

Liquid detergent, mildly alkaline, 5 l

for cleaning light soiling on dishware, cutlery, and glasses.

$65.00

Downloads

Installation plan
PDF
Downloads
Product sheet
PDF
Downloads
Operating instructions/Installation instructions
PDF
Downloads
Warranty conditions
PDF
Downloads
dwg
ZIP
Downloads
fbx
ZIP
Downloads
ifc
ZIP
Downloads
rfa
ZIP
Downloads
rvt
ZIP
Downloads
Energy label
PDF
Downloads
PNG
Downloads
Energy label
JPEG
Downloads
Hygiene Certificate
PDF
Downloads
  • 1.The hygiene certificate can be found at the following link: https://www.miele.com/media/ex/com/Professional/Pruefberichte_Virussiegel/Hygienezertifikat_MasterLine_2023-zusammengefuegt.pdf
  • 2.A description of the relevant methodology can be found at the following link: https://www.miele.com/media/ex/com/Professional/Pruefberichte_Virussiegel/PFD40x_Viruswirksamkeit_Testkriterien_Virus_effectiveness_test_criteria_2022-08_DE_EN.pdf
  • 3.For details please refer to our warranty terms and conditions for water protection.
  • 4.Depending on site conditions (temperature of incoming water / power connection) values given may vary.

We reserve the right to make technical changes; we assume no liability for the accuracy of the information provided.
