Name: FNS 7794 E
Brand: Miele
SKU: 11911910
Price: 4699 USD
Availability: InStoreOnly

Free shipping on orders $99+ within the contiguous US (exclusions apply). | Klarna available

01 / 06

$4,699.00

Product details

Ice cubes thanks to the plumbed
IceMaker
Double the convenience with Miele’s
Ice&PizzaBox
No icing up of food and no need to defrost thanks to
NoFrost
Optimum and maintenance-free
LED
lighting in compartment
Soft closing of the door with
SoftClose
View manufacturer details:
Safety information

Product data sheet

Model number: FNS 7794 E
Manufacturer material number: 11911910
EAN number: 4002516480938
Marketing class: Diamond

Freezer

Built-in
Built-in integrated
Door hinge side: Left
Convertible hinging
Can be installed side-by-side

Freezer compartment lighting: LED
IceMaker lighting

Networking with Miele@home
NoFrost
VarioRoom
SoftClose door closing damper
IceMaker with plumbed water connection

Cooling tips
Cooling modes
IceMaker
Push notifications
RemoteUpdate
Smart Home Integration

Electronic temperature display and control: FreshTouch
SuperFrost
No. of temperature zones: 1
Sabbath mode
Party mode

Number of freezer drawers: 8
of which on runners: 6
of which Ice&PizzaBox: 2

Lock function
Acoustic door alarm
Acoustic temperature alarm, freezer section
Optical door alarm
Optical temperature alarm
Power cut indication for freezer compartment

Niche width in inches (mm), min.: 22 1/8 (560)
Niche width in inches (mm), max.: 22 1/2 (570)
Niche height in inches (mm), min.: 69 7/8 (1772)
Niche height in inches (mm), max.: 70 1/2 (1788)
Niche depth in in.(mm): 21 3/4 (550)
Appliance dimensions (W x H x D) in inches (mm): 22 (559) x 69 5/8 (1770) x 21 1/2 (546)
Appliance width in in.(mm): 22 (559)
Appliance height in in.(mm): 69 5/8 (1770)
Appliance depth in in.(mm): 21 1/2 (546)
Weight in lbs.(kg): 157 (71.0)
Type of mounting: Fixed door
Maximum fridge compartment door front weight in lbs. (kg): 58 (26)
Maximum freezer compartment door front weight in lbs. (kg): 58 (26)
Climatic classification: SN-T
Storage time in case of fault in h: 9
Sound emissions in dB(A) re 1 pW: 35
Current consumption in milliampere (mA): 2300
Voltage in V: 120
Fuse rating in A: 15
Number of phases: 1
Frequency in Hz: 60
Wire length in ft (m): 7.2 (2.2)
Replacing bulbs: Customer Service

Ice scoop

EAN: 4002516480938

What's included

Ice scoop

*This is a separate digital offer from Miele & Cie. KG. The range of functions can vary depending on the model and the country. Acceptance of the Terms and Conditions and Privacy Policy for Miele digital products and services in the Miele app required. Miele reserves the right to change or discontinue the digital offer at any time.

Cleverly networked
Miele@home^1,
Make your life smart: Thanks to Miele@home, you can cleverly network your domestic appliances – for more options.

User convenience

Cleverly networked

Miele@home^1,

Make your life smart: Thanks to Miele@home, you can cleverly network your domestic appliances – for more options.

Defrosting is a thing of the past

NoFrost

Save yourself the hassle of defrosting thanks to the recirculating air cooling system, which prevents ice from forming.

Appliance door closes softly

SoftClose

Quiet and reliable closing: the gently self-closing doors prevent items from falling out.

Smart Extras

Get more out of your refrigeration appliance
Cooling tips^1,
Get the most out of your refrigeration appliances thanks to tips and advice in the Miele app.
Always up to date with software updates
RemoteUpdate^1,
Bringing new functions directly to your appliance.
Flexible storage for any occasion
Cooling modes^1,
Quickly adapt your cooling settings to any situation with preset options.
Seamless networking throughout your home
Smart Home Integration^1,
Intelligent integration of Miele appliances into a Smart Home system.
Smart alerts keep you informed
Push notifications^1,
Maintain optimal cooling and ideal conditions with push notifications alerting you to changes.
Ice cubes when you need them
IceMaker^1,
Get fresh ice when you want it by turning the ice maker on and off in the Miele app.

Matching products and accessories

GP MI S 0031 W

MicroCloth kit, 3 pieces

For best cleaning results and safe use.

GP MI H 0011 W

MicroCloth HyClean, 1 cloth

Antibacterial multi-purpose cloth for improved hygiene.

Downloads

Fitting Instructions

PDF

Download

Product sheet

PDF

Download

Operating instructions/Installation instructions

PDF

Download

dwg

ZIP

Download

fbx

ZIP

Download

ifc

ZIP

Download

rfa

ZIP

Download

rvt

ZIP

Download

Energy label

PDF

Download

PNG

Download

Energy label

JPEG

Download

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts.

https://media.miele.com/images/2000018/200001812/20000181213.png

Descriptions

KS7793D, FNS7794E, side view (US)

POSTSCRIPT

Download

https://media.miele.com/images/2000018/200001812/20000181214.png

Descriptions

KS7793D, FNS7794E, built-in (installation (US)

*The declared energy consumption was calculated in a 560 mm deep niche. The appliance is fully functional in a 550 mm niche but the energy consumption will be slightly higher.

POSTSCRIPT

Download

https://media.miele.com/images/2000018/200001812/20000181232.png

Descriptions

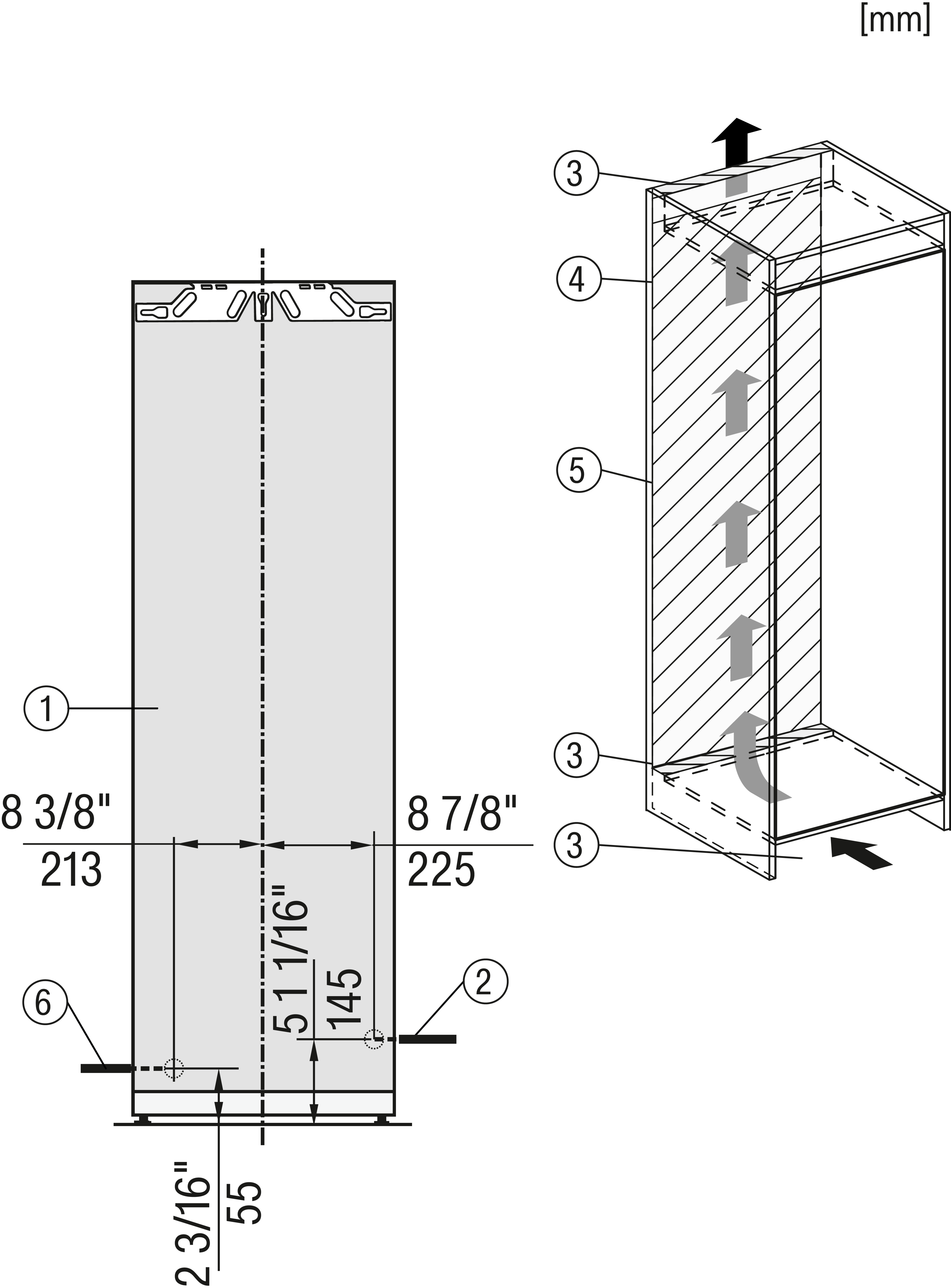

FNS7794E, installation (US)

1. View from the front, 2. Mains connection cable, L = 2100 mm, 3. Ventilation cut-out min. 200 cm², 4. Ventilation, 5. No connections permitted in this area, 6. Water connection L = 2000 mm

POSTSCRIPT

Download

1.This is a separate digital offer from Miele & Cie. KG. The range of functions can vary depending on the model and the country. Acceptance of the Terms and Conditions and Privacy Policy for Miele digital products and services in the Miele app required. Miele reserves the right to change or discontinue the digital offer at any time.

We reserve the right to make technical changes; we assume no liability for the accuracy of the information provided.
