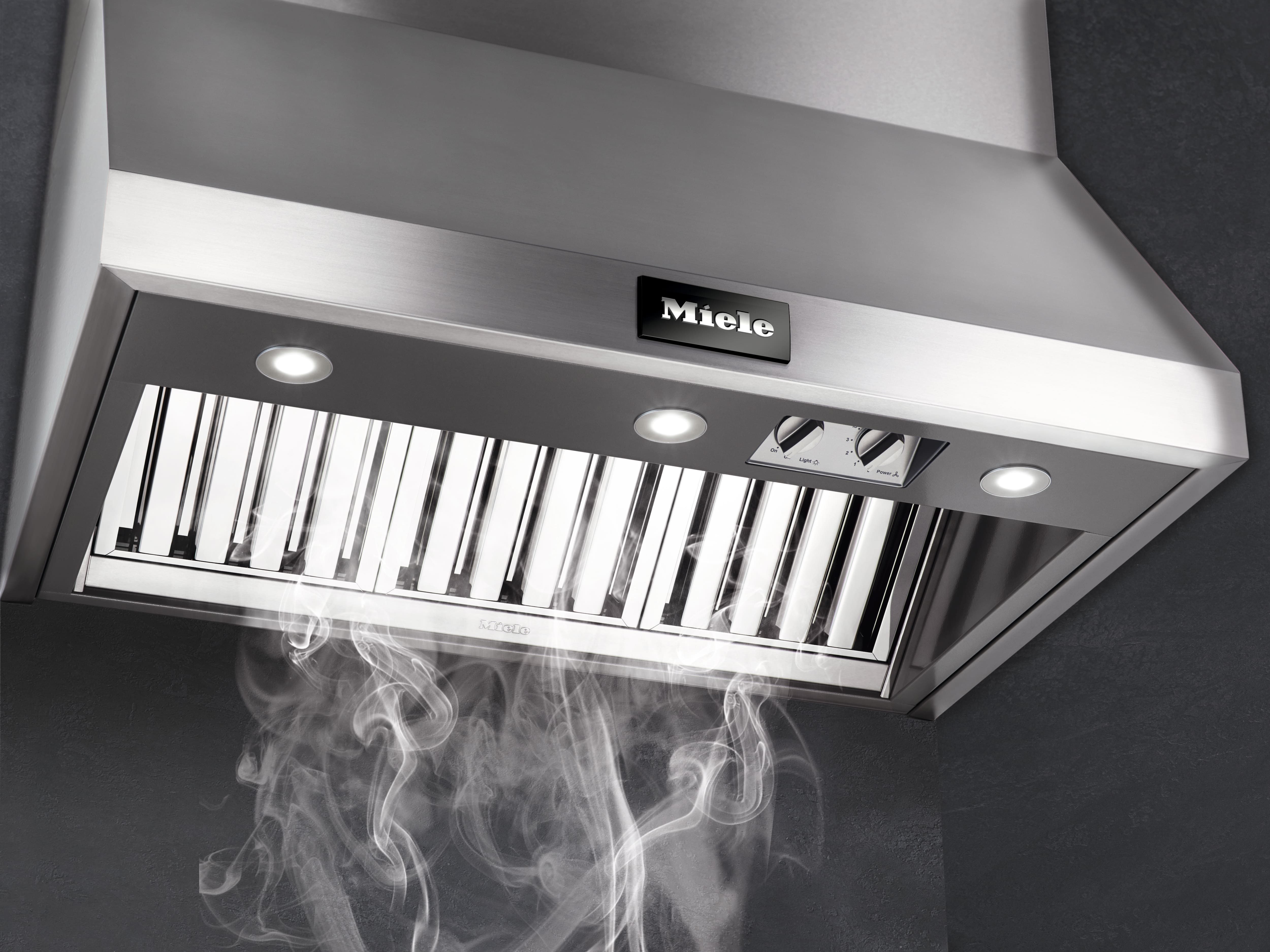

Miele - DAR 1230-3 Stainless steel – Ranges - 1
Miele - DAR 1230-3 Stainless steel – Ranges - 2
Miele - DAR 1230-3 Stainless steel – Ranges - 1
Miele - DAR 1230-3 Stainless steel – Ranges - 2

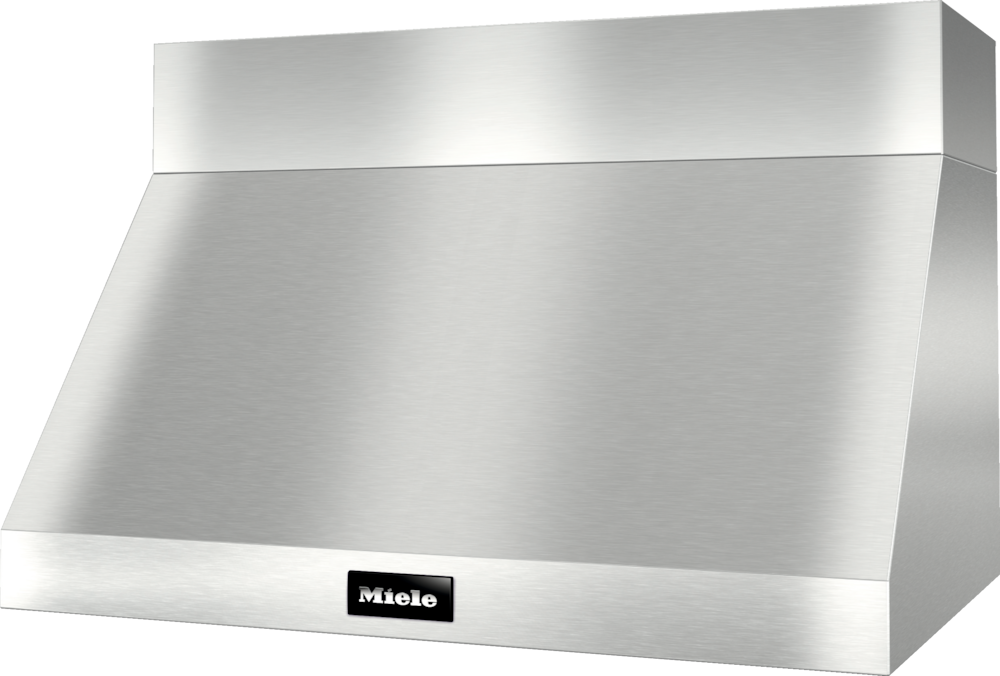

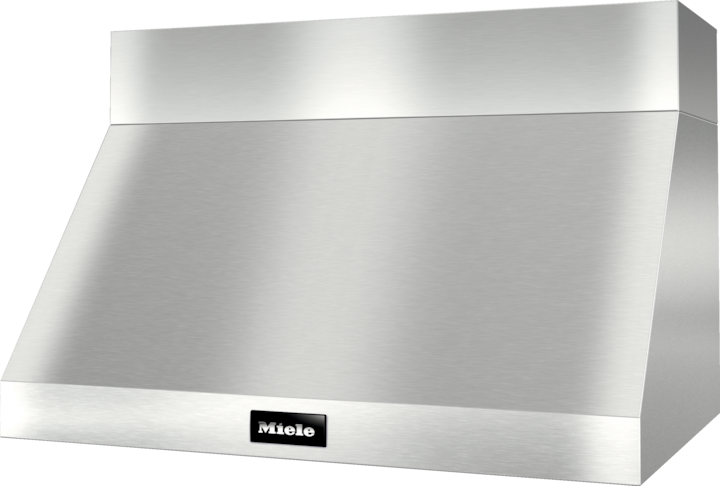

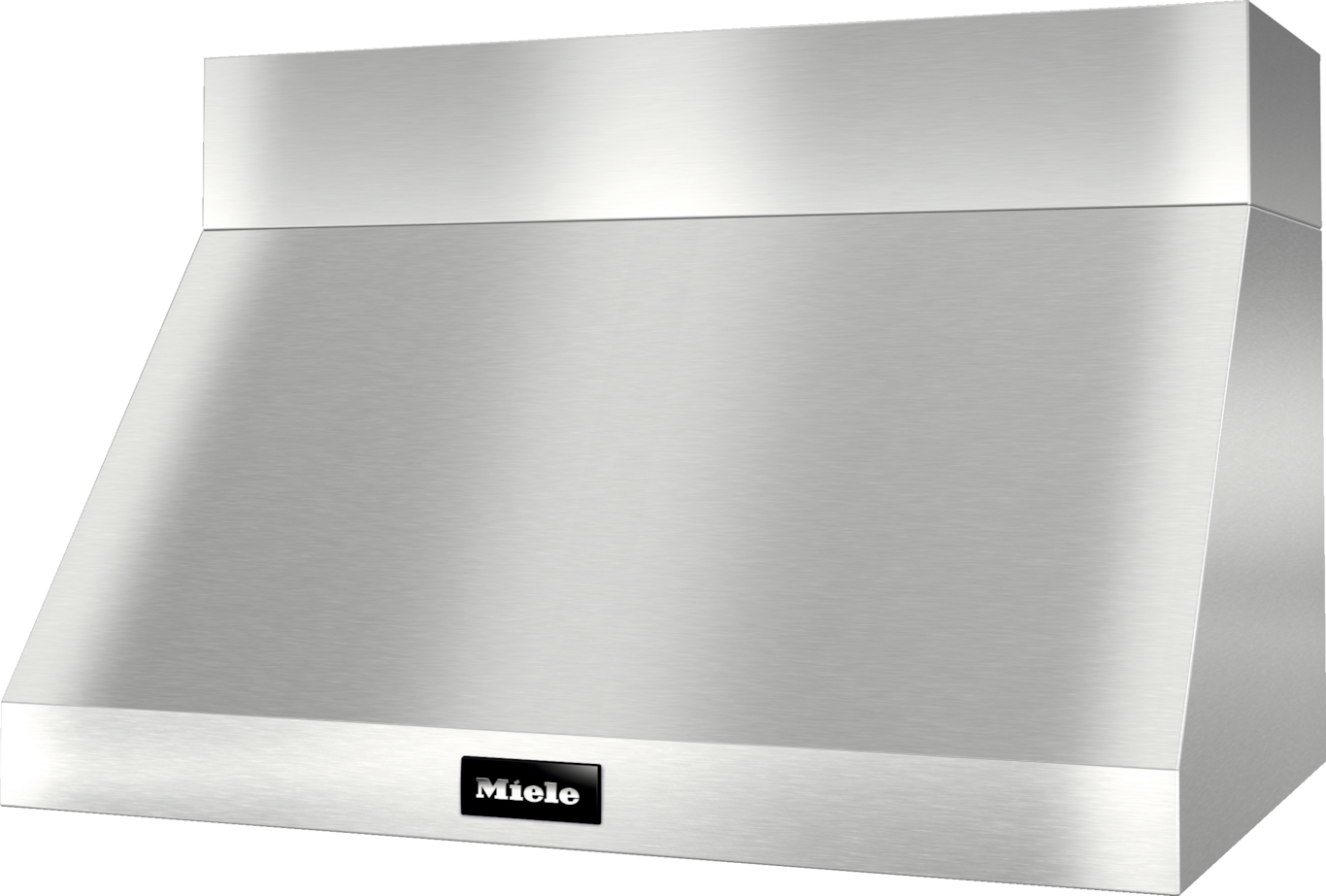

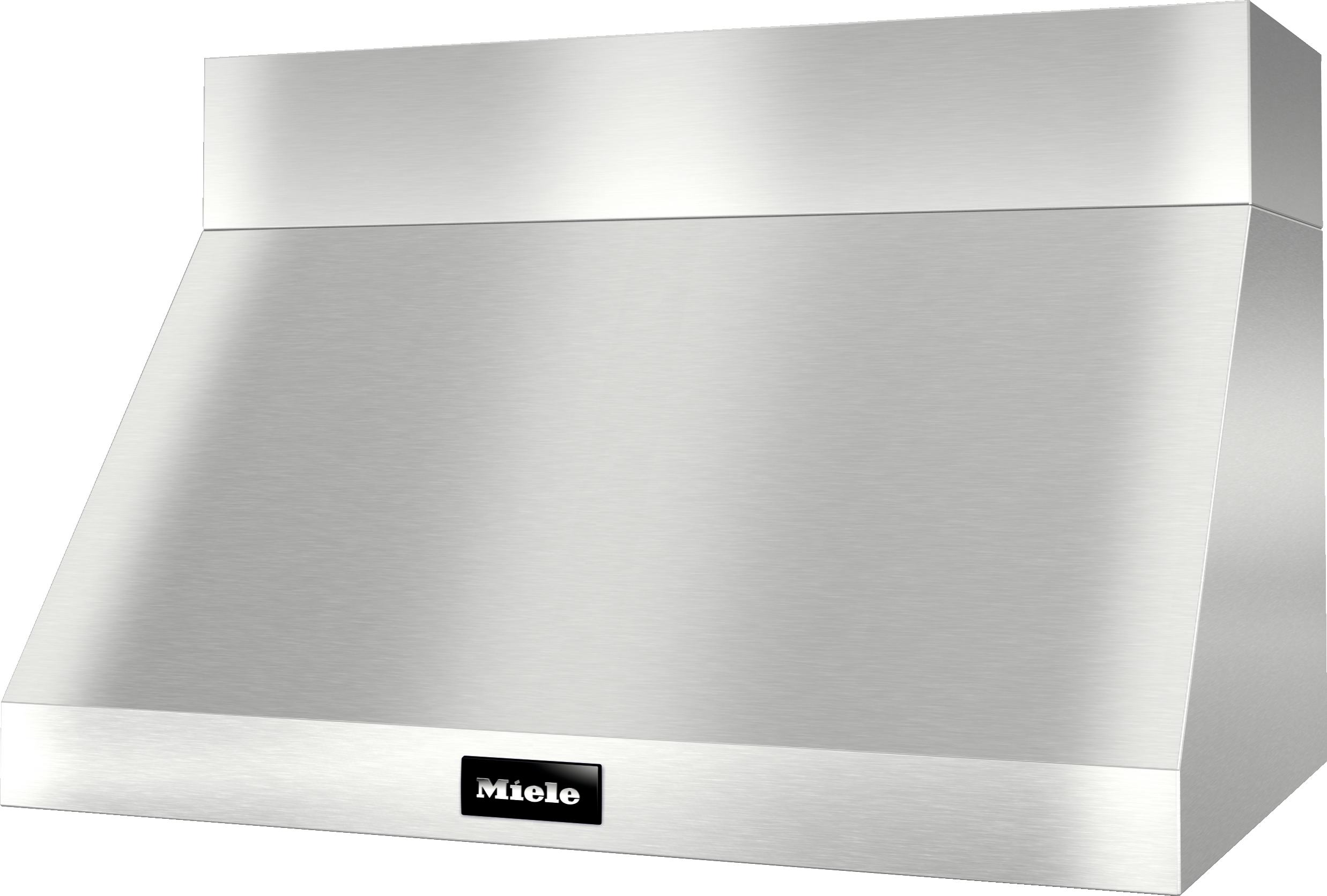

36-inch wall-mounted ventilation hood

DAR 1230-3 Stainless steel

for perfect combination with Ranges and Rangetops.
Color:Stainless steel
sale price$2,599.00




Product details

  • Professional design - stainless steel hood, 36 (913) in (mm) wide
  • Perfect illumination -
    LED ClearView lighting
  • Dishwasher-safe - 3 high-quality
    stainless steel grease filters
  • Safe and easy to clean -
    Miele CleanCover
  • Auto-vent safety sensor – protects against overheating
  • Manufactured with great care by
  • Safety information

Product data sheet

Wall ventilation hood
Blower
Duct cover
Recirculated mode Can be retrofitted
External operation possible
Rotary knob
Power levels (number excl. Intensive) 3
Temperature sensor
Easy to clean canopy interior CleanCover
Dishwasher-safe grease collection channel
Number of dishwasher-safe stainless steel baffle filters 3
Number x W 3 x 3 W
DRIB XL internal blower in CFM (m³(h) 1189
DRIB XXL internal blower in CFM (m³/h) 1869
DREB XL external blower in CFM (m³/h) 1189
DREB XXL external blower in CFM (m³/h) 1869
Canopy width in in.(mm) 36 (913)
Canopy width in inches 35 15/16
Canopy height in in.(mm) 18 (457)
Canopy depth in in.(mm) 24 1/8 (611)
Net weight in lbs. (kg) 73 (33.0)
Length of electrical wire in ft (m) 2 (0.8)
Standard plug fitted
Total connected load in kW 0.809
Voltage in V 120
Fuse rating in A 15
Number of phases 1
Vent connection at top
Diameter of vent connection in in.(mm) 9 7/8 (250)
Non-return flap
EAN 4002516546948

What's included

Non-return flap

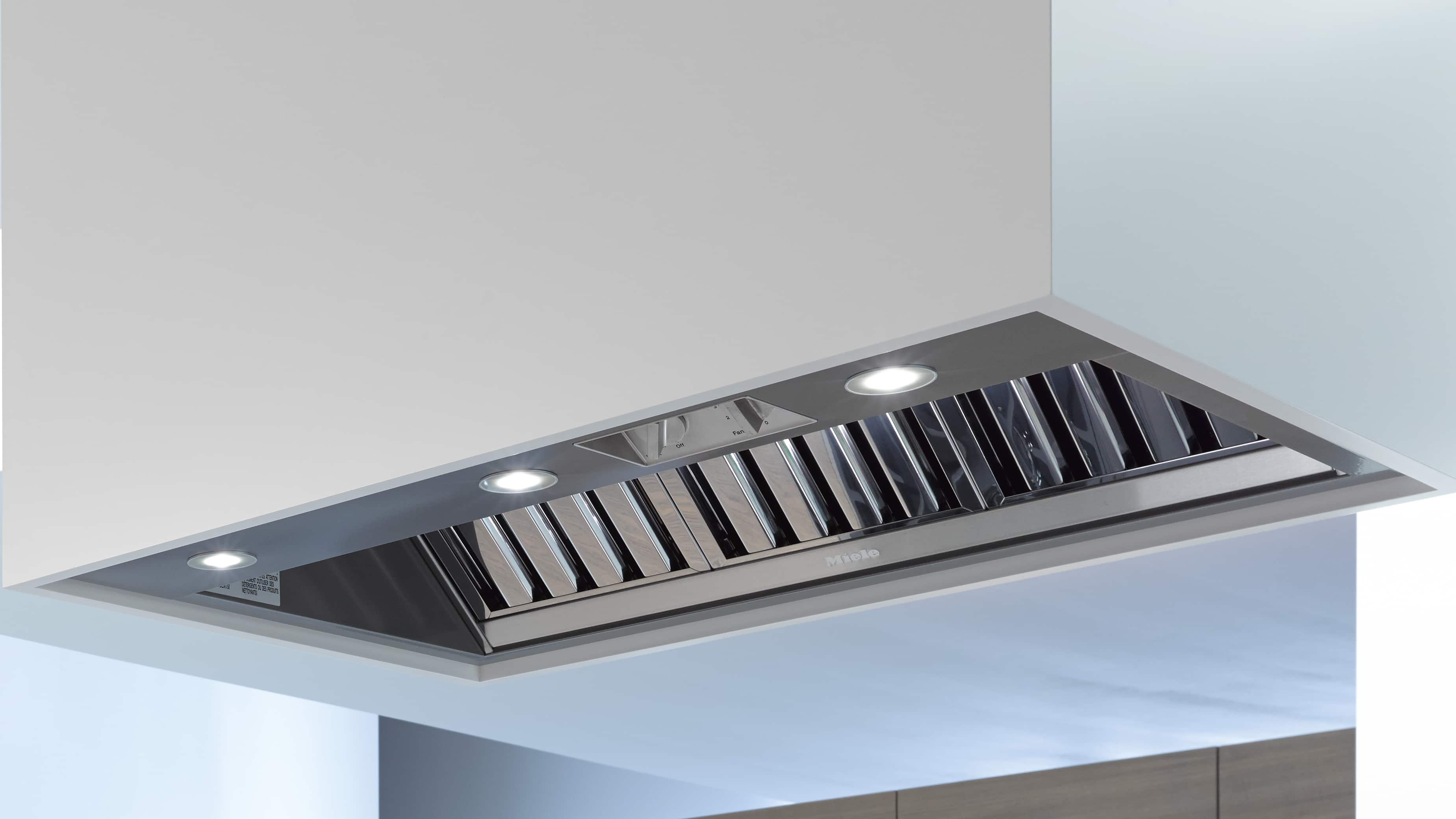

Powerful lighting with minimal energy consumption
LED ClearView lighting

Eco-friendly and very durable: With up to 4 x 2 W, they provide the cooktop with uniform, warm downlighting.

Discreetly integrated
Knob controls

Beautiful and functional: Metal rotary controls complement the harmonious design of the range hoods.

Permanent safety
Temperature sensor

Continuous monitoring: the temperature sensor ensures safety and prevents unnecessary energy consumption.

Convenience and safety in detail
Miele CleanCover

Miele’s unique easy cleaning: The sealed, smooth surface prevents contact with the electrical components/motor.

User convenience

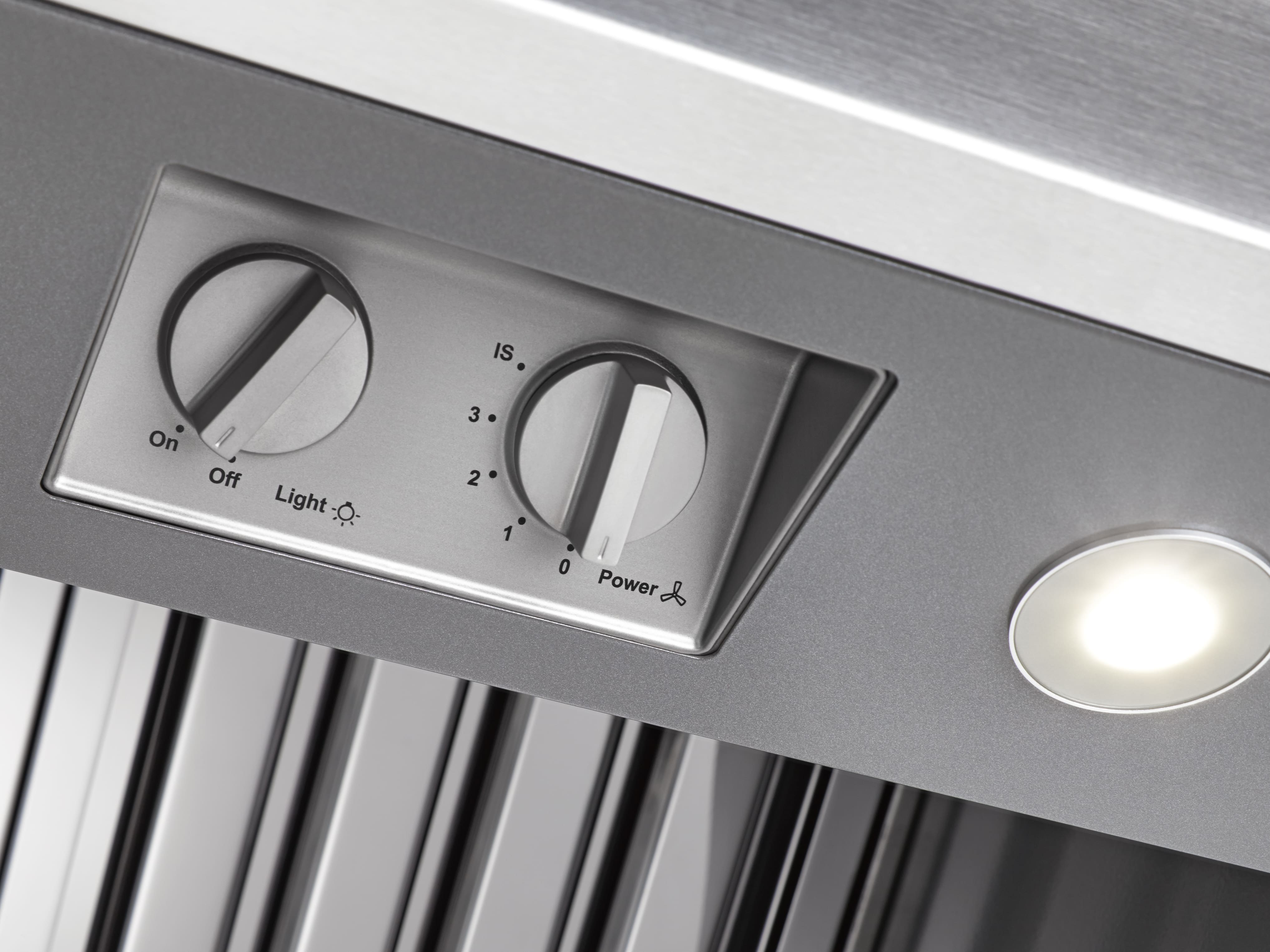

Discreetly integrated
Knob controls

Beautiful and functional: Metal rotary controls complement the harmonious design of the range hoods.

Efficiency and sustainability

Powerful lighting with minimal energy consumption
LED ClearView lighting

Eco-friendly and very durable: With up to 4 x 2 W, they provide the cooktop with uniform, warm downlighting.

Permanent safety
Temperature sensor

Continuous monitoring: the temperature sensor ensures safety and prevents unnecessary energy consumption.

Features

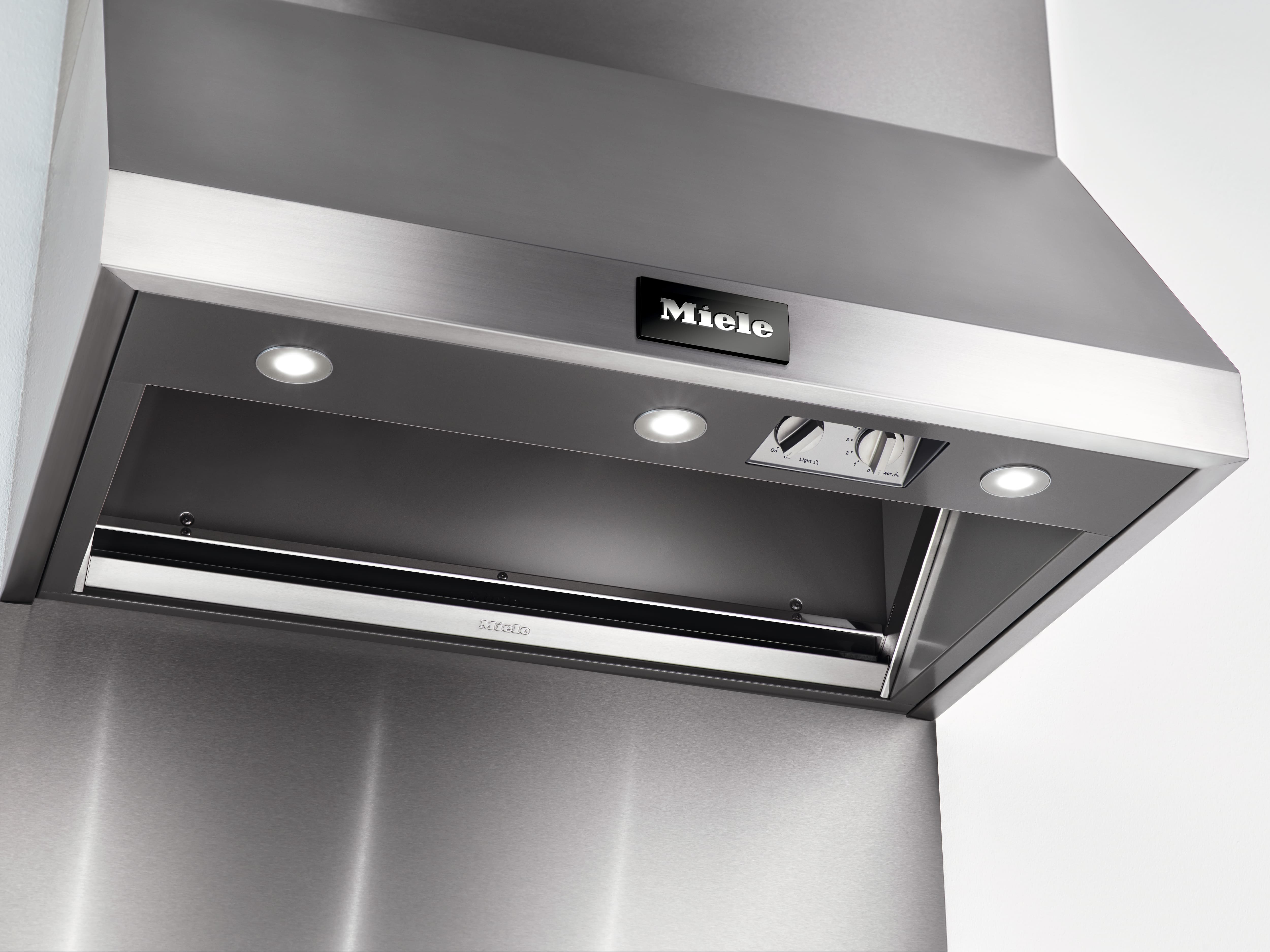

Convenience and safety in detail
Miele CleanCover

Miele’s unique easy cleaning: The sealed, smooth surface prevents contact with the electrical components/motor.

Matching products and accessories

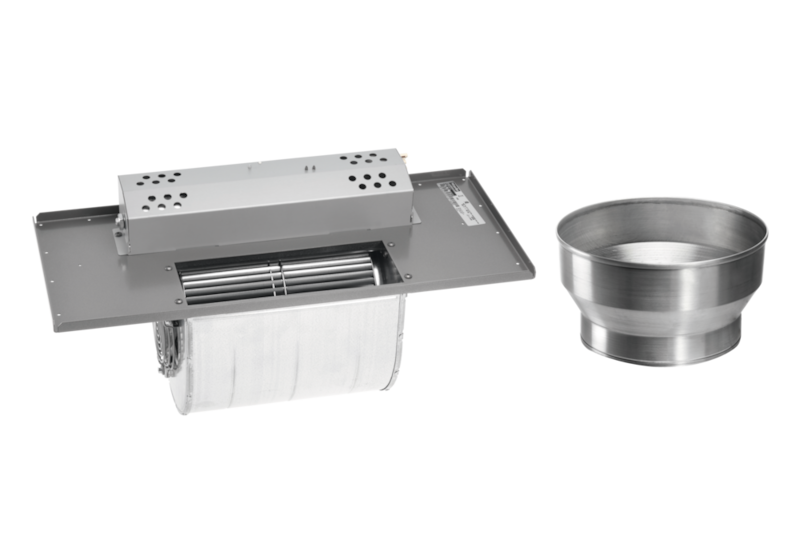

Blower

Blower

Internal blower

$769.00

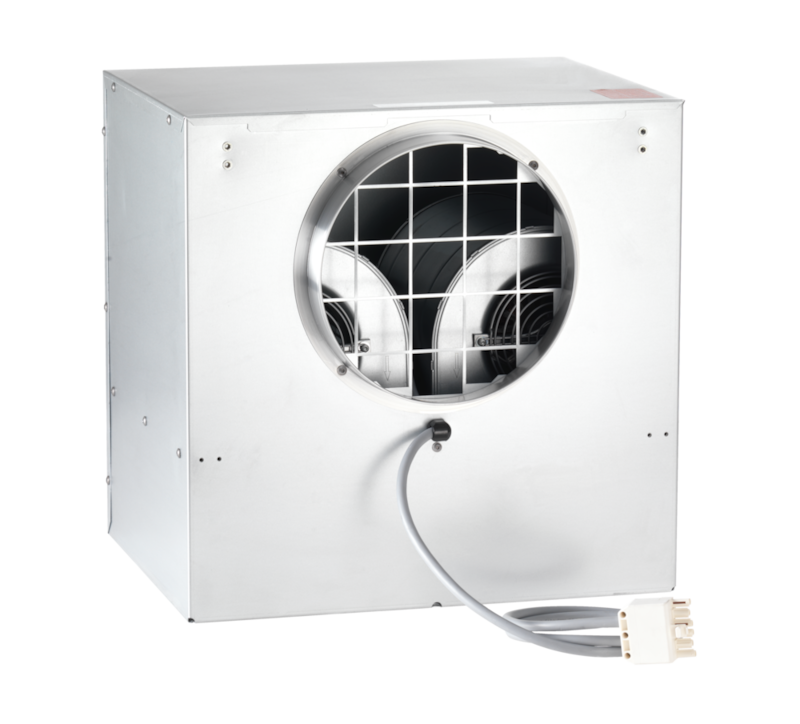

Blower

Blower

External blower

$1,154.00

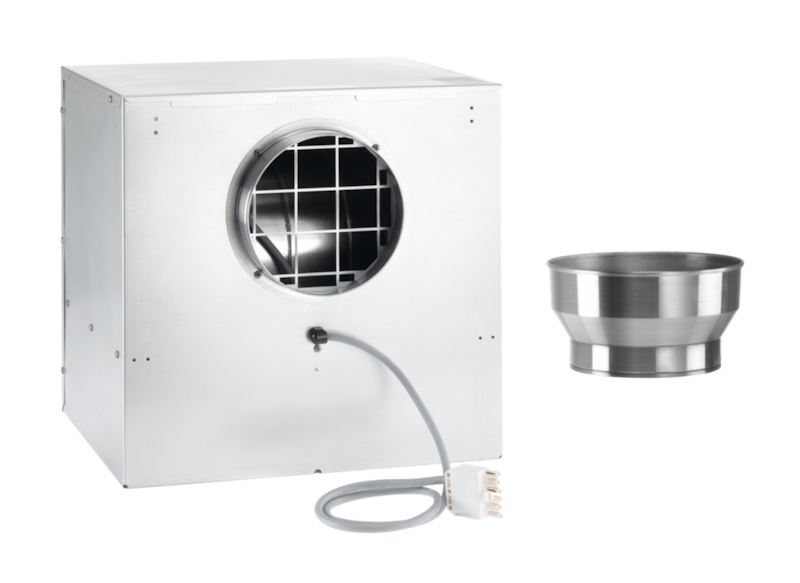

Blower

Blower

External blower

$1,044.00

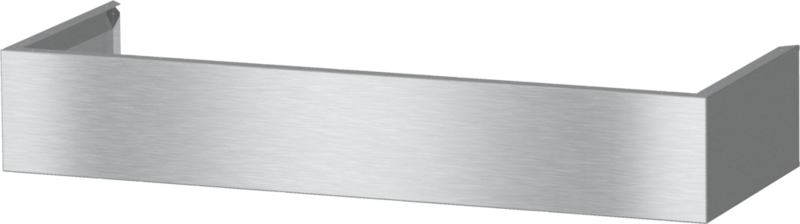

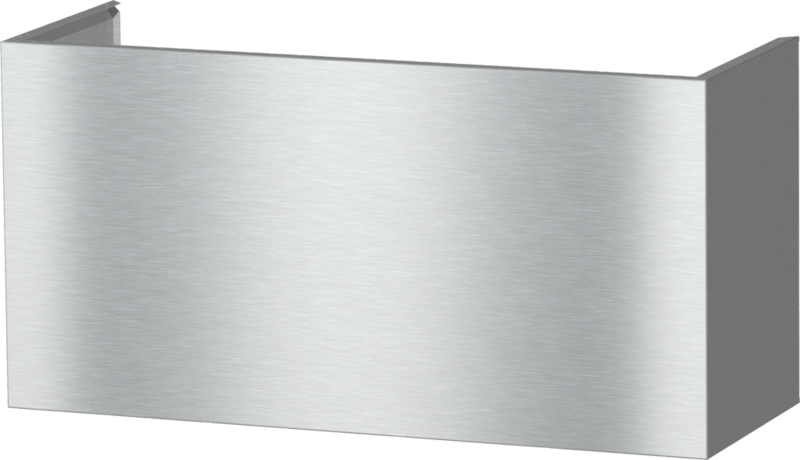

Duct Cover

Duct Cover

 Chimney for concealing the ducting and adjusting the height to the wall unit.

$409.00

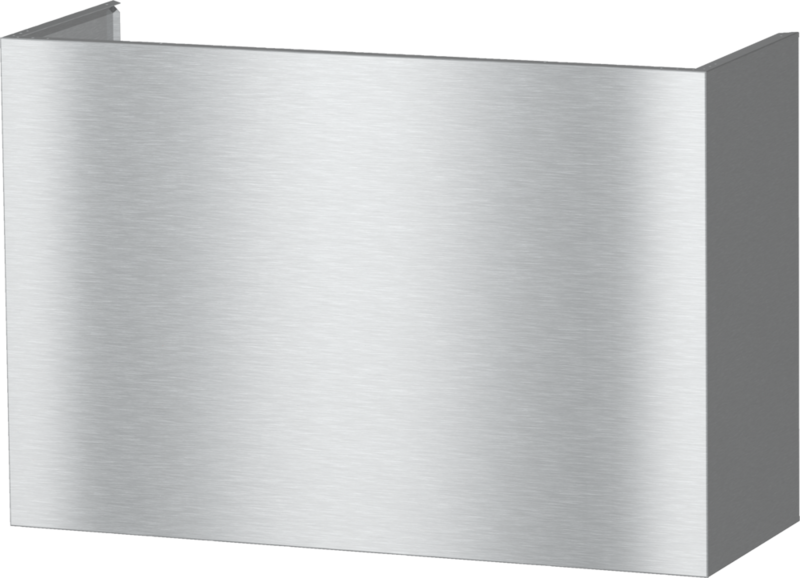

Duct Cover

Duct Cover

 Chimney for concealing the ducting and adjusting the height to the wall unit.

$369.00
Niche Cladding

Niche Cladding

for combining a Range Hood and a Range/Rangetop.

$289.00
Duct Cover

Duct Cover

 Chimney for concealing the ducting and adjusting the height to the wall unit.

$459.00

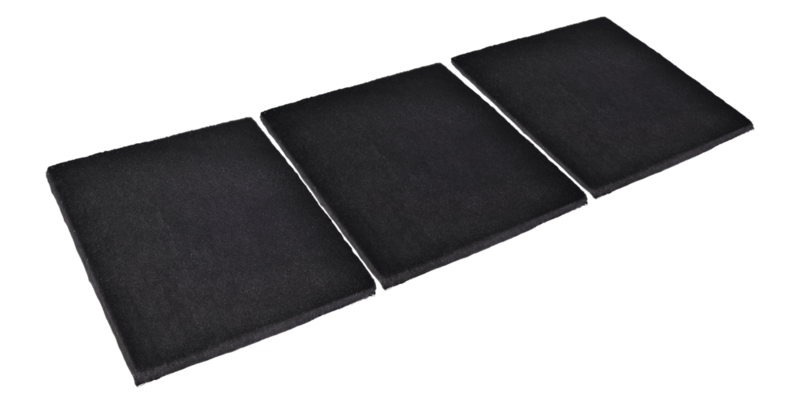

Active AirClean charcoal filter

Active AirClean charcoal filter

for Miele DAR 123x ventilation hoods with the DRUU 36 air recirculation kit.

$163.90
MicroCloth kit, 3 pieces
GP MI S 0031 W

MicroCloth kit, 3 pieces

For best cleaning results and safe use.

$17.59
 MicroCloth HyClean, 1 cloth
GP MI H 0011 W

 MicroCloth HyClean, 1 cloth

 Antibacterial multi-purpose cloth for improved hygiene.

$13.19

Downloads

Product sheet
PDF
Downloads
Warranty conditions
PDF
Downloads
Fitting Instructions
PDF
Downloads
Fitting Instructions
PDF
Downloads
Operating instructions/Installation instructions
PDF
Downloads
fbx
ZIP
Downloads
rvt
ZIP
Downloads
rfa
ZIP
Downloads
dwg
ZIP
Downloads
ifc
ZIP
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts.

https://media.miele.com/images/2000011/200001183/20000118352.png
Descriptions

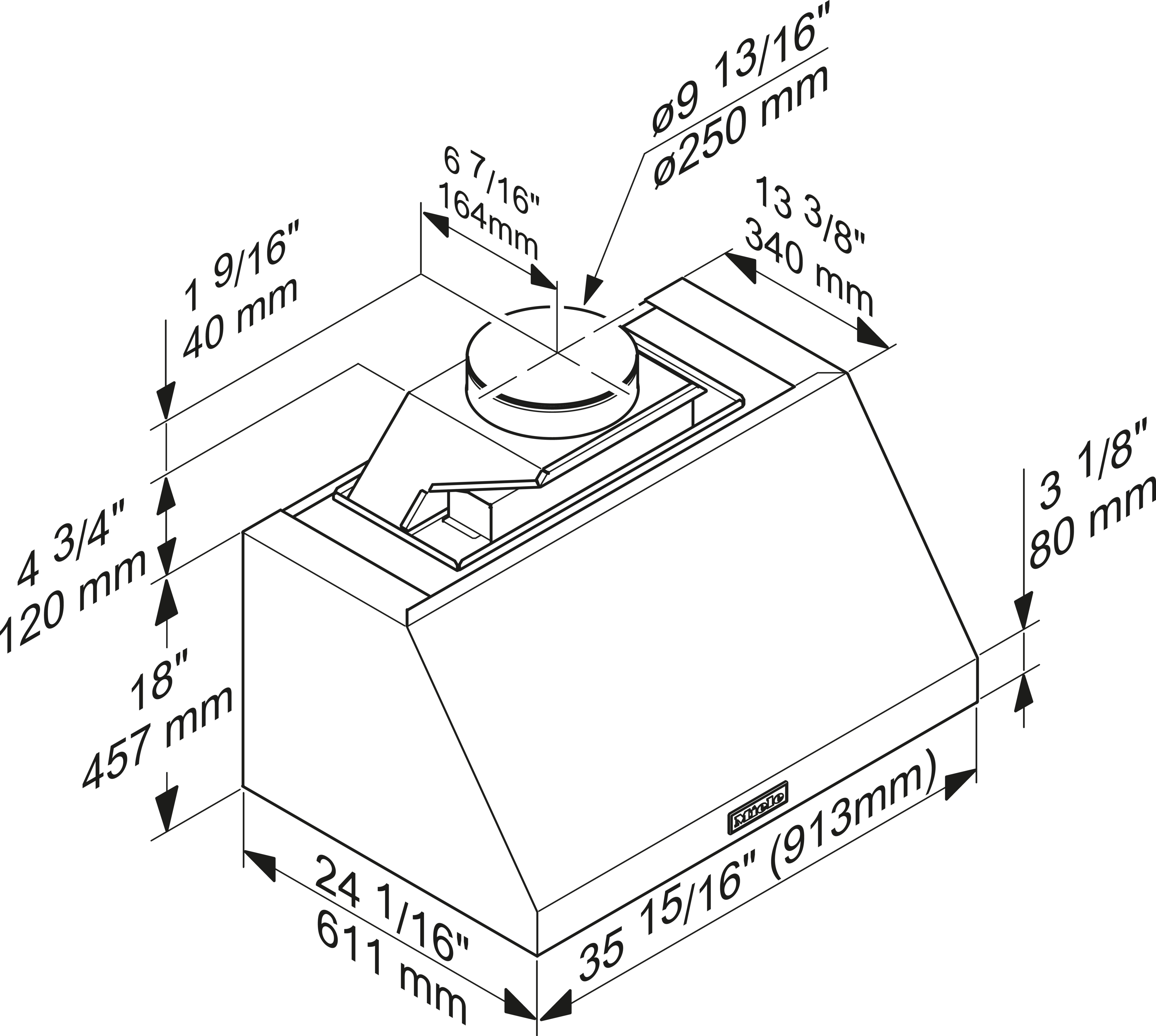

DAR1230 (installation drawing)
1) Installation area
