Name: DAS 8930
Brand: Miele
SKU: 11878590
Price: 2399 USD
Availability: InStoreOnly

Free shipping on orders $99+ within the contiguous US (exclusions apply). | Klarna available

01 / 04

Color:Stainless steel

$2,399.00

Product data sheet

Model number: DAS 8930
Manufacturer material number: 11878590
EAN number: 4002516495628
Marketing class: Platinum

Built-in ventilation hood

Recirculated mode: Can be retrofitted
Recirculation conversion kit (order separately): DUU 151
OdorFree charcoal filter (order separately): [ "DKF 31-P", "DKF 31-R" ]

Color: Stainless steel

Miele@home
Automatic function: Con@ctivity 3.0
Con@ctivity: Yes
Electronic controls
SmartControl
Operation: SmartControl
Power levels (number excl. Intensive): 3
Booster levels: 2
Delayed shutdown for 5 or 15 minutes
Grease filter saturation indicator
Active charcoal filter saturation indicator
CleanCover

Alexa voice control
Google voice control
Push notifications
RemoteUpdate
Smart Home Integration

Easy-to-clean canopy interior – CleanCover

Number of dishwasher-safe stainless steel grease filters (10-ply): 2

Number x W: 1 x 3 W
Light intensity in Lx: 270 lx
Color temperature in K: 3500 Kelvin
Light dimmer function

Dual-action blower

Air throughput in CFM in Booster: 495
Air throughput with Booster level 1 (m³/h) according to EN 61591: 494.41 (840)

Safety shut-off

Canopy dimensions (W x H x D) in mm: 33 7/8 (861) x 2 3/8 (60) x 12 1/8 (307)
Canopy width in in. (mm): 33 7/8 (861)
Canopy height in in. (mm): 2 3/8 (60)
Depth of hood canopy in in. (mm): 12 1/8 (307)
Minimum height above electric cooktops in mm: 24 (610)
Minimum safety distance above gas cooktops (max. 12.6 kW total power, burner ≤ 4.5 kW) in mm: 26 (660)
Net weight in lbs. (kg): 42 (19.0)
Length of electrical wire in ft. (m): 2 (0.8)
Standard plug fitted
Plug type: NEMA plug: 5–15
Total connected load in kW: 0.353
Voltage in V: 120
Fuse rating in A: 15
Frequency in Hz: 60
Number of phases: 1

Vent connection at top
Vent connection at top and rear
Installation template

Non-return flap

EAN: 4002516495628

What's included

Non-return flap

*This is a separate digital offer from Miele & Cie. KG. The range of functions can vary depending on the model and the country. Acceptance of the Terms and Conditions and Privacy Policy for Miele digital products and services in the Miele app required. Miele reserves the right to change or discontinue the digital offer at any time.

Smart controls
Con@ctivity 3.0
Innovative convenience: The ventilation hood reacts automatically to settings on the cooktop.
More convenience when cooking
Con@ctivity
The ventilation hood reacts automatically to the cooktop and the oven.
Easy to use and effective against grease
Stainless-steel grease filters (10-layer)
Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.
Convenience and safety in detail
Miele CleanCover
Protection and easy cleaning: The sealed, smooth surface prevents contact with cables and the motor.
Elegant touch controls
SmartControl
High-quality and functional: Enjoy convenient touch controls with a dimmer function.

User convenience

More convenience when cooking

Con@ctivity

The ventilation hood reacts automatically to the cooktop and the oven.

Automatic blower run-on

Delayed shutdown

Odor-free room air: "after cooking, the blower can be set to switch off automatically after 5 or 15 minutes."

Countdown time conveniently in view

filter saturation indicator

Easy filter replacement: a red light lets you know when the grease and/or charcoal filter is saturated.

Elegant touch controls

SmartControl

High-quality and functional: Enjoy convenient touch controls with a dimmer function.

Safety

Always on the safe side

Safety turn off

Sensible, even in case of operating errors: The ventilation hood switches off automatically after 10 hours.

Setup/function

Smart controls

Con@ctivity 3.0

Innovative convenience: The ventilation hood reacts automatically to settings on the cooktop.

Features

Easy to use and effective against grease

Stainless-steel grease filters (10-layer)

Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.

Convenience and safety in detail

Miele CleanCover

Protection and easy cleaning: The sealed, smooth surface prevents contact with cables and the motor.

Smart Extras

Always up to date with software updates
RemoteUpdate^1,
Bringing new functions directly to your appliance.
Everything at a glance with smart notifications
Push notifications^1,
Receive relevant information directly on your smartphone or tablet.
A spark of magic for the kitchen
Voice control ^1,^2,
Convenient operation via voice control.
Seamless networking throughout your home
Smart Home Integration^1,
Intelligent integration of Miele appliances into a Smart Home system.

Matching products and accessories

Recirculation conversion kit for DA 3xxx/2xxx and DAS 2xxx, 4xxx, and 8xxx

To convert slimline/integrated ventilation hoods from vented to recirculation.

DUU 150

Recirculation conversion kit for DA 3xxx/2xxx and DAS 2xxx, 4xxx, and 8xxx

To convert slimline/integrated ventilation hoods from vented to recirculation.

Reducing collar

For reducing the exhaust air vent cross-section.

Reducing collar

For reducing the exhaust air vent cross-section.

Silencer connection

between silencer and connector.

Active AirClean charcoal filter

DAS 4x40, DAS 8x30, and DKFS 31-P for DAS 2x20, DAS 4x20, and DAS 4x30.

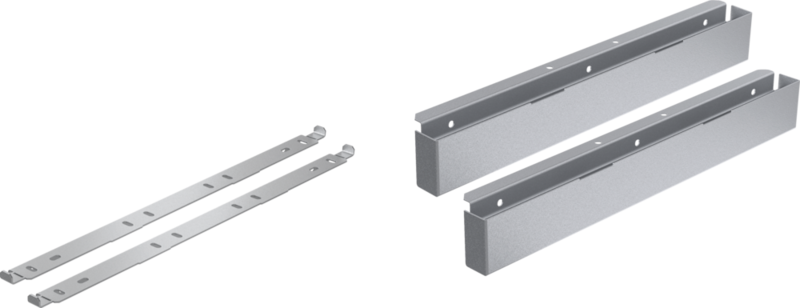

Trims

For mounting under shortened cabinet side panels

GP MI S 0031 W

MicroCloth kit, 3 pieces

For best cleaning results and safe use.

GP MI H 0011 W

MicroCloth HyClean, 1 cloth

Antibacterial multi-purpose cloth for improved hygiene.

Downloads

Mounting plan

PDF

Download

Operating and Installation instructions

PDF

Download

Product sheet

PDF

Download

Warranty conditions

PDF

Download

dwg

ZIP

Download

fbx

ZIP

Download

ifc

ZIP

Download

rfa

ZIP

Download

rvt

ZIP

Download

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts.

https://media.miele.com/dam/a76865f2-cd4b-42e9-97bf-b3c300b39c3a/20000178040_HighresDigitalRGB.png

Descriptions

DAS8930, Installation drawings

1) Extraction, recirculation with conversion kit DUU 150., 2) Alternative ducting connection to the rear., 3) Accessory DSM module., 4) The wall unit can be fitted with a partition after installation. The slots for the grease filters and, in recirculation mode, for the odor filters must remain accessible., , The height of the wall unit and the cut-out dimensions must take into account any accessories fitted (e.g. silencer, recirculation hood conversion kit, DSM module)

POSTSCRIPT

Download

https://media.miele.com/dam/4f822494-3356-4c11-a689-b3c300ea1d6a/20000184922_HighresDigitalRGB.png

Descriptions

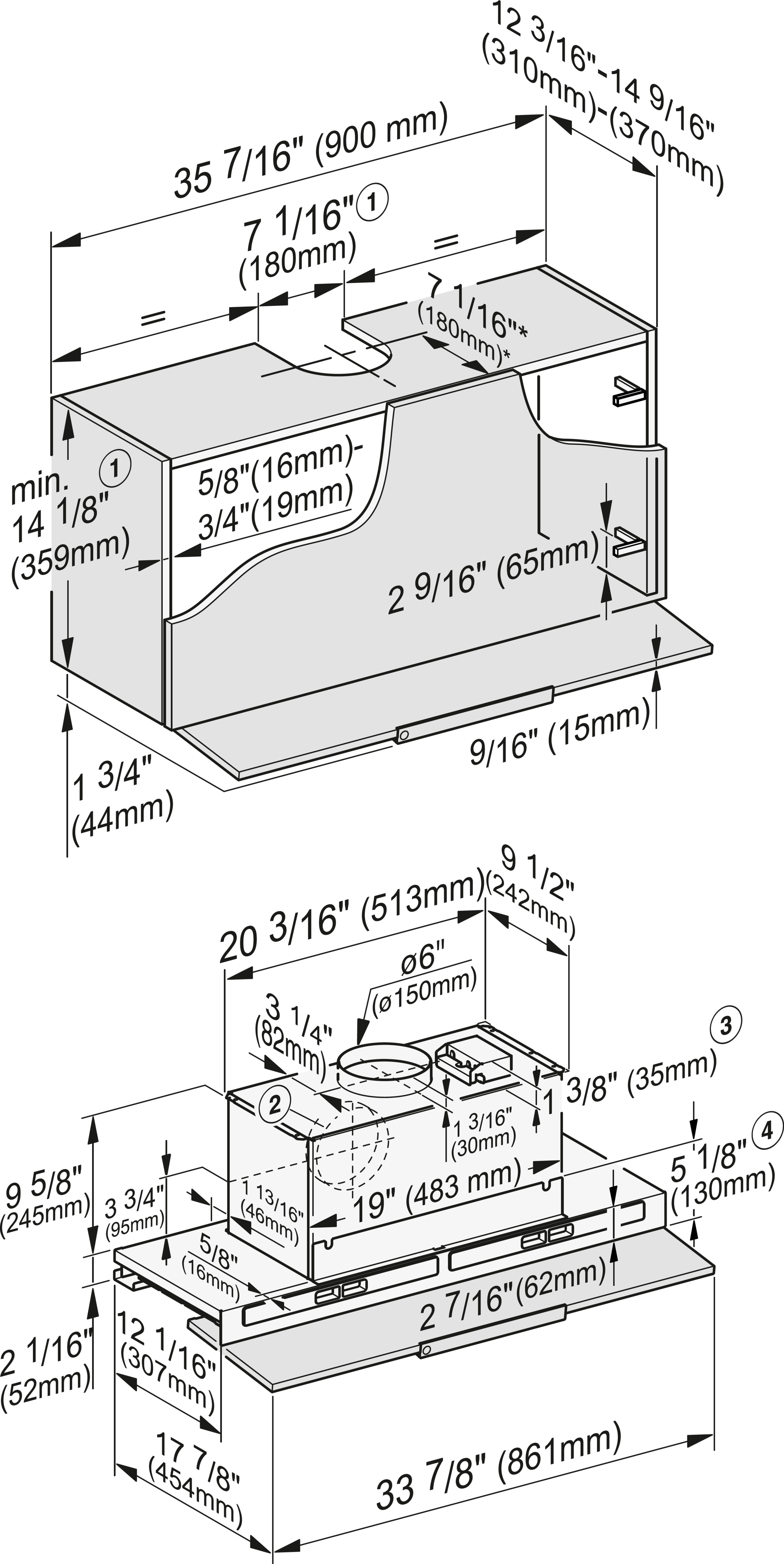

DAS8930, drawing - US

1) Exhaust air, recirculation with DUU 150 conversion kit., 2) Exhaust air connection alternatively to the rear., 3) DSM module accessory., 4) The wall unit can be fitted with a partition after installation. The slots for the grease filters and, in the case of recirculation mode, for the odor filters must remain accessible. , , Mounted accessories must be taken into account for the cabinet height and cut-out dimensions (e.g. silencer, recirculation air conversion kit, DSM module).

POSTSCRIPT

Download

1.This is a separate digital offer from Miele & Cie. KG. The range of functions can vary depending on the model and the country. Acceptance of the Terms and Conditions and Privacy Policy for Miele digital products and services in the Miele app required. Miele reserves the right to change or discontinue the digital offer at any time.
2.Voice control uses the Google LLC and Amazon Alexa services and is based on their availability. The range of functions can vary depending on the country. Google, Google Home, and Google Nest Mini are trademarks of Google LLC. Google Nest Mini requires Wi-Fi, an internet connection, a nearby power socket, a Google account, and a compatible mobile device. Minimum requirements for the operating system can be found at: g.co/home/req. Compatible with Alexa. Amazon, Alexa, and all associated trademarks are trademarks of Amazon.com, Inc. or their affiliated companies.

We reserve the right to make technical changes; we assume no liability for the accuracy of the information provided.
