  • Miele - DGC 7670 Stainless steel/Clean Touch Steel - 1
  • Miele - DGC 7670 Stainless steel/Clean Touch Steel - 2

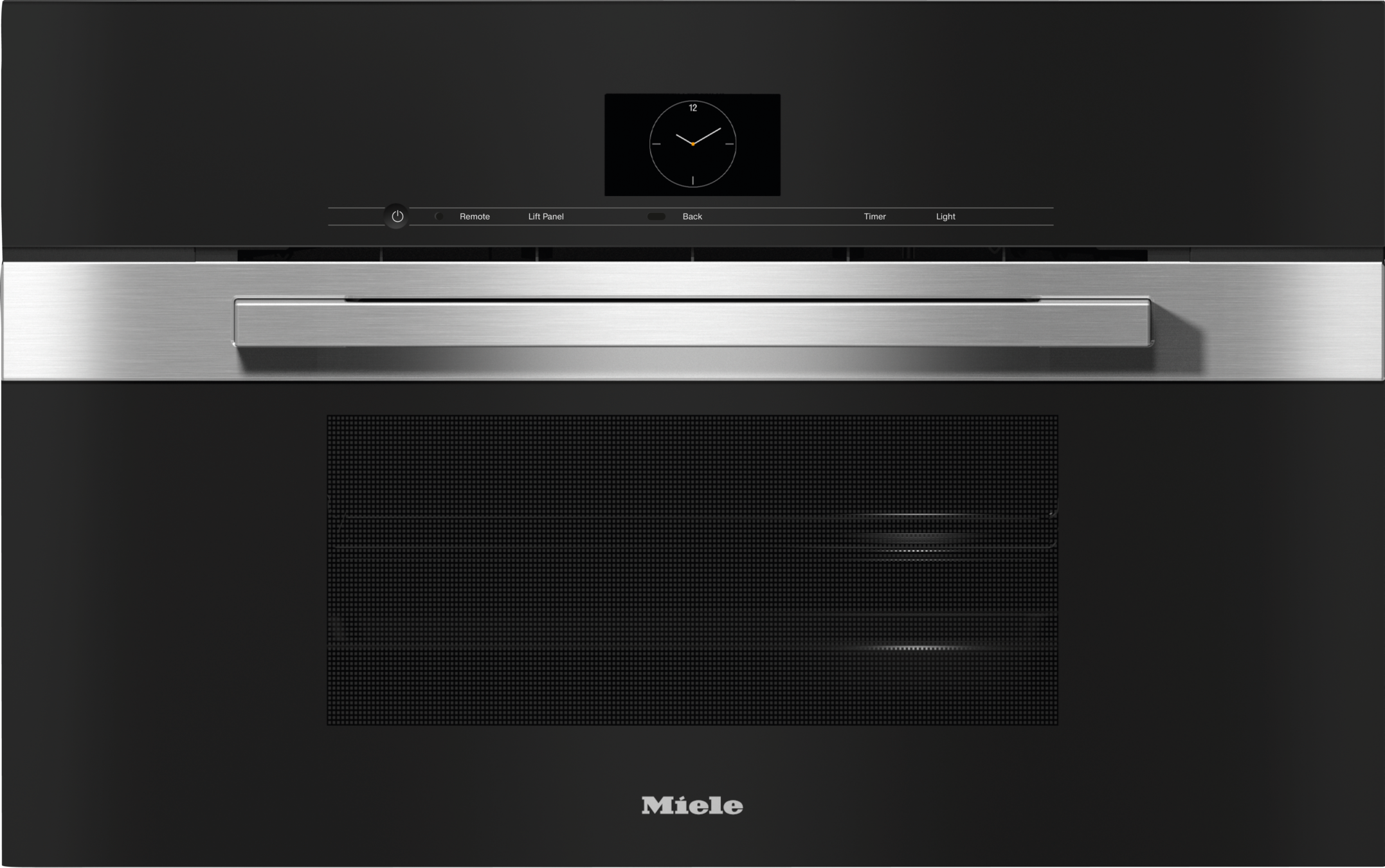

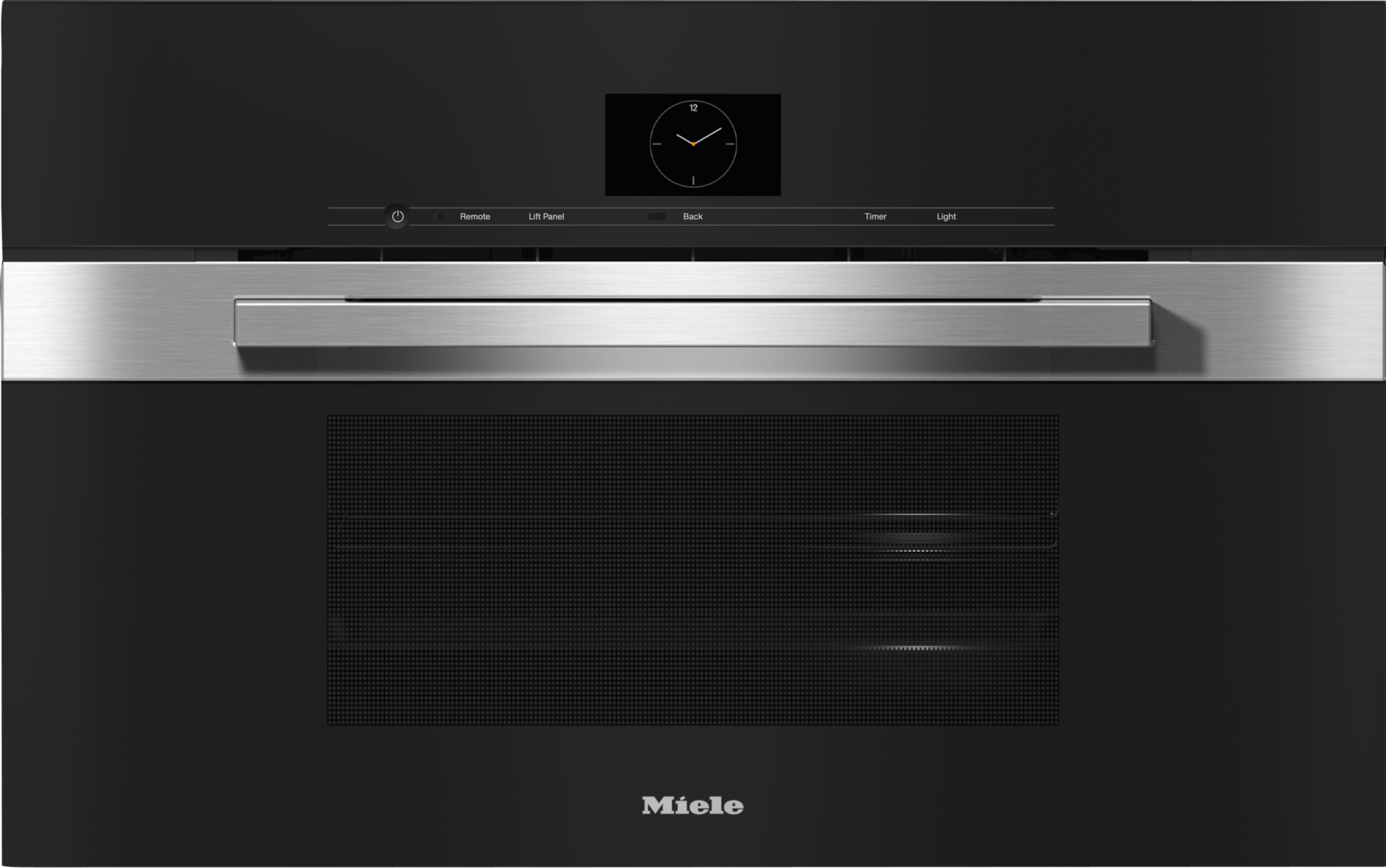

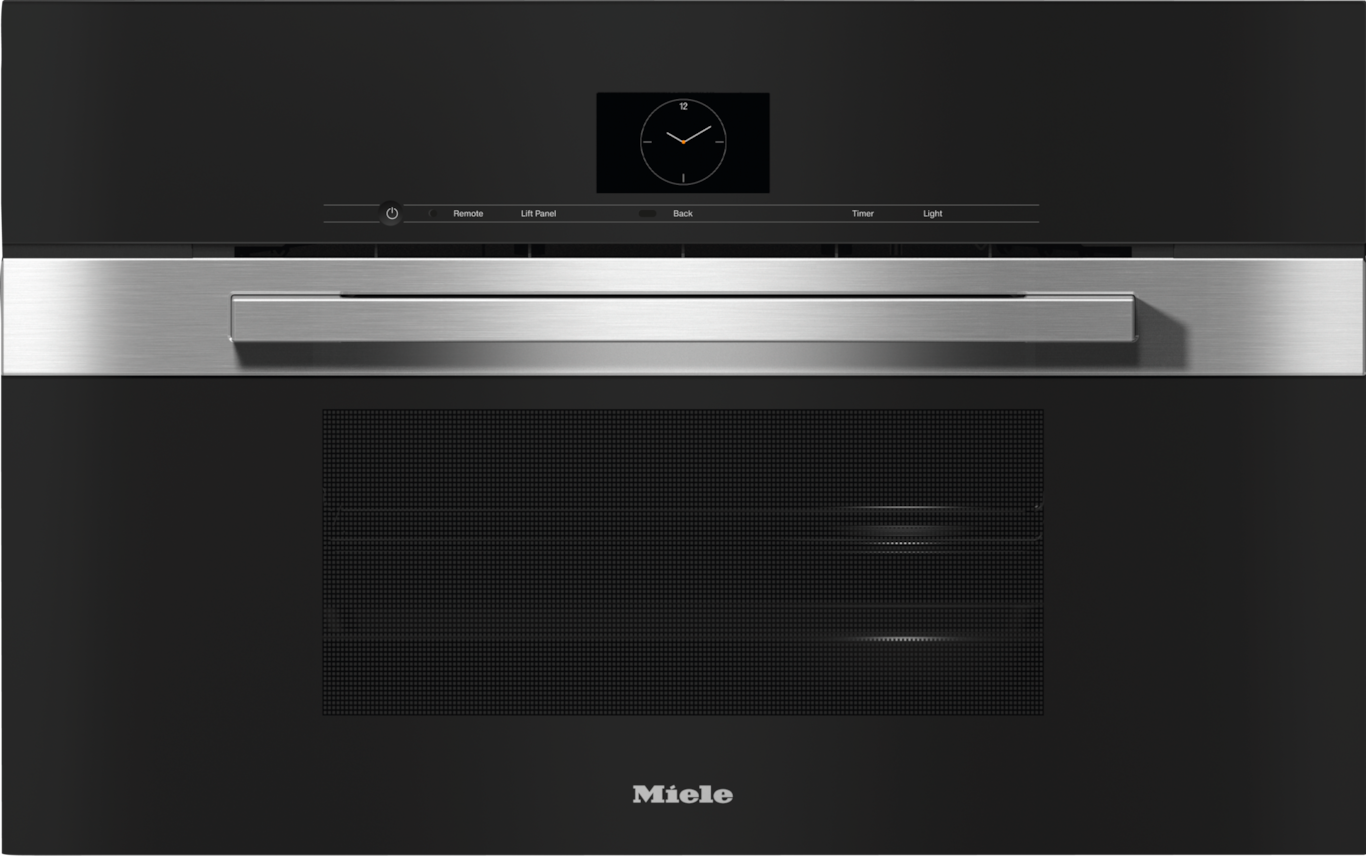

30" Compact Combi-Steam Oven XLPLATINUM

DGC 7670 Stainless steel/Clean Touch Steel

for steam cooking, baking, roasting with roast probe + menu cooking.
Color:Stainless steel/Clean Touch Steel
sale price$7,299.00


Product details

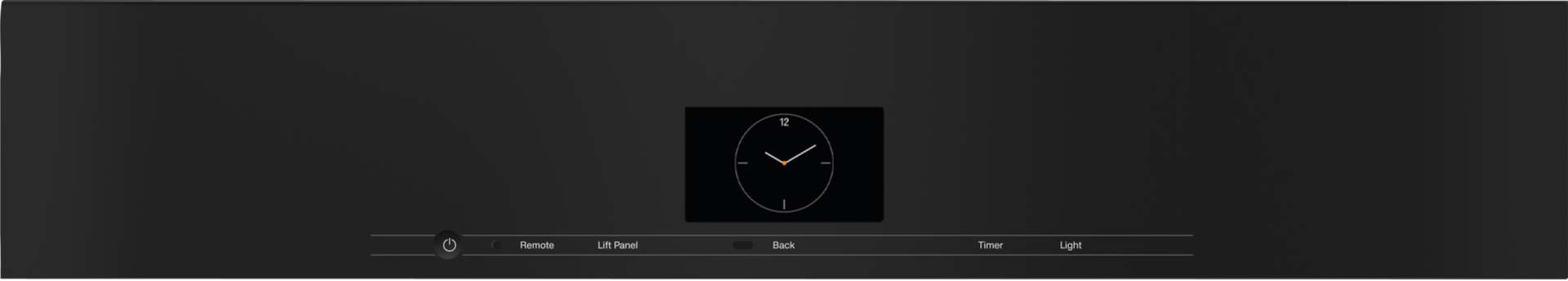

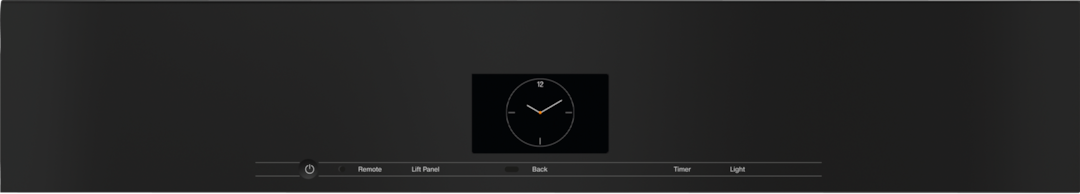

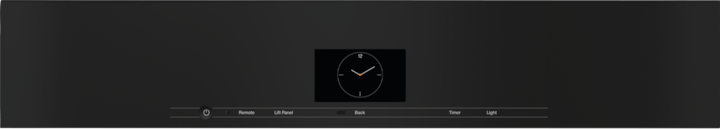

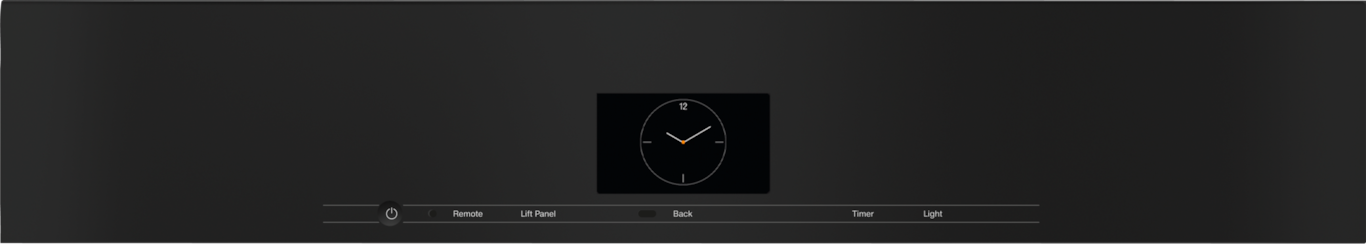

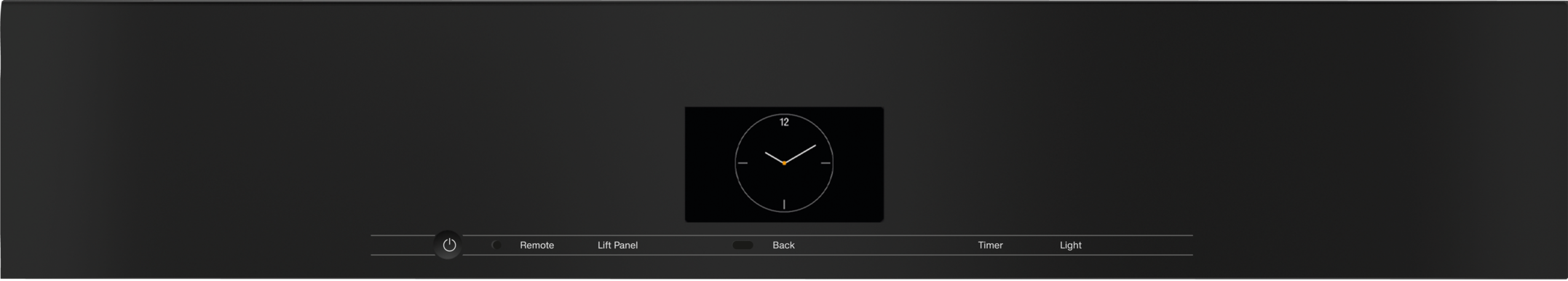

  • Touch display with proximity sensor – M Touch S + MotionReact
  • Perfect results –
    DualSteam technology
  • Crispy on the outside, succulent on the inside –
    Combi-Steam
  • Miele@home – network-enabled WiFi appliance + Miele Mix & Match
  • Easy cleaning –
    PerfectClean stainless steel oven compartment
  • View manufacturer details:
  • Safety information

Product data sheet

Combi-steam oven
PureLine
Appliance color Stainless steel/Clean Touch Steel
Rapid PreHeat
Preheating
External steam generation
Climate sensor
Individual humidity settings in combination cooking
Menu cooking without transfer of taste
Miele Mix & Match
Roast probe
wired
Automatic programs with individual setting of the cooking result
Keep-warm function
Crisp Function
Convection
Surround
Steam cooking
Combi cooking
Combi-Steam
Combi-Steam with Convection Bake
Combi-Steam with Surround
Combi-Steam with Maxi Broil
AirFry
Sous-vide
Intensive
Convection Broil
Maxi Broil
Broil
Broiling operating modes
Browning
Bake
Humidity Plus
Defrost
Roast with moisture
Reheating
Warm-up cookware
Automatic programs
Country-specific automatic programs
Special Modes
Networking with Miele@home
Display M Touch S Display
Clear text on control panel
MotionReact proximity sensor
SoftOpen
SoftClose
MultiLingua
MyMiele
Show me how
Motorized lift-up control panel with SoftClose
Quantity-independent cooking
Steam cooking on up to 3 levels at the same time
Automatic menu cooking
Steam reduction before end of programme
Timers
Time of day display
Date display
Minute minder
Programming start of cooking duration
Programming end of cooking duration
Programmable cooking time
Actual temperature display
Desired temperature display
Audible signal when desired temperature is reached
Default temperature
Favorites
Sabbath program
Individual settings
Clean Touch Steel surface
Stainless steel oven compartment with linen-weave pattern and PerfectClean finish
Foldable broil heater element
External steam generator
Maintenance programs
Soak program
Rinse program
Cavity drying program
Quick-release side racks
Removable side racks
Descaling
CleanGlass door
DualSteam
Fresh water container volume in l 1.4
Fresh-water container tank behind motorized lift-up control panel with SoftClose
Condensate container behind motorized lift-up control panel with SoftClose
Drain filter
Appliance cooling system and cool touch front
Cooling system with cool touch front
Safety cut-out
Safety shut-off
System lock
Vapor cooling system
Sensor lock
Cavity volume in cu.ft (l) 1.7 (48.0)
No. of rack levels 3
Labeling of rack levels
Door hinge side Bottom
Oven interior lighting
BrilliantLight
Oven mode temperatures in °F (°C) 85-450 °F (30-230 °C)
Niche dimensions (W x H x D) in inches (mm) 28 1/2 (724)-724 x 470-472 x 610
Niche width min. in inches (mm) 28 1/2 (724)
Niche width max. in inches (mm) 724
Niche height min. in inches (mm) 470
Niche height max. in inches (mm) 472
Niche depth in in. (mm) 610
Appliance dimensions (W x H x D) in inches (mm) 29 3/4 (757) x 18 7/8 (479) x 22 1/2 (573)
Appliance dimensions (W x H x D) in inches (mm) 29 7/8 (757) x 18 7/8 (479) x 22 5/8 (573)
Weight in lbs. (kg) 98 (44.3)
Total connected load in kW 2.800-3.700
Power Rating in V 0
Usable voltage range in V 240/208
Frequency in Hz 60
Fuse rating in A 20
Number of phases 2
Connection wire with plug
Plug type NEMA plug: 6–20
Length of power cord in in. (m) 2
Replacing bulbs Customer Service
Universal tray with PerfectClean HUBB 71 1
Wire rack with PerfectClean HBBR 71 1
PerfectClean FlexiClip telescopic runners HFC 71 (pair)
1
Wired food probe 1
Removable side racks with PerfectClean (pair) 1
Perforated stainless-steel cooking containers 1
Solid stainless steel cooking containers 1
Descaling tablets 2
Available display languages via MultiLingua [ "français", "ελληνιкά", "čeština", "繁體中文", "slovenčina", "slovenščina", "中文", "polski", "magyar", "nederlands", "hrvatski", "yкраїнська", "bahasa malaysia", "italiano", "deutsch", "türkçe", "dansk", "suomi", "日本語", "română", "español", "english", "srpski", "العربية", "svenska", "norsk", "pусский", "português", "한국어" ]
EAN 4002516487555

What's included

Universal tray with PerfectClean HUBB 71 (1)
Wire rack with PerfectClean HBBR 71 (1)
PerfectClean FlexiClip telescopic runners HFC 71 (pair) (1)
Removable side racks with PerfectClean (pair) (1)
Perforated stainless-steel cooking containers (1)
Solid stainless steel cooking containers (1)
Descaling tablets (2)
Wired food probe (1)
  • Cleverly networked

    Cleverly networked

    Domestic appliance networking with Miele@home1,

    Make your life smart: thanks to Miele@home you can cleverly network your domestic appliances – for more options.

  • Maximum performance for consistent results

    Maximum performance for consistent results

    DualSteam

    Optimum enjoyment: The steam spreads quickly and evenly – so you can enjoy perfect cooking results.

  • Moisture and dry heat: the ideal combination

    Moisture and dry heat: the ideal combination

    Combi-Steam ovens

    Pure enjoyment: perfect results when baking and roasting with a combination of dry and moist heat.

  • Everything in a single appliance

    Everything in a single appliance

    3 in 1

    A space-saving combination: convection oven, steam oven, and Combi-Steam for maximum flexibility when cooking!

  • Innovative features

    Innovative features

    Stainless steel interior with PerfectClean

    High-quality and easy to clean: Our Combi-Steam Ovens all feature a stainless-steel oven compartment.

  • More than just a control element

    More than just a control element

    Motorized lift-up control panel with SoftClose2,

    Convenient: Open and close the lift-up control panel with a tap of a finger to reveal the water container.

  • For a complete menu

    For a complete menu

    Automatic menu cooking

    Cook several components at the same time: The temperature, cooking duration, and sequence are set automatically.

Convenience features

Makes food crunchy and crisp
Makes food crunchy and crisp

Crisp function

Perfect for pizza or fries: Reducing the moisture achieves a crispy, golden finish.
Maximum performance for consistent results
Maximum performance for consistent results

DualSteam

Optimum enjoyment: The steam spreads quickly and evenly – so you can enjoy perfect cooking results.
Moisture and dry heat: the ideal combination
Moisture and dry heat: the ideal combination

Combi-Steam ovens

Pure enjoyment: perfect results when baking and roasting with a combination of dry and moist heat.
Everything in a single appliance
Everything in a single appliance

3 in 1

A space-saving combination: convection oven, steam oven, and Combi-Steam for maximum flexibility when cooking!
Perfect results with little effort
Perfect results with little effort

MasterChef

Cooking delicious dishes with ease: fish, meat, or vegetables – fully automatic cooking.
Retains nutrients and protects the appliance
Retains nutrients and protects the appliance

Automatic keeping warm function

Prevents food from cooling down: Food is automatically kept warm for 15 minutes after the cooking duration ends.
For a complete menu
For a complete menu

Automatic menu cooking

Cook several components at the same time: The temperature, cooking duration, and sequence are set automatically.
Different amounts, same cooking duration
Different amounts, same cooking duration

Quantity-independent cooking

Always the same time: Whether 1/4 lb or 2 lb, the cooking duration always stays the same.

User convenience

Cleverly networked
Cleverly networked

Domestic appliance networking with Miele@home1,

Make your life smart: thanks to Miele@home you can cleverly network your domestic appliances – for more options.
Gentle door movement
Gentle door movement

SoftOpen and SoftClose

Sophisticated and elegant: The door opens and closes with a gentle movement – right to the very end.
Let your oven take care of time management
Let your oven take care of time management

Timers

Always on time: Set the start time, end time, and duration of the cooking process, or the kitchen timer.
More than just a control element
More than just a control element

Motorized lift-up control panel with SoftClose2,

Convenient: Open and close the lift-up control panel with a tap of a finger to reveal the water container.
Wide range of options
Wide range of options

Wide range of applications

Steam cooking is also ideal for blanching, defrosting, reheating, proofing dough, or melting chocolate.

Oven cabinets

Innovative features
Innovative features

Stainless steel interior with PerfectClean

High-quality and easy to clean: Our Combi-Steam Ovens all feature a stainless-steel oven compartment.
A perfect view at all levels
A perfect view at all levels

​ClearView Lighting

Powerful and attractive: high-quality LED spotlights perfectly illuminate the oven compartment.

Gourmet versatility

Vegetables

Vegetables

Nature at its best: Gentle cooking in the steam oven retains flavor and is also very healthy.
Side dishes

Side dishes

Always on hand: Potatoes, rice, and pasta go well with any dish and are extremely nutritious.
Fish/seafood

Fish/seafood

Healthy food straight from the sea: Fish and seafood are cooked to perfection, retaining their aroma and texture.
Meat

Meat

Juicy and succulent: Meat from the steam oven has an impressive, intense flavor.
Defrost

Defrost

Gentle on frozen food: Defrost any frozen food gently at around 140°F ( 60°C) in ideal conditions.
Disinfecting baby bottles

Disinfecting baby bottles

Bacteria-free in just 15 minutes: quick and uncomplicated disinfection of baby bottles at 210°F (100°C).
Blanching

Blanching

Ideal preparation: Blanch fruit or vegetables to maintain their quality and freshness.
Desserts

Desserts

Save the best for last: You can prepare desserts in a variety of ways with the steam oven.
Cooking eggs

Cooking eggs

Eggs cooked to your preference. Cook your breakfast egg to perfection in minutes at 210°F (100°C)
Preserving

Preserving

Fresher for longer: Preserving fruit, vegetables and meats is a breeze in the steam oven.
Sterilizing jars

Sterilizing jars

Perfectly prepared: Glass jars can be sterilized thoroughly for fruit preserves.
Skinning

Skinning

Skinning made simple: Tomatoes, nectarines, and almonds can be skinned in just 1 to 4 minutes in the steam oven.
Extracting juice

Extracting juice

Transform any fruit into a delicious juice or jam: Steam ensures particularly gentle juice extraction.
Heating hand towels

Heating hand towels

Like a restaurant experience: Serve your guests hand towels warmed in the steam oven.
Proofing dough

Proofing dough

Soft and light: This all-rounder even helps you master dough – it proofs beautifully at 105°F (40°C).
Making yogurt

Making yogurt

Completely homemade: Create your very own yogurt in a 105°F (40°C) steam oven in just 5 hours.
Melting chocolate

Melting chocolate

Sweet temptation: At 195°F (90°C), chocolate melts without clumping or burning – perfect for cakes or cookies.
Soups

Soups

All sorts of soups can be made as a tasty starter.
Keeping warm

Keeping warm

Eating later? Your steam oven will automatically keep food warm for up to 15 minutes.

Operating modes

Combi-Steam + Convection Bake

Combi-Steam + Convection Bake

Optimum results: Additional moisture cooks bread, bread rolls, or meat professionally and to perfection.
Combi-Steam + Surround

Combi-Steam + Surround

Food is cooked evenly – which makes for the perfect bread.
Combi Broil

Combi Broil

Fish and meat with a high fat content are particularly tender and succulent – with a crispy skin or crust.
Maxi Broil

Maxi Broil

Versatile function for indoors: so you can broil large quantities of steaks, sausages, kebabs, and more.
Convection Bake

Convection Bake

Perfectly soft and light: ideal for gentle baking and roasting on up to 2 levels.
Intensive

Intensive

Crispy bases, delicious toppings: pizza, quiche, or fresh fruit flans – crispy base, moist on top.
Humidity Plus

Humidity Plus

Conjure up delicious cakes: perfect choux pastry, pretzels, and cake batter as good as those from the bakery.
Surround

Surround

Multi-purpose, classic function: perfect results for all types of traditional baked and roasted dishes.
Browning

Browning

Finishing touch for the eye and palate: Perfect results when cooking gratins, baking toppings, and browning foods.
Bake

Bake

Individual requirements: for cooking food in a bain-marie or for browning from underneath.
Convection Broil

Convection Broil

Crisp outside, succulent inside: ideal for chicken, duck, pork, rolled meat, and many other meat dishes.
Sabbath Program

Sabbath Program

Preprogram dishes up to 72 hours in advance: The unique Sabbath Program lets you make long-term plans.
Sous-vide cooking

Sous-vide cooking

Pure pleasure: meat, vegetables, or fruit cooked in a vacuum for the ultimate taste sensation.
Steam cooking

Steam cooking

Gentle and healthy food preparation: cooking with steam retains many nutrients.

Setup/function

A great advantage: external steam
A great advantage: external steam

External steam generation

Steam generation outside the cooking compartment prevents limescale residues and ensures easy cleaning.

Matching products and accessories

Gourmet baking and AirFry tray, perforated
HBBL 71

Gourmet baking and AirFry tray, perforated

for everything that is crunchy and crisp.

$121.00
Genuine Miele baking tray
HBB 71

Genuine Miele baking tray

with PerfectClean finish.

$115.50
Miele Gourmet baking and pizza stone
HBS 70

Miele Gourmet baking and pizza stone

for achieving the same results as if baked in a stone oven.

$295.90
Genuine Miele multi-purpose tray
HUBB 71

Genuine Miele multi-purpose tray

with PerfectClean finish.

$165.00
Perforated steam oven pan
DGGL 12

Perforated steam oven pan

For blanching or cooking vegetables, fish, meat and potatoes and much more

$71.50
Perforated steam oven pan
DGGL 20

Perforated steam oven pan

For blanching or cooking vegetables, fish, meat and potatoes and much more

$53.90
Descaling tablets, 6 tablets
GP DC CX 0061 T

Descaling tablets, 6 tablets

for coffee machine, steam oven, FashionMaster, oven/range with Moisture Plus.

$24.99
MicroCloth kit, 3 pieces
GP MI S 0031 W

MicroCloth kit, 3 pieces

For best cleaning results and safe use.

$17.59
DGClean 8.5 fl oz.
GP CL DGC 251 L

DGClean 8.5 fl oz.

for optimum results when cleaning combi-steam ovens.

$19.99
 MicroCloth HyClean, 1 cloth
GP MI H 0011 W

 MicroCloth HyClean, 1 cloth

 Antibacterial multi-purpose cloth for improved hygiene.

$13.19

Downloads

Operating and Installation instructions
PDF
Downloads
Product sheet
PDF
Downloads
Warranty conditions
PDF
Downloads
dwg
ZIP
Downloads
fbx
ZIP
Downloads
ifc
ZIP
Downloads
rfa
ZIP
Downloads
rvt
ZIP
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts.

https://media.miele.com/images/2000017/200001724/20000172416.png
Descriptions
7/8" - 22* mm - Glas, 15/16" - 23.3** mm - Edelstahl
7/8" - 22* mm - Glas, 15/16" - 23.3** mm - Edelstahl
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001724/20000172497.png
Descriptions
installation 30 inch Proud BM30, installation drawing, NA
installation 30 inch Proud BM30, installation drawing, NA
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001725/20000172575.png
Descriptions
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001725/20000172578.png
Descriptions
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001725/20000172594.png
Descriptions
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001725/20000172596.png
Descriptions
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001725/20000172597.png
Descriptions
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001726/20000172601.png
Descriptions
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001726/20000172605.png
Descriptions
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001726/20000172613.png
Descriptions
H 6x70 BM, ESW 6x85, DGC7x7x, H7x7x, Exx7x70 Fitting Combi, Installation drawing, Flush inset, NA
H 6x70 BM, ESW 6x85, DGC7x7x, H7x7x, Exx7x70 Fitting Combi, Installation drawing, Flush inset, NA
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001726/20000172614.png
Descriptions
H 6x70 BM, ESW 6x80, DGC7x7x, H7x7x, ESW7x80 Fitting Combi, Installation drawing, Flush inset, NA
H 6x70 BM, ESW 6x80, DGC7x7x, H7x7x, ESW7x80 Fitting Combi, Installation drawing, Flush inset, NA
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001726/20000172616.png
Descriptions
H 656x, H 6x60, DGC686x+EBA 6808, H 6x70, DGC 676x, DGC7x7x. EBA7868, H 7xxx,Fitti Combi, Install drawi, Flush inset, NA
H 656x, H 6x60, DGC686x+EBA 6808, H 6x70, DGC 676x, DGC7x7x. EBA7868, H 7xxx,Fitti Combi, Install drawi, Flush inset, NA
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001726/20000172619.png
Descriptions
H 6x80 BP, H 6x70 BM, H 6x80-2BP, DGC7x7x, H7xxx Fitting Combi, Installation drawing, Flush inset, NA
H 6x80 BP, H 6x70 BM, H 6x80-2BP, DGC7x7x, H7xxx Fitting Combi, Installation drawing, Flush inset, NA
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001726/20000172634.png
Descriptions
H 6x60 B/BP, DGC 686x AM+ EBA 6808; H 6x70 BM, ESW 6x80, DGC 676x, DGC 7x7x, EBA 7868, ESW7x780,Installation drawing, NA
H 6x60 B/BP, DGC 686x AM+ EBA 6808; H 6x70 BM, ESW 6x80, DGC 676x, DGC 7x7x, EBA 7868, ESW7x780,Installation drawing, NA
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001726/20000172638.png
Descriptions
H 6x80 BP, H 6x70 BM, ESW 6x80, H 6x80-2BP, DGC7xxx, H7xxxBM/BMX/BP/BPX, H2x80BP, ESW7x80, Installation drawing, NA
H 6x80 BP, H 6x70 BM, ESW 6x80, H 6x80-2BP, DGC7xxx, H7xxxBM/BMX/BP/BPX, H2x80BP, ESW7x80, Installation drawing, NA
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001726/20000172653.png
Descriptions
H 6x60 B/BP, DGC 686x AM, EBA 6808; H 6x70 BM, DGC 676x, DGC7xxx, H7xxxBP, EBA7868 Installation drawing, Flush inset, NA
H 6x60 B/BP, DGC 686x AM, EBA 6808; H 6x70 BM, DGC 676x, DGC7xxx, H7xxxBP, EBA7868 Installation drawing, Flush inset, NA
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001726/20000172670.png
Descriptions
(H6560 B, H6x60 BP, DGC686x AM) + EBA6808, H6x70 BM, DGC676x, ESW6x80,DGC7xxx, EBA7868, H7xxxBP, ESW7x80, NA
(H6560 B, H6x60 BP, DGC686x AM) + EBA6808, H6x70 BM, DGC676x, ESW6x80,DGC7xxx, EBA7868, H7xxxBP, ESW7x80, NA
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001728/20000172806.png
Descriptions
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001728/20000172809.png
Descriptions
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001728/20000172827.png
Descriptions
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001728/20000172828.png
Descriptions
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001728/20000172832.png
Descriptions
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001728/20000172836.png
Descriptions
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001728/20000172844.png
Descriptions
H6x70BM, ESW6x85, DGC7x7x, H7x70BMX, ESW7x70, EVS7x70, Fitting Combi, Installation drawing, Proud, NA
H6x70BM, ESW6x85, DGC7x7x, H7x70BMX, ESW7x70, EVS7x70, Fitting Combi, Installation drawing, Proud, NA
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001728/20000172845.png
Descriptions
H 6x70 BM, ESW 6x80, DGC7x70X, H7x70BM, ESW7x80, Fitting Combi, Installation drawing, Proud, NA
H 6x70 BM, ESW 6x80, DGC7x70X, H7x70BM, ESW7x80, Fitting Combi, Installation drawing, Proud, NA
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001728/20000172847.png
Descriptions
(H6560B,H6x60BP,DGC686xAM)+EBA6808,H6x70BM,DGC676x,DGC7x70,H7x6xBP+EBA7868, Fitting Combi, Installation, Proud, NA
(H6560B,H6x60BP,DGC686xAM)+EBA6808,H6x70BM,DGC676x,DGC7x70,H7x6xBP+EBA7868, Fitting Combi, Installation, Proud, NA
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001728/20000172850.png
Descriptions
H6x80BP, H6x70BM, H6x80-2BP, DGC7x7x, H7x70BM, H2x80BP, H7x80BP(X), Fitting Combi, Installation drawing, Proud, NA
H6x80BP, H6x70BM, H6x80-2BP, DGC7x7x, H7x70BM, H2x80BP, H7x80BP(X), Fitting Combi, Installation drawing, Proud, NA
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001728/20000172865.png
Descriptions
(H6560B, H6x60BP, DGC686xAM)+EBA6808; H6x70BM, ESW6x80, DGC676x, NA7000 Fitting Combi, Installation drawing, Proud, NA
(H6560B, H6x60BP, DGC686xAM)+EBA6808; H6x70BM, ESW6x80, DGC676x, NA7000 Fitting Combi, Installation drawing, Proud, NA
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001728/20000172869.png
Descriptions
https://miele-mms.de.miele.net/mms/admin/forward.php#
https://miele-mms.de.miele.net/mms/admin/forward.php#
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001728/20000172884.png
Descriptions
(H6560B, H6x60BP, DGC686xAM) + EBA6808; H6x70BM, DGC676x, NA7000, Fitting Combi wide front, Installation drawing, Proud
(H6560B, H6x60BP, DGC686xAM) + EBA6808; H6x70BM, DGC676x, NA7000, Fitting Combi wide front, Installation drawing, Proud
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001729/20000172901.png
Descriptions
(H6560 B, H6x60 BP, DGC686x AM) + EBA6808, H6x70 BM, DGC676x, ESW6x80, NA7000 Fitting Combi w. front, drawing, Proud, NA
(H6560 B, H6x60 BP, DGC686x AM) + EBA6808, H6x70 BM, DGC676x, ESW6x80, NA7000 Fitting Combi w. front, drawing, Proud, NA
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001753/20000175350.png
Descriptions
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001753/20000175366.png
Descriptions
A - Cut-out (1 9/16” x 19 11/16" / 40 mm x 500 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection, W = Water connection, L = 9' 10 1/8" (3,000 mm), WW = Waste water connection, L = 9' 10 1/8" (3,000 mm), The top end of the drain hose to the inlet of the odor trap must not be higher than 19 11/16" (500 mm).
A - Cut-out (1 9/16” x 19 11/16" / 40 mm x 500 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection, W = Water connection, L = 9' 10 1/8" (3,000 mm), WW = Waste water connection, L = 9' 10 1/8" (3,000 mm), The top end of the drain hose to the inlet of the odor trap must not be higher than 19 11/16" (500 mm).
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001754/20000175407.png
Descriptions
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001754/20000175420.png
Descriptions
A - Cut-out (1 9/16” x 19 11/16" / 40 mm x 500 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection, W = Water connection, L = 9' 10 1/8" (3,000 mm), WW = Waste water connection, L = 9' 10 1/8" (3,000 mm), The top end of the drain hose to the inlet of the odor trap must not be higher than 19 11/16" (500 mm).
A - Cut-out (1 9/16” x 19 11/16" / 40 mm x 500 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection, W = Water connection, L = 9' 10 1/8" (3,000 mm), WW = Waste water connection, L = 9' 10 1/8" (3,000 mm), The top end of the drain hose to the inlet of the odor trap must not be higher than 19 11/16" (500 mm).
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001754/20000175428.png
Descriptions
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001754/20000175429.png
Descriptions
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001754/20000175443.png
Descriptions
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001755/20000175514.png
Descriptions
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001755/20000175515.png
Descriptions
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
POSTSCRIPT
Downloads
https://media.miele.com/images/2000018/200001802/20000180244.png
Descriptions
DGC7470, DGC7670, DGC7870, DGC7875, DGC7680, DGC7685, DGC7880, DGC7885:, ① 19 11/16" / 500 mm, ② 17 1/2" / 444 mm, ③ 1 7/8 " / 47 mm, ④ 15/16" / 24 mm, ⑤ 1 1/4 " / 32,5 mm, ⑥ 2 9/16“ / 65 mm, , DGC7440, DGC7640, DGC7840, DGC7845, DGC7860, DGC7865:, ① 15 3/4“ / 400 mm, ② 14 3/16“ / 360 mm, ③ 1 7/8“ / 47 mm, ④ 15/16“ / 24 mm, ⑤ 1 1/4“ / 32,5 mm, ⑥ 2 9/16“ / 65 mm
DGC7470, DGC7670, DGC7870, DGC7875, DGC7680, DGC7685, DGC7880, DGC7885:, ① 19 11/16" / 500 mm, ② 17 1/2" / 444 mm, ③ 1 7/8 " / 47 mm, ④ 15/16" / 24 mm, ⑤ 1 1/4 " / 32,5 mm, ⑥ 2 9/16“ / 65 mm, , DGC7440, DGC7640, DGC7840, DGC7845, DGC7860, DGC7865:, ① 15 3/4“ / 400 mm, ② 14 3/16“ / 360 mm, ③ 1 7/8“ / 47 mm, ④ 15/16“ / 24 mm, ⑤ 1 1/4“ / 32,5 mm, ⑥ 2 9/16“ / 65 mm
POSTSCRIPT
Downloads
https://media.miele.com/images/2000020/200002022/20000202249.png
Descriptions
7/8" - 22* mm - Glas, 15/16" - 23.3** mm - Edelstahl
7/8" - 22* mm - Glas, 15/16" - 23.3** mm - Edelstahl
POSTSCRIPT
Downloads
https://media.miele.com/images/2000020/200002022/20000202251.png
Descriptions
7/8" - 22* mm - Glas, 15/16" - 23.3** mm - Edelstahl
7/8" - 22* mm - Glas, 15/16" - 23.3** mm - Edelstahl
POSTSCRIPT
Downloads
  • 1.This is a separate digital offer from Miele & Cie. KG. The range of functions can vary depending on the model and the country. Acceptance of the Terms and Conditions and Privacy Policy for Miele digital products and services in the Miele app required. Miele reserves the right to change or discontinue the digital offer at any time.
  • 2.Patent: EP 2 197 326

We reserve the right to make technical changes; we assume no liability for the accuracy of the information provided.
