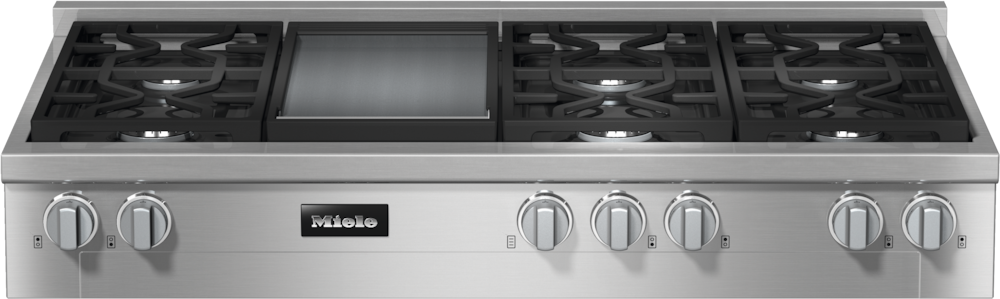

48-inch Range Top

KMR 1356-3LP GD EDST/CLST

with 6 burners and griddle plate for flexibility and high performance

sale price$6,699.00




Product details

  • Professional design - 48 (1219) in (mm) wide in stainless steel with Clean Touch Steel™ finishing

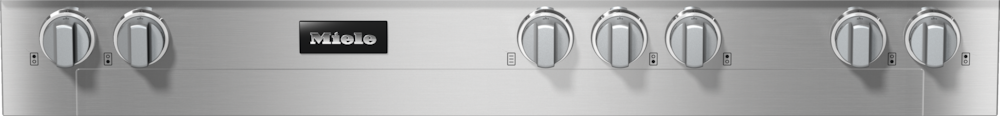

  • Direct control - metal knobs with light ring
  • Easy cleaning - ComfortClean dishwasher-safe grates
  • Broad performance spectrum – burner w. up to
    19,500 BTU (5.7 kW)
  • Convenient and safe - automatic re-ignition for all burners
  • Manufactured with great care by
  • Safety information

Product data sheet

Fuel type Gas
Rangetop
Casing Stainless steel
Front panel CleanSteel
Genuine metal knobs
Cast iron pot rests (matte black enameled)
Number of gas burners 6
Number of griddle surfaces 1
Position front left
Type Ultra high-speed burner
Minimum power output in BTU/hr 1500
Maximum power output in BTU/hr 19500
Max. rating in W 5700
Position rear left
Type High-speed burner
Minimum power output in BTU/hr 1500
Maximum power output in BTU/hr 12500
Max. rating in W 2900
Position left center
Type Griddle surface
Maximum power output in BTU/hr 14300
Max. rating in W 4200
Position Rear center right
Type Ultra high-speed burner
Minimum power output in BTU/hr 1500
Maximum power output in BTU/hr 19500
Max. rating in W 3800
Position rear right
Type High-speed burner
Minimum power output in BTU/hr 1500
Maximum power output in BTU/hr 12500
Max. rating in W 2900
Position front right
Type Ultra high-speed burner
Minimum power output in BTU/hr 1500
Maximum power output in BTU/hr 19500
Max. rating in W 5700
Position Center right front
Type Ultra high-speed burner
Minimum power output in BTU/hr 1500
Maximum power output in BTU/hr 19500
Max. rating in W 5700
True Simmer function
Width of griddle surface in in.(mm) 10 1/4 (258)
Depth of griddle surface in in.(mm) 17 1/8 (434)
Operation via genuine metal knobs with backlit
Dishwasher-safe trivets
Single-piece cooktop surround
Automatic re-ignition
Dimensions (width) in in. (mm) 48 (1219)
Dimensions (height) in in. (mm) 7 5/8 (191)
Dimensions (depth) in in. (mm) with bullnose 27 1/4 (692)
Dimensions (depth) in in. (mm) without bullnose 25 5/8 (650)
Weight in lbs. (kg) 171 (78)
Total output in BTU/hr 117300
Total connected load in kW 34.400
Voltage in V 120
Fuse rating in A 10
Number of phases 1
Power cord length in in. (m) 3 (1.2)
EAN 4002516495468

Maintenance

Efficiently protects and makes cleaning easier
ComfortClean Dishwasher-Safe Grates

Fast cleaning: Remove the pot rests and wash in the dishwasher. Fast clean-up with dishwasher-safe grates.


Protection for immaculate stainless steel surfaces
Clean Touch Steel™Front

No fingerprints on stainless steel: surface has special finish which keeps clean without special cleaning agents.


User convenience

Elegant back-lighting
Backlit Precision Knobs

With QuickStart there's no need to press or hold the control in order to switch the burners on.


Special features

Everything is cooked to perfection
M Pro Infrared Griddle

The M Pro infrared griddle delivers even heat distribution. From French toast, pancakes, eggs, fish or steaks.


Perfect results with the simmer function
Continuous simmer

The perfect temperature and even heat for simmering: Whether you are melting chocolate or thickening a sauce.


Downloads

Product sheet
PDF
Downloads
Warranty conditions
PDF
Downloads
Operating and Installation instructions
PDF
Downloads
fbx
ZIP
Downloads
rvt
ZIP
Downloads
rfa
ZIP
Downloads
dwg
ZIP
Downloads
ifc
ZIP
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts.

https://media.miele.com/images/2000013/200001369/20000136987.png
Descriptions
KMR1354 G/LP, KMR1355 G/LP, KMR1356 G/LP, KMR1354-3, KMR1355-3, KMR1356-3 (installation drawings)
1) Side view, 2) Front view, 3) Rear view, 4) Gas connection, 5) Electrical connection,
