  • Miele - KMR 1136-3 G GD EDST/CLST – Ranges - 1
  • Miele - KMR 1136-3 G GD EDST/CLST – Ranges - 2
36-inch Range TopGold

KMR 1136-3 G GD EDST/CLST

with 4 burners and griddle plate for flexibility and high performance
sale price$6,499.00


Product details

  • Professional design - 36 (914) in (mm) wide in stainless steel with Clean Touch Steel™ finishing
  • Direct control - metal knobs with light ring
  • Easy cleaning - ComfortClean dishwasher-safe grates
  • Broad performance spectrum – burner w. up to
    19,500 BTU (5.7 kW)
  • Convenient and safe - automatic re-ignition for all burners
  • View manufacturer details:
  • Safety information

Product data sheet

Model number
KMR 1136-3 G GD EDST/CLST
Manufacturer material number
11852460
EAN number
4002516495437
Marketing class
Gold
Rangetop
Casing
Stainless steel
Front panel
CleanSteel
Genuine metal knobs
Cast iron pot rests (matte black enameled)
Number of gas burners
4
Number of griddle surfaces
1
Position
front left
Type
Ultra high-speed burner
Minimum power output in BTU/hr
1700
Maximum power output in BTU/hr
19500
Max. rating in W
5700
Position
rear left
Type
High-speed burner
Minimum power output in BTU/hr
1200
Maximum power output in BTU/hr
12500
Max. rating in W
2300
Position
Centered
Type
Griddle surface
Maximum power output in BTU/hr
13000
Max. rating in W
5600
Position
rear right
Type
High-speed burner
Minimum power output in BTU/hr
1700
Maximum power output in BTU/hr
19500
Max. rating in W
2600
Position
front right
Type
Ultra high-speed burner
Minimum power output in BTU/hr
1700
Maximum power output in BTU/hr
19500
Max. rating in W
5700
True Simmer function
Width of griddle surface in in.(mm)
10 1/4 (258)
Depth of griddle surface in in.(mm)
17 1/8 (434)
Operation via genuine metal knobs with backlit
Dishwasher-safe trivets
Single-piece cooktop surround
Automatic re-ignition
Dimensions (width) in in. (mm)
36 (914)
Dimensions (height) in in. (mm)
7 1/2 (191)
Dimensions (depth) in in. (mm) with bullnose
27 1/4 (692)
Dimensions (depth) in in. (mm) without bullnose
25 5/8 (650)
Weight in lbs. (kg)
152 (69)
Total output in BTU/hr
84000
Total connected load in kW
24.600
Voltage in V
120
Fuse rating in A
10
Number of phases
1
Power cord length in in. (m)
3 (1.2)
Plug type
US grounded plug
EAN
4002516495437
  • Everything is cooked to perfection
    Everything is cooked to perfection

    M Pro Infrared Griddle

    The M Pro infrared griddle delivers even heat distribution. From French toast, pancakes, eggs, fish or steaks.

  • Efficiently protects and makes cleaning easier
    Efficiently protects and makes cleaning easier

    ComfortClean Dishwasher-Safe Grates

    Fast cleaning: Remove the pot rests and wash in the dishwasher. Fast clean-up with dishwasher-safe grates.

  • Perfect results with the simmer function
    Perfect results with the simmer function

    Continuous simmer

    The perfect temperature and even heat for simmering: Whether you are melting chocolate or thickening a sauce.

  • Elegant back-lighting
    Elegant back-lighting

    Backlit Precision Knobs

    With QuickStart there's no need to press or hold the control in order to switch the burners on.

  • Protection for immaculate stainless steel surfaces
    Protection for immaculate stainless steel surfaces

    Clean Touch Steel™Front

    No fingerprints on stainless steel: surface has special finish which keeps clean without special cleaning agents.

Maintenance

Efficiently protects and makes cleaning easier
Efficiently protects and makes cleaning easier

ComfortClean Dishwasher-Safe Grates

Fast cleaning: Remove the pot rests and wash in the dishwasher. Fast clean-up with dishwasher-safe grates.
Protection for immaculate stainless steel surfaces
Protection for immaculate stainless steel surfaces

Clean Touch Steel™Front

No fingerprints on stainless steel: surface has special finish which keeps clean without special cleaning agents.

User convenience

Elegant back-lighting
Elegant back-lighting

Backlit Precision Knobs

With QuickStart there's no need to press or hold the control in order to switch the burners on.

Convenience features

Everything is cooked to perfection
Everything is cooked to perfection

M Pro Infrared Griddle

The M Pro infrared griddle delivers even heat distribution. From French toast, pancakes, eggs, fish or steaks.
Perfect results with the simmer function
Perfect results with the simmer function

Continuous simmer

The perfect temperature and even heat for simmering: Whether you are melting chocolate or thickening a sauce.

Downloads

Operating and Installation instructions
PDF
Download
Product sheet
PDF
Download
Warranty conditions
PDF
Download
dwg
ZIP
Download
fbx
ZIP
Download
ifc
ZIP
Download
rfa
ZIP
Download
rvt
ZIP
Download

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts.

https://media.miele.com/dam/b295b96c-8db2-4335-9307-b3bd0044fea1/20000130855_HighresDigitalRGB.png
Descriptions

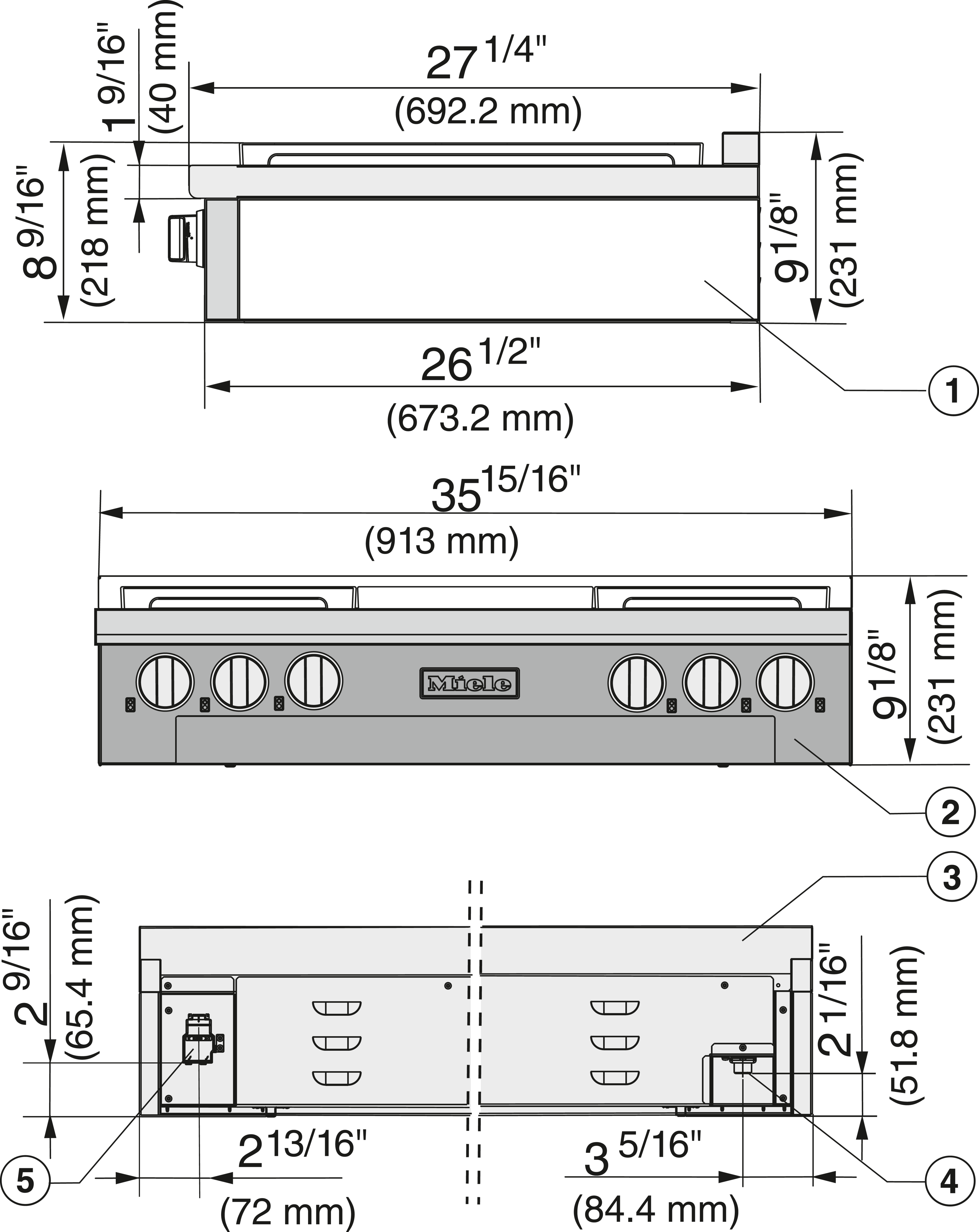

KMR1134, KMR1135, KMR1136, KMR1134-3, KMR1135-3, KMR1136-3 (Installation drawing)
1) Side view, 2) Front view, 3) Rear view, 4) Gas Connection, 5) Electrical connection
POSTSCRIPT
Download

We reserve the right to make technical changes; we assume no liability for the accuracy of the information provided.
